LTM8063 Datasheet

LTM8063 Datasheet

40VIN, 2A Silent Switcher µModule Regulator
Part No.: LTM8063
Page: 24 Pages
Size: 1688 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-05 22:47:25
DataSheet: Download

LTM8063 Datasheet Applicable Part

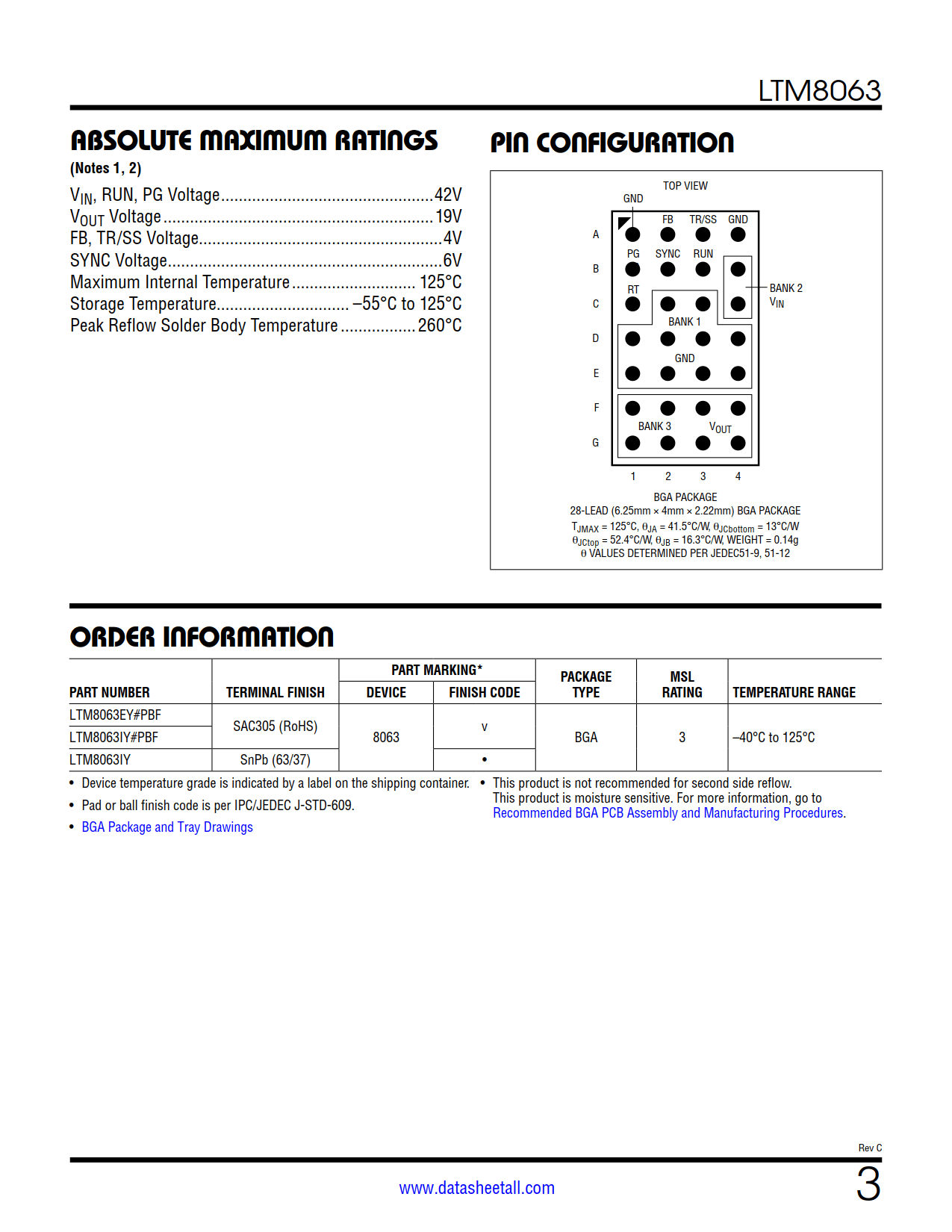

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8063EY#PBF Tray 490 8063 3 28 -40°C ~ 125°C 28-Lead BGA (6.25mm x 4mm x 2.22mm)
LTM8063IY#PBF Tray 490 8063 3 28 -40°C ~ 125°C 28-Lead BGA (6.25mm x 4mm x 2.22mm)
LTM8063IY Tray 490 8063 3 28 -40°C ~ 125°C 28-Lead BGA (6.25mm x 4mm x 2.22mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8063 Datasheet(PDF)

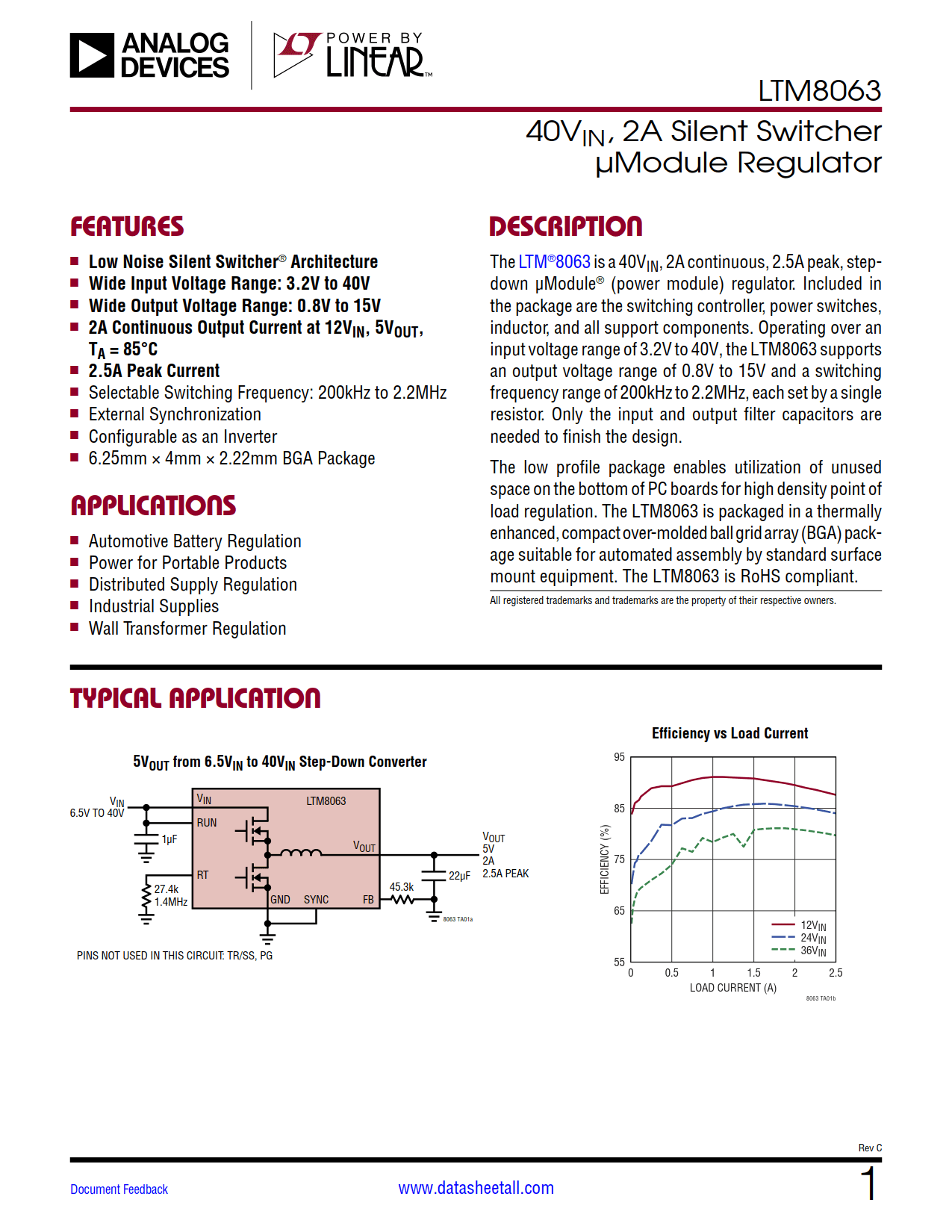

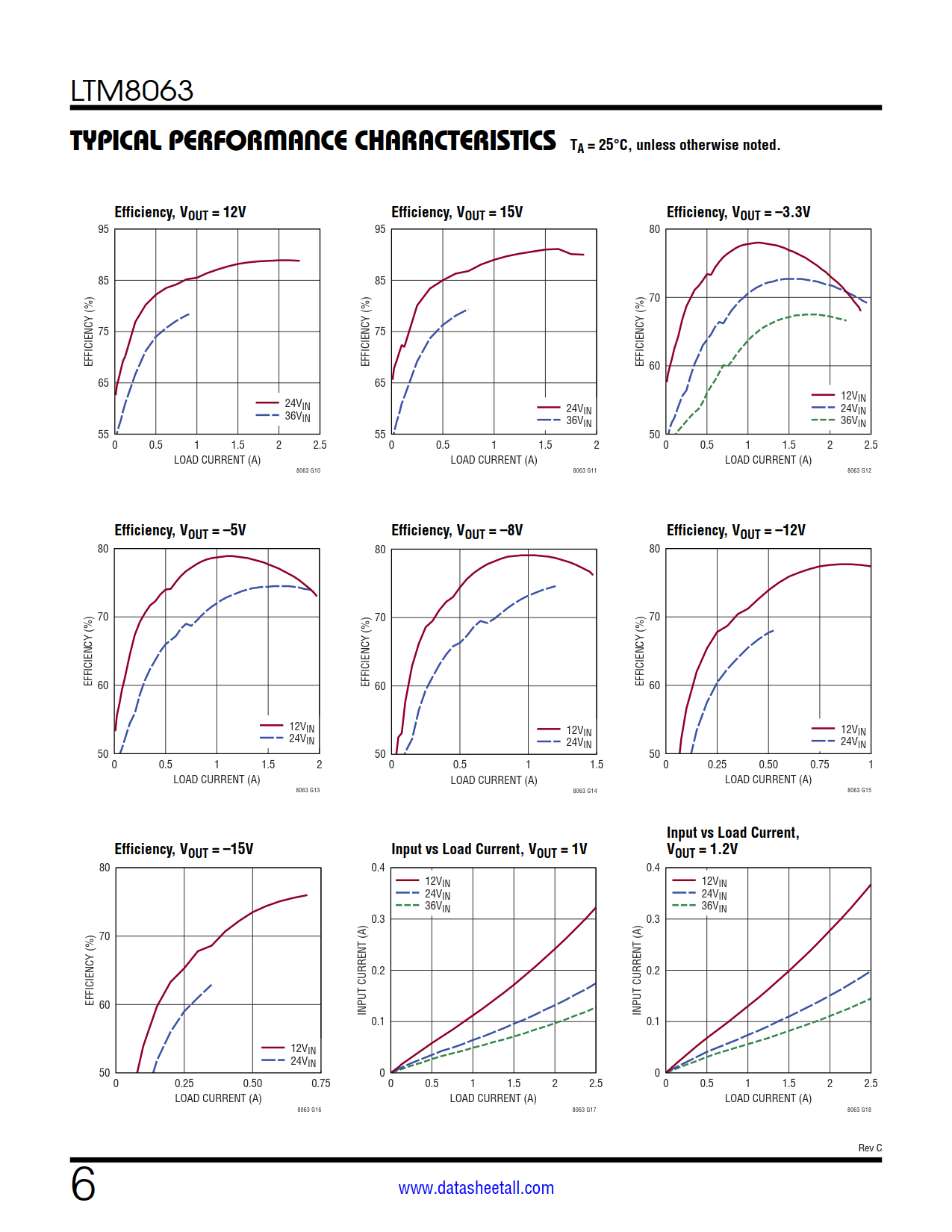

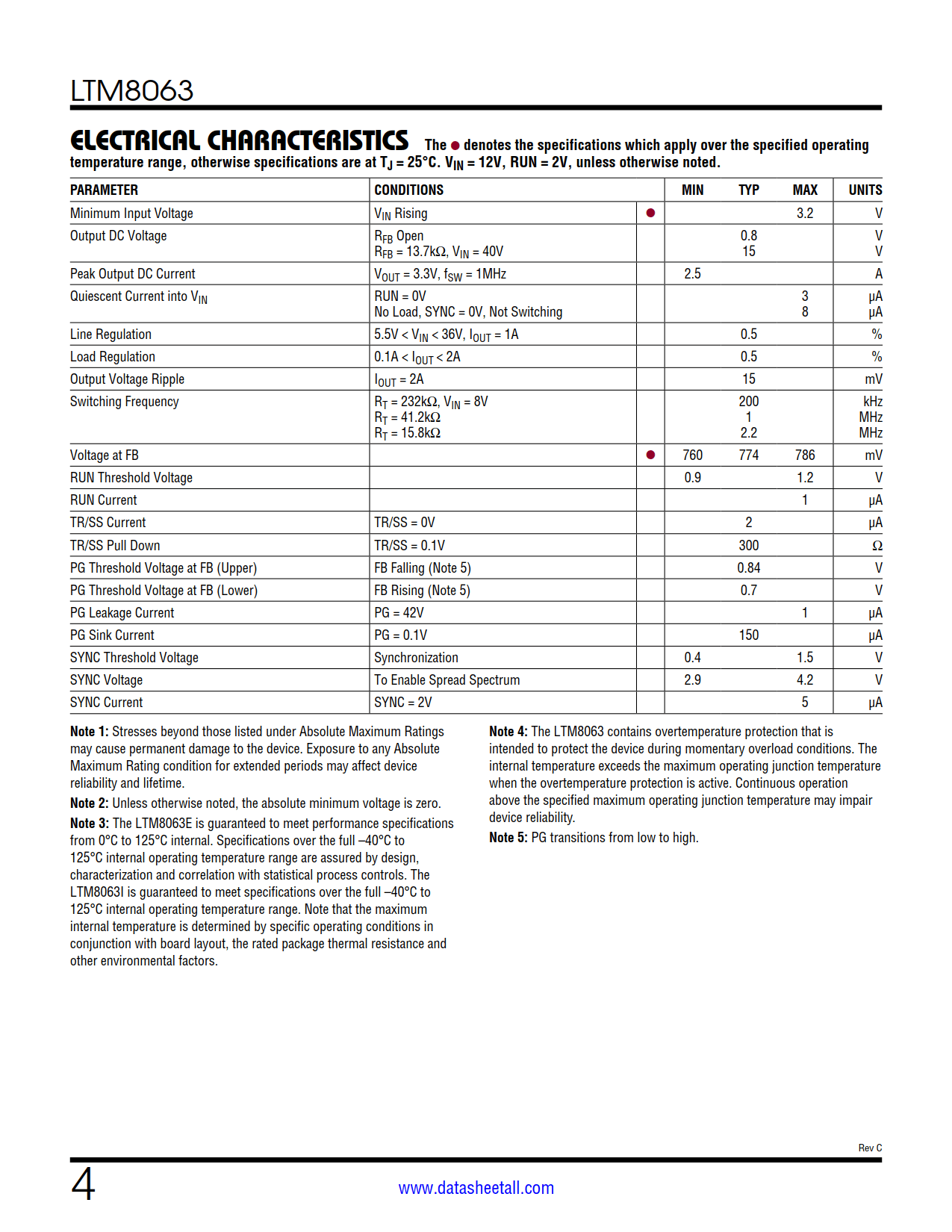

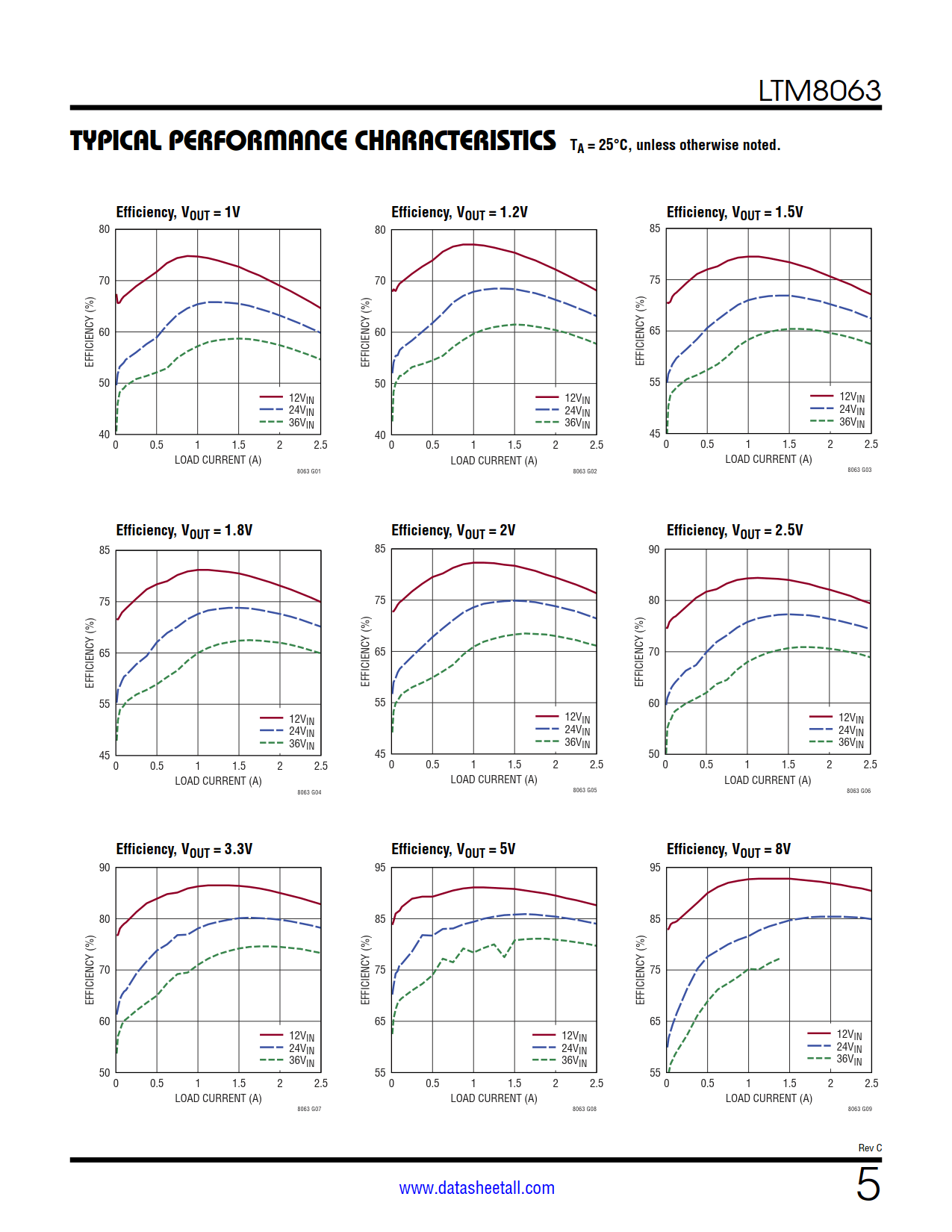

LTM8063 Datasheet(Picture)

LTM8063 Features

  • Low Noise Silent Switcher® Architecture
  • Wide Input Voltage Range: 3.2V to 40V
  • Wide Output Voltage Range: 0.8V to 15V
  • 2A Continuous Output Current at 12VIN, 5VOUT, TA = 85°C
  • 2.5A Peak Current
  • Selectable Switching Frequency: 200kHz to 2.2MHz
  • External Synchronization
  • Configurable as an Inverter
  • 6.25mm × 4mm × 2.22mm BGA Package

LTM8063 Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation

LTM8063 Description

The LTM8063 is a 40VIN, 2A continuous, 2.5A peak, step-down µModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.2V to 40V, the LTM8063 supports an output voltage range of 0.8V to 15V and a switching frequency range of 200kHz to 2.2MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8063 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8063 is RoHS compliant.
