LTM8060F Datasheet

LTM8060F Datasheet

Quad 40VIN, 3A Silent Switcher μModule Regulator with Package-Level EMI Shield
Part No.: LTM8060F
Page: 43 Pages
Size: 1161 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 15:58:16
DataSheet: Download

LTM8060F Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8060FEV#PBF Tray 112 LTM8060FV 1 165 -40°C ~ 125°C 165-Lead (16mm × 11.9mm × 3.32mm)
LTM8060FIV#PBF Tray 112 LTM8060FV 1 165 -40°C ~ 125°C 165-Lead (16mm × 11.9mm × 3.32mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8060F Datasheet(PDF)

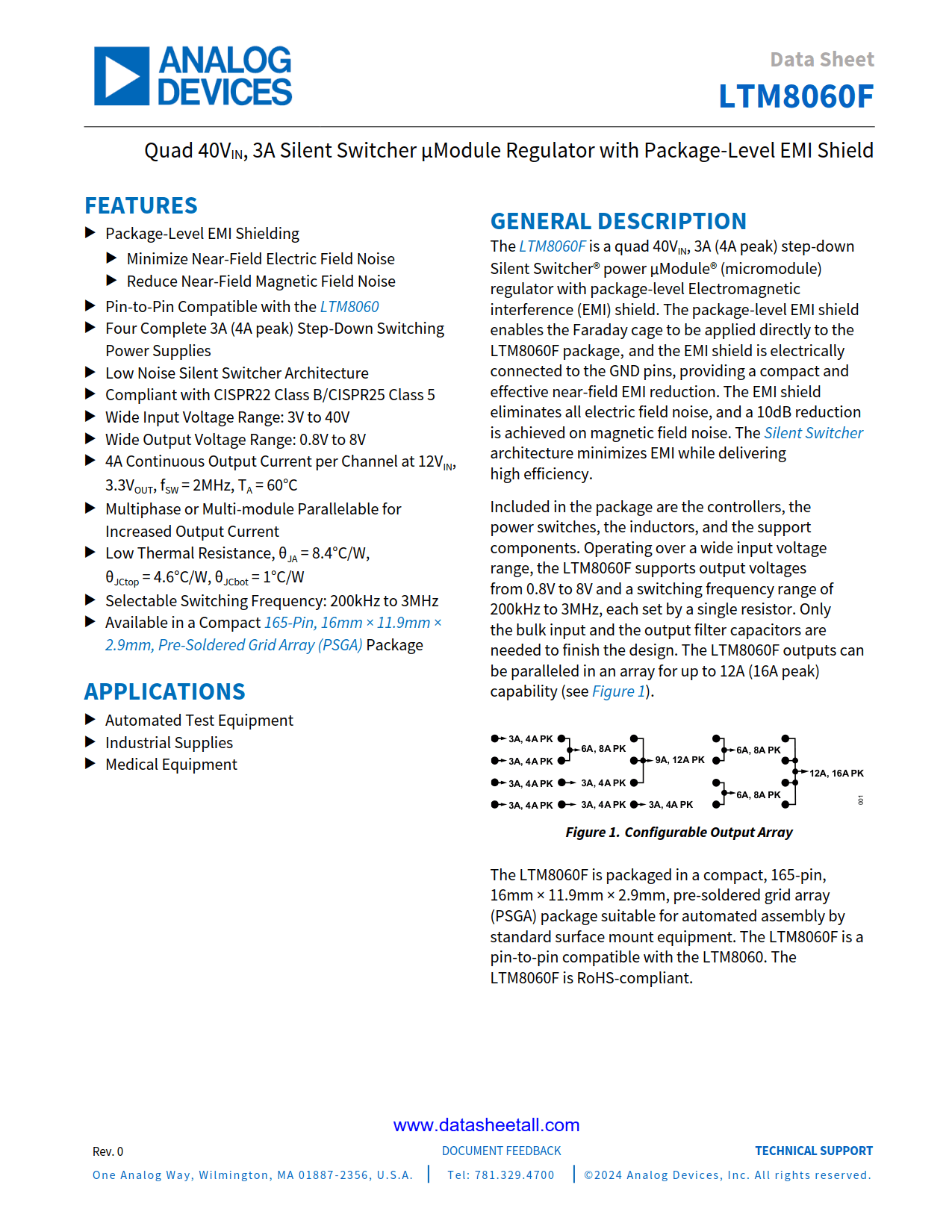

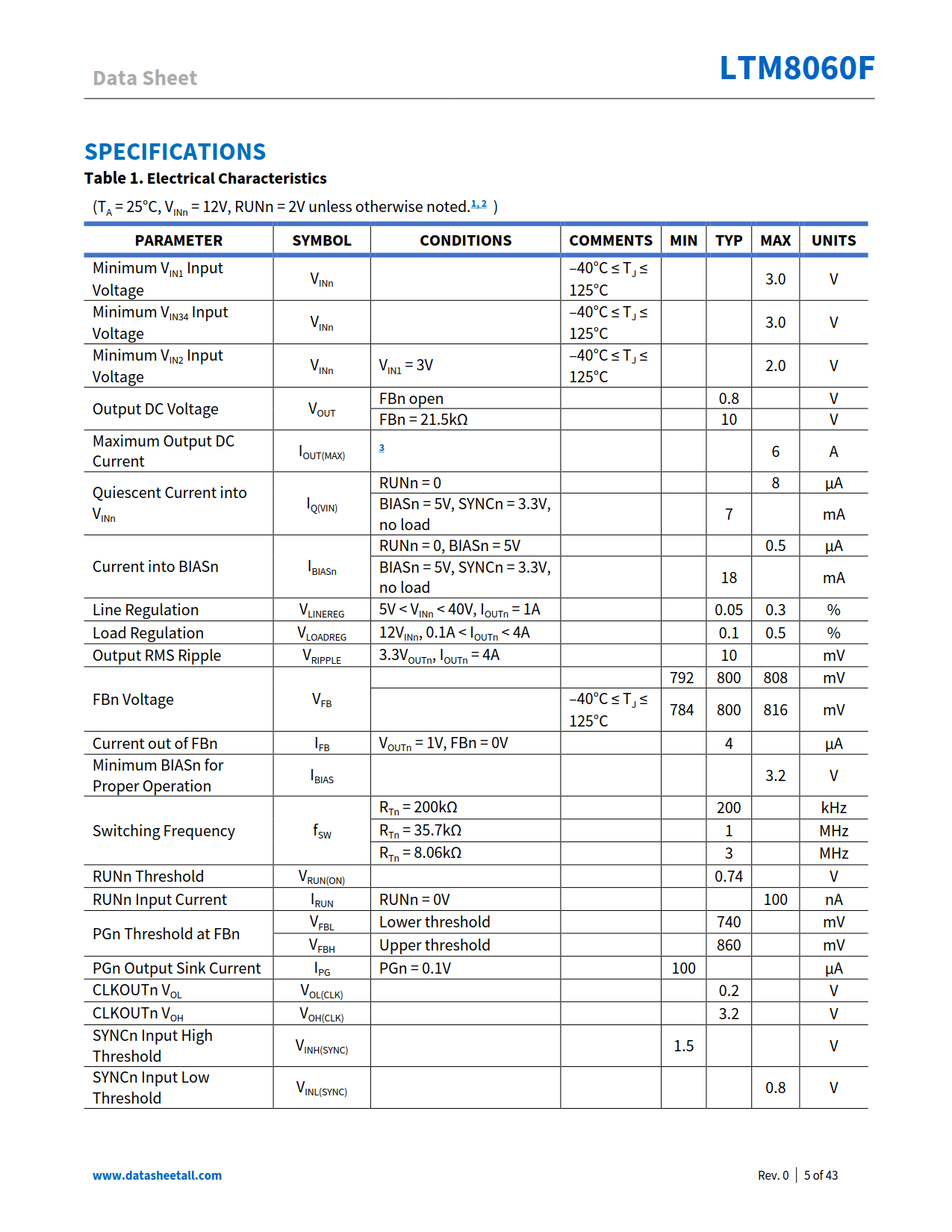

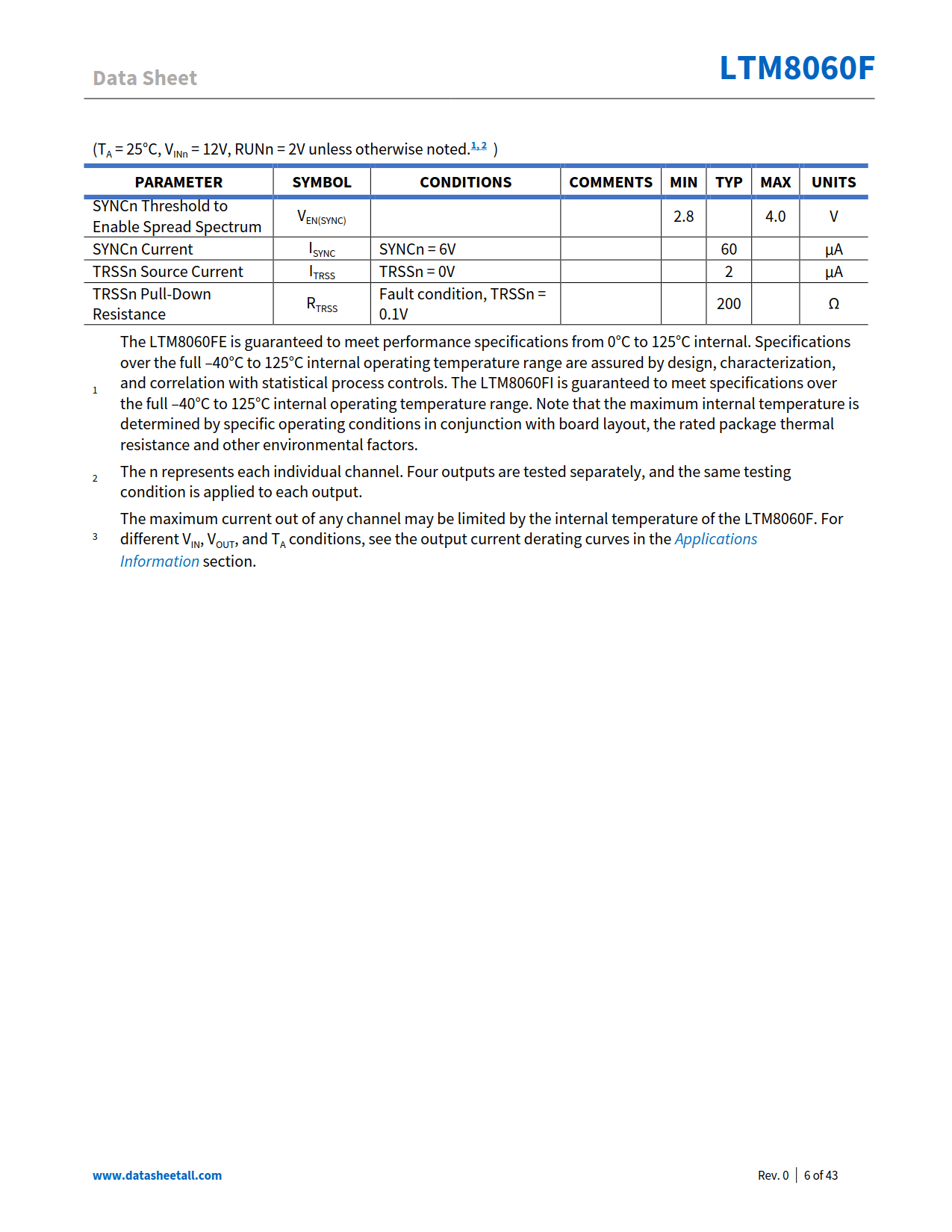

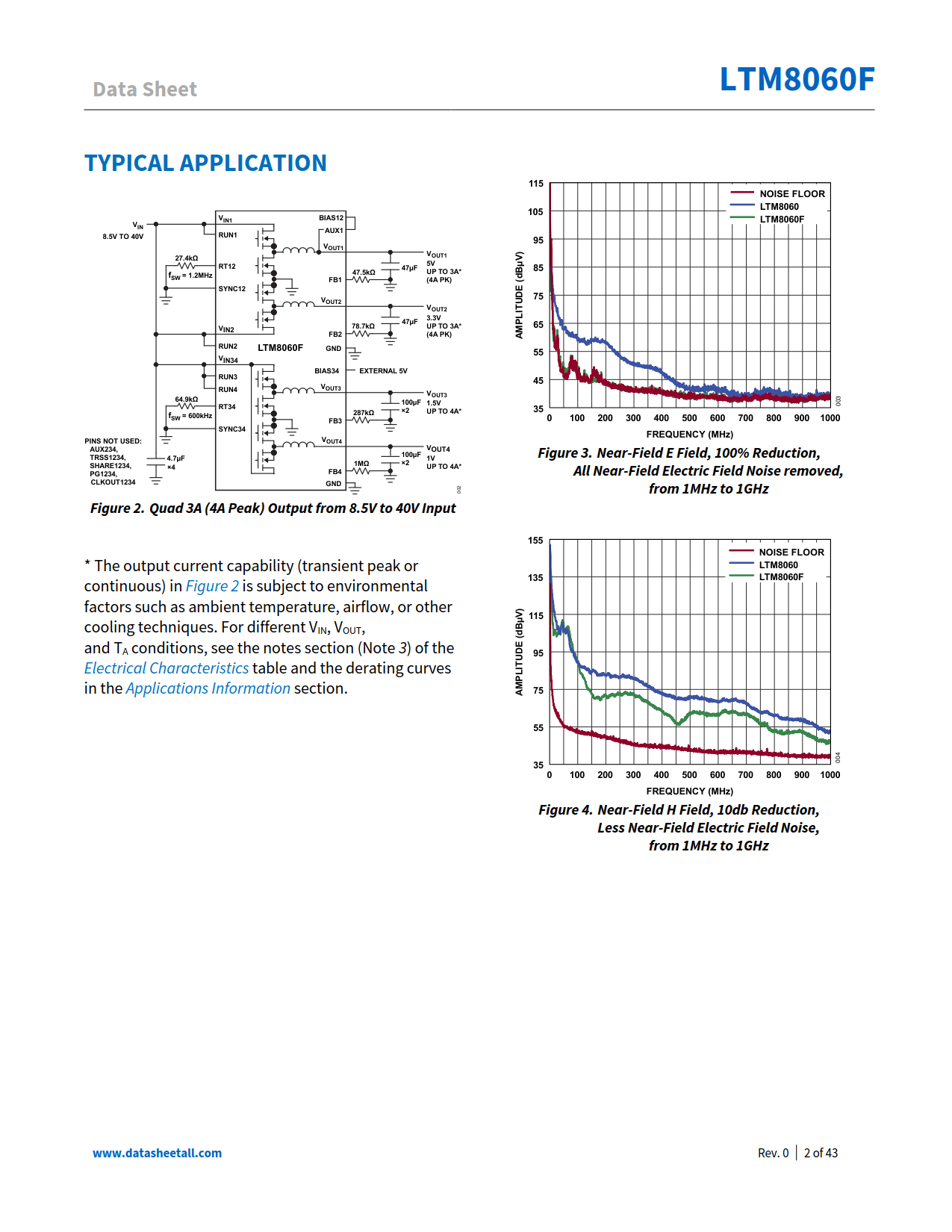

LTM8060F Datasheet(Picture)

LTM8060F Features

  • Package-Level EMI Shielding
  • Minimize Near-Field Electric Field Noise
  • Reduce Near-Field Magnetic Field Noise
  • Pin-to-Pin Compatible with the LTM8060
  • Four Complete 3A (4A peak) Step-Down SwitchingPower Supplies
  • Low Noise Silent Switcher Architecture
  • Compliant with CISPR22 Class B/CISPR25 Class 5
  • Wide Input Voltage Range: 3V to 40V
  • Wide Output Voltage Range: 0.8V to 8V
  • 4A Continuous Output Current per Channel at 12VIN,3.3VOUT, fSW = 2MHz, TA = 60°C
  • Multiphase or Multi-module Parallelable forIncreased Output Current
  • Low Thermal Resistance, θJA = 8.4°C/W,θJCtop = 4.6°C/W, θJCbot = 1°C/W
  • Selectable Switching Frequency: 200kHz to 3MHz
  • Available in a Compact 165-Pin, 16mm × 11.9mm ×2.9mm, Pre-Soldered Grid Array (PSGA) Package

LTM8060F Applications

  • Automated Test Equipment
  • Industrial Supplies
  • Medical Equipment

LTM8060F Description

The LTM8060F is a quad 40VIN, 3A (4A peak) step-down Silent Switcher® power μModule® (micromodule) regulator with package-level Electromagnetic interference (EMI) shield. The package-level EMI shield enables the Faraday cage to be applied directly to the LTM8060F package, and the EMI shield is electrically connected to the GND pins, providing a compact and effective near-field EMI reduction. The EMI shield eliminates all electric field noise, and a 10dB reduction is achieved on magnetic field noise. The Silent Switcher architecture minimizes EMI while delivering high efficiency.

Included in the package are the controllers, the power switches, the inductors, and the support components. Operating over a wide input voltage range, the LTM8060F supports output voltages from 0.8V to 8V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and the output filter capacitors are needed to finish the design. The LTM8060F outputs can be paralleled in an array for up to 12A (16A peak) capability.
