| Part No.： | LTM8052A |
| Page： | 32 Pages |
| Size： | 644 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-11-25 14:06:48 |
| DataSheet： | Download |

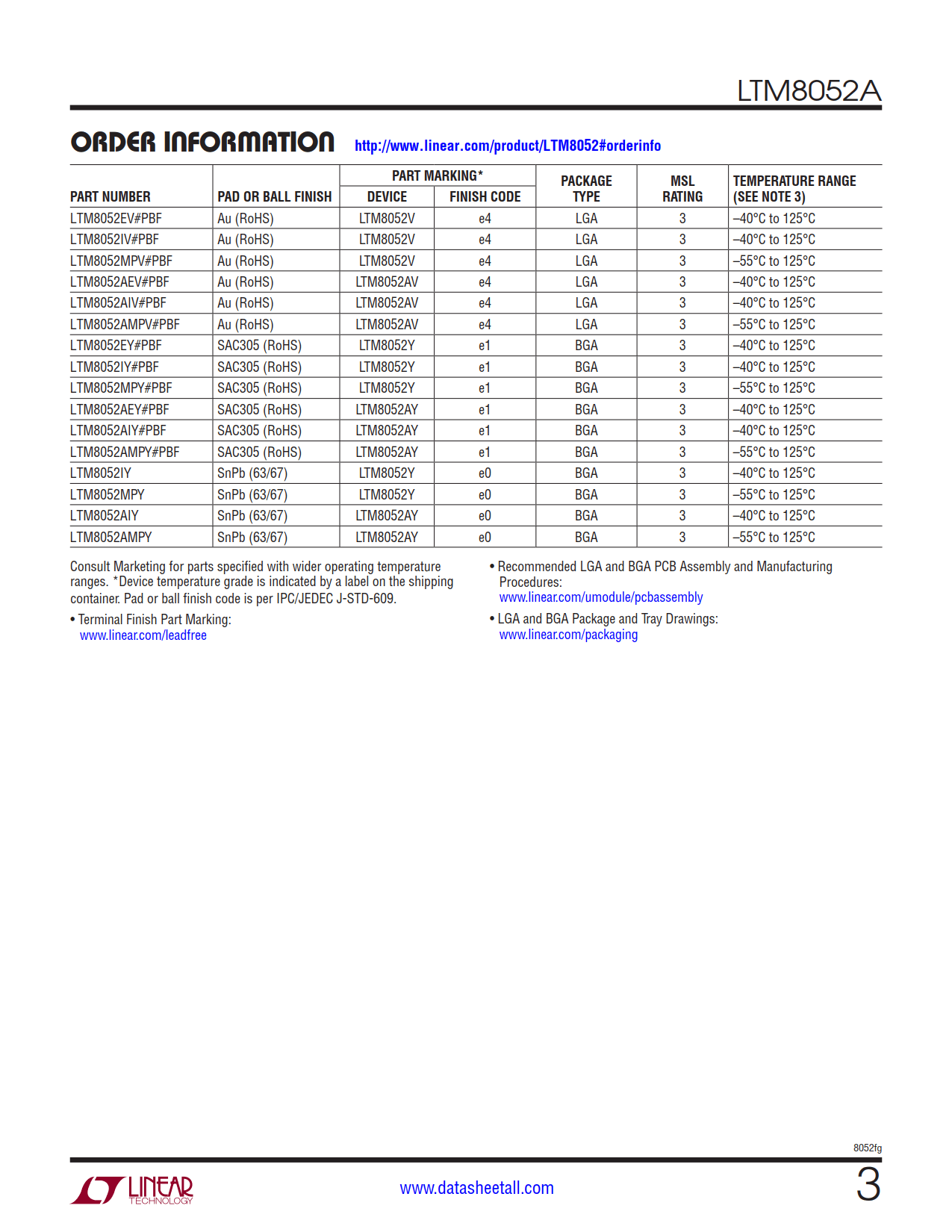

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM8052AEV#PBF | Tray | 119 | LTM8052AV | 3 | 81 | -40°C ~125°C | 81-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM8052AIV#PBF | Tray | 119 | LTM8052AV | 3 | 81 | -40°C ~125°C | 81-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM8052AMPV#PBF | Tray | 119 | LTM8052AV | 3 | 81 | -55°C ~125°C | 81-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM8052AEY#PBF | Tray | 119 | LTM8052AY | 3 | 81 | -40°C ~125°C | 81-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM8052AIY#PBF | Tray | 119 | LTM8052AY | 3 | 81 | -40°C ~125°C | 81-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM8052AIY | Tray | 119 | LTM8052AY | 3 | 81 | -40°C ~125°C | 81-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM8052AMPY#PBF | Tray | 119 | LTM8052AY | 3 | 81 | -55°C ~125°C | 81-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM8052AMPY | Tray | 119 | LTM8052AY | 3 | 81 | -55°C ~125°C | 81-Lead BGA (15mm x 11.25mm x 3.42mm) |

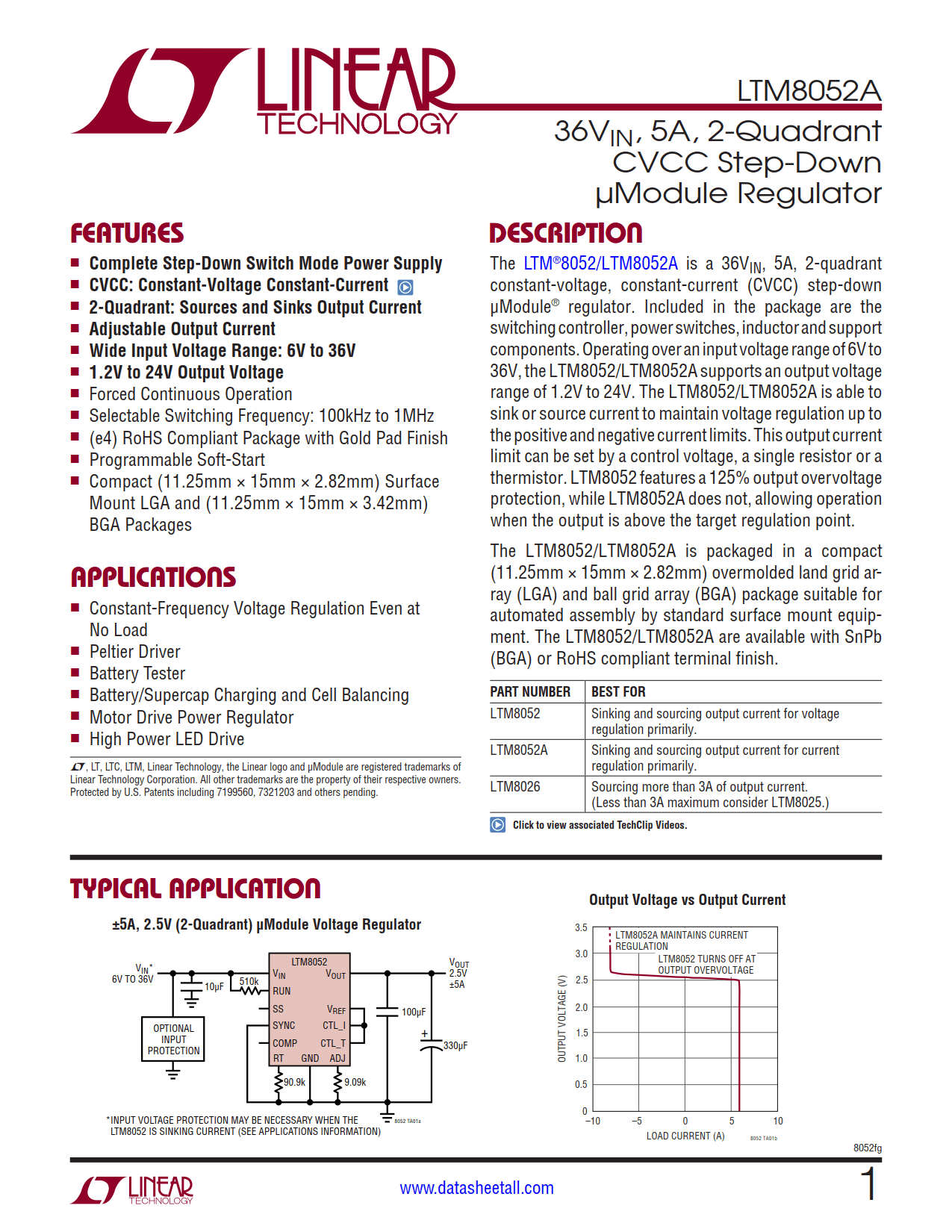

The LTM8052A is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052A supports an output voltage range of 1.2V to 24V. The LTM8052A is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor.
The LTM8052A is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052A are available with SnPb (BGA) or RoHS compliant terminal finish.
