LTM4677 Datasheet

LTM4677 Datasheet

Dual 18A or Single 36A μModule (Power Module) Regulator with Digital Power System Management
Part No.: LTM4677
Page: 132 Pages
Size: 2978 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-11-26 16:08:13
DataSheet: Download

LTM4677 Datasheet Applicable Part

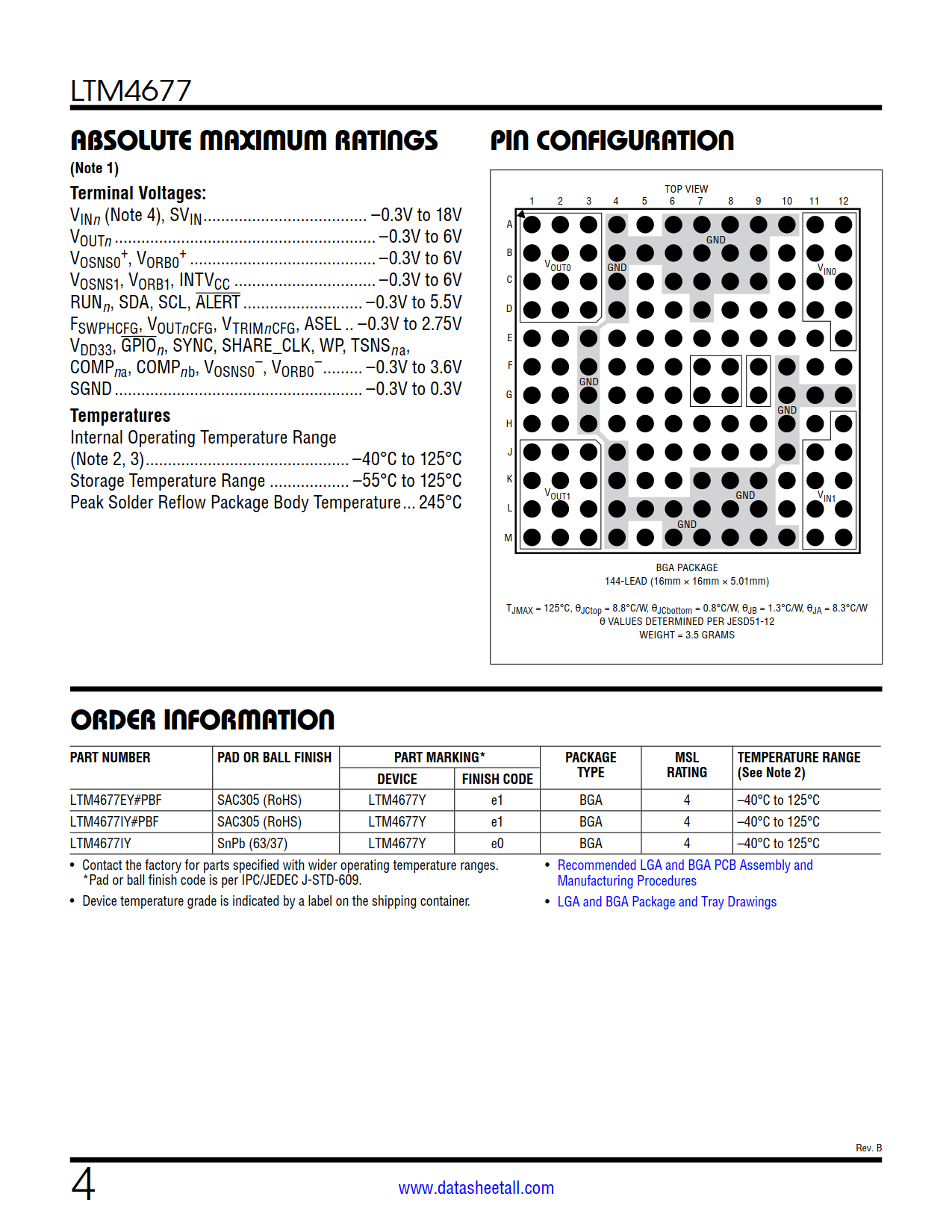

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4677EY#PBF Tray 90 LTM4677Y 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4677IY#PBF Tray 90 LTM4677Y 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4677IY Tray 90 LTM4677Y 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4677 Datasheet(PDF)

LTM4677 Datasheet(Picture)

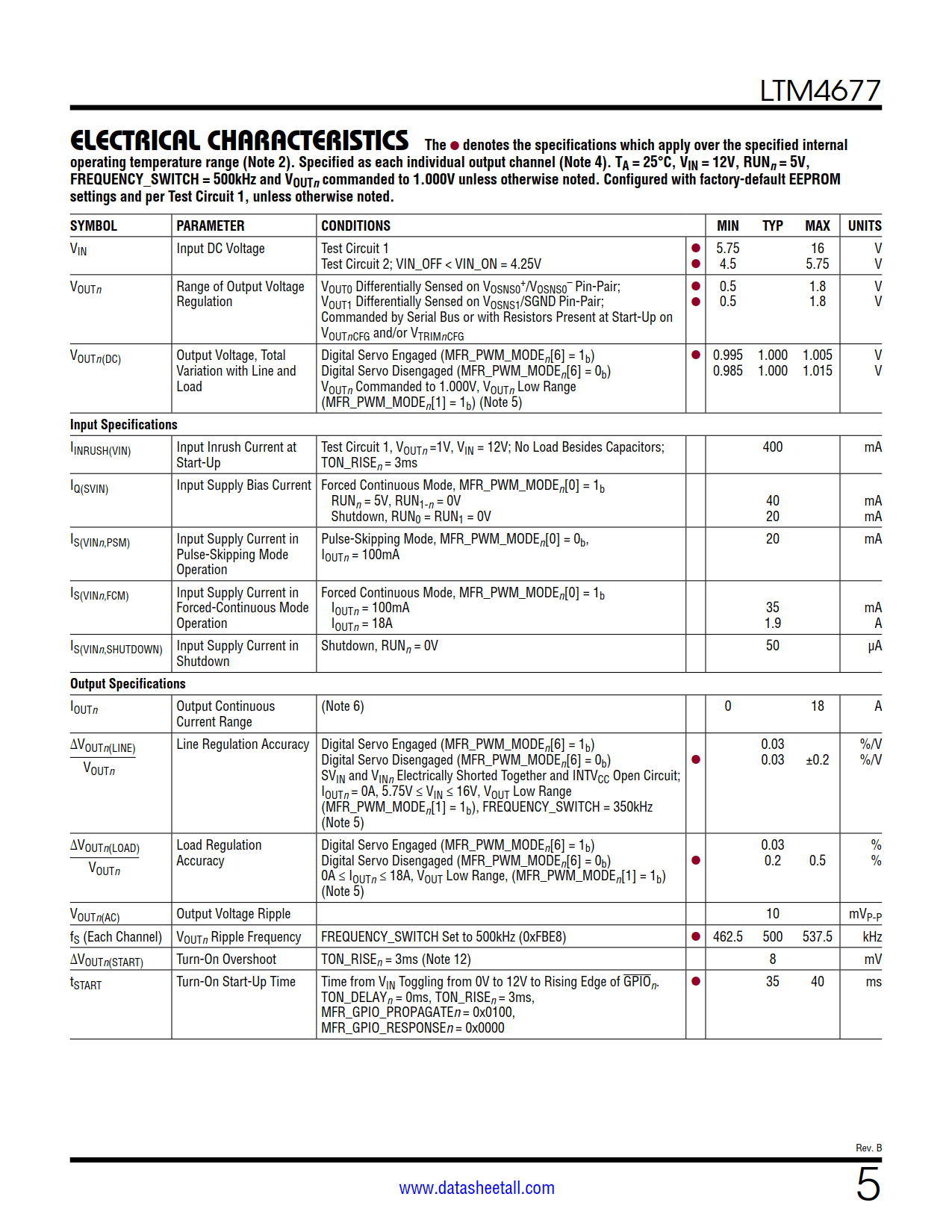

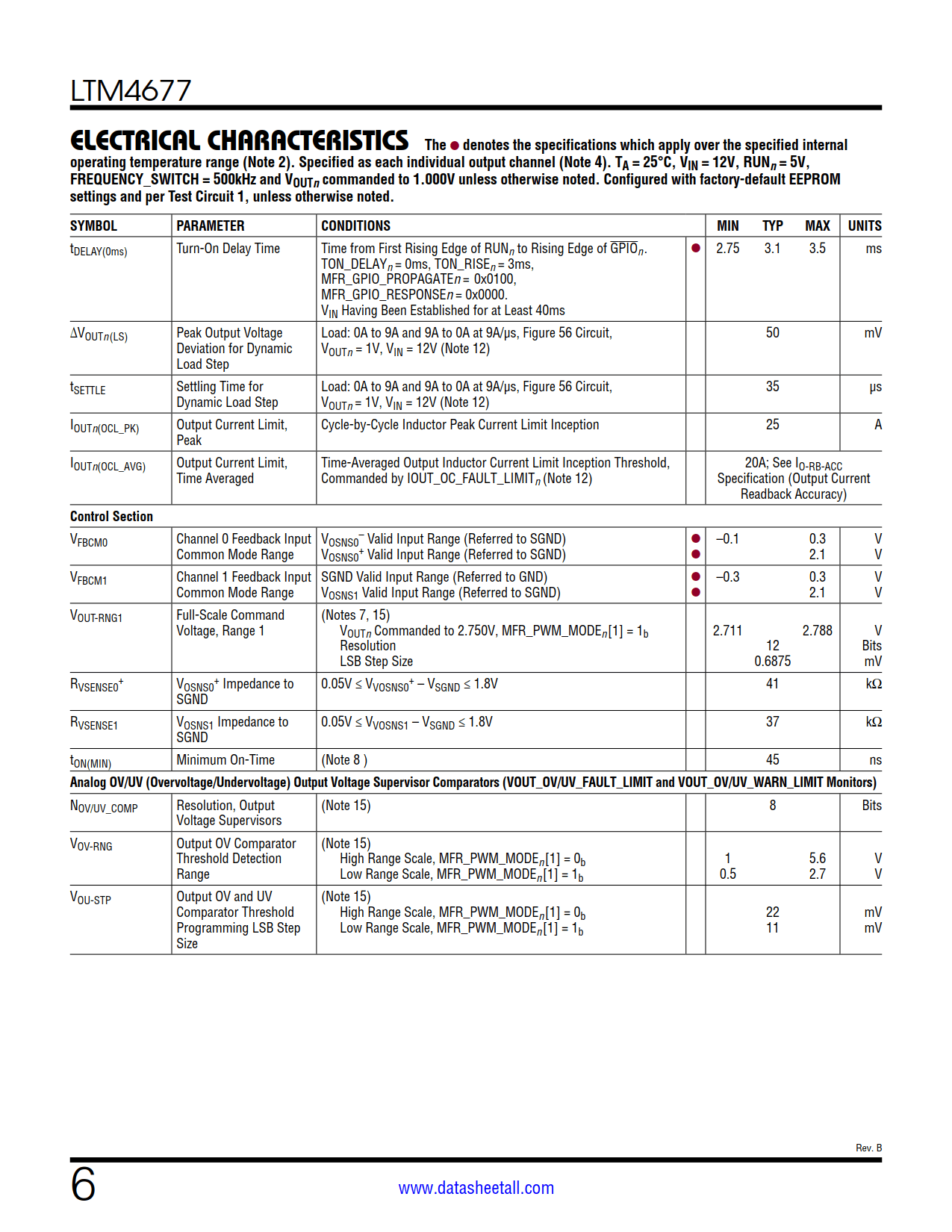

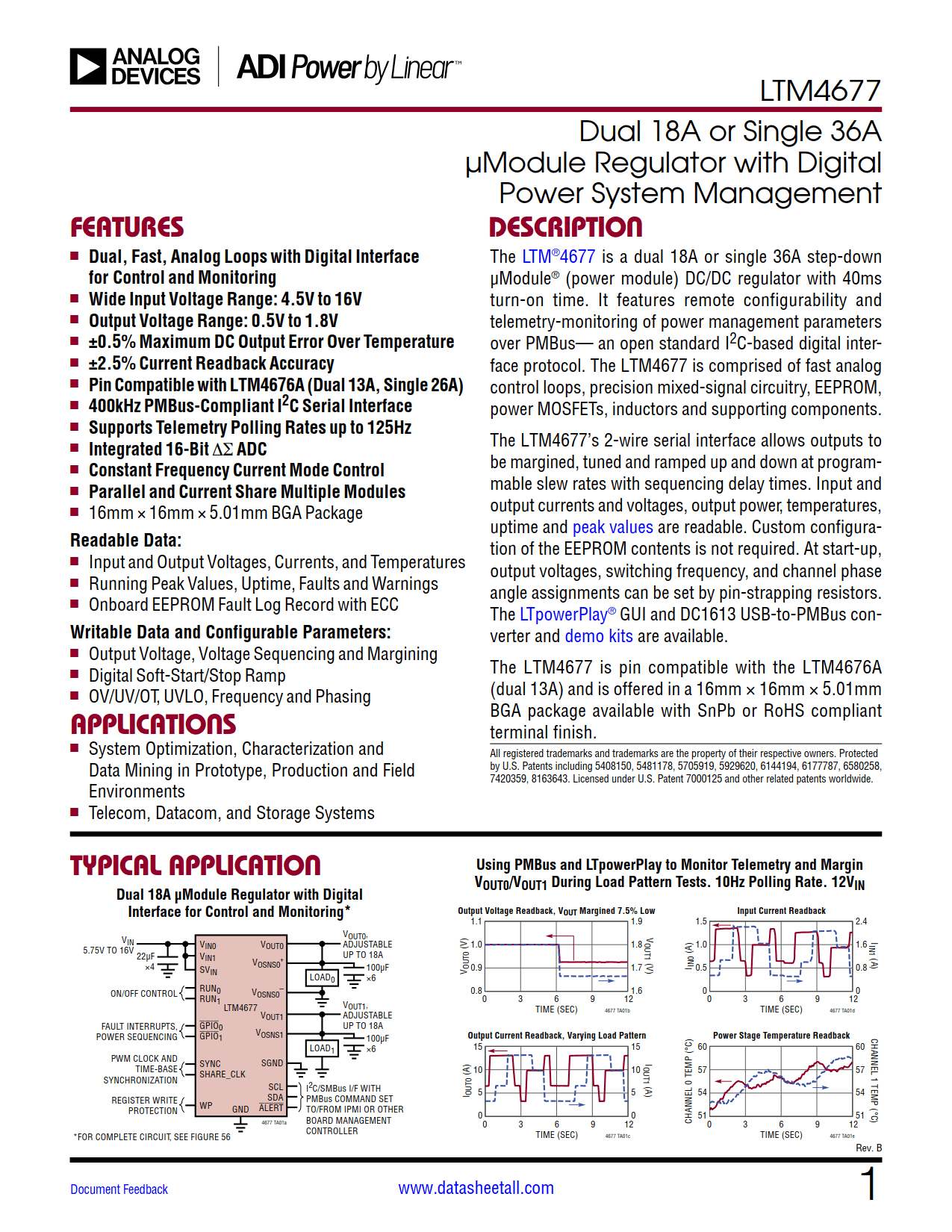

LTM4677 Features

  • Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 16V
  • Output Voltage Range: 0.5V to 1.8V
  • ±0.5% Maximum DC Output Error Over Temperature
  • ±2.5% Current Readback Accuracy
  • Pin Compatible with LTM4676A (Dual 13A, Single 26A)
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Supports Telemetry Polling Rates up to 125Hz
  • Integrated 16-Bit ΔΣ ADC
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Multiple Modules
  • 16mm × 16mm × 5.01mm BGA Package

LTM4677 Applications

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
  • Telecom, Datacom, and Storage Systems

LTM4677 Description

The LTM4677 is a dual 18A or single 36A step-down μModule® (power module) DC/DC regulator with 40ms turn0on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4677 is comprised of fast analog control loops, precision mixedsignal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4677’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.

The LTM4677 is pin compatible with the LTM4676A (dual 13A) and is offered in a 16mm × 16mm × 5.01mm BGA package available with SnPb or RoHS compliant terminal finish.
