Dual 13A or Single 26A μModule Regulator with Digital Power System Management
Part No.: LTM4676A
Page: 136 Pages
Size: 3720 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-11-26 16:05:35
DataSheet: Download

LTM4676A Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4676AEY#PBF Tray 90 LTM4676AY 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4676AIY#PBF Tray 90 LTM4676AY 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4676AIY Tray 90 LTM4676AY 4 144 -40°C ~125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4676A Datasheet(PDF)

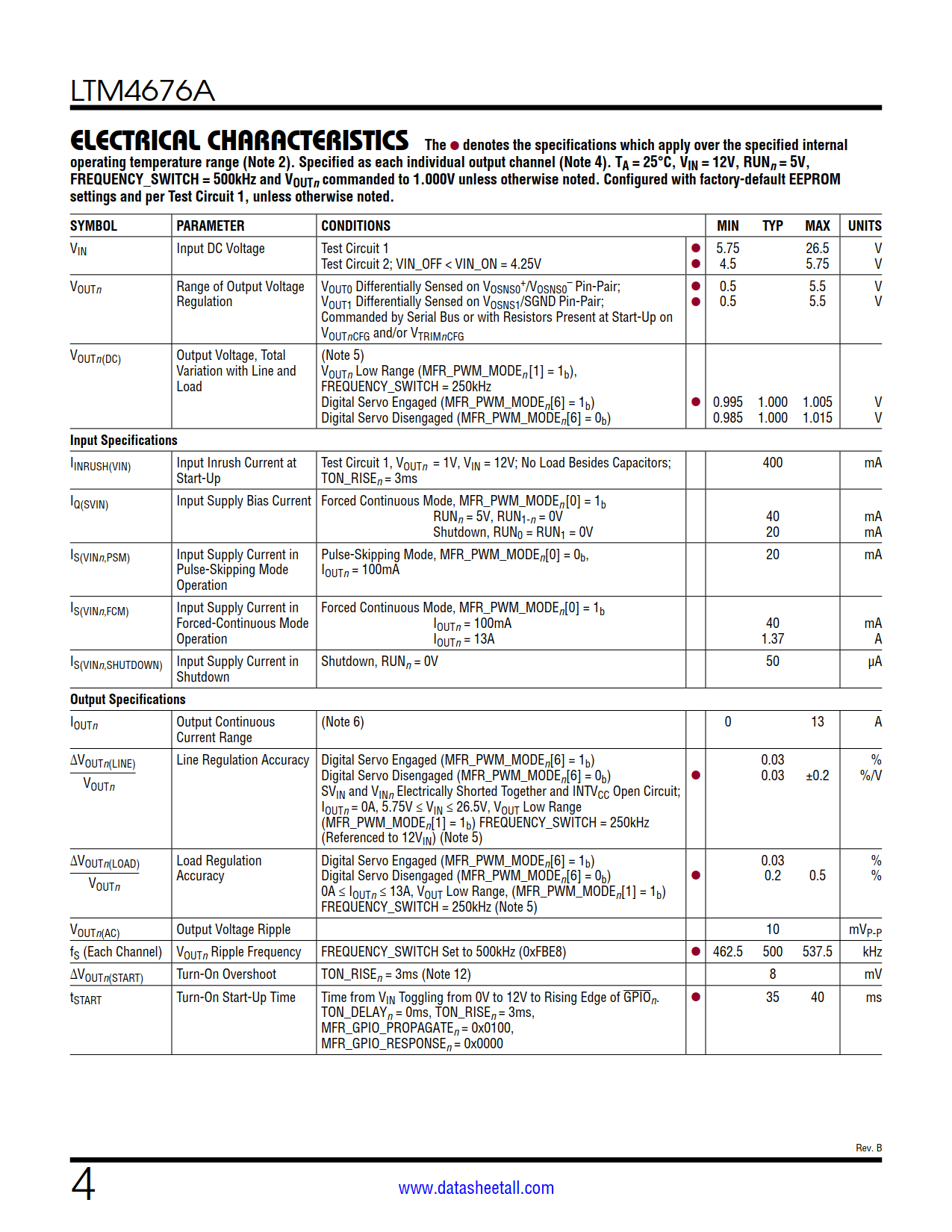

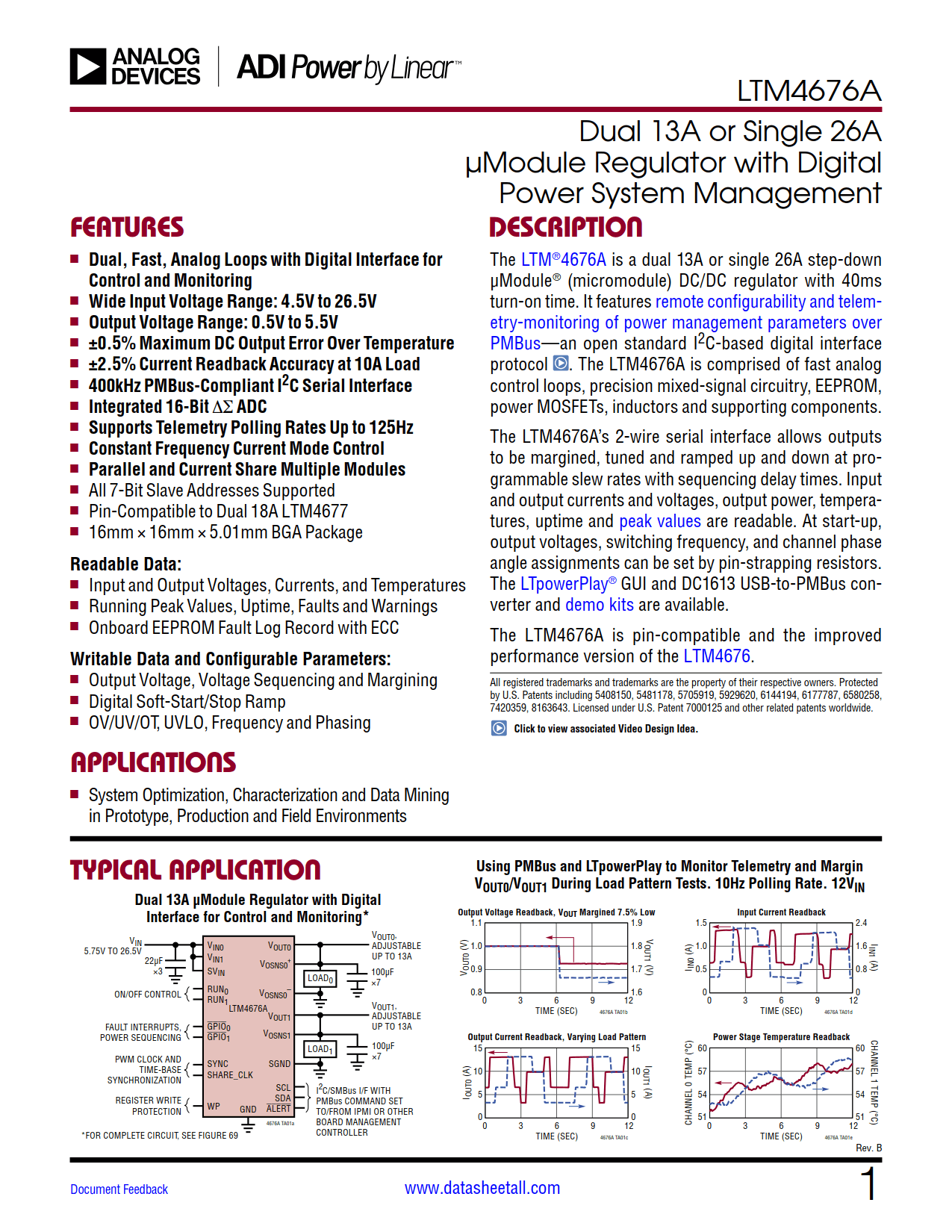

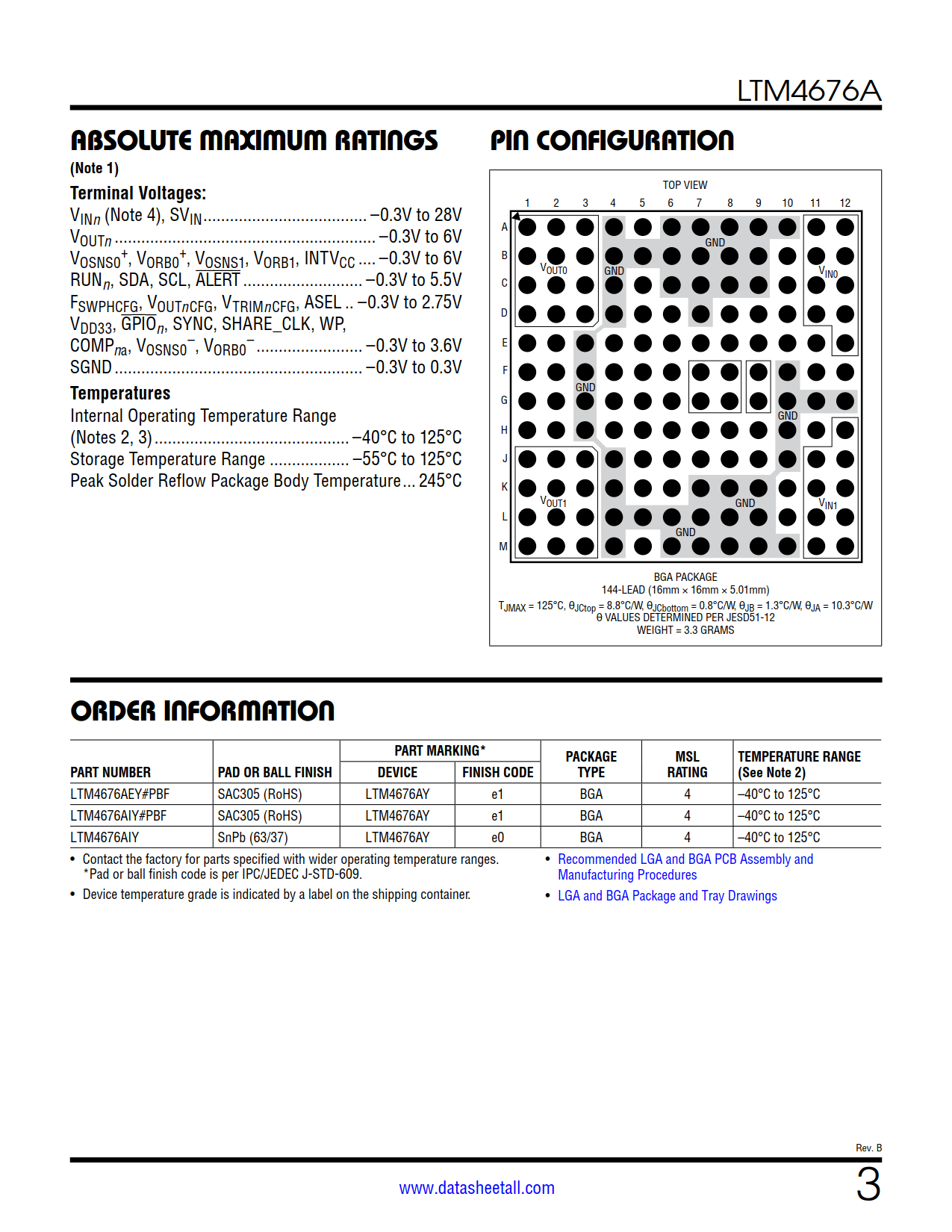

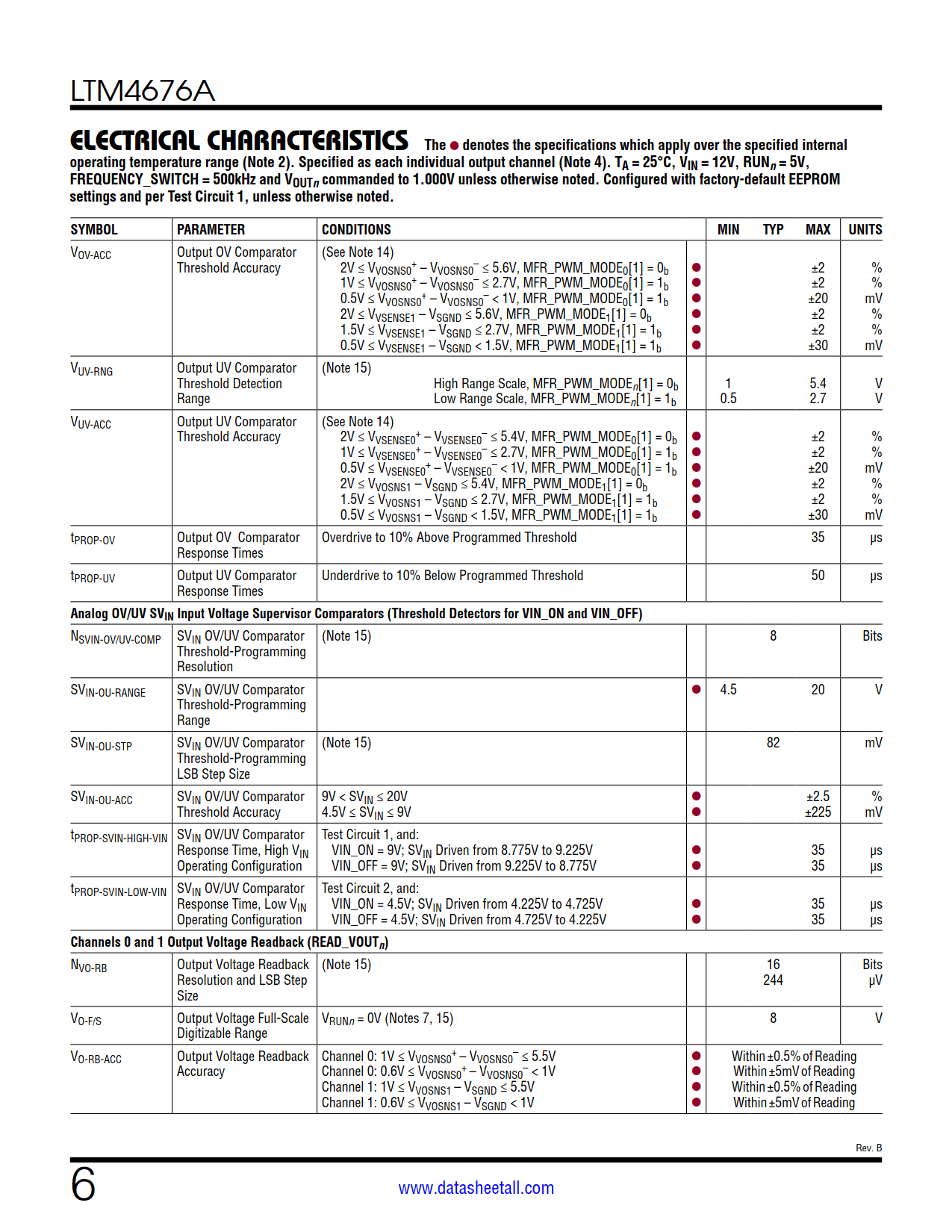

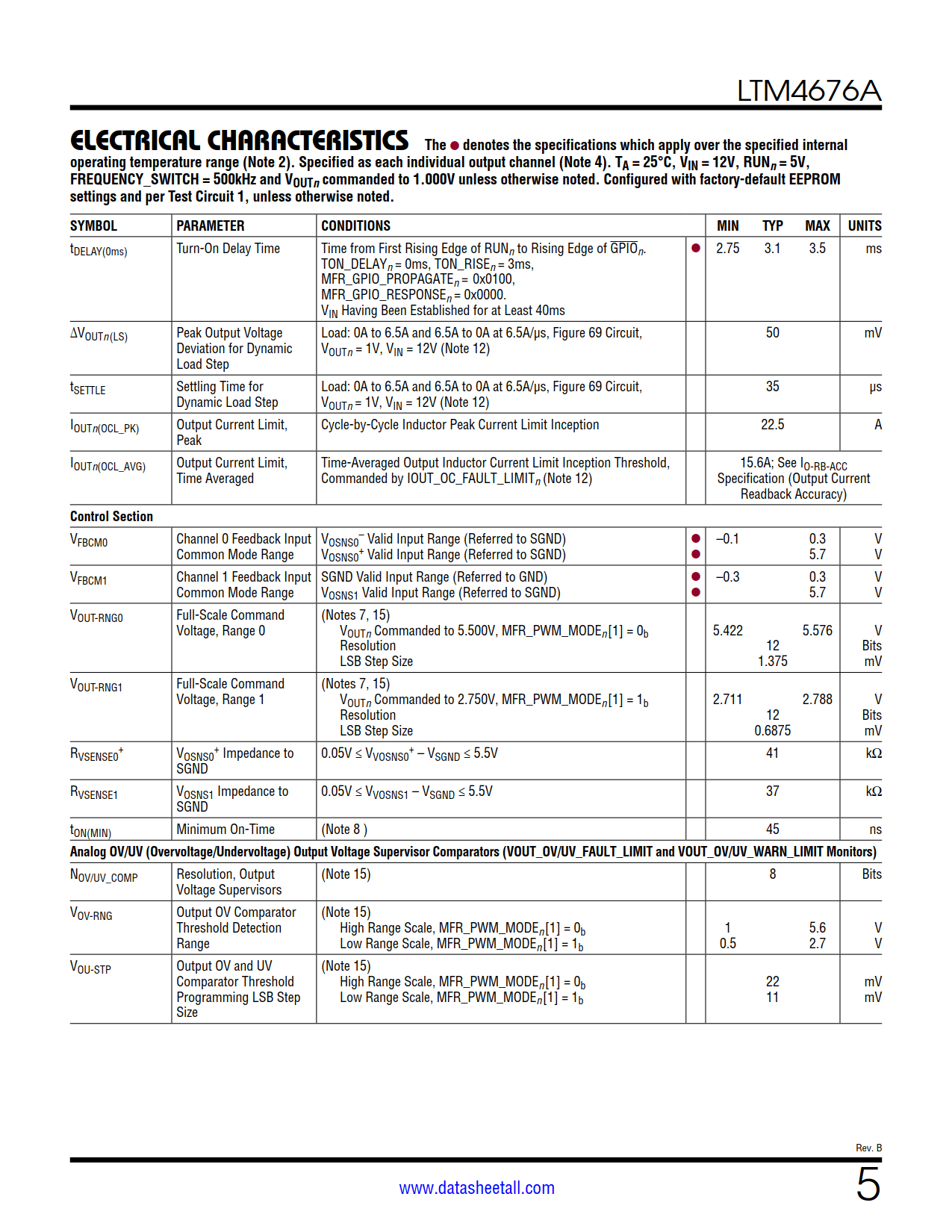

LTM4676A Datasheet(Picture)

LTM4676A Features

  • Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 26.5V
  • Output Voltage Range: 0.5V to 5.5V
  • ±0.5% Maximum DC Output Error Over Temperature
  • ±2.5% Current Readback Accuracy at 10A Load
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Integrated 16-Bit ΔΣ ADC
  • Supports Telemetry Polling Rates Up to 125Hz
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Multiple Modules
  • All 7-Bit Slave Addresses Supported
  • Pin-Compatible to Dual 18A LTM4677
  • 16mm × 16mm × 5.01mm BGA Package

LTM4676A Applications

The LTM4676A is a dual 13A or single 26A step-down µModule® (micromodule) DC/DC regulator with 40ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus— an open standard I2C-based digital interface protocol . The LTM4676A is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4676A’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay GUI and DC1613 USB-to-PMBus converter and demo kits are available.

The LTM4676A is pin-compatible and the improved performance version of the LTM4676.

LTM4676A Description

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
