LTM4650-2 Datasheet

LTM4650-2 Datasheet

Dual 25A or Single 50A μModule Regulator with Active Voltage Positioning
Part No.: LTM4650-2
Page: 36 Pages
Size: 3218 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 15:14:42
DataSheet: Download

LTM4650-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4650EY-2#PBF Tray 90 LTM4650Y-2 4 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4650IY-2#PBF Tray 90 LTM4650Y-2 4 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4650IY-2 Tray 90 LTM4650Y-2 4 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4650-2 Datasheet(PDF)

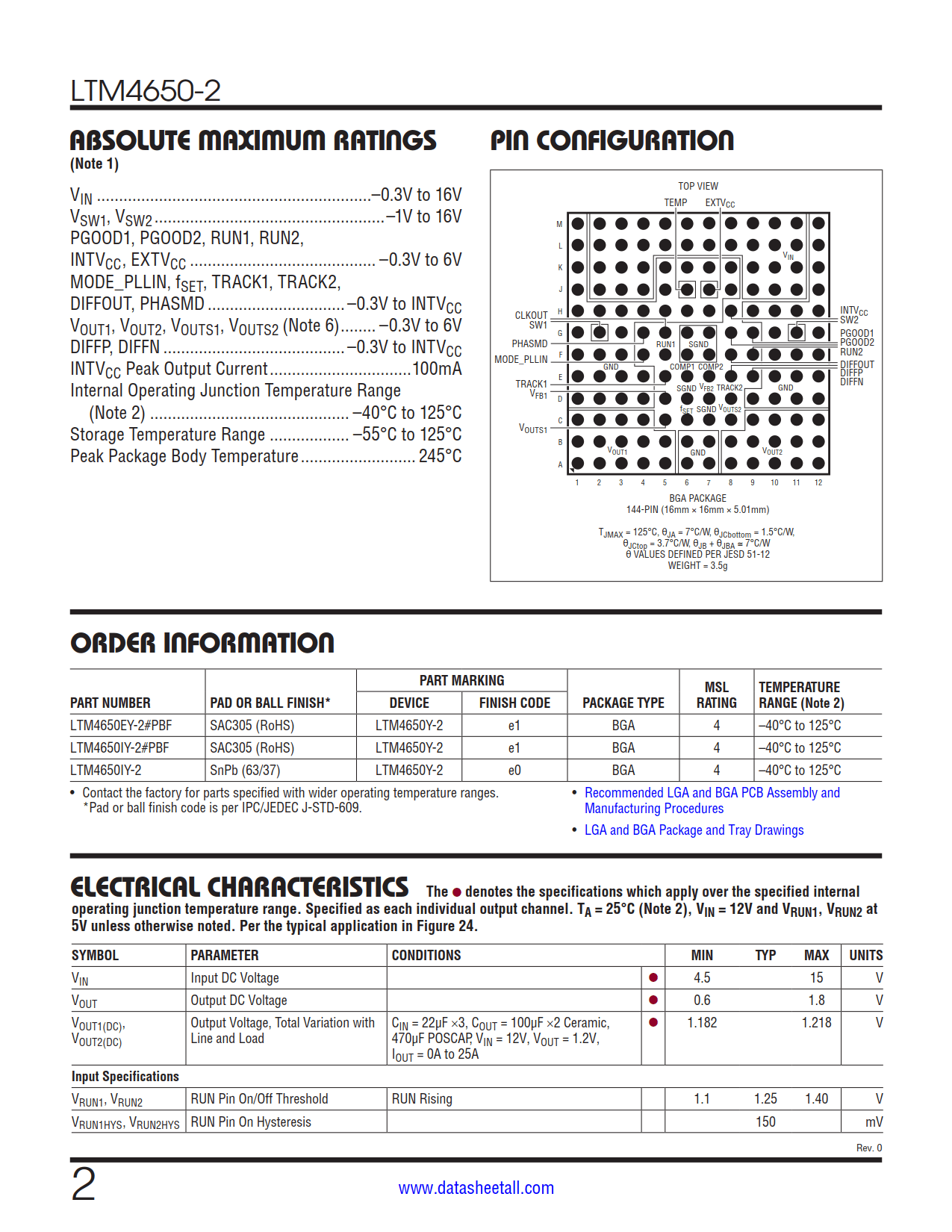

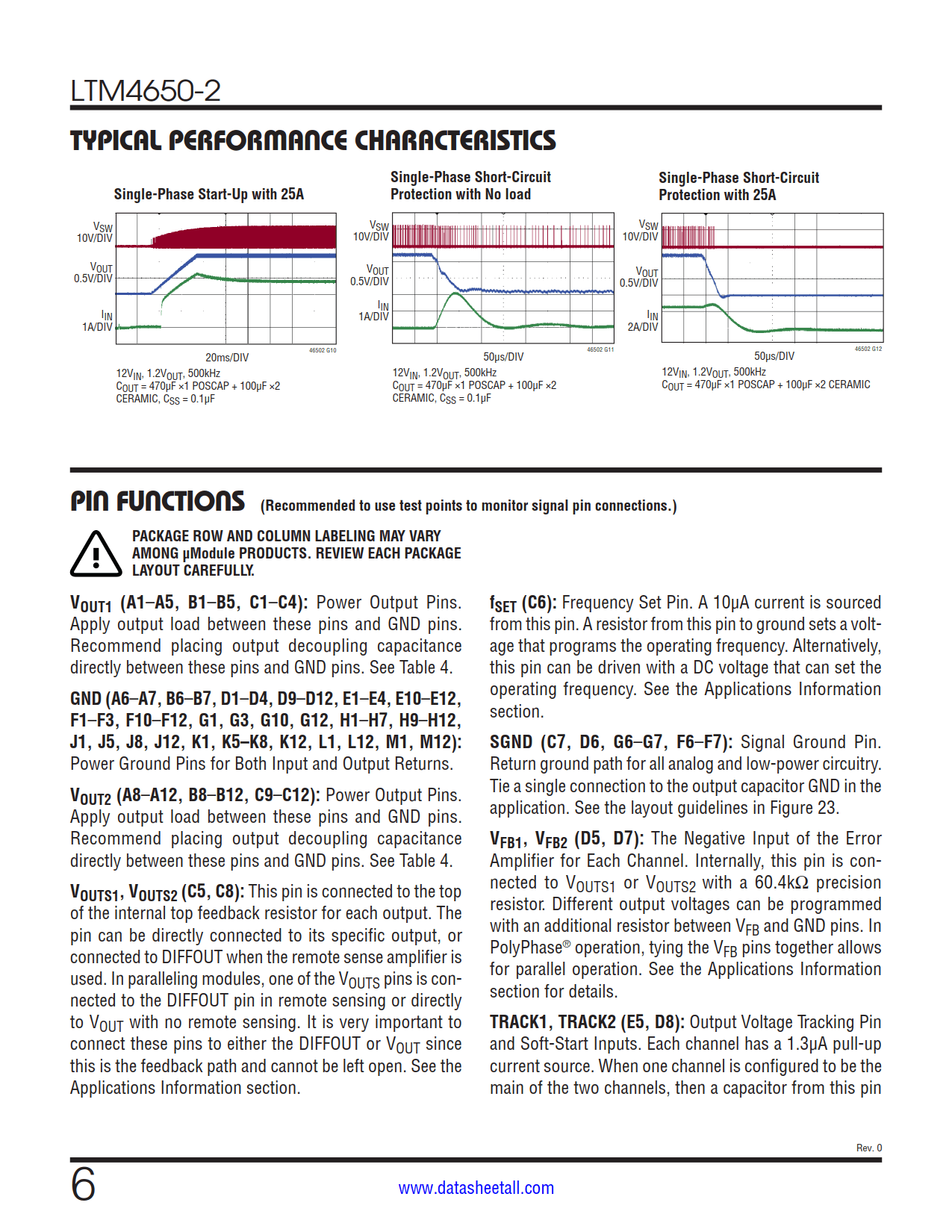

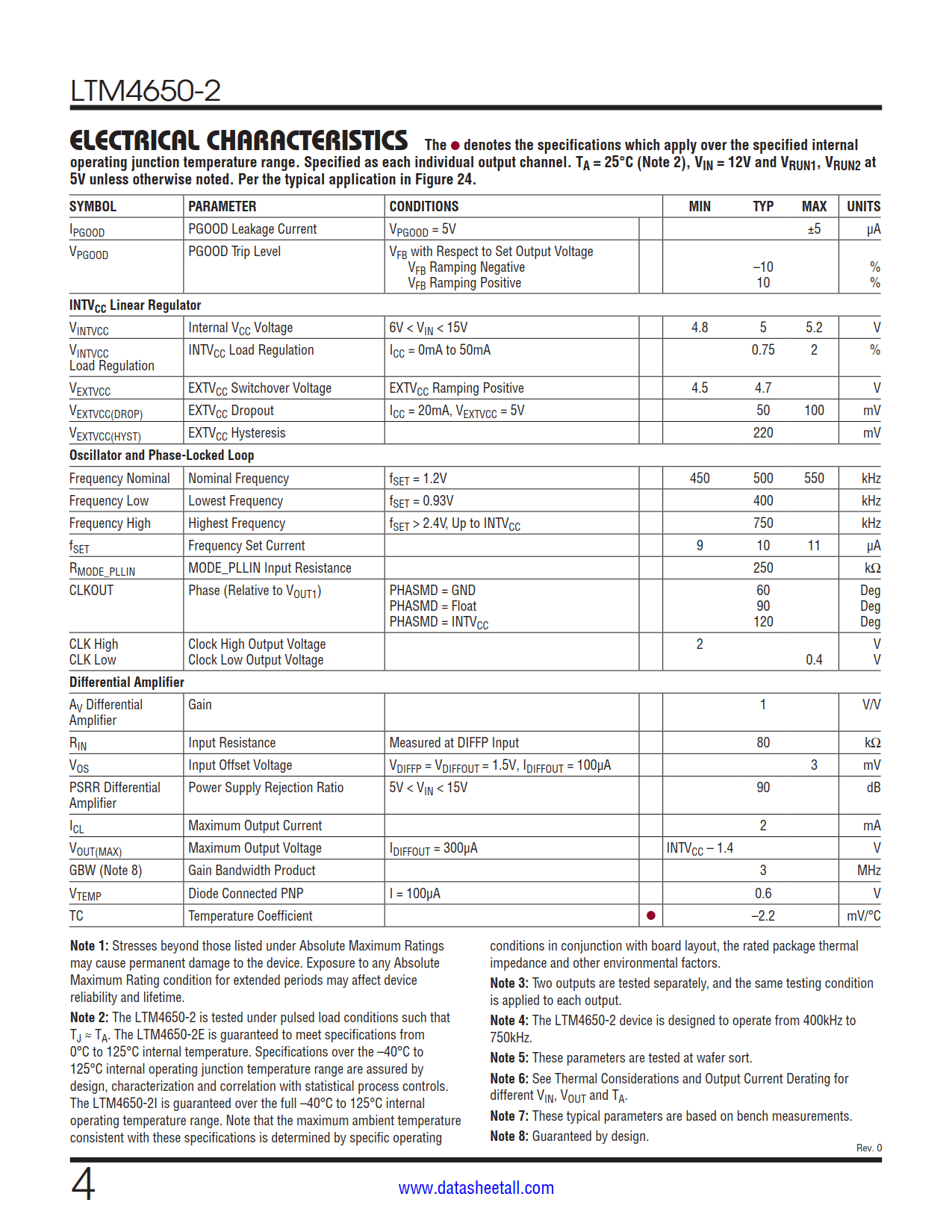

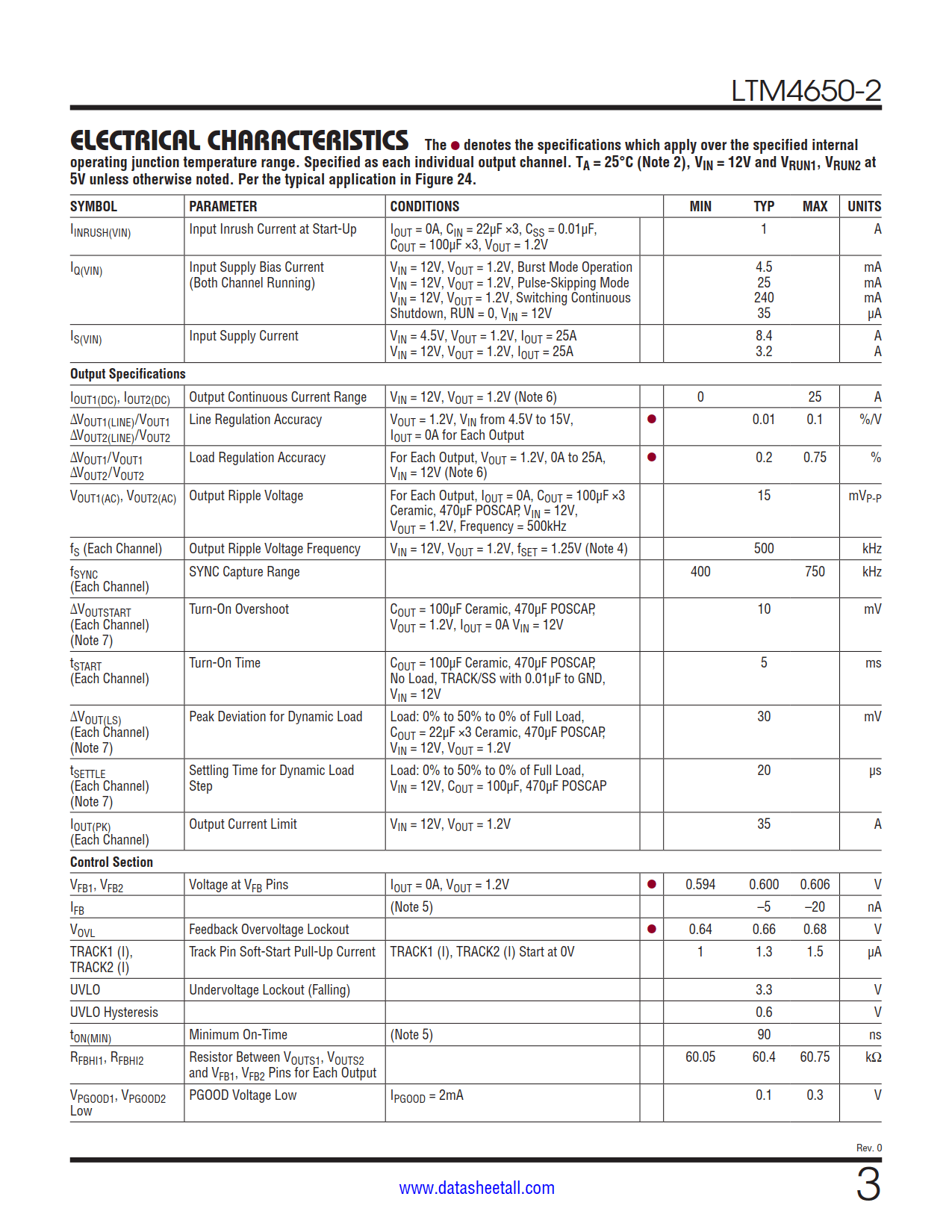

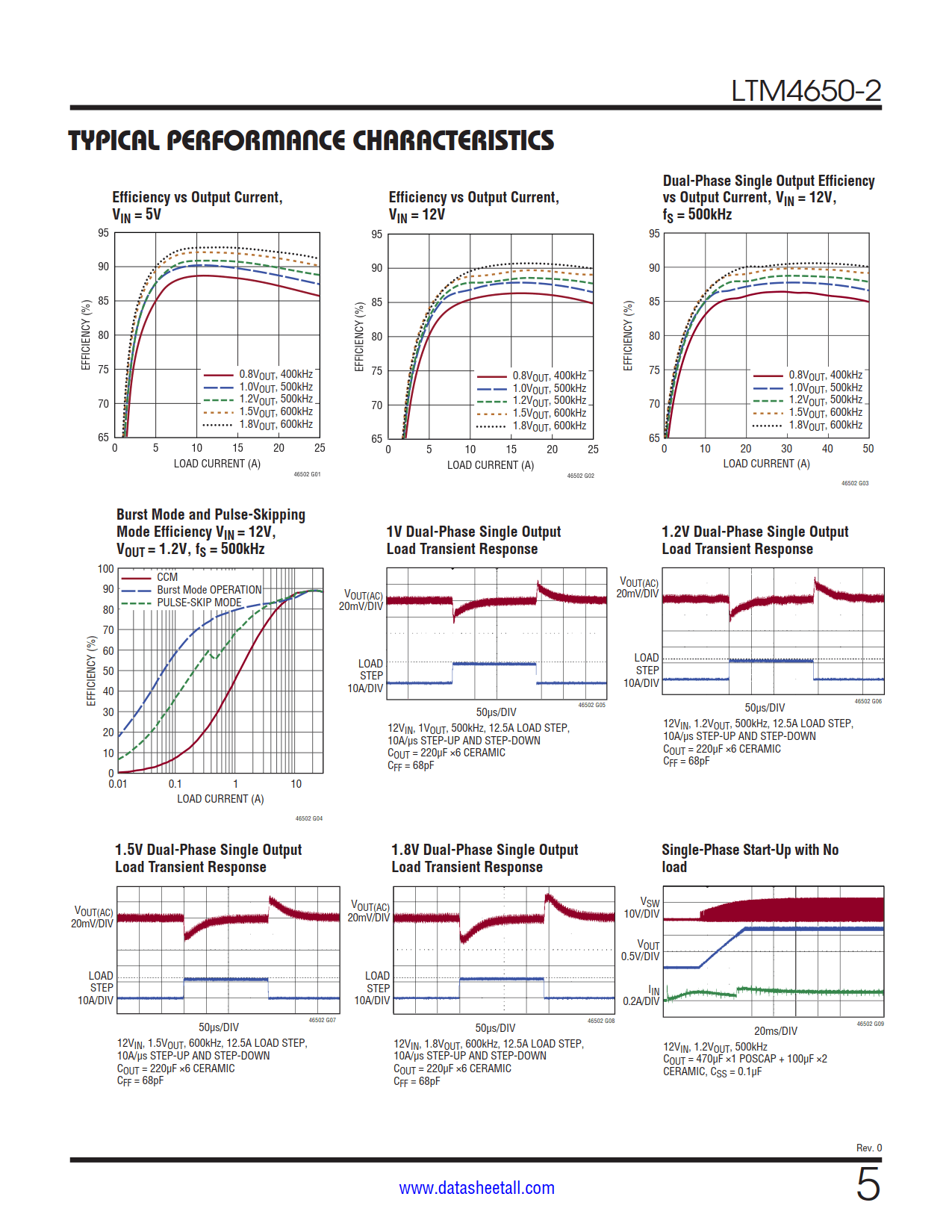

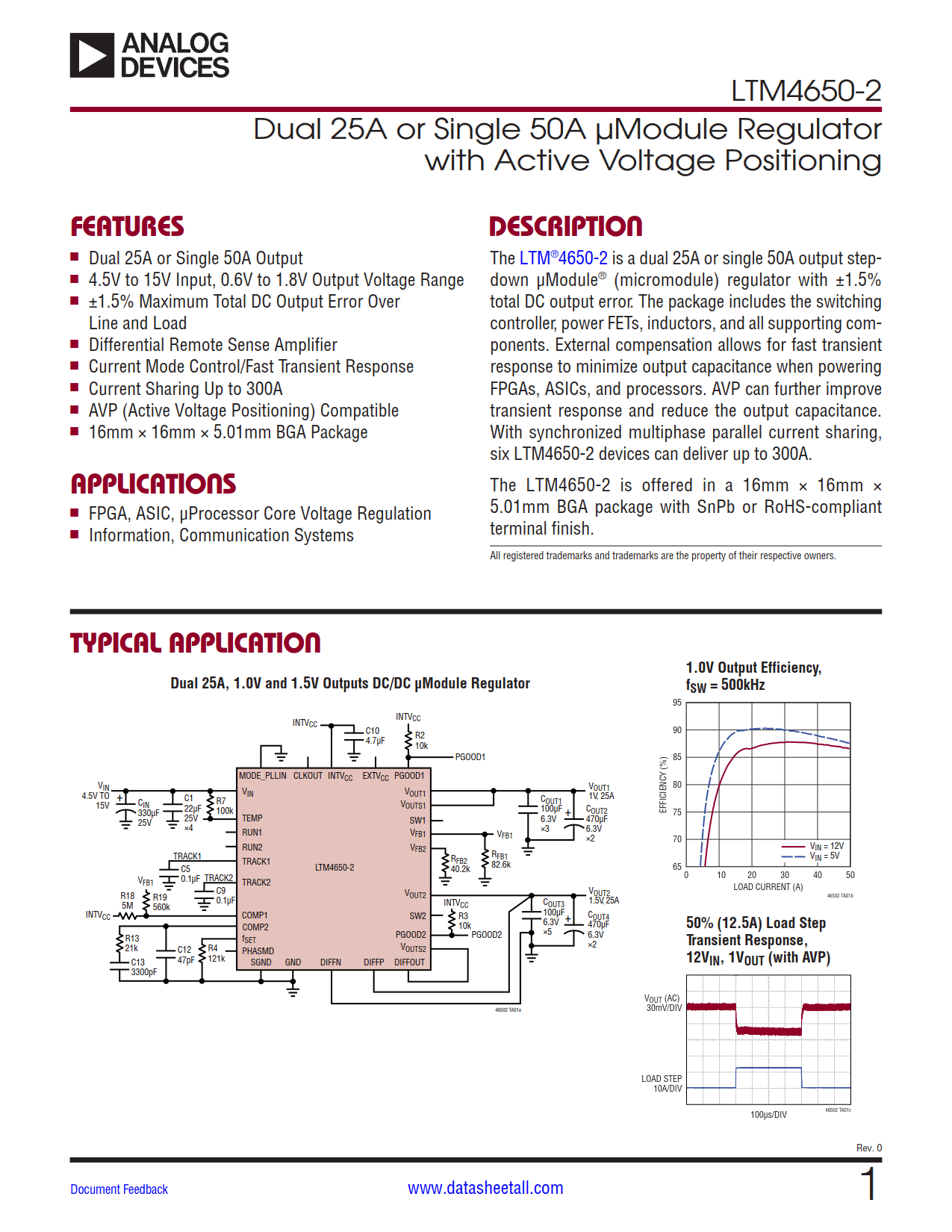

LTM4650-2 Datasheet(Picture)

LTM4650-2 Features

  • Dual 25A or Single 50A Output
  • 4.5V to 15V Input, 0.6V to 1.8V Output Voltage Range
  • ±1.5% Maximum Total DC Output Error Over Line and Load
  • Differential Remote Sense Amplifier
  • Current Mode Control/Fast Transient Response
  • Current Sharing Up to 300A
  • AVP (Active Voltage Positioning) Compatible
  • 16mm × 16mm × 5.01mm BGA Package

LTM4650-2 Applications

  • FPGA, ASIC, μProcessor Core Voltage Regulation
  • Information, Communication Systems

LTM4650-2 Description

The LTM®4650-2 is a dual 25A or single 50A output stepdown μModule® (micromodule) regulator with ±1.5% total DC output error. The package includes the switching controller, power FETs, inductors, and all supporting components. External compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors. AVP can further improve transient response and reduce the output capacitance. With synchronized multiphase parallel current sharing, six LTM4650-2 devices can deliver up to 300A.

The LTM4650-2 is offered in a 16mm × 16mm × 5.01mm BGA package with SnPb or RoHS-compliant terminal finish.
