LTM4607 Datasheet

LTM4607 Datasheet

36VIN, 24VOUT High Efficiency Buck-Boost DC/DC µModule (Power Module)
Part No.: LTM4607
Page: 28 Pages
Size: 1989 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-22 14:31:07
DataSheet: Download

LTM4607 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4607EV#PBF Tray 119 LTM4607V 4 141 -40°C ~85°C 141-Lead LGA (15mm x 15mm x 2.82mm)
LTM4607IV#PBF Tray 119 LTM4607V 4 141 -40°C ~85°C 141-Lead LGA (15mm x 15mm x 2.82mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4607 Datasheet(PDF)

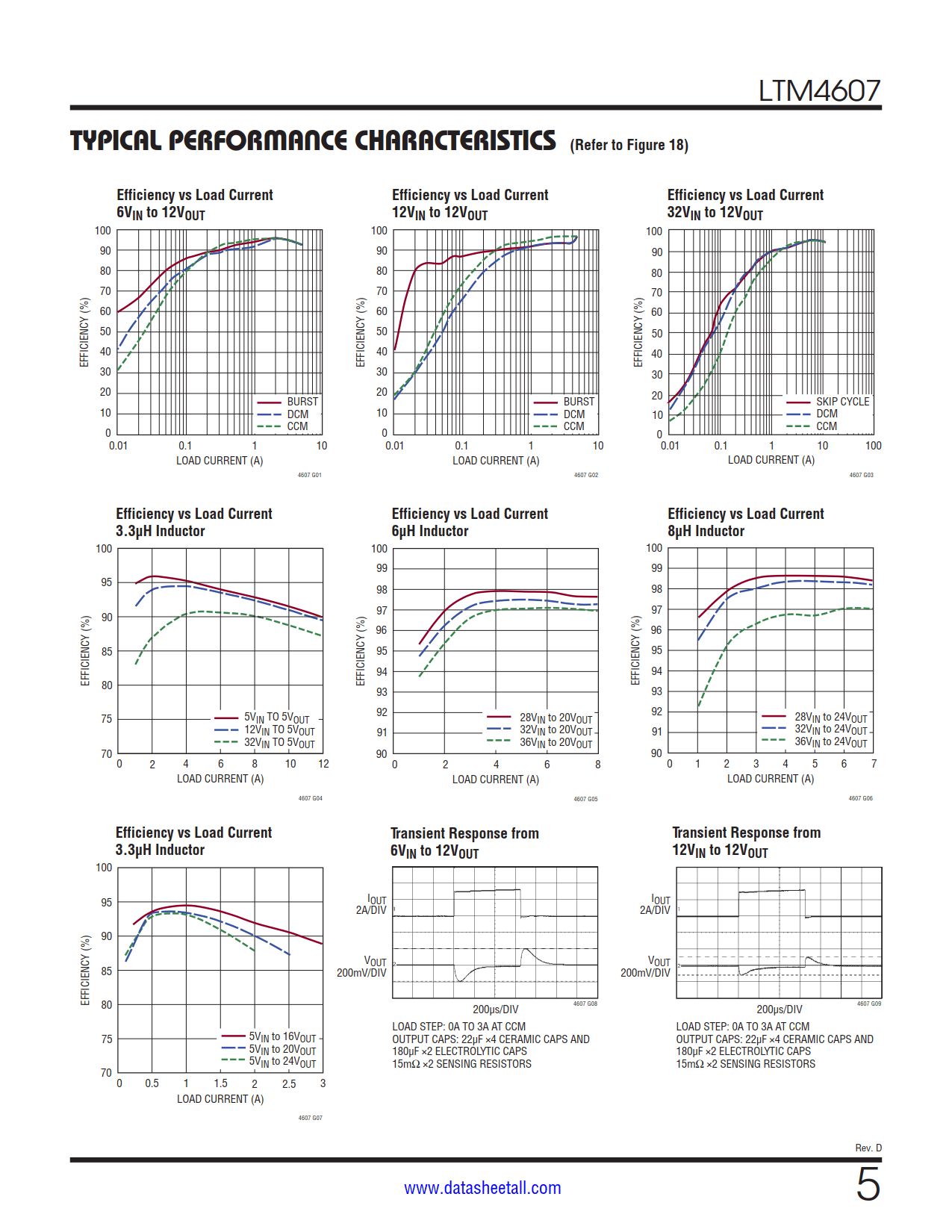

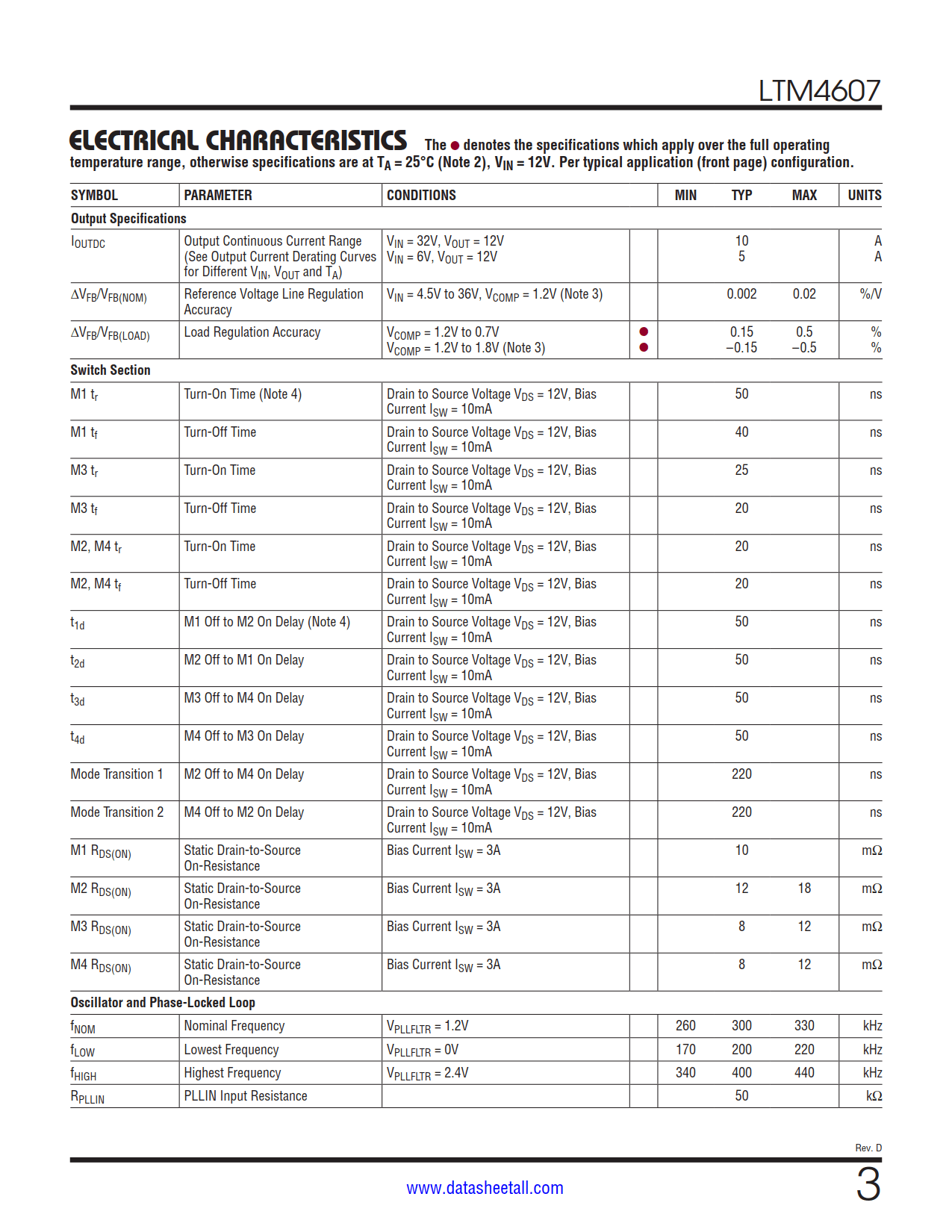

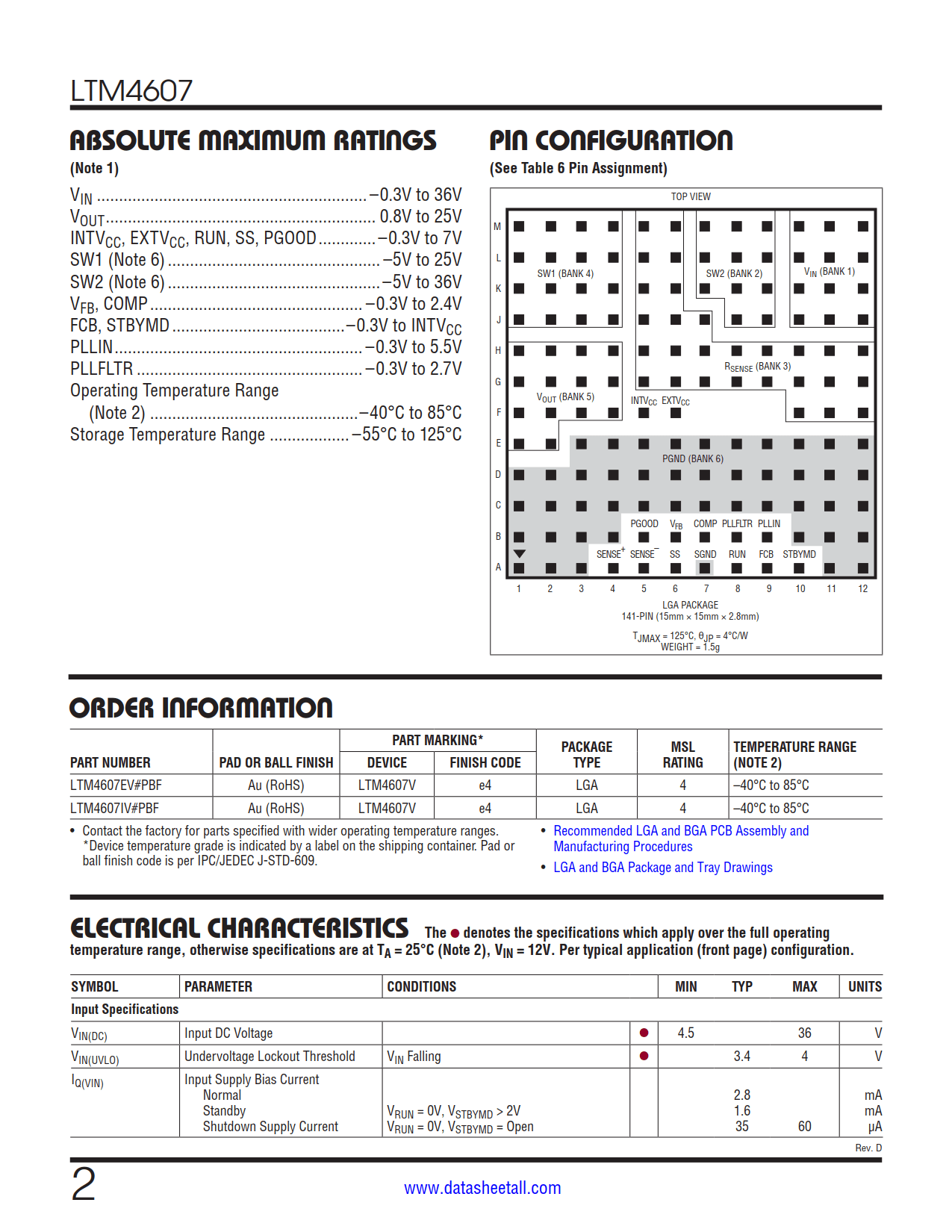

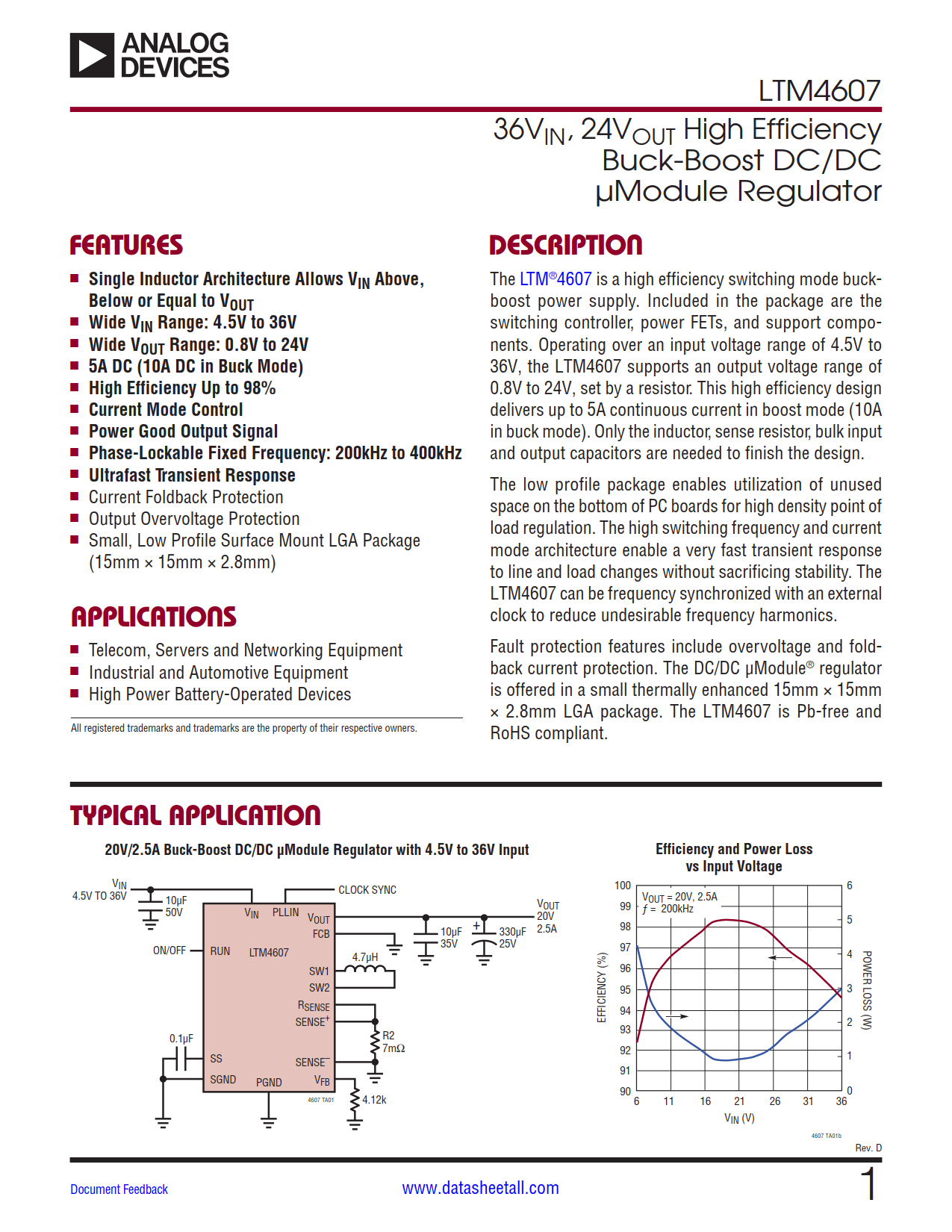

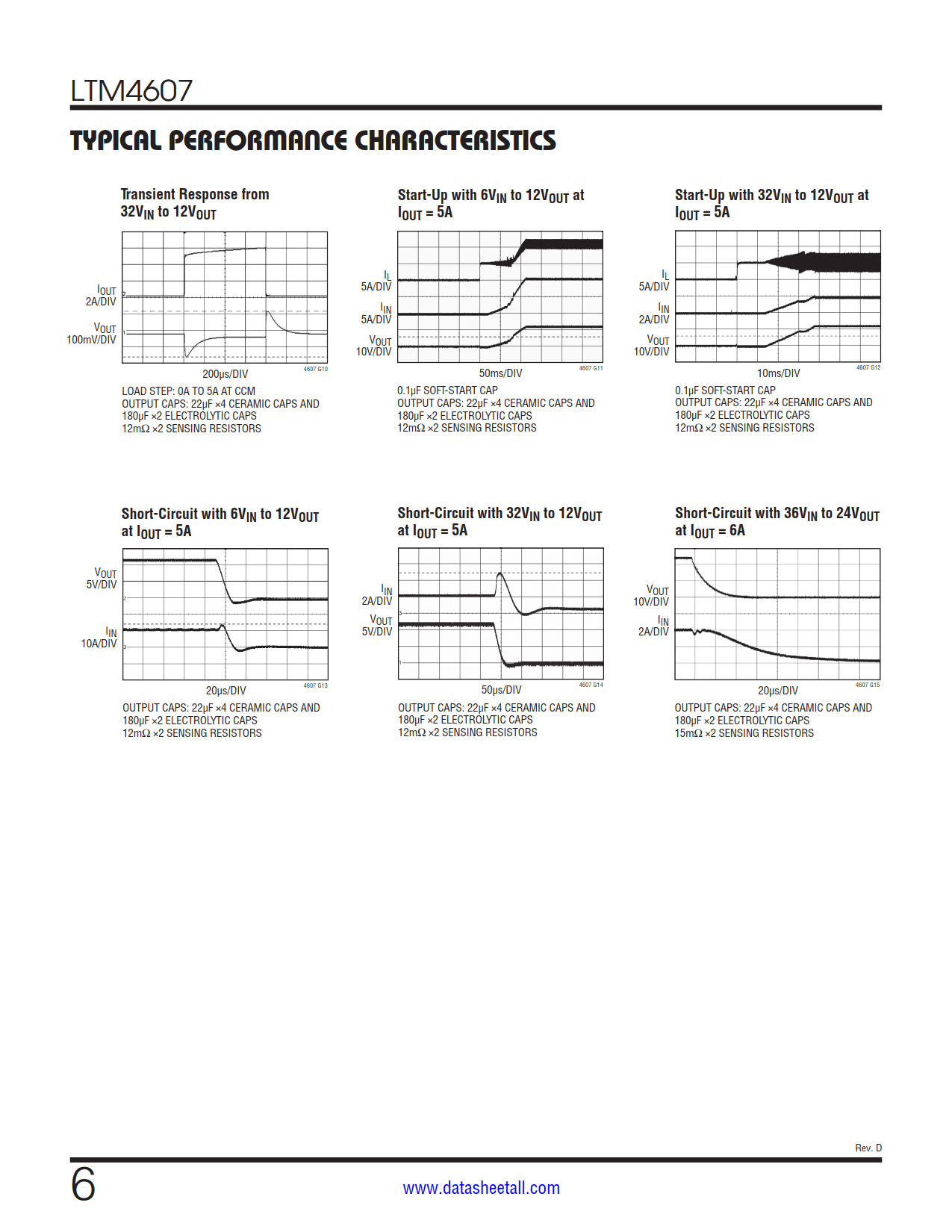

LTM4607 Datasheet(Picture)

LTM4607 Features

  • Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
  • Wide VIN Range: 4.5V to 36V
  • Wide VOUT Range: 0.8V to 24V
  • 5A DC (10A DC in Buck Mode)
  • High Efficiency Up to 98%
  • Current Mode Control
  • Power Good Output Signal
  • Phase-Lockable Fixed Frequency: 200kHz to 400kHz
  • Ultrafast Transient Response
  • Current Foldback Protection
  • Output Overvoltage Protection
  • Small, Low Profile Surface Mount LGA Package (15mm × 15mm × 2.8mm)

LTM4607 Applications

  • Telecom, Servers and Networking Equipment
  • Industrial and Automotive Equipment
  • High Power Battery-Operated Devices

LTM4607 Description

The LTM4607 is a high efficiency switching mode buck-boost power supply. Included in the package are the switching controller, power FETs, and support components. Operating over an input voltage range of 4.5V to 36V, the LTM4607 supports an output voltage range of 0.8V to 24V, set by a resistor. This high efficiency design delivers up to 5A continuous current in boost mode (10A in buck mode). Only the inductor, sense resistor, bulk input and output capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The high switching frequency and current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The LTM4607 can be frequency synchronized with an external clock to reduce undesirable frequency harmonics.

Fault protection features include overvoltage and foldback current protection. The DC/DC μModule® regulator is offered in a small thermally enhanced 15mm × 15mm × 2.8mm LGA package. The LTM4607 is Pb-free and RoHS compliant.
