| Part No.： | LTM2883 |
| Page： | 36 Pages |
| Size： | 1423 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-11 21:15:50 |
| DataSheet： | Download |

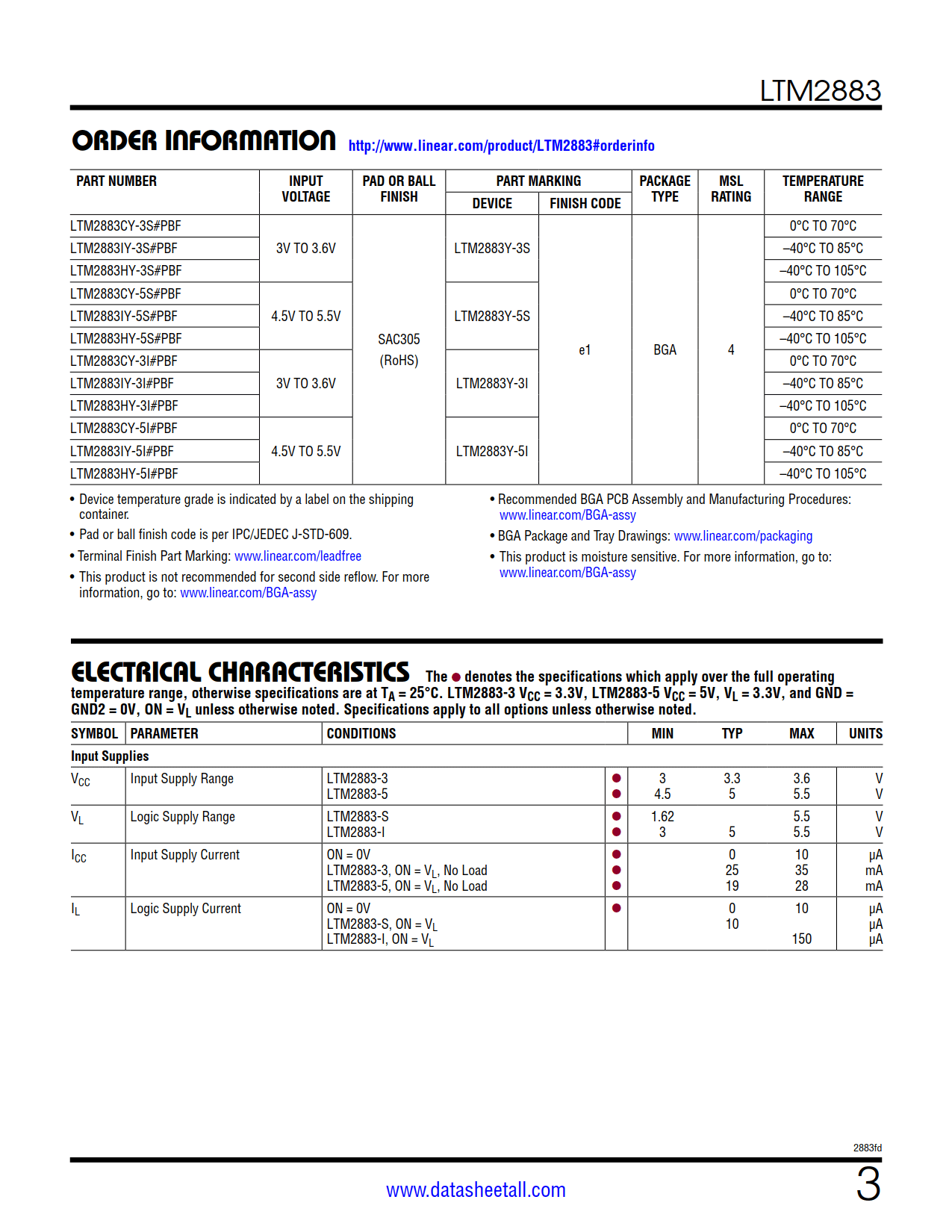

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM2883CY-3S#PBF | Tray | 119 | LTM2883Y-3S | 4 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883IY-3S#PBF | Tray | 119 | LTM2883Y-3S | 4 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883HY-3S#PBF | Tray | 119 | LTM2883Y-3S | 4 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883CY-5S#PBF | Tray | 119 | LTM2883Y-5S | 4 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883IY-5S#PBF | Tray | 119 | LTM2883Y-5S | 4 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883HY-5S#PBF | Tray | 119 | LTM2883Y-5S | 4 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883CY-3I#PBF | Tray | 119 | LTM2883Y-3I | 4 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883IY-3I#PBF | Tray | 119 | LTM2883Y-3I | 4 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883HY-3I#PBF | Tray | 119 | LTM2883Y-3I | 4 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883CY-5I#PBF | Tray | 119 | LTM2883Y-5I | 4 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883IY-5I#PBF | Tray | 119 | LTM2883Y-5I | 4 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2883HY-5I#PBF | Tray | 119 | LTM2883Y-5I | 4 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) |

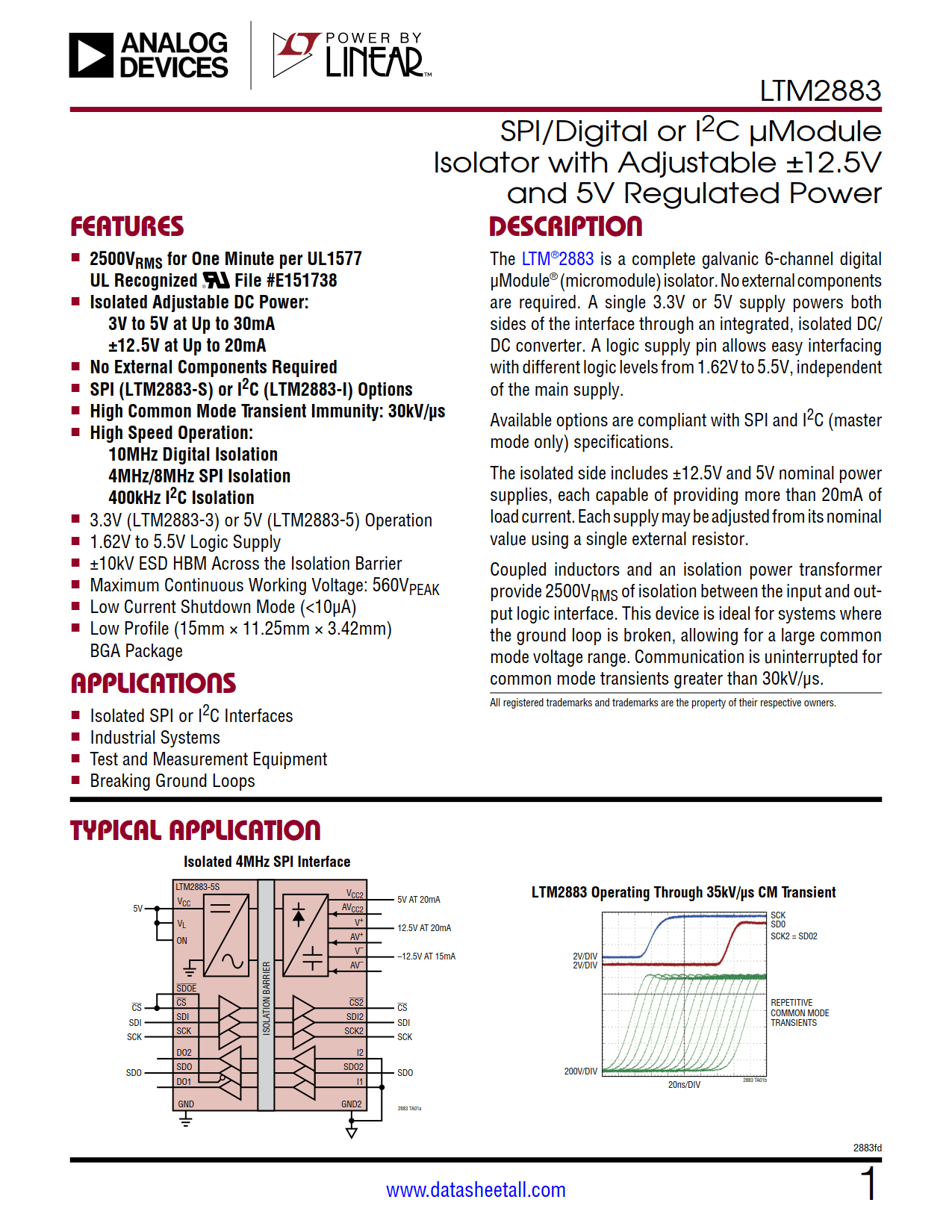

The LTM2883 is a complete galvanic 6-channel digital μModule® (micromodule) isolator. No external components are required. A single 3.3V or 5V supply powers both sides of the interface through an integrated, isolated DC/DC converter. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.
Available options are compliant with SPI and I2C (master mode only) specifications.

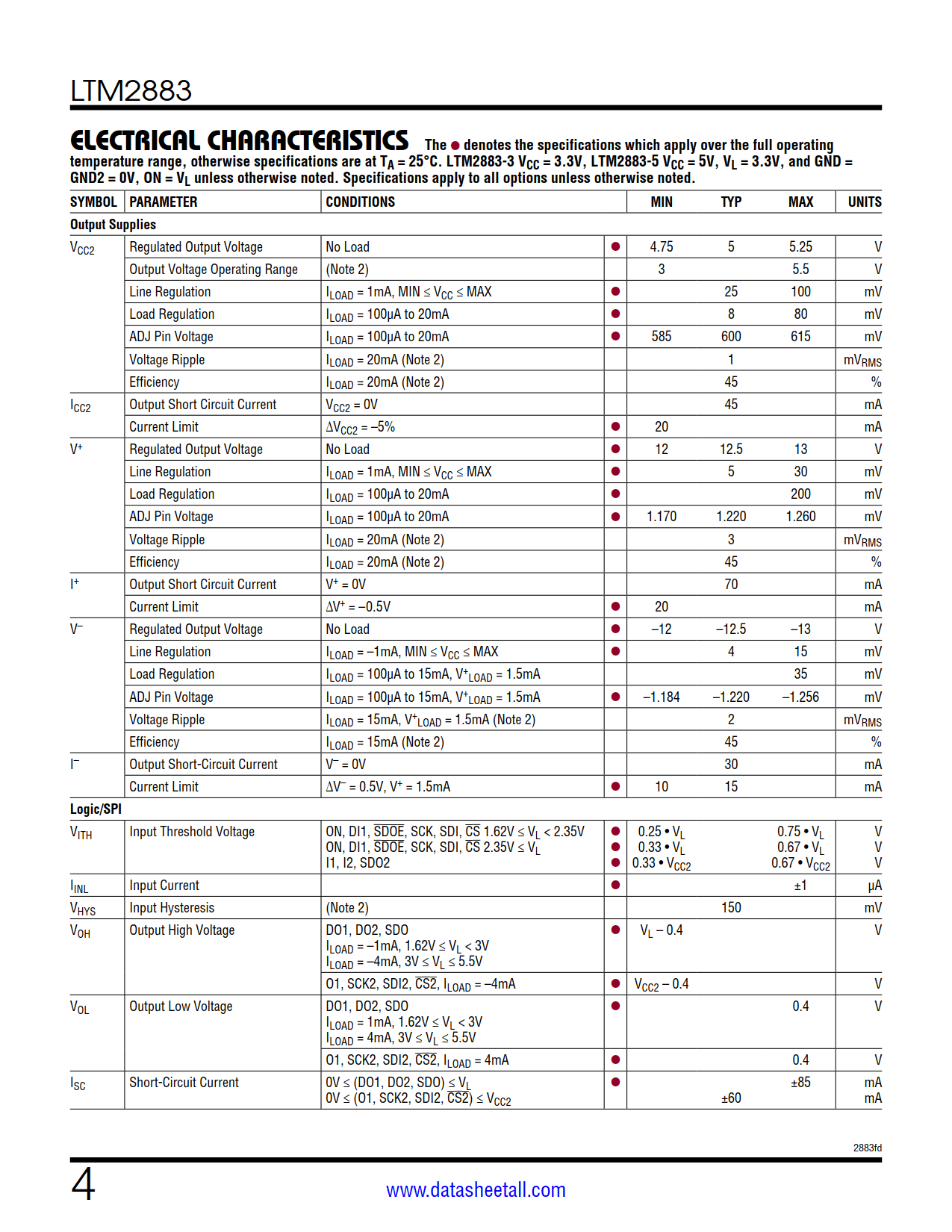

The isolated side includes ±12.5V and 5V nominal power supplies, each capable of providing more than 20mA of load current. Each supply may be adjusted from its nominal value using a single external resistor.

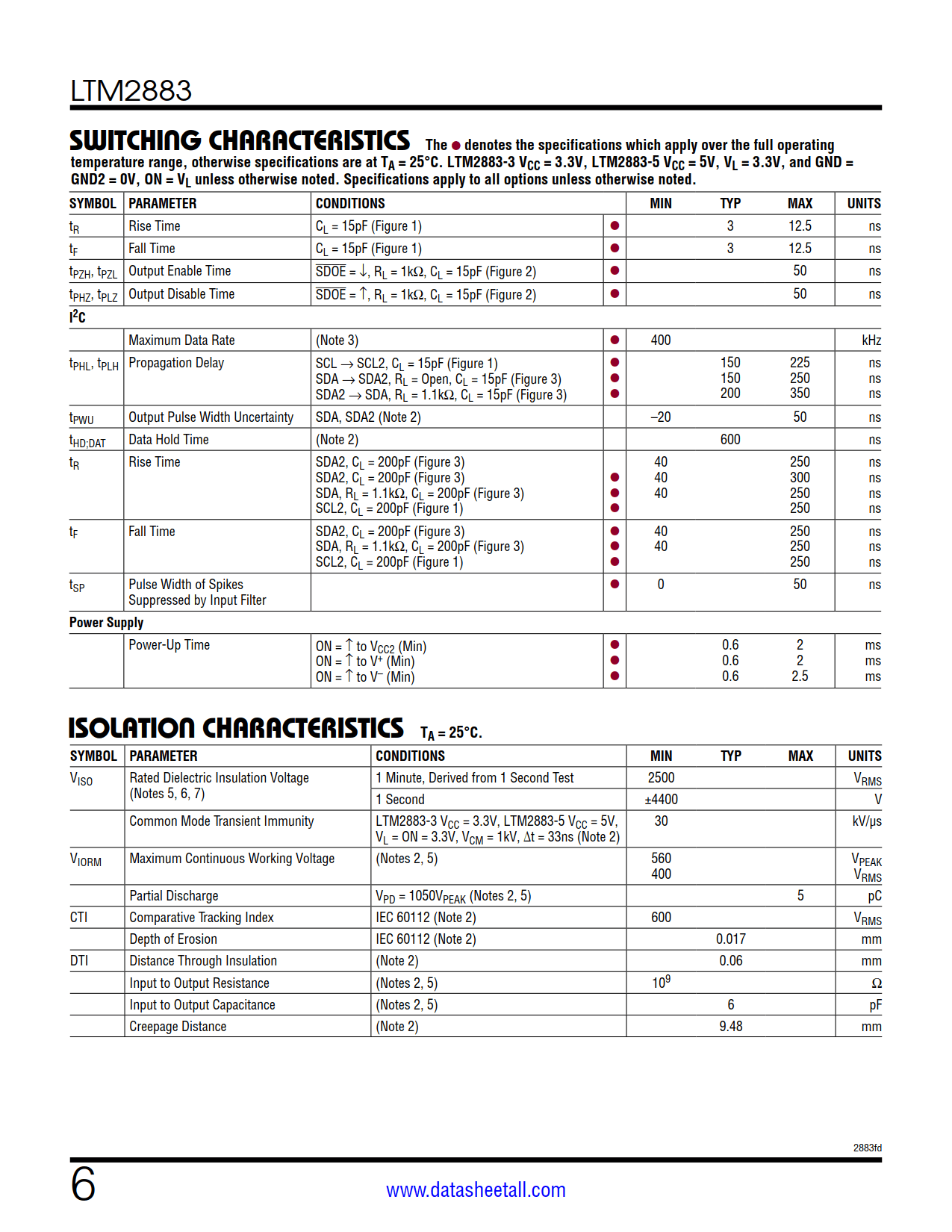

Coupled inductors and an isolation power transformer provide 2500VRMS of isolation between the input and output logic interface. This device is ideal for systems where the ground loop is broken, allowing for a large common mode voltage range. Communication is uninterrupted for common mode transients greater than 30kV/μs.
