LTM2173-14 Datasheet

LTM2173-14 Datasheet

14-Bit, 80Msps Low Power Quad ADC
Part No.: LTM2173-14
Page: 28 Pages
Size: 378 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-11 17:55:47
DataSheet: Download

LTM2173-14 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM2173HY-14#PBF Tray 210 LTM2173-14 4 104 -40°C ~ 105°C 140-Lead (11.25mm × 9mm × 2.72mm) BGA
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM2173-14 Datasheet(PDF)

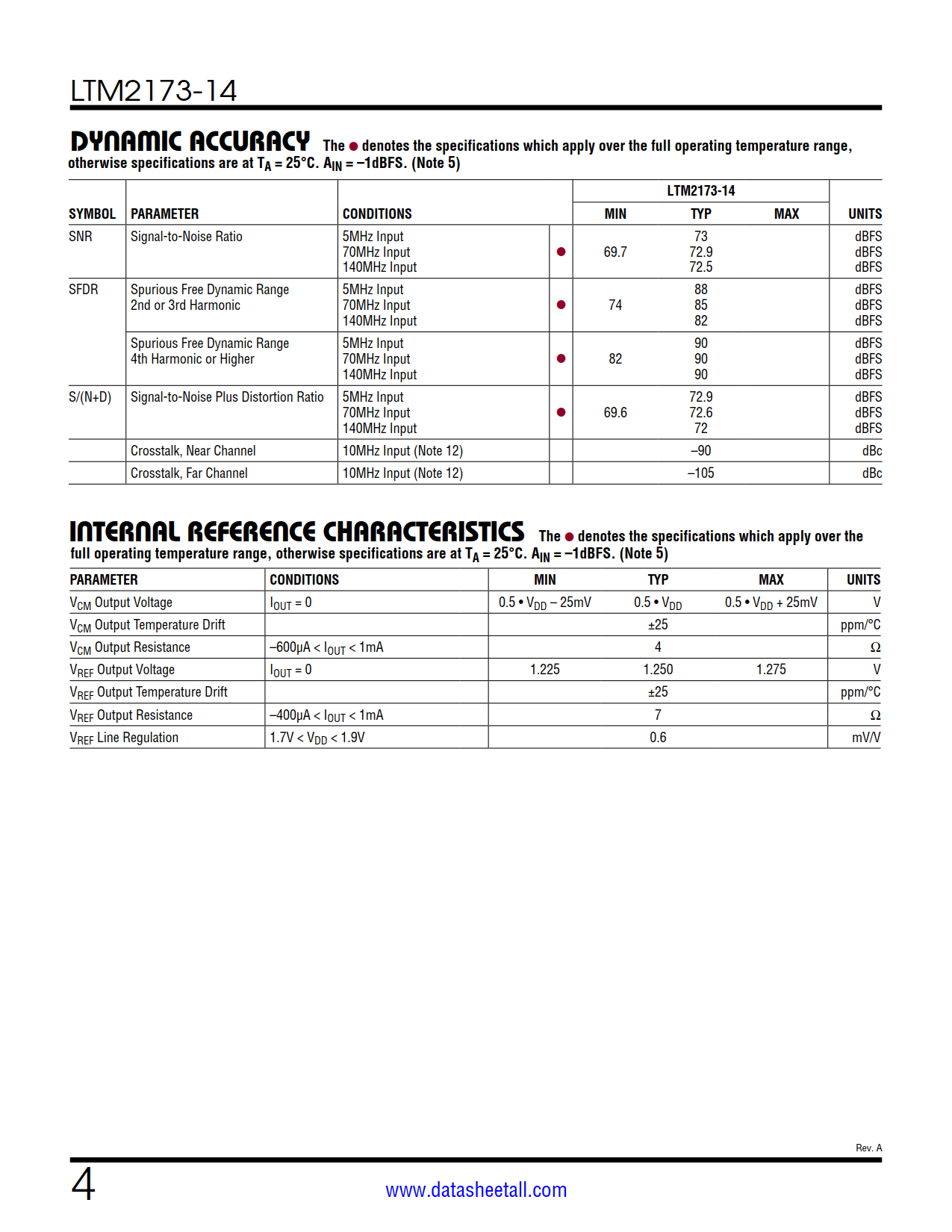

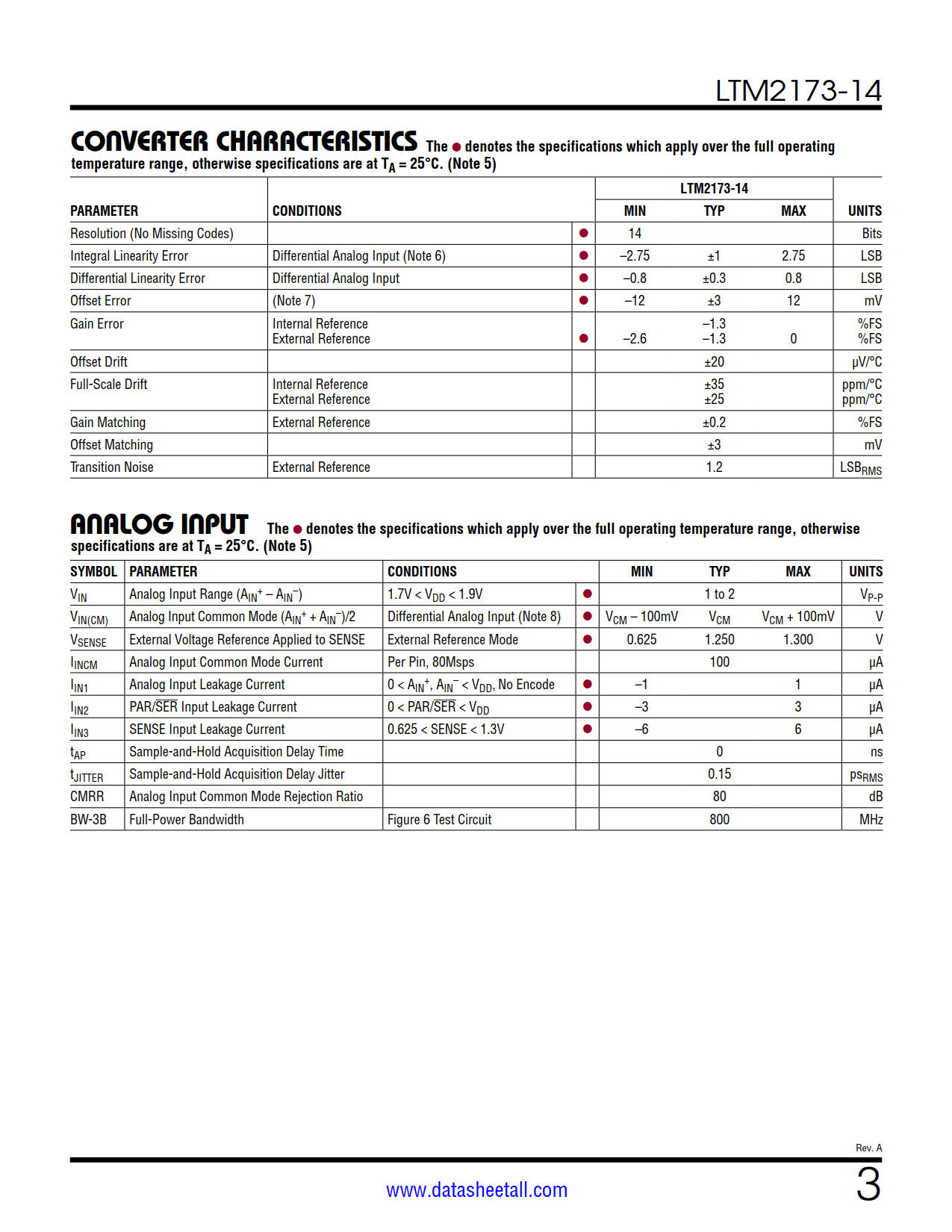

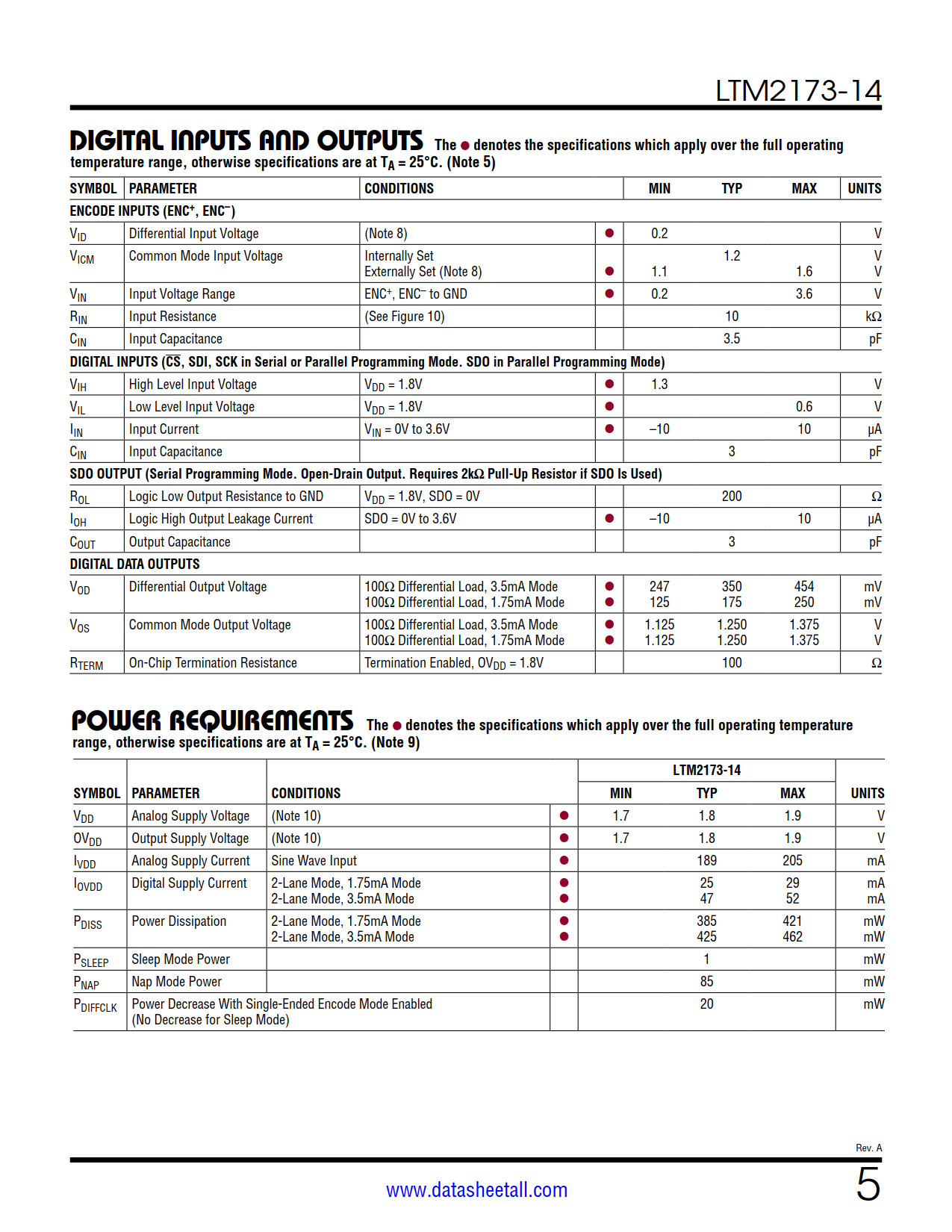

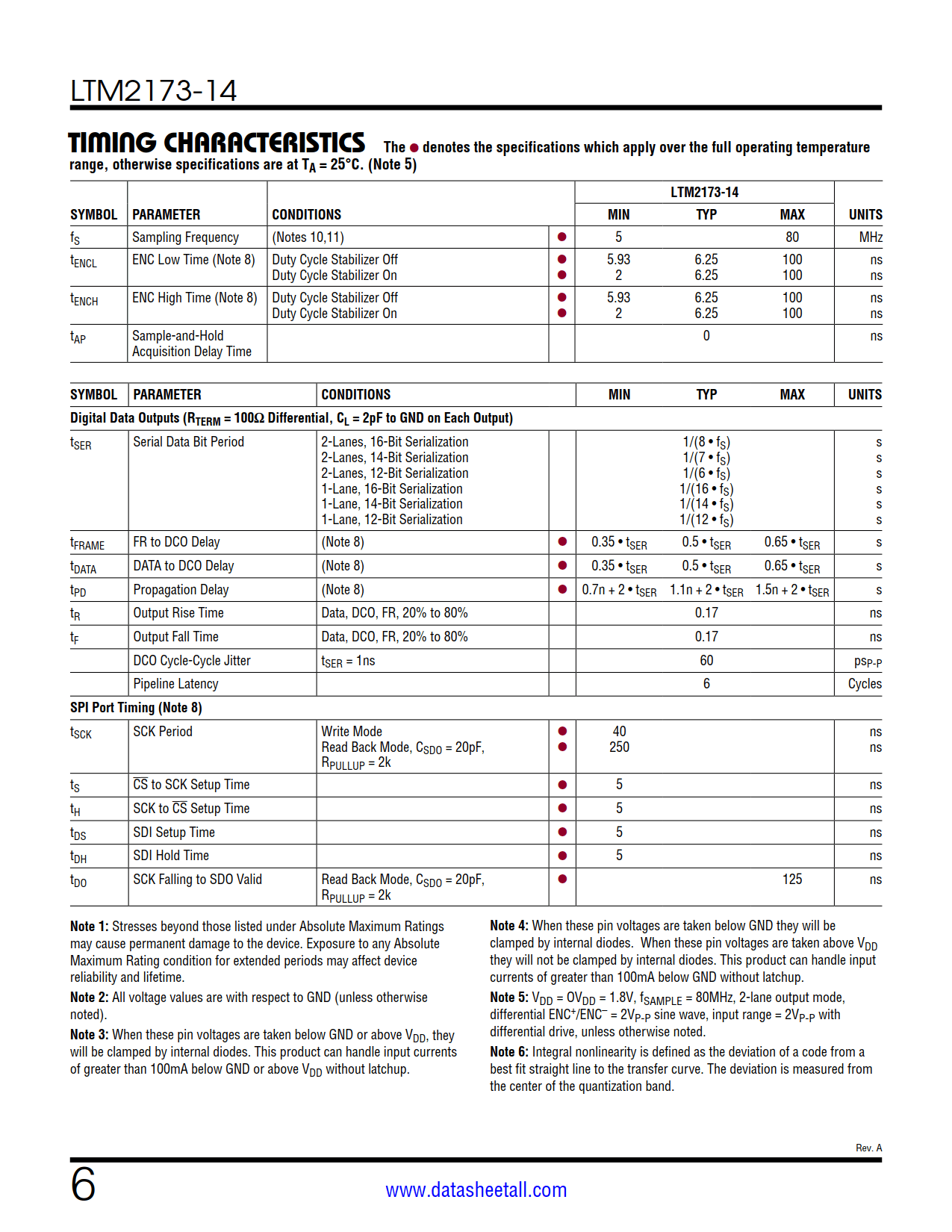

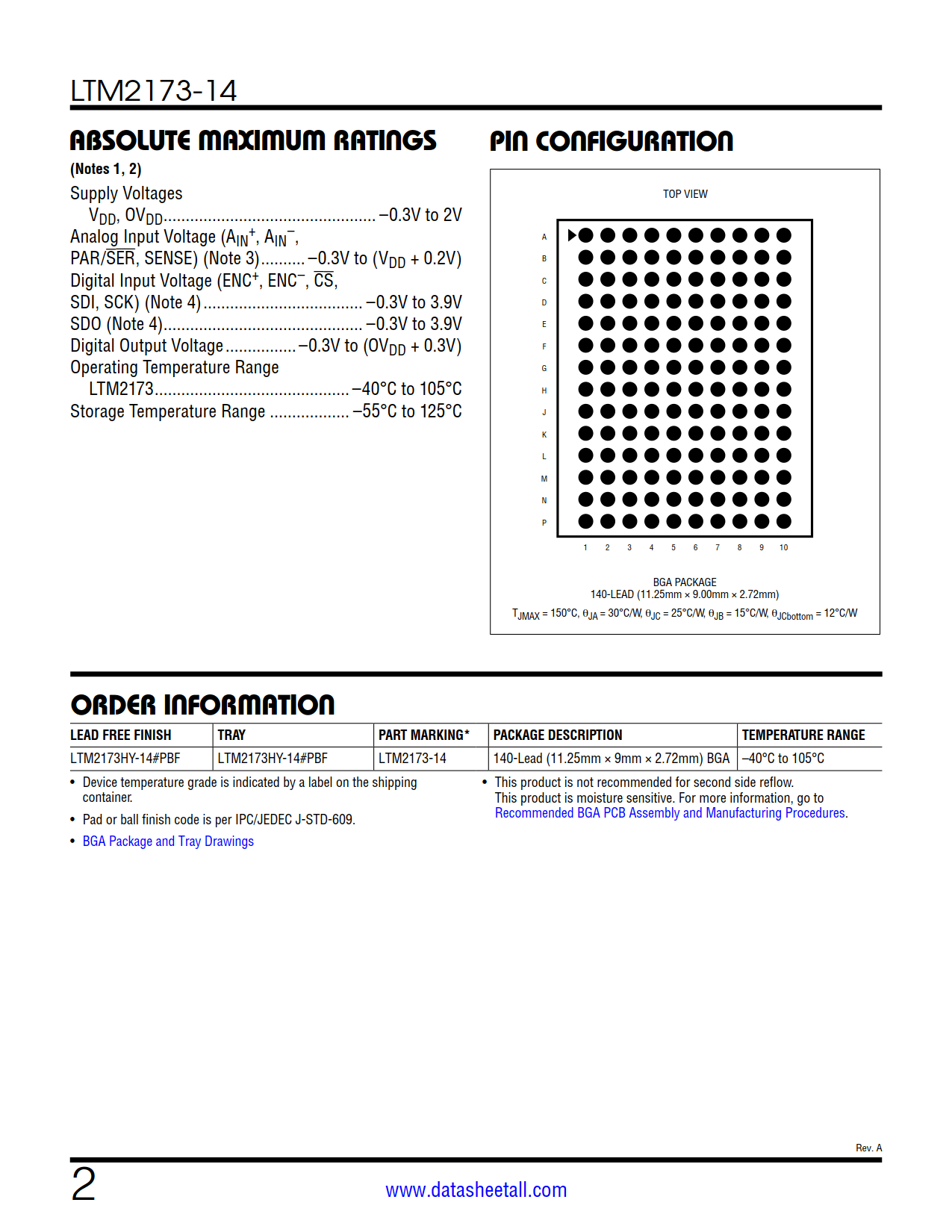

LTM2173-14 Datasheet(Picture)

LTM2173-14 Features

  • 4-Channel Simultaneous Sampling ADC
  • 73dB SNR
  • 88dB SFDR
  • Low Power: 96mW per Channel
  • Single 1.8V Supply
  • Serial LVDS Outputs: 1 or 2 Bits per Channel
  • Selectable Input Ranges: 1VP-P to 2VP-P
  • 800MHz Full Power Bandwidth S/H
  • Shutdown and Nap Modes
  • Serial SPI Port for Configuration
  • Internal Bypass Capacitance, No External Components
  • 140-Pin (11.25mm × 9mm) BGA Package

LTM2173-14 Applications

  • Automotive
  • Communications
  • Cellular Base Stations
  • Software Defined Radios
  • Portable Medical Imaging
  • Multichannel Data Acquisition
  • Nondestructive Testing

LTM2173-14 Description

The LTM2173-14 is a 4-channel, simultaneous sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. AC performance includes 73dB SNR and 88dB spurious free dynamic range (SFDR). Low power consumption per channel reduces heat in high channel count applications. Integrated bypass capacitance and flow-through pinout reduces overall board space requirements.

DC specs include ±1LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSBRMS.

The digital outputs are serial LVDS to minimize the number of data lines. Each channel outputs two bits at a time (2-lane mode). At lower sampling rates there is a one bit per channel option (1-lane mode).

The ENC+ and ENC inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
