LTC6908-1 Datasheet

LTC6908-1 Datasheet

Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
Part No.: LTC6908-1
Page: 16 Pages
Size: 496 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-10-26 13:50:45
DataSheet: Download

LTC6908-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6908CDCB-1#TRPBF Reel 2500 LBXZ 1 6 0°C ~ 70°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6908CDCB-1#TRMPBF Reel 500 LBXZ 1 6 0°C ~ 70°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6908IDCB-1#TRPBF Reel 2500 LBXZ 1 6 -40°C ~ 85°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6908IDCB-1#TRMPBF Reel 500 LBXZ 1 6 -40°C ~ 85°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6908CS6-1#TRPBF Reel 2500 LTBYC 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC6908CS6-1#TRMPBF Reel 500 LTBYC 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC6908IS6-1#TRPBF Reel 2500 LTBYC 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6908IS6-1#TRMPBF Reel 500 LTBYC 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6908HS6-1#TRPBF Reel 2500 LTBYC 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6908HS6-1#TRMPBF Reel 500 LTBYC 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6908IS6-1#WTRPBF Reel 2500 LTBYC 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6908IS6-1#WTRMPBF Reel 500 LTBYC 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6908HS6-1#WTRPBF Reel 2500 LTBYC 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6908HS6-1#WTRMPBF Reel 500 LTBYC 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6908-1 Datasheet(PDF)

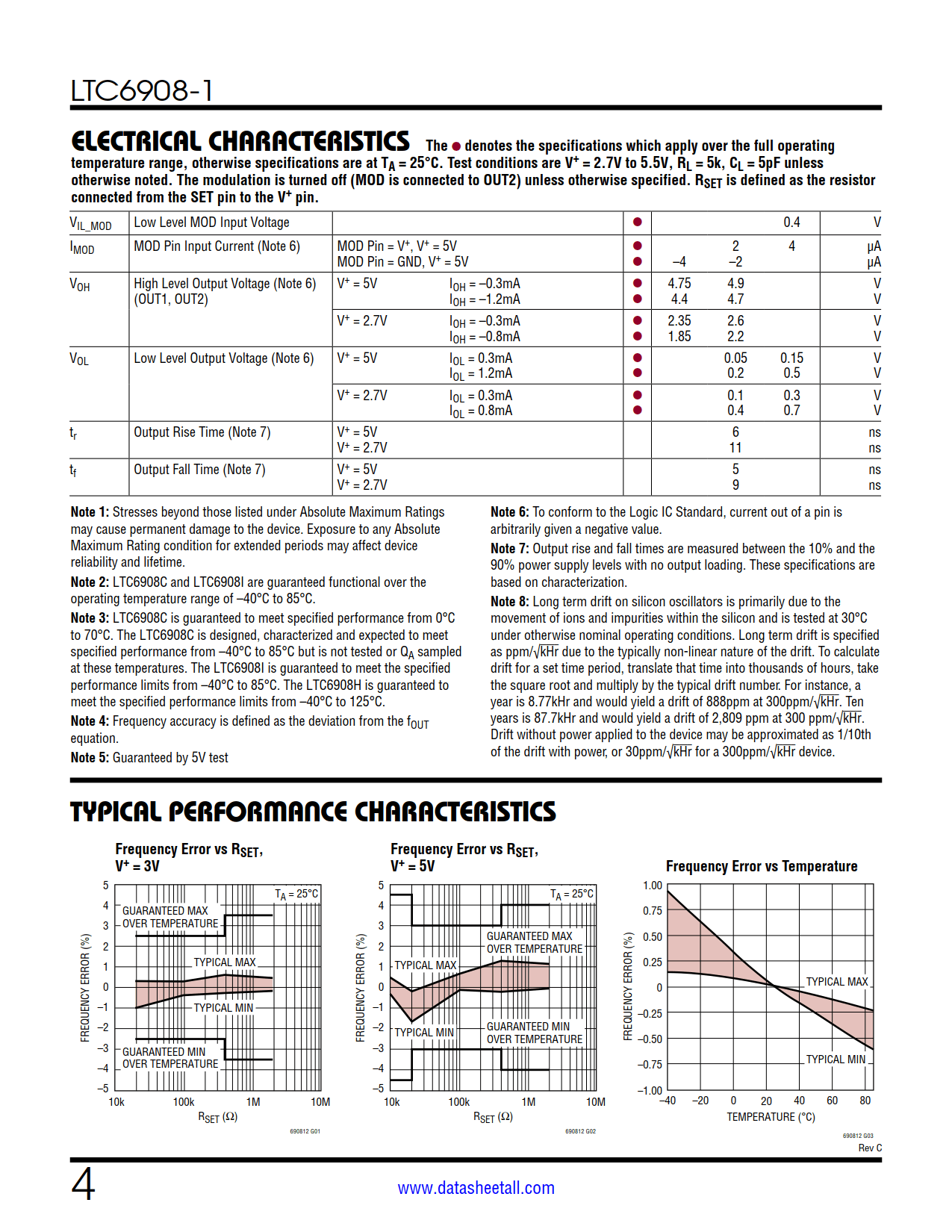

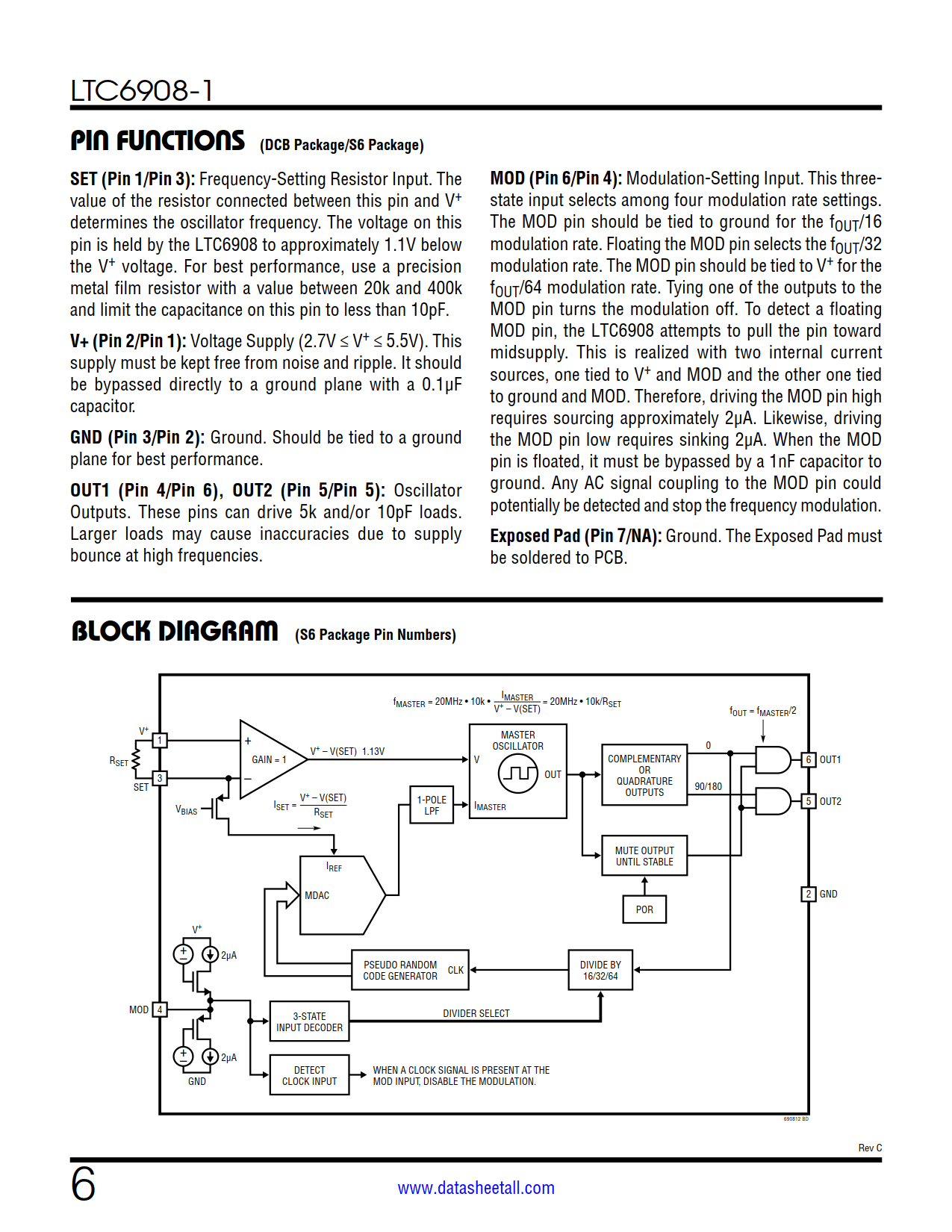

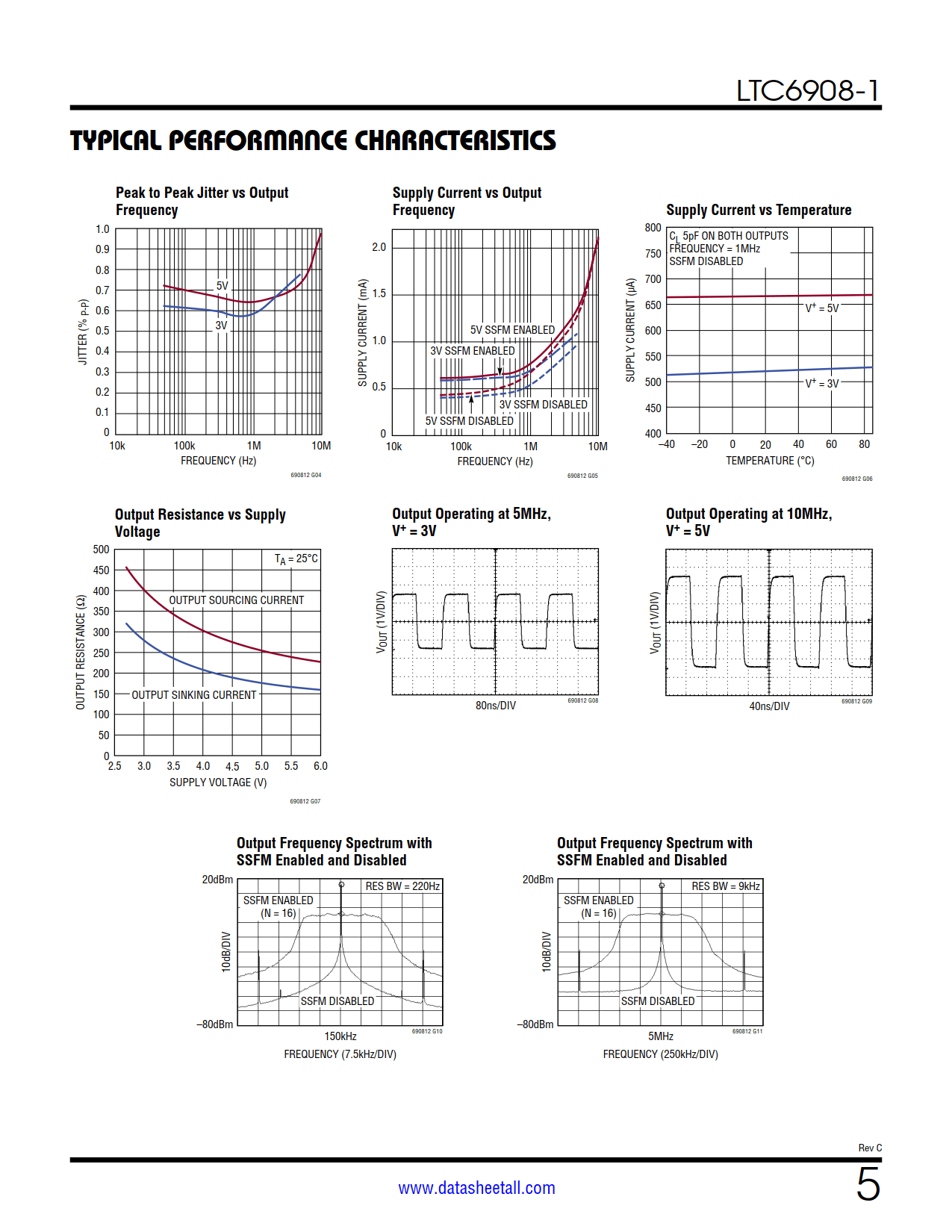

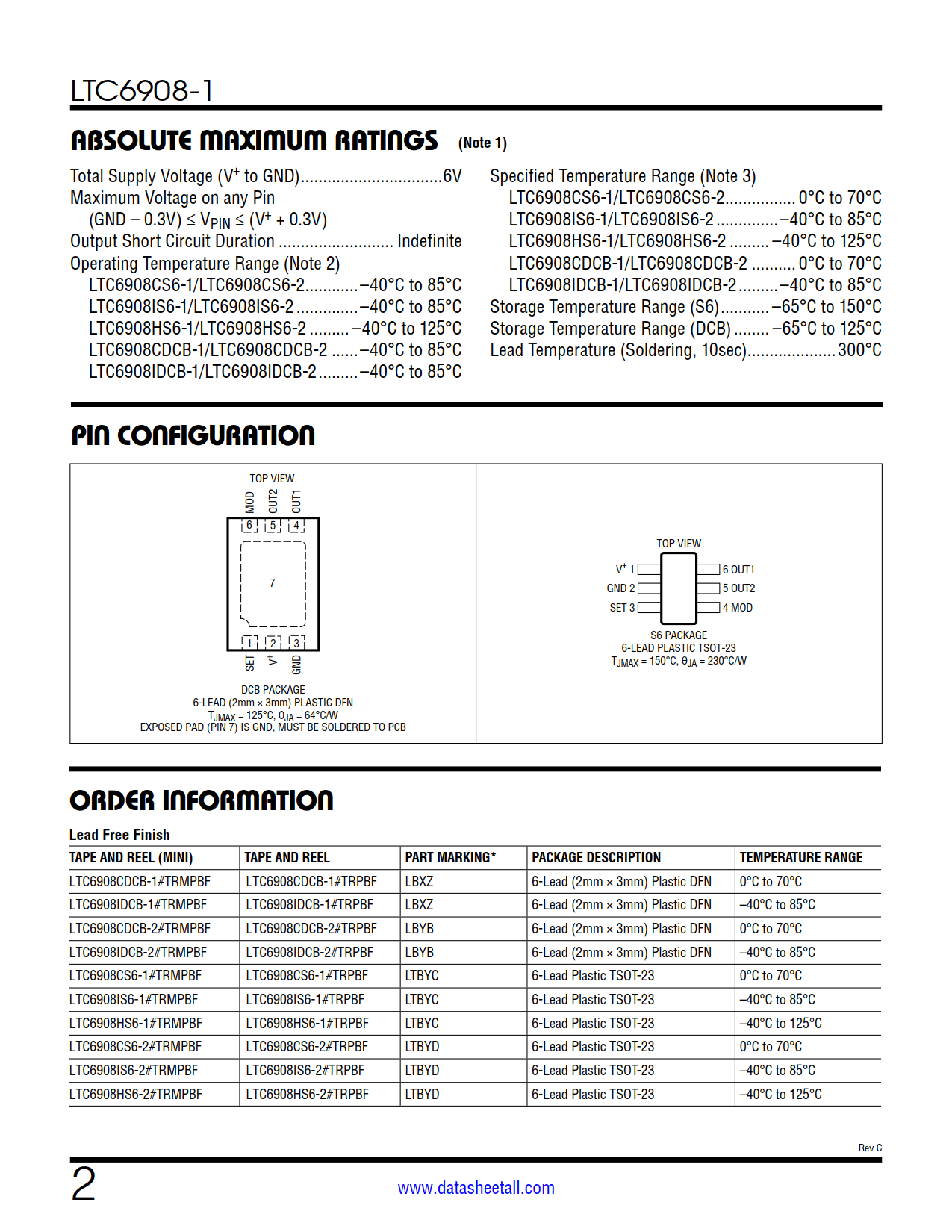

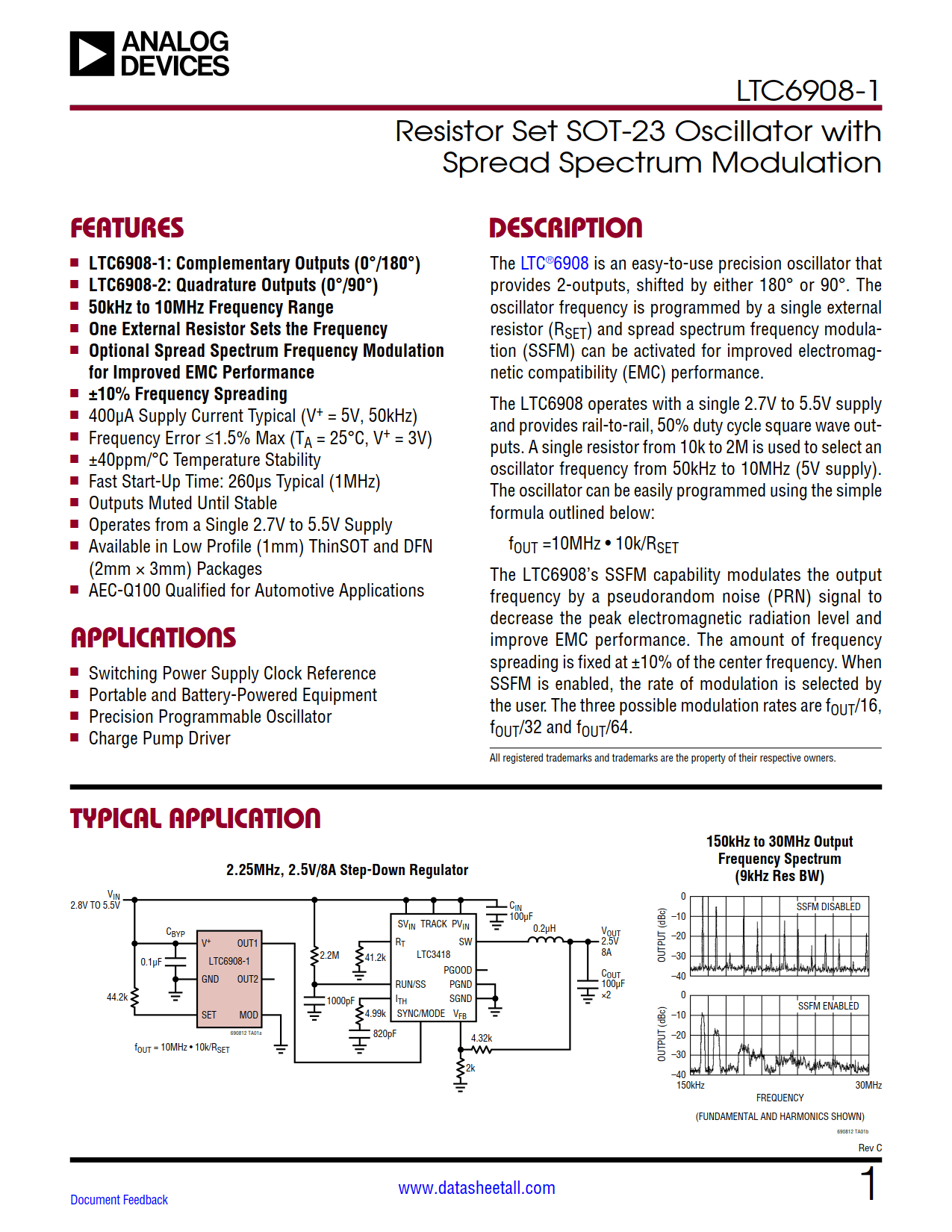

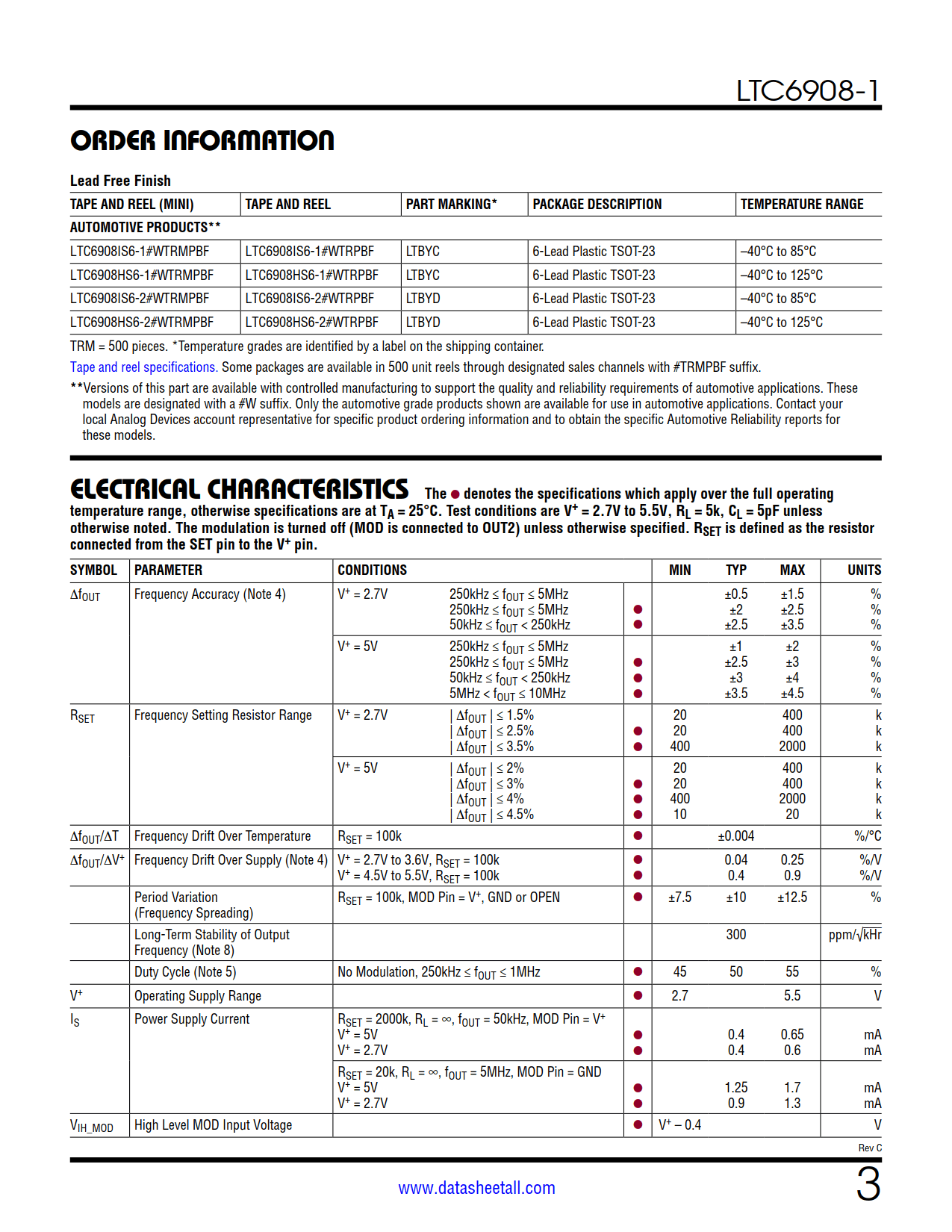

LTC6908-1 Datasheet(Picture)

LTC6908-1 Features

  • LTC6908-1: Complementary Outputs (0°/180°)
  • 50kHz to 10MHz Frequency Range
  • One External Resistor Sets the Frequency
  • Optional Spread Spectrum Frequency Modulation for Improved EMC Performance
  • ±10% Frequency Spreading
  • 400µA Supply Current Typical (V+ = 5V, 50kHz)
  • Frequency Error ≤1.5% Max (TA = 25°C, V+ = 3V)
  • ±40ppm/°C Temperature Stability
  • Fast Start-Up Time: 260µs Typical (1MHz)
  • Outputs Muted Until Stable
  • Operates from a Single 2.7V to 5.5V Supply
  • Available in Low Profile (1mm) ThinSOT and DFN (2mm × 3mm) Packages
  • AEC-Q100 Qualified for Automotive Applications

LTC6908-1 Applications

  • Switching Power Supply Clock Reference
  • Portable and Battery-Powered Equipment
  • Precision Programmable Oscillator
  • Charge Pump Driver

LTC6908-1 Description

The LTC6908 is an easy-to-use precision oscillator that provides 2-outputs, shifted by either 180° or 90°. The oscillator frequency is programmed by a single external resistor (RSET) and spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance.

The LTC6908 operates with a single 2.7V to 5.5V supply and provides rail-to-rail, 50% duty cycle square wave outputs. A single resistor from 10k to 2M is used to select an oscillator frequency from 50kHz to 10MHz (5V supply). The oscillator can be easily programmed using the simple formula outlined below:

fOUT =10MHz • 10k/RSET

The LTC6908’s SSFM capability modulates the output frequency by a pseudorandom noise (PRN) signal to decrease the peak electromagnetic radiation level and improve EMC performance. The amount of frequency spreading is fixed at ±10% of the center frequency. When SSFM is enabled, the rate of modulation is selected by the user. The three possible modulation rates are fOUT/16, fOUT/32 and fOUT/64.
