LTC6813-1 Datasheet

LTC6813-1 Datasheet

18-Cell Battery Stack Monitor with Daisy Chain Interface
Part No.: LTC6813-1
Page: 90 Pages
Size: 3727 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-01 10:00:24
DataSheet: Download

LTC6813-1 Datasheet Applicable Part

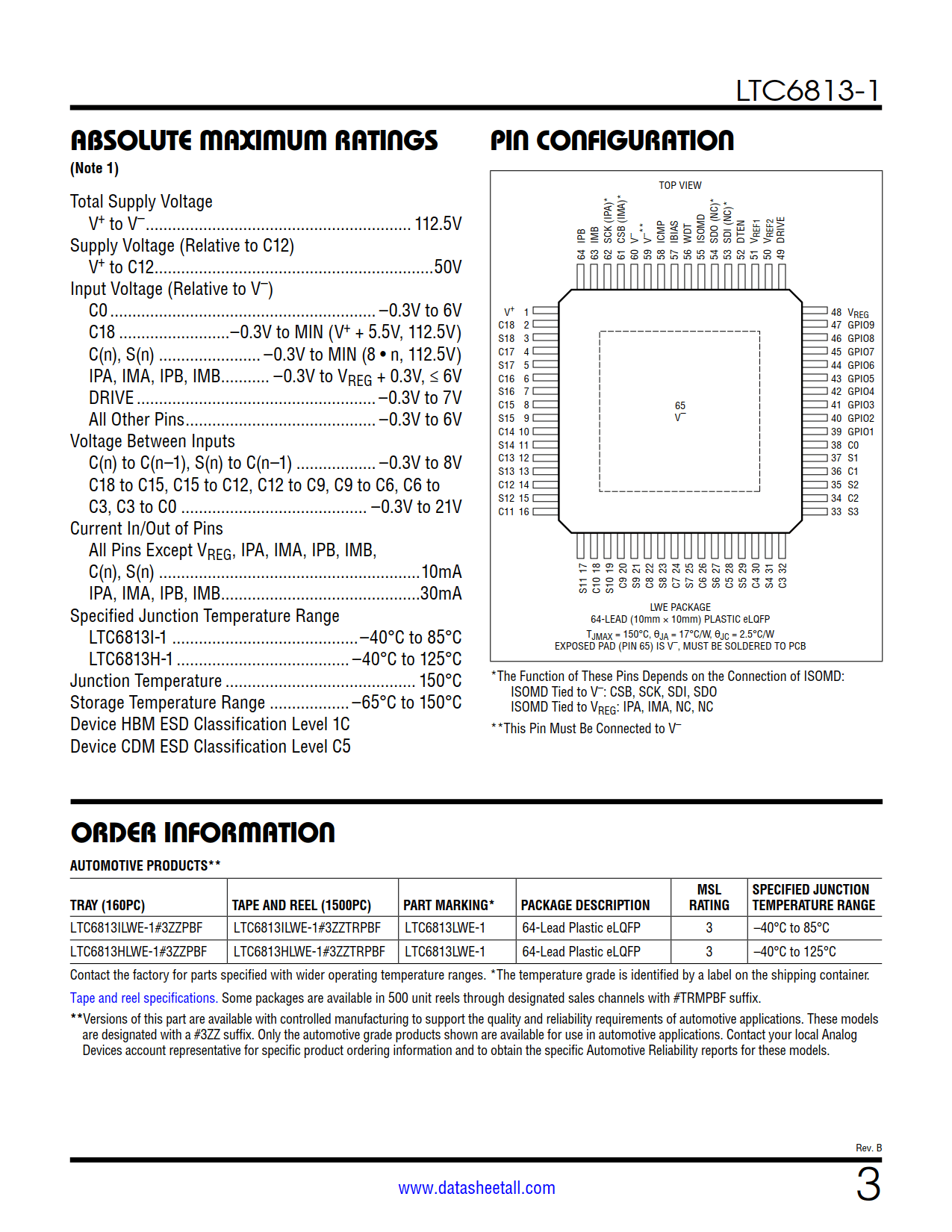

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6813ILWE-1#3ZZPBF Tray 160 LTC6813LWE-1 3 64 -40°C ~ 85°C 64-Lead Plastic eLQFP
LTC6813ILWE-1#3ZZTRPBF Reel 1500 LTC6813LWE-1 3 64 -40°C ~ 85°C 64-Lead Plastic eLQFP
LTC6813ILWE-1#3ZZTRMPBF Reel 500 LTC6813LWE-1 3 64 -40°C ~ 85°C 64-Lead Plastic eLQFP
LTC6813HLWE-1#3ZZPBF Tray 160 LTC6813LWE-1 3 64 -40°C ~ 125°C 64-Lead Plastic eLQFP
LTC6813HLWE-1#3ZZTRPBF Reel 1500 LTC6813LWE-1 3 64 -40°C ~ 125°C 64-Lead Plastic eLQFP
LTC6813HLWE-1#3ZZTRMPBF Reel 500 LTC6813LWE-1 3 64 -40°C ~ 125°C 64-Lead Plastic eLQFP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6813-1 Datasheet(PDF)

LTC6813-1 Datasheet(Picture)

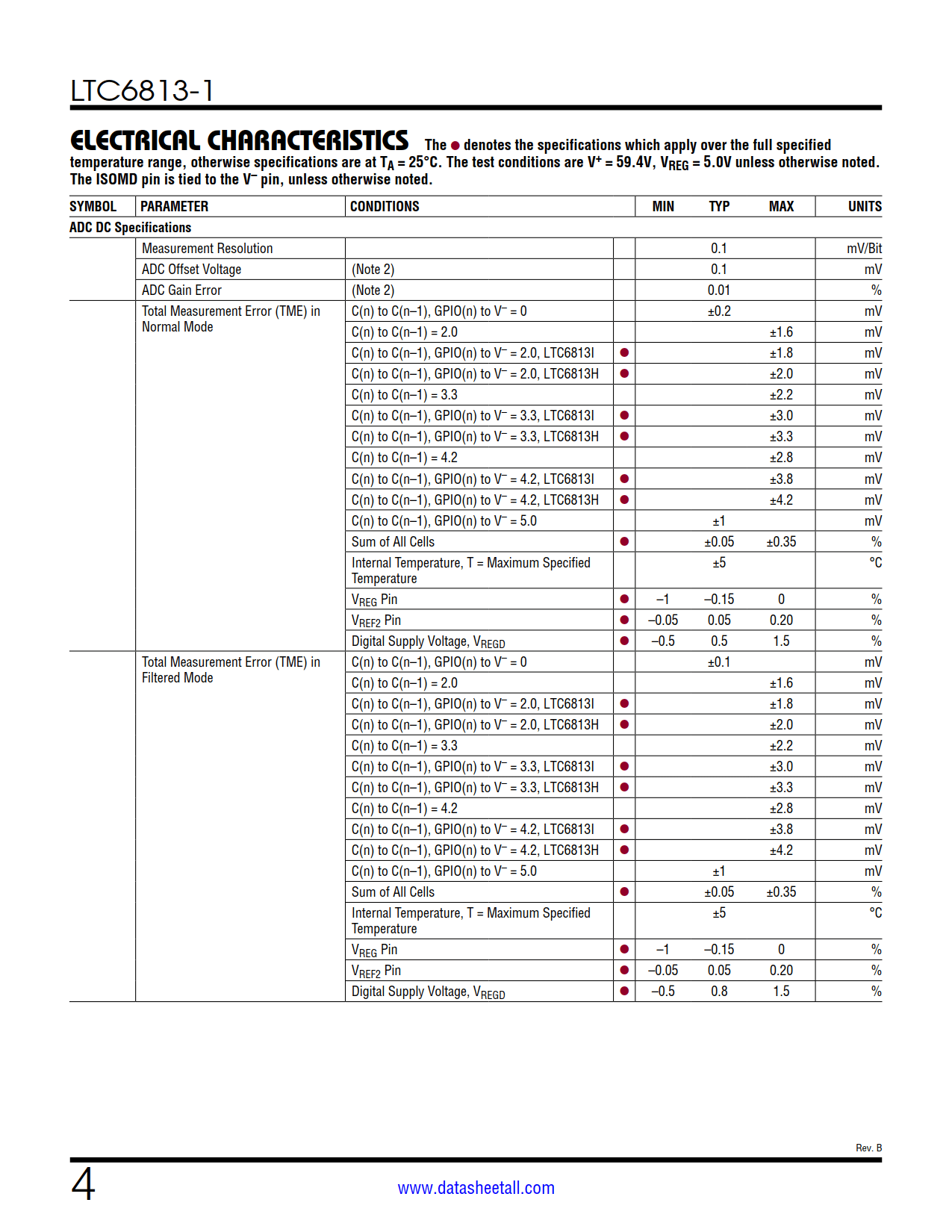

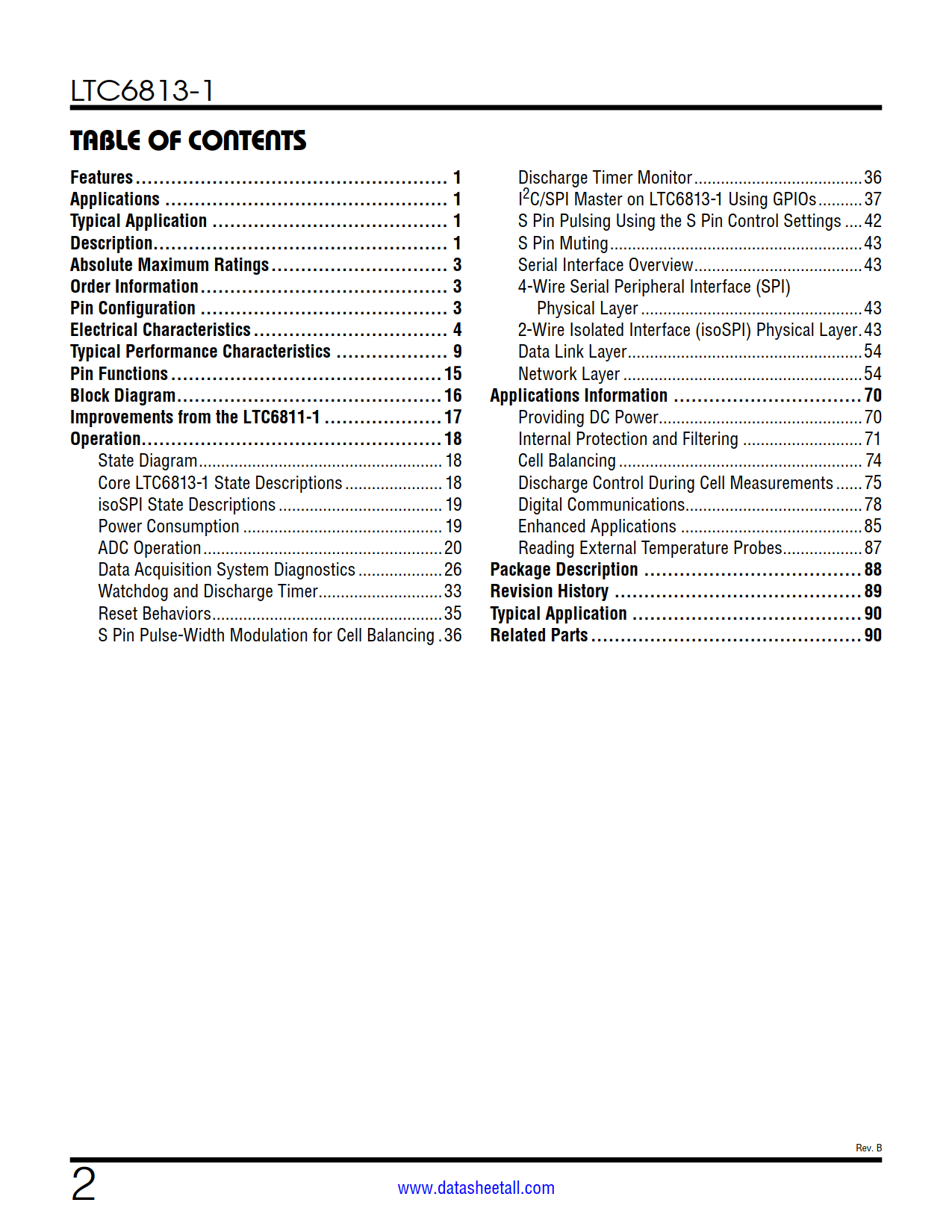

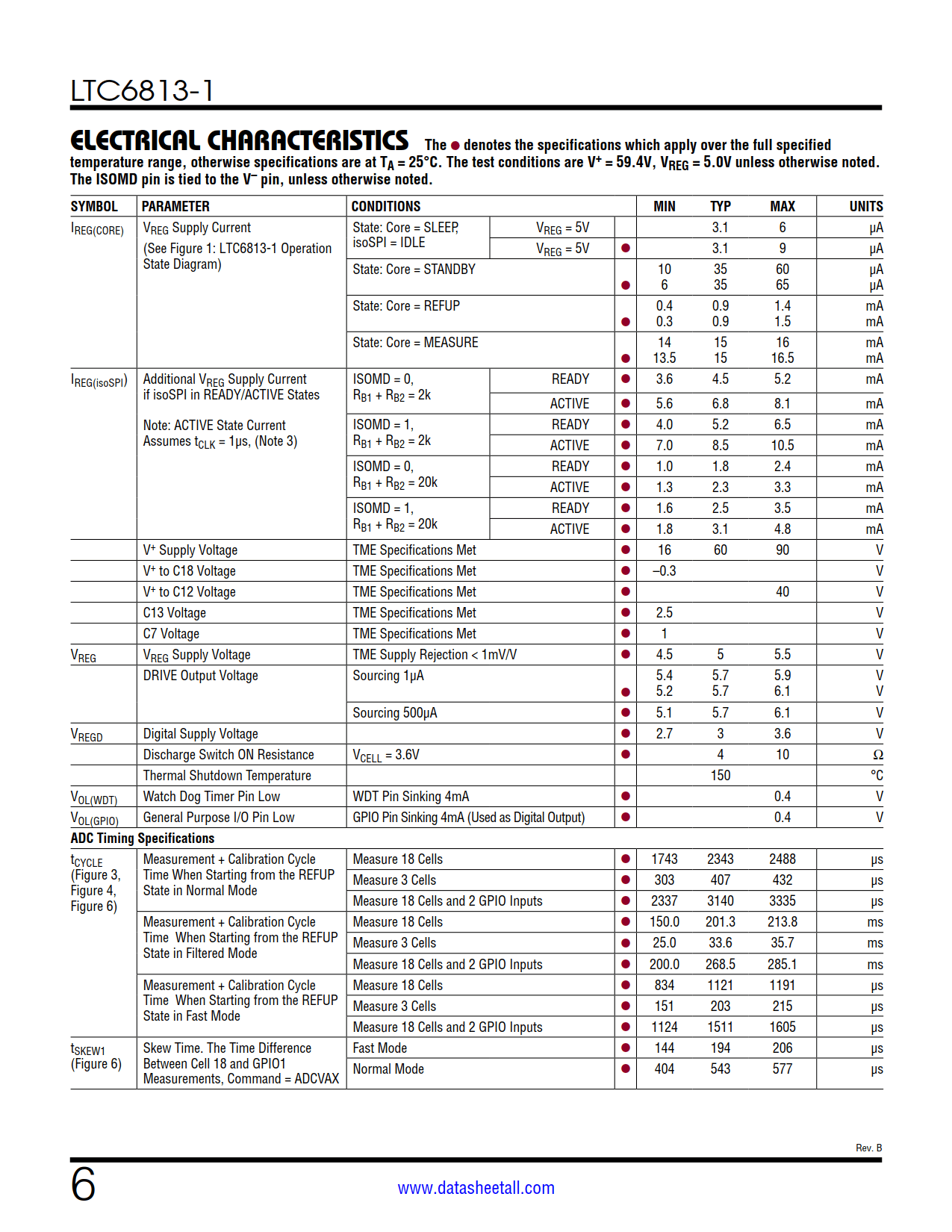

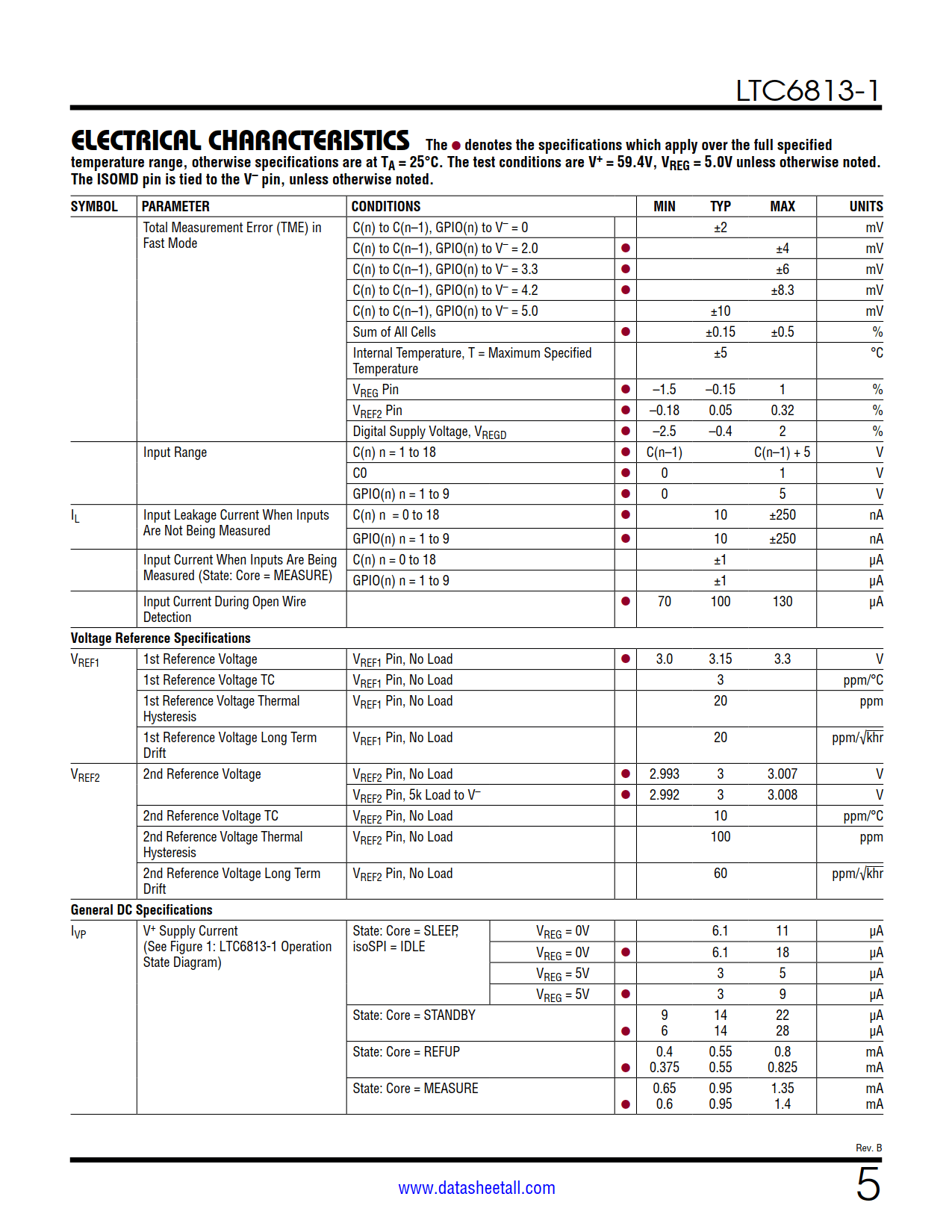

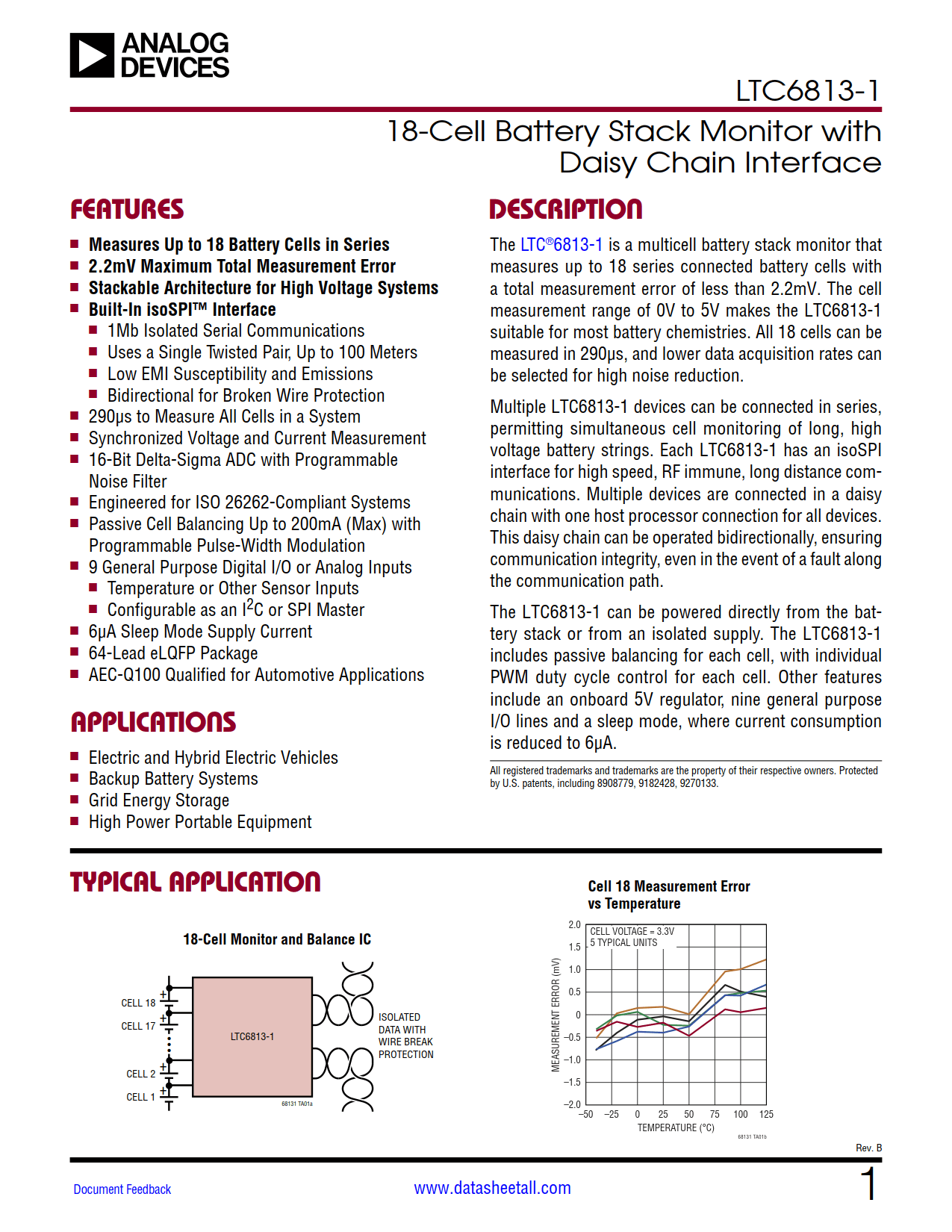

LTC6813-1 Features

  • AEC-Q100 Qualified for Automotive Applications
  • Measures Up to 18 Battery Cells in Series
  • 2.2mV Maximum Total Measurement Error
  • Stackable Architecture for High Voltage Systems
  • Built-In isoSPI Interface
    • 1Mb Isolated Serial Communications
    • Uses a Single Twisted Pair, Up to 100 Meters
    • Low EMI Susceptibility and Emissions
    • Bidirectional for Broken Wire Protection
  • 290µs to Measure All Cells in a System
  • Synchronized Voltage and Current Measurement
  • 16-Bit Delta-Sigma ADC with Programmable 3rd Order Noise Filter
  • Engineered for ISO 26262-Compliant Systems
  • Passive Cell Balancing Up to 200mA (Max) with Programmable Pulse-Width Modulation
  • 9 General Purpose Digital I/O or Analog Inputs
    • Temperature or Other Sensor Inputs
    • Configurable as an I2C or SPI Master
  • 6µA Sleep Mode Supply Current
  • 64-Lead eLQFP Package
  • AEC-Q100 Qualified for Automotive Applications

LTC6813-1 Applications

  • Electric and Hybrid Electric Vehicles
  • Backup Battery Systems
  • Grid Energy Storage
  • High Power Portable Equipment

LTC6813-1 Description

The LTC6813-1 is a multicell battery stack monitor that measures up to 18 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6813-1 suitable for most battery chemistries. All 18 cells can be measured in 290µs, and lower data acquisition rates can be selected for high noise reduction.

Multiple LTC6813-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6813-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path.

The LTC6813-1 can be powered directly from the battery stack or from an isolated supply. The LTC6813-1 includes passive balancing for each cell, with individual PWM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6µA.

LTC6813-1 Datasheet Related Parts
