LTC6655 Datasheet

LTC6655 Datasheet

0.25ppm Noise, Low Drift Precision References
Part No.: LTC6655
Page: 30 Pages
Size: 1816 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-01 10:11:59
DataSheet: Download

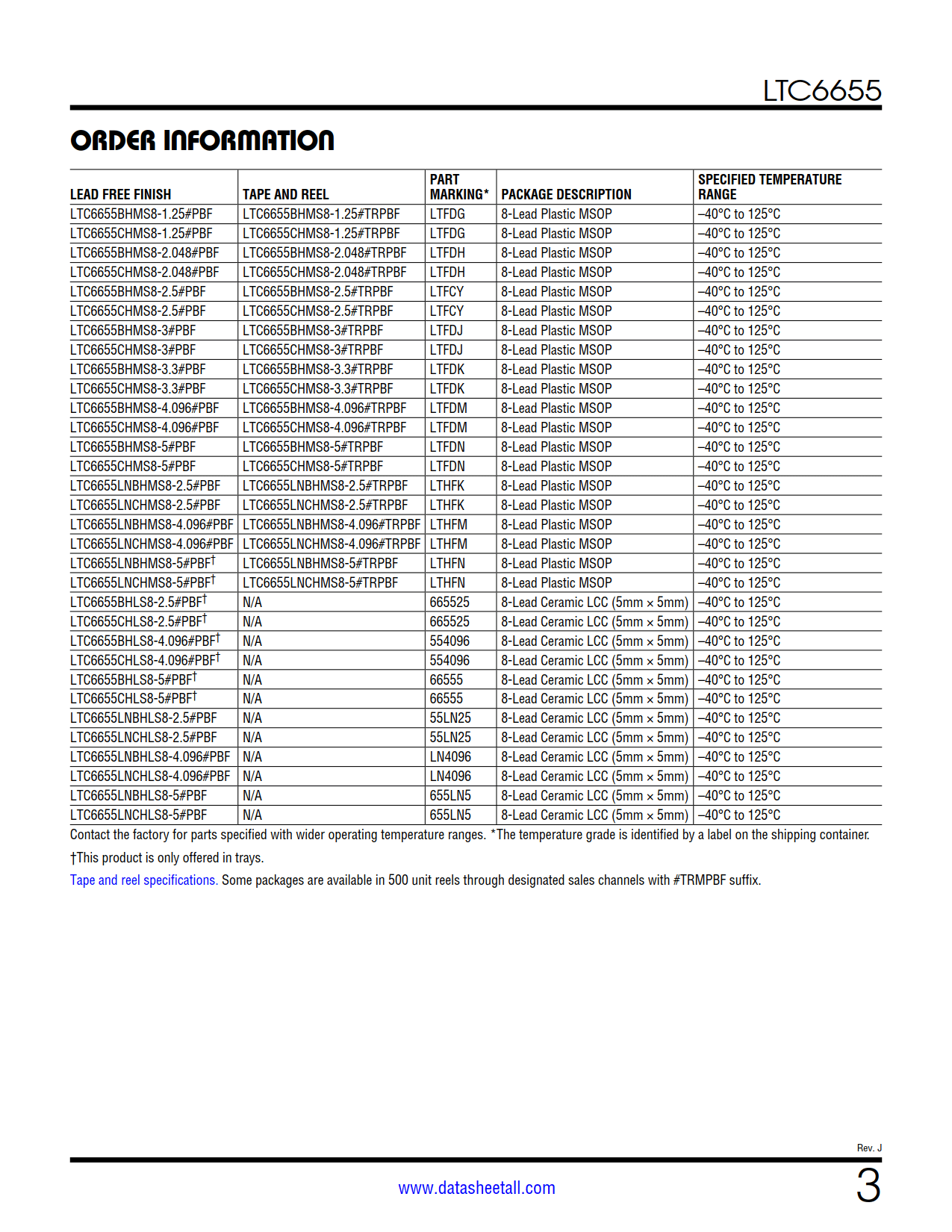

LTC6655 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6655BHMS8-1.25#PBF Tube 50 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-1.25#TRPBF Reel 2500 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-1.25#TRMPBF Reel 500 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-1.25#PBF Tube 50 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-1.25#TRPBF Reel 2500 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-1.25#TRMPBF Reel 500 LTFDG 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.048#PBF Tube 50 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.048#TRPBF Reel 2500 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.048#TRMPBF Reel 500 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.048#PBF Tube 50 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.048#TRPBF Reel 2500 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.048#TRMPBF Reel 500 LTFDH 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.5#PBF Tube 50 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.5#TRPBF Reel 2500 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-2.5#TRMPBF Reel 500 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.5#PBF Tube 50 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.5#TRPBF Reel 2500 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-2.5#TRMPBF Reel 500 LTFCY 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3#PBF Tube 50 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3#TRPBF Reel 2500 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3#TRMPBF Reel 500 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3#PBF Tube 50 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3#TRPBF Reel 2500 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3#TRMPBF Reel 500 LTFDJ 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3.3#PBF Tube 50 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3.3#TRPBF Reel 2500 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-3.3#TRMPBF Reel 500 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3.3#PBF Tube 50 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3.3#TRPBF Reel 2500 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-3.3#TRMPBF Reel 500 LTFDK 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-4.096#PBF Tube 50 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-4.096#TRPBF Reel 2500 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-4.096#TRMPBF Reel 500 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-4.096#PBF Tube 50 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-4.096#TRPBF Reel 2500 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-4.096#TRMPBF Reel 500 LTFDM 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-5#PBF Tube 50 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-5#TRPBF Reel 2500 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHMS8-5#TRMPBF Reel 500 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-5#PBF Tube 50 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-5#TRPBF Reel 2500 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655CHMS8-5#TRMPBF Reel 500 LTFDN 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6655BHLS8-2.5#PBF Tray 576 665525 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
LTC6655CHLS8-2.5#PBF Tray 576 665525 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
LTC6655BHLS8-4.096#PBF Tray 576 554096 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
LTC6655CHLS8-4.096#PBF Tray 576 554096 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
LTC6655BHLS8-5#PBF Tray 576 66555 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
LTC6655CHLS8-5#PBF Tray 576 66555 1 8 -40°C ~ 125°C 8-Lead Ceramic LCC (5mm × 5mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6655 Datasheet(PDF)

LTC6655 Datasheet(Picture)

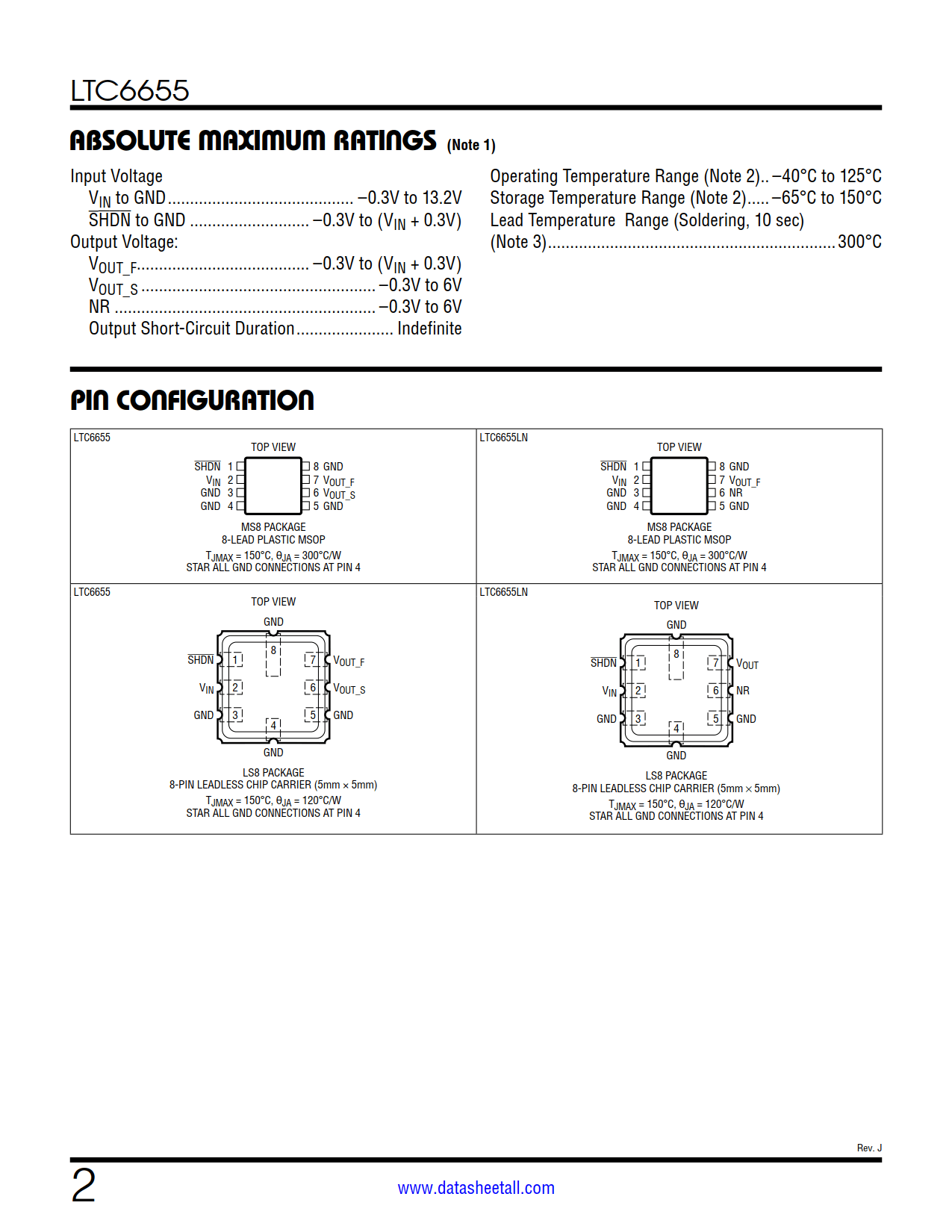

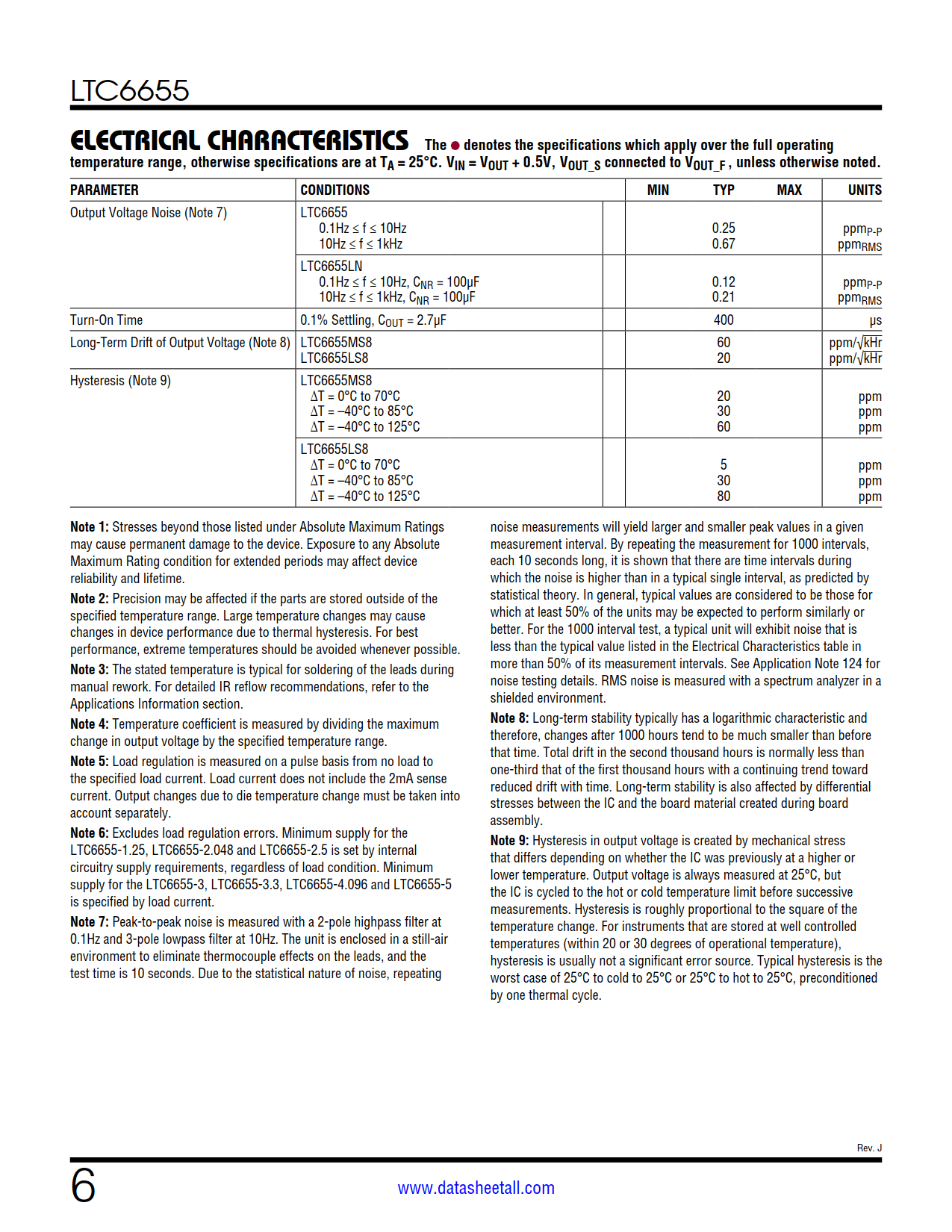

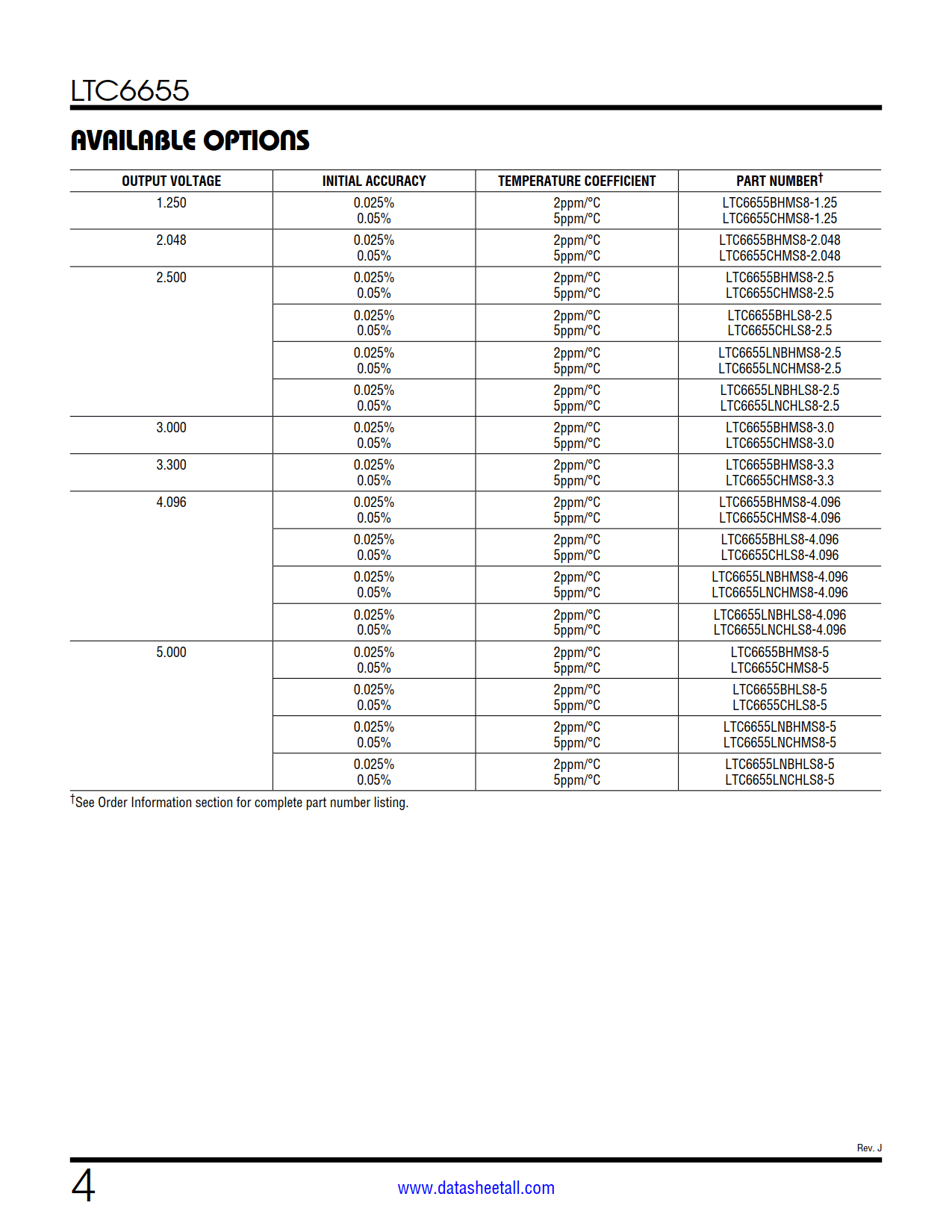

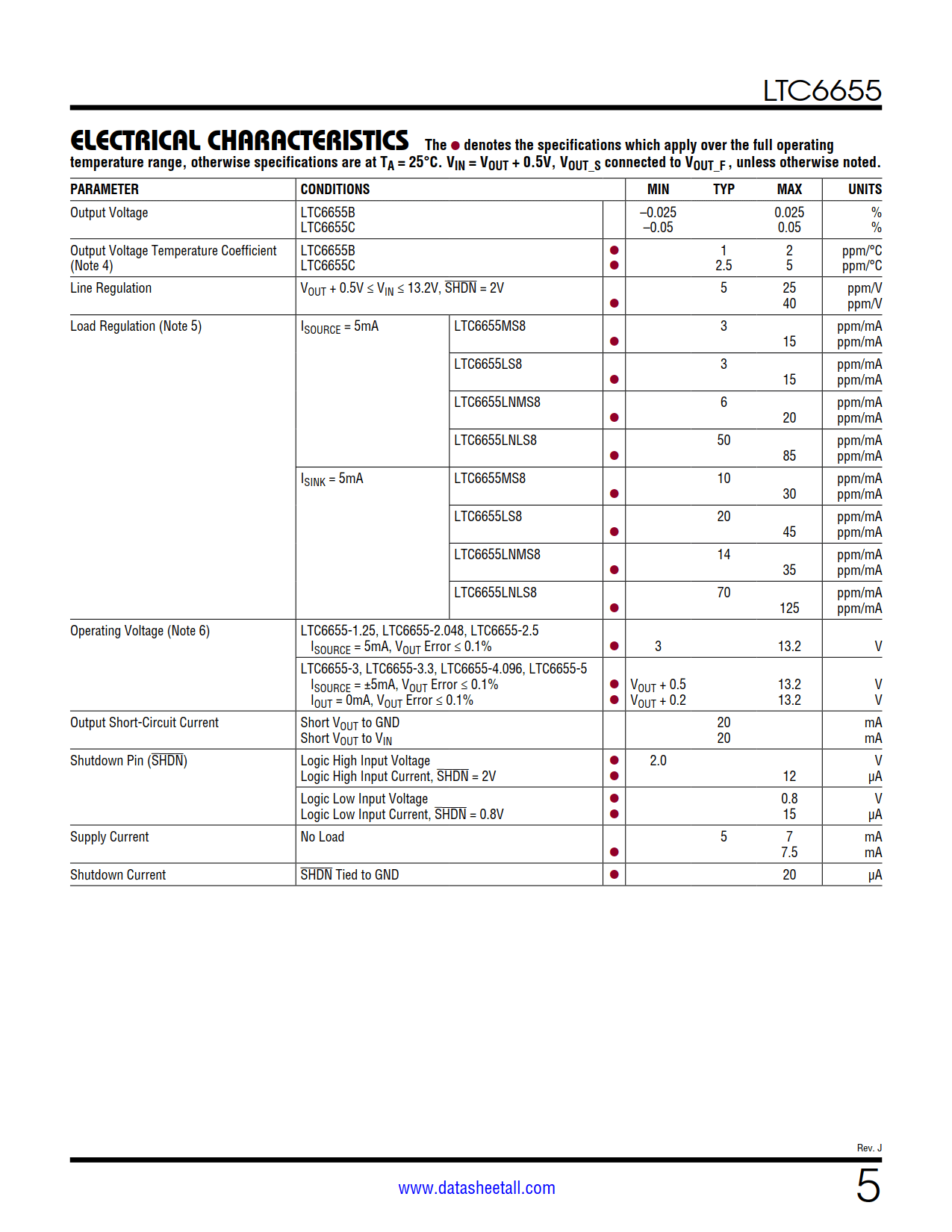

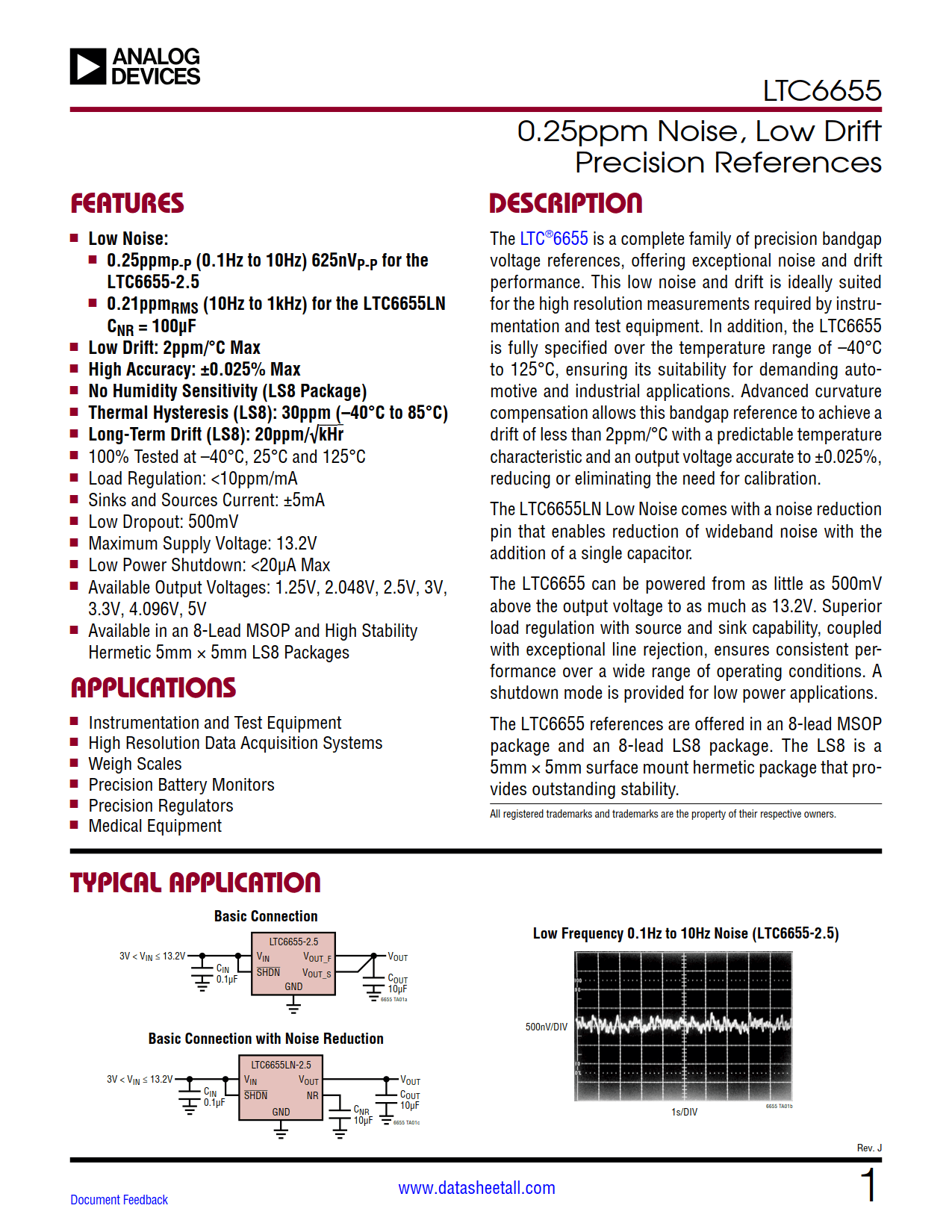

LTC6655 Features

  • Low Noise:
    • 0.25ppmP-P (0.1Hz to 10Hz) 625nVP-P for the LTC6655-2.5
  • Low Drift: 2ppm/°C Max
  • High Accuracy: ±0.025% Max
  • No Humidity Sensitivity (LS8 Package)
  • Thermal Hysteresis (LS8): 30ppm (–40°C to 85°C)
  • Long-Term Drift (LS8): 20ppm/√kHr
  • 100% Tested at –40°C, 25°C and 125°C
  • Load Regulation: <10ppm/mA
  • Sinks and Sources Current: ±5mA
  • Low Dropout: 500mV
  • Maximum Supply Voltage: 13.2V
  • Low Power Shutdown: <20µA Max
  • Available Output Voltages: 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, 5V
  • Available in an 8-Lead MSOP and High Stability Hermetic 5mm × 5mm LS8 Packages

LTC6655 Applications

  • Instrumentation and Test Equipment
  • High Resolution Data Acquisition Systems
  • Weigh Scales
  • Precision Battery Monitors
  • Precision Regulators
  • Medical Equipment

LTC6655 Description

The LTC6655 is a complete family of precision bandgap voltage references, offering exceptional noise and drift performance. This low noise and drift is ideally suited for the high resolution measurements required by instrumentation and test equipment. In addition, the LTC6655 is fully specified over the temperature range of –40°C to 125°C, ensuring its suitability for demanding automotive and industrial applications. Advanced curvature compensation allows this bandgap reference to achieve a drift of less than 2ppm/°C with a predictable temperature characteristic and an output voltage accurate to ±0.025%, reducing or eliminating the need for calibration.

The LTC6655 can be powered from as little as 500mV above the output voltage to as much as 13.2V. Superior load regulation with source and sink capability, coupled with exceptional line rejection, ensures consistent performance over a wide range of operating conditions. A shutdown mode is provided for low power applications.

The LTC6655 references are offered in an 8-lead MSOP package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.
