LTC6363 Datasheet (Analog Devices; Inc.)

LTC6363 Datasheet Applicable Part

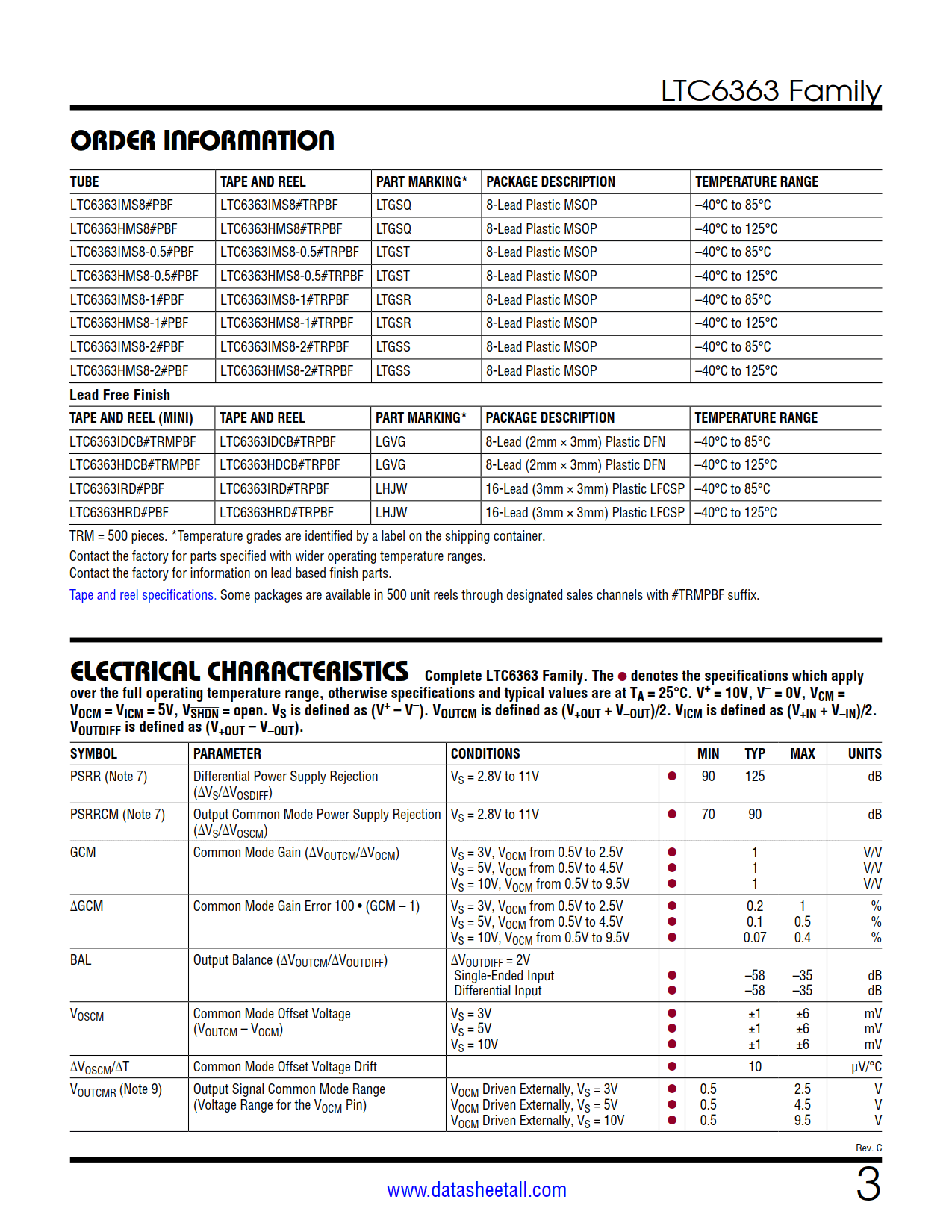

Part No.	Packing	SPQ	Marking	MSL	Pins	Temp Range	Package Description	Buy
LTC6363IMS8#PBF	Tube	50	LTGSQ	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363IMS8#TRPBF	Reel	2500	LTGSQ	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363HMS8#PBF	Tube	50	LTGSQ	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363HMS8#TRPBF	Reel	2500	LTGSQ	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363IMS8-0.5#PBF	Tube	50	LTGST	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363IMS8-0.5#TRPBF	Reel	2500	LTGST	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363HMS8-0.5#PBF	Tube	50	LTGST	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363HMS8-0.5#TRPBF	Reel	2500	LTGST	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363IMS8-1#PBF	Tube	50	LTGSR	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363IMS8-1#TRPBF	Reel	2500	LTGSR	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363HMS8-1#PBF	Tube	50	LTGSR	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363HMS8-1#TRPBF	Reel	2500	LTGSR	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363IMS8-2#PBF	Tube	50	LTGSS	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363IMS8-2#TRPBF	Reel	2500	LTGSS	1	8	-40°C ~ 85°C	8-Lead Plastic MSOP
LTC6363HMS8-2#PBF	Tube	50	LTGSS	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363HMS8-2#TRPBF	Reel	2500	LTGSS	1	8	-40°C ~ 125°C	8-Lead Plastic MSOP
LTC6363IDCB#TRPBF	Reel	2500	LGVG	1	8	-40°C ~ 85°C	8-Lead (2mm × 3mm) Plastic DFN
LTC6363IDCB#TRMPBF	Reel	500	LGVG	1	8	-40°C ~ 85°C	8-Lead (2mm × 3mm) Plastic DFN
LTC6363HDCB#TRPBF	Reel	2500	LGVG	1	8	-40°C ~ 125°C	8-Lead (2mm × 3mm) Plastic DFN
LTC6363HDCB#TRMPBF	Reel	500	LGVG	1	8	-40°C ~ 125°C	8-Lead (2mm × 3mm) Plastic DFN
LTC6363IRD#PBF	Tube	121	LHJW	1	16	-40°C ~ 85°C	16-Lead (3mm × 3mm) Plastic LFCSP
LTC6363IRD#TRPBF	Reel	2500	LHJW	1	16	-40°C ~ 85°C	16-Lead (3mm × 3mm) Plastic LFCSP
LTC6363HRD#PBF	Tube	121	LHJW	1	16	-40°C ~ 125°C	16-Lead (3mm × 3mm) Plastic LFCSP
LTC6363HRD#TRPBF	Reel	2500	LHJW	1	16	-40°C ~ 125°C	16-Lead (3mm × 3mm) Plastic LFCSP

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

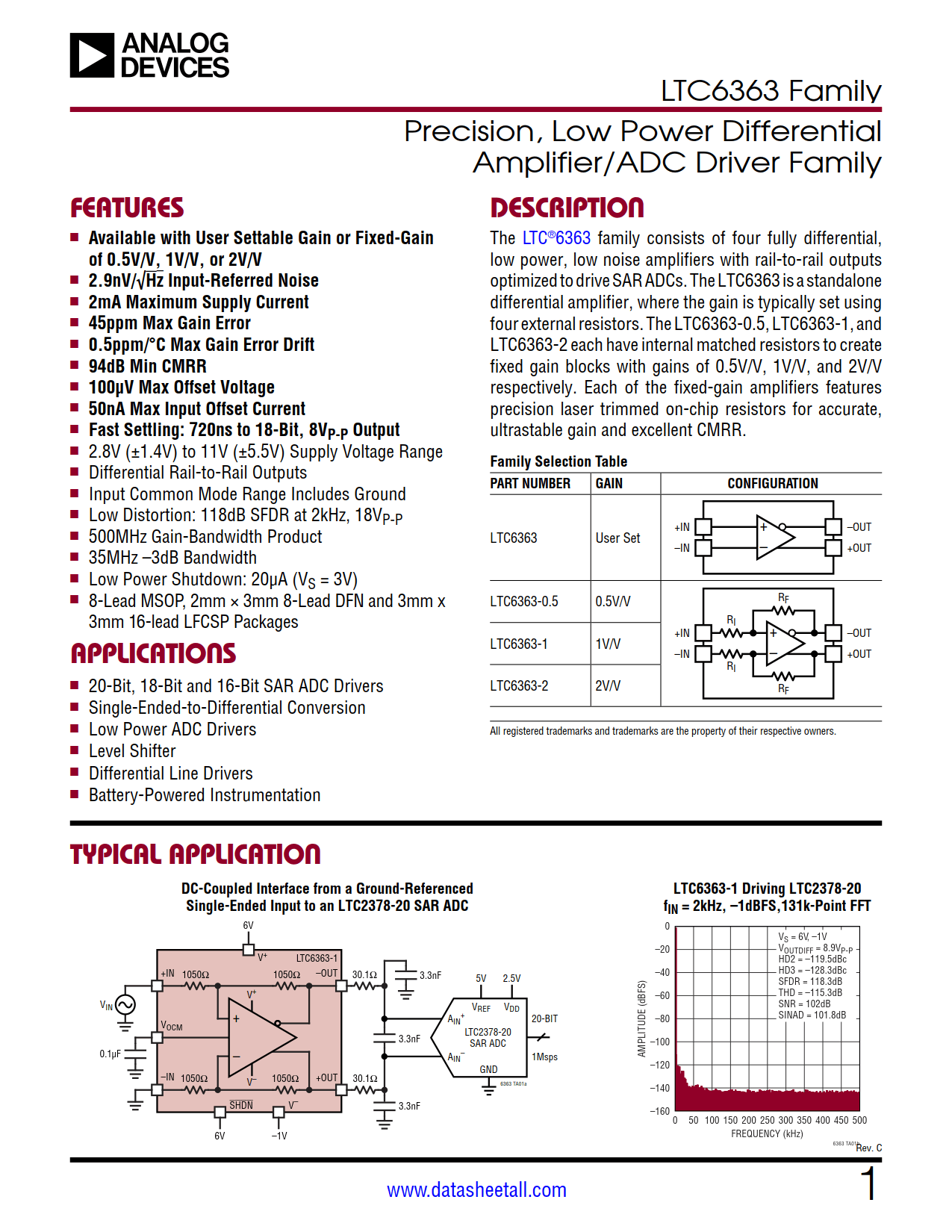

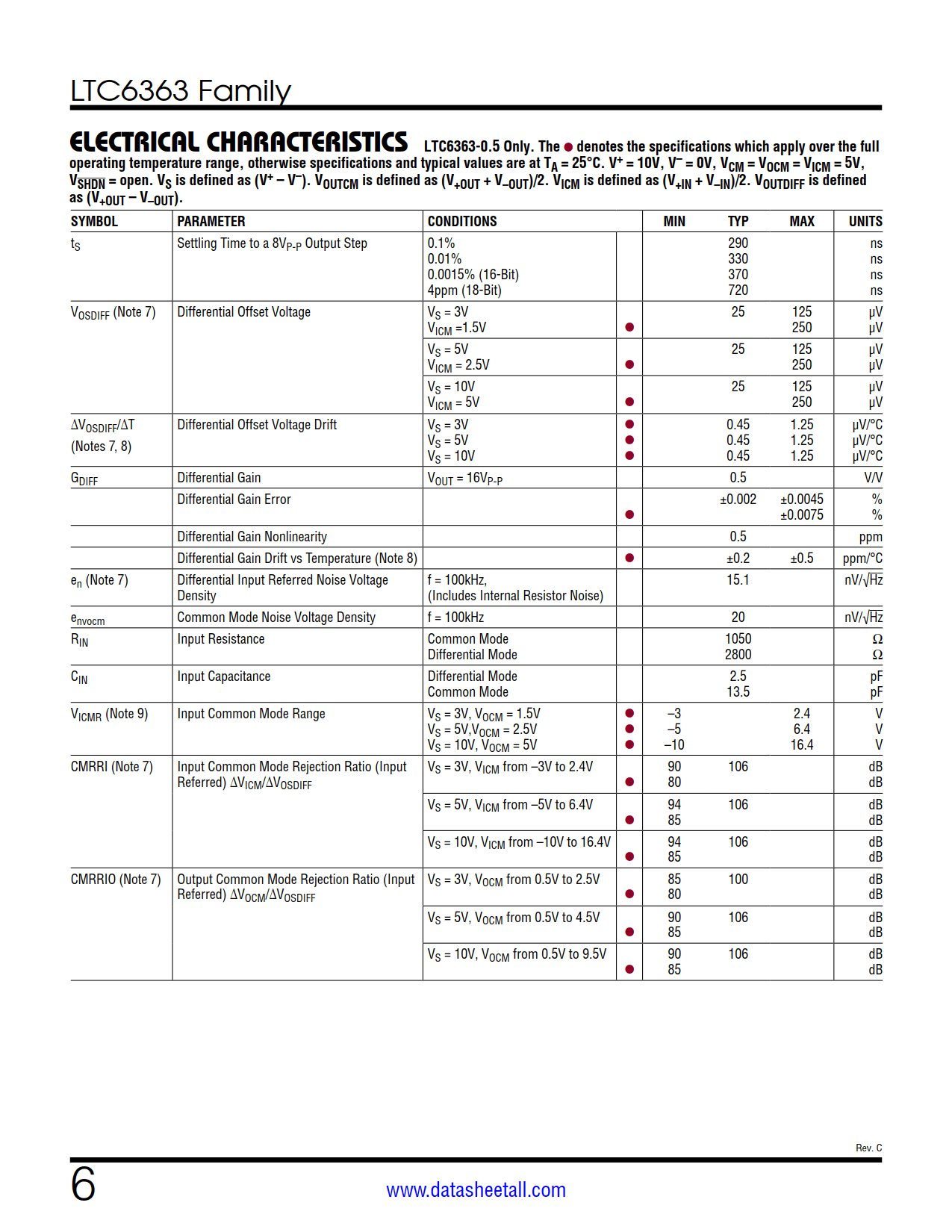

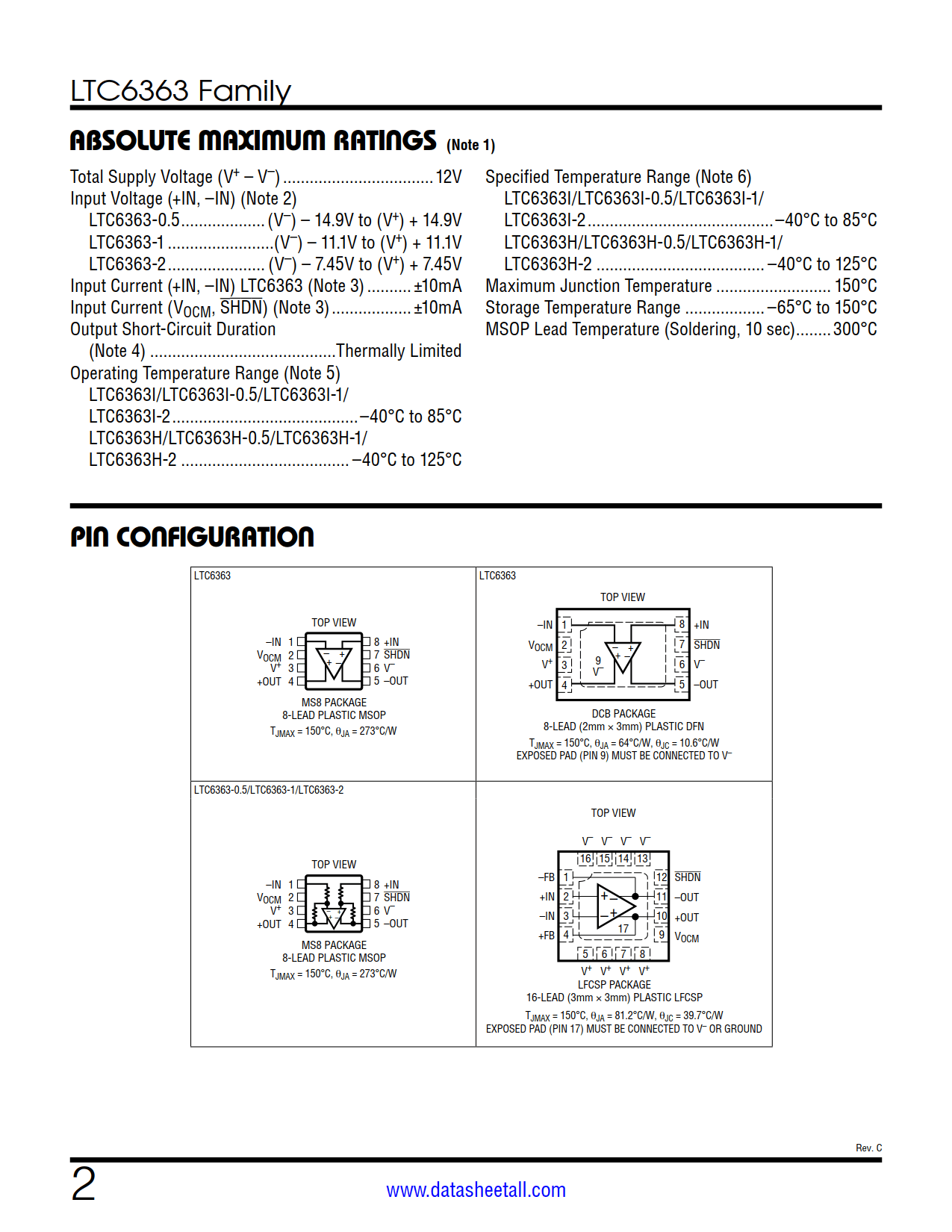

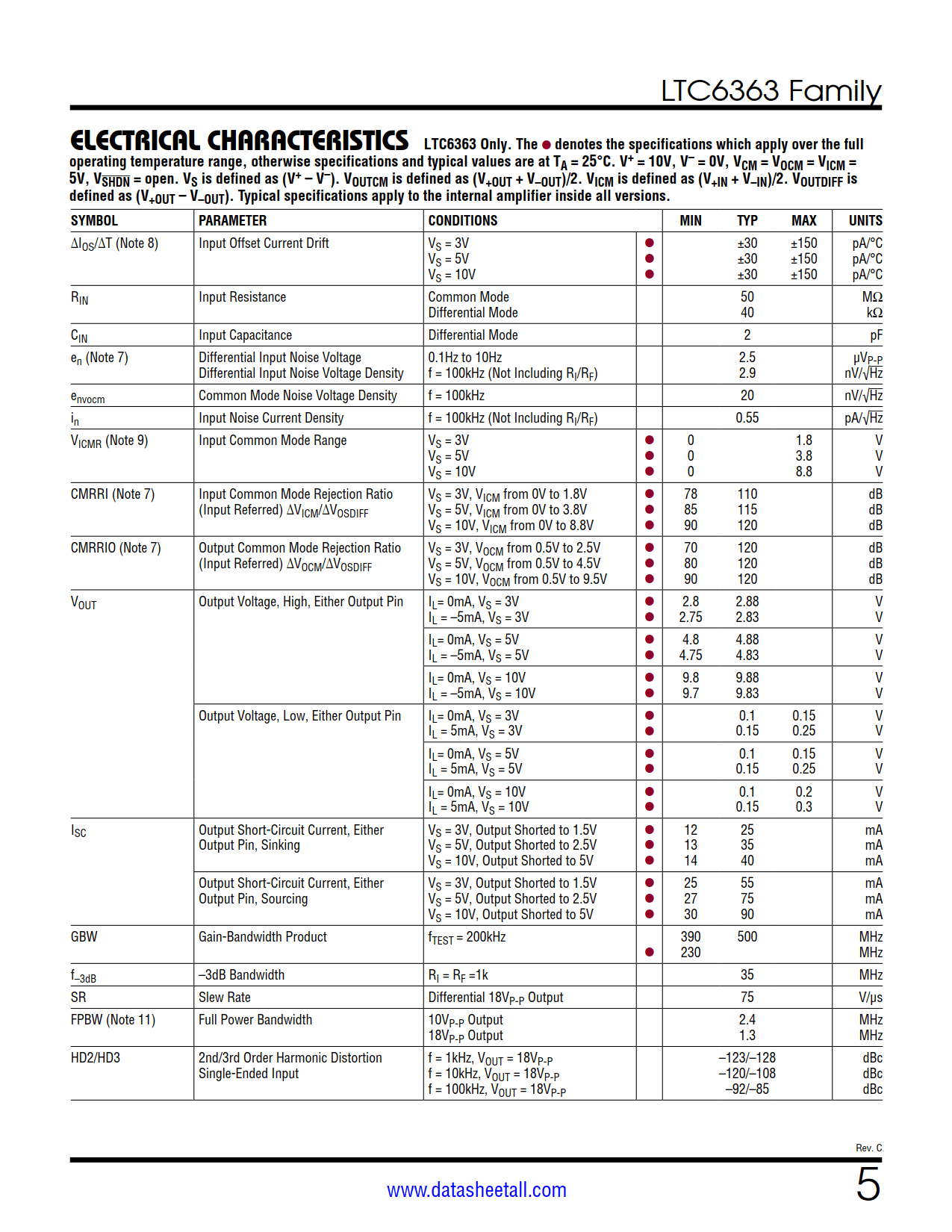

LTC6363 Features

Available with User Settable Gain or Fixed-Gain of 0.5V/V, 1V/V, or 2V/V
2.9nV/√Hz Input-Referred Noise
2mA Maximum Supply Current
45ppm Max Gain Error
0.5ppm/°C Max Gain Error Drift
94dB Min CMRR
100µV Max Offset Voltage
50nA Max Input Offset Current
Fast Settling: 720ns to 18-Bit, 8V_P-P Output
2.8V (±1.4V) to 11V (±5.5V) Supply Voltage Range
Differential Rail-to-Rail Outputs
Input Common Mode Range Includes Ground
Low Distortion: 118dB SFDR at 2kHz, 18V_P-P
500MHz Gain-Bandwidth Product
35MHz –3dB Bandwidth
Low Power Shutdown: 20µA (V_S = 3V)
8-Lead MSOP, 2mm × 3mm 8-Lead DFN and 3mm × 3mm 16-lead LFCSP Packages

LTC6363 Applications

20-Bit, 18-Bit and 16-Bit SAR ADC Drivers
Single-Ended-to-Differential Conversion
Low Power ADC Drivers
Level Shifter
Differential Line Drivers
Battery-Powered Instrumentation

LTC6363 Description

The LTC6363 family consists of four fully differential, low power, low noise amplifiers with rail-to-rail outputs optimized to drive SAR ADCs. The LTC6363 is a standalone differential amplifier, where the gain is typically set using four external resistors. The LTC6363-0.5, LTC6363-1, and LTC6363-2 each have internal matched resistors to create fixed gain blocks with gains of 0.5V/V, 1V/V, and 2V/V respectively. Each of the fixed-gain amplifiers features precision laser trimmed on-chip resistors for accurate, ultrastable gain and excellent CMRR.
