| Part No.： | LTC4238 |
| Page： | 32 Pages |
| Size： | 1436 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-24 16:28:43 |
| DataSheet： | Download |

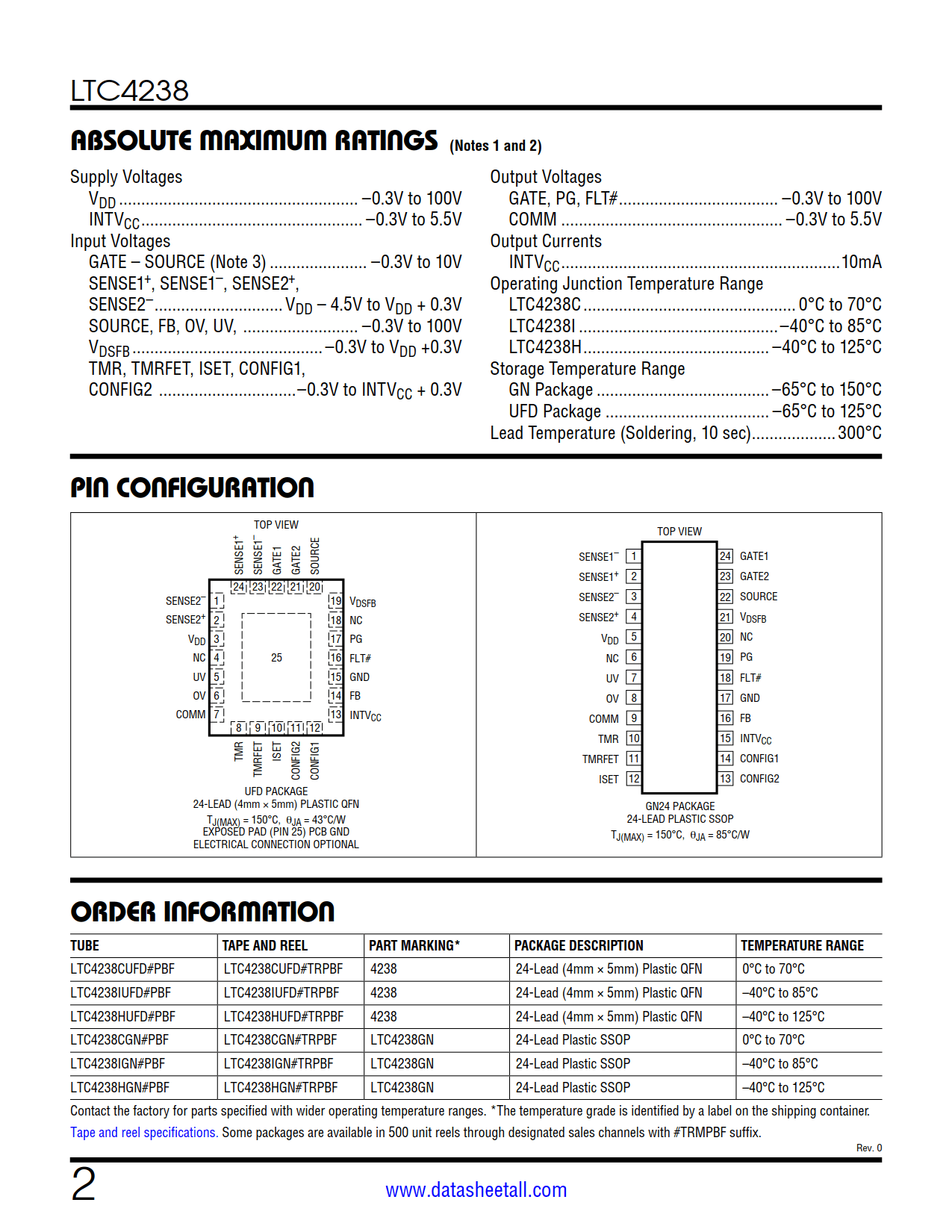

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC4238CUFD#PBF | Tube | 73 | 4238 | 1 | 24 | 0°C ~ 70°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238CUFD#TRPBF | Reel | 2500 | 4238 | 1 | 24 | 0°C ~ 70°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238IUFD#PBF | Tube | 73 | 4238 | 1 | 24 | -40°C ~ 85°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238IUFD#TRPBF | Reel | 2500 | 4238 | 1 | 24 | -40°C ~ 85°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238HUFD#PBF | Tube | 73 | 4238 | 1 | 24 | -40°C ~ 125°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238HUFD#TRPBF | Reel | 2500 | 4238 | 1 | 24 | -40°C ~ 125°C | 24-Lead (4mm × 5mm) Plastic QFN | |
| LTC4238CGN#PBF | Tube | 55 | LTC4238GN | 1 | 24 | 0°C ~ 70°C | 24-Lead Plastic SSOP | |
| LTC4238CGN#TRPBF | Reel | 250 | LTC4238GN | 1 | 24 | 0°C ~ 70°C | 24-Lead Plastic SSOP | |
| LTC4238IGN#PBF | Tube | 55 | LTC4238GN | 1 | 24 | -40°C ~ 85°C | 24-Lead Plastic SSOP | |
| LTC4238IGN#TRPBF | Reel | 2500 | LTC4238GN | 1 | 24 | -40°C ~ 85°C | 24-Lead Plastic SSOP | |
| LTC4238HGN#PBF | Tube | 55 | LTC4238GN | 1 | 24 | -40°C ~ 125°C | 24-Lead Plastic SSOP | |
| LTC4238HGN#TRPBF | Reel | 2500 | LTC4238GN | 1 | 24 | -40°C ~ 125°C | 24-Lead Plastic SSOP |
The LTC4238 is a high voltage high current Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. Dual 12V gate drive is well suited for high power applications to either share safe operating area across parallel MOSFETs or support a 2-stage start-up that first charges the load capacitance followed by enabling a low on-resistance path to the load.
The device features active current limiting (ACL) with two foldback options as VDS increases. The constant power profile limits the power dissipation to be no higher than a fixed value, while the high power profile allows the part to ride through large input steps during operation.
The LTC4238 notifies when output power is good. In addition, it has protection features that respond to input undervoltage, overvoltage; and generate a fault when there is an overcurrent or FET bad condition.
