LTC3351 Datasheet

LTC3351 Datasheet

Hot Swappable Supercapacitor Charger, Backup Controller and System Monitor
Part No.: LTC3351
Page: 56 Pages
Size: 1770 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-04-22 13:55:49
DataSheet: Download

LTC3351 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3351EUFF#PBF Tube 52 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
LTC3351EUFF#TRPBF Reel 2000 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
LTC3351EUFF#TRMPBF Reel 500 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
LTC3351IUFF#PBF Tube 52 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
LTC3351IUFF#TRPBF Reel 2000 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
LTC3351IUFF#TRMPBF Reel 500 3351 1 44 -40°C ~125°C 44-Lead (4mm × 7mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3351 Datasheet(PDF)

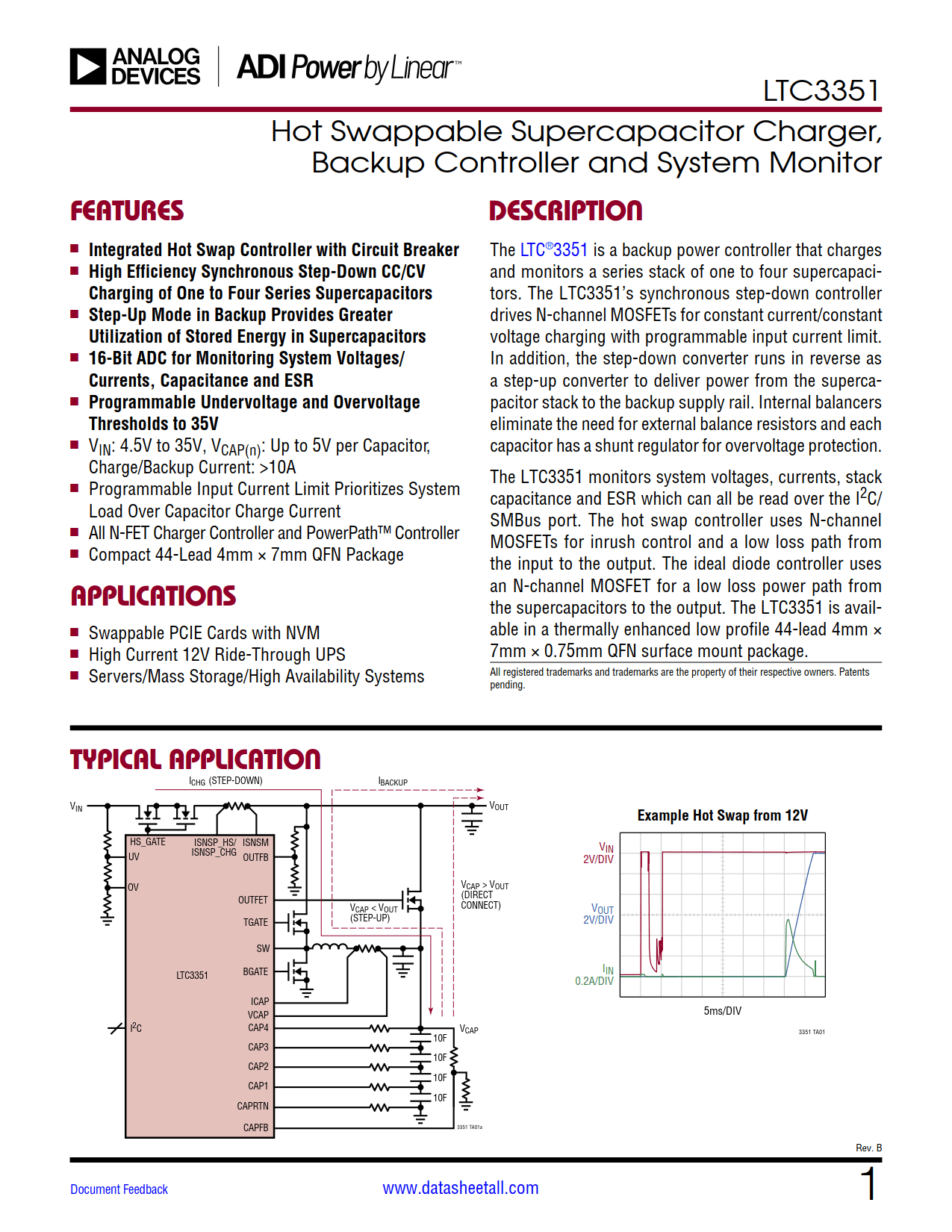

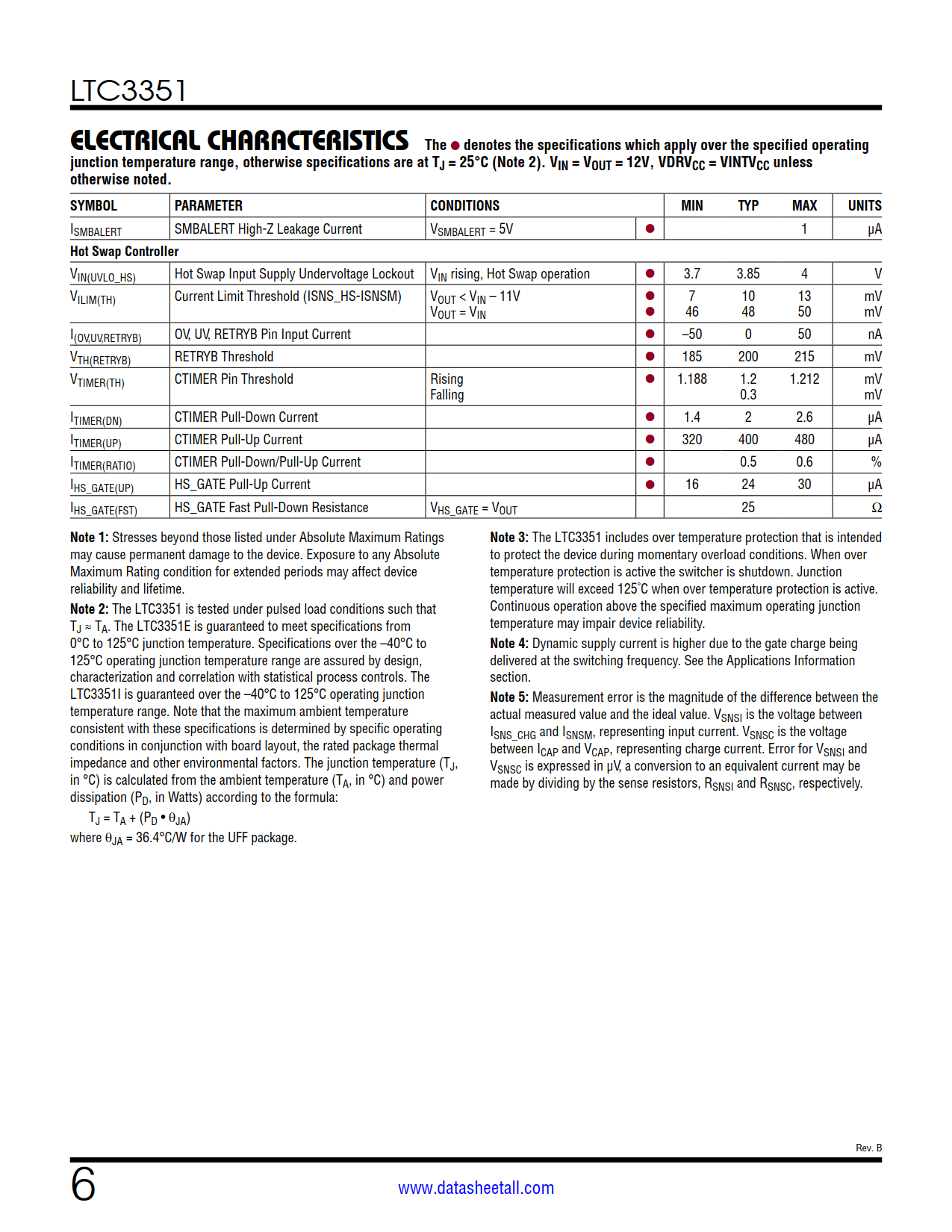

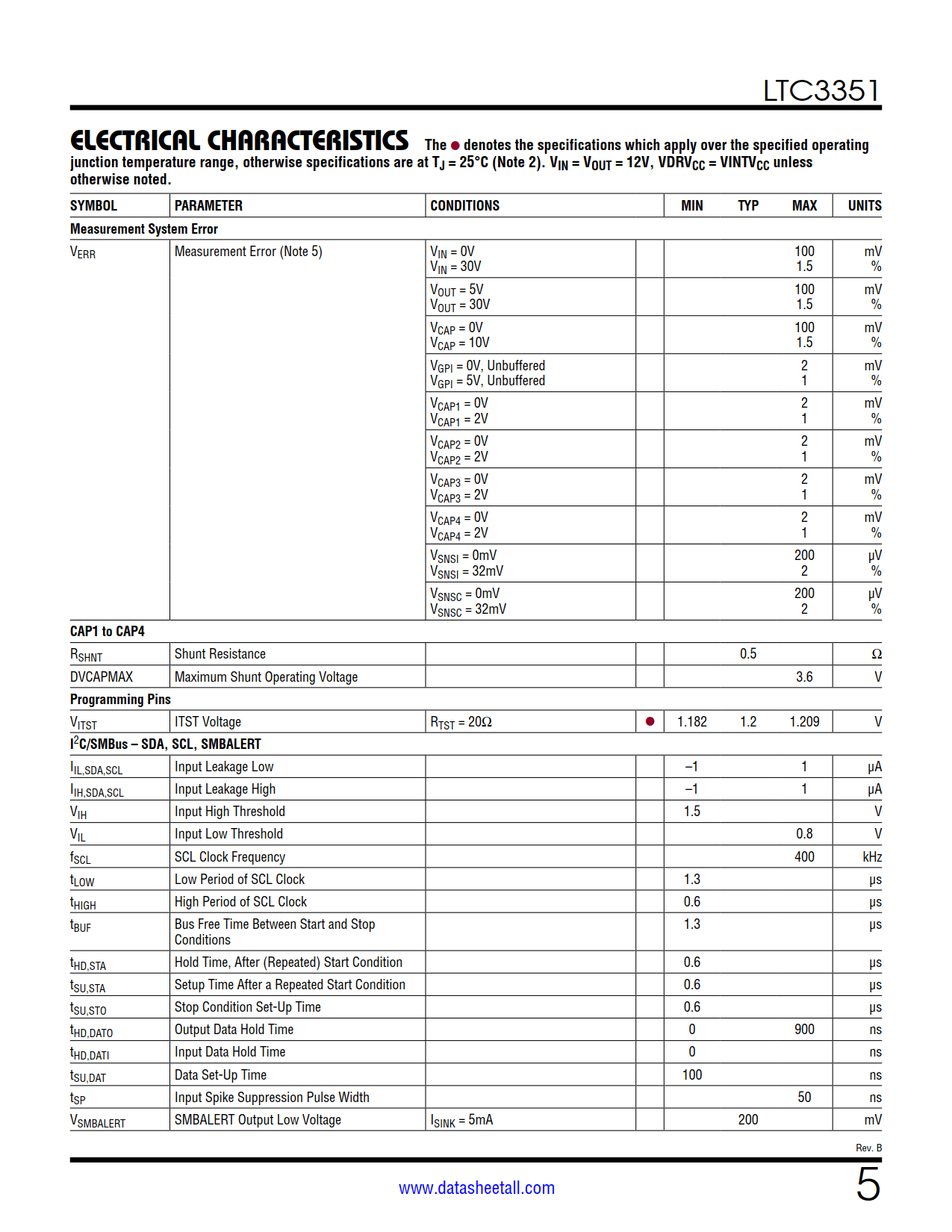

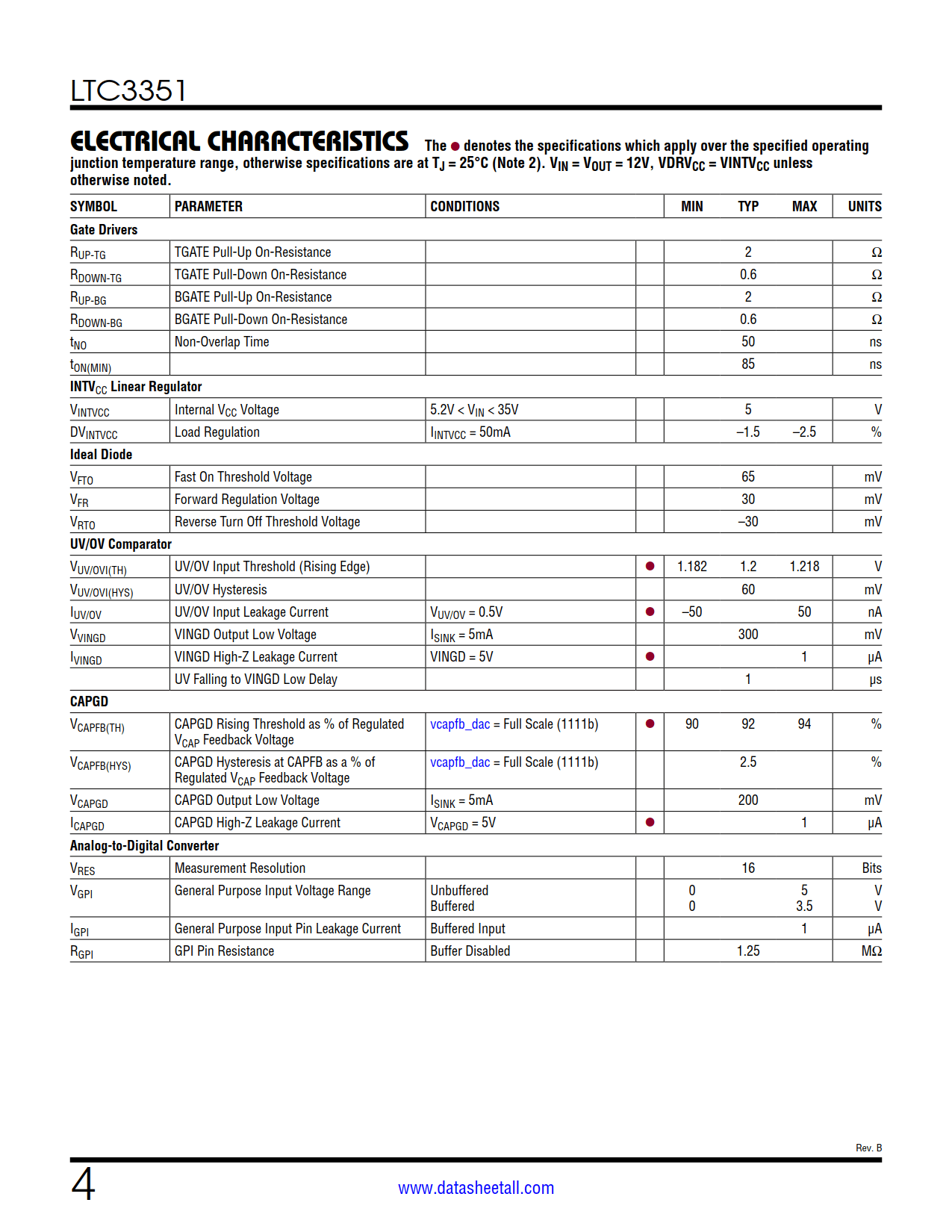

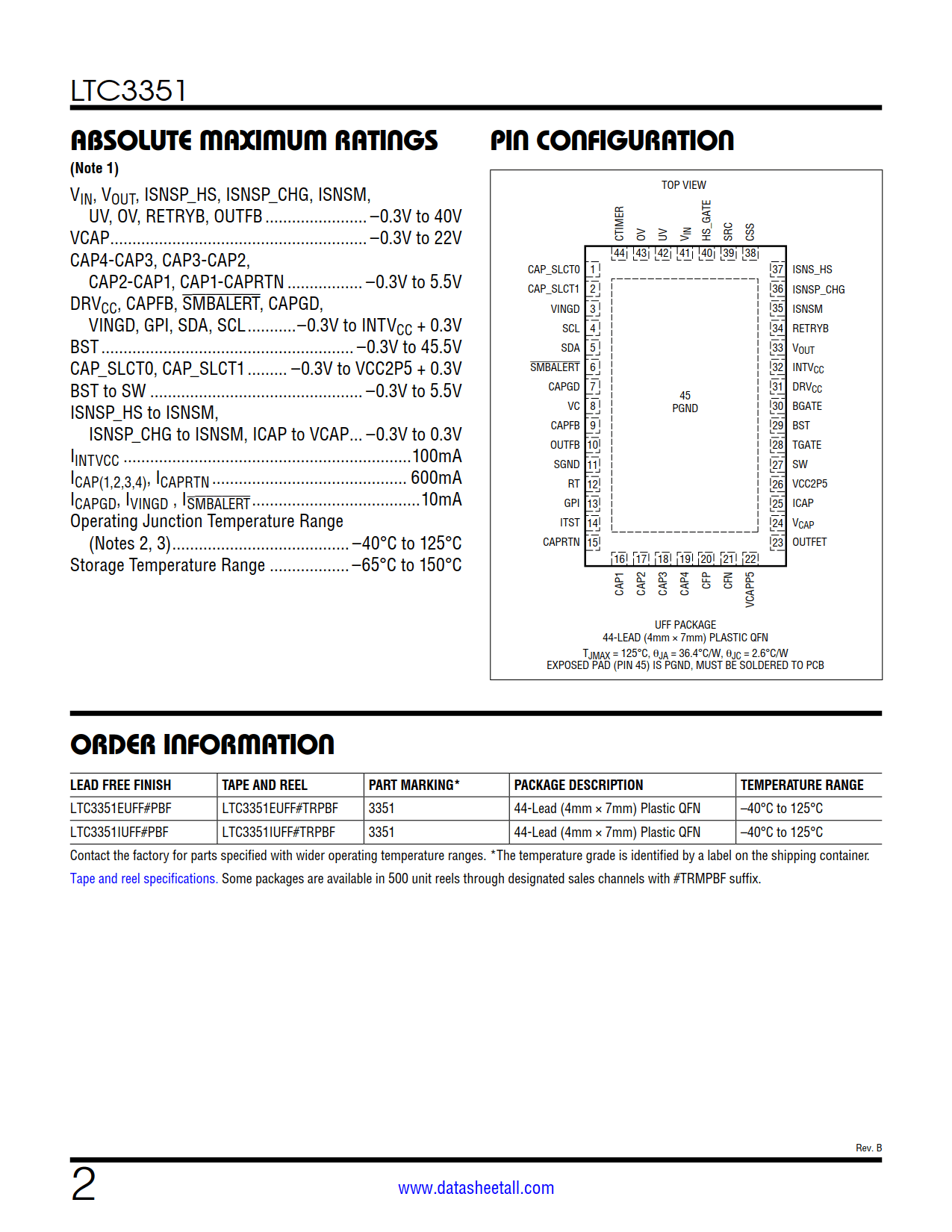

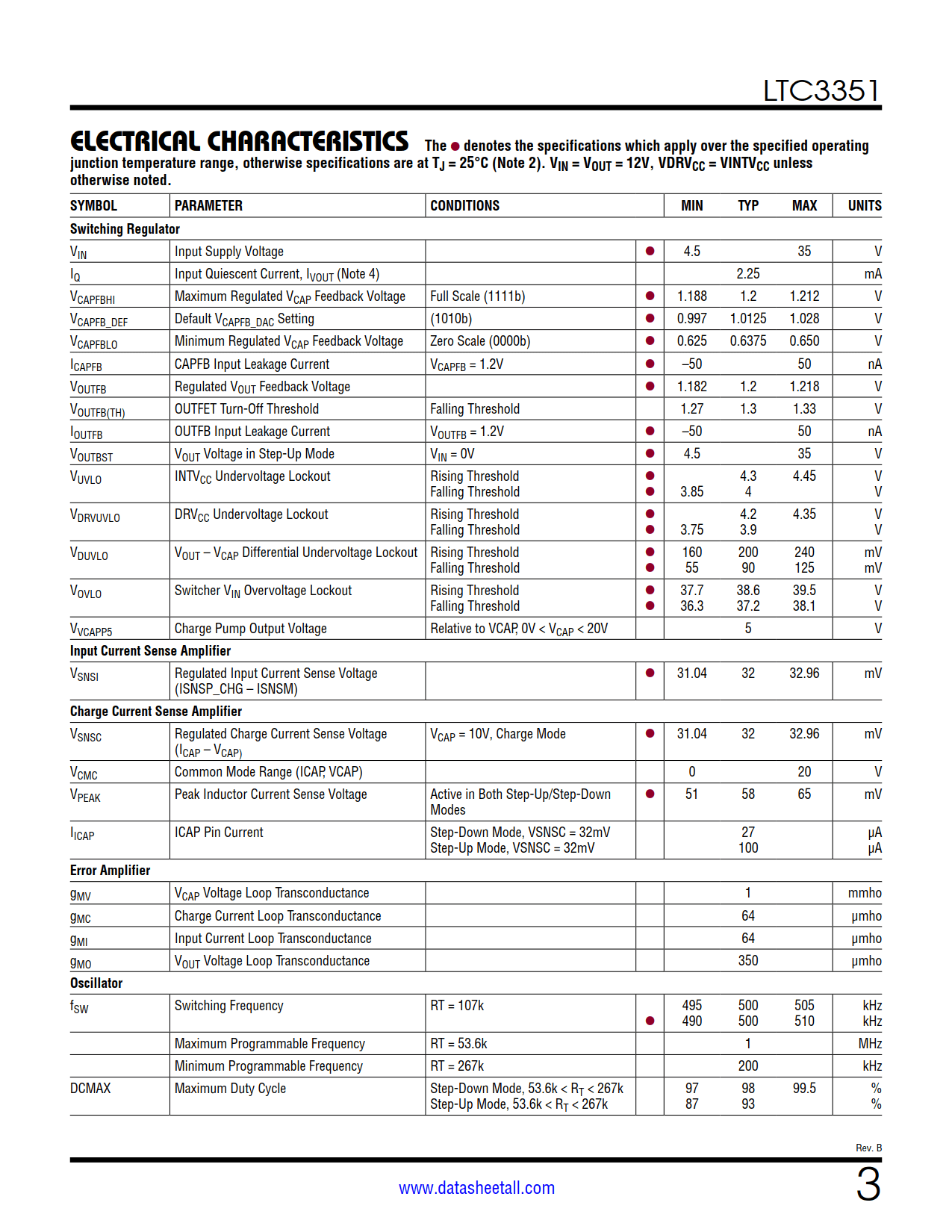

LTC3351 Datasheet(Picture)

LTC3351 Features

  • Integrated Hot Swap Controller with Circuit Breaker
  • High Efficiency Synchronous Step-Down CC/CV Charging of One to Four Series Supercapacitors
  • Step-Up Mode in Backup Provides Greater Utilization of Stored Energy in Supercapacitors
  • 16-Bit ADC for Monitoring System Voltages/Currents, Capacitance and ESR
  • Programmable Undervoltage and Overvoltage Thresholds to 35V
  • VIN: 4.5V to 35V, VCAP(n): Up to 5V per Capacitor, Charge/Backup Current: >10A
  • Programmable Input Current Limit Prioritizes System Load Over Capacitor Charge Current
  • All N-FET Charger Controller and PowerPath Controller
  • Compact 44-Lead 4mm × 7mm QFN Package

LTC3351 Applications

  • Swappable PCIE Cards with NVM
  • High Current 12V Ride-Through UPS
  • Servers/Mass Storage/High Availability Systems

LTC3351 Description

The LTC3351 is a backup power controller that charges and monitors a series stack of one to four supercapacitors. The LTC3351’s synchronous step-down controller drives N-channel MOSFETs for constant current/constant voltage charging with programmable input current limit. In addition, the step-down converter runs in reverse as a step-up converter to deliver power from the supercapacitor stack to the backup supply rail. Internal balancers eliminate the need for external balance resistors and each capacitor has a shunt regulator for overvoltage protection.

The LTC3351 monitors system voltages, currents, stack capacitance and ESR which can all be read over the I2C/SMBus port. The hot swap controller uses N-channel MOSFETs for inrush control and a low loss path from the input to the output. The ideal diode controller uses an N-channel MOSFET for a low loss power path from the supercapacitors to the output. The LTC3351 is available in a thermally enhanced low profile 44-lead 4mm × 7mm × 0.75mm QFN surface mount package.
