| Part No.： | LTC3310 |
| Page： | 32 Pages |
| Size： | 2684 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-03 17:26:02 |
| DataSheet： | Download |

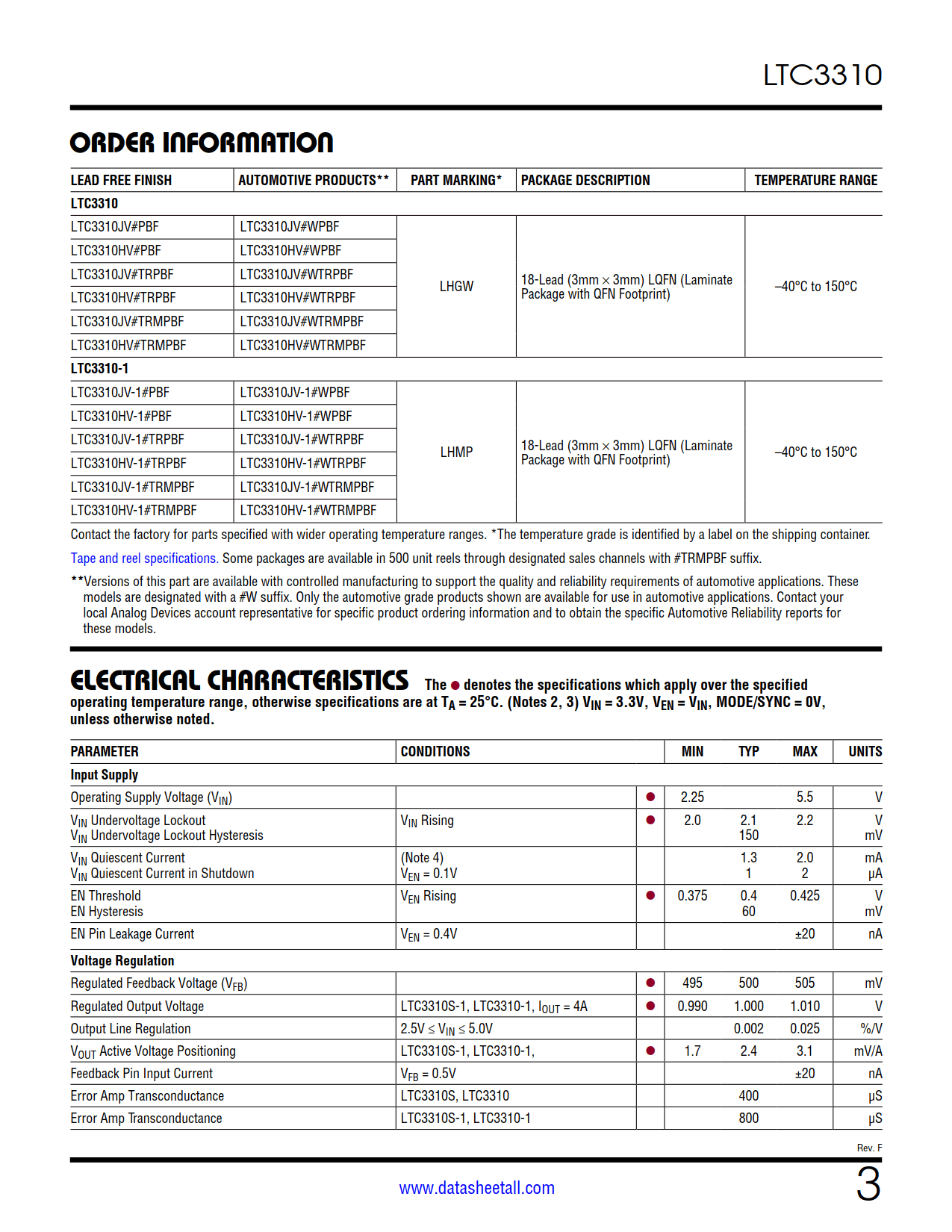

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3310JV#PBF | Tray | 624 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310JV#TRPBF | Reel | 2500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310JV#TRMPBF | Reel | 500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#PBF | Tray | 624 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#TRPBF | Reel | 2500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#TRMPBF | Reel | 500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310JV#WPBF | Tray | 624 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310JV#WTRPBF | Reel | 2500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310JV#WTRMPBF | Reel | 500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#WPBF | Tray | 624 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#WTRPBF | Reel | 2500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN | |
| LTC3310HV#WTRMPBF | Reel | 500 | LHGW | 3 | 18 | -40°C ~ 150°C | 18-Lead (3mm × 3mm) LQFN |

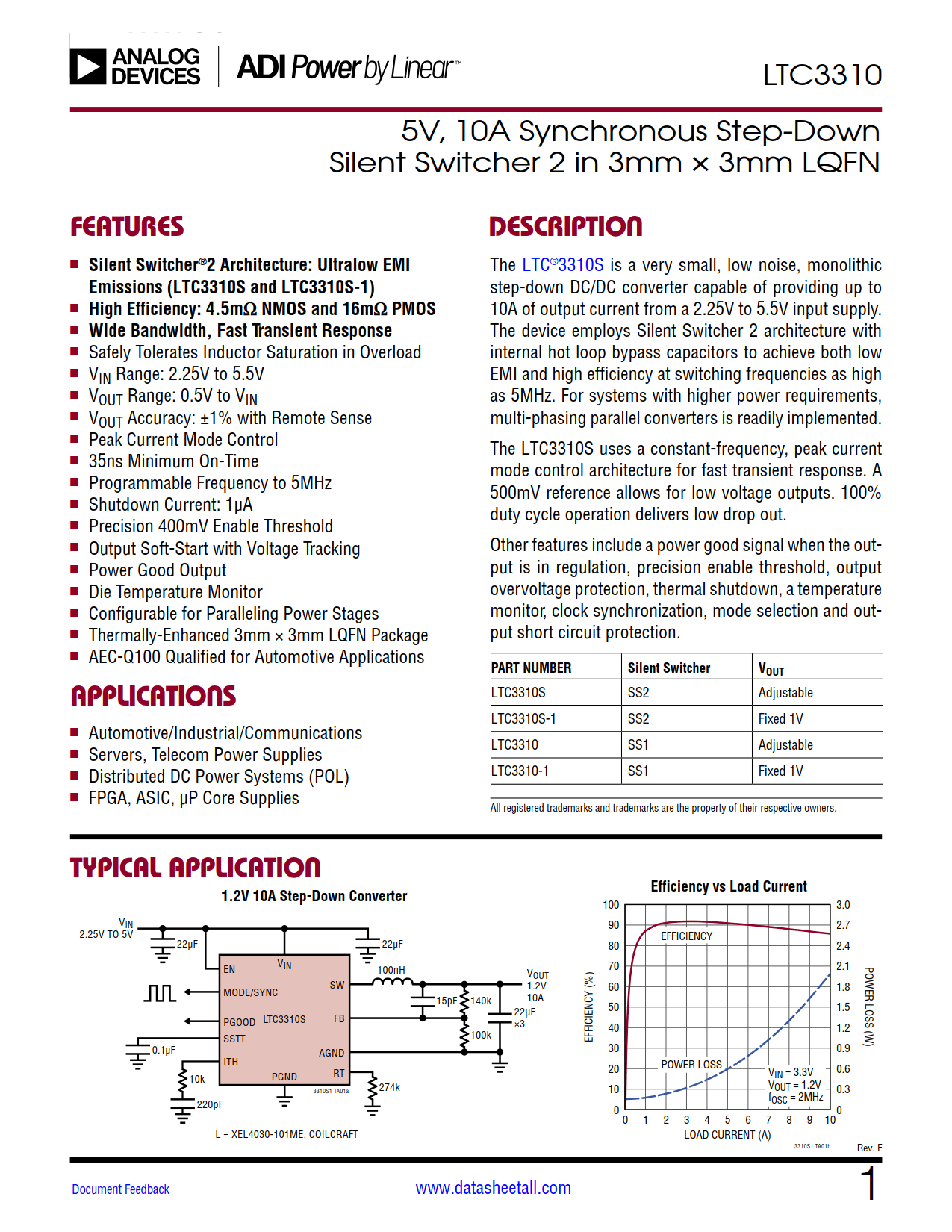

The LTC3310 is a very small, low noise, monolithic step-down DC/DC converter capable of providing up to 10A of output current from a 2.25V to 5.5V input supply. The device employs Silent Switcher 2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency at switching frequencies as high as 5MHz. For systems with higher power requirements, multi-phasing parallel converters is readily implemented.
The LTC3310 uses a constant-frequency, peak current mode control architecture for fast transient response. A 500mV reference allows for low voltage outputs. 100% duty cycle operation delivers low drop out.
Other features include a power good signal when the output is in regulation, precision enable threshold, output overvoltage protection, thermal shutdown, a temperature monitor, clock synchronization, mode selection and output short circuit protection.
