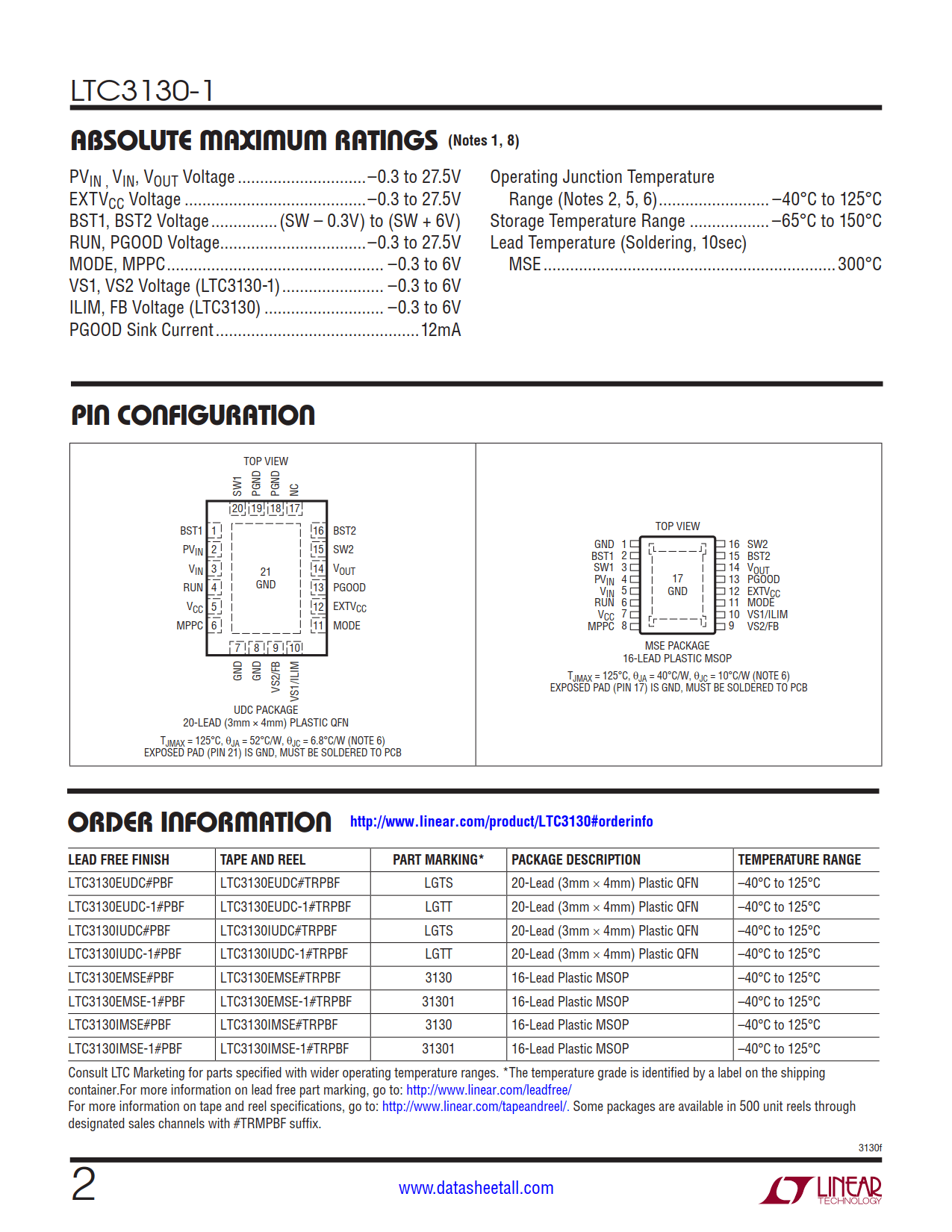

| Part No.： | LTC3130-1 |
| Page： | 38 Pages |
| Size： | 4982 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-12-26 15:36:42 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3130EUDC-1#PBF | Tube | 91 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EUDC-1#TRPBF | Reel | 2500 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EUDC-1#TRMPBF | Reel | 500 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC-1#PBF | Tube | 91 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC-1#TRPBF | Reel | 2500 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC-1#TRMPBF | Reel | 500 | LGTT | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EMSE-1#PBF | Tube | 37 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130EMSE-1#TRPBF | Reel | 2500 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130EMSE-1#TRMPBF | Reel | 500 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE-1#PBF | Tube | 37 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE-1#TRPBF | Reel | 2500 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE-1#TRMPBF | Reel | 500 | 31301 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP |

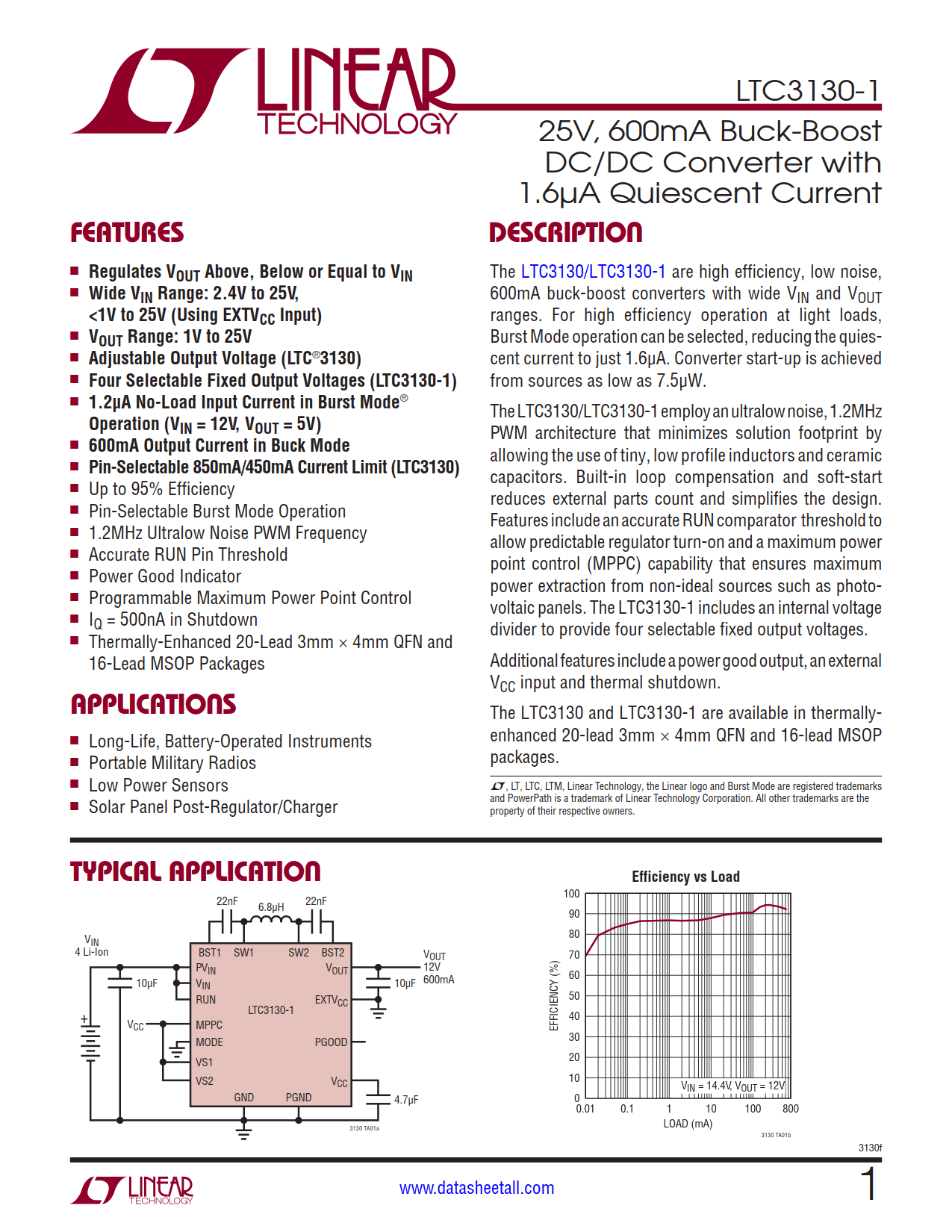

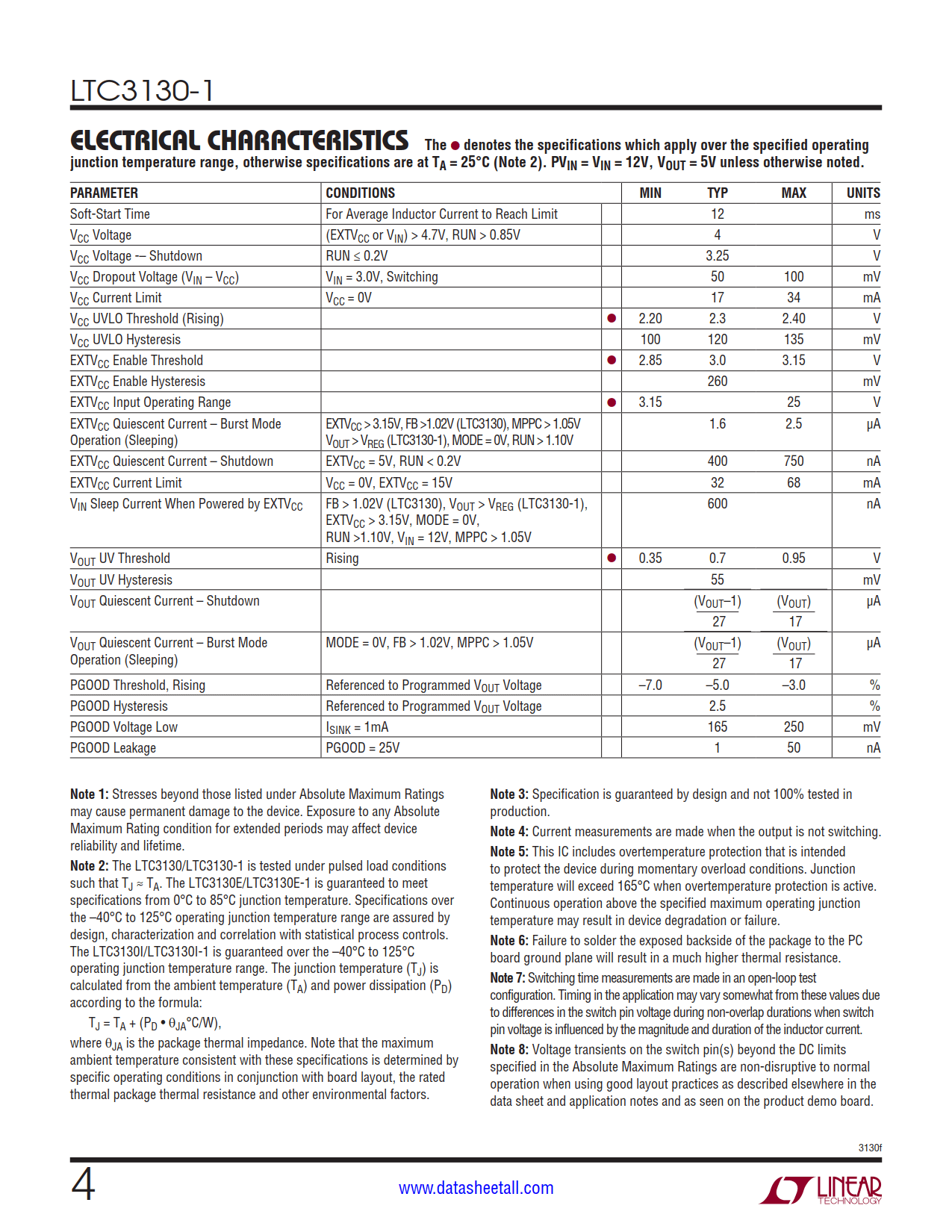

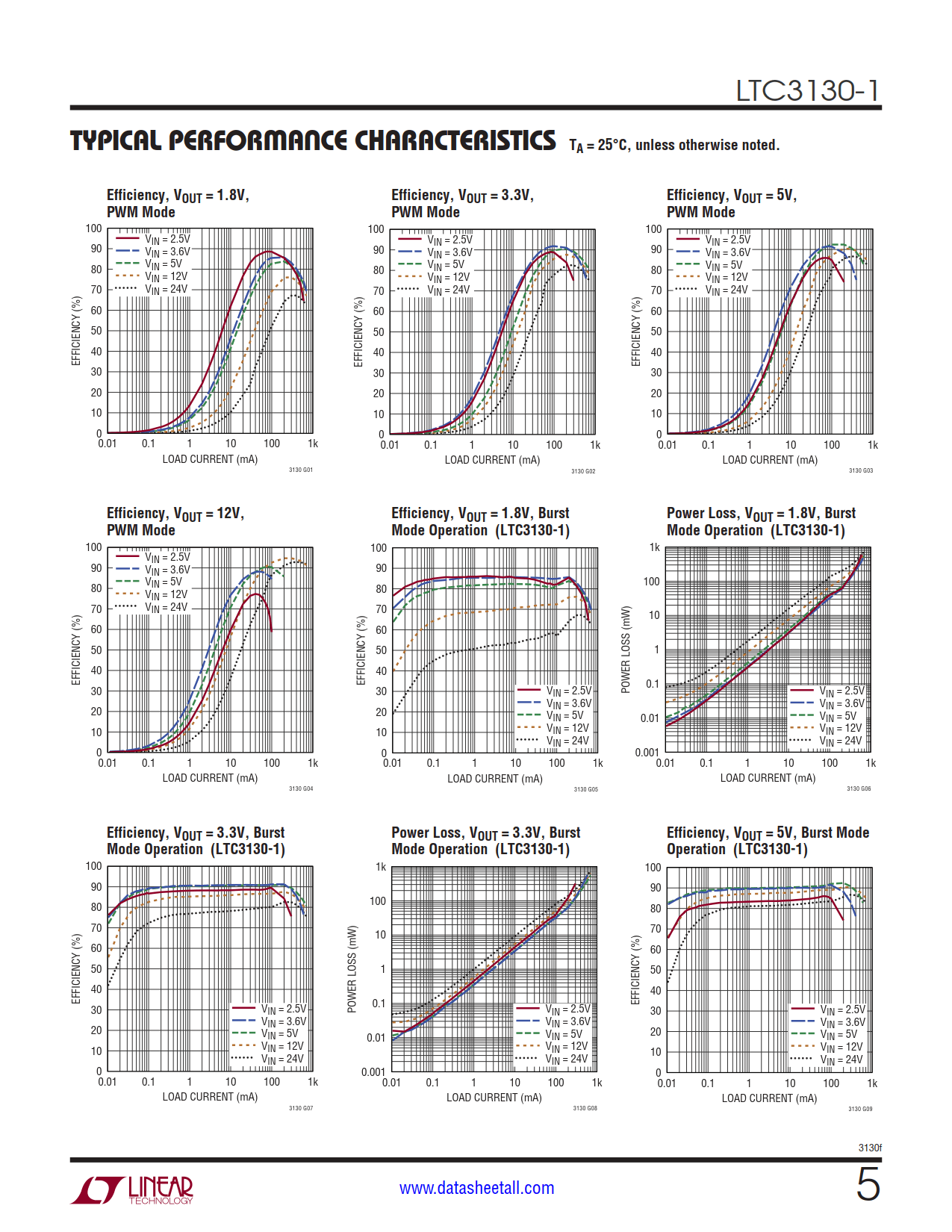

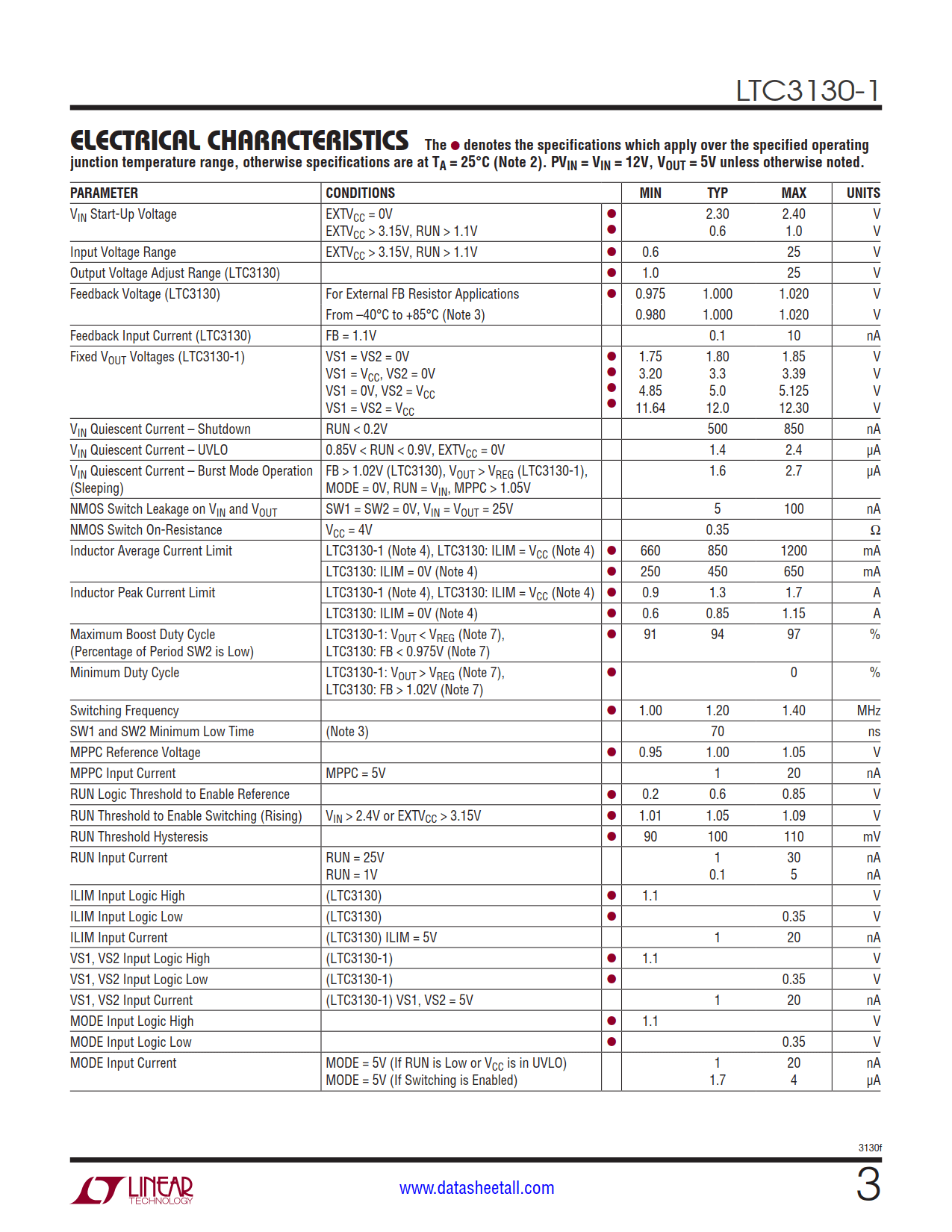

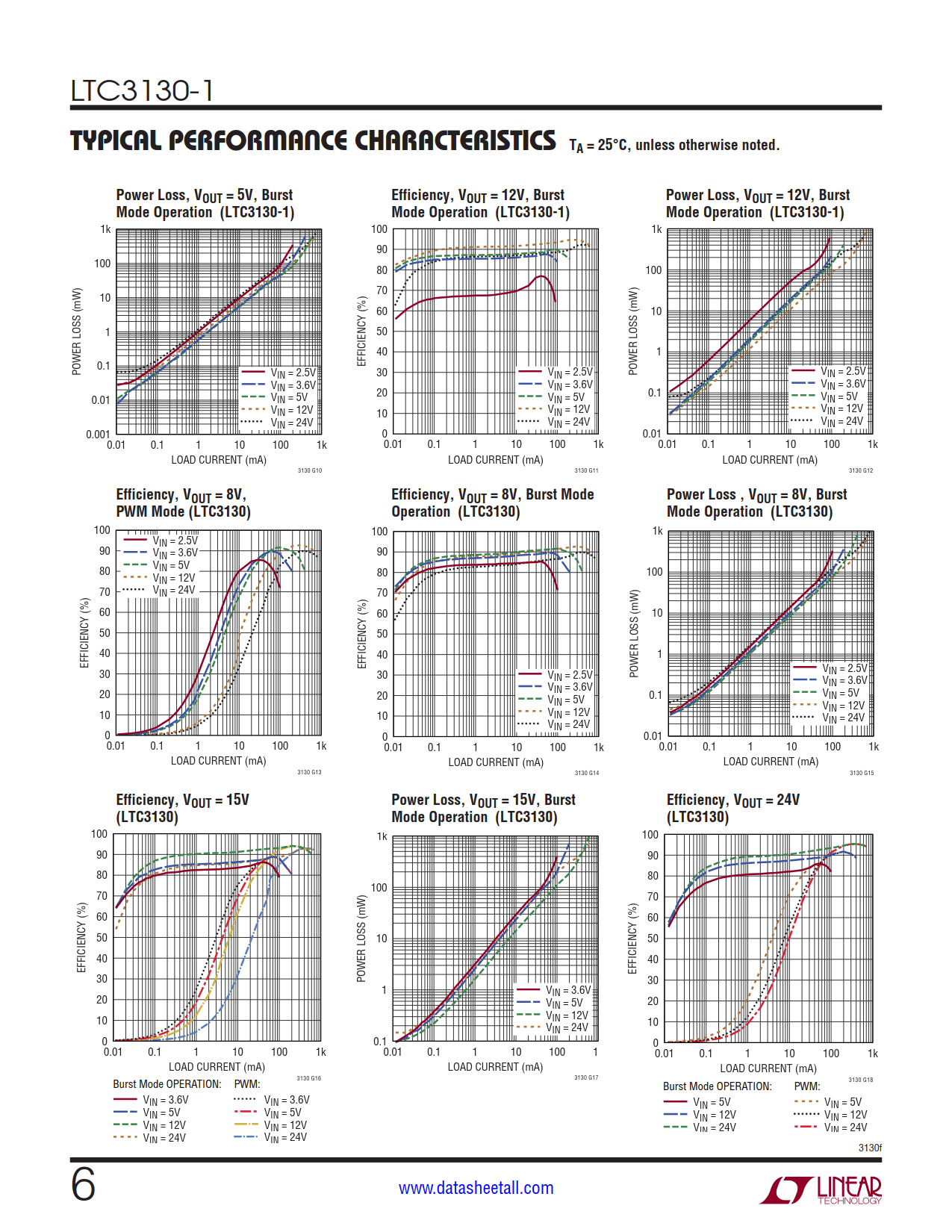

The LTC3130-1 are high efficiency, low noise, 600mA buck-boost converters with wide VIN and VOUT ranges. For high efficiency operation at light loads, BurstMode operation can be selected, reducing the quiescent current to just 1.6µA. Converter start-up is achieved from sources as low as 7.5µW.
The LTC3130-1 employ an ultralow noise, 1.2MHz PWM architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start reduces external parts count and simplifies the design. Features include an accurate RUN comparator threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal sources such as photovoltaic panels. The LTC3130-1 includes an internal voltage divider to provide four selectable fixed output voltages.
Additional features include a power good output, an external VCC input and thermal shutdown.
The LTC3130-1 are available in thermally-enhanced 20-lead 3mm × 4mm QFN and 16-lead MSOP packages.
