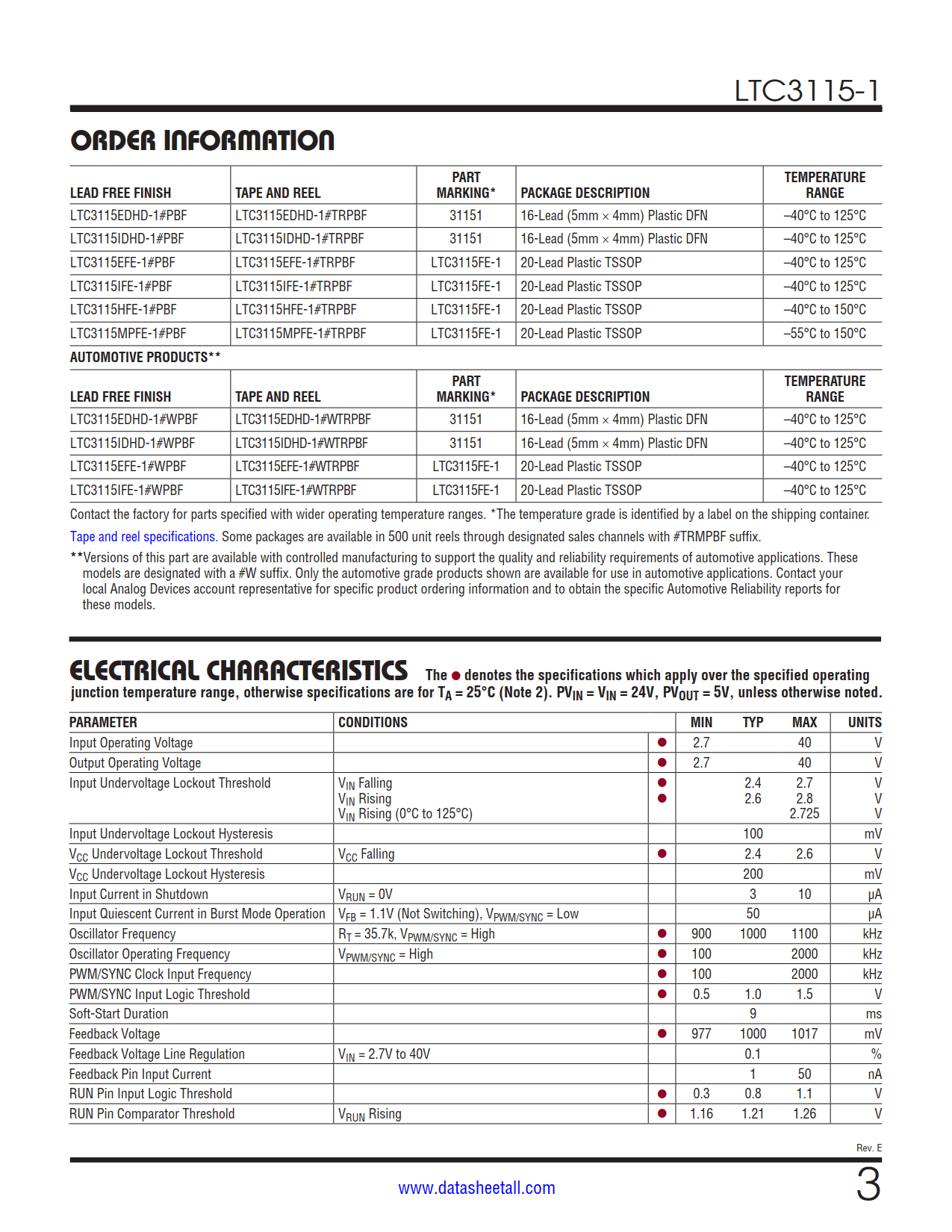

| Part No.： | LTC3115-1 |
| Page： | 42 Pages |
| Size： | 3059 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-19 16:27:29 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3115EDHD-1#PBF | Tube | 73 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EDHD-1#TRPBF | Reel | 2500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EDHD-1#TRMPBF | Reel | 500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#PBF | Tube | 73 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#TRPBF | Reel | 2500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#TRMPBF | Reel | 500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EFE-1#PBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115EFE-1#TRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115EFE-1#TRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#PBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#TRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#TRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115HFE-1#PBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -40°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115HFE-1#TRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115HFE-1#TRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115MPFE-1#PBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -55°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115MPFE-1#TRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -55°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115MPFE-1#TRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -55°C ~ 150°C | 20-Lead Plastic TSSOP | |
| LTC3115EDHD-1#WPBF | Tube | 73 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EDHD-1#WTRPBF | Reel | 2500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EDHD-1#WTRMPBF | Reel | 500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#WPBF | Tube | 73 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#WTRPBF | Reel | 2500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115IDHD-1#WTRMPBF | Reel | 500 | 31151 | 1 | 16 | -40°C ~ 125°C | 16-Lead (5mm × 4mm) Plastic DFN | |
| LTC3115EFE-1#WPBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115EFE-1#WTRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115EFE-1#WTRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#WPBF | Tube | 74 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#WTRPBF | Reel | 2500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP | |
| LTC3115IFE-1#WTRMPBF | Reel | 500 | LTC3115FE-1 | 1 | 20 | -40°C ~ 125°C | 20-Lead Plastic TSSOP |

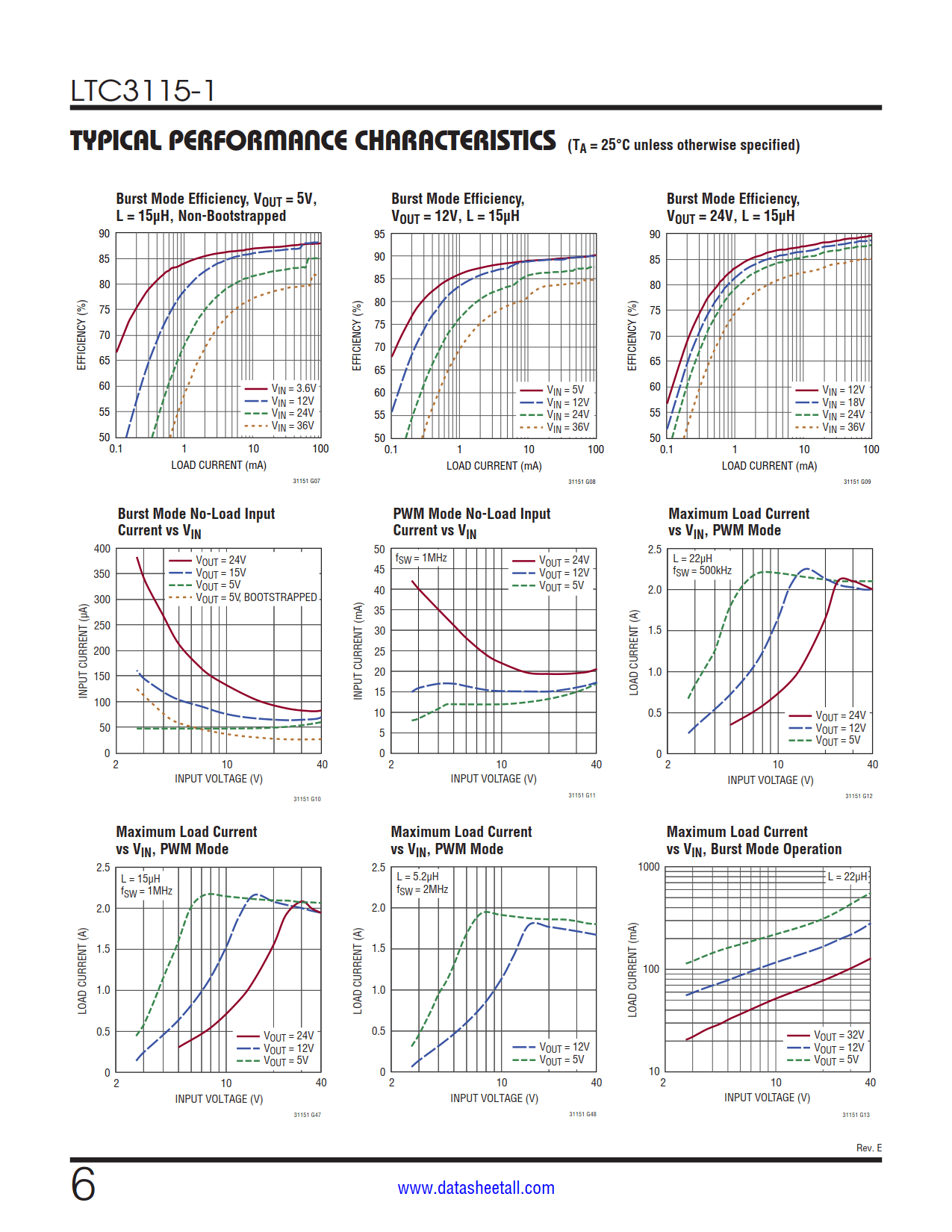

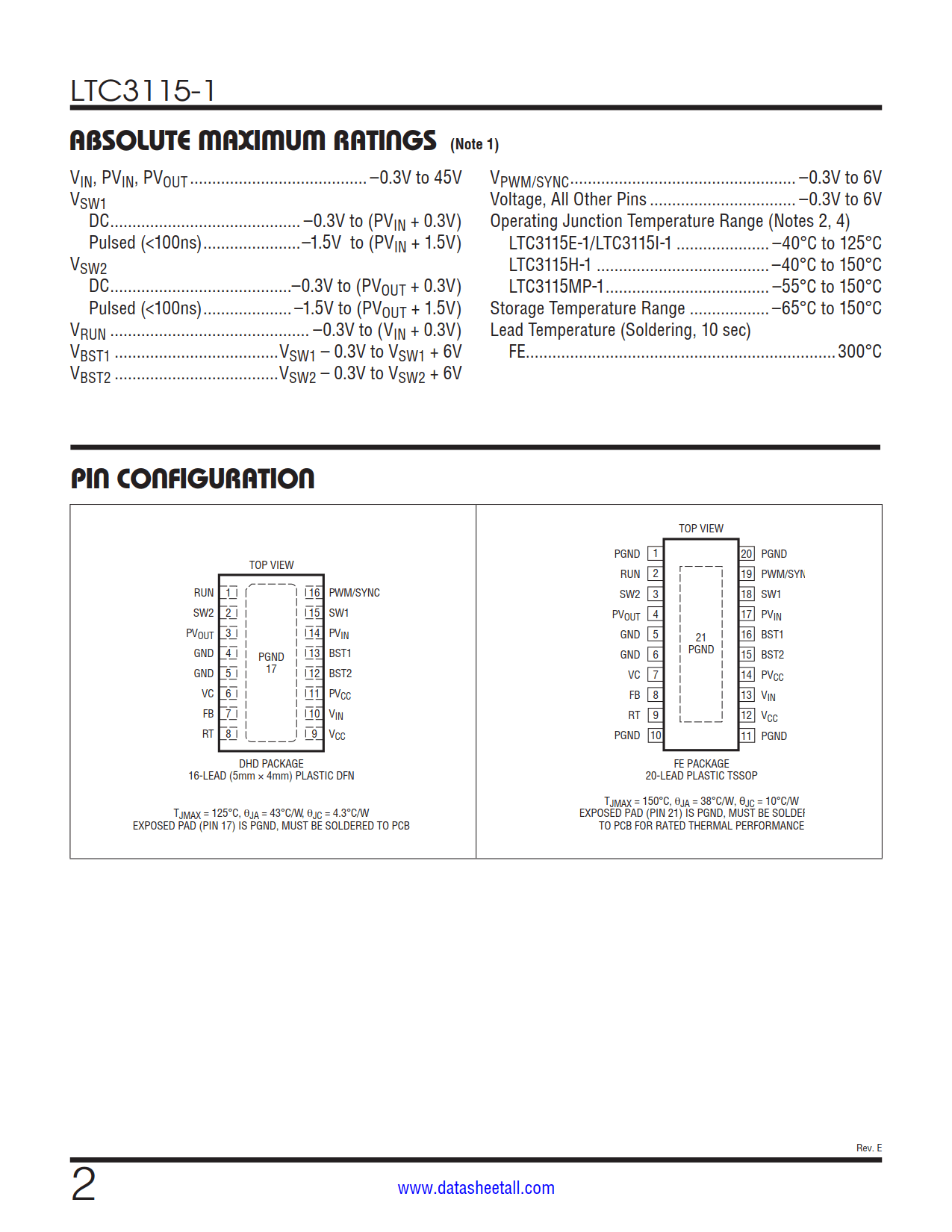

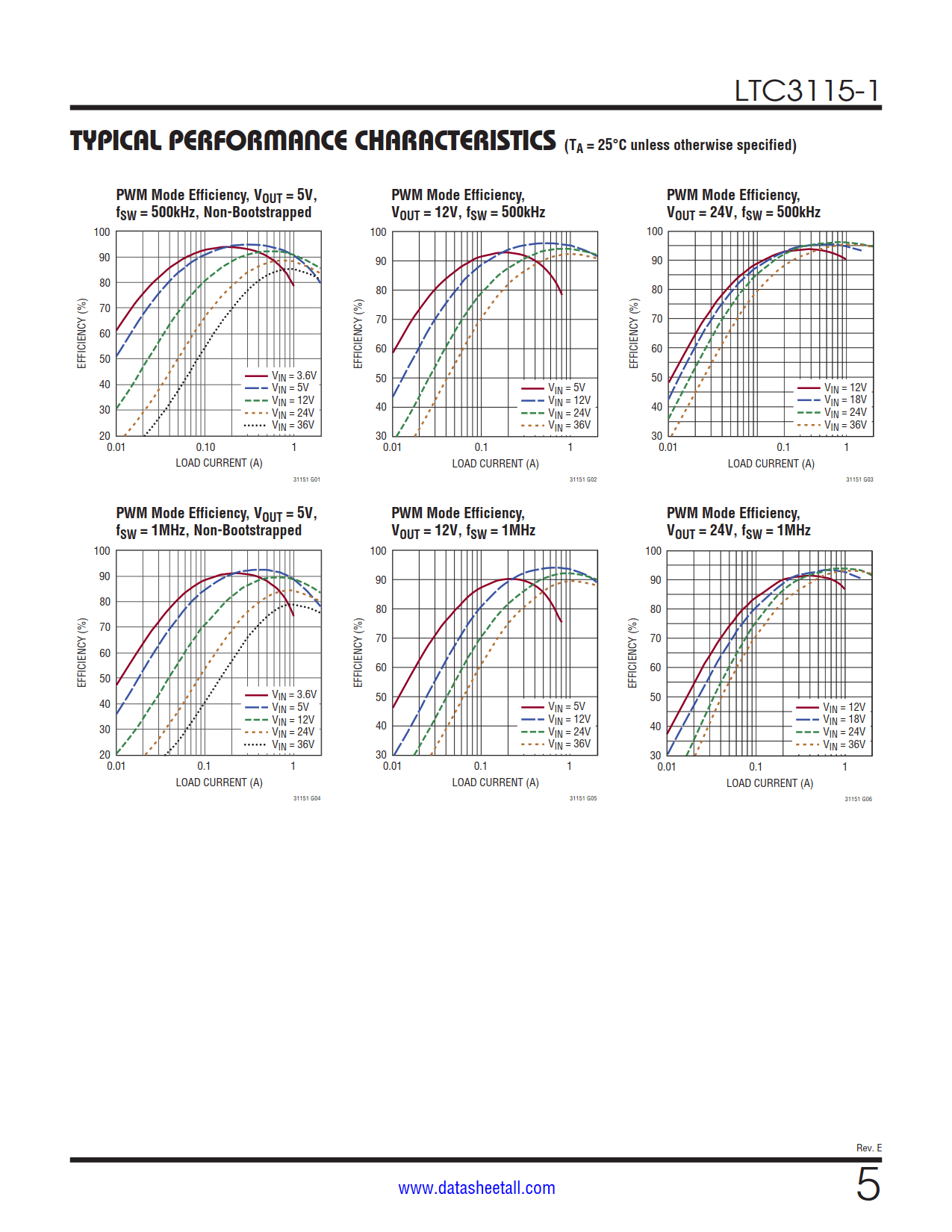

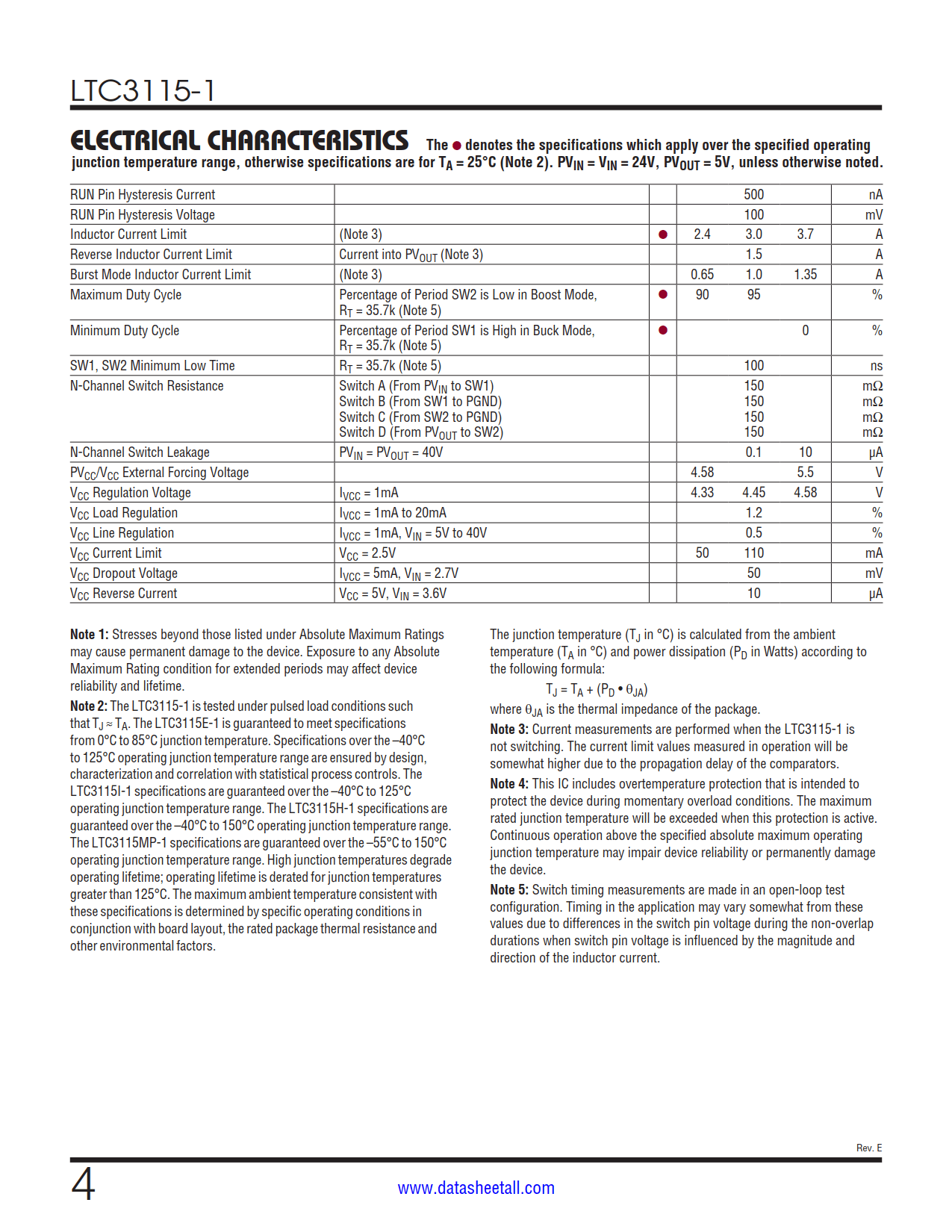

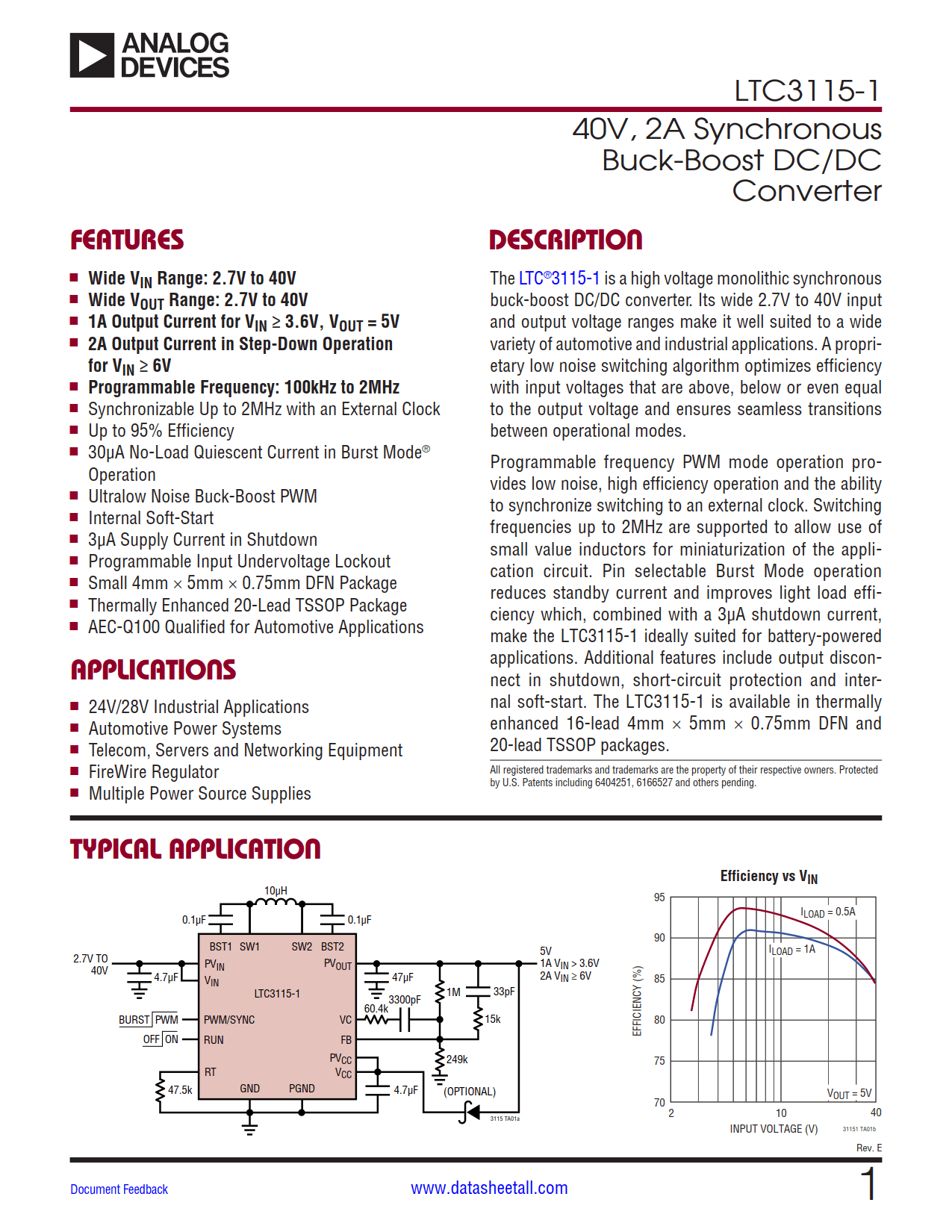

The LTC3115-1 is a high voltage monolithic synchronous buck-boost DC/DC converter. Its wide 2.7V to 40V input and output voltage ranges make it well suited to a wide variety of automotive and industrial applications. A proprietary low noise switching algorithm optimizes efficiency with input voltages that are above, below or even equal to the output voltage and ensures seamless transitions between operational modes.
