LTC2611 Datasheet

LTC2611 Datasheet

14-Bit Rail-to-Rail DACs in 10-Lead DFN
Part No.: LTC2611
Page: 16 Pages
Size: 253 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-27 13:42:42
DataSheet: Download

LTC2611 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2611CDD#PBF Tube 121 LBFQ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611CDD#TRPBF Reel 2500 LBFQ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611CDD#TRMPBF Reel 500 LBFQ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD#PBF Tube 121 LBFQ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD#TRPBF Reel 2500 LBFQ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD#TRMPBF Reel 500 LBFQ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611CDD-1#PBF Tube 121 LBZJ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611CDD-1#TRPBF Reel 2500 LBZJ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611CDD-1#TRMPBF Reel 500 LBZJ 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD-1#PBF Tube 121 LBZJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD-1#TRPBF Reel 2500 LBZJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2611IDD-1#TRMPBF Reel 500 LBZJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2611 Datasheet(PDF)

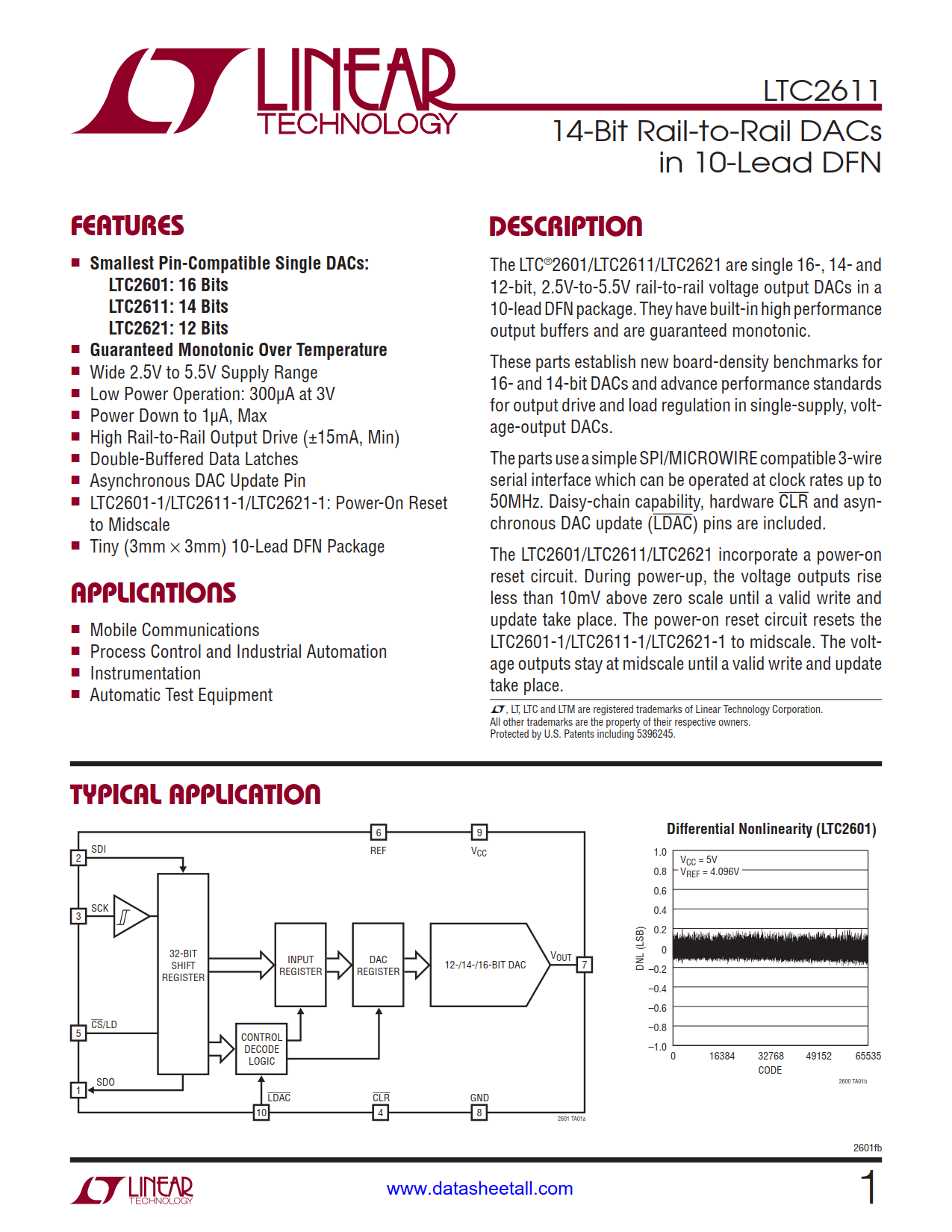

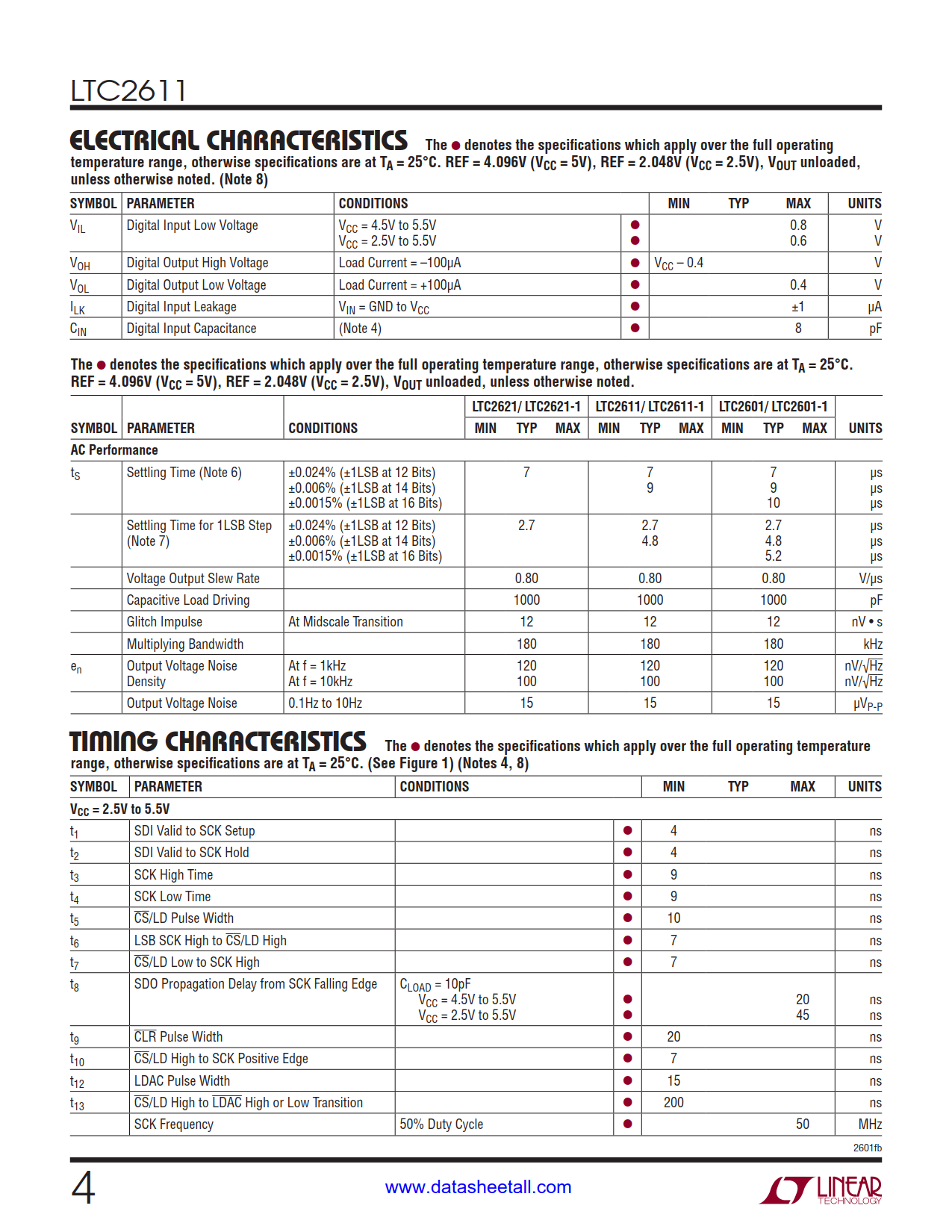

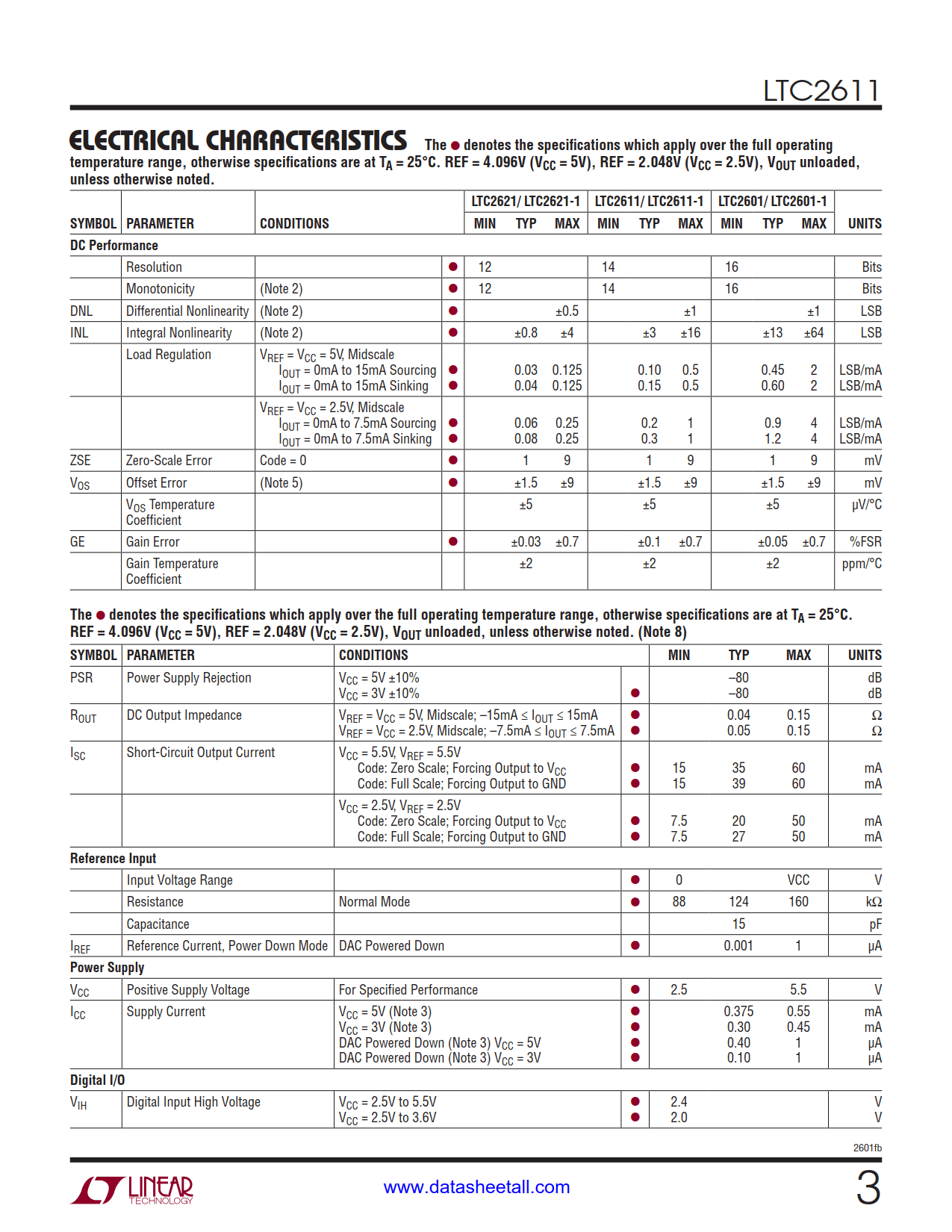

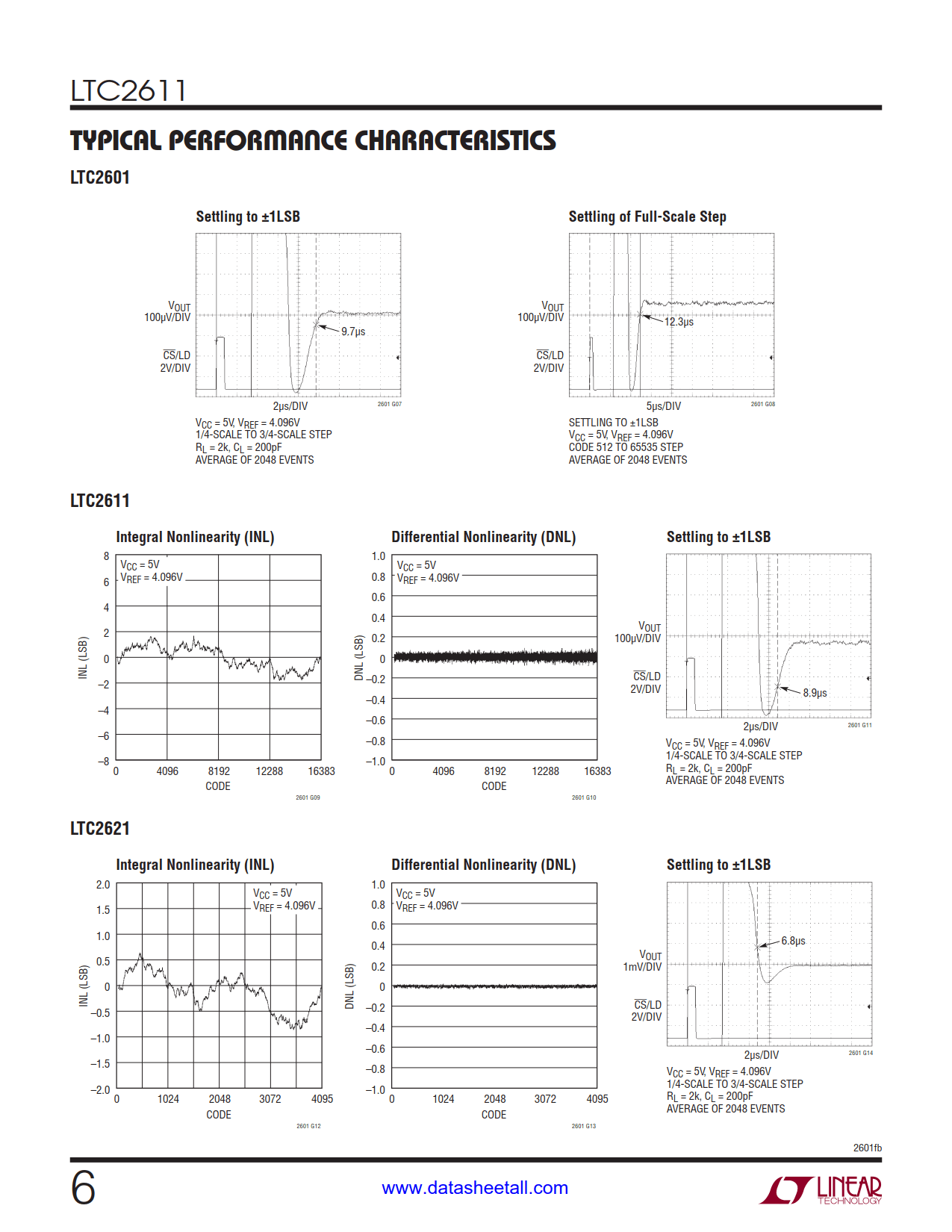

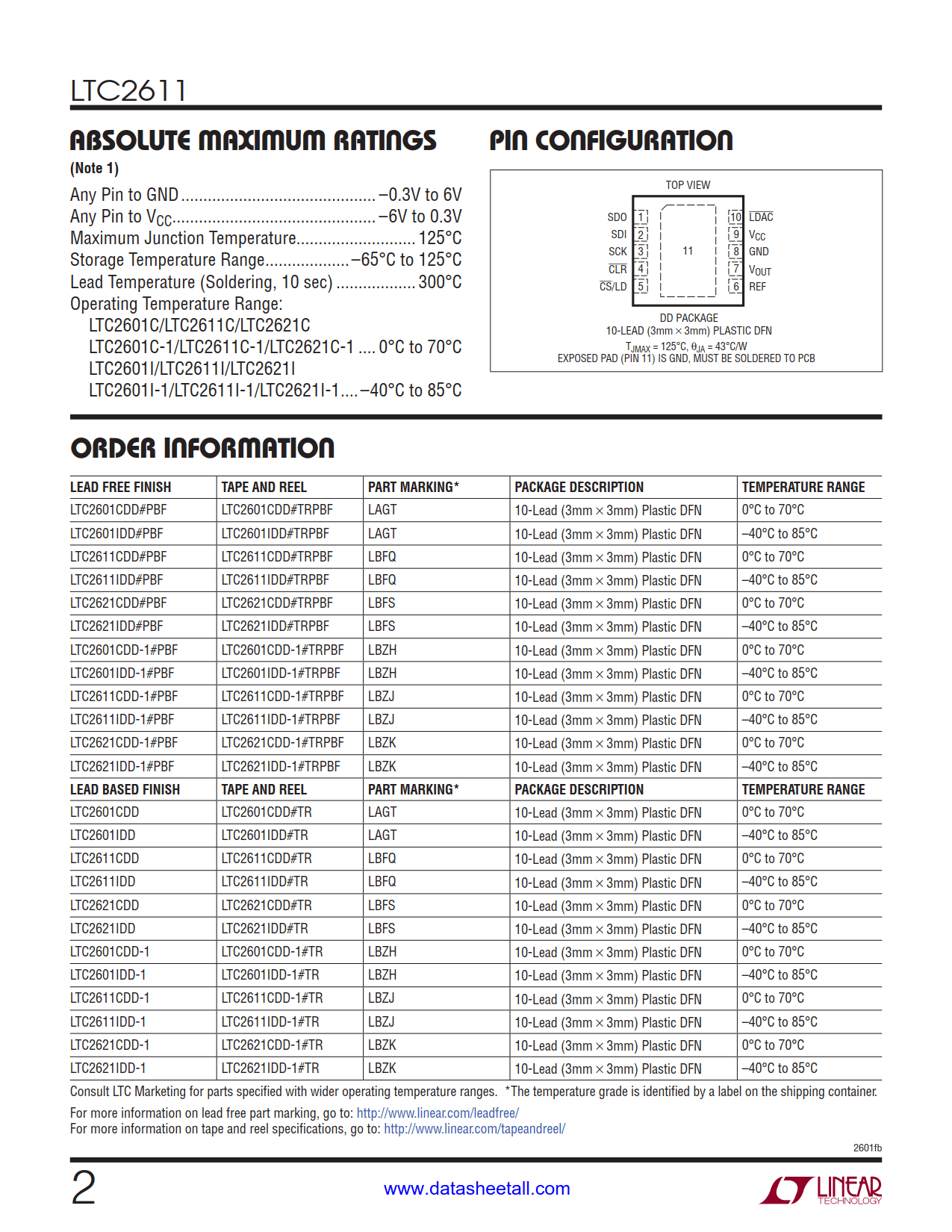

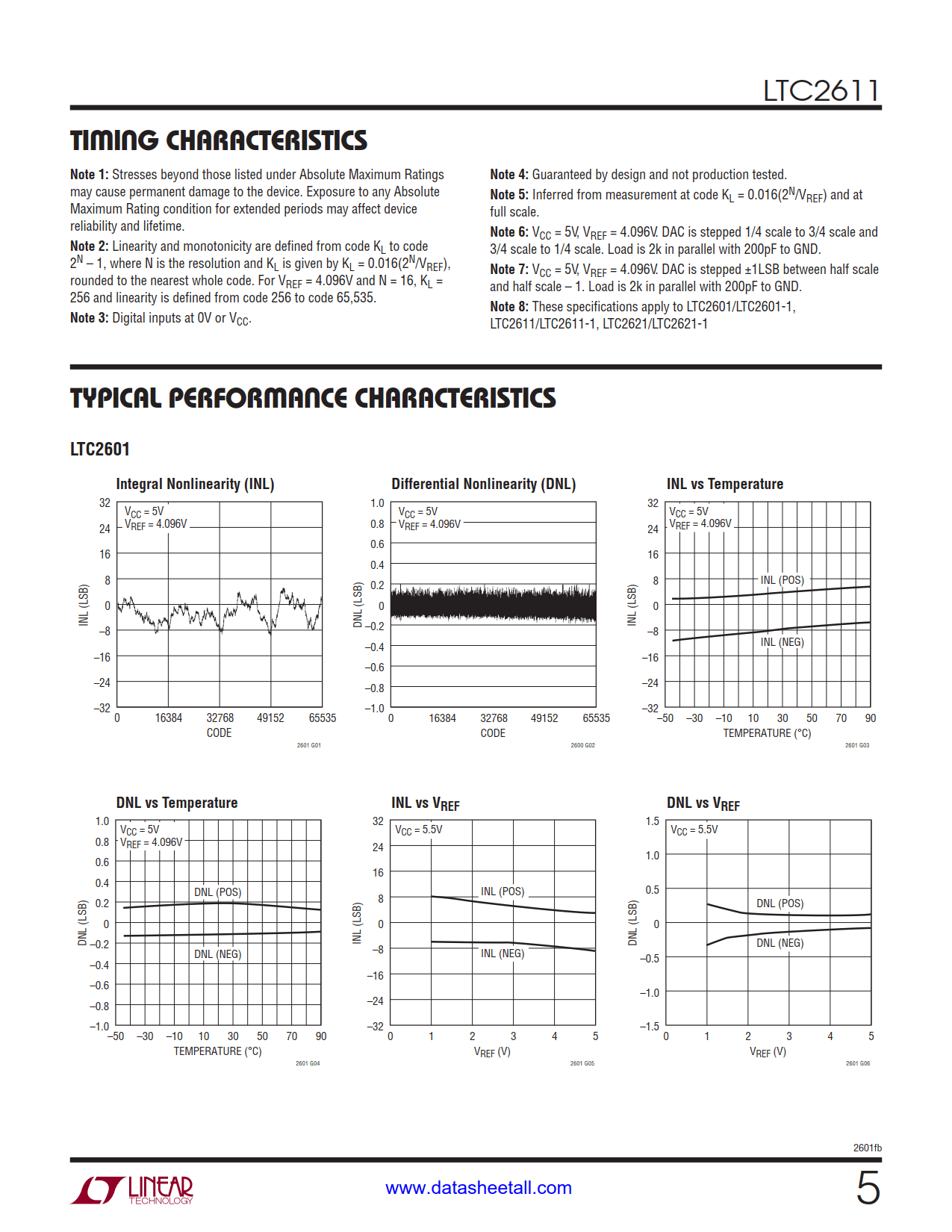

LTC2611 Datasheet(Picture)

LTC2611 Features

  • Smallest Pin-Compatible Single DACs:
    • LTC2611: 14 Bits
  • Guaranteed Monotonic Over Temperature
  • Wide 2.5V to 5.5V Supply Range
  • Low Power Operation: 300µA at 3V
  • Power Down to 1µA, Max
  • High Rail-to-Rail Output Drive (±15mA, Min)
  • Double-Buffered Data Latches
  • Asynchronous DAC Update Pin
  • LTC2611-1: Power-On Reset to Midscale
  • Tiny (3mm x 3mm) 10-Lead DFN Package

LTC2611 Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment

LTC2611 Description

The LTC2611 are single 14-bit, 2.5V-to-5.5V rail-to-rail voltage output DACs in a 10-lead DFN package. They have built-in high performance output buffers and are guaranteed monotonic.

These parts establish new board-density benchmarks for 16- and 14-bit DACs and advance performance standards for output drive and load regulation in single-supply, voltage-output DACs.

The parts use a simple SPI/MICROWIRE compatible 3-wire serial interface which can be operated at clock rates up to 50MHz. Daisy-chain capability, hardware CLR and asynchronous DAC update (LDAC) pins are included.

The LTC2611 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale until a valid write and update take place. The power-on reset circuit resets the LTC2611-1 to midscale. The voltage outputs stay at midscale until a valid write and update take place.
