Ultralow Power Single/Dual Comparator with Reference
Part No.: LTC1442
Page: 16 Pages
Size: 208 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-03-18 14:58:23
DataSheet: Download

LTC1442 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC1442CN8#PBF Tube 50 1442 1 8 0°C ~70°C 8-Lead PDIP
LTC1442CS8#PBF Tube 100 1442 1 8 0°C ~70°C 8-Lead SOIC
LTC1442CS8#TRPBF Reel 2500 1442 1 8 0°C ~70°C 8-Lead SOIC
LTC1442CS8#TRMPBF Reel 500 1442 1 8 0°C ~70°C 8-Lead SOIC
LTC1442IN8#PBF Tube 50 1442I 1 8 -40°C ~85°C 8-Lead PDIP
LTC1442IS8#PBF Tube 100 1442I 1 8 -40°C ~85°C 8-Lead SOIC
LTC1442IS8#TRPBF Reel 2500 1442I 1 8 -40°C ~85°C 8-Lead SOIC
LTC1442IS8#TRMPBF Reel 500 1442I 1 8 -40°C ~85°C 8-Lead SOIC
LTC1442DICE WafflePack 2473   1 0   CHIPS OR DIE
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC1442 Datasheet(PDF)

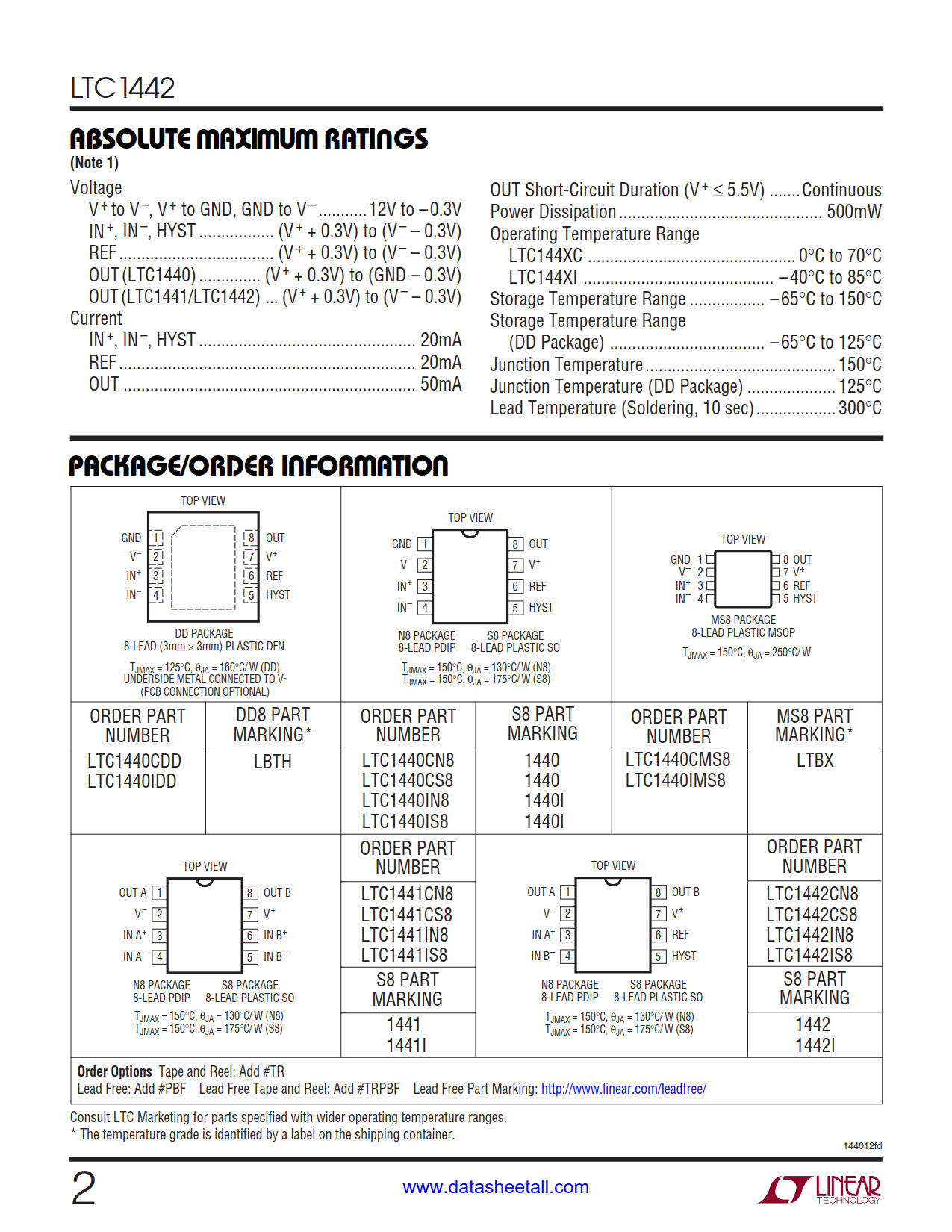

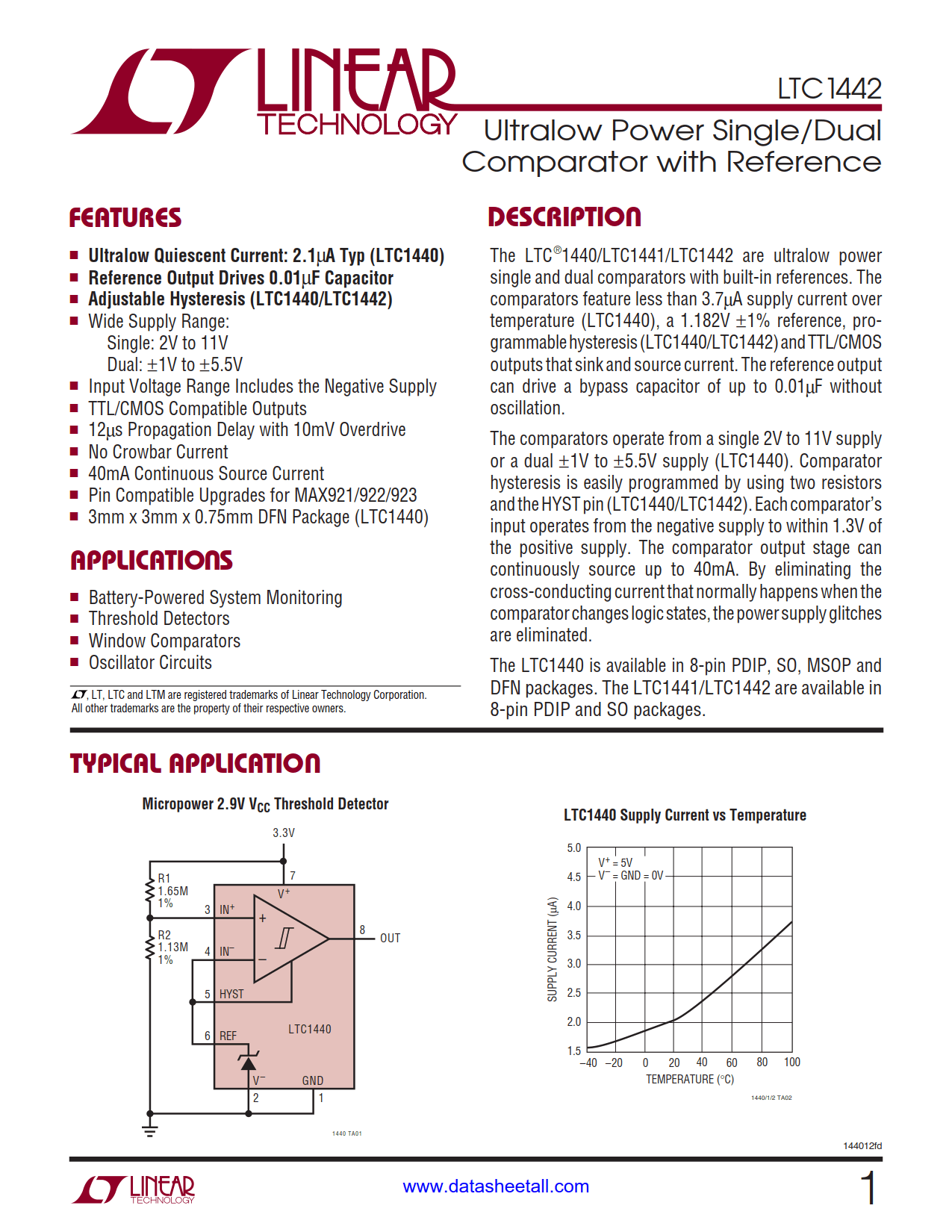

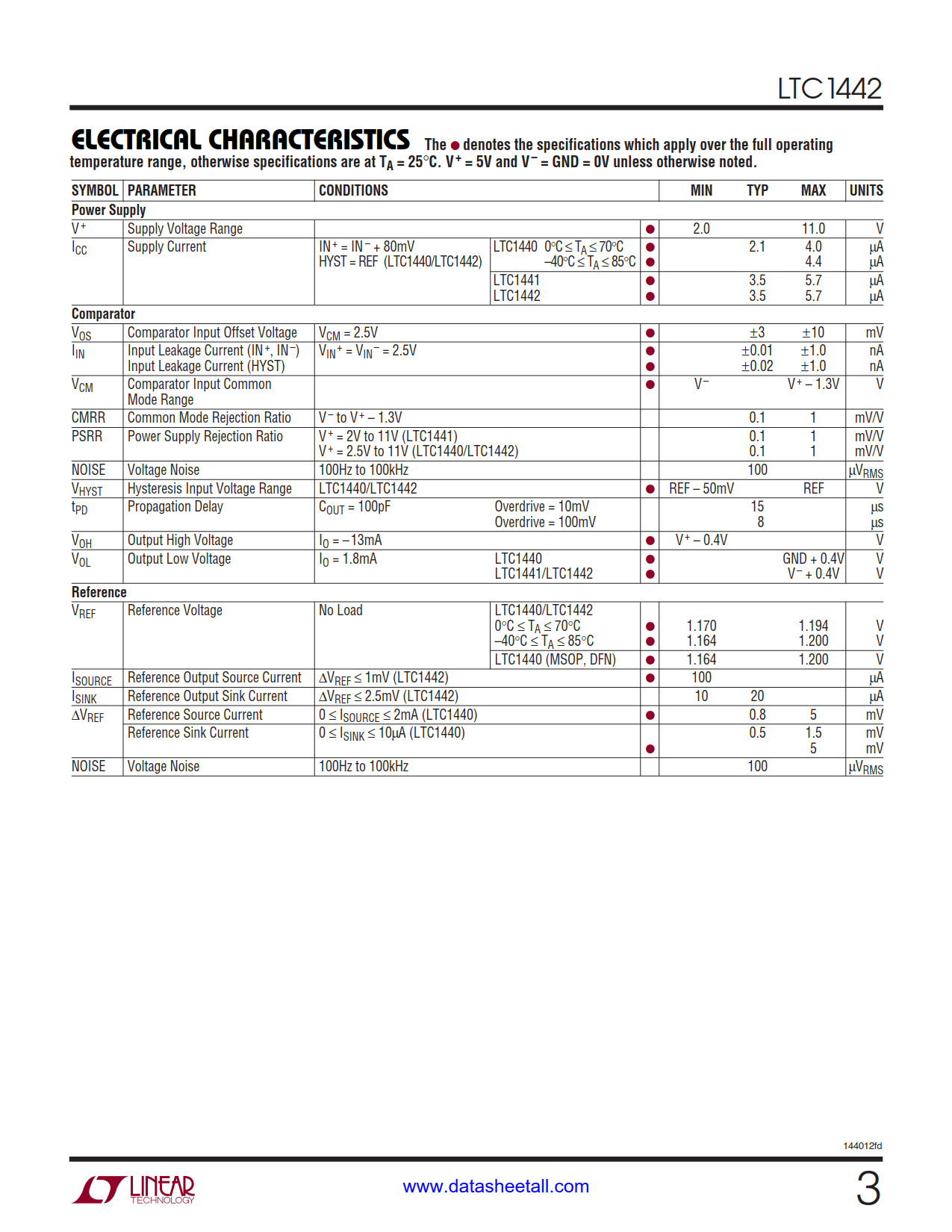

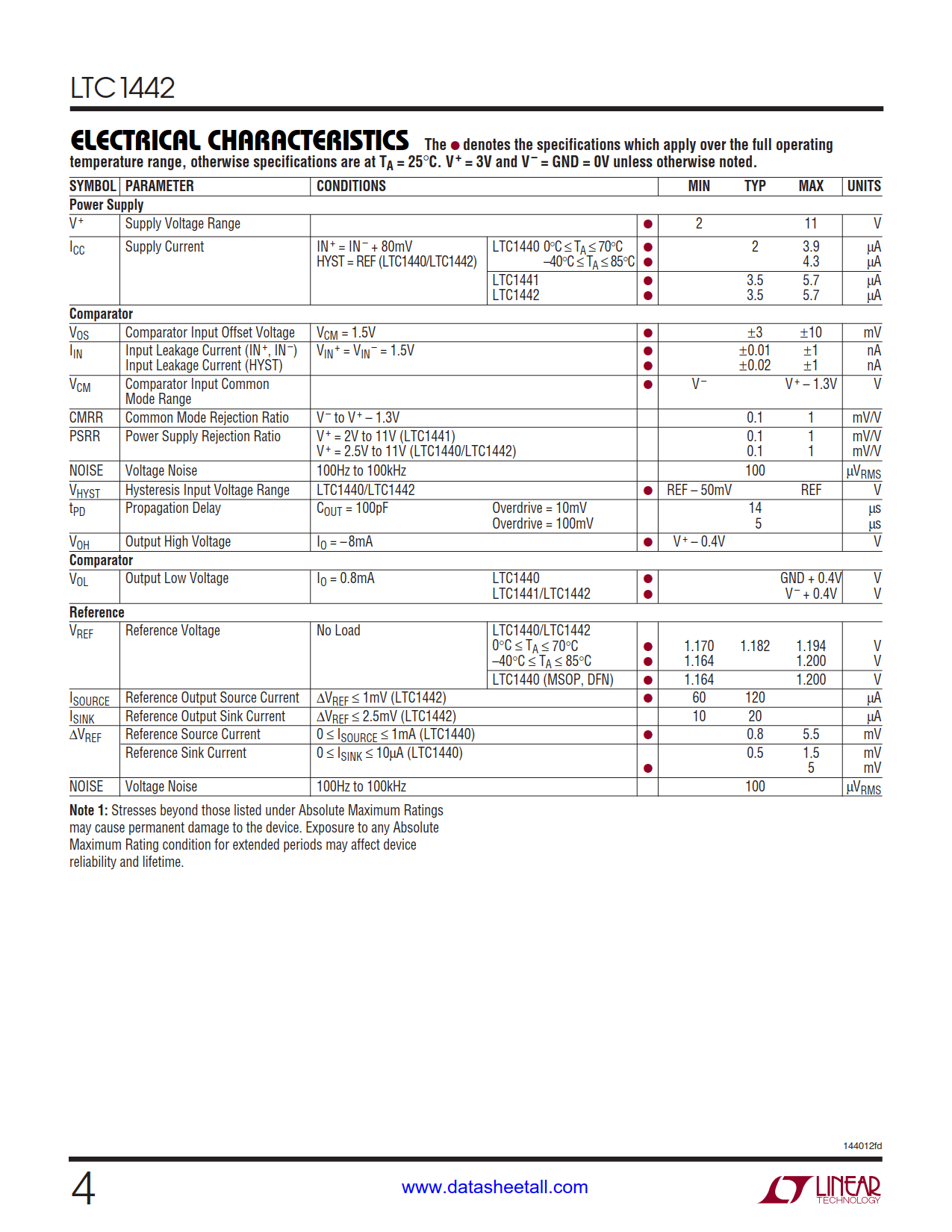

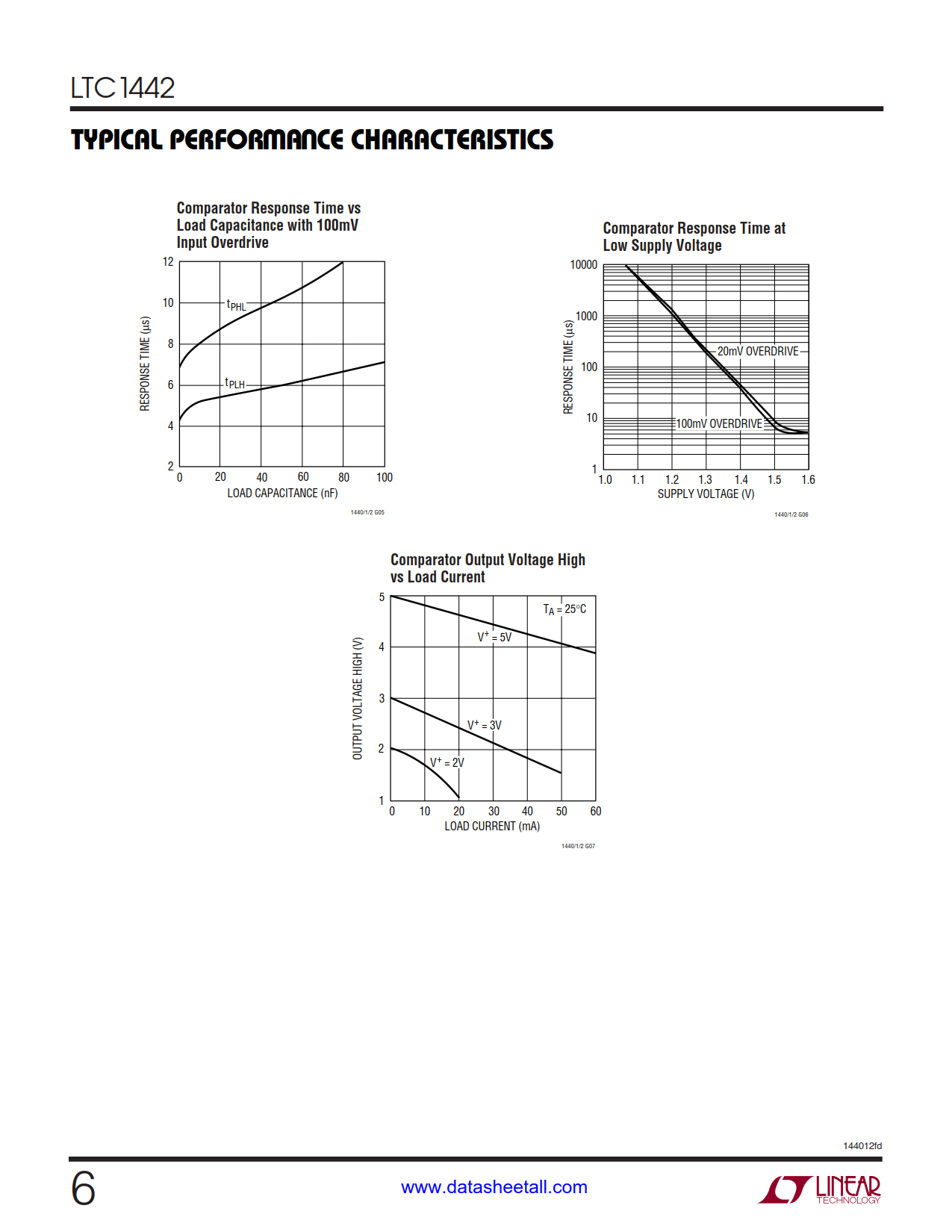

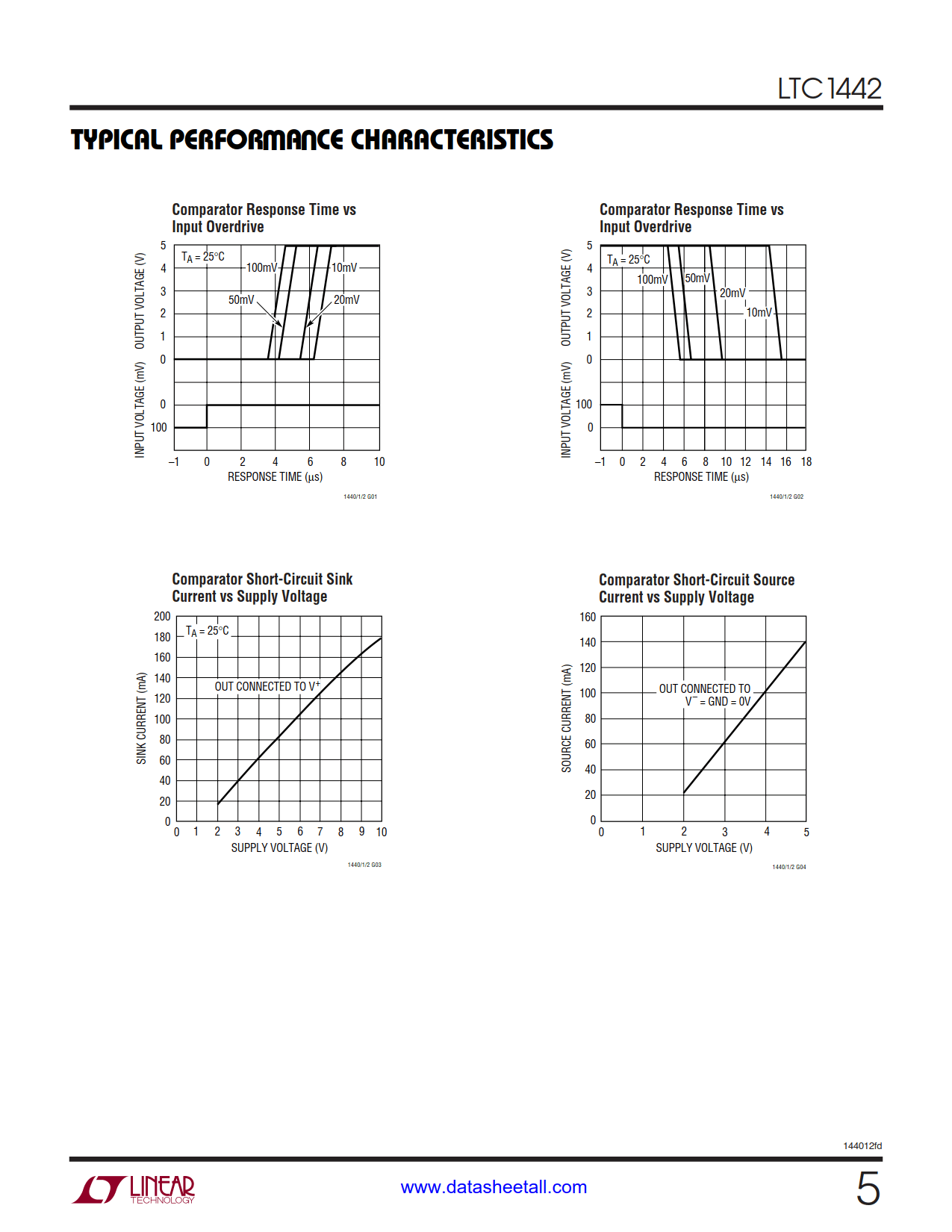

LTC1442 Datasheet(Picture)

LTC1442 Features

  • Ultralow Quiescent Current: 3.5µA Typ
  • Reference Output Drives 0.01µF Capacitor
  • Adjustable Hysteresis
  • Wide Supply Range:
    • Single: 2V to 11V
    • Dual: ±1V to ±5.5V
  • Input Voltage Range Includes the Negative Supply
  • TTL/CMOS Compatible Outputs
  • 12µs Propagation Delay with 10mV Overdrive
  • No Crowbar Current
  • 40mA Continuous Source Current
  • Pin Compatible Upgrades for MAX923/933
  • 8-Pin DIP and SO-8 Package

LTC1442 Applications

  • Battery-Powered System Monitoring
  • Threshold Detectors
  • Window Comparators
  • Oscillator Circuits

LTC1442 Description

The LTC1442 is an ultralow power dual comparator with a built-in voltage reference. The comparators feature less than 5.7µA supply current over temperature, a 1.182V ±1% reference, programmable hysteresis and TTL/CMOS outputs that sink and source current. The voltage reference output can drive a bypass capacitor of up to 0.01µF without oscillation.

The comparators operate from a single 2V to 11V supply or a dual ±1V to ±5.5V supply. Comparator hysteresis is easily programmed by using two resistors and the HYST pin. Each comparator’s input operates from the negative supply to within 1.3V of the positive supply. The comparator output stage can continuously source up to 40mA. By eliminating the cross-conducting current that normally happens when the comparator changes logic states, the power supply glitches are eliminated.

The LTC1442 is available in an 8-pin PDIP and SO package.
