| Part No.： | LT8602 |
| Page： | 30 Pages |
| Size： | 1833 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-11-07 11:30:42 |
| DataSheet： | Download |

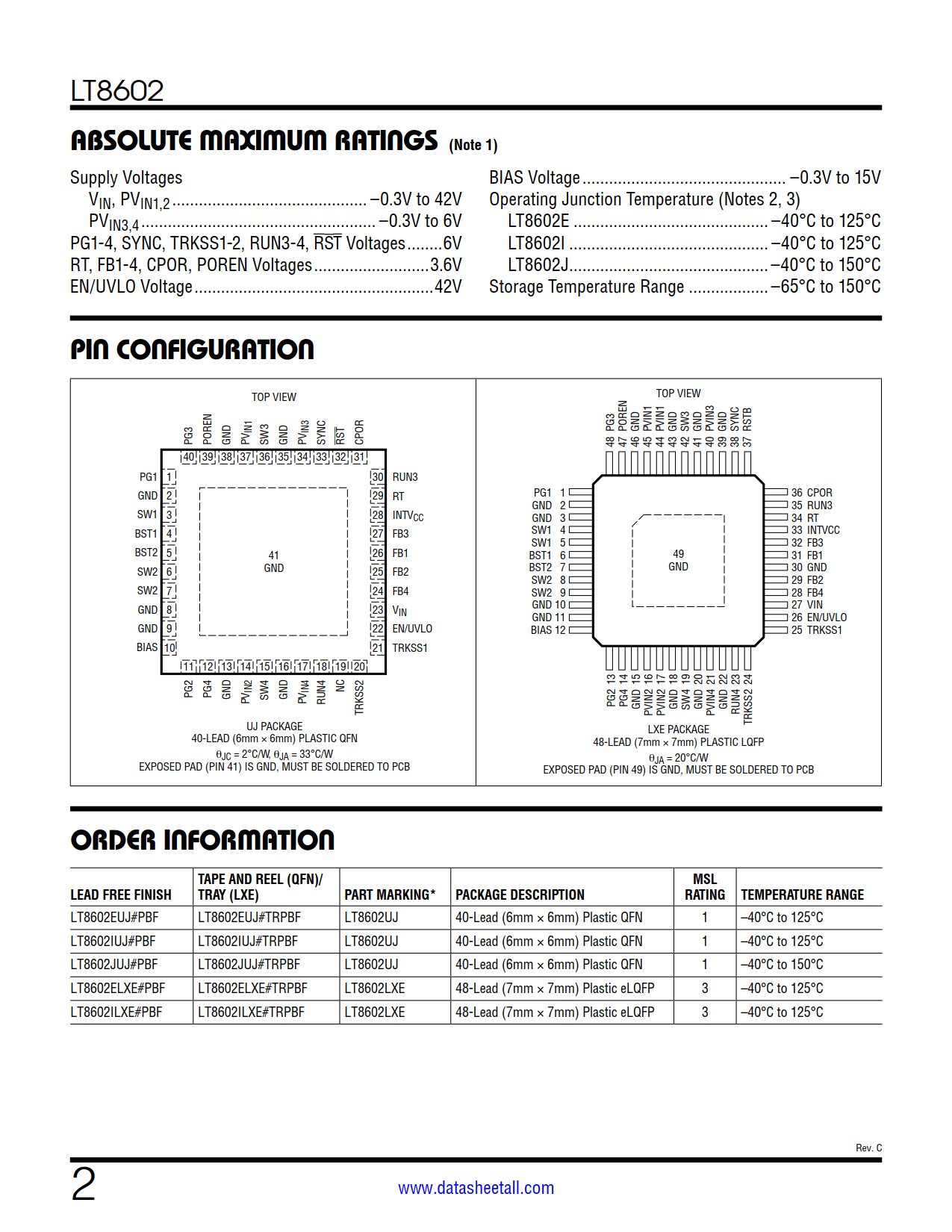

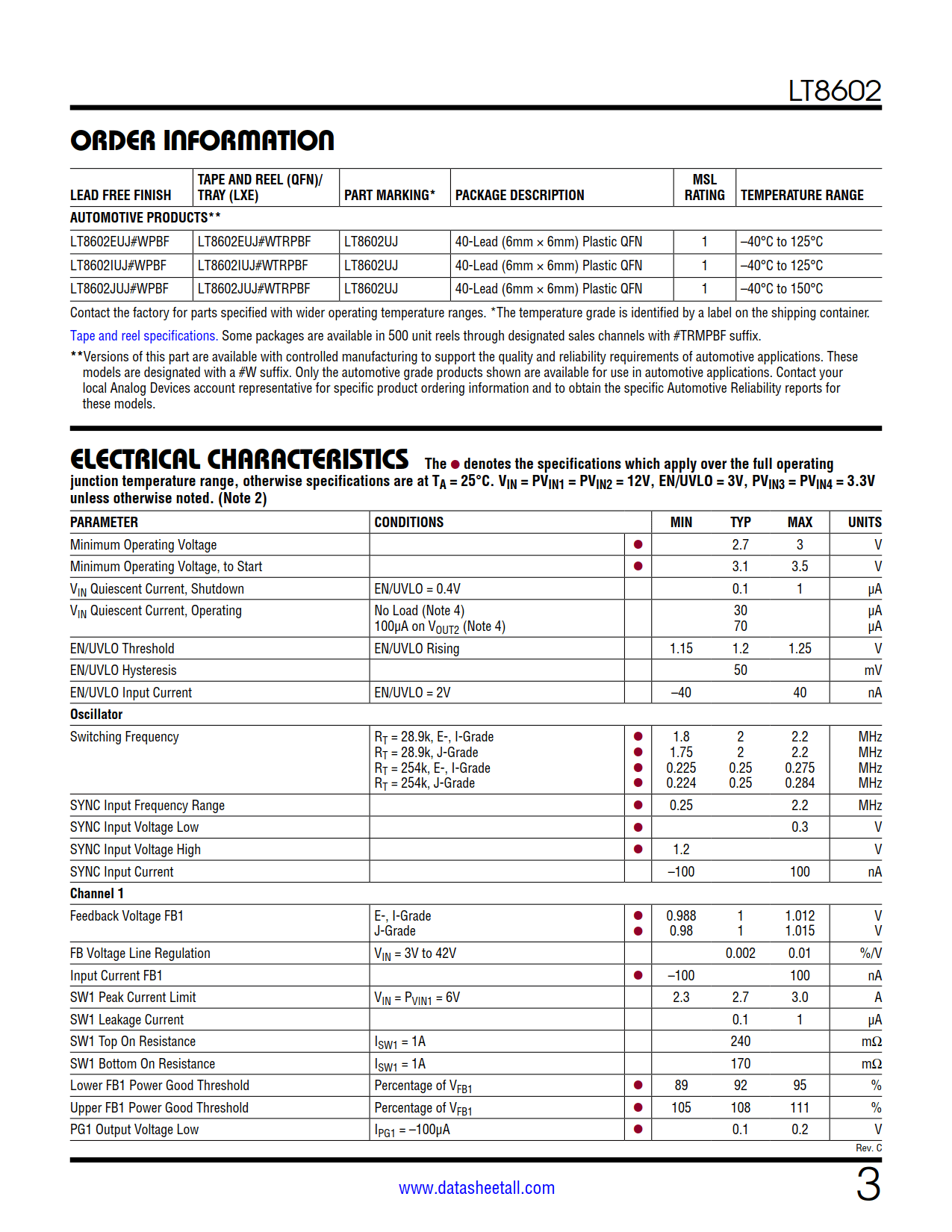

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT8602EUJ#PBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602EUJ#TRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602EUJ#TRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#PBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#TRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#TRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#PBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#TRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#TRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602ELXE#PBF | Tray | 250 | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | |
| LT8602ELXE#TRPBF | Reel | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | ||
| LT8602ELXE#TRMPBF | Reel | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | ||
| LT8602ILXE#PBF | Tray | 250 | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | |
| LT8602ILXE#TRPBF | Reel | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | ||
| LT8602ILXE#TRMPBF | Reel | LT8602LXE | 3 | 48 | -40°C ~ 125°C | 48-Lead (7mm × 7mm) Plastic eLQFP | ||
| LT8602EUJ#WPBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602EUJ#WTRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602EUJ#WTRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#WPBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#WTRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602IUJ#WTRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 125°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#WPBF | Tube | 61 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#WTRPBF | Reel | 2000 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN | |
| LT8602JUJ#WTRMPBF | Reel | 500 | LT8602UJ | 1 | 40 | -40°C ~ 150°C | 40-Lead (6mm × 6mm) Plastic QFN |

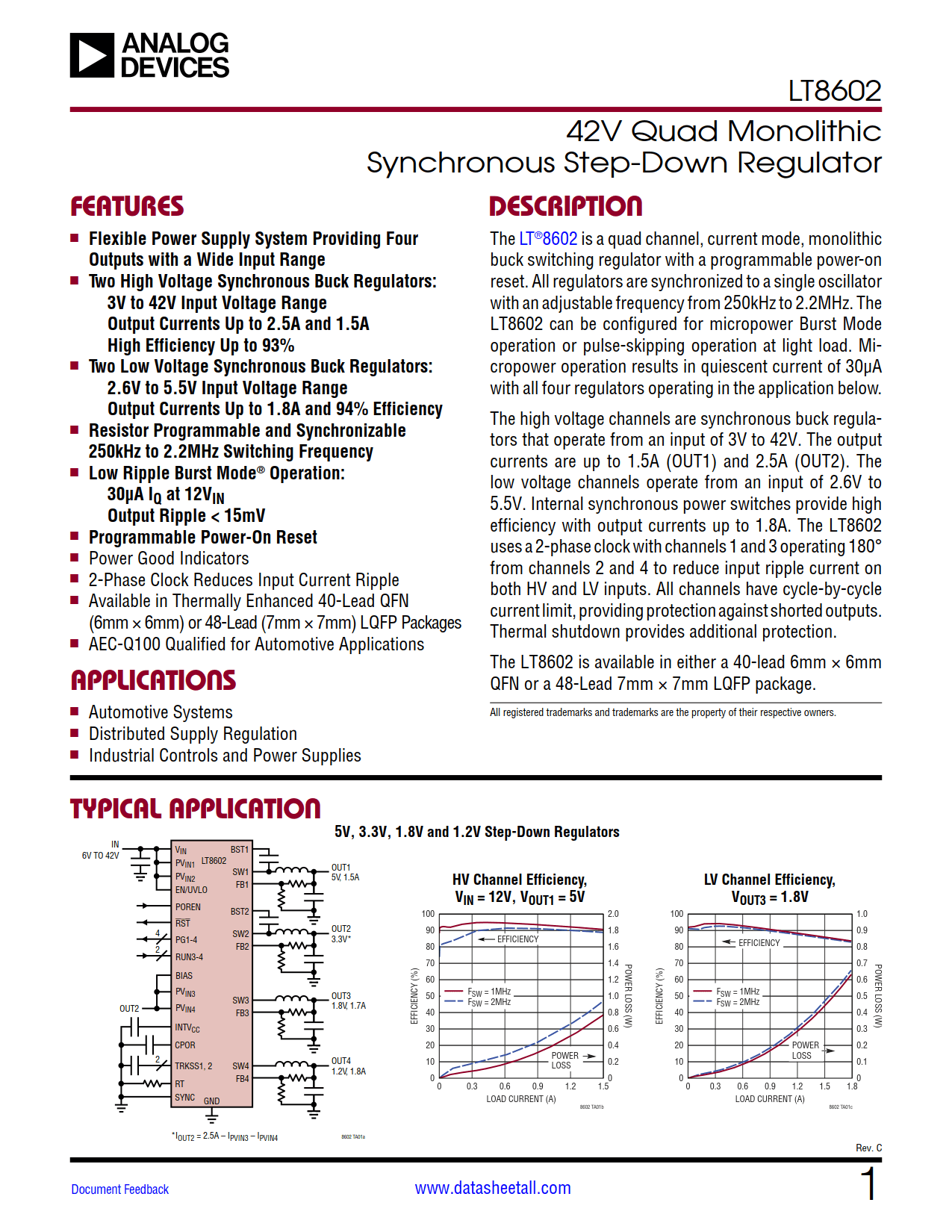

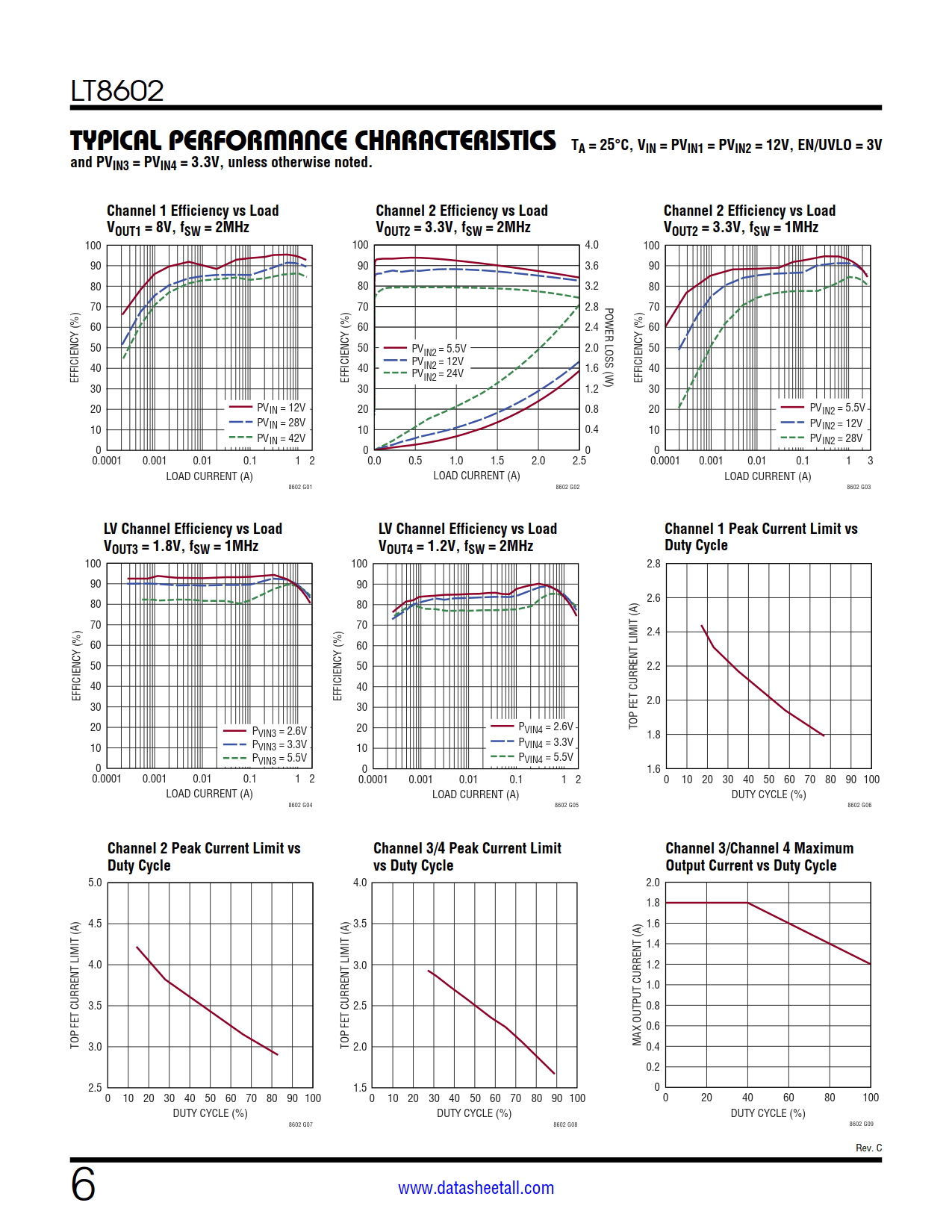

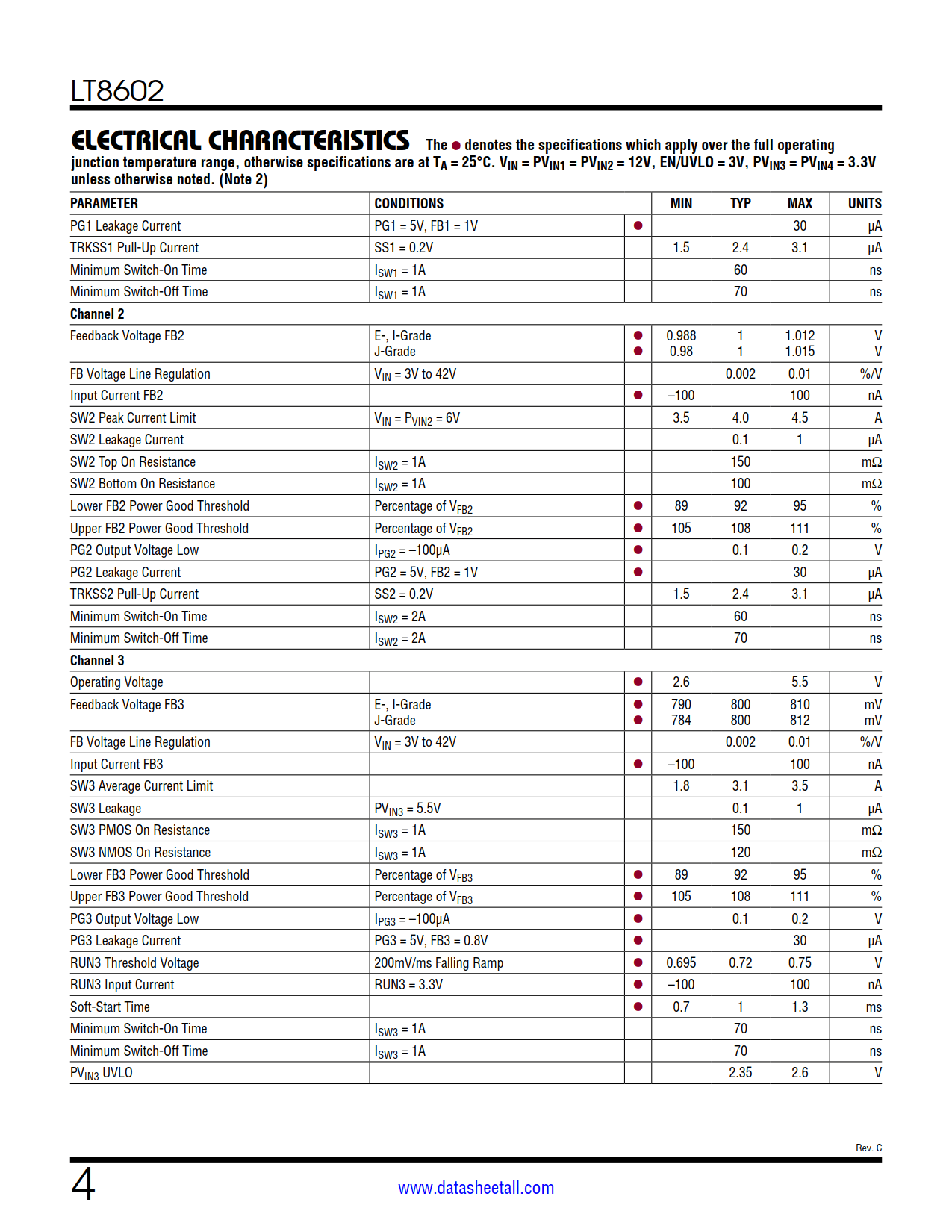

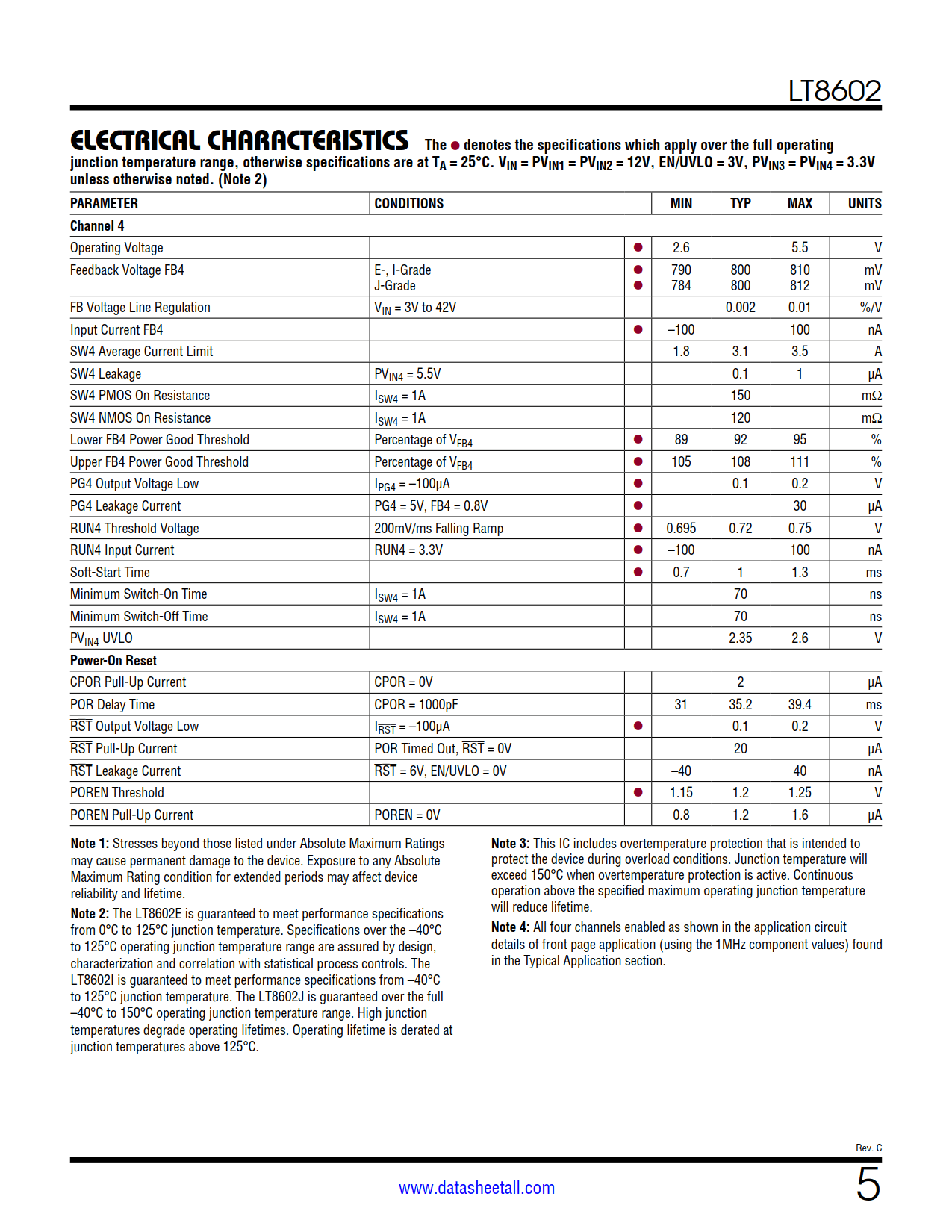

The LT8602 is a quad channel, current mode, monolithic buck switching regulator with a programmable power-on reset. All regulators are synchronized to a single oscillator with an adjustable frequency from 250kHz to 2.2MHz. The LT8602 can be configured for micropower Burst Mode operation or pulse-skipping operation at light load. Micropower operation results in quiescent current of 30μA with all four regulators operating in the application below.
The high voltage channels are synchronous buck regulators that operate from an input of 3V to 42V. The output currents are up to 1.5A (OUT1) and 2.5A (OUT2). The low voltage channels operate from an input of 2.6V to 5.5V. Internal synchronous power switches provide high efficiency with output currents up to 1.8A. The LT8602 uses a 2-phase clock with channels 1 and 3 operating 180° from channels 2 and 4 to reduce input ripple current on both HV and LV inputs. All channels have cycle-by-cycle current limit, providing protection against shorted outputs. Thermal shutdown provides additional protection
The LT8602 is available in either a 40-lead 6mm × 6mm QFN or a 48-Lead 7mm × 7mm LQFP package.
