215MHz, Rail-to-Rail Output, 1.1nV/√Hz, 3.5mA Op Amp Family
Part No.: LT6232
Page: 24 Pages
Size: 776 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-25 16:29:21
DataSheet: Download

LT6232 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6232CGN#PBF Tube 100 6232 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6232CGN#TRPBF Reel 2500 6232 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6232CGN#TRMPBF Reel 500 6232 1 16 0°C ~ 70°C 16-Lead Narrow Plastic SSOP
LT6232IGN#PBF Tube 100 6232I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
LT6232IGN#TRPBF Reel 2500 6232I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
LT6232IGN#TRMPBF Reel 500 6232I 1 16 -40°C ~ 85°C 16-Lead Narrow Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6232 Datasheet(PDF)

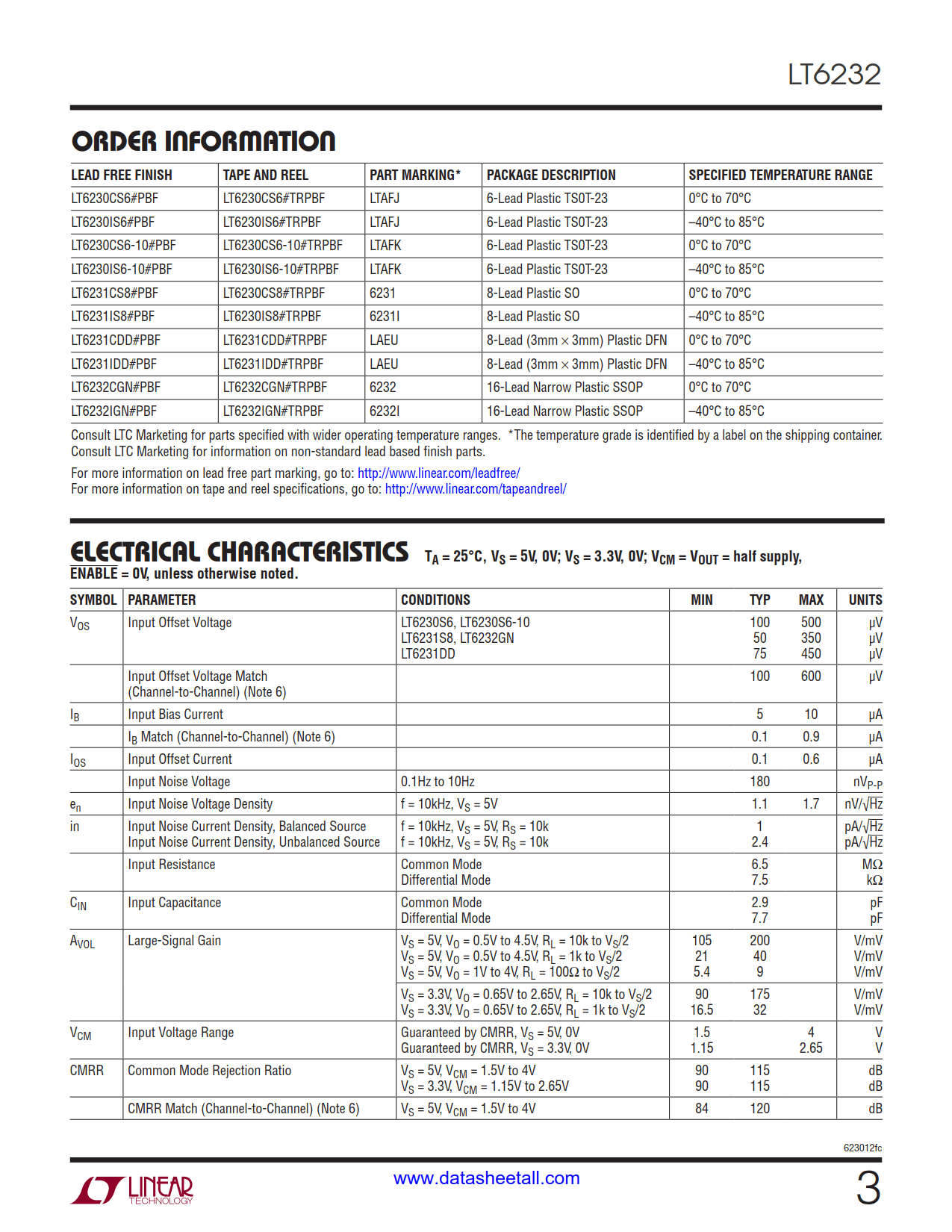

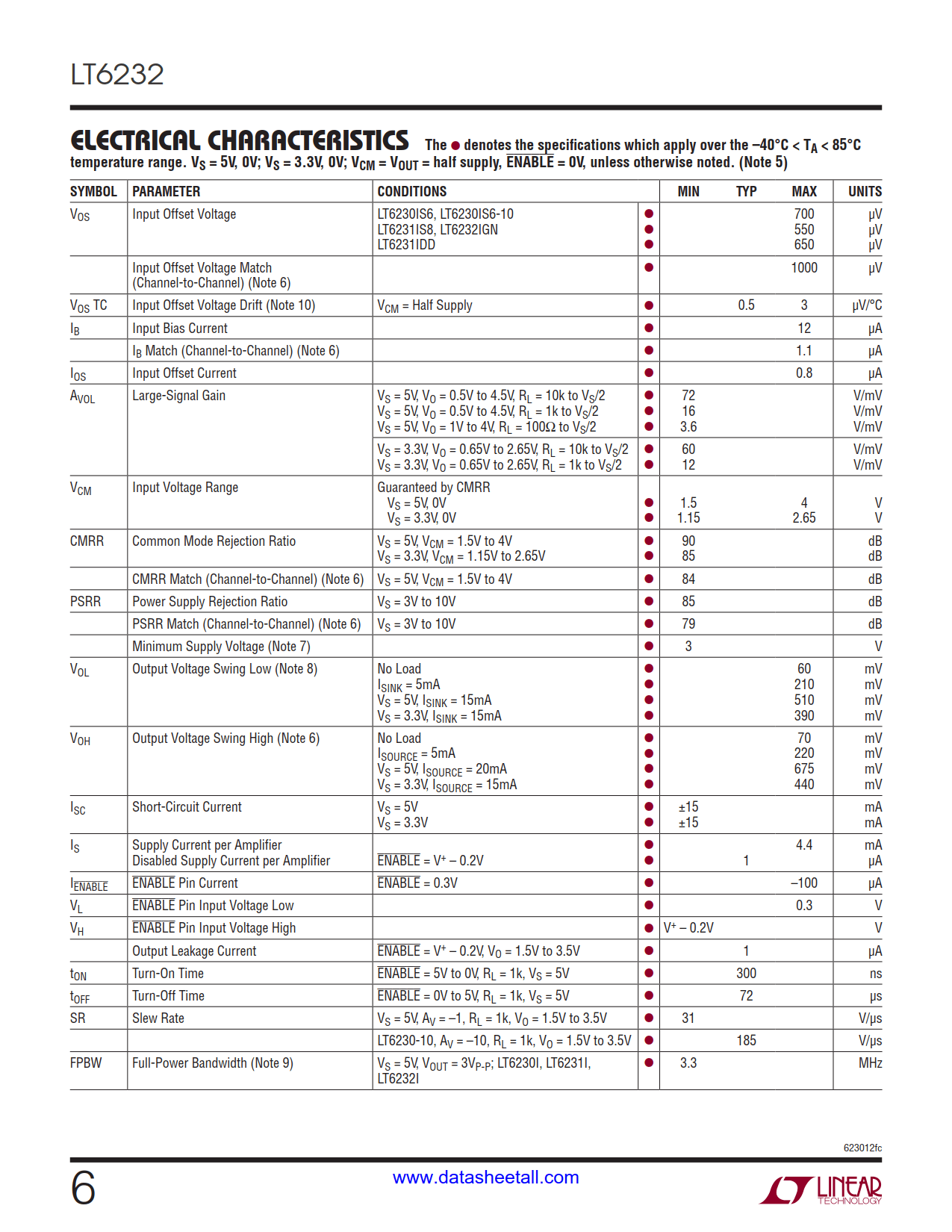

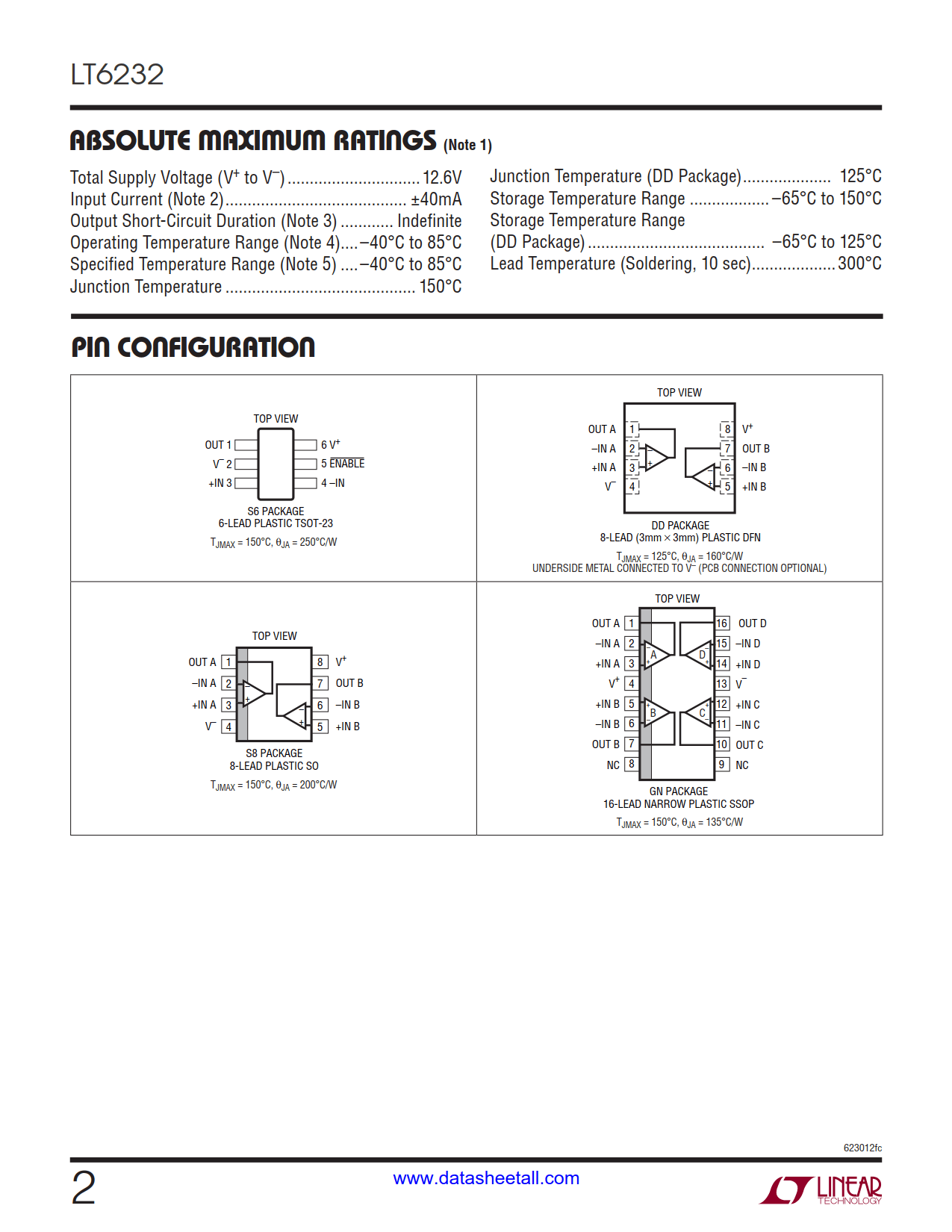

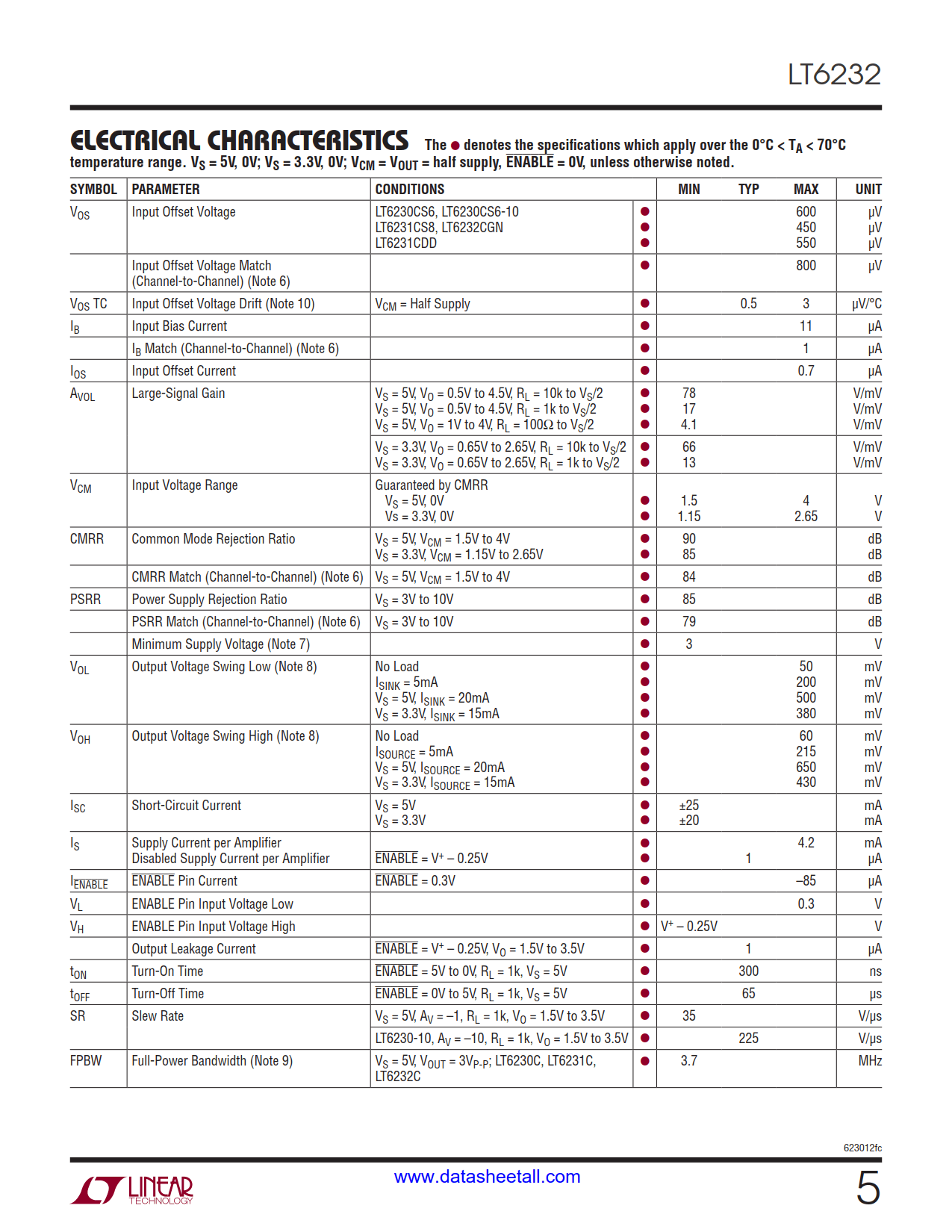

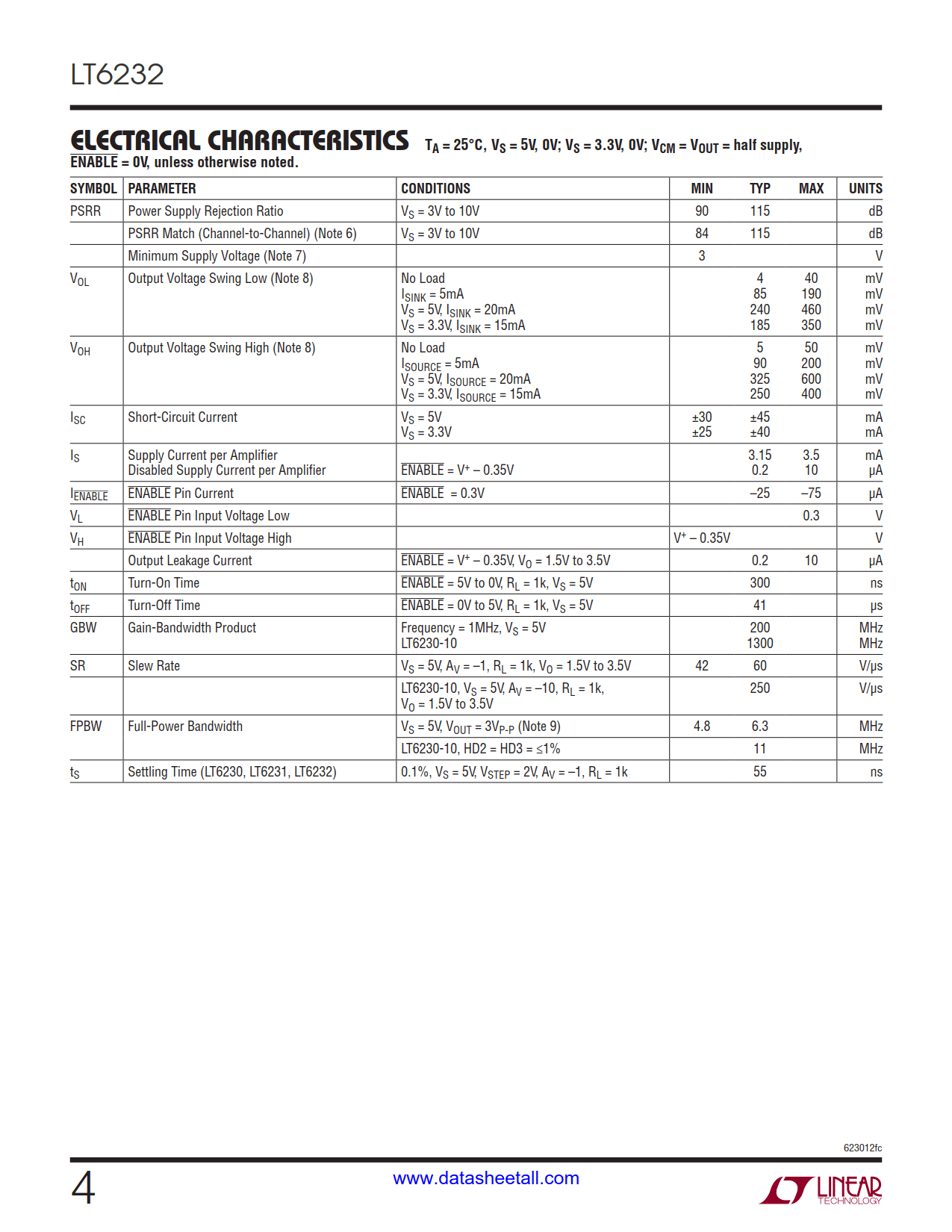

LT6232 Datasheet(Picture)

LT6232 Features

  • Low Noise Voltage: 1.1nV/√Hz
  • Low Supply Current: 3.5mA/Amp Max
  • Low Offset Voltage: 350μV Max
  • Wide Supply Range: 3V to 12.6V
  • Output Swings Rail-to-Rail
  • Common Mode Rejection Ratio: 115dB Typ
  • Output Current: 30mA
  • Operating Temperature Range: –40°C to 85°C
  • LT6232 in a 16-Pin SSOP Package

LT6232 Applications

  • Ultrasound Amplifiers
  • Low Noise, Low Power Signal Processing
  • Active Filters
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers

LT6232 Description

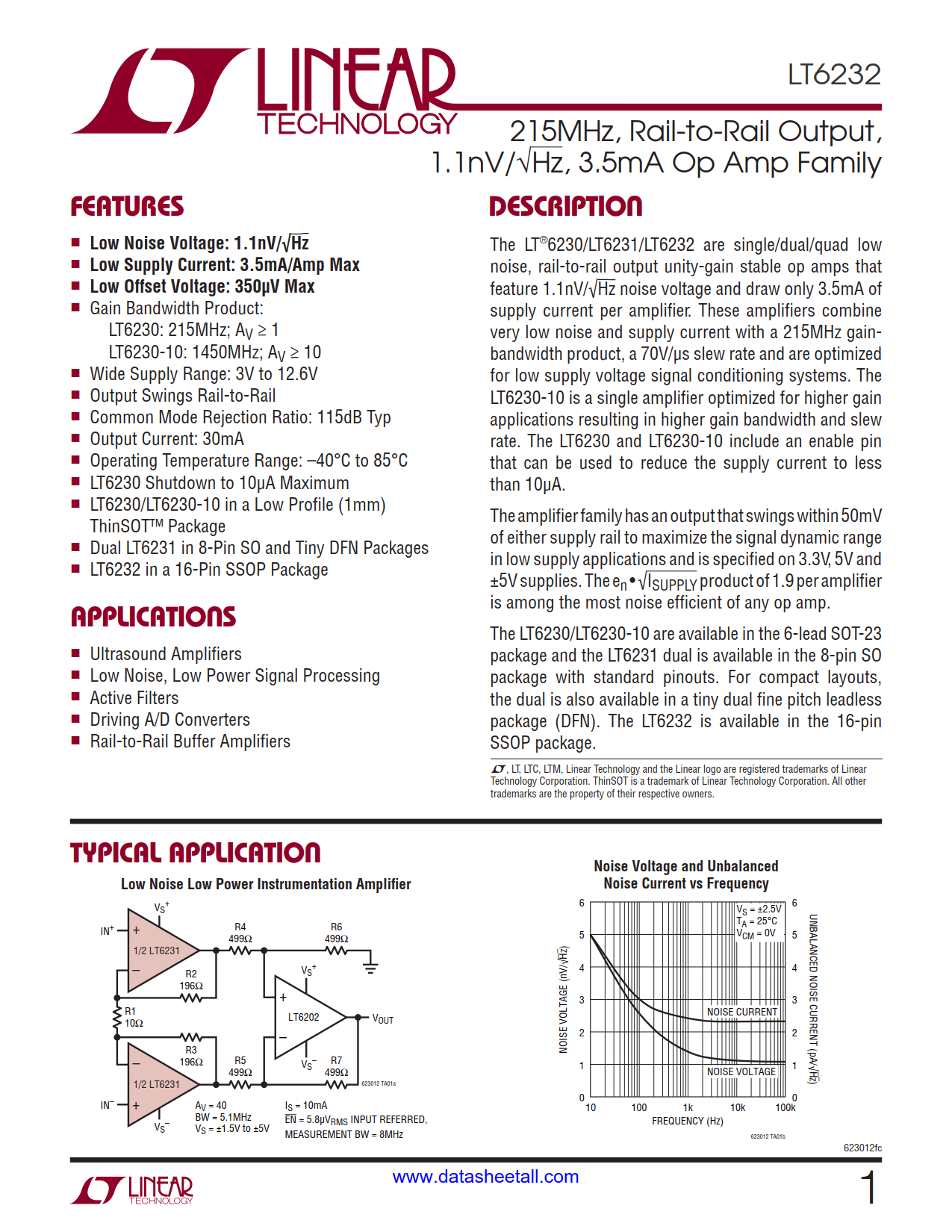

The LT6232 are quad low noise, rail-to-rail output unity-gain stable op amps that feature 1.1nV/√Hz noise voltage and draw only 3.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 215MHz gain bandwidth product, a 70V/μs slew rate and are optimized for low supply voltage signal conditioning systems.

The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications and is specified on 3.3V, 5V and ±5V supplies. The en • √ISUPPLY product of 1.9 per amplifier is among the most noise efficient of any op amp.

For compact layouts, the dual is also available in a tiny dual fine pitch leadless package (DFN). The LT6232 is available in the 16-pin SSOP package.

LT6232 Datasheet Related Parts
