LT6230-10 Datasheet

LT6230-10 Datasheet

215MHz, Rail-to-Rail Output, 1.1nV/√Hz, 3.5mA Op Amp Family
Part No.: LT6230-10
Page: 24 Pages
Size: 775 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-25 16:06:06
DataSheet: Download

LT6230-10 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT6230CS6-10#PBF Tube   LTAFK 1 6 0°C ~ 70°C 6-Lead Plastic TS0T-23
LT6230CS6-10#TRPBF Reel 2500 LTAFK 1 6 0°C ~ 70°C 6-Lead Plastic TS0T-23
LT6230CS6-10#TRMPBF Reel 500 LTAFK 1 6 0°C ~ 70°C 6-Lead Plastic TS0T-23
LT6230IS6-10#PBF Tube   LTAFK 1 6 -40°C ~ 85°C 6-Lead Plastic TS0T-23
LT6230IS6-10#TRPBF Reel 2500 LTAFK 1 6 -40°C ~ 85°C 6-Lead Plastic TS0T-23
LT6230IS6-10#TRMPBF Reel 500 LTAFK 1 6 -40°C ~ 85°C 6-Lead Plastic TS0T-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT6230-10 Datasheet(PDF)

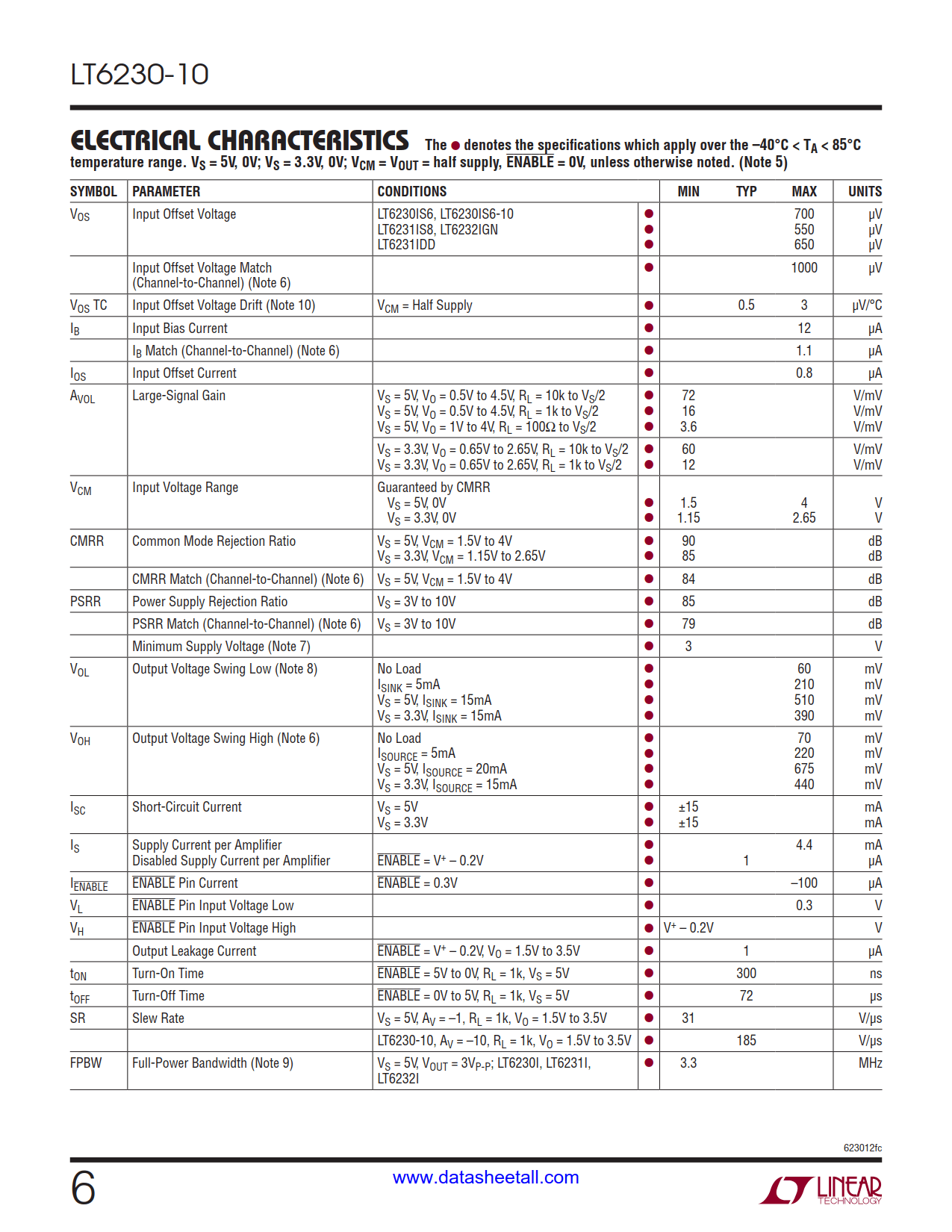

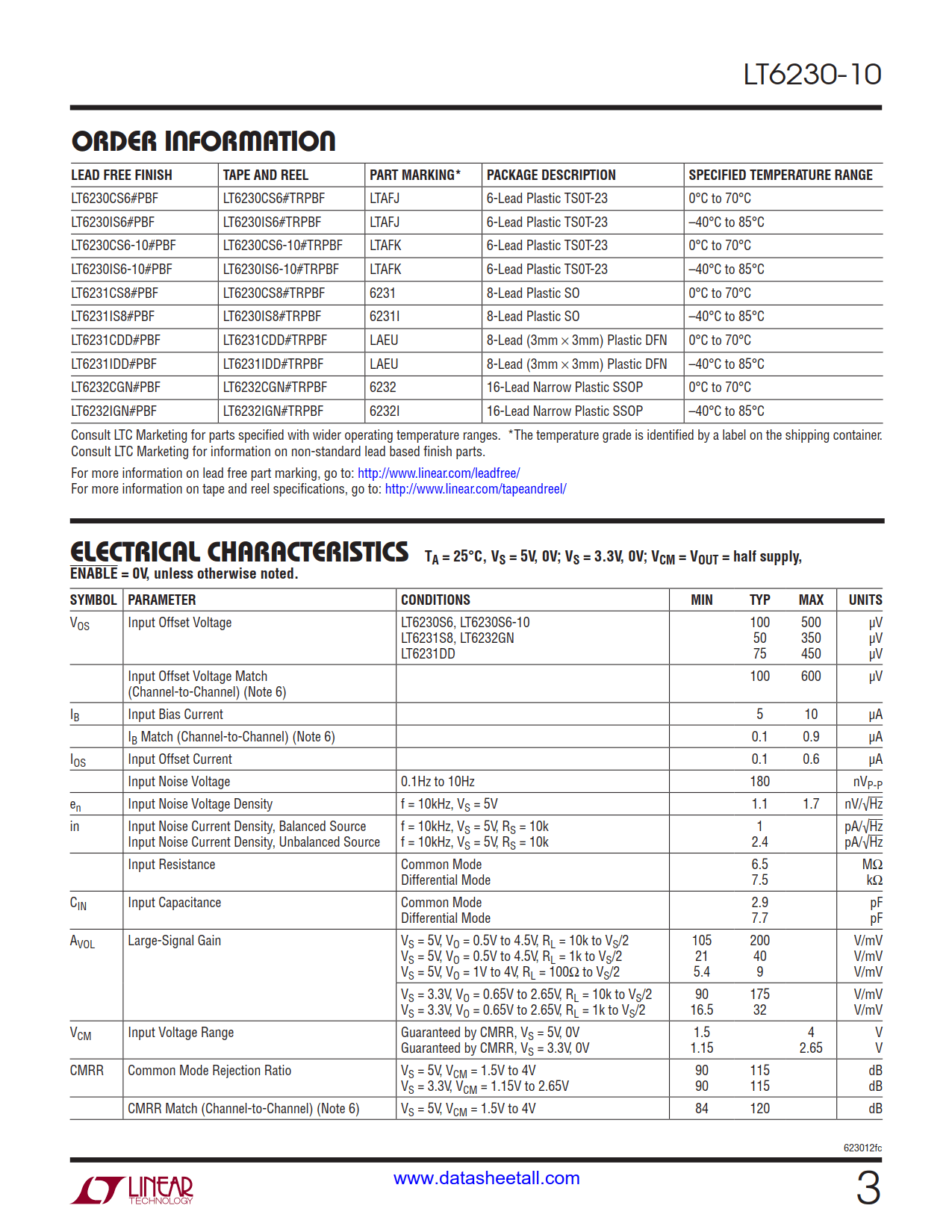

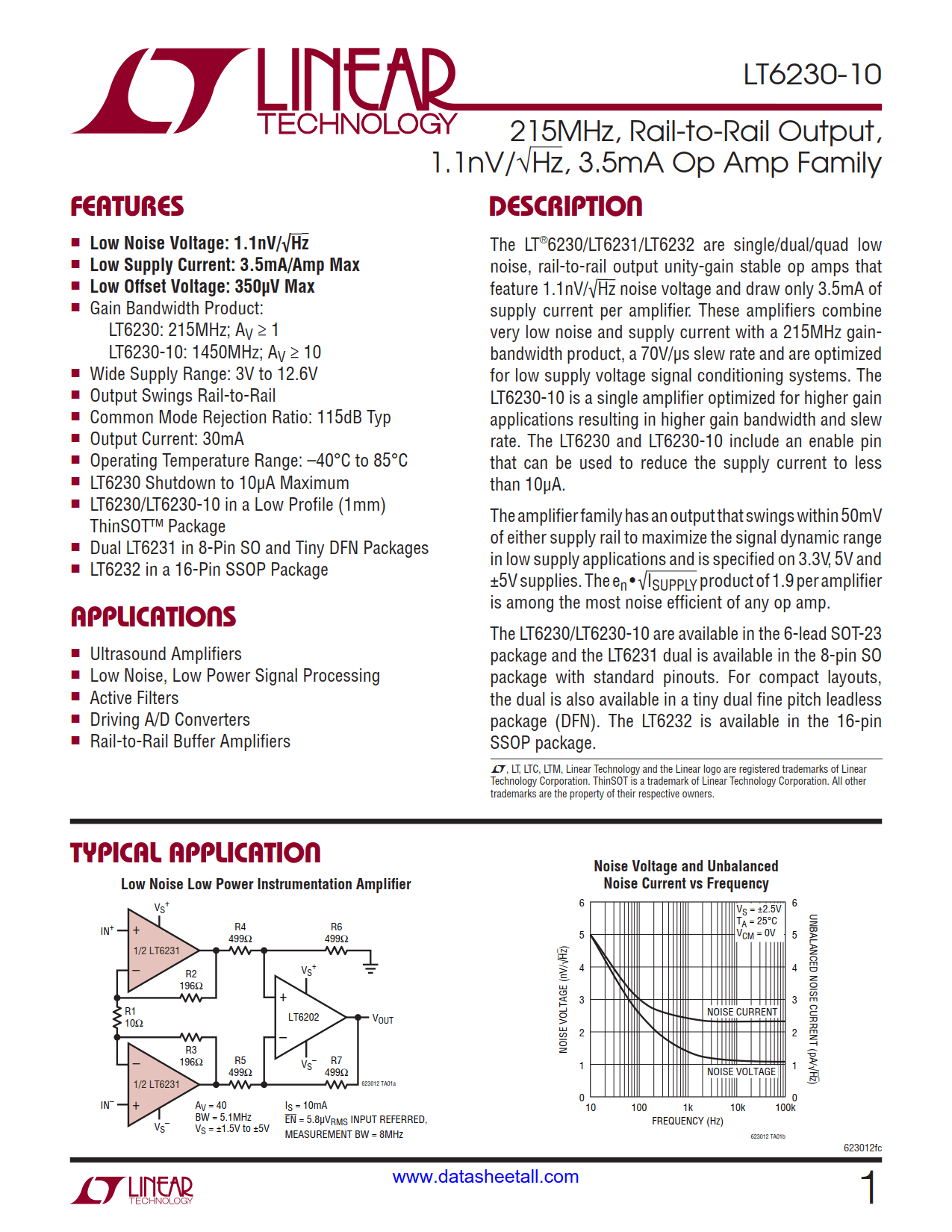

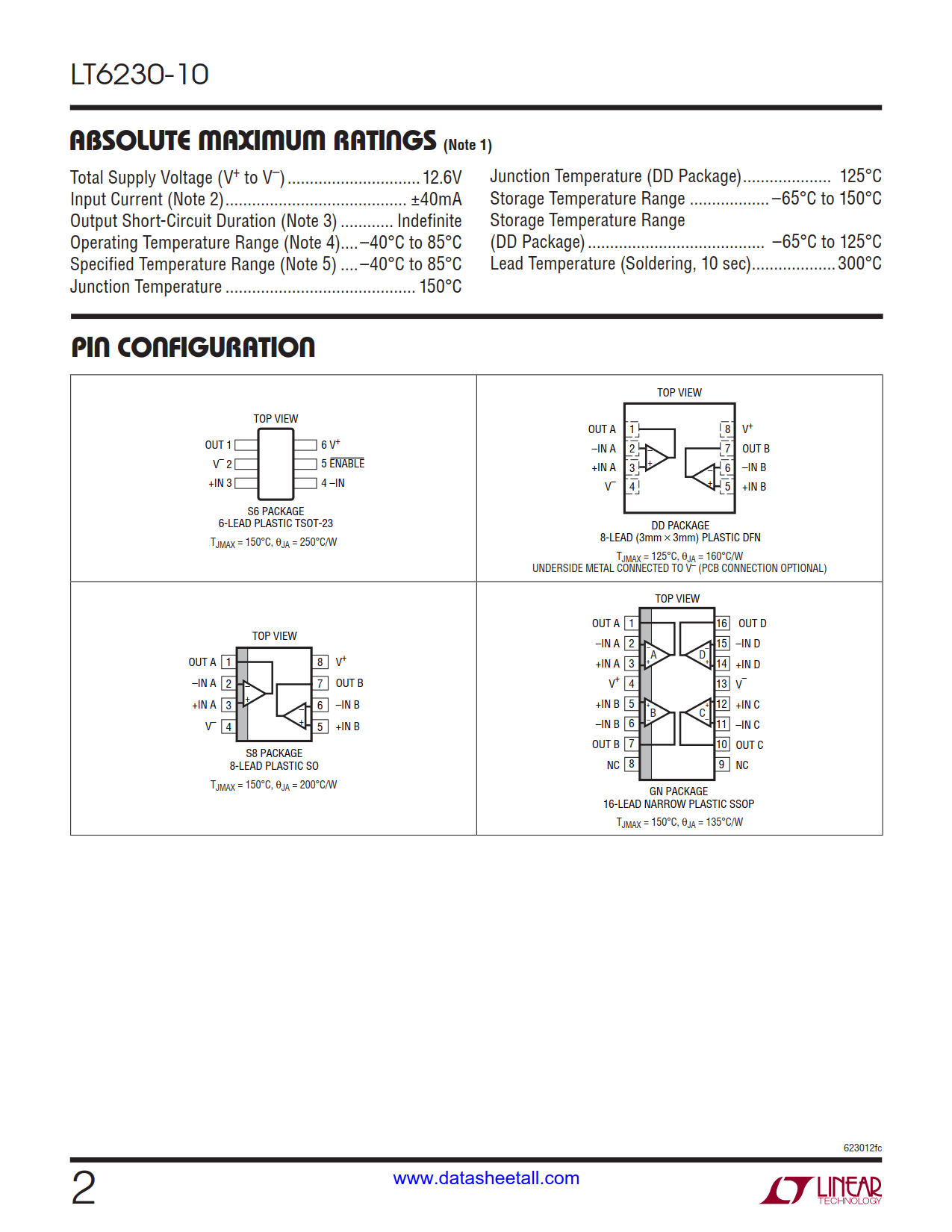

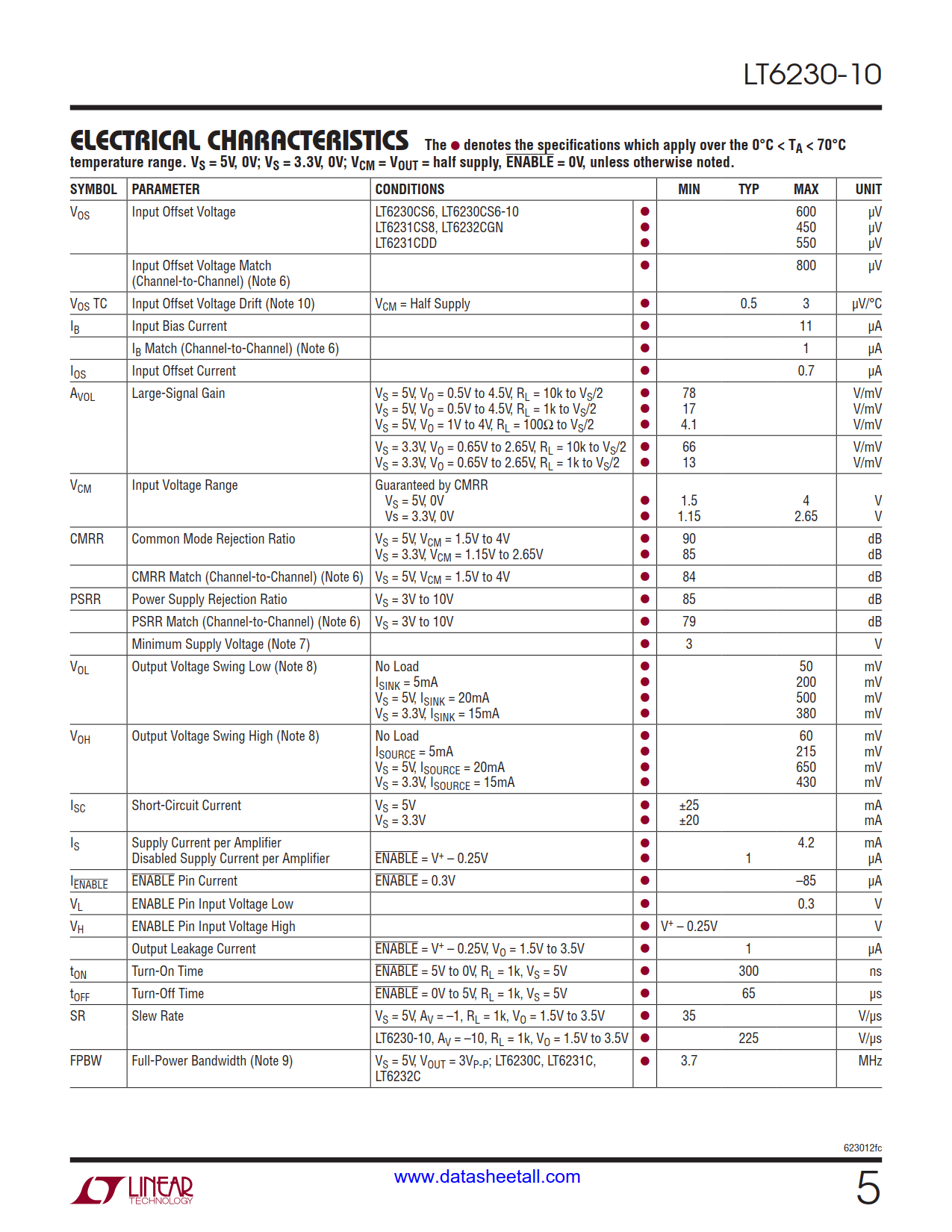

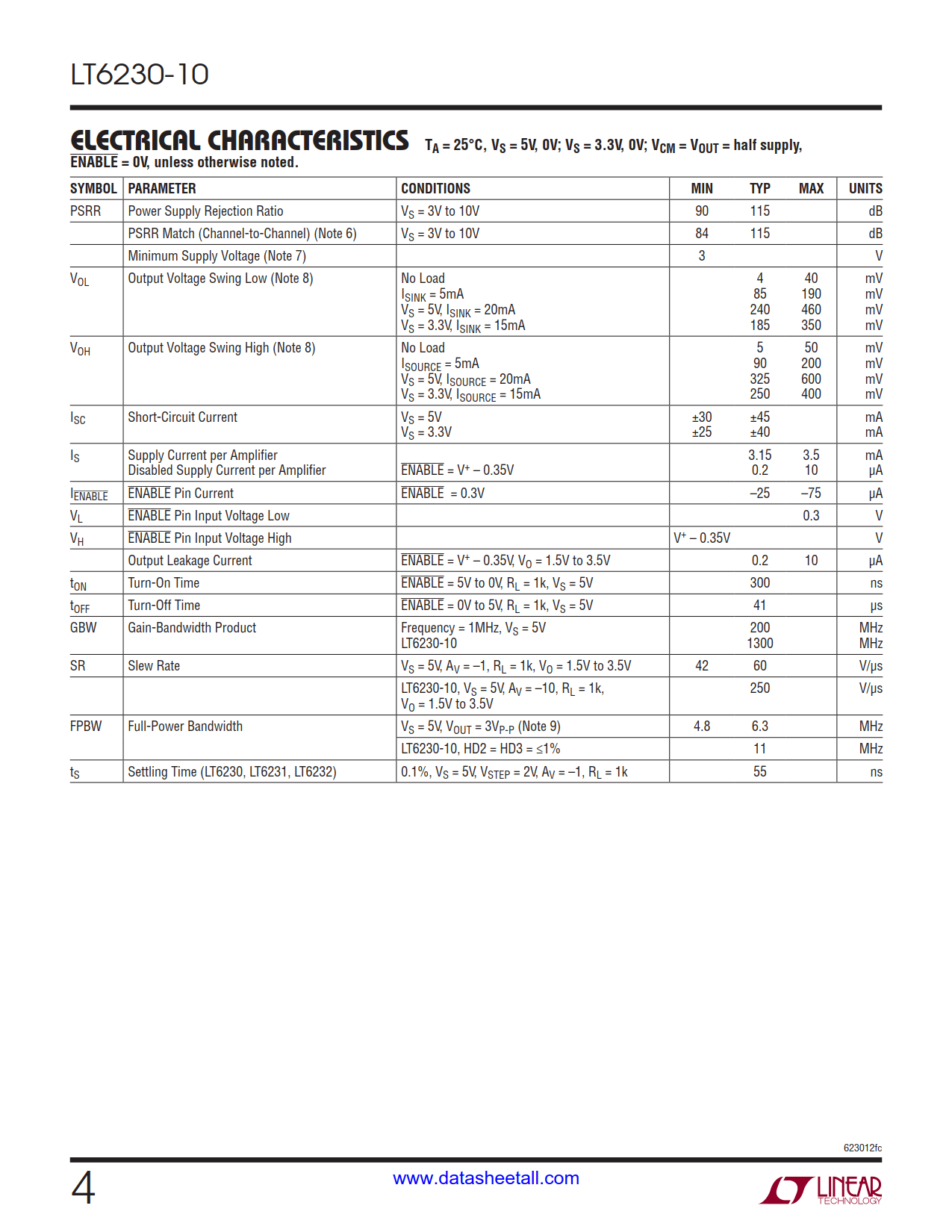

LT6230-10 Datasheet(Picture)

LT6230-10 Features

  • Low Noise Voltage: 1.1nV/√Hz
  • Low Supply Current: 3.5mA/Amp Max
  • Low Offset Voltage: 350μV Max
  • Gain Bandwidth Product:
    • LT6230-10: 1450MHz; AV ≥ 10
  • Wide Supply Range: 3V to 12.6V
  • Output Swings Rail-to-Rail
  • Common Mode Rejection Ratio: 115dB Typ
  • Output Current: 30mA
  • Operating Temperature Range: –40°C to 85°C
  • LT6230-10 in a Low Profile (1mm) ThinSOT Package

LT6230-10 Applications

  • Ultrasound Amplifiers
  • Low Noise, Low Power Signal Processing
  • Active Filters
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers

LT6230-10 Description

The LT6230 are single low noise, rail-to-rail output unity-gain stable op amps that feature 1.1nV/√Hz noise voltage and draw only 3.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 215MHz gain-bandwidth product, a 70V/μs slew rate and are optimized for low supply voltage signal conditioning systems. The LT6230-10 is a single amplifier optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6230-10 include an enable pin that can be used to reduce the supply current to less than 10μA.

The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications and is specified on 3.3V, 5V and ±5V supplies. The en • √ISUPPLY product of 1.9 per amplifier is among the most noise efficient of any op amp.

The LT6230-10 are available in the 6-lead SOT‑23 package. For compact layouts, the dual is also available in a tiny dual fine pitch leadless package (DFN).
