LT3952 Datasheet

LT3952 Datasheet

60V LED Driver with 4A Switch Current
Part No.: LT3952
Page: 32 Pages
Size: 466 KB
Manufacturer: Linear Technology
Logo:
Views: 3
Update Time: 2023-12-05 16:06:32
DataSheet: Download

LT3952 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT3952EFE#PBF Tube   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952EFE#TRPBF Reel   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952EFE#TRMPBF Reel   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952IFE#PBF Tube   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952IFE#TRPBF Reel   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952IFE#TRMPBF Reel   LT3952FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LT3952HFE#PBF Tube   LT3952FE 1 28 -40°C ~ 150°C 28-Lead Plastic TSSOP
LT3952HFE#TRPBF Reel   LT3952FE 1 28 -40°C ~ 150°C 28-Lead Plastic TSSOP
LT3952HFE#TRMPBF Reel   LT3952FE 1 28 -40°C ~ 150°C 28-Lead Plastic TSSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

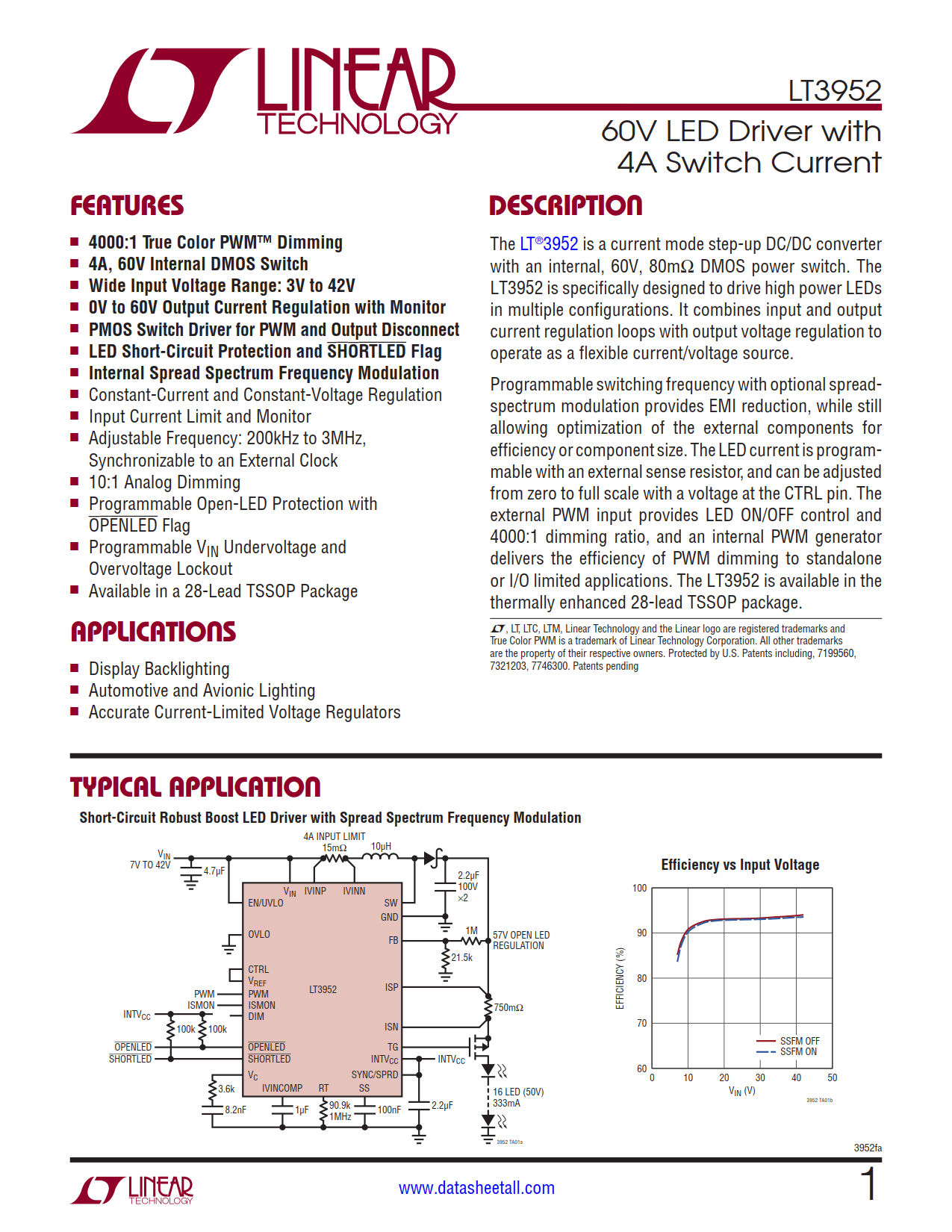

LT3952 Datasheet(PDF)

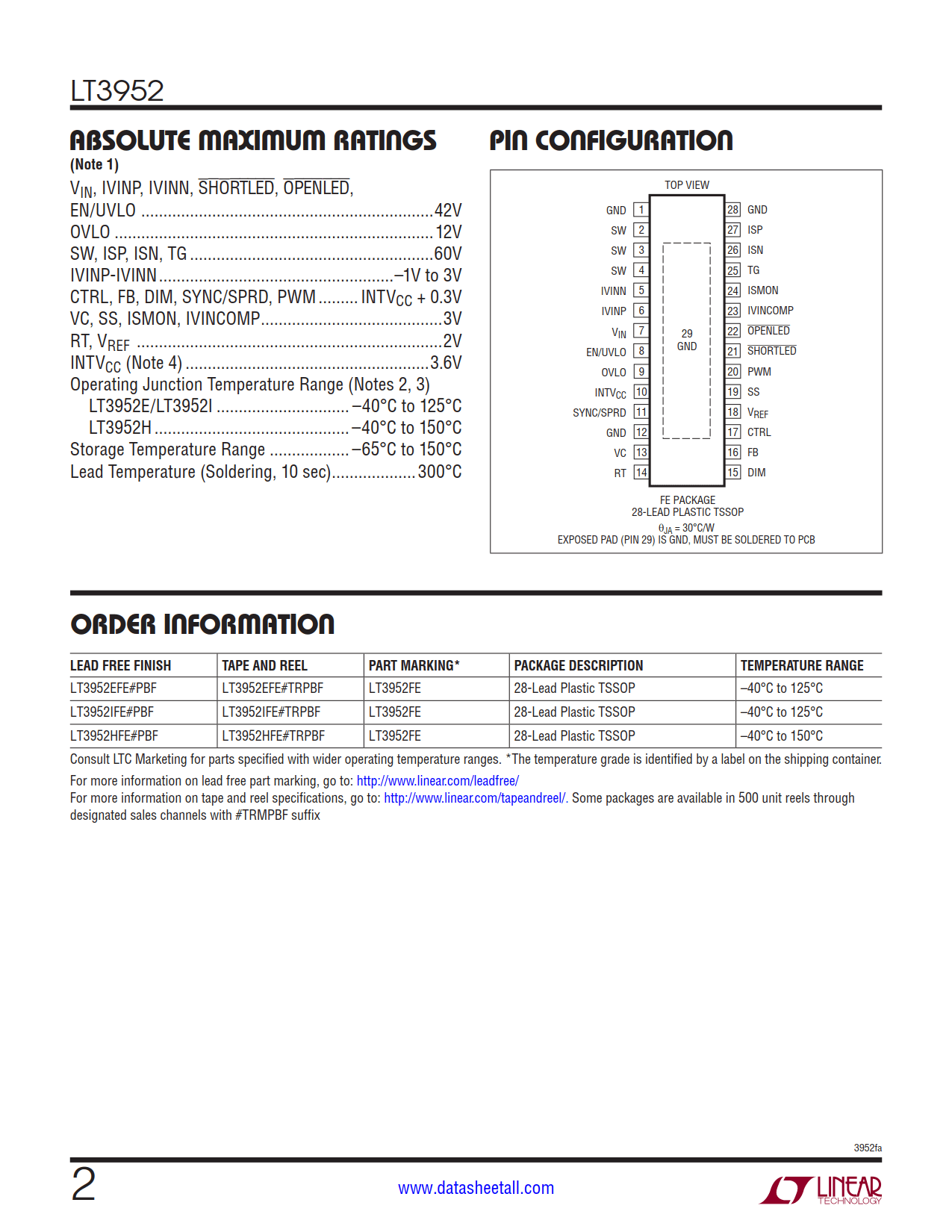

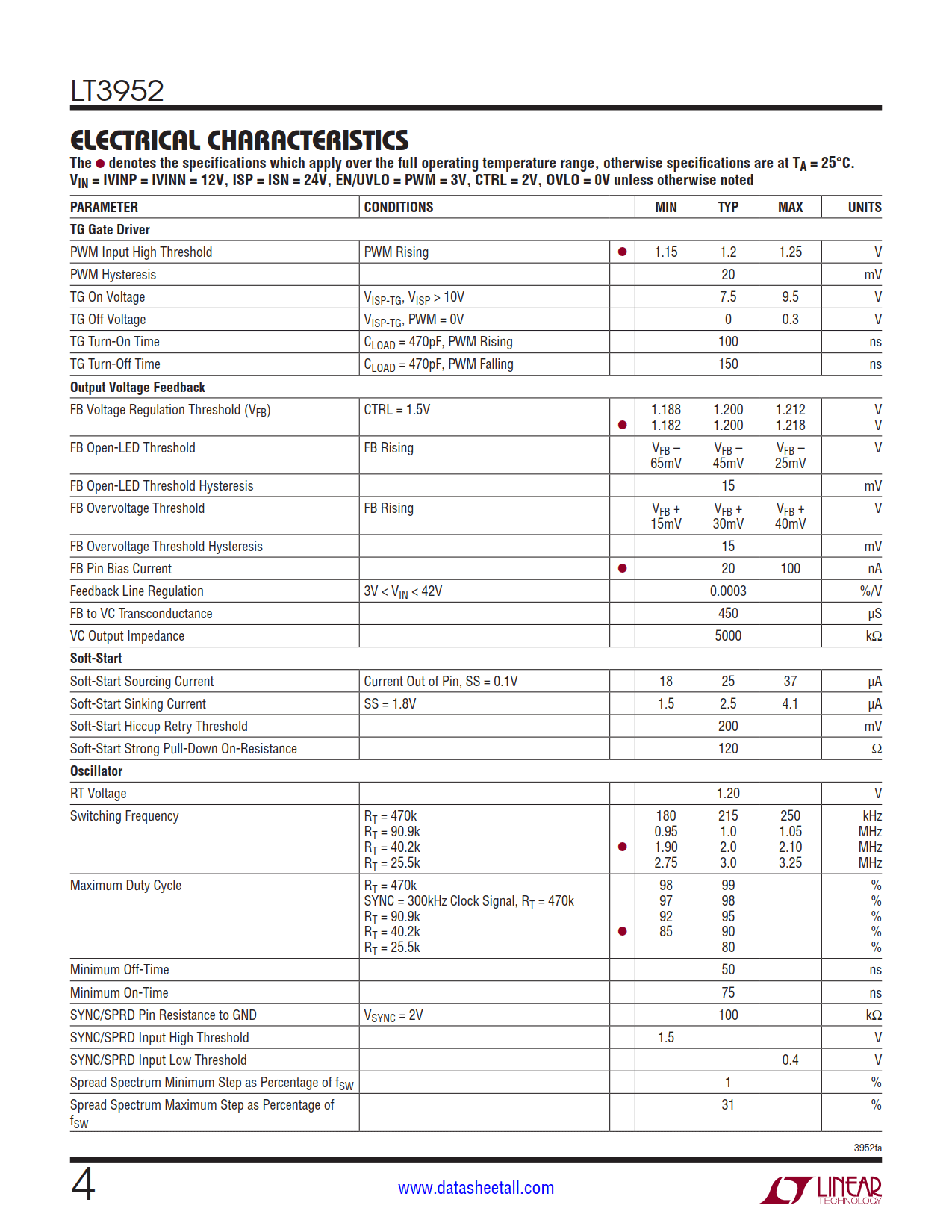

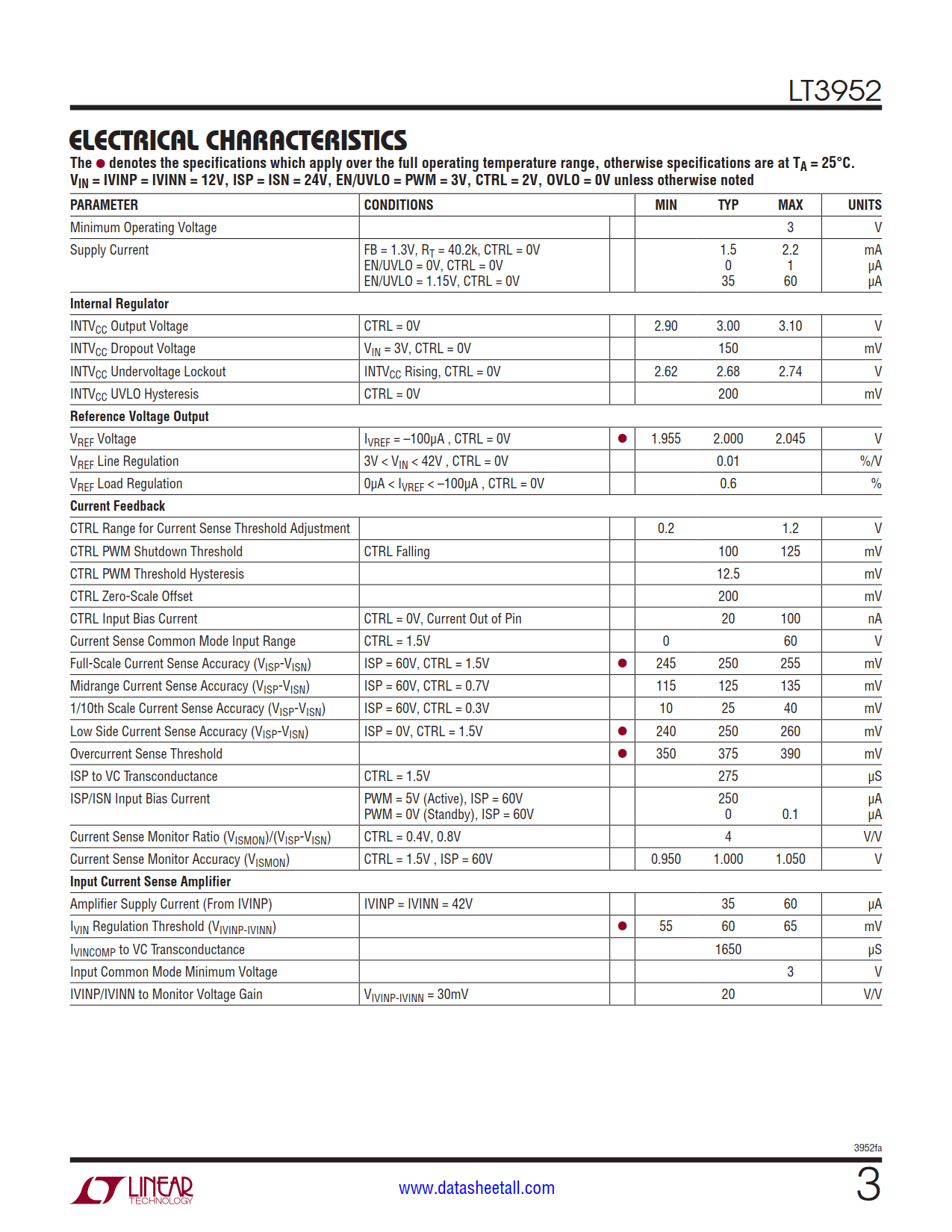

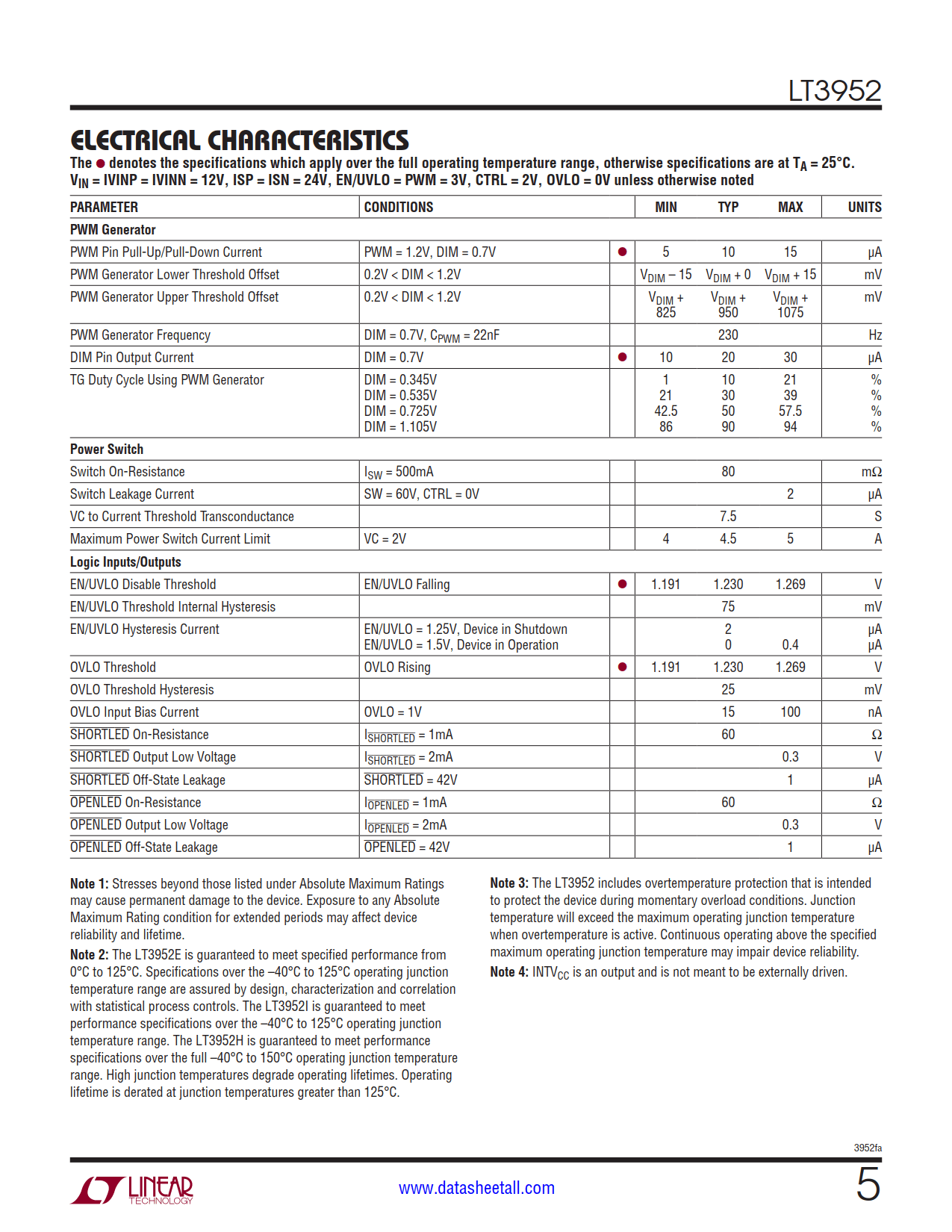

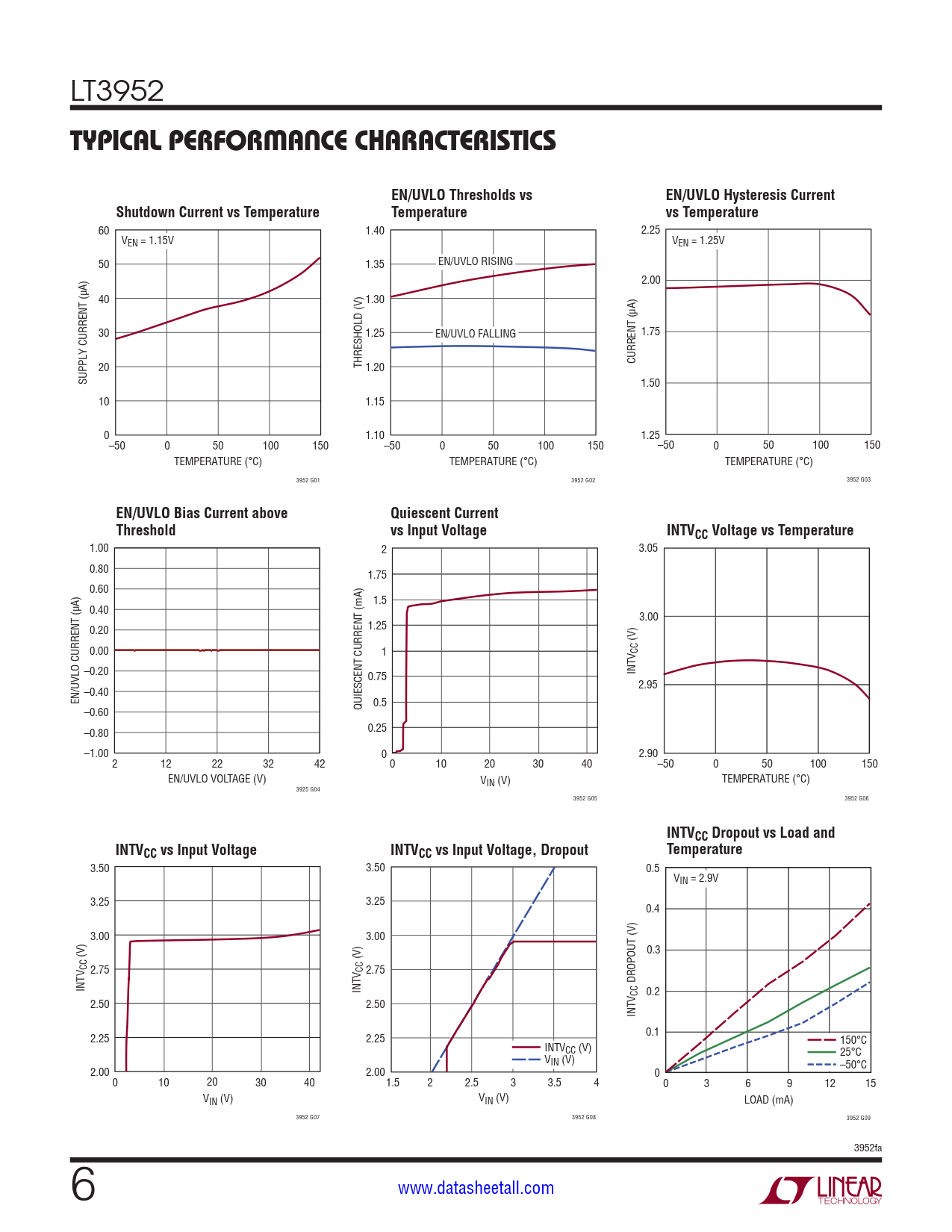

LT3952 Datasheet(Picture)

LT3952 Features

  • 4000:1 True Color PWM™ Dimming
  • 4A, 60V Internal DMOS Switch
  • Wide Input Voltage Range: 3V to 42V
  • 0V to 60V Output Current Regulation with Monitor
  • PMOS Switch Driver for PWM and Output Disconnect
  • LED Short-Circuit Protection and SHORTLED Flag
  • Internal Spread Spectrum Frequency Modulation
  • Constant-Current and Constant-Voltage Regulation
  • Input Current Limit and Monitor
  • Adjustable Frequency: 200kHz to 3MHz, Synchronizable to an External Clock
  • 10:1 Analog Dimming
  • Programmable Open-LED Protection with OPENLED Flag
  • Programmable VIN Undervoltage and Overvoltage Lockout
  • Available in a 28-Lead TSSOP Package

LT3952 Applications

  • Display Backlighting
  • Automotive and Avionic Lighting
  • Accurate Current-Limited Voltage Regulators

LT3952 Description

The LT®3952 is a current mode step-up DC/DC converter with an internal, 60V, 80mΩ DMOS power switch. The LT3952 is specifically designed to drive high power LEDs in multiple configurations. It combines input and output current regulation loops with output voltage regulation to operate as a flexible current/voltage source.

Programmable switching frequency with optional spreadspectrum modulation provides EMI reduction, while still allowing optimization of the external components for efficiency or component size. The LED current is programmable with an external sense resistor, and can be adjusted from zero to full scale with a voltage at the CTRL pin. The external PWM input provides LED ON/OFF control and 4000:1 dimming ratio, and an internal PWM generator delivers the efficiency of PWM dimming to standalone or I/O limited applications.

The LT3952 is available in the thermally enhanced 28-lead TSSOP package.

LT3952 Datasheet Related Parts
