| Part No.： | LT1800 |
| Page： | 18 Pages |
| Size： | 281 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-14 14:49:56 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1800CS8#PBF | Tube | 100 | 1800 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1800CS8#TRPBF | Reel | 2500 | 1800 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SO | |
| LT1800IS8#PBF | Tube | 100 | 1800I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1800IS8#TRPBF | Reel | 2500 | 1800I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SO | |
| LT1800CS5#TRPBF | Reel | 2500 | LTRN | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic TSOT-23 | |
| LT1800CS5#TRMPBF | Reel | 500 | LTRN | 1 | 5 | 0°C ~ 70°C | 5-Lead Plastic TSOT-23 | |
| LT1800IS5#TRPBF | Reel | 2500 | LTRP | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 | |
| LT1800IS5#TRMPBF | Reel | 500 | LTRP | 1 | 5 | -40°C ~ 85°C | 5-Lead Plastic TSOT-23 |

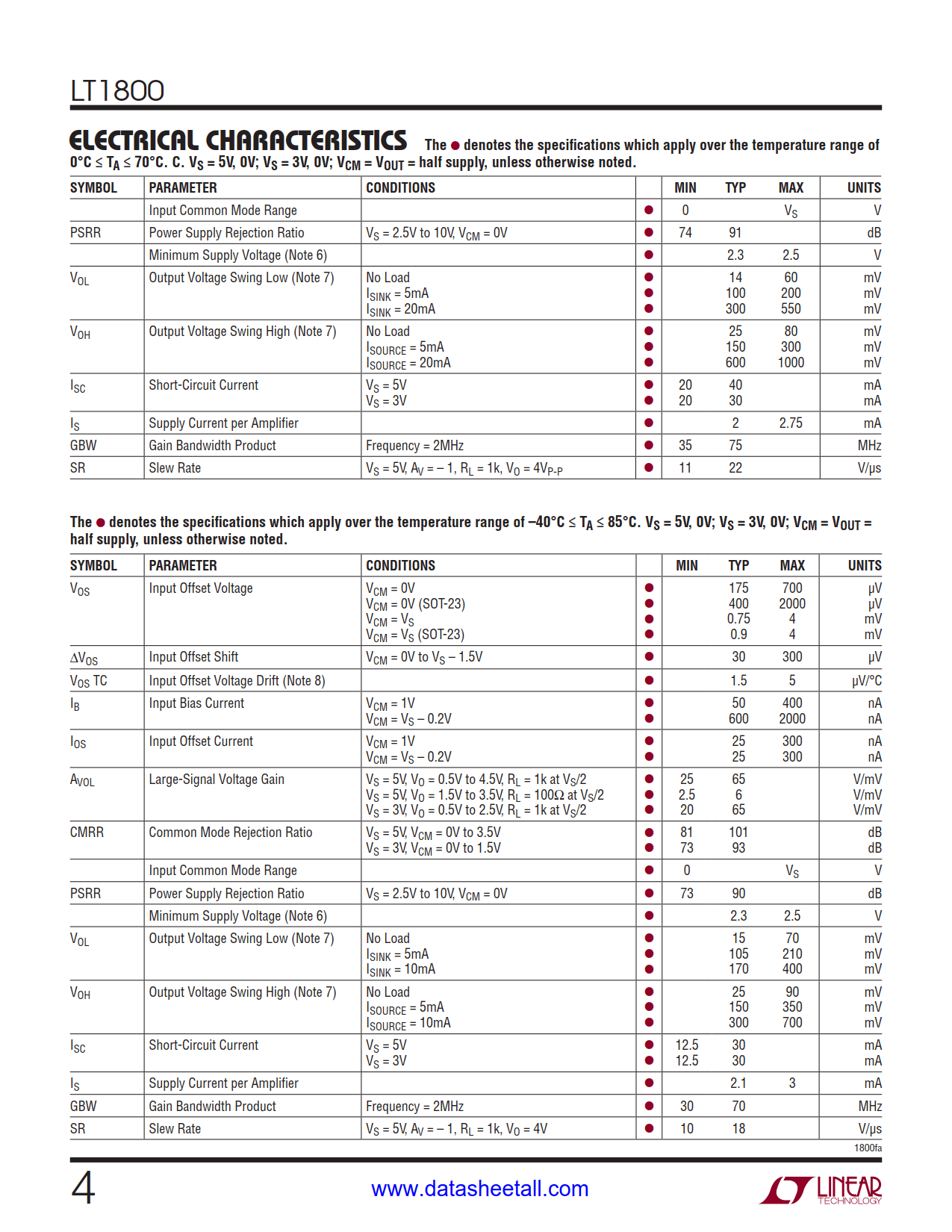

The LT1800 is a low power, high speed rail-to-rail input and output operational amplifier with excellent DC performance. The LT1800 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.
The LT1800 has an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications.
The LT1800 maintains its performance for supplies from 2.3V to 12.6V and is specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.
The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin TSOT-23 package. For dual and quad versions of the LT1800, see the LT1801/LT1802 data sheet. The LT1800 can be used as a plug-in replacement for many op amps to improve input/output range and performance.
