| Part No.： | LT1678 |
| Page： | 16 Pages |
| Size： | 278 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-10-25 15:09:18 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1678CS8#PBF | Tube | 100 | 1678 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1678CS8#TRPBF | Reel | 2500 | 1678 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1678CS8#TRMPBF | Reel | 500 | 1678 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1678IS8#PBF | Tube | 100 | 1678I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| LT1678IS8#TRPBF | Reel | 2500 | 1678I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| LT1678IS8#TRMPBF | Reel | 500 | 1678I | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |

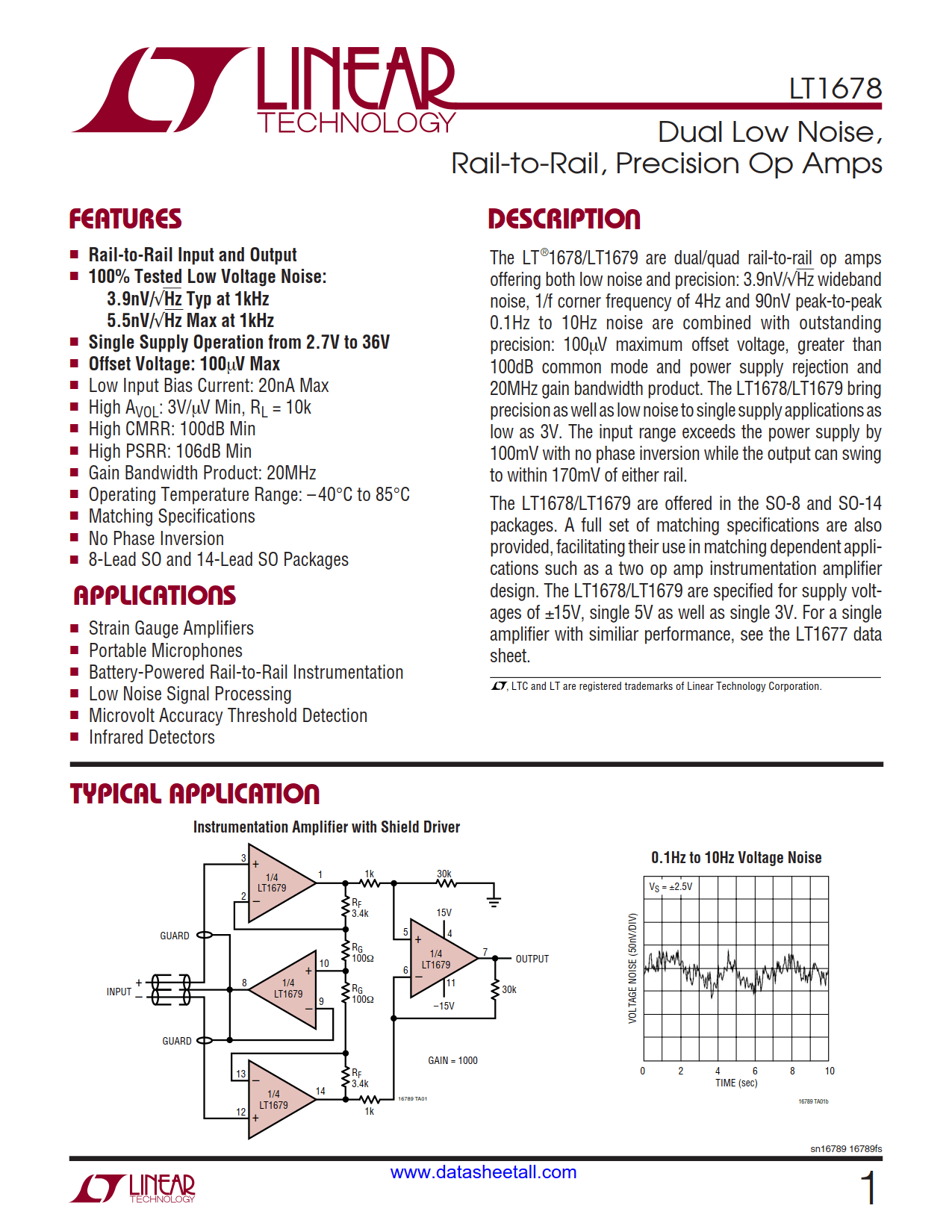

The LT1678 are dual rail-to-rail op amps offering both low noise and precision: 3.9nV/√Hz wideband noise, 1/f corner frequency of 4Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise are combined with outstanding precision: 100µV maximum offset voltage, greater than 100dB common mode and power supply rejection and 20MHz gain bandwidth product. The LT1678 bring precision as well as low noise to single supply applications as low as 3V. The input range exceeds the power supply by 100mV with no phase inversion while the output can swing to within 170mV of either rail.
The LT1678 are offered in the SO-8 and SO-14 packages. A full set of matching specifications are also provided, facilitating their use in matching dependent applications such as a two op amp instrumentation amplifier design. The LT1678 are specified for supply voltages of ±15V, single 5V as well as single 3V. For a single amplifier with similiar performance, see the LT1677 data sheet.
