| Part No.： | LT1364 |
| Page： | 12 Pages |
| Size： | 203 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-28 10:02:38 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LT1364CN8#PBF | Tube | 50 | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | ||
| LT1364CN8#TRPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |||
| LT1364CN8#TRMPBF | Reel | 1 | 8 | 0°C ~ 70°C | 8-Lead PDIP | |||
| LT1364CS8#PBF | Tube | 100 | 1364 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1364CS8#TRPBF | Reel | 2500 | 1364 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC | |
| LT1364CS8#TRMPBF | Reel | 500 | 1364 | 1 | 8 | 0°C ~ 70°C | 8-Lead SOIC |

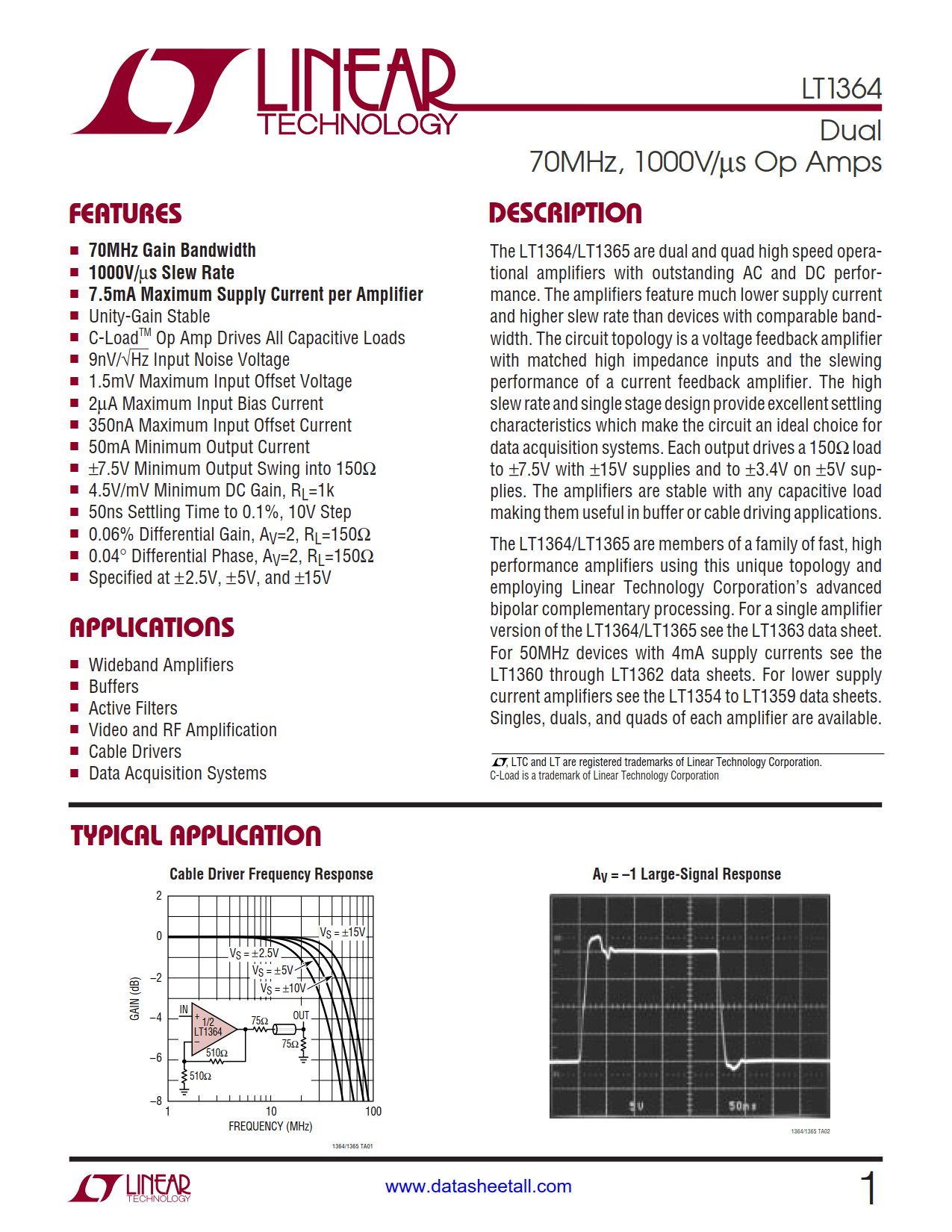

The LT1364 are dual high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 150Ω load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer or cable driving applications.
The LT1364 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing.
