70MHz, 1000V/µs Op Amp
Part No.: LT1363
Page: 12 Pages
Size: 192 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-03 13:56:17
DataSheet: Download

LT1363 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1363CN8#PBF Tube 50 LT1363CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1363CN8#TRPBF Reel   LT1363CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1363CN8#TRMPBF Reel   LT1363CN8 1 8 0°C ~70°C 8-Lead PDIP
LT1363CS8#PBF Tube 100 1363 1 8 0°C ~70°C 8-Lead SOIC
LT1363CS8#TRPBF Reel 2500 1363 1 8 0°C ~70°C 8-Lead SOIC
LT1363CS8#TRMPBF Reel 500 1363 1 8 0°C ~70°C 8-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1363 Datasheet(PDF)

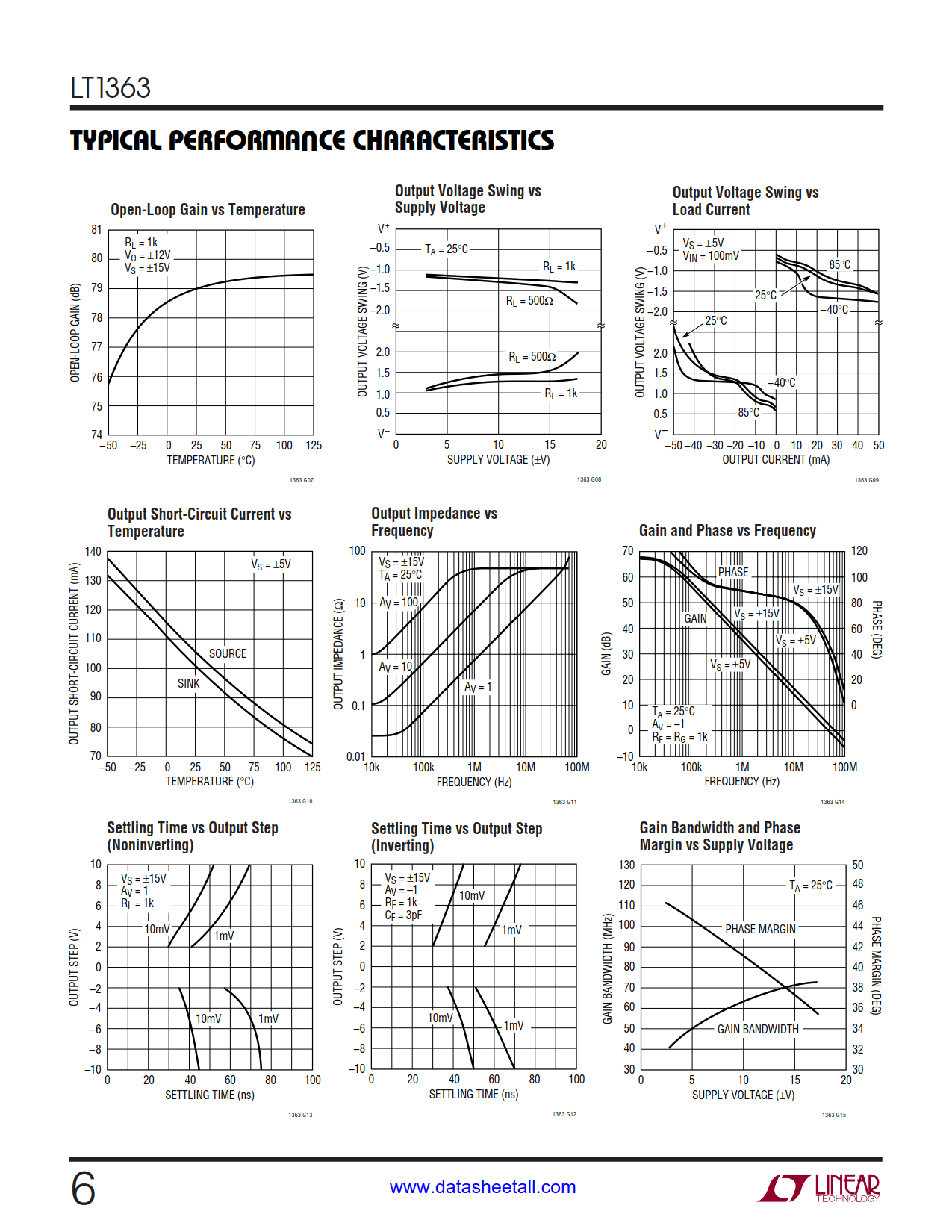

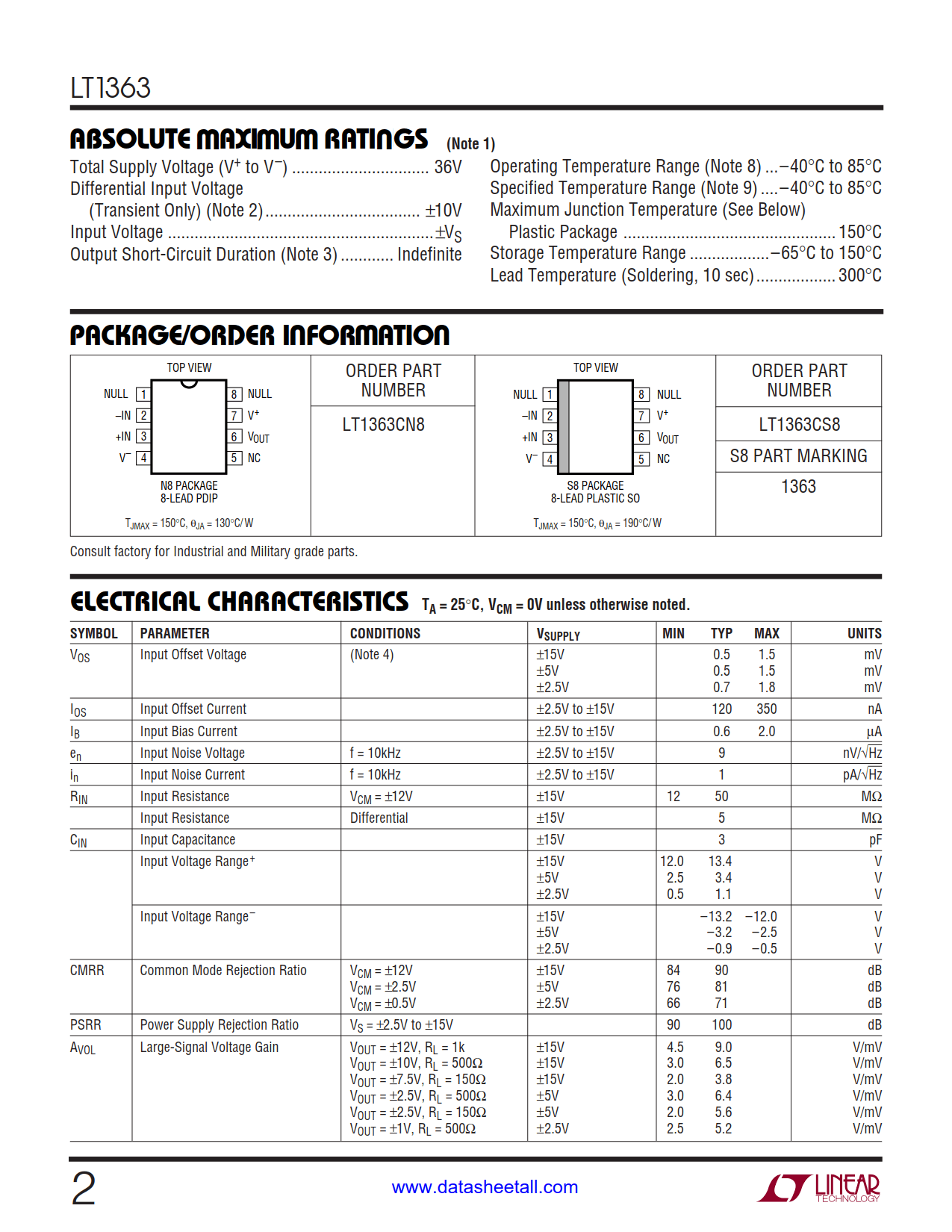

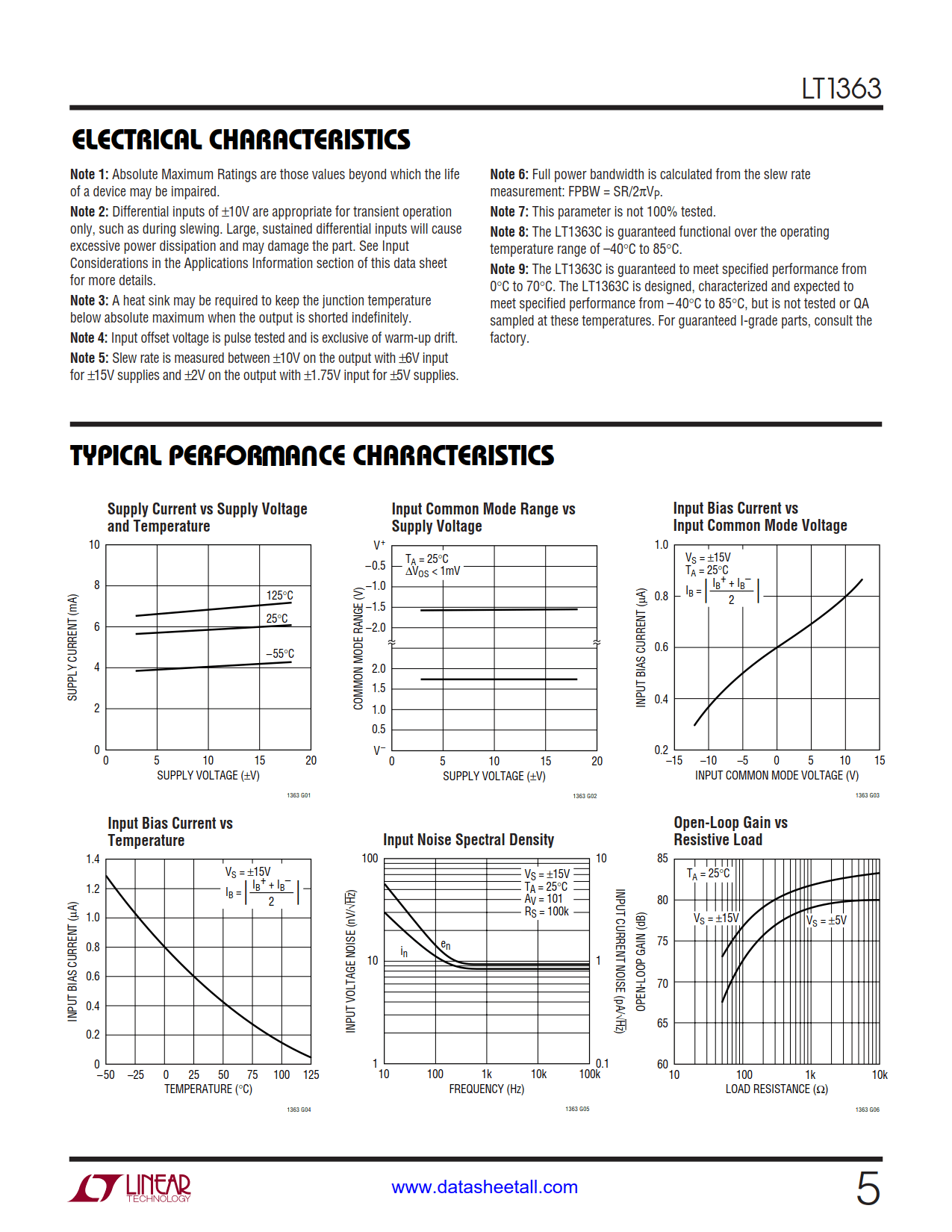

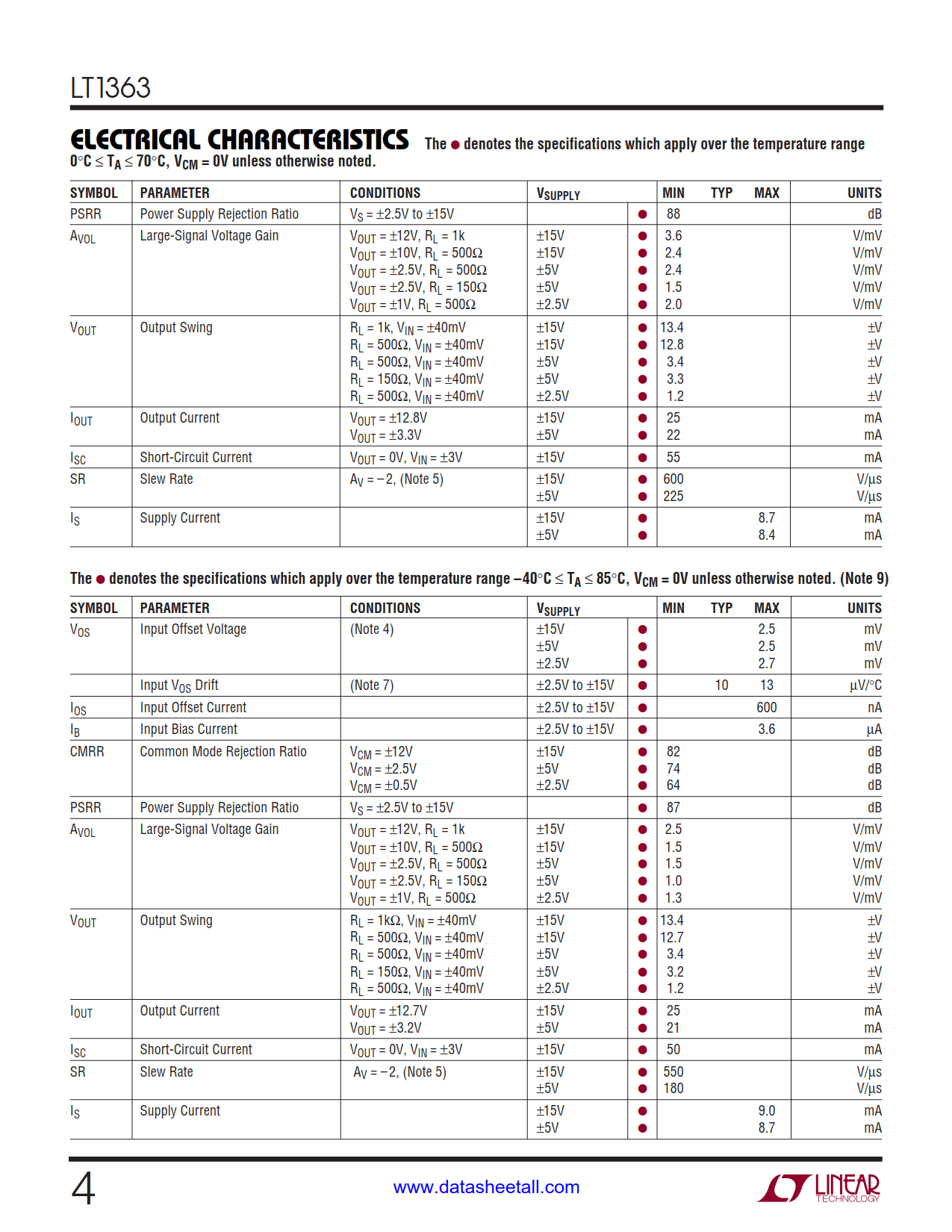

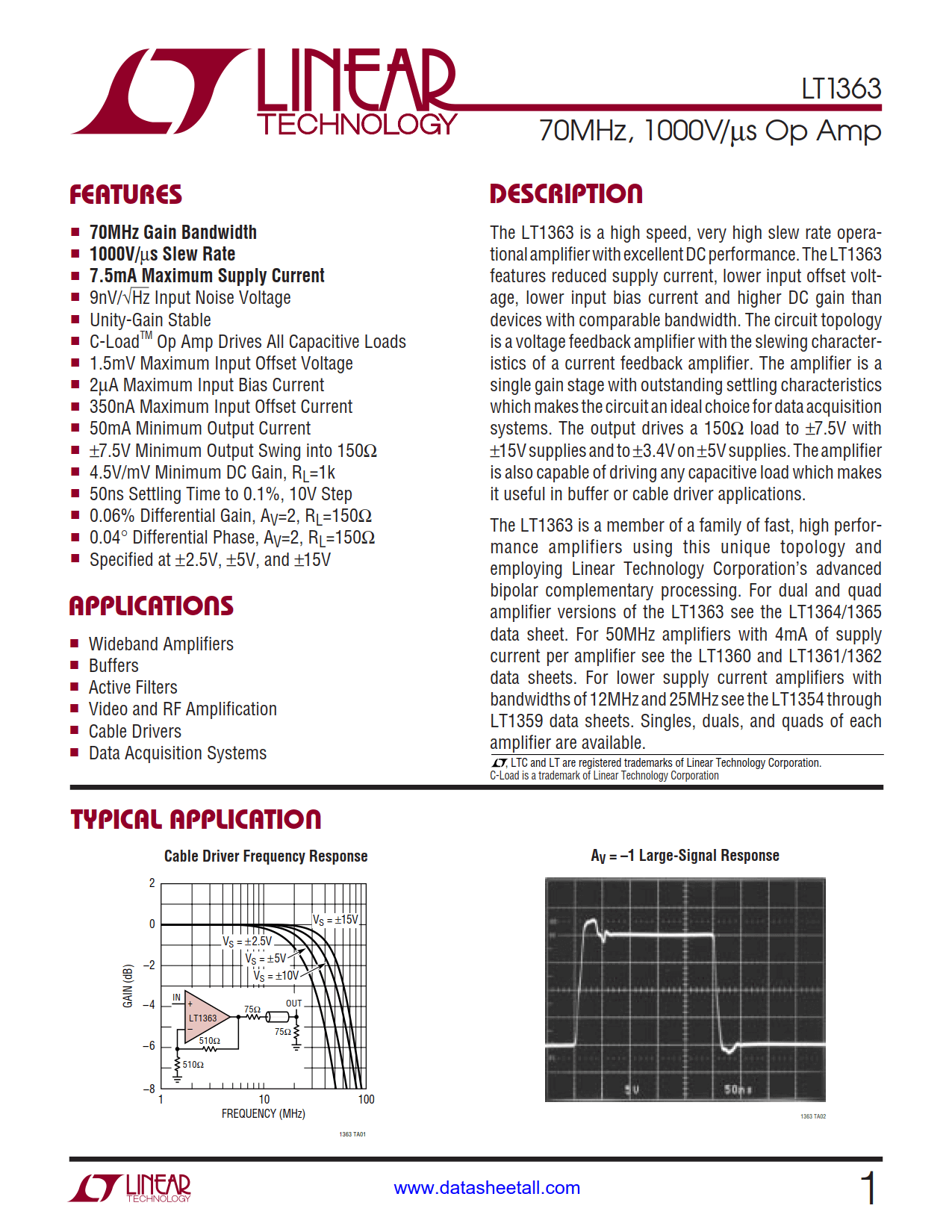

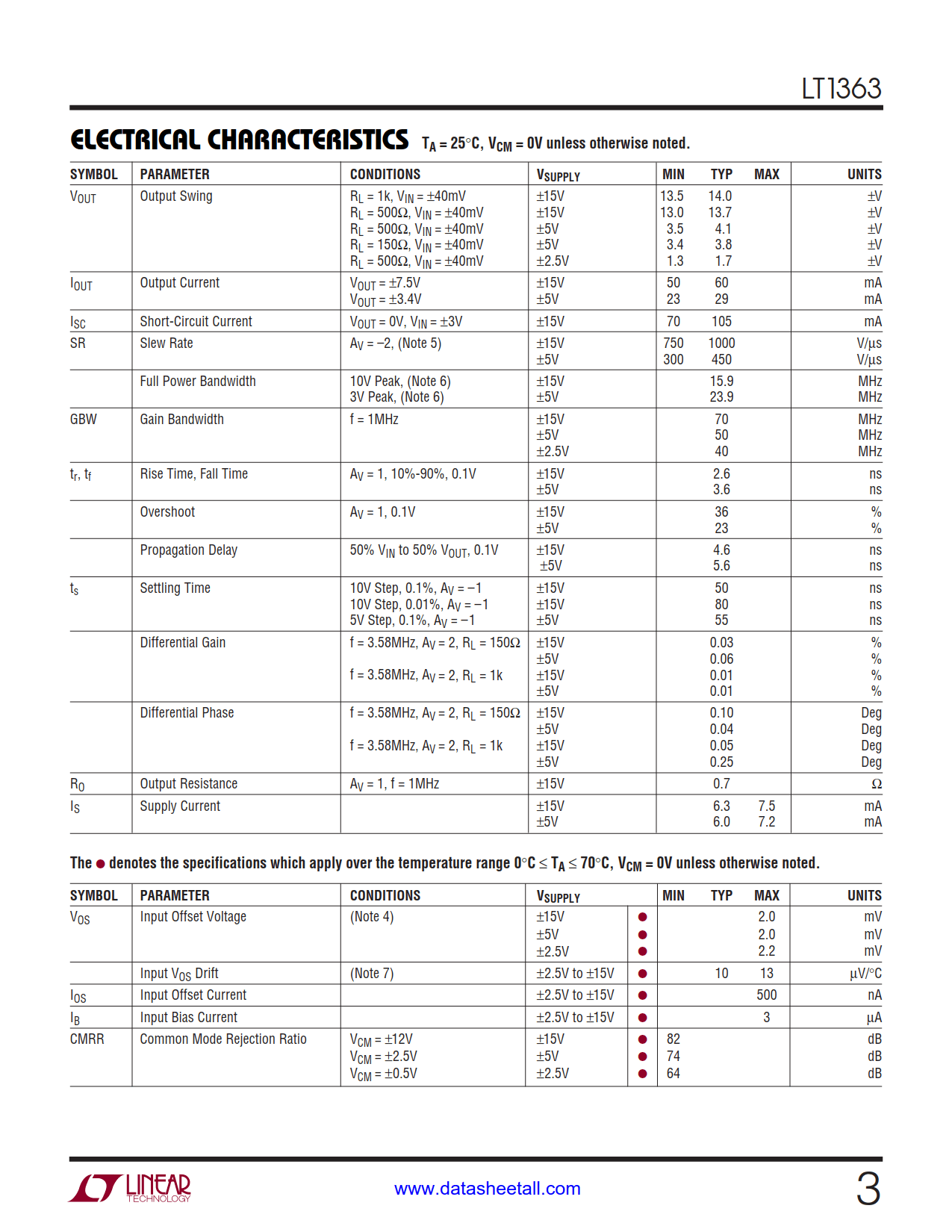

LT1363 Datasheet(Picture)

LT1363 Features

  • 70MHz Gain-Bandwidth
  • 1000V/µs Slew Rate
  • 7.5mA Maximum Supply Current
  • 9nV/√Hz Input Noise Voltage
  • Unity Gain Stable
  • C-Load Op Amp Drives All Capacitive Loads
  • 1.5mV Maximum Input Offset Voltage
  • 2µA Maximum Input Bias Current
  • 350nA Maximum Input Offset Current
  • 50mA Minimum Output Current
  • ±7.5V Minimum Output Swing into 150Ω
  • 4.5V/mV Minimum DC Gain, RL=1k
  • 50ns Settling Time to 0.1%, 10V Step
  • 0.06% Differential Gain, AV=2, RL=150Ω
  • 0.04° Differential Phase, AV=2, RL=150Ω
  • Specified at ±2.5V, ±5V, and ±15V

LT1363 Applications

  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • Data Acquisition Systems

LT1363 Description

The LT1363 is a high speed, very high slew rate operational amplifier with excellent DC performance. The LT1363 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 150Ω load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifier is also capable of driving any capacitive load which makes it useful in buffer or cable driver applications.

The LT1363 is a member of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1363 see the LT1364/LT1365 data sheet. For 50MHz amplifiers with 4mA of supply current per amplifier see the LT1360 and LT1361/LT1362 data sheets. For lower supply current amplifiers with bandwidths of 12MHz and 25MHz see the LT1354 through LT1359 data sheets. Singles, duals, and quads of each amplifier are available.
