LT1167 Datasheet

LT1167 Datasheet

Single Resistor Gain Programmable, Precision Instrumentation Amplifier
Part No.: LT1167
Page: 22 Pages
Size: 349 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-02-26 13:56:44
DataSheet: Download

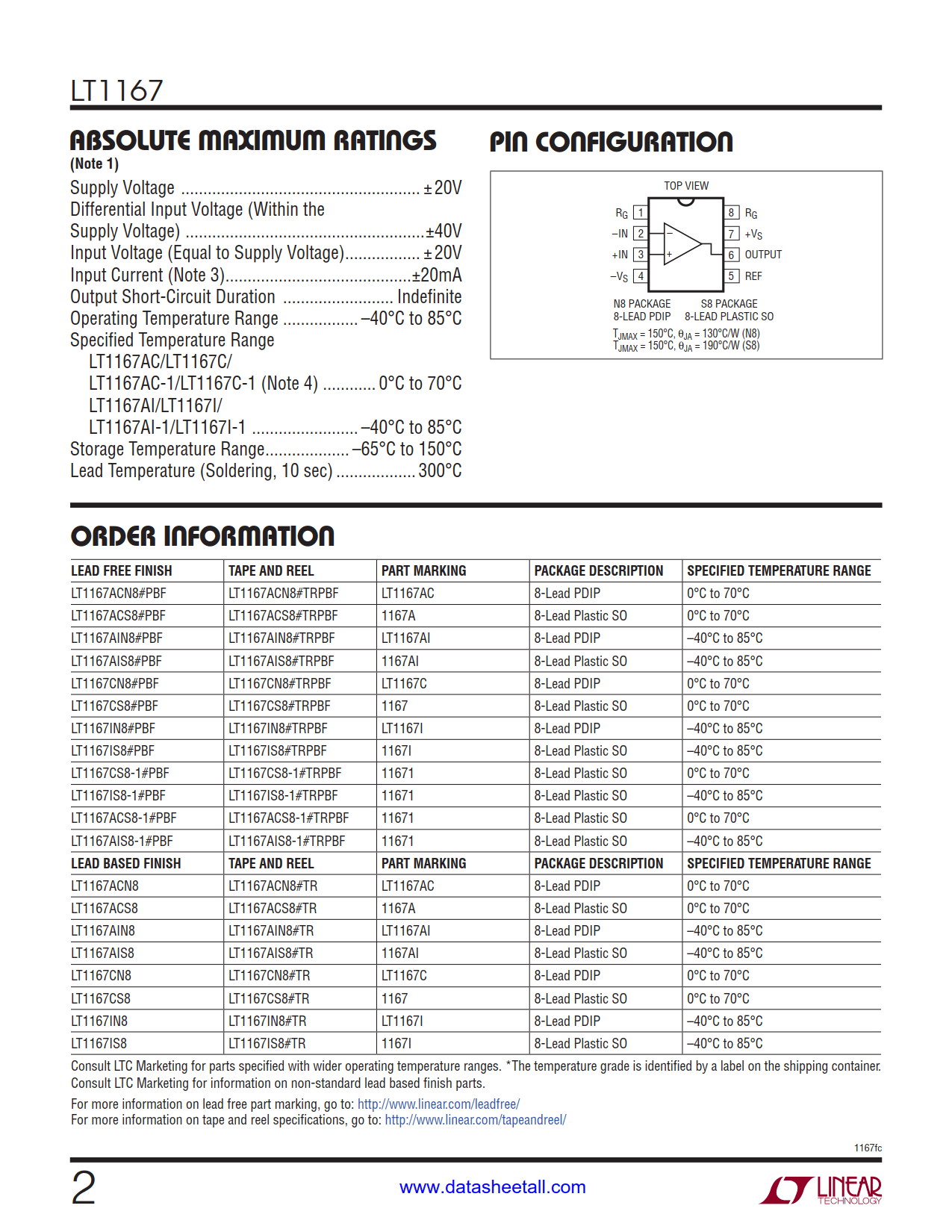

LT1167 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LT1167ACN8#PBF Tube 50 LT1167AC 1 8 0°C ~70°C 8-Lead PDIP
LT1167ACN8#TRPBF Reel   LT1167AC 1 8 0°C ~70°C 8-Lead PDIP
LT1167ACN8#TRMPBF Reel   LT1167AC 1 8 0°C ~70°C 8-Lead PDIP
LT1167ACS8#PBF Tube 100 1167A 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167ACS8#TRPBF Reel 2500 1167A 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167ACS8#TRMPBF Reel 500 1167A 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167AIN8#PBF Tube 50 LT1167AI 1 8 -40°C ~85°C 8-Lead PDIP
LT1167AIN8#TRPBF Reel   LT1167AI 1 8 -40°C ~85°C 8-Lead PDIP
LT1167AIN8#TRMPBF Reel   LT1167AI 1 8 -40°C ~85°C 8-Lead PDIP
LT1167AIS8#PBF Tube 100 1167AI 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167AIS8#TRPBF Reel 2500 1167AI 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167AIS8#TRMPBF Reel 500 1167AI 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167CN8#PBF Tube 50 LT1167C 1 8 0°C ~70°C 8-Lead PDIP
LT1167CN8#TRPBF Reel   LT1167C 1 8 0°C ~70°C 8-Lead PDIP
LT1167CN8#TRMPBF Reel   LT1167C 1 8 0°C ~70°C 8-Lead PDIP
LT1167CS8#PBF Tube 100 1167 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167CS8#TRPBF Reel 2500 1167 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167CS8#TRMPBF Reel 500 1167 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167IN8#PBF Tube 50 LT1167I 1 8 -40°C ~85°C 8-Lead PDIP
LT1167IN8#TRPBF Reel   LT1167I 1 8 -40°C ~85°C 8-Lead PDIP
LT1167IN8#TRMPBF Reel   LT1167I 1 8 -40°C ~85°C 8-Lead PDIP
LT1167IS8#PBF Tube 100 1167I 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167IS8#TRPBF Reel 2500 1167I 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167IS8#TRMPBF Reel 500 1167I 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167CS8-1#PBF Tube 100 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167CS8-1#TRPBF Reel 2500 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167CS8-1#TRMPBF Reel 500 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167IS8-1#PBF Tube 100 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167IS8-1#TRPBF Reel 2500 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167IS8-1#TRMPBF Reel 500 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167ACS8-1#PBF Tube 100 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167ACS8-1#TRPBF Reel 2500 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167ACS8-1#TRMPBF Reel 500 11671 1 8 0°C ~70°C 8-Lead Plastic SO
LT1167AIS8-1#PBF Tube 100 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167AIS8-1#TRPBF Reel 2500 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
LT1167AIS8-1#TRMPBF Reel 500 11671 1 8 -40°C ~85°C 8-Lead Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LT1167 Datasheet(PDF)

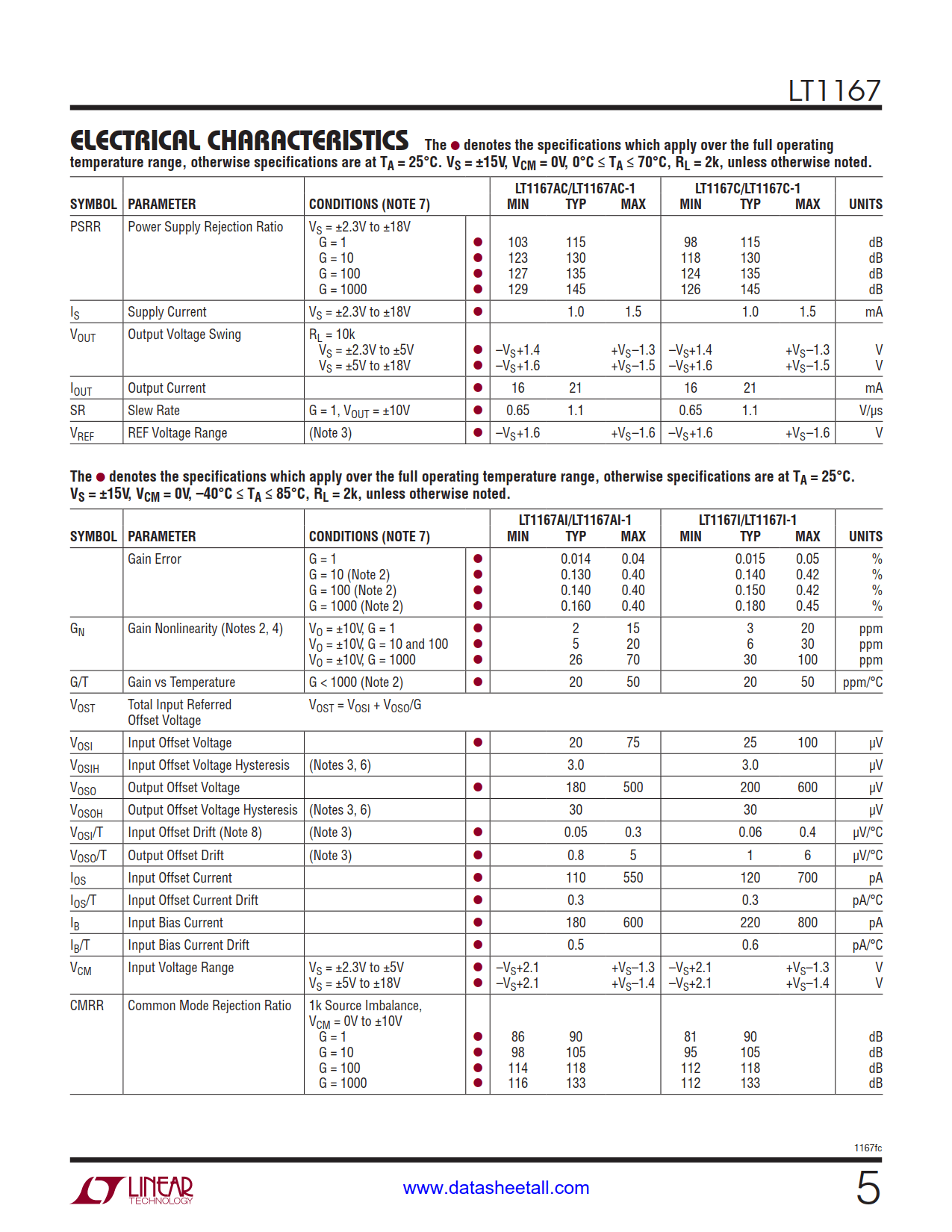

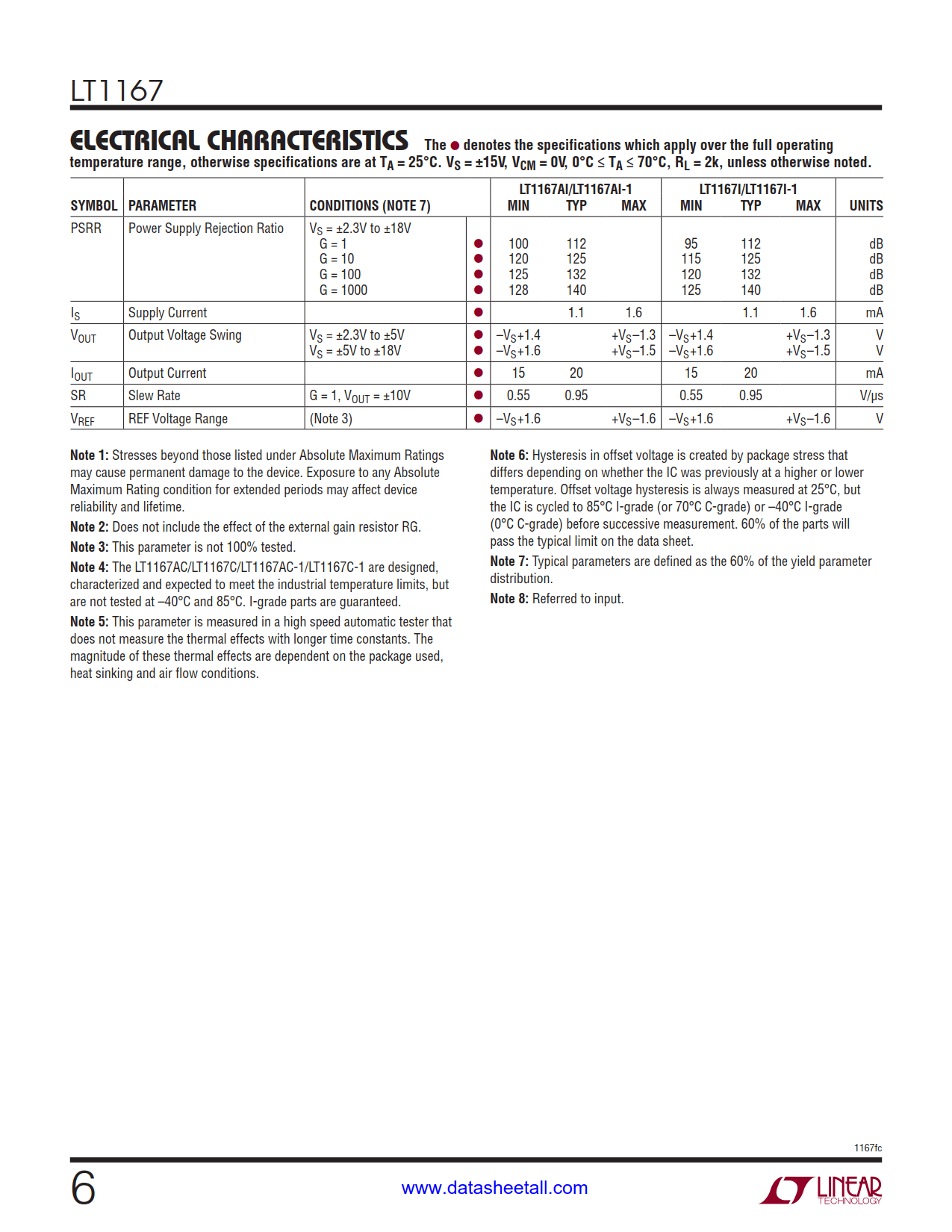

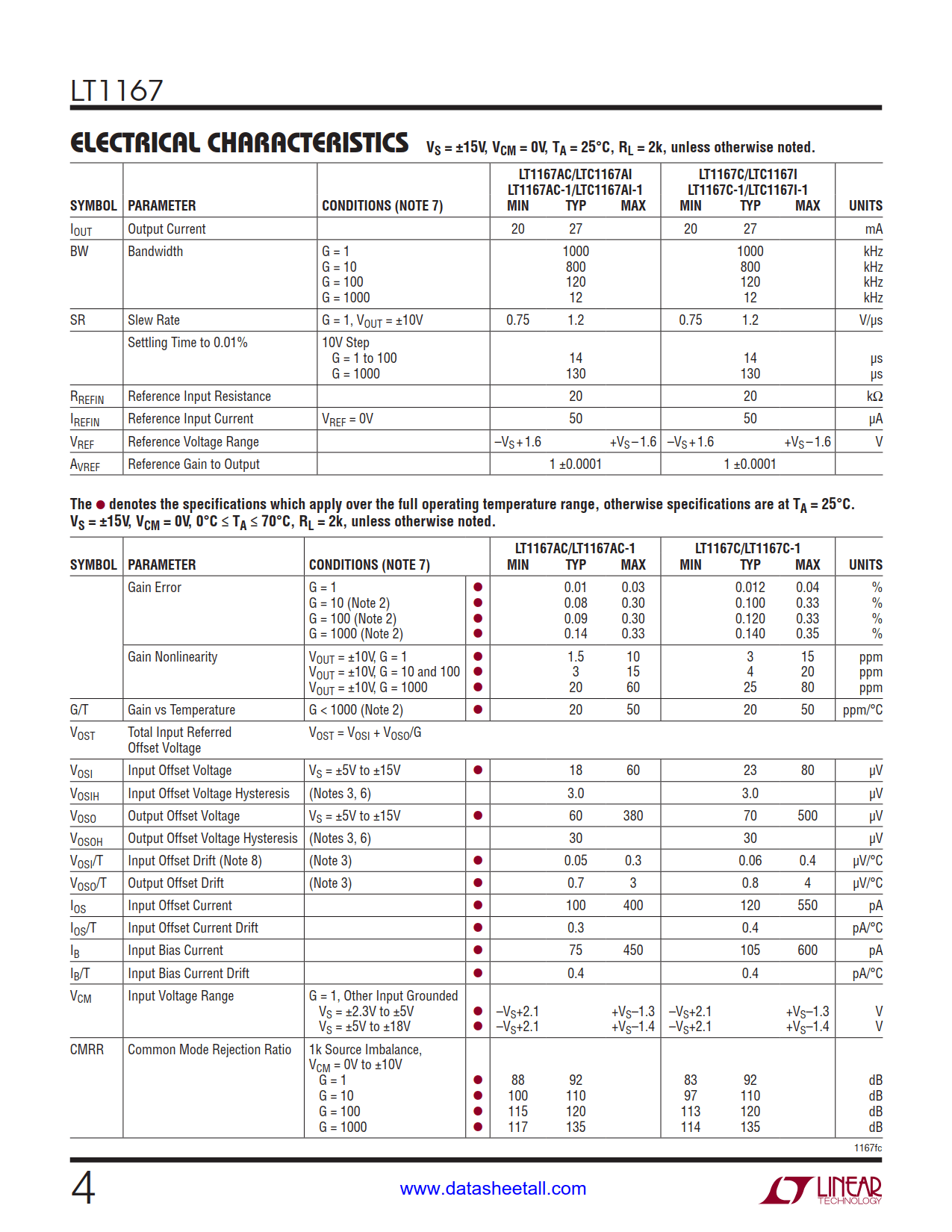

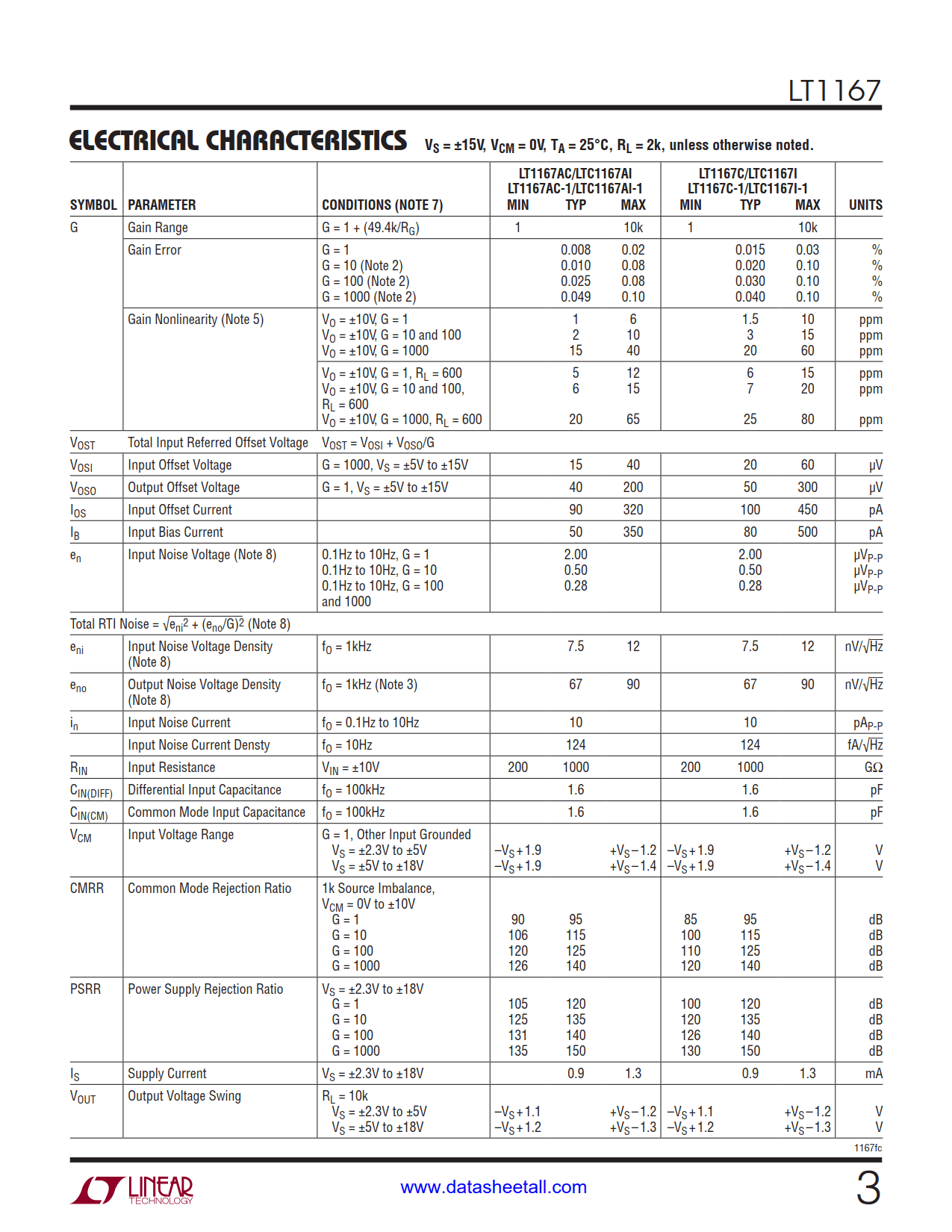

LT1167 Datasheet(Picture)

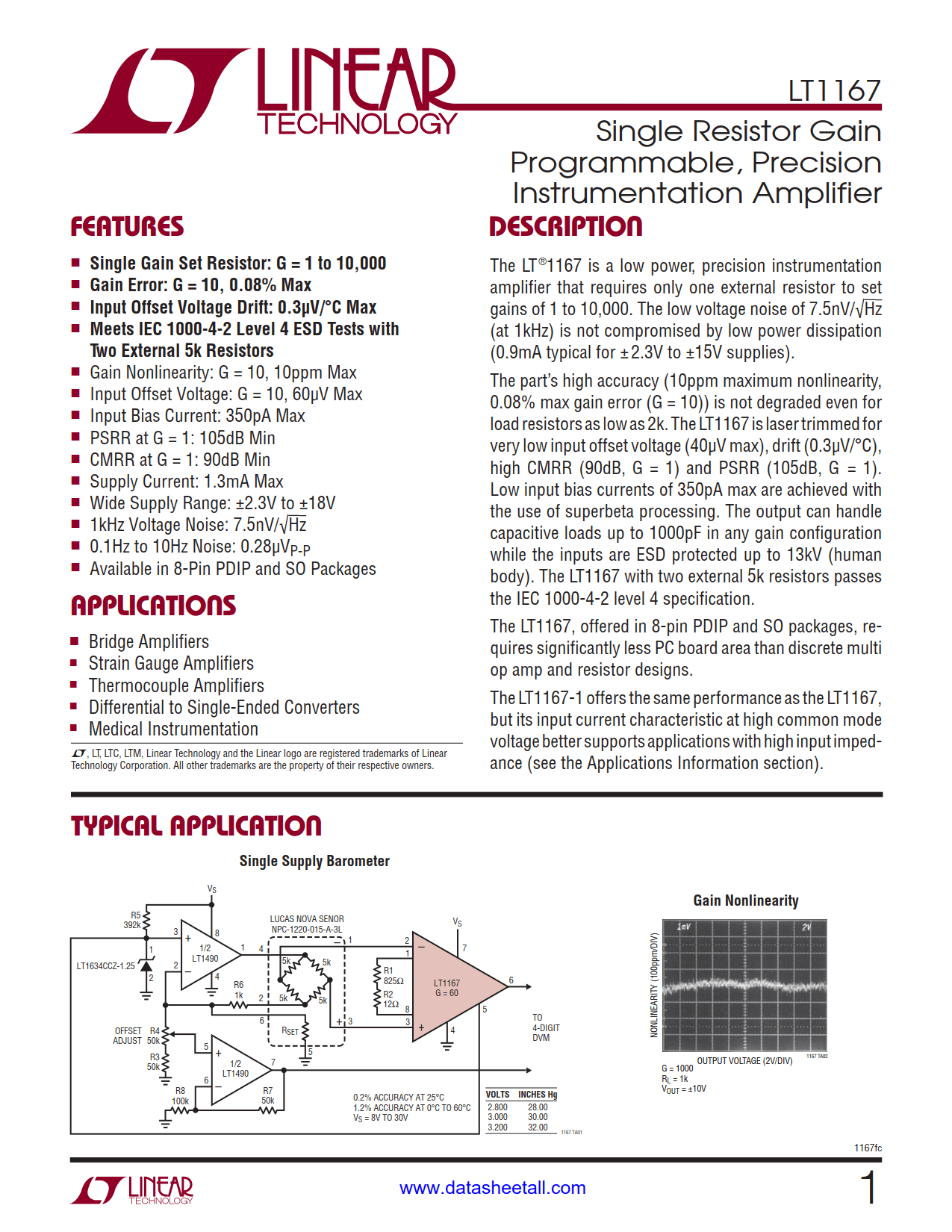

LT1167 Features

  • Single Gain Set Resistor: G = 1 to 10,000
  • Gain Error: G = 10, 0.08% Max
  • Input Offset Voltage Drift: 0.3µV/°C Max
  • Meets IEC 1000-4-2 Level 4 ESD Tests with Two External 5k Resistors
  • Gain Nonlinearity: G = 10, 10ppm Max
  • Input Offset Voltage: G = 10, 60µV Max
  • Input Bias Current: 350pA Max
  • PSRR at G = 1: 105dB Min
  • CMRR at G = 1: 90dB Min
  • Supply Current: 1.3mA Max
  • Wide Supply Range: ±2.3V to ±18V
  • 1kHz Voltage Noise: 7.5nV/√Hz
  • 0.1Hz to 10Hz Noise: 0.28µVP-P
  • Available in 8-Pin PDIP and SO Packages

LT1167 Applications

  • Bridge Amplifiers
  • Strain Gauge Amplifiers
  • Thermocouple Amplifiers
  • Differential to Single-Ended Converters
  • Medical Instrumentation

LT1167 Description

The LT1167 is a low power, precision instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000. The low voltage noise of 7.5nV/√Hz (at 1kHz) is not compromised by low power dissipation (0.9mA typical for ± 2.3V to ±15V supplies).

The part’s high accuracy (10ppm maximum nonlinearity, 0.08% max gain error (G = 10)) is not degraded even for load resistors as low as 2k. The LT1167 is laser trimmed for very low input offset voltage (40μV max), drift (0.3μV/°C), high CMRR (90dB, G = 1) and PSRR (105dB, G = 1). Low input bias currents of 350pA max are achieved with the use of superbeta processing. The output can handle capacitive loads up to 1000pF in any gain configuration while the inputs are ESD protected up to 13kV (human body). The LT1167 with two external 5k resistors passes the IEC 1000-4-2 level 4 specification.

The LT1167, offered in 8-pin PDIP and SO packages, requires significantly less PC board area than discrete multi op amp and resistor designs.
