DAC8043 Datasheet

DAC8043 Datasheet

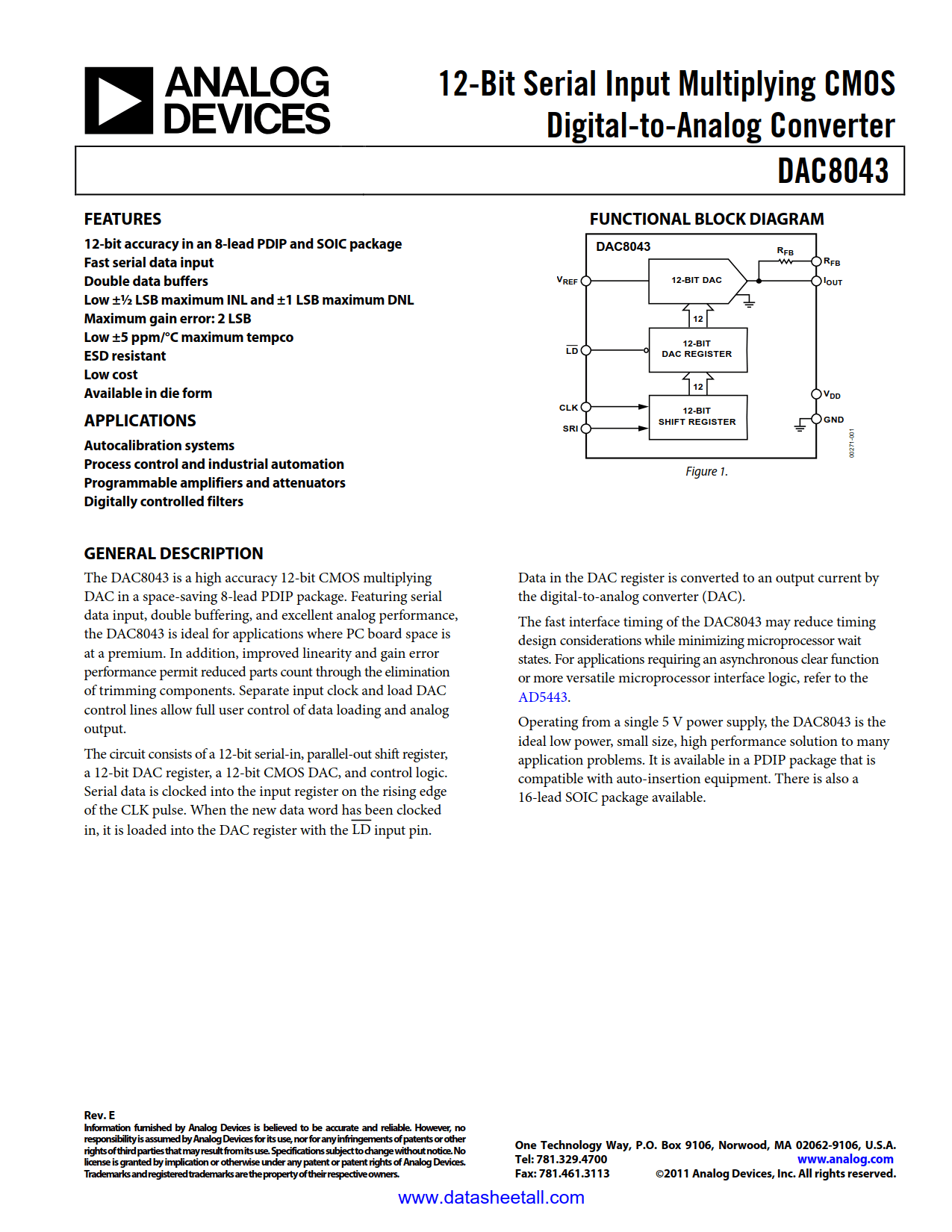

12-Bit Serial Input Multiplying CMOS D/A Converter
Part No.: DAC8043
Page: 16 Pages
Size: 293 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 3
Update Time: 2023-12-20 10:04:07
DataSheet: Download

DAC8043 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
DAC8043FP       1 8 -40°C ~ 85°C 8-Lead PDIP
DAC8043FPZ Tube 50   1 8 -40°C ~ 85°C 8-Lead PDIP
DAC8043FSZ       1 16 -40°C ~ 85°C 16-Lead SOIC_W
DAC8043GP       1 8 0°C ~ 70°C 8-Lead PDIP
DAC8043GPZ Tube 50   1 8 0°C ~ 70°C 8-Lead PDIP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

DAC8043 Datasheet(PDF)

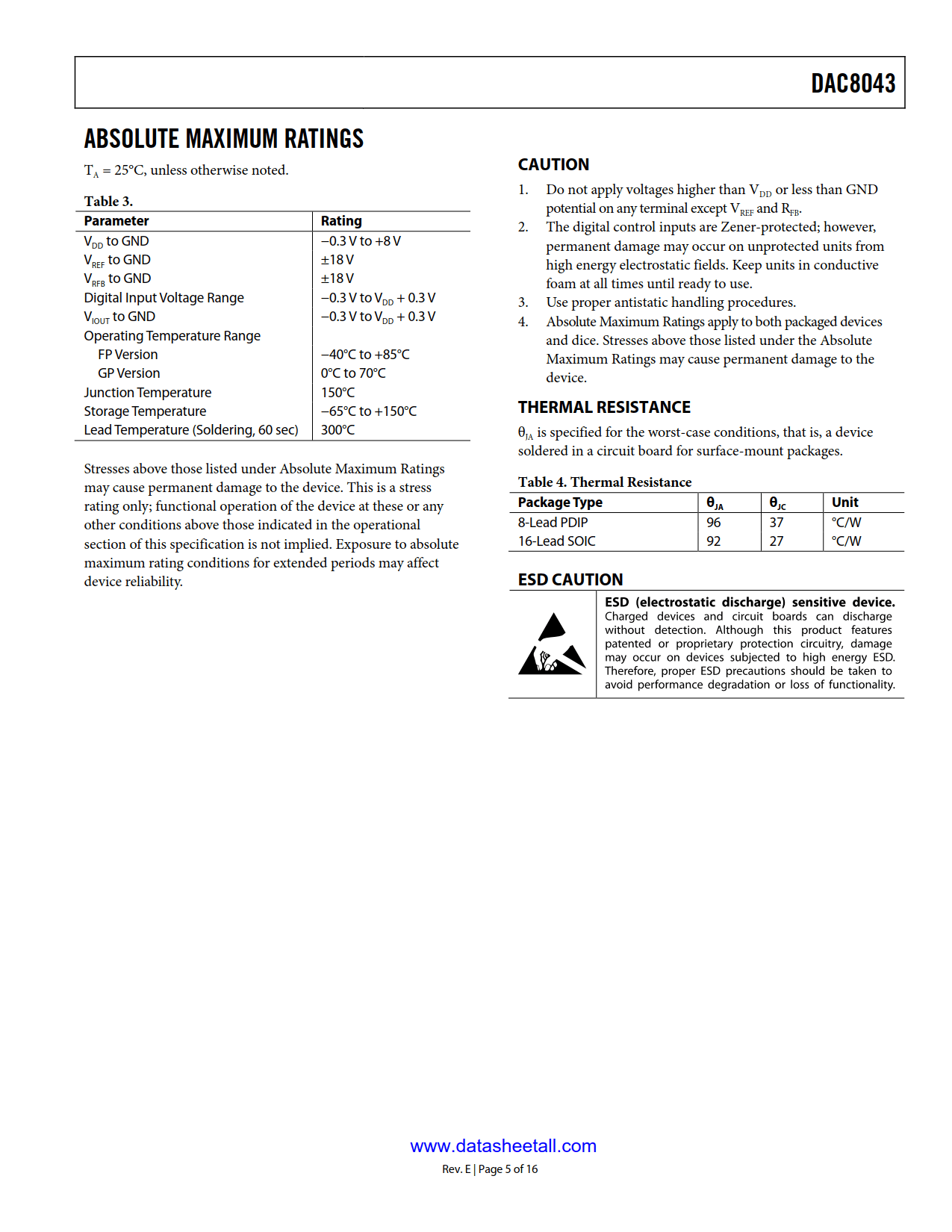

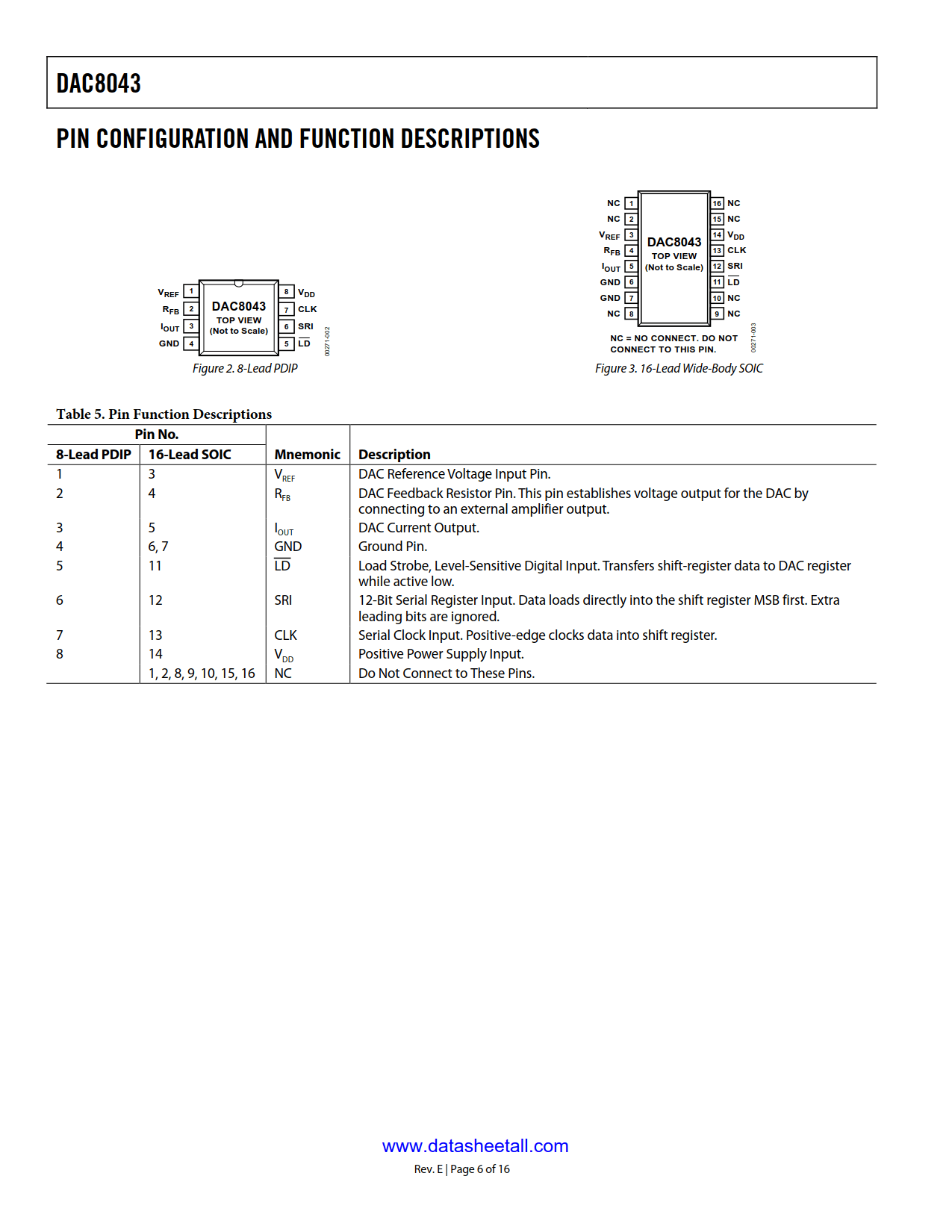

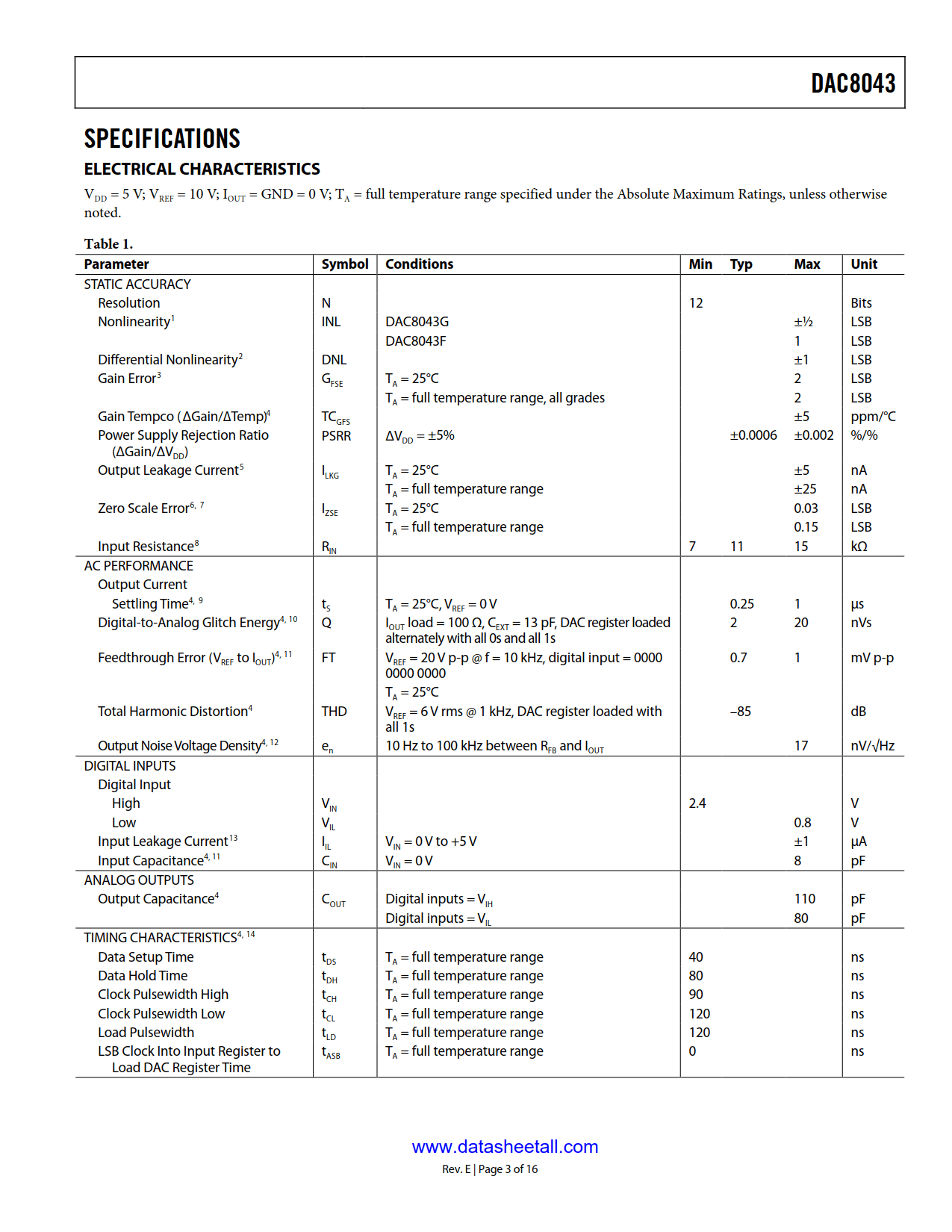

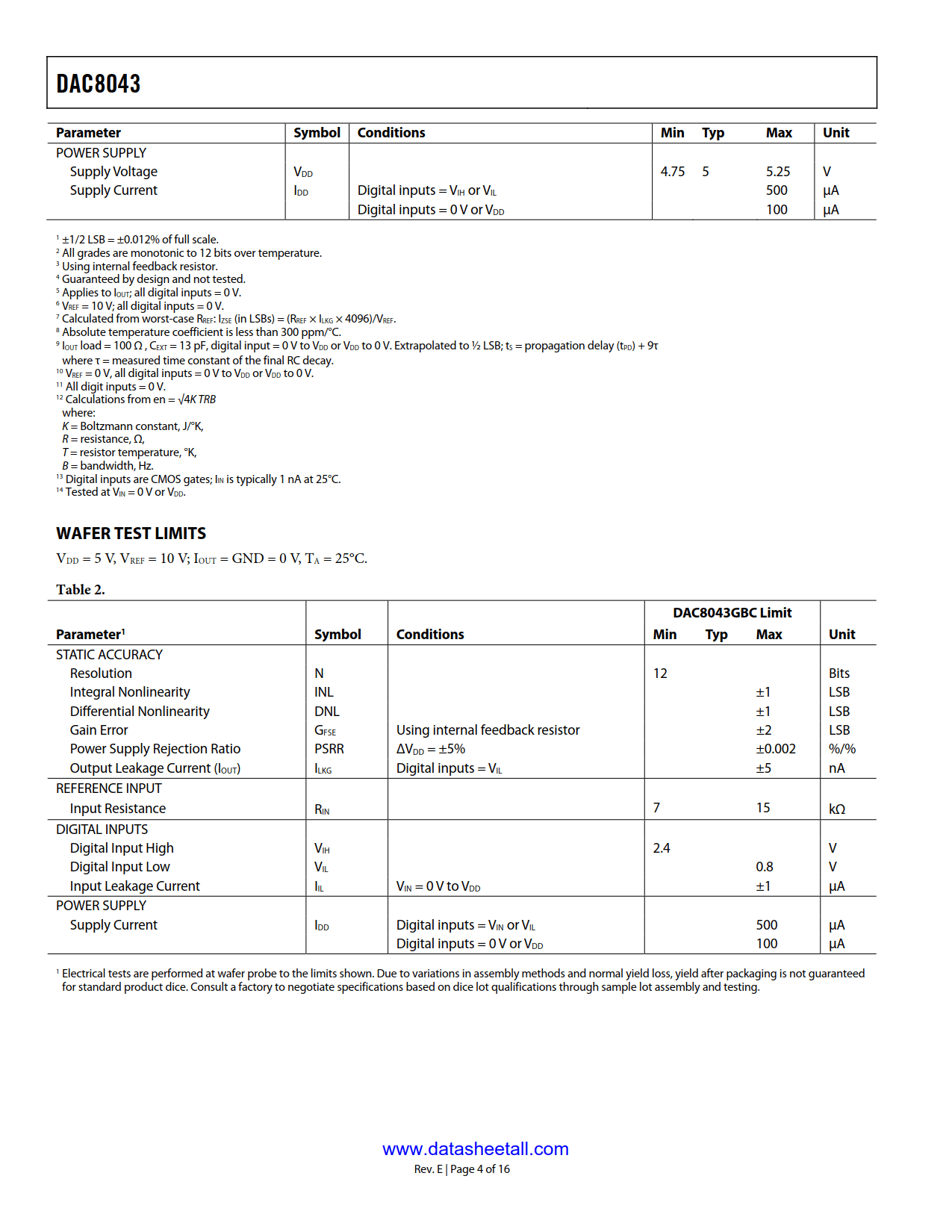

DAC8043 Datasheet(Picture)

DAC8043 Features

  • 12-bit accuracy in an 8-lead PDIP and SOIC
    package
  • Fast Serial Data Input
  • Double Data Buffers
  • Low ±½ LSB maximum INL and ±1 LSB
    maximum DNL
  • Maximum gain error: 2 LSB
  • Low ±5 ppm/°C maximum tempco
  • ESD Resistant
  • Low Cost
  • Available in Die Form

DAC8043 Applications

  • Auto calibration systems
  • Process control and industrial automation
  • Programmable amplifiers and attenuators
  • Digitally controlled filters

DAC8043 Description

The DAC8043 is a high accuracy 12-bit CMOS multiplying DAC in a space-saving 8-lead PDIP package. Featuring serial data input, double buffering, and excellent analog performance, the DAC8043 is ideal for applications where PC board space is at a premium. In addition, improved linearity and gain error performance permit reduced parts count through the elimination of trimming components. Separate input clock and load DAC control lines allow full user control of data loading and analog output.

The circuit consists of a 12-bit serial-in, parallel-out shift register, a 12-bit DAC register, a 12-bit CMOS DAC, and control logic. Serial data is clocked into the input register on the rising edge of the CLK pulse. When the new data word has been clocked in, it is loaded into the DAC register with the LD input pin. Data in the DAC register is converted to an output current by the digital-to-analog converter (DAC).

The fast interface timing of the DAC8043 may reduce timing design considerations while minimizing microprocessor wait states. For applications requiring an asynchronous clear function or more versatile microprocessor interface logic, refer to the AD5443.

Operating from a single 5 V power supply, the DAC8043 is the ideal low power, small size, high performance solution to many application problems. It is available in a PDIP package that is compatible with auto-insertion equipment. There is also a 16-lead SOIC package available.
