ADR4550 Datasheet

ADR4550 Datasheet

Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference
Part No.: ADR4550
Page: 41 Pages
Size: 5809 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-13 14:04:50
DataSheet: Download

ADR4550 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADR4550ARZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC
ADR4550ARZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
ADR4550BRZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC
ADR4550BRZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
ADR4550CRZ Tube 98   3 8 0°C ~ 70°C 8-Lead SOIC
ADR4550CRZ-R7 Reel 1000   3 8 0°C ~ 70°C 8-Lead SOIC
ADR4550DEZ Tray 576   3 8 0°C ~ 70°C LCC:CER LEADLESS CHIP CARR
ADR4550DEZ-R7 Reel 1000   3 8 0°C ~ 70°C LCC:CER LEADLESS CHIP CARR
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADR4550 Datasheet(PDF)

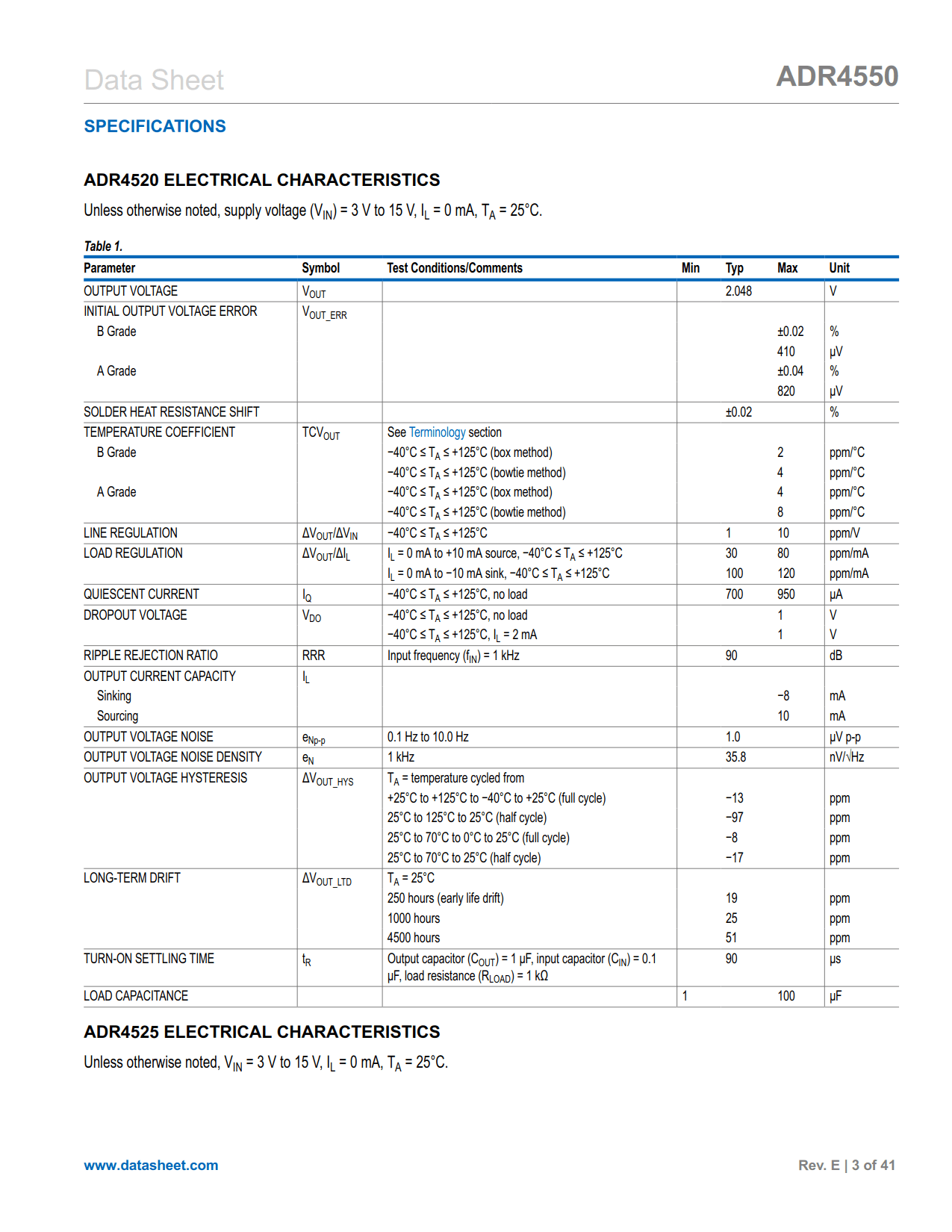

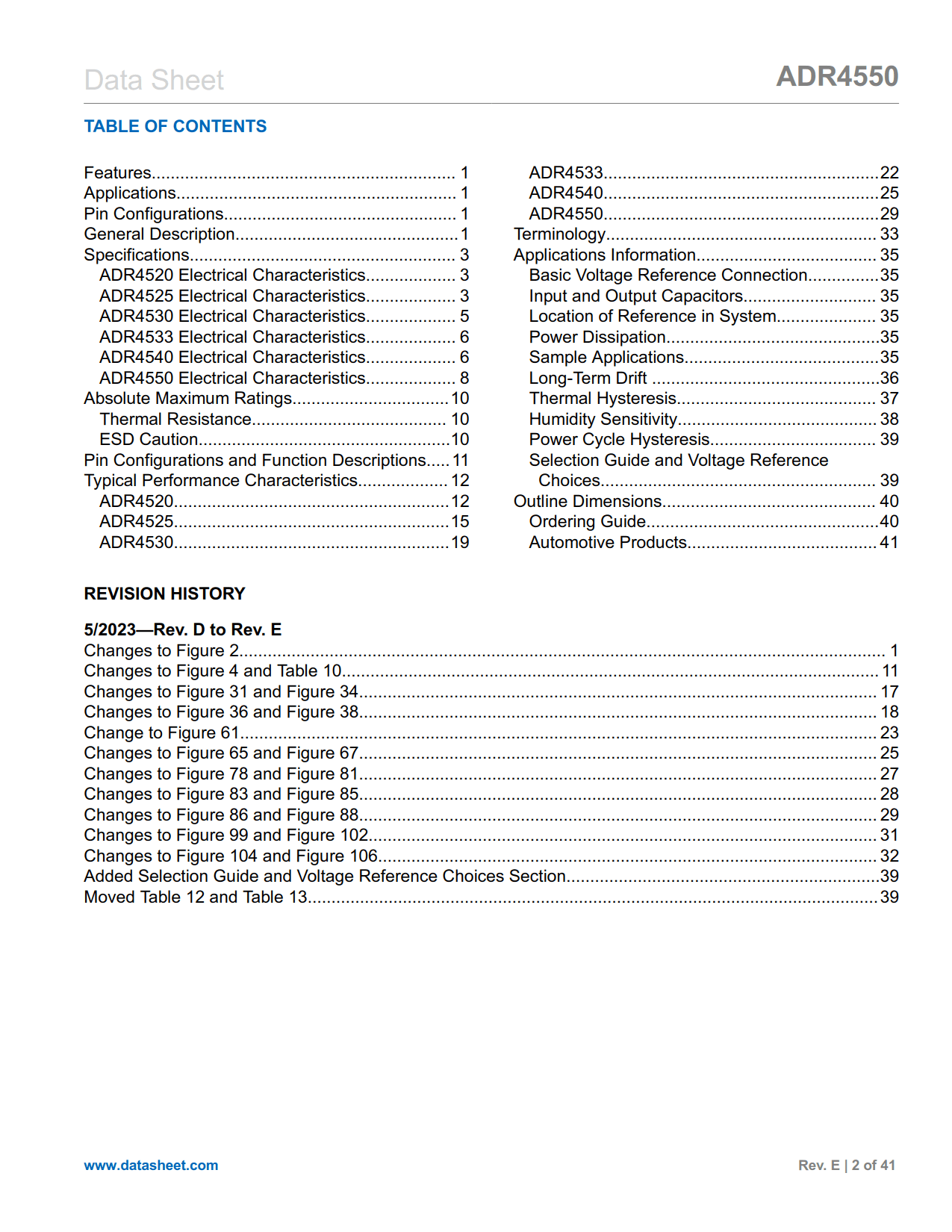

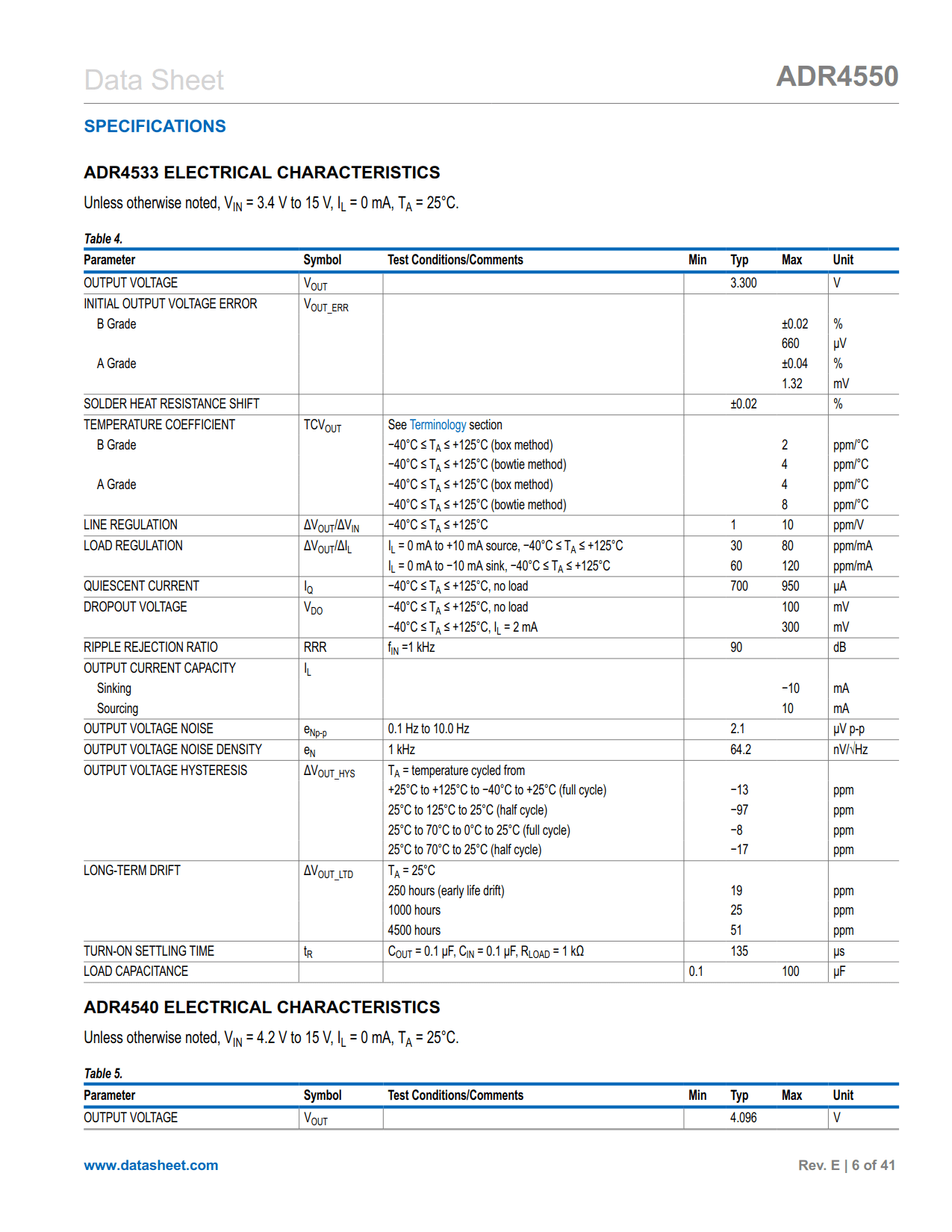

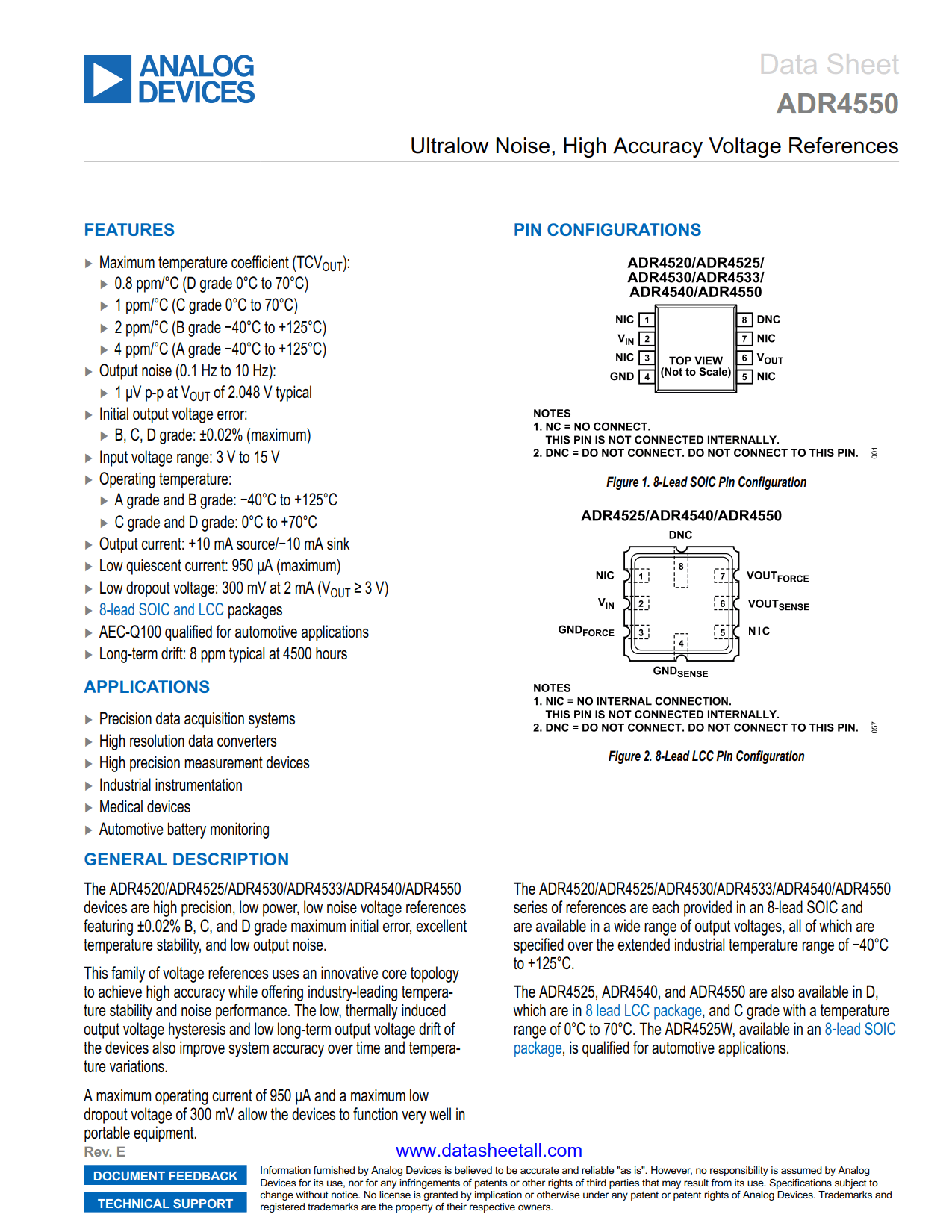

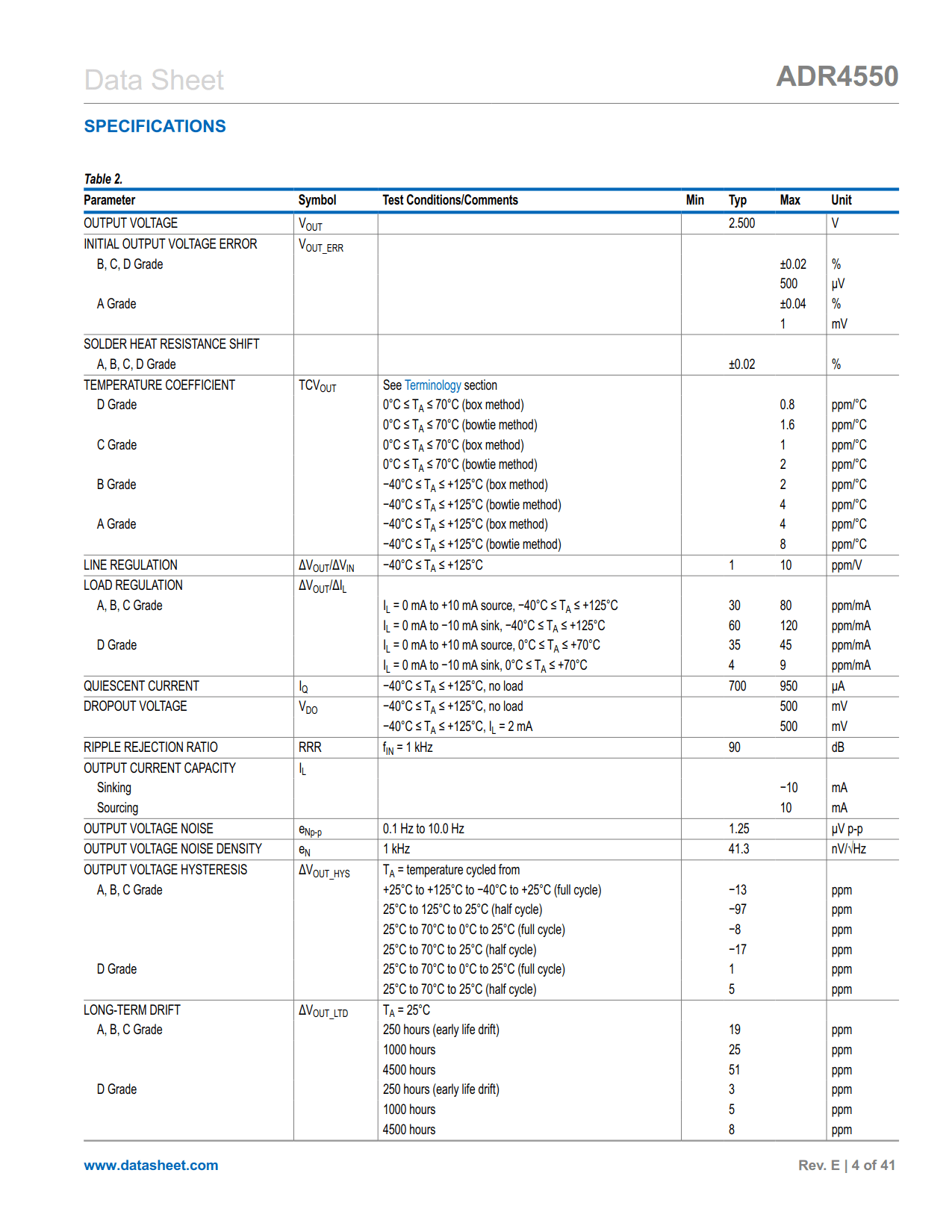

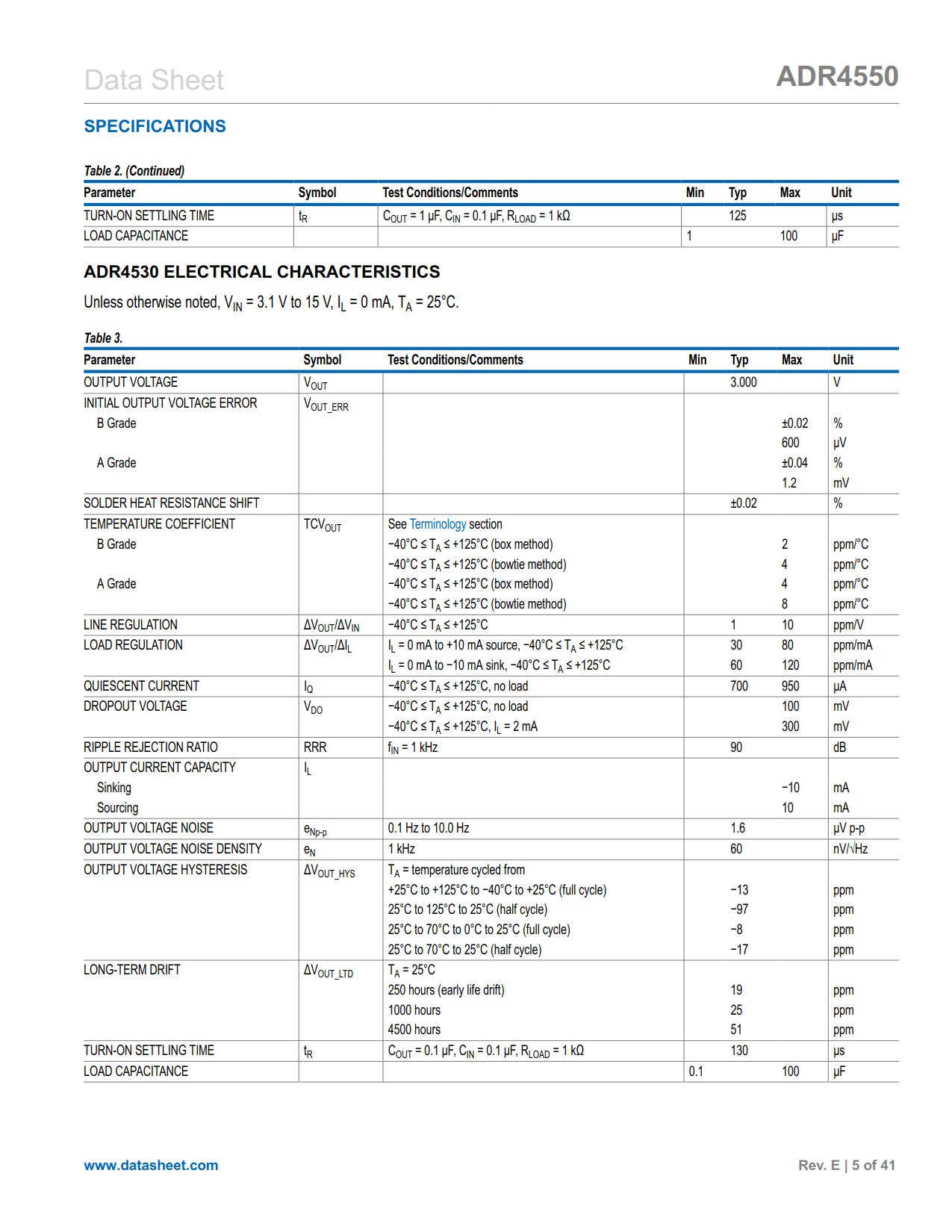

ADR4550 Datasheet(Picture)

ADR4550 Features

  • Maximum temperature coefficient (TCVOUT):
    • 0.8 ppm/°C (D grade 0°C to 70°C)
    • 1 ppm/°C (C grade 0°C to 70°C)
    • 2 ppm/°C (B grade −40°C to +125°C)
    • 4 ppm/°C (A grade −40°C to +125°C)
  • Output noise (0.1 Hz to 10 Hz):
  • 1 μV p-p at VOUT of 2.048 V typical
  • Initial output voltage error:
    • B, C, D grade: ±0.02% (maximum)
  • Input voltage range: 3 V to 15 V
  • Operating temperature:
    • A grade and B grade: −40°C to +125°C
    • C grade and D grade: 0°C to +70°C
  • Output current: +10 mA source/−10 mA sink
  • Low quiescent current: 950 μA (maximum)
  • Low dropout voltage: 300 mV at 2 mA (VOUT ≥ 3 V)
  • 8-lead SOIC package and LCC package
  • AEC-Q100 qualified for automotive applications
  • Long-term drift: 8 ppm typical at 4500 hours

ADR4550 Applications

  • Precision data acquisition systems
  • High resolution data converters
  • High precision measurement devices
  • Industrial instrumentation
  • Medical devices
  • Automotive battery monitoring

ADR4550 Description

The ADR4550 devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.

This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.

A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.

The ADR4550 series of references are each provided in an 8-lead SOIC and are available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.

The ADR4550 are also available in D, which are in 8 lead LCC package, and C grade with a temperature range of 0°C to 70°C.
