Low Power, Low Noise Voltage Reference with Sink/Source Capability, 3.3 VOUT
Part No.: ADR366
Page: 20 Pages
Size: 1647 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 0
Update Time: 2024-01-05 16:47:30
DataSheet: Download

ADR366 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADR366AUJZ-REEL7 Reel 3000 R08 1 5 -40°C ~ 125°C 5-Lead TSOT
ADR366BUJZ-REEL7 Reel 3000 R09 1 5 -40°C ~ 125°C 5-Lead TSOT
ADR366WAUJZ-REEL7 Reel 3000 R08 1 5 -40°C ~ 125°C 5-Lead TSOT
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADR366 Datasheet(PDF)

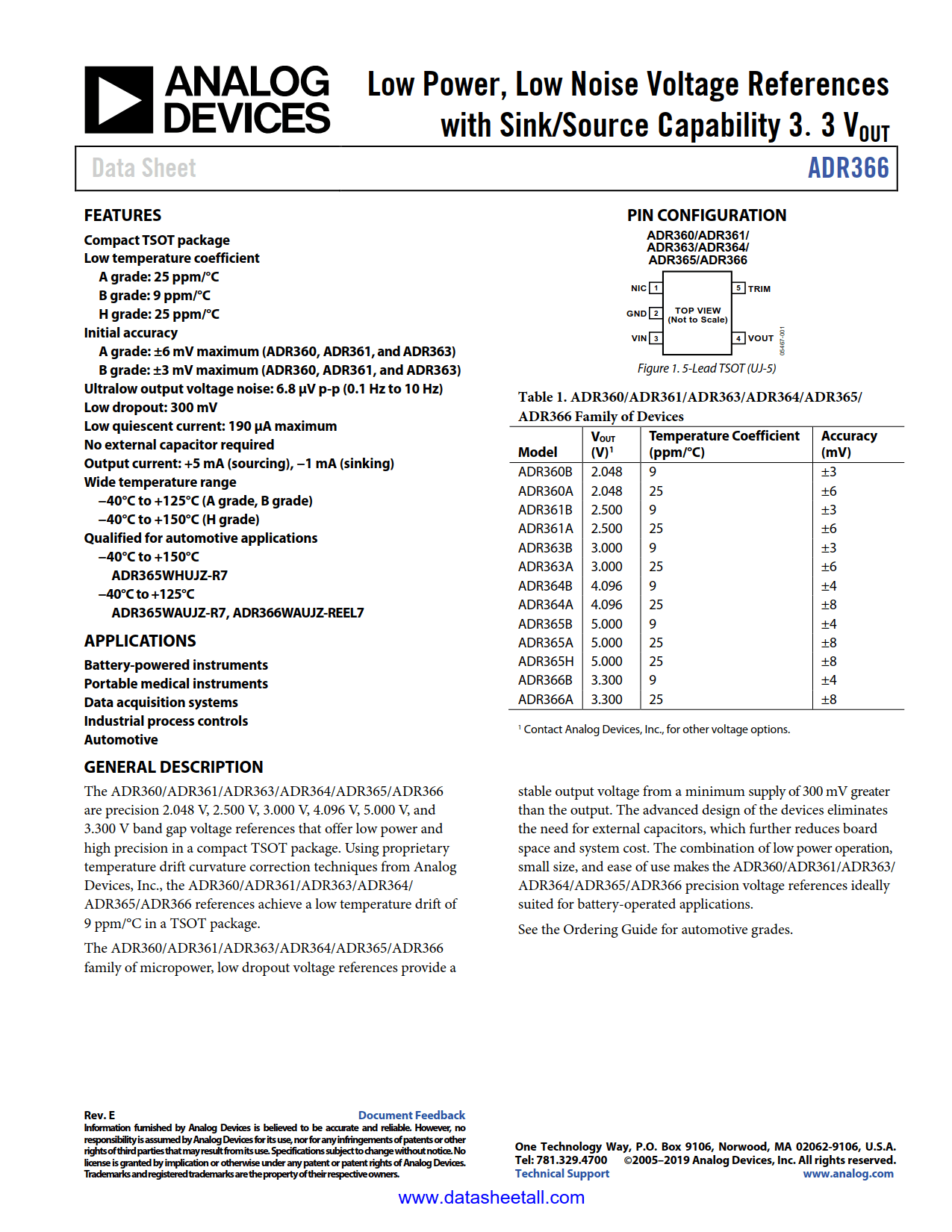

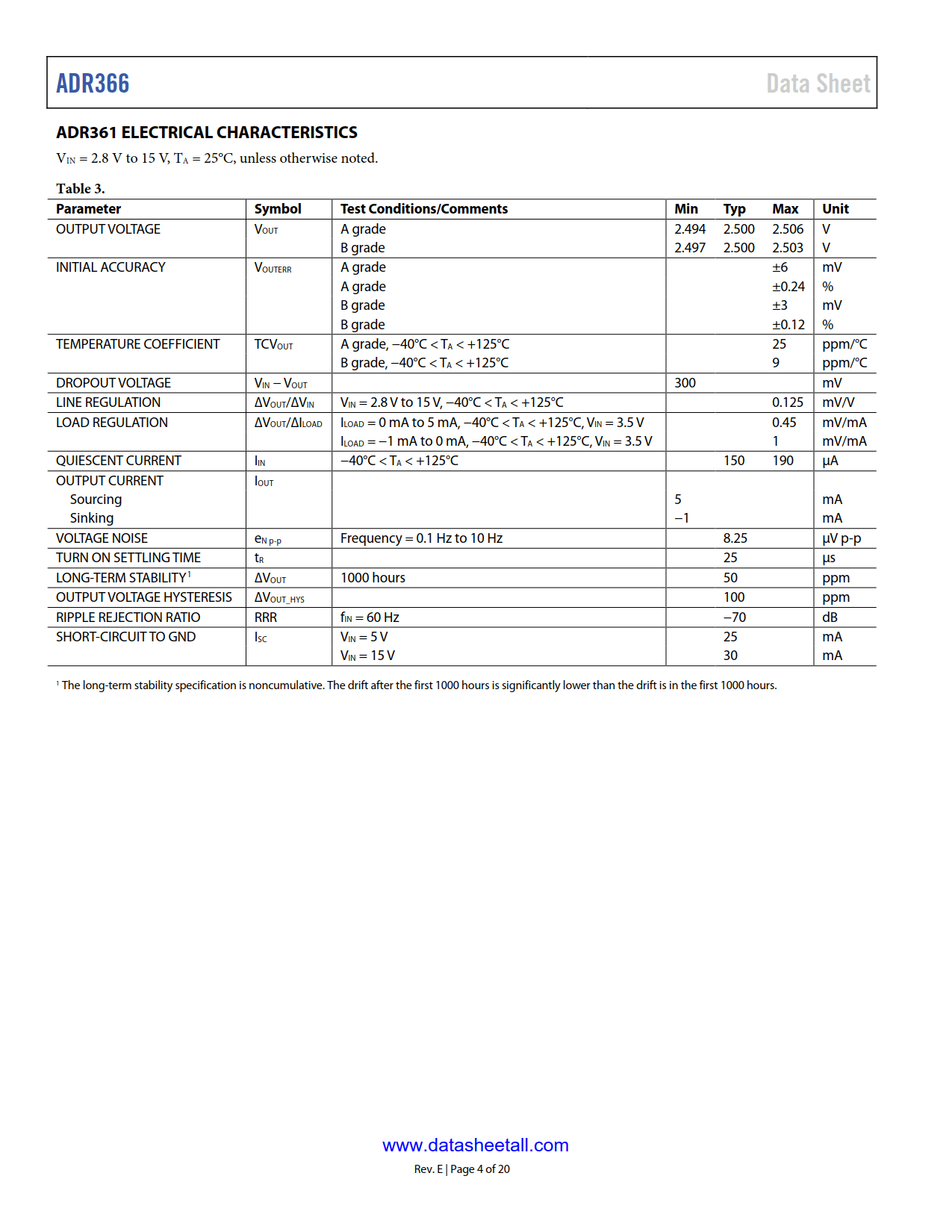

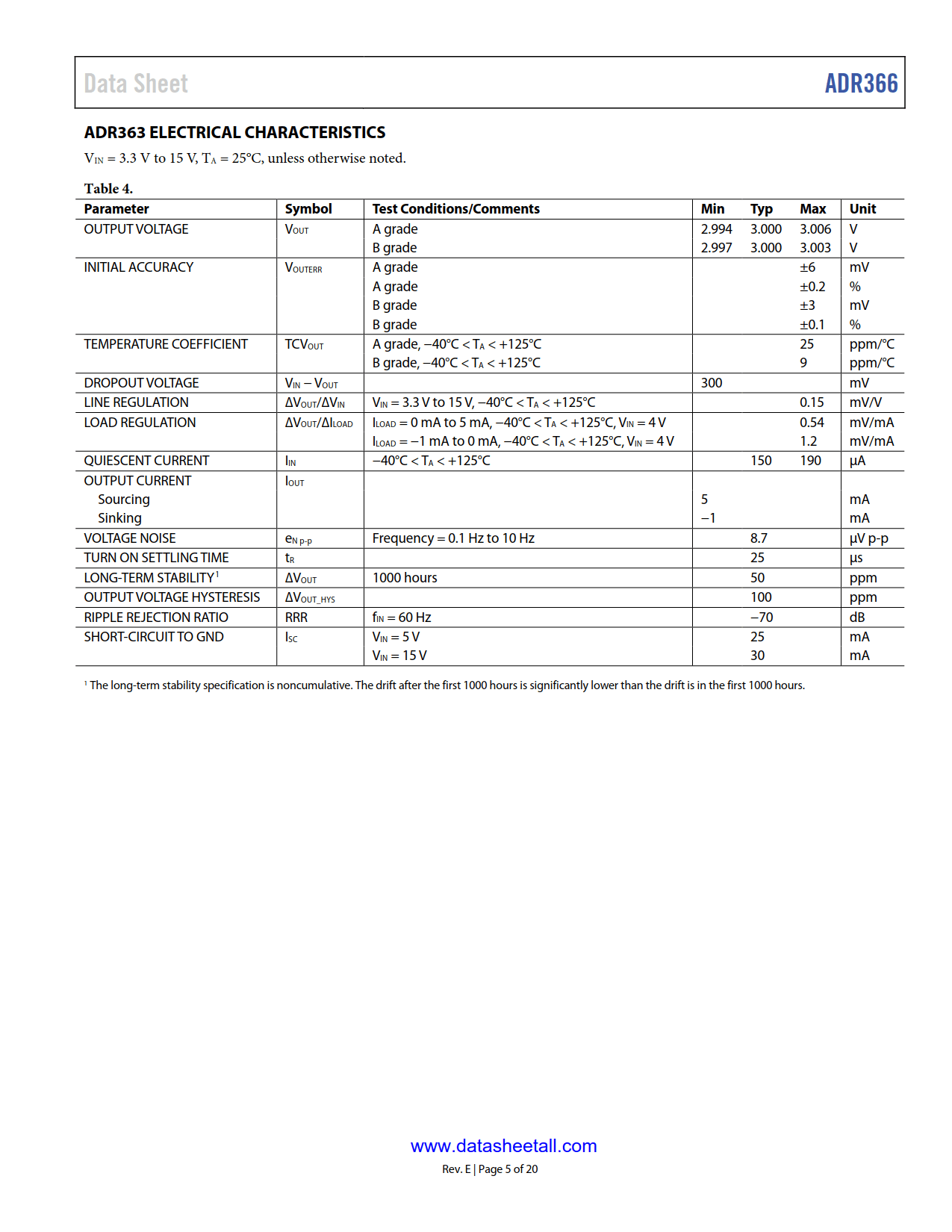

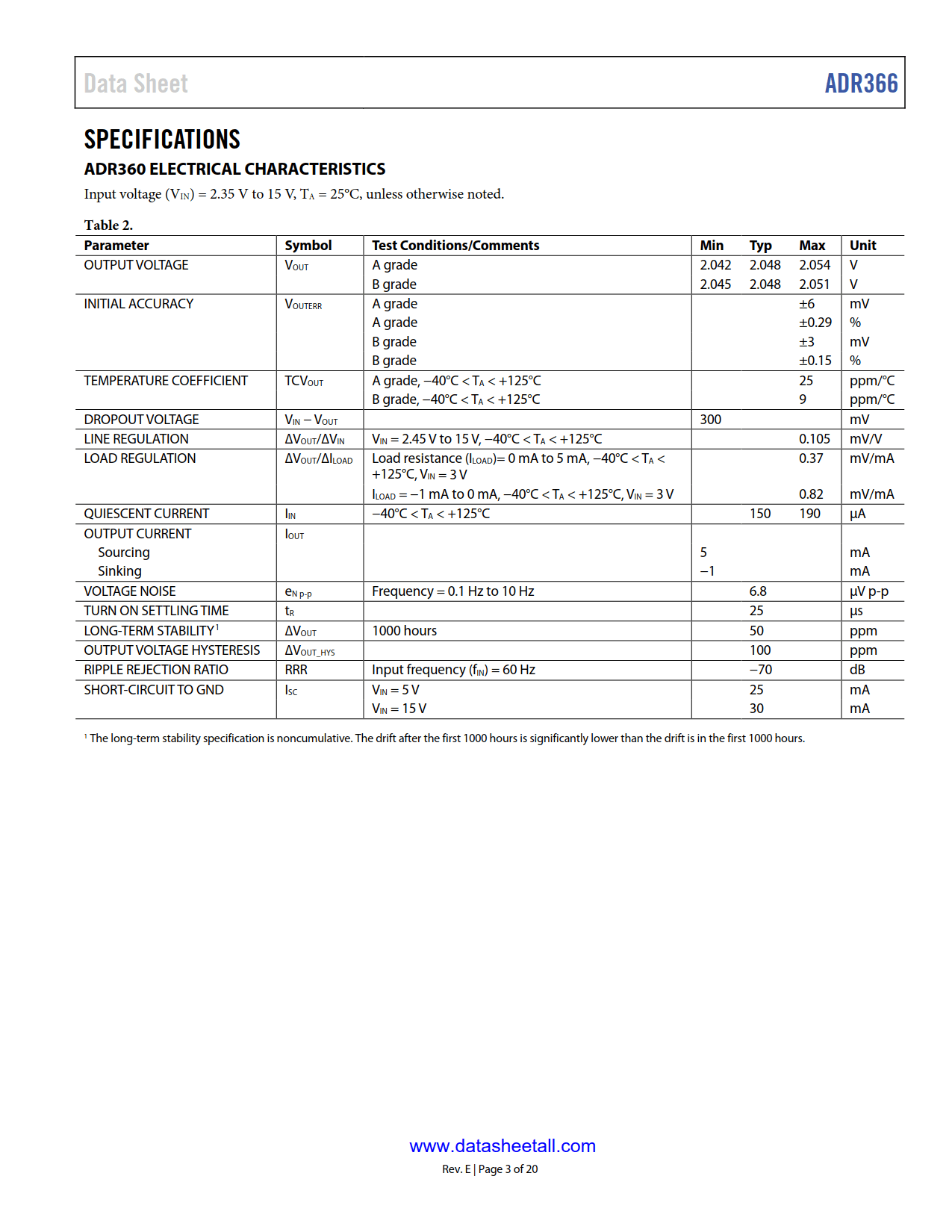

ADR366 Datasheet(Picture)

ADR366 Features

  • Compact TSOT package
  • Low temperature coefficient
    • A grade: 25 ppm/°C
    • B grade: 9 ppm/°C
    • H grade: 25 ppm/°C
  • Ultralow output voltage noise: 6.8 μV p-p (0.1 Hz to 10 Hz)
  • Low dropout: 300 mV
  • Low quiescent current: 190 μA maximum
  • No external capacitor required
  • Output current: +5 mA (sourcing), −1 mA (sinking)
  • Wide temperature range
    • −40°C to +125°C (A grade, B grade)
    • −40°C to +150°C (H grade)
  • Qualified for automotive applications
    • −40°C to +125°C
      • ADR366WAUJZ-REEL7

ADR366 Applications

  • Battery-powered instruments
  • Portable medical instruments
  • Data acquisition systems
  • Industrial process controls
  • Automotive

ADR366 Description

The ADR366 are precision 3.300 V band gap voltage references that offer low power and high precision in a compact TSOT package. Using proprietary temperature drift curvature correction techniques from Analog Devices, Inc., the ADR366 references achieve a low temperature drift of 9 ppm/°C in a TSOT package.

The ADR366 of micropower, low dropout voltage references provide a stable output voltage from a minimum supply of 300 mV greater than the output. The advanced design of the devices eliminates the need for external capacitors, which further reduces board space and system cost. The combination of low power operation, small size, and ease of use makes the ADR366 precision voltage references ideally suited for battery-operated applications.
