ADG704 Datasheet

ADG704 Datasheet

CMOS, Low Voltage 2.5 Ω 4-Channel Multiplexer
Part No.: ADG704
Page: 8 Pages
Size: 98 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2024-01-04 10:50:25
DataSheet: Download

ADG704 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADG704BRM Tube     1 10 -40°C ~ 85°C 10-Lead MSOP
ADG704BRMZ Tube 50   1 10 -40°C ~ 85°C 10-Lead MSOP
ADG704BRMZ-REEL Reel 3000   1 10 -40°C ~ 85°C 10-Lead MSOP
ADG704BRMZ-REEL7 Tube 1000   1 10 -40°C ~ 85°C 10-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

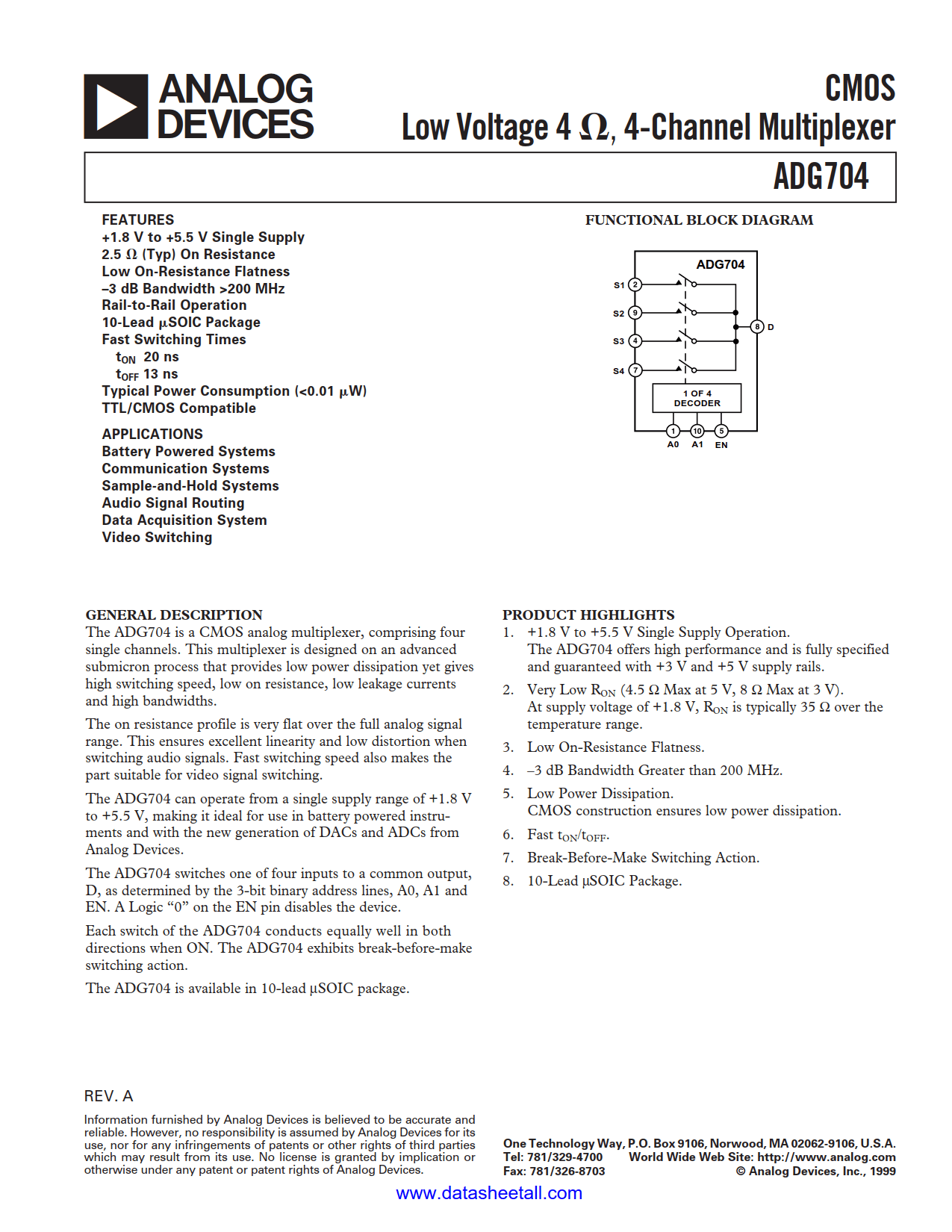

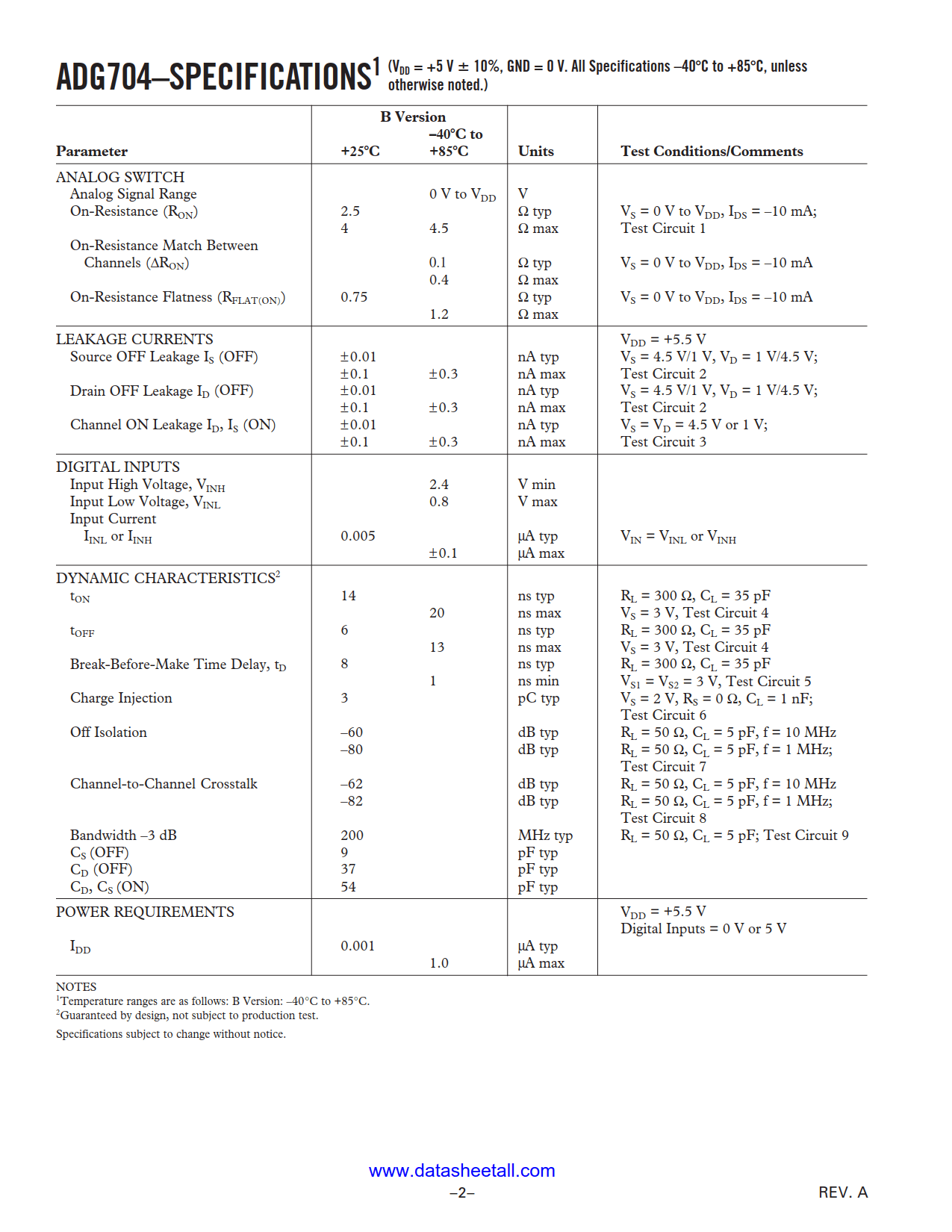

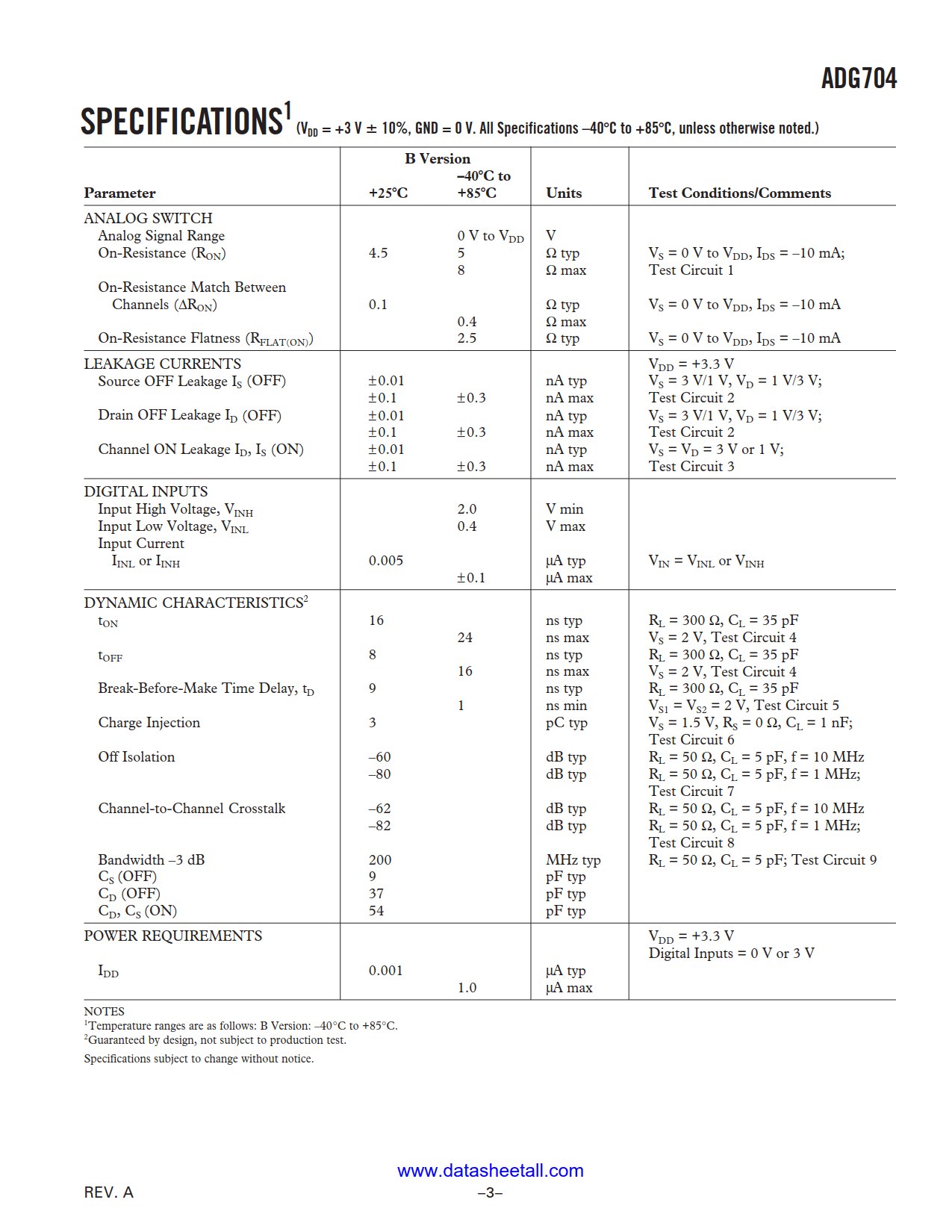

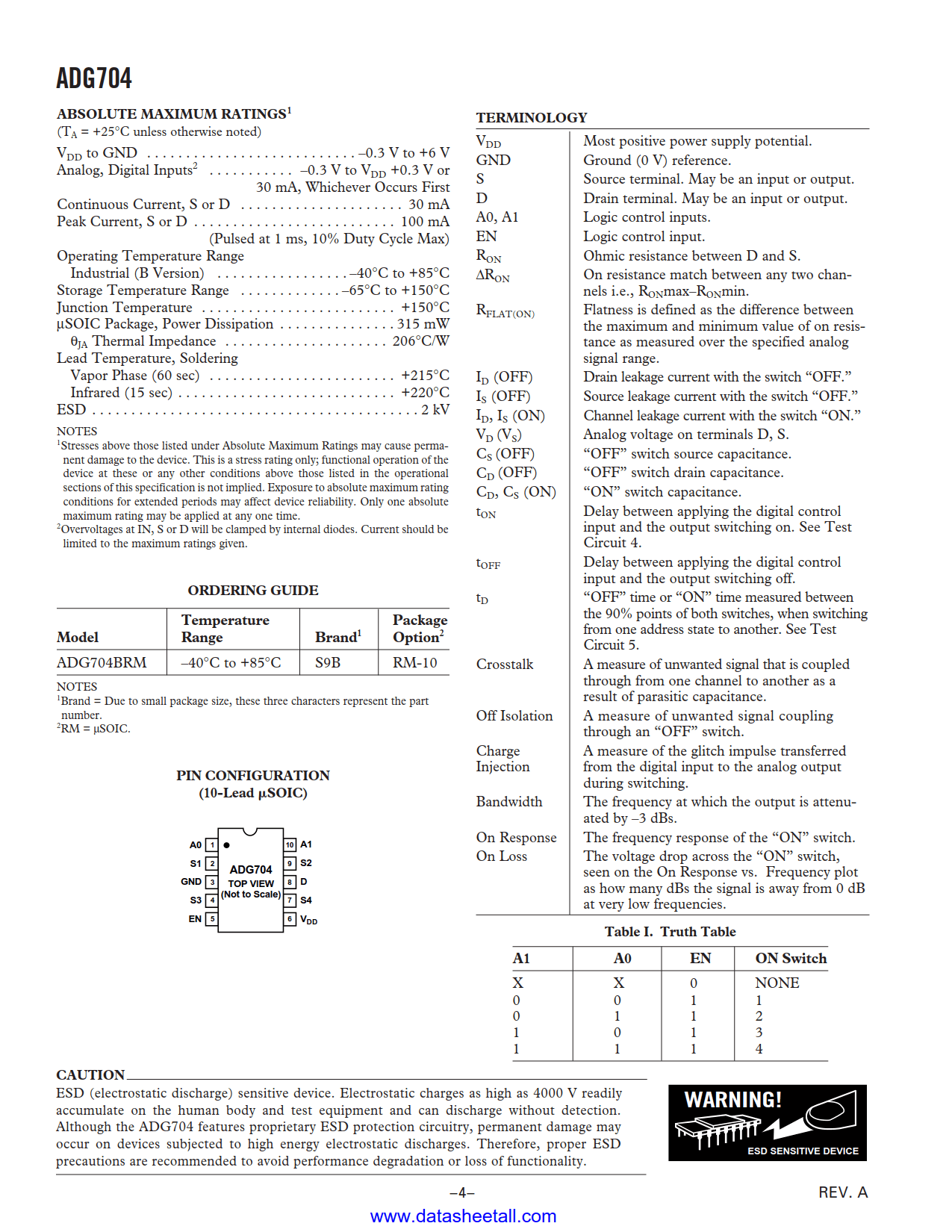

ADG704 Datasheet(PDF)

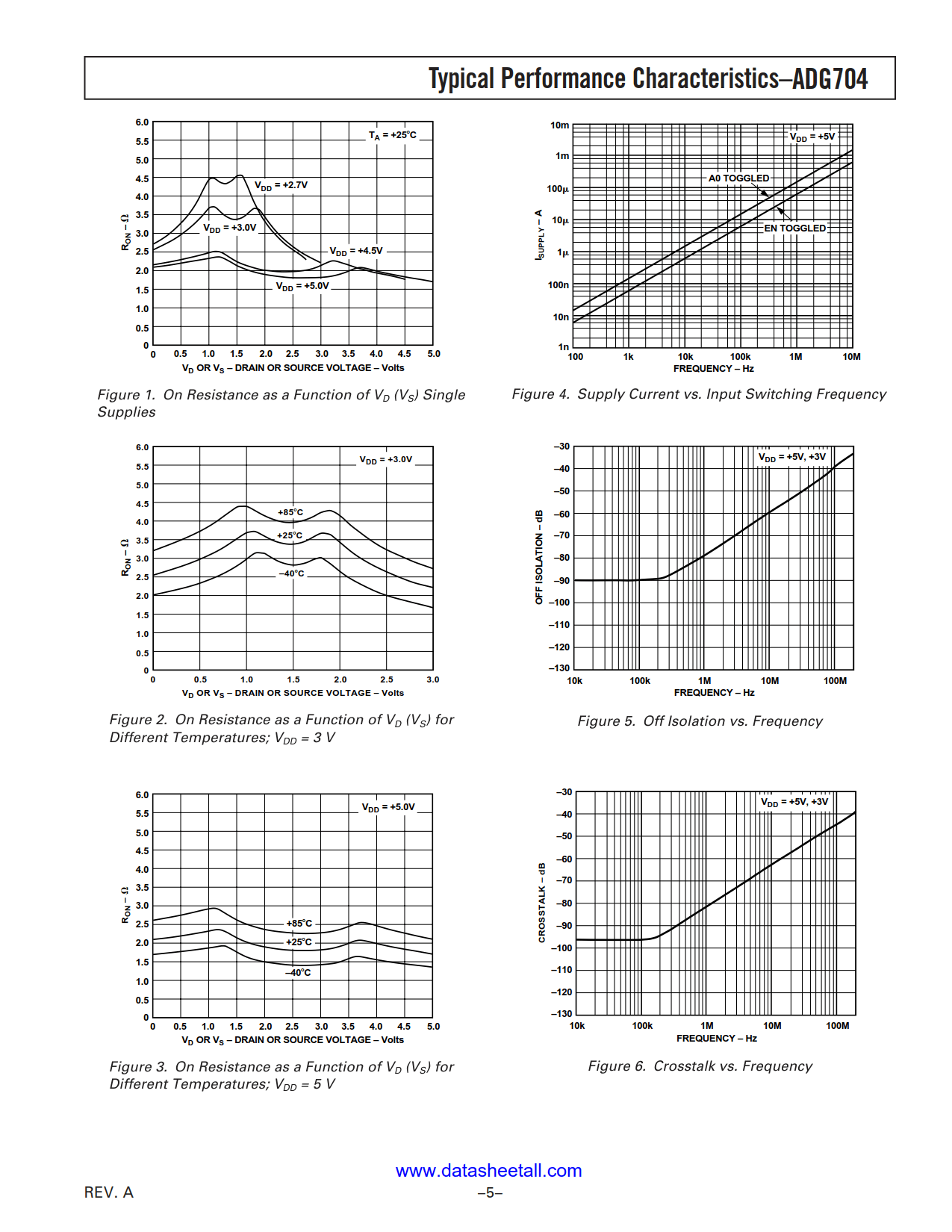

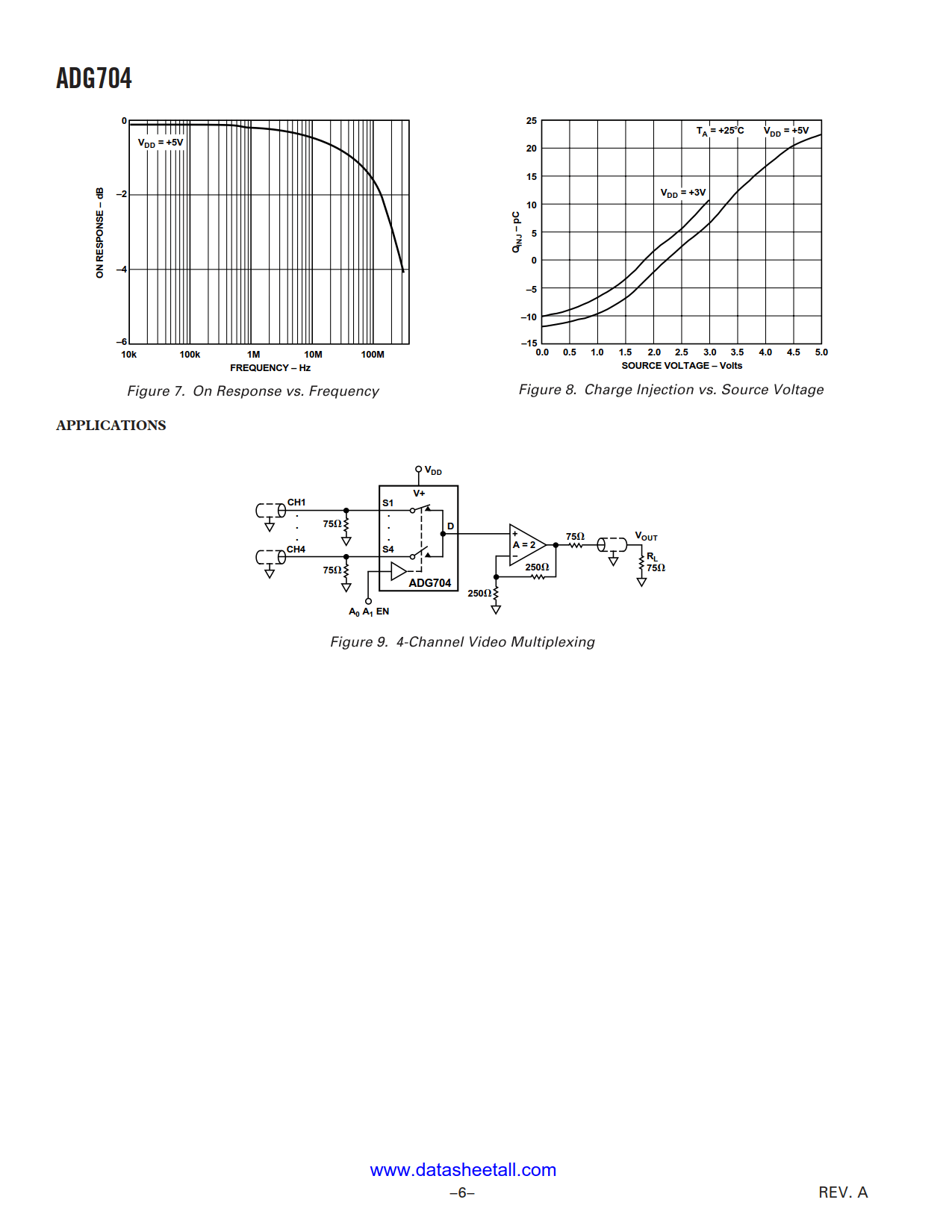

ADG704 Datasheet(Picture)

ADG704 Features

  • +1.8 V to +5.5 V Single Supply
  • 2.5 Ω (Typ) On Resistance
  • Low On-Resistance Flatness
  • –3 dB Bandwidth >200 MHz
  • Rail-to-Rail Operation
  • 10-Lead µSOIC Package
  • Fast Switching Times
    tON 20 ns
    tOFF 13 ns
  • Typical Power Consumption (<0.01 µW)
  • TTL/CMOS Compatible

ADG704 Applications

  • Battery Powered Systems
  • Communication Systems
  • Sample-and-Hold Systems
  • Audio Signal Routing
  • Data Acquisition System
  • Video Switching

ADG704 Description

The ADG704 is a CMOS analog multiplexer, comprising four single channels. This multiplexer is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidths.

The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.

The ADG704 can operate from a single supply range of +1.8 V to +5.5 V, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices.

The ADG704 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1 and EN. A Logic “0” on the EN pin disables the device.

Each switch of the ADG704 conducts equally well in both directions when ON. The ADG704 exhibits break-before-make switching action.

The ADG704 is available in 10-lead µSOIC package.
