ADA4522-2 Datasheet

ADA4522-2 Datasheet

Dual 55V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers
Part No.: ADA4522-2
Page: 33 Pages
Size: 3512 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-13 11:25:23
DataSheet: Download

ADA4522-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADA4522-2ARMZ Tube 50   3 8 -40°C ~ 125°C 8-Lead MSOP
ADA4522-2ARMZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead MSOP
ADA4522-2ARMZ-RL Reel 3000   3 8 -40°C ~ 125°C 8-Lead MSOP
ADA4522-2ARZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC
ADA4522-2ARZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC
ADA4522-2ARZ-RL Reel 2500   3 8 -40°C ~ 125°C 8-Lead SOIC
ADA4522-2-KGD-WP WafflePack 221     0 -40°C ~ 125°C CHIPS OR DIE
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADA4522-2 Datasheet(PDF)

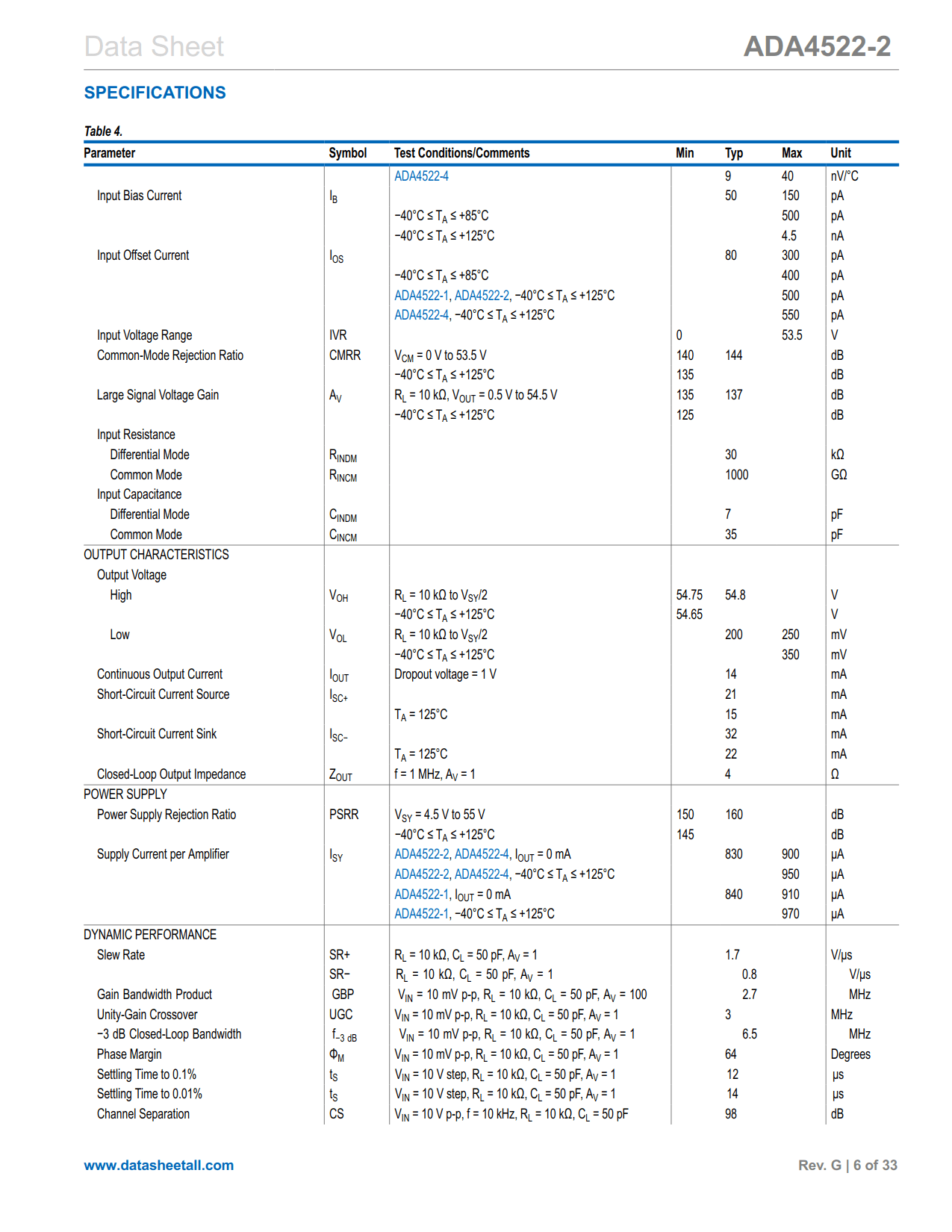

ADA4522-2 Datasheet(Picture)

ADA4522-2 Features

  • Low offset voltage: 5 μV maximum
  • Extremely low offset voltage drift: 22 nV/°C maximum
  • Low voltage noise density:
    • 5.8 nV/√Hz typical
    • 117 nV p-p typical from 0.1 Hz to 10 Hz
  • Low input bias current: 50 pA typical
  • Unity-gain crossover: 3 MHz typical
  • Single-supply operation: input voltage range includes ground and rail-to-rail output
  • Wide range of operating voltages
    • Single-supply operation: 4.5 V to 55 V
    • Dual-supply operation: ±2.25 V to ±27.5 V
  • Integrated EMI filters
  • Unity-gain stable
  • Available As Known Good Die and fully guaranteed to data sheet specifications

ADA4522-2 Applications

  • Inductance, capacitance, and resistance (LCR) meter/megohmmeter front-end amplifiers
  • Load cell and bridge transducers
  • Magnetic force balance scales
  • High precision shunt current sensing
  • Thermocouple/resistance temperature detector (RTD) sensors
  • Programmable logic controller (PLC) input and output amplifiers

ADA4522-2 Description

The ADA4522-2 are dual channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions. The wide operating voltage and temperature ranges, as well as the high open-loop gain and very low dc and ac errors make the devices well suited for amplifying very small input signals and for accurately reproducing larger signals in a wide variety of applications.

The ADA4522-2 performance is specified at 5.0 V, 30 V, and 55 V power supply voltages. These devices operate over the range of 4.5 V to 55 V, and are excellent for applications using single-ended supplies of 5 V, 10 V, 12 V, and 30 V, or for applications using higher single supplies and dual supplies of ±2.5 V, ±5 V, and ±15 V. The ADA4522-2 use on-chip filtering to achieve high immunity to electromagnetic interference (EMI).

The ADA4522-2 are fully specified over the extended industrial temperature range of −40°C to +125°C and are available in 8-lead MSOP, 8-lead SOIC packages.
