AD8608 Datasheet

AD8608 Datasheet

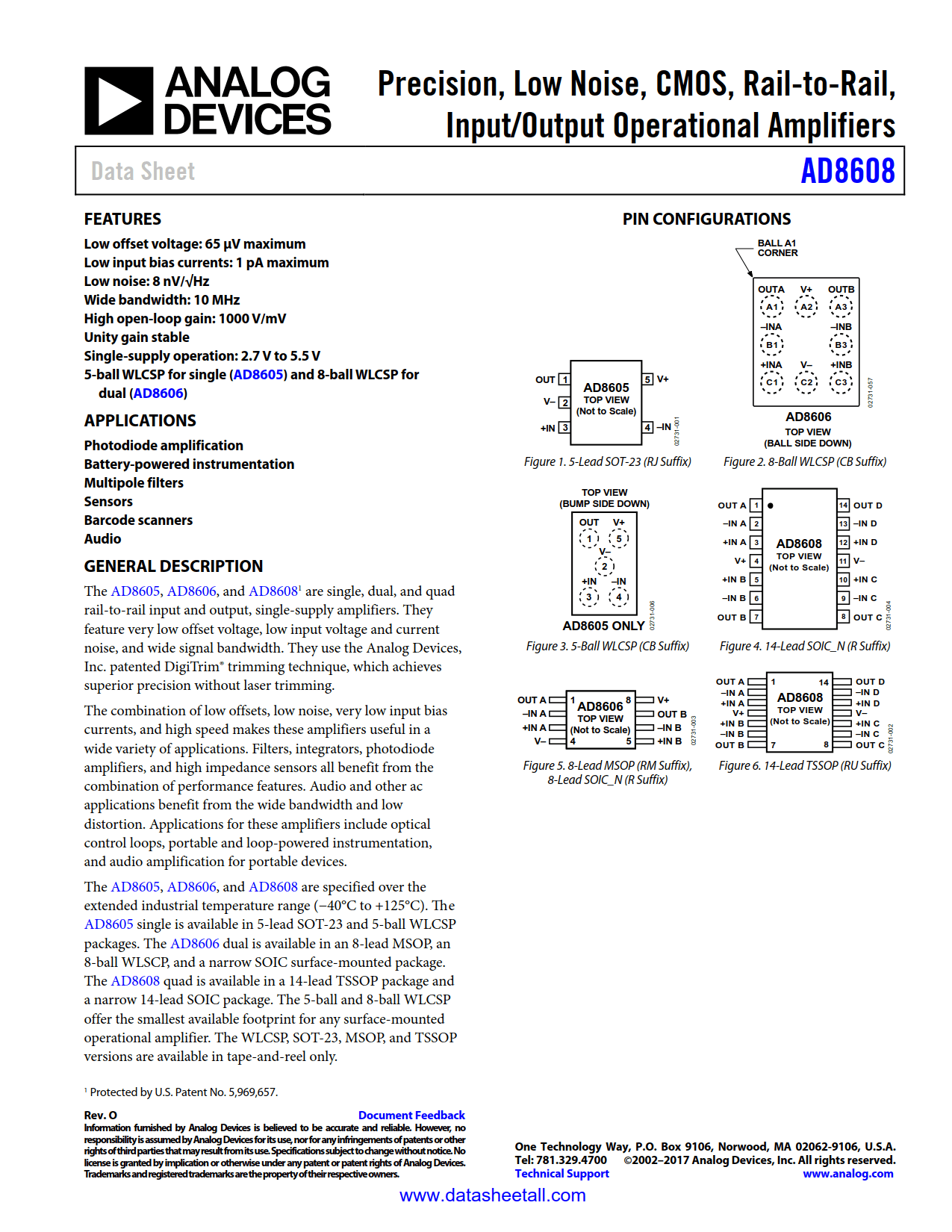

Low Noise, CMOS, Rail-to-Rail, Input/Output Precision Quad Op Amp
Part No.: AD8608
Page: 24 Pages
Size: 640 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-10-17 15:10:52
DataSheet: Download

AD8608 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD8608ARZ Tube 56   3 14 -40°C ~ 125°C 14-Lead SOIC_N
AD8608ARZ-REEL Reel 2500   3 14 -40°C ~ 125°C 14-Lead SOIC_N
AD8608ARZ-REEL7 Reel 1000   3 14 -40°C ~ 125°C 14-Lead SOIC_N
AD8608ARUZ Tube 96   3 14 -40°C ~ 125°C 14-Lead TSSOP
AD8608ARUZ-REEL Reel 2500   3 14 -40°C ~ 125°C 14-Lead TSSOP
AD8608-KGD-CHIP WafflePack 140     0 25°C CHIPS OR DIE
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8608 Datasheet(PDF)

AD8608 Datasheet(Picture)

AD8608 Features

  • Low offset voltage: 65 μV maximum
  • Low input bias currents: 1 pA maximum
  • Low noise: 8 nV/√Hz
  • Wide bandwidth: 10 MHz
  • High open-loop gain: 1000 V/mV
  • Unity gain stable
  • Single-supply operation: 2.7 V to 5.5 V
  • Available as Known Good Die and fully guaranteed to data sheet specifications

AD8608 Applications

  • Photodiode amplification
  • Battery-powered instrumentation
  • Multipole filters
  • Sensors
  • Barcode scanners
  • Audio

AD8608 Description

The AD8608 are quad rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented DigiTrim® trimming technique, which achieves superior precision without laser trimming.

The combination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. Applications for these amplifiers include optical control loops, portable and loop-powered instrumentation, and audio amplification for portable devices.

The AD8608 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8608 quad is available in a 14-lead TSSOP package and a narrow 14-lead SOIC package.
