AD7940 Datasheet

AD7940 Datasheet

3 mW, 100 kSPS, 14-Bit ADC in 6-Lead SOT-23
Part No.: AD7940
Page: 20 Pages
Size: 315 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2024-01-05 11:29:43
DataSheet: Download

AD7940 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD7940BRM Tube     1 8 -40°C ~ 85°C 8-Lead MSOP
AD7940BRM-REEL7 Reel     1 8 -40°C ~ 85°C 8-Lead MSOP
AD7940BRMZ Tube 50   1 8 -40°C ~ 85°C 8-Lead MSOP
AD7940BRMZ-REEL7 Reel 1000   1 8 -40°C ~ 85°C 8-Lead MSOP
AD7940BRJZ-REEL7 Reel 3000   1 6 -40°C ~ 85°C 6-Lead SOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD7940 Datasheet(PDF)

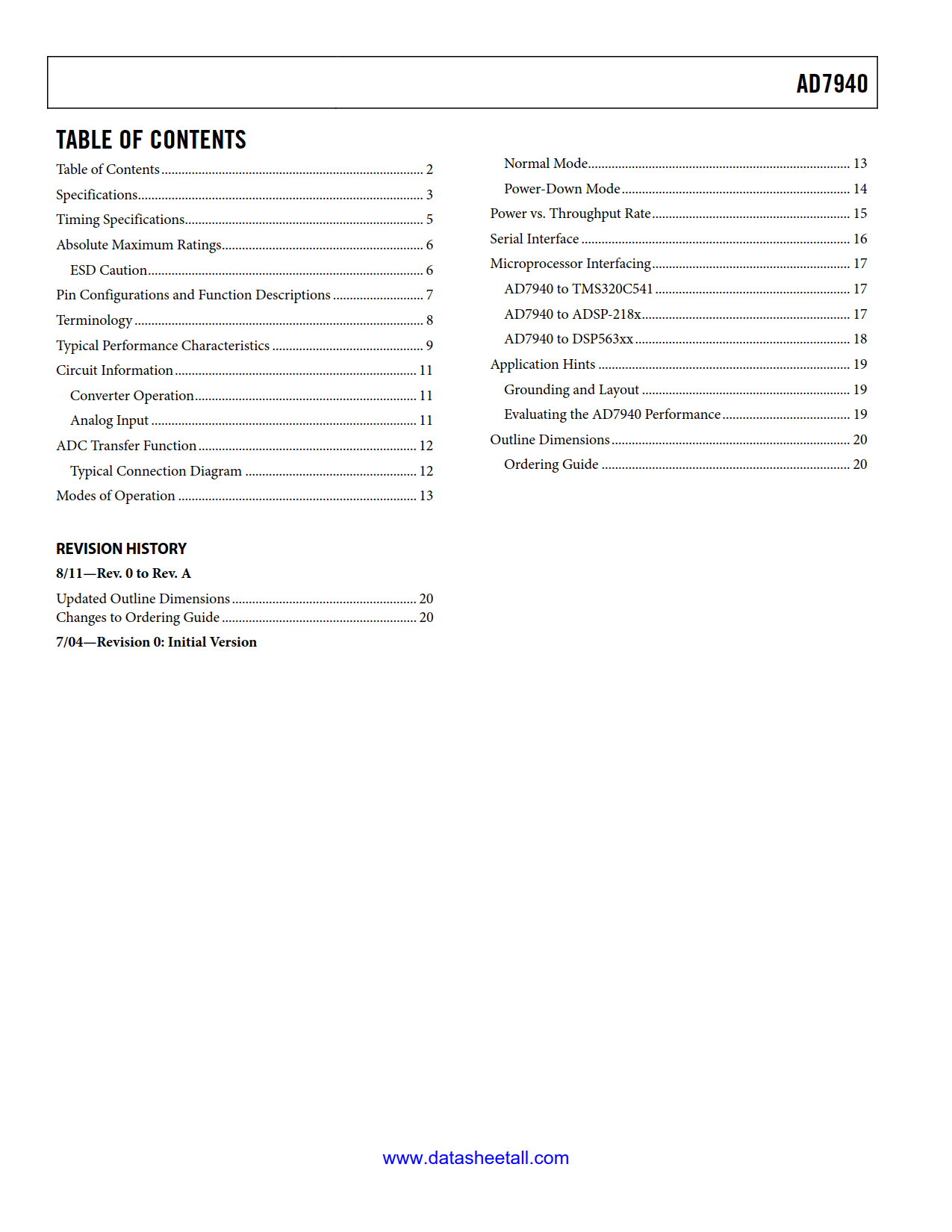

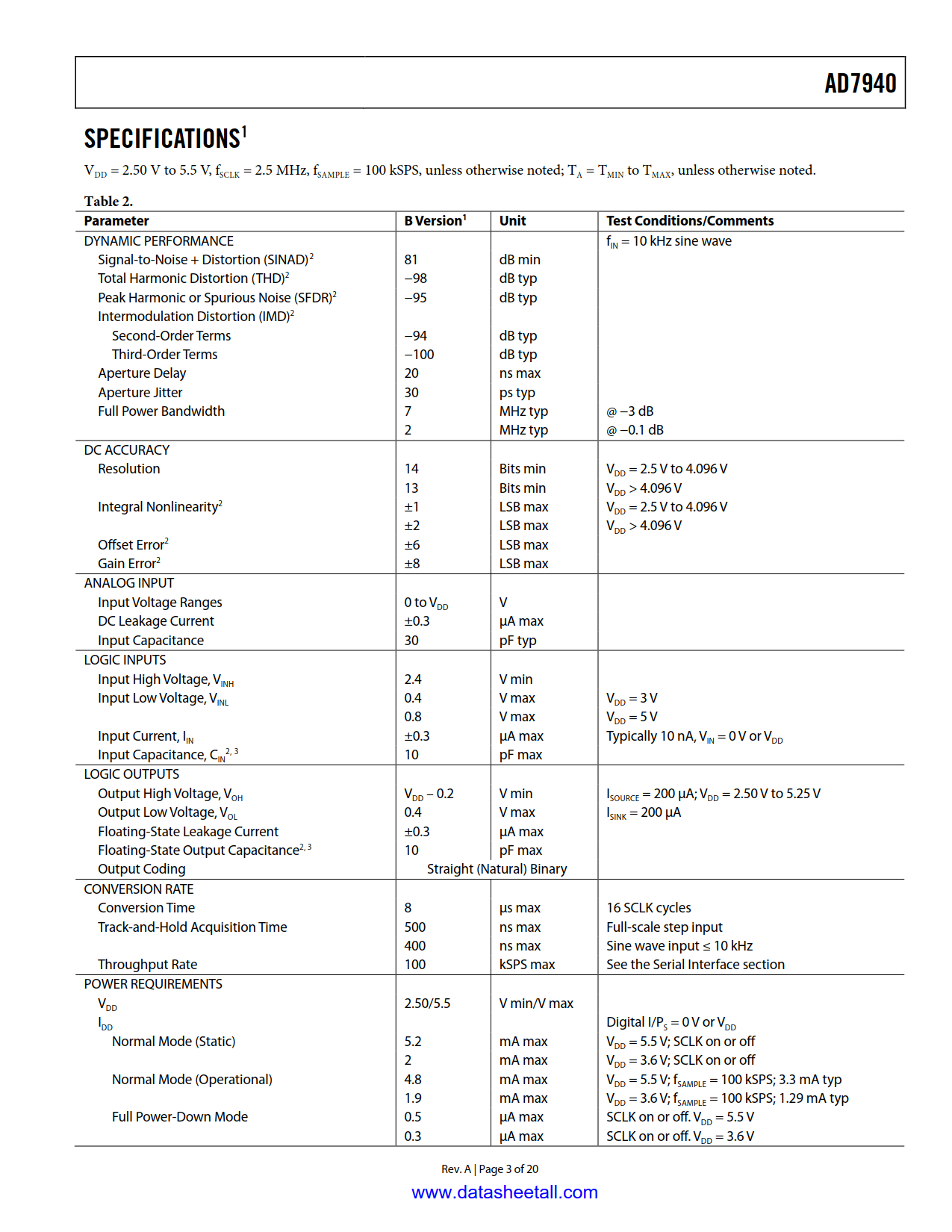

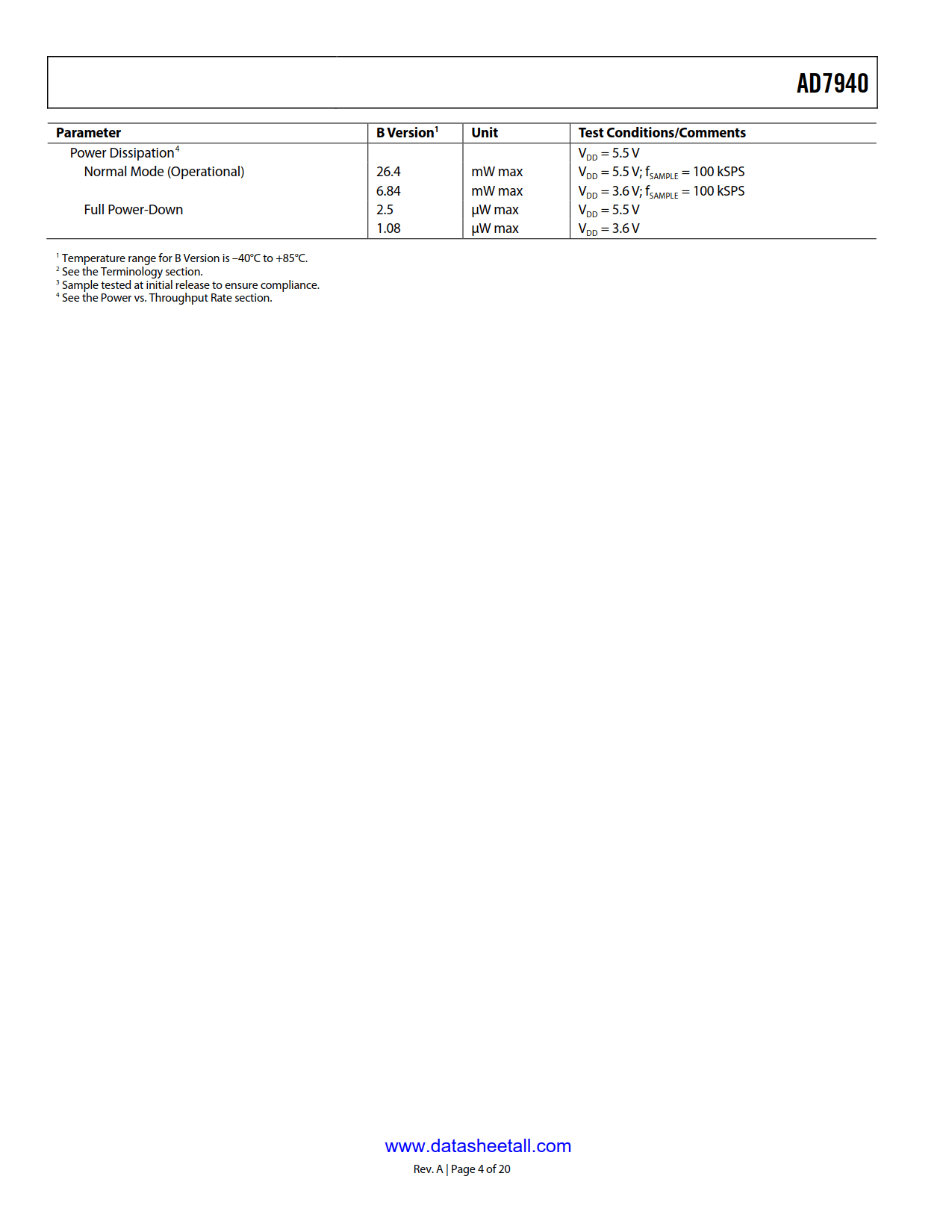

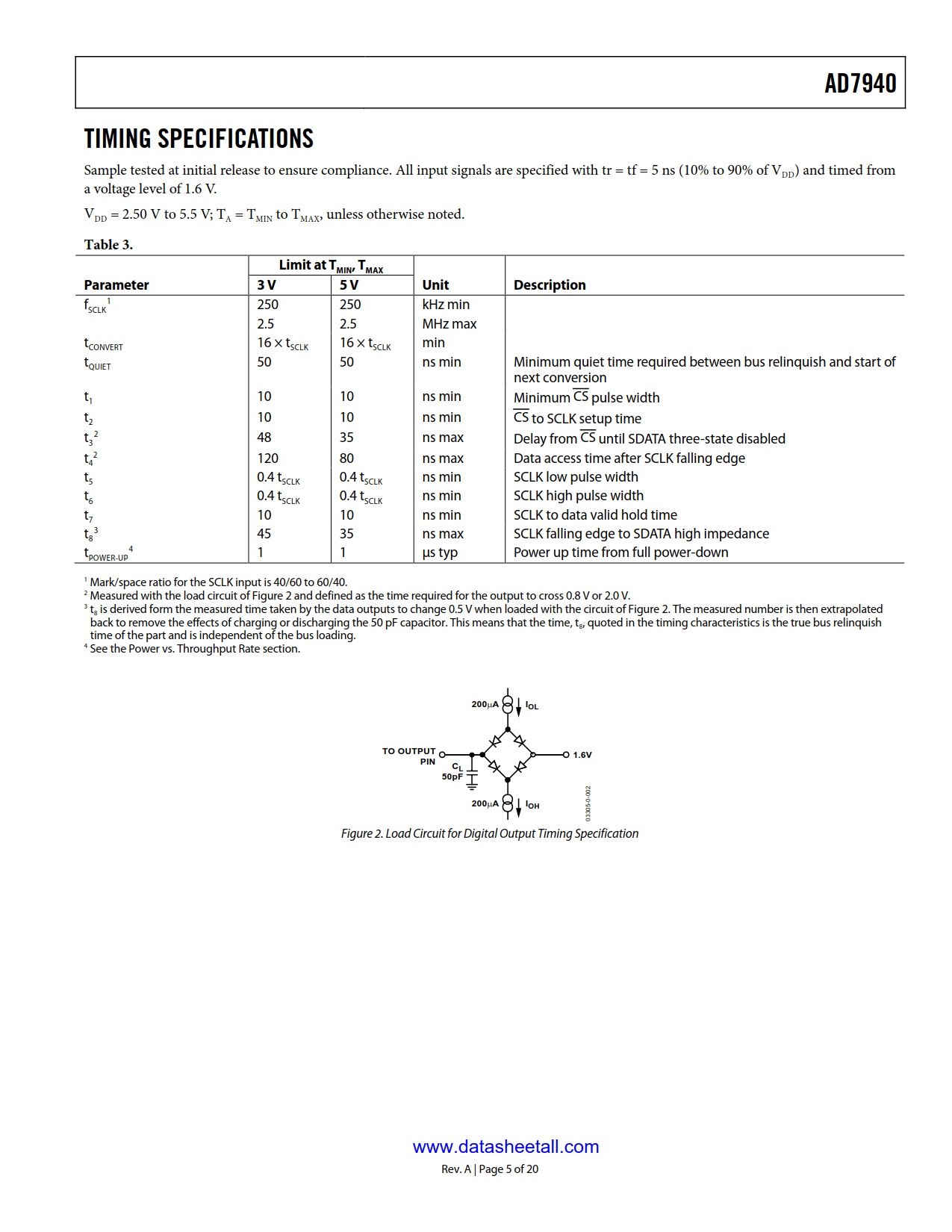

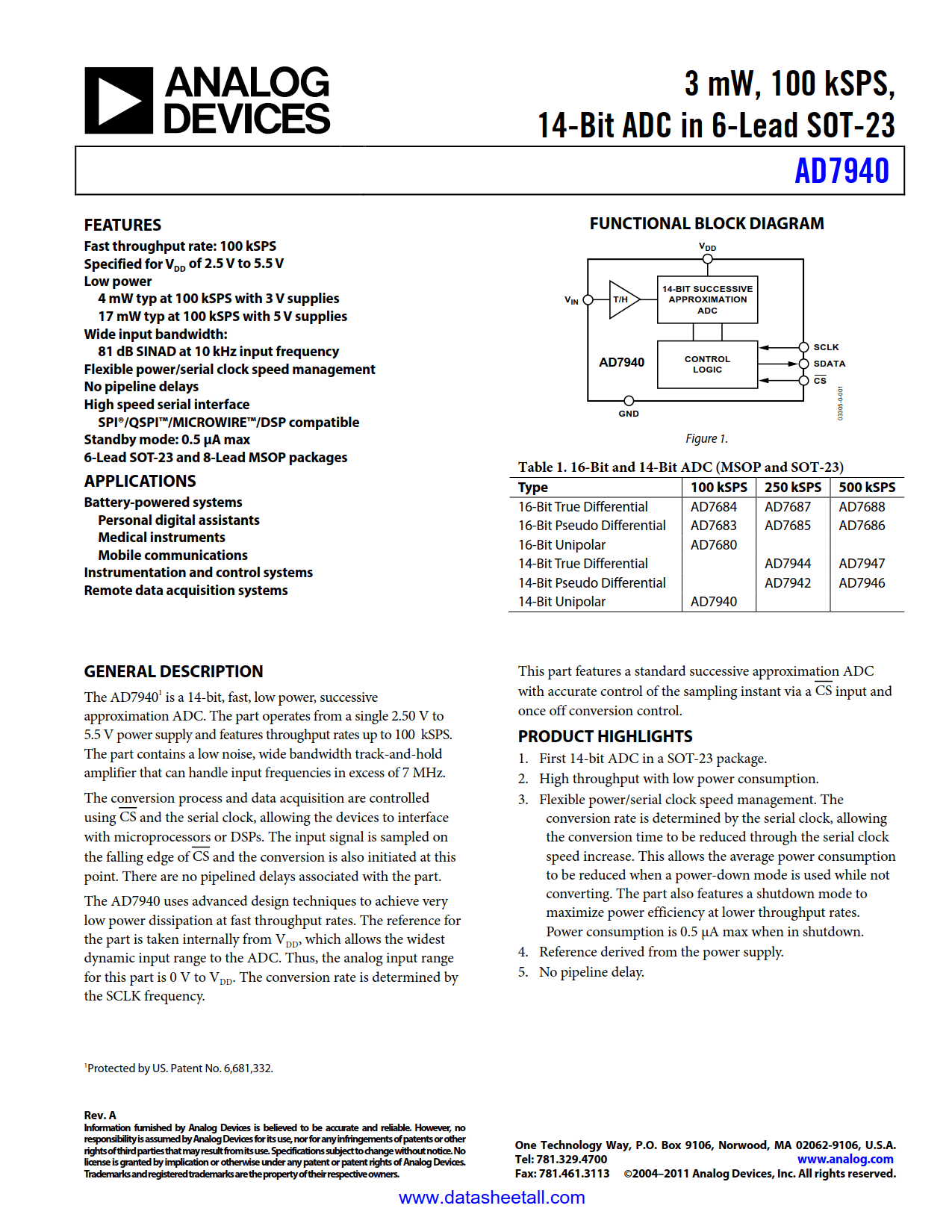

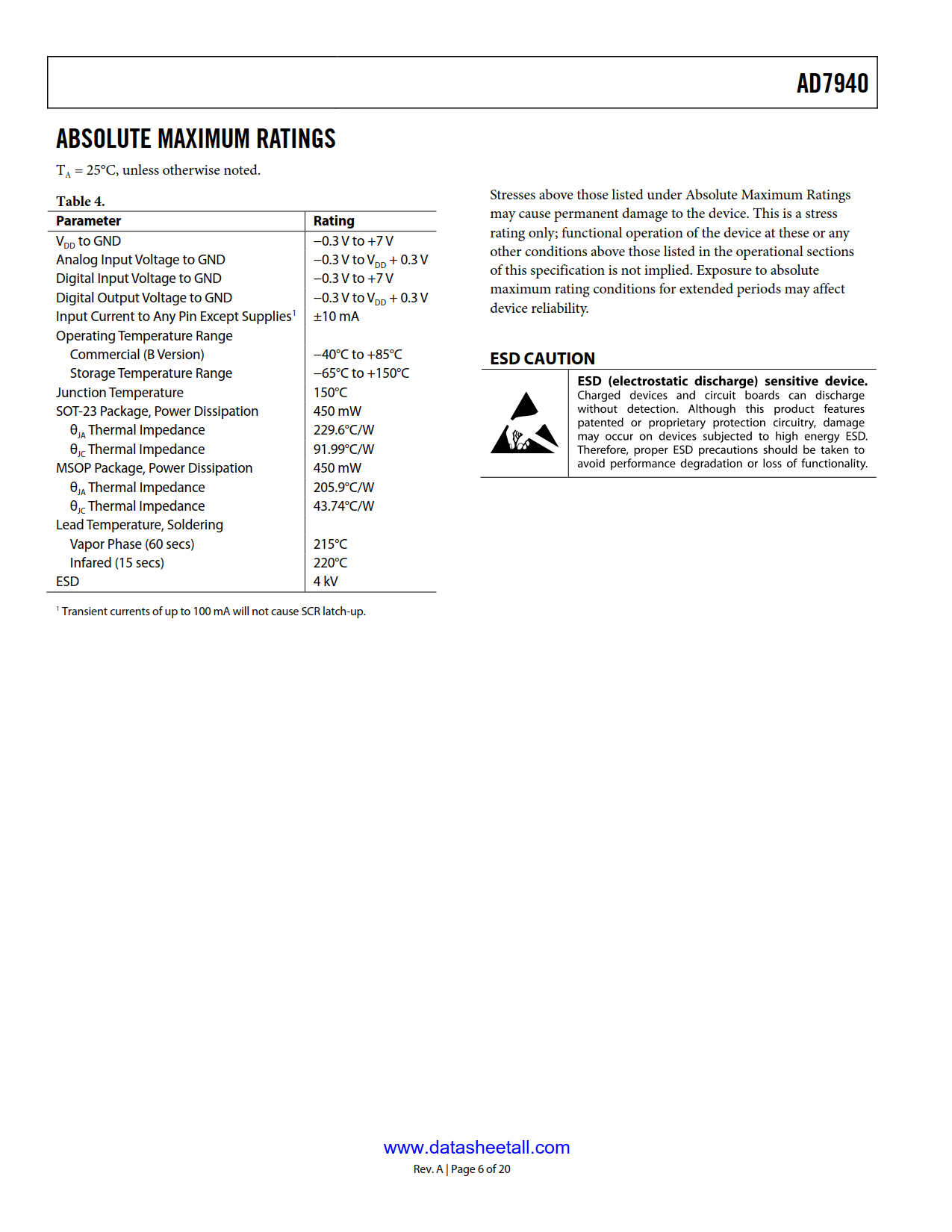

AD7940 Datasheet(Picture)

AD7940 Features

  • Fast throughput rate: 100 kSPS
  • Specified for VDD of 2.5 V to 5.5 V
  • Low power
    4 mW typ at 100 kSPS with 3 V supplies
    17 mW typ at 100 kSPS with 5 V supplies
  • Wide input bandwidth:
    81 dB SINAD at 10 kHz input frequency
  • Flexible power/serial clock speed management
  • No pipeline delays
  • High speed serial interface
  • SPI®/QSPI/MICROWIRE/DSP compatible
  • Standby mode: 0.5 μA max
  • 6-Lead SOT-23 and 8-Lead MSOP packages
  • 6-Lead SOT-23 and 8-Lead MSOP packages
  • Standby Mode: 0.5 µA max

AD7940 Applications

  • Battery-powered systems
    Personal digital assistants
    Medical instruments
    Mobile communications
  • Instrumentation and control systems
  • Remote data acquisition systems

AD7940 Description

The AD79401 is a 14-bit, fast, low power, successive approximation ADC. The part operates from a single 2.50 V to 5.5 V power supply and features throughput rates up to 100 kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 7 MHz.

The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and the conversion is also initiated at this point. There are no pipelined delays associated with the part.

The AD7940 uses advanced design techniques to achieve very low power dissipation at fast throughput rates. The reference for the part is taken internally from VDD, which allows the widest dynamic input range to the ADC. Thus, the analog input range for this part is 0 V to VDD. The conversion rate is determined by the SCLK frequency.

This part features a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once off conversion control.
