LTM8083 Datasheet

LTM8083 Datasheet

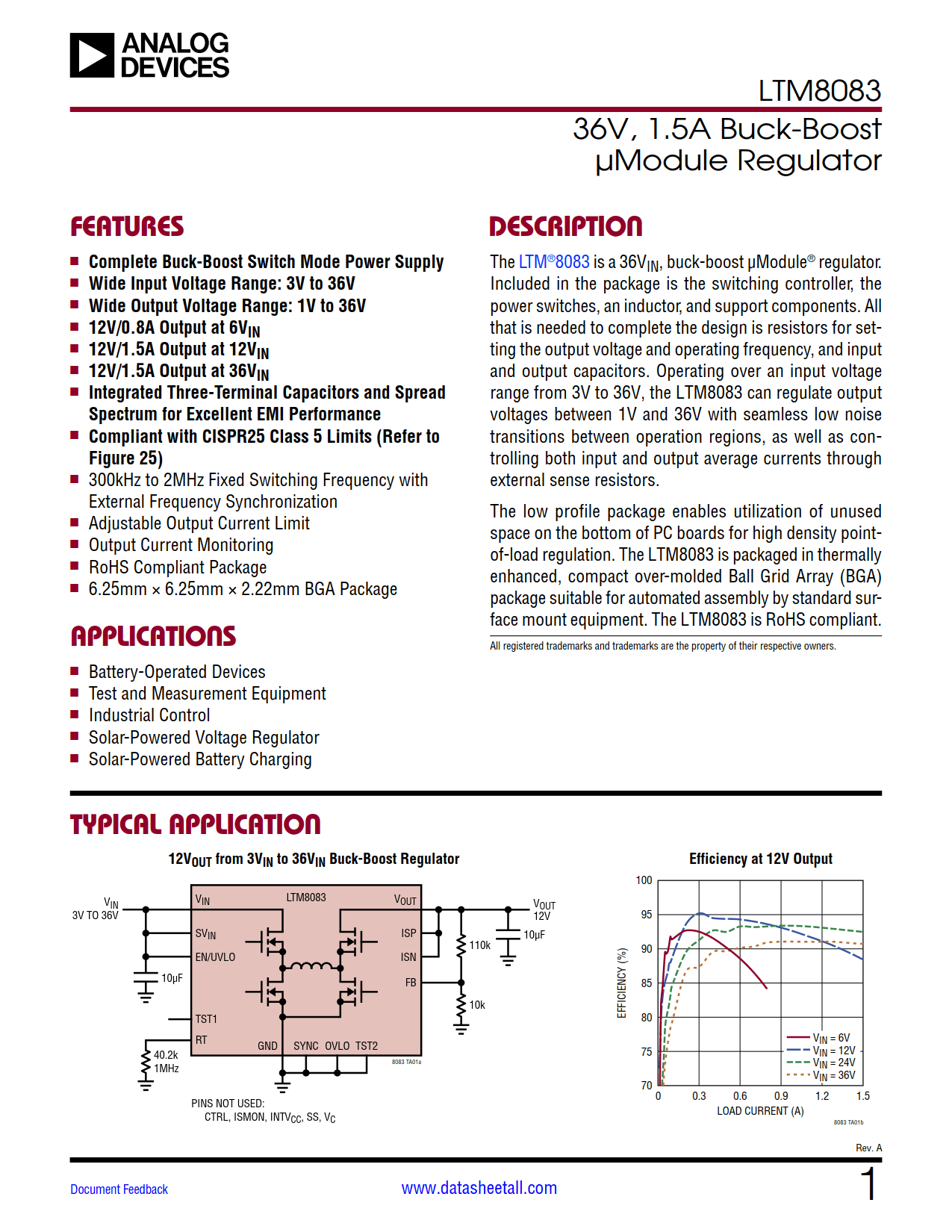

36V, 1.5A Buck-Boost μModule Regulator
Part No.: LTM8083
Page: 24 Pages
Size: 2162 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-25 13:49:05
DataSheet: Download

LTM8083 Datasheet Applicable Part

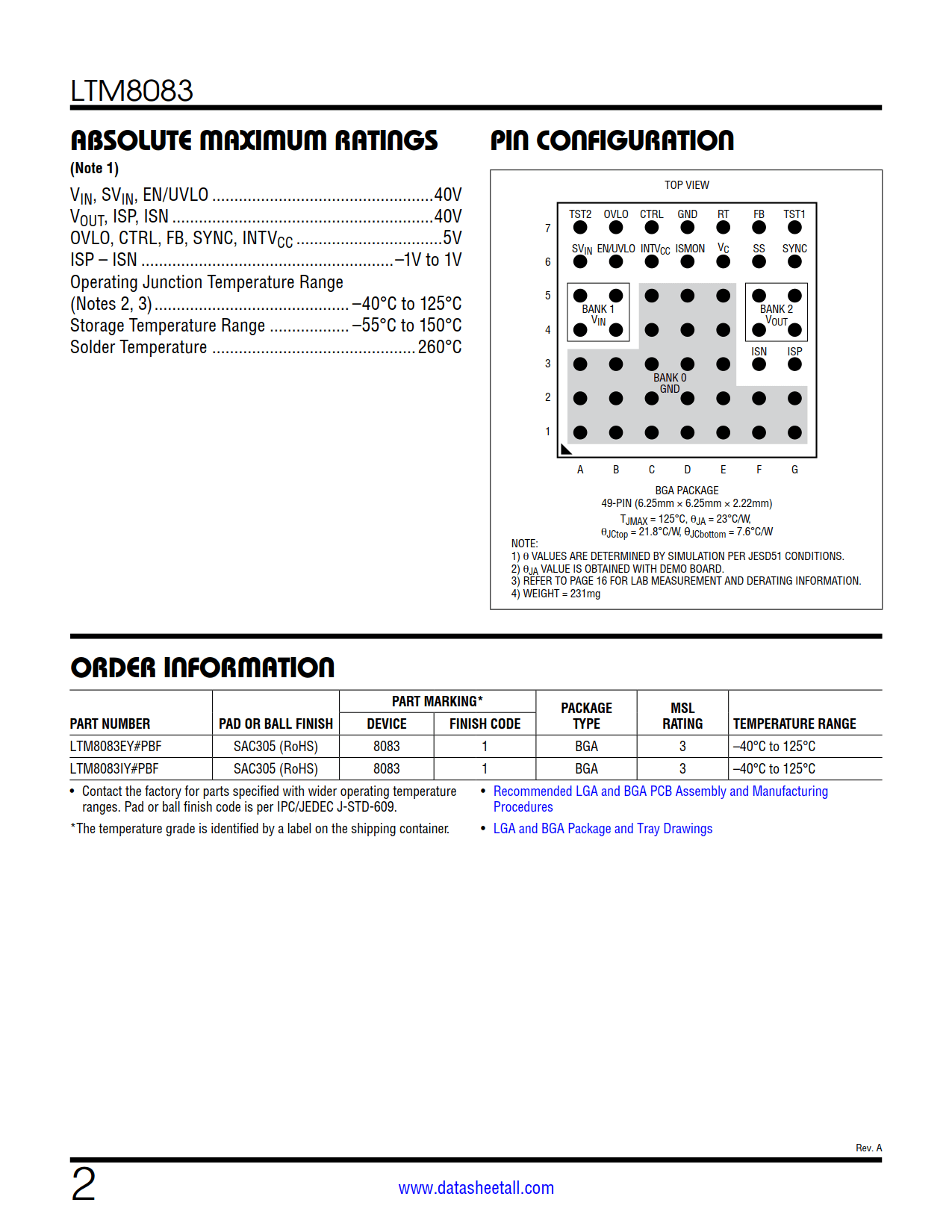

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8083EY#PBF Tray 260 8083 3 49 -40°C ~125°C 49-Lead BGA (6.25mm x 6.25mm x 2.22mm)
LTM8083IY#PBF Tray 260 8083 3 49 -40°C ~125°C 49-Lead BGA (6.25mm x 6.25mm x 2.22mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8083 Datasheet(PDF)

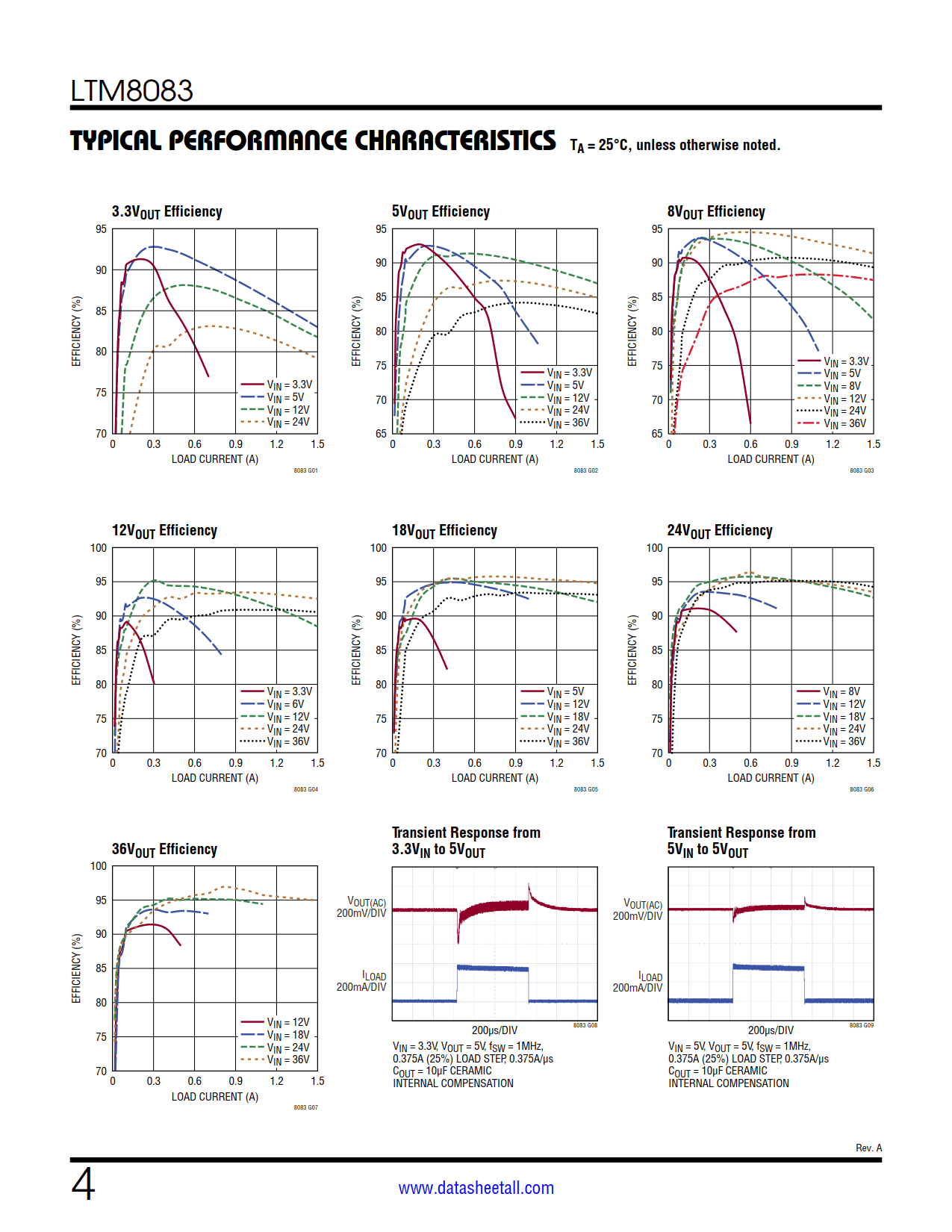

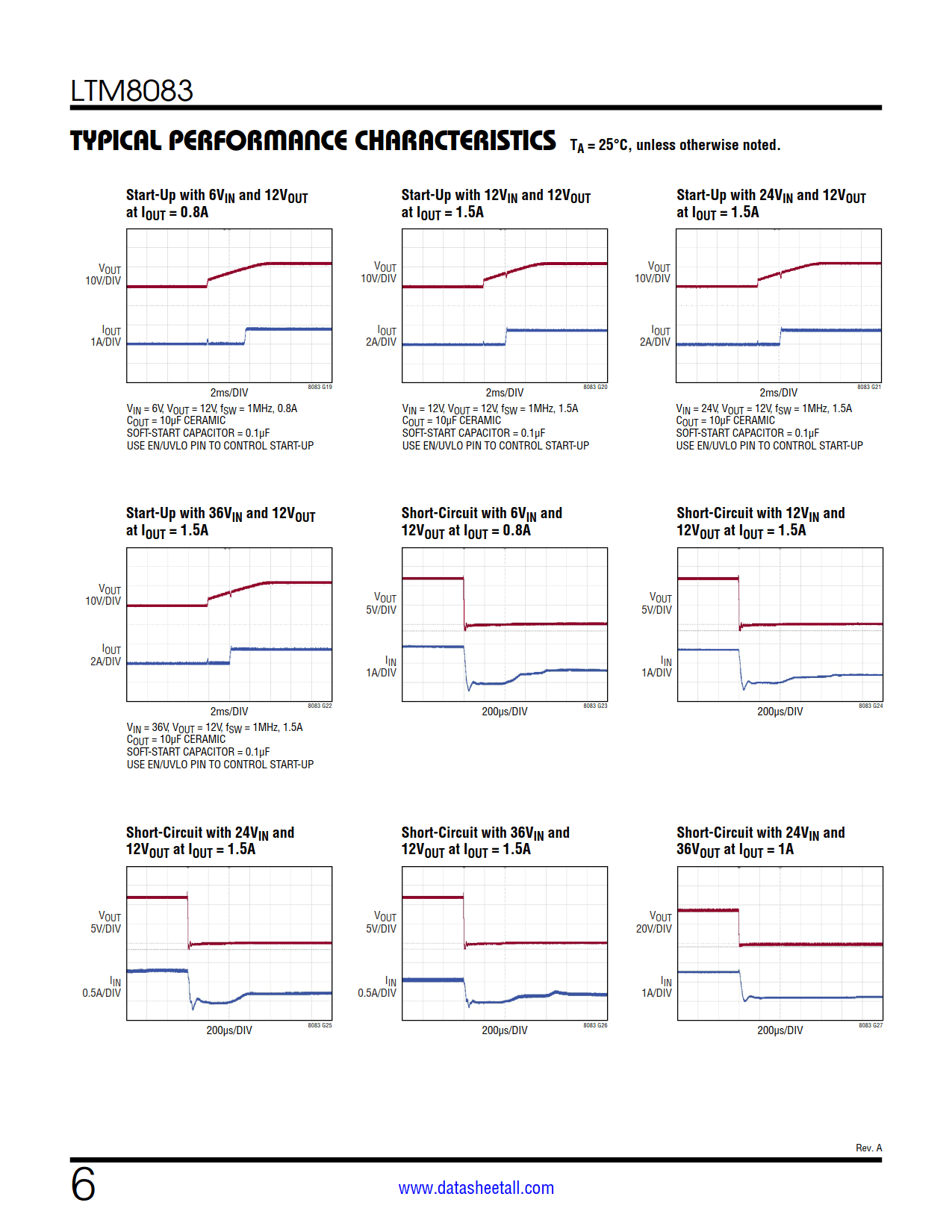

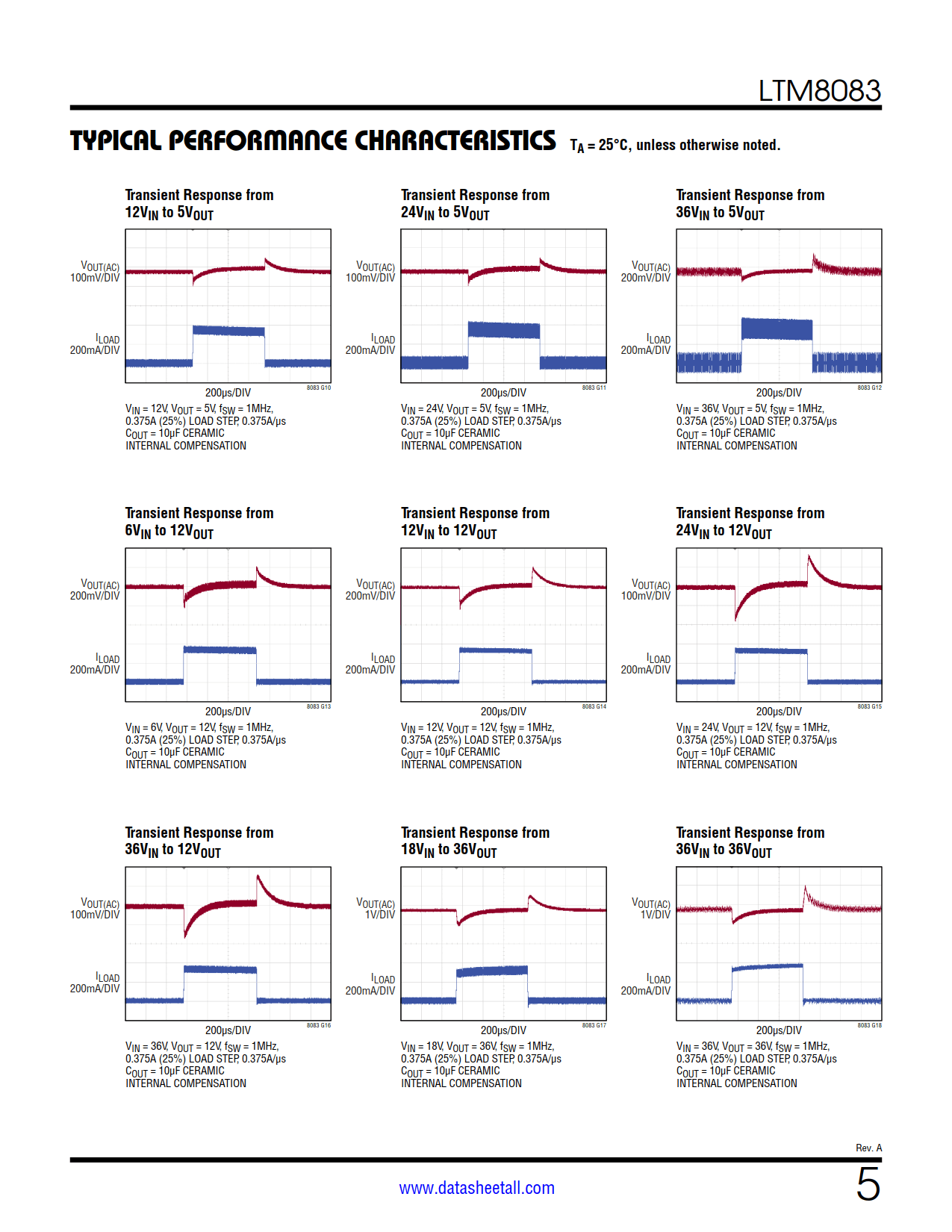

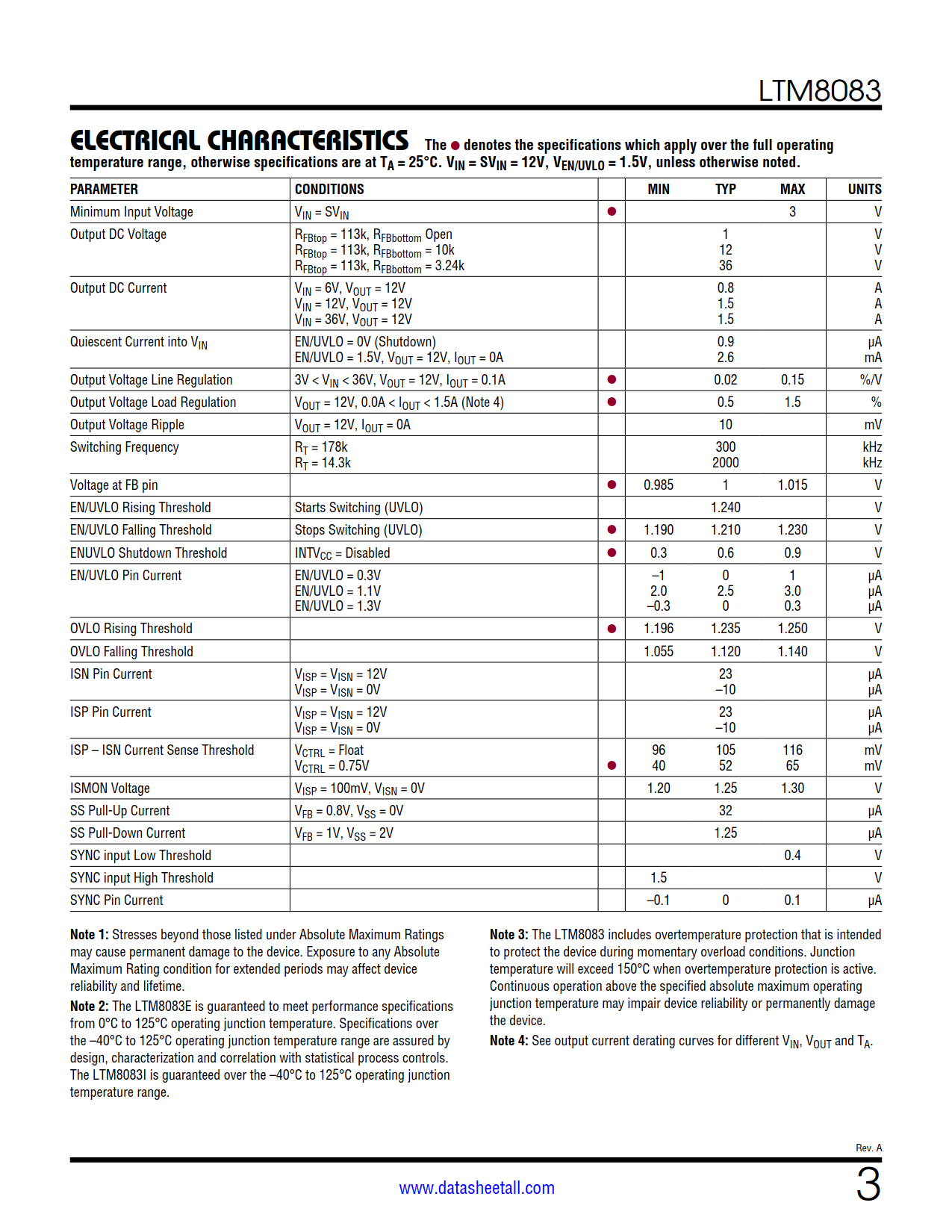

LTM8083 Datasheet(Picture)

LTM8083 Features

  • Complete Buck-Boost Switch Mode Power Supply
  • Wide Input Voltage Range: 3V to 36V
  • Wide Output Voltage Range: 1V to 36V
  • 12V/0.8A Output at 6VIN
  • 12V/1.5A Output at 12VIN
  • 12V/1.5A Output at 36VIN
  • Integrated Three-Terminal Capacitors and Spread Spectrum for Excellent EMI Performance
  • Compliant with CISPR25 Class 5 Limits (Refer to Figure 25 in the data sheet)
  • 300kHz to 2MHz Fixed Switching Frequency with External Frequency Synchronization
  • Adjustable Output Current Limit
  • Output Current Monitoring
  • RoHS Compliant Package
  • 6.25mm × 6.25mm × 2.22mm BGA Package

LTM8083 Applications

  • Battery-Operated Devices
  • Test and Measurement Equipment
  • Industrial Control
  • Solar Powered Voltage Regulator
  • Solar Powered Battery Charging

LTM8083 Description

The LTM8083 is a 36VIN, Buck-Boost μModule® Regulator. Included in the package are the switching controller, power switches, inductor, and support components. All that is needed to complete the design is resistors for setting the output voltage and operating frequency, and input and output capacitors. Operating over an input voltage range from 3V to 36V, the LTM8083 can regulate output voltages between 1V and 36V with seamless low-noise transitions between operation regions, as well as controlling both input and output average currents through external sense resistors.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8083 is packaged in thermally enhanced, compact over-molded Ball Grid Array (BGA) packages suitable for automated assembly by standard surface mount equipment. The LTM8083 is RoHS compliant.

LTM8083 Datasheet Related Parts
