LTM8065 Datasheet

LTM8065 Datasheet

40VIN, 2.5A Silent Switcher µModule Regulator
Part No.: LTM8065
Page: 26 Pages
Size: 1744 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 13:58:34
DataSheet: Download

LTM8065 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8065EY#PBF Tray 260 LTM8065 3 36 -40°C ~ 125°C 36-Lead BGA (6.25mm x 6.25mm x 2.32mm)
LTM8065IY#PBF Tray 260 LTM8065 3 36 -40°C ~ 125°C 36-Lead BGA (6.25mm x 6.25mm x 2.32mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8065 Datasheet(PDF)

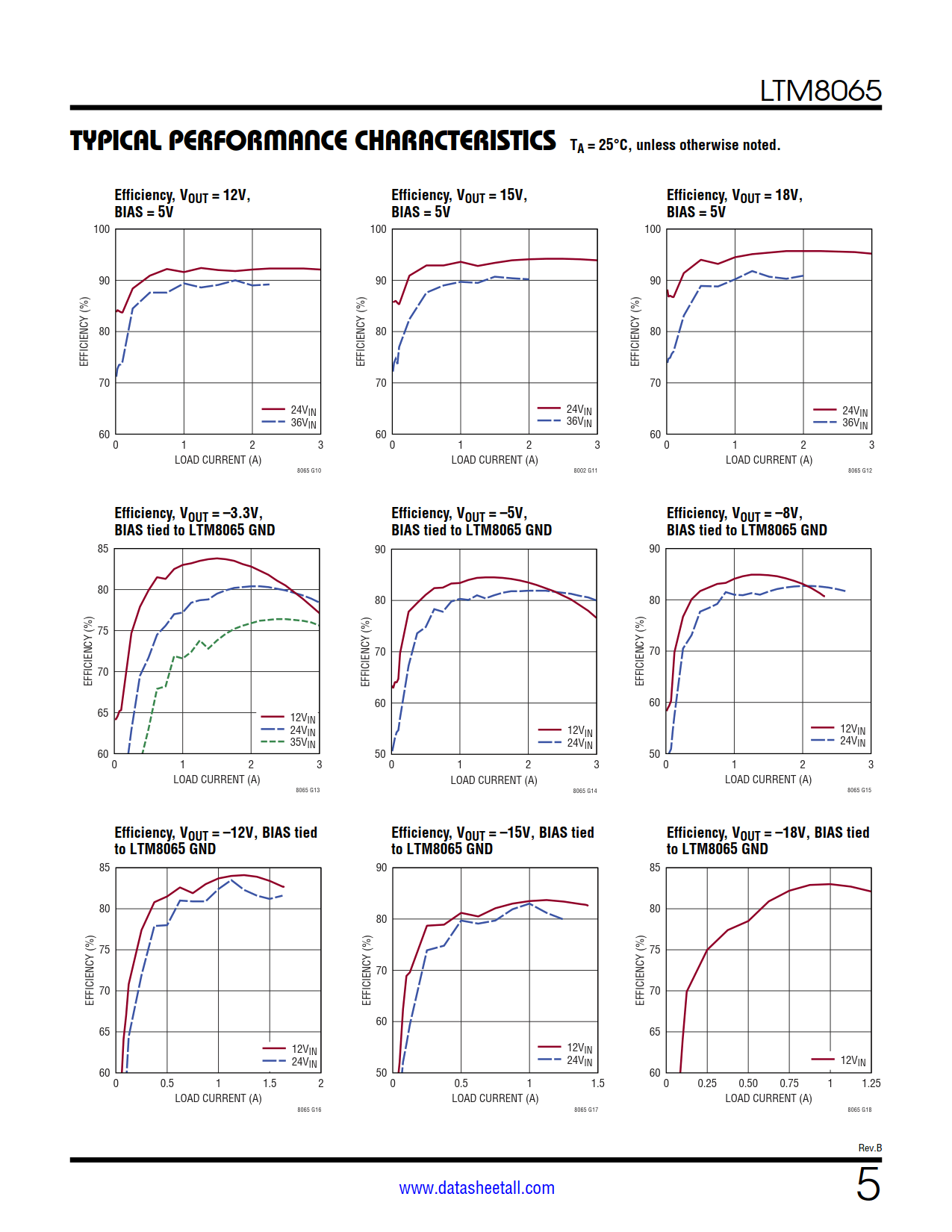

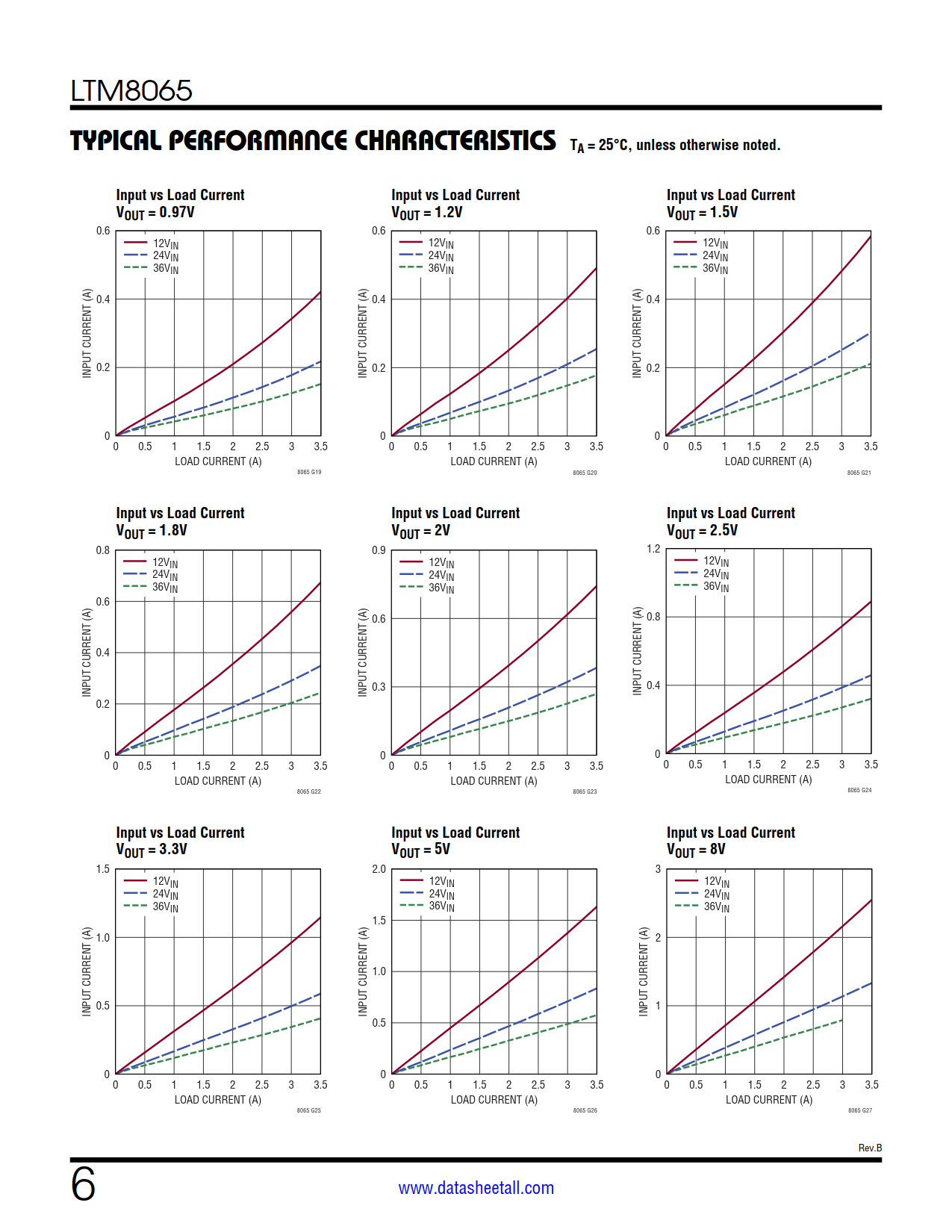

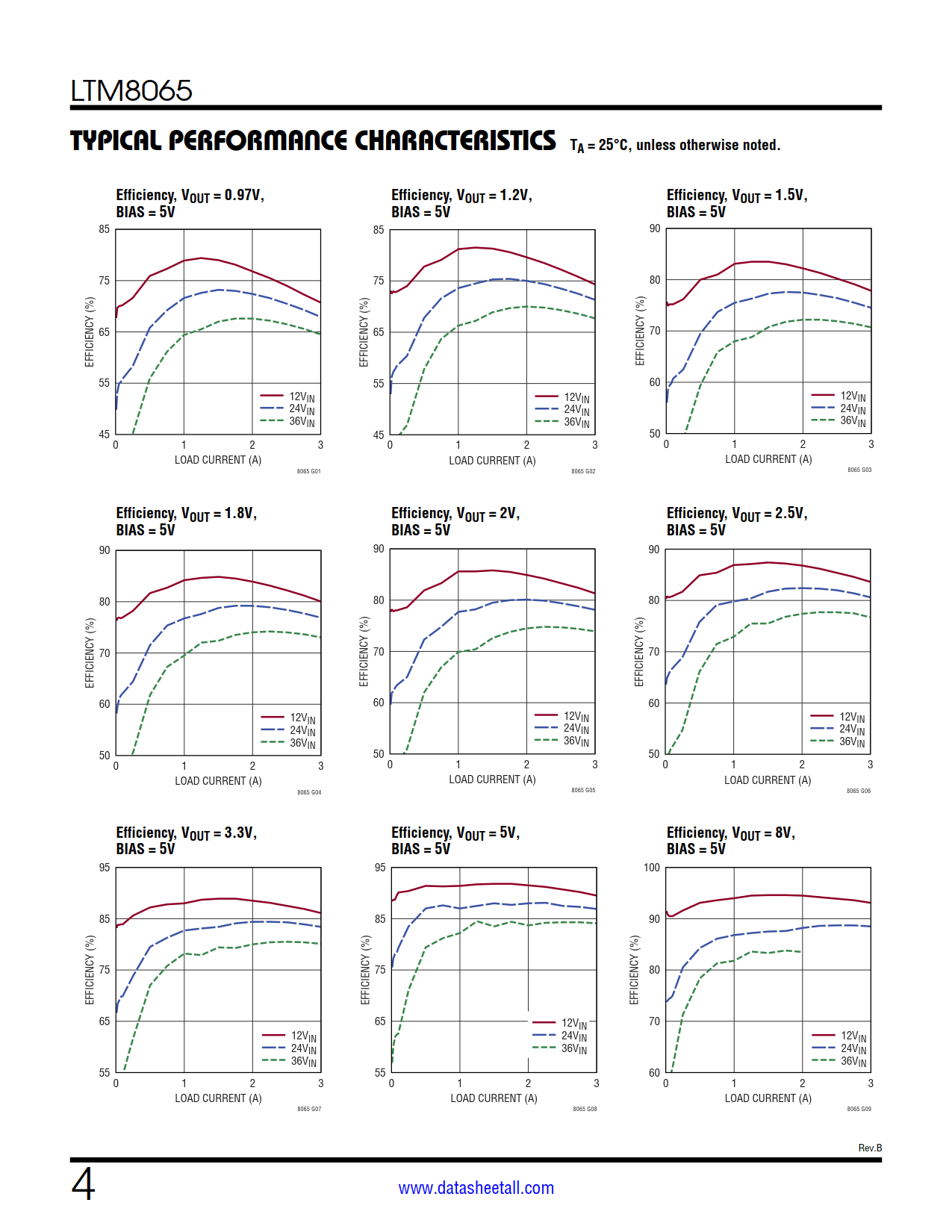

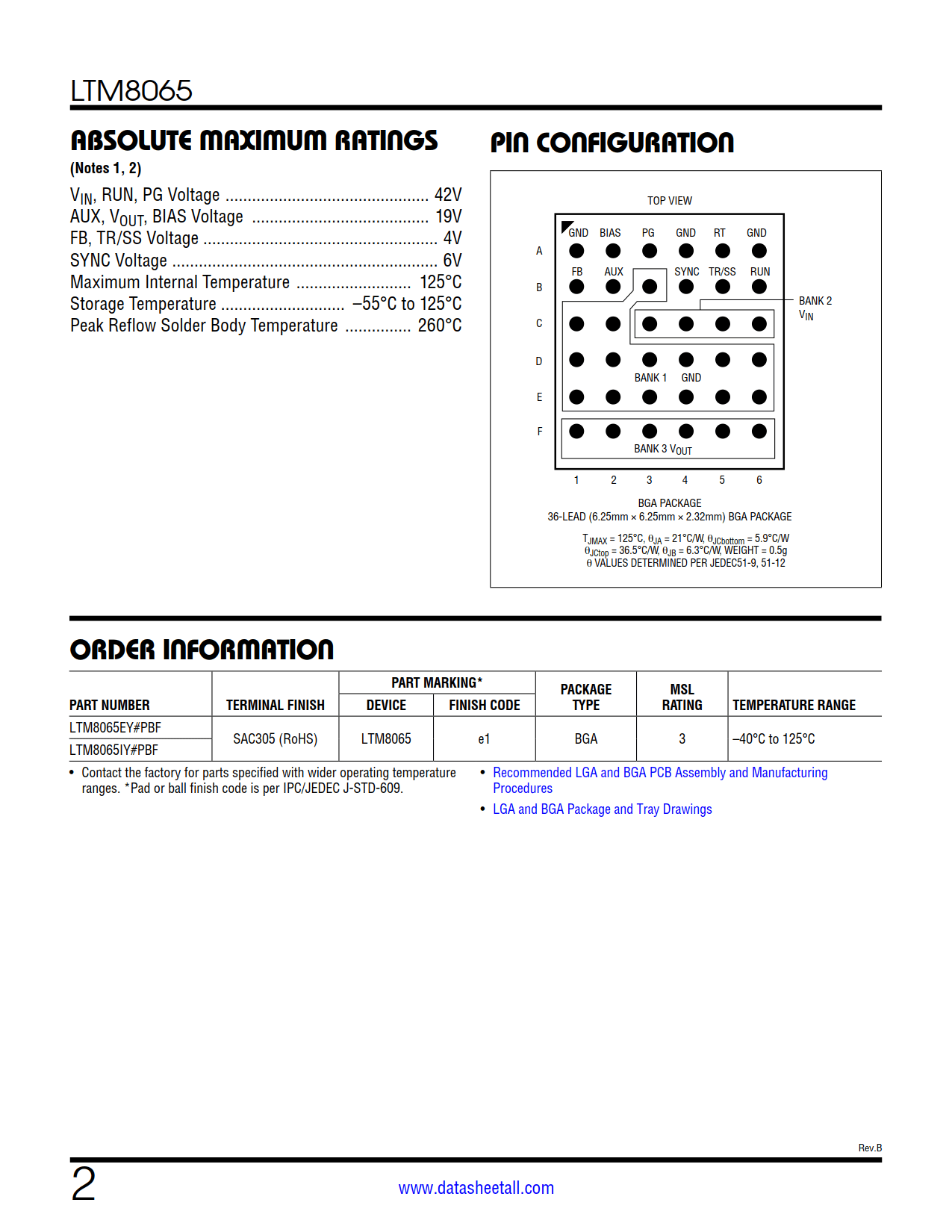

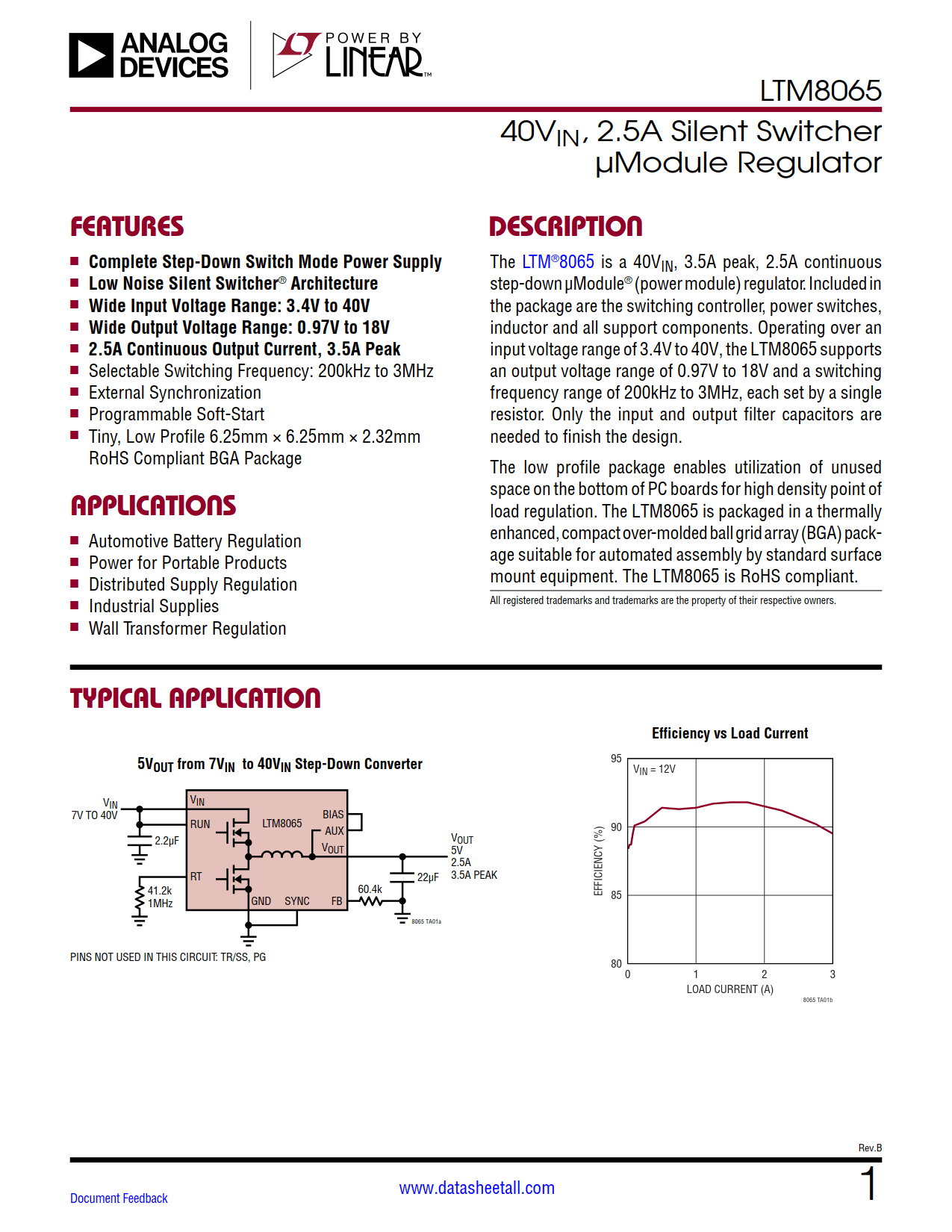

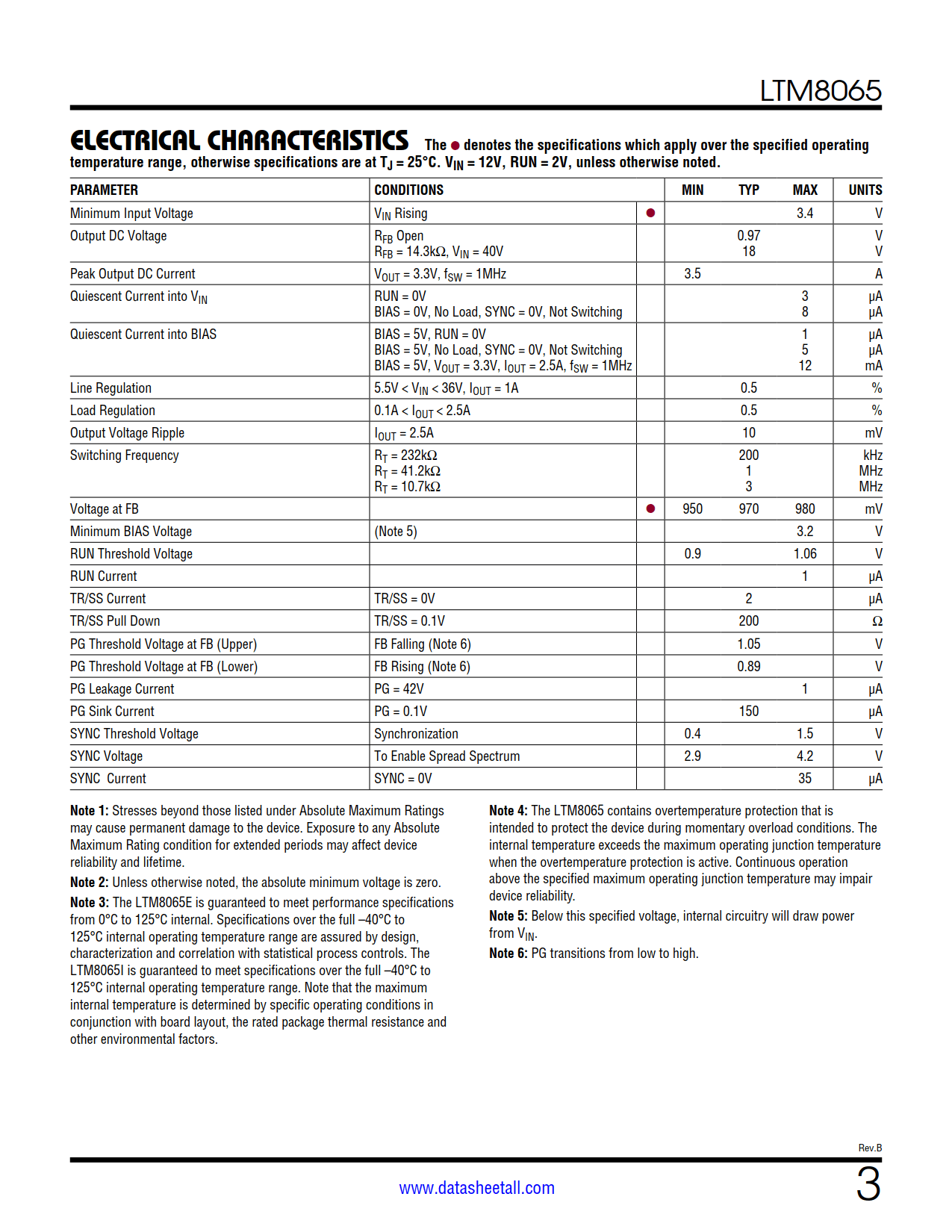

LTM8065 Datasheet(Picture)

LTM8065 Features

  • Complete Step-Down Switch Mode Power Supply
  • Low Noise Silent Switcher® Architecture
  • Wide Input Voltage Range: 3.4V to 40V
  • Wide Output Voltage Range: 0.97V to 18V
  • 2.5A Continuous Output Current, 3.5A Peak
  • Selectable Switching Frequency: 200kHz to 3MHz
  • External Synchronization
  • Programmable Soft-Start
  • Tiny, Low Profile 6.25mm × 6.25mm × 2.32mm RoHS Compliant BGA Package

LTM8065 Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation

LTM8065 Description

The LTM8065 is a 40VIN, 3.5A peak, 2.5A continuous step-down µModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.4V to 40V, the LTM8065 supports an output voltage range of 0.97V to 18V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8065 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8065 is RoHS compliant.
