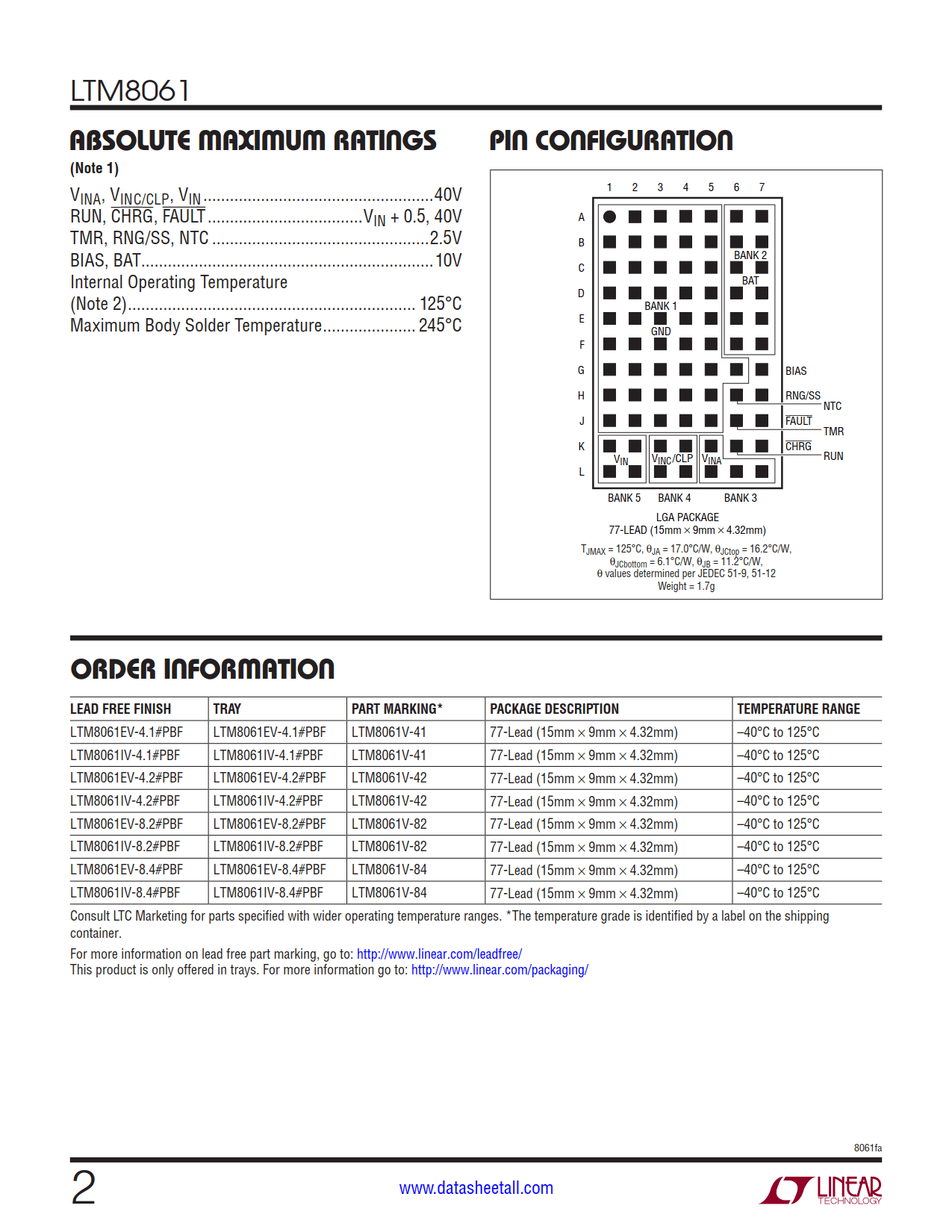

| Part No.： | LTM8061 |
| Page： | 22 Pages |
| Size： | 375 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-08 15:07:46 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM8061EV-4.1#PBF | Tray | 170 | LTM8061V-41 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061IV-4.1#PBF | Tray | 170 | LTM8061V-41 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061EV-4.2#PBF | Tray | 170 | LTM8061V-42 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061IV-4.2#PBF | Tray | 170 | LTM8061V-42 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061EV-8.2#PBF | Tray | 170 | LTM8061V-82 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061IV-8.2#PBF | Tray | 170 | LTM8061V-82 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061EV-8.4#PBF | Tray | 170 | LTM8061V-84 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) | |
| LTM8061IV-8.4#PBF | Tray | 170 | LTM8061V-84 | 3 | 77 | -40°C ~ 125°C | 77-Lead (15mm × 9mm × 4.32mm) |

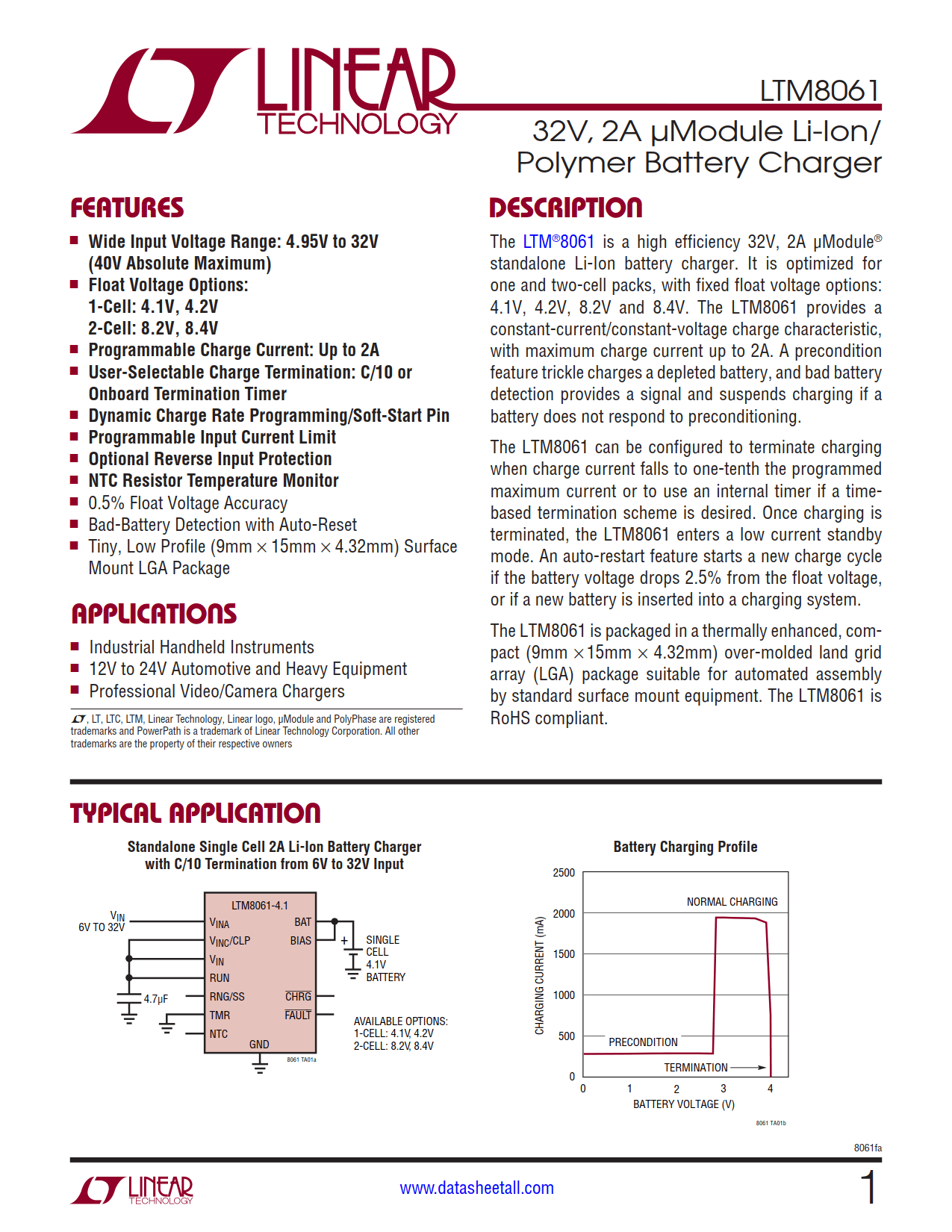

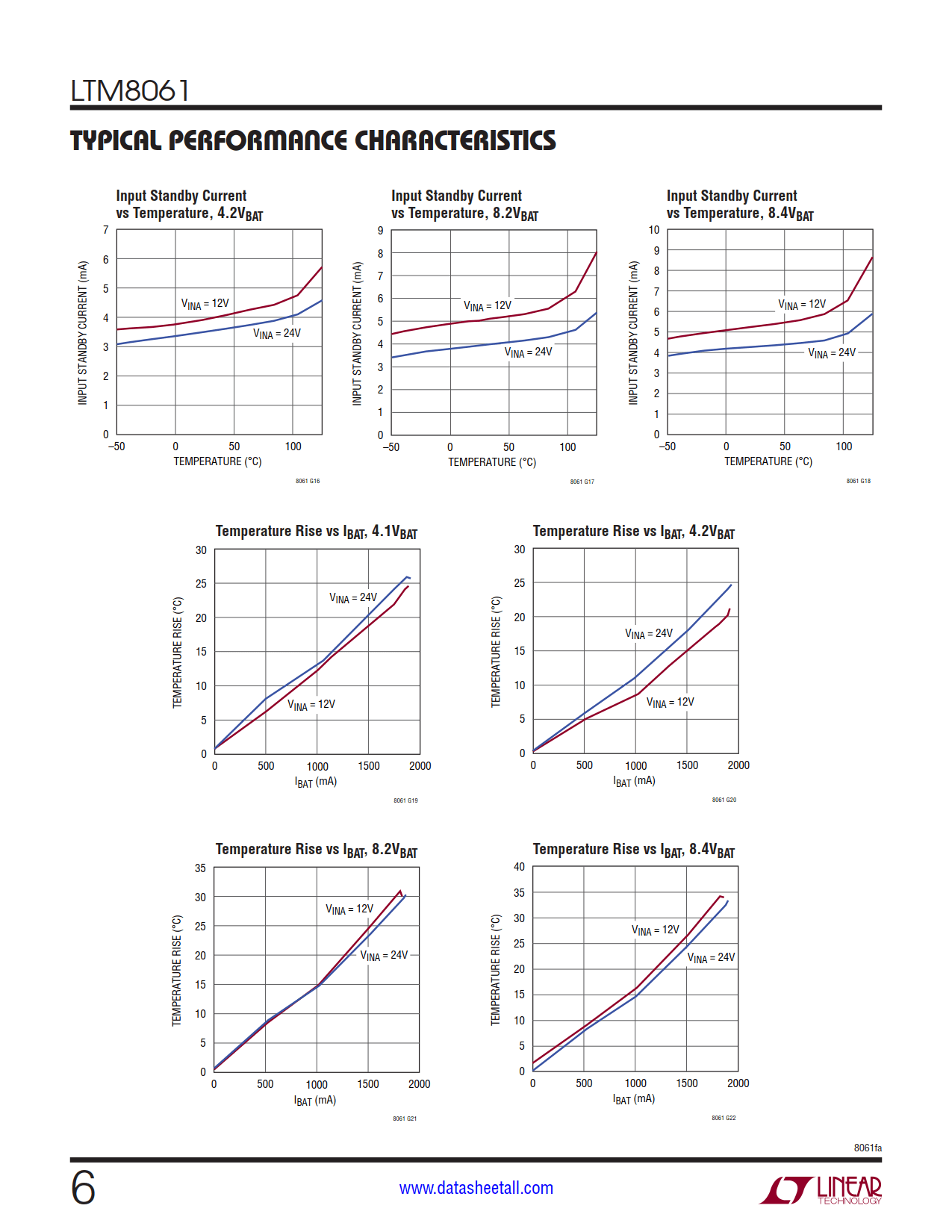

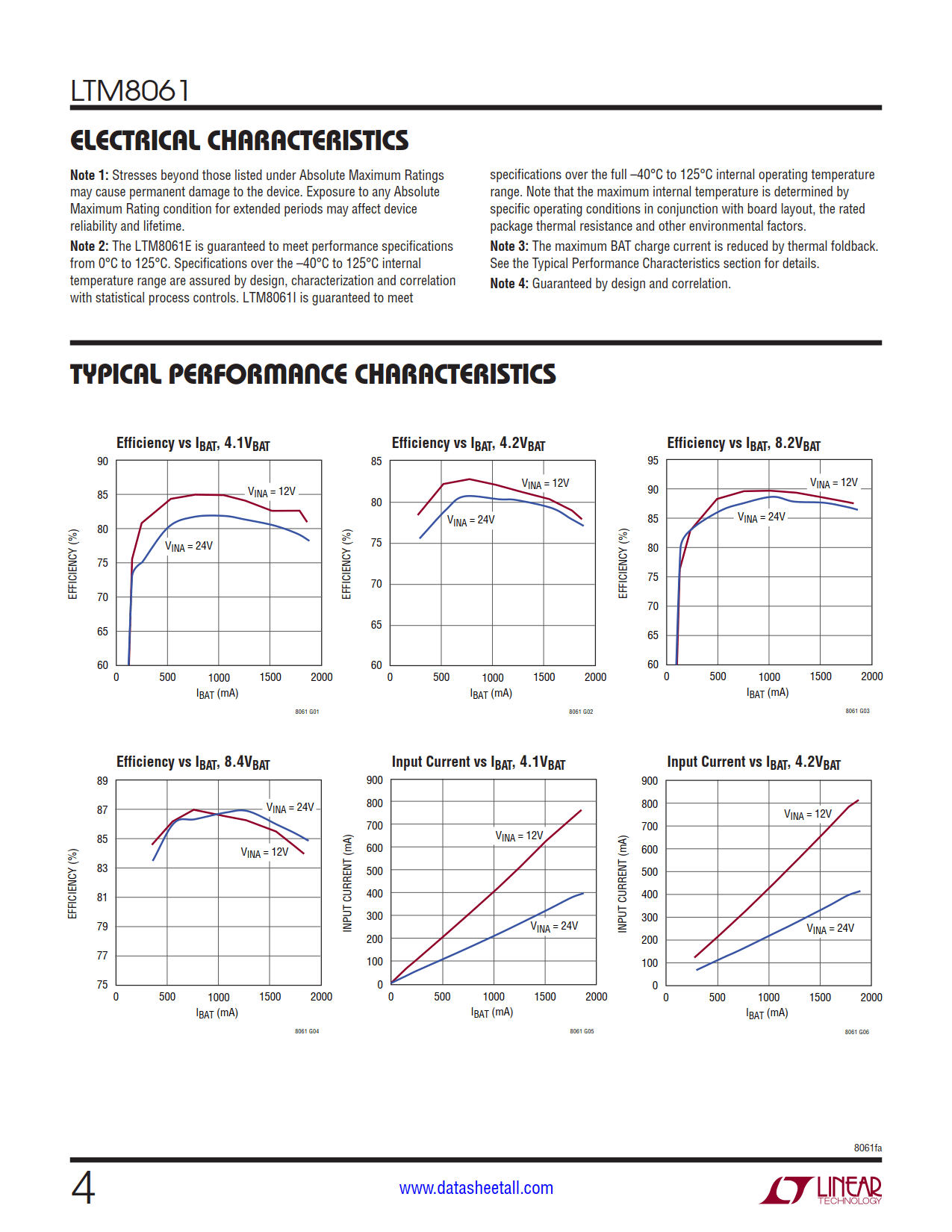

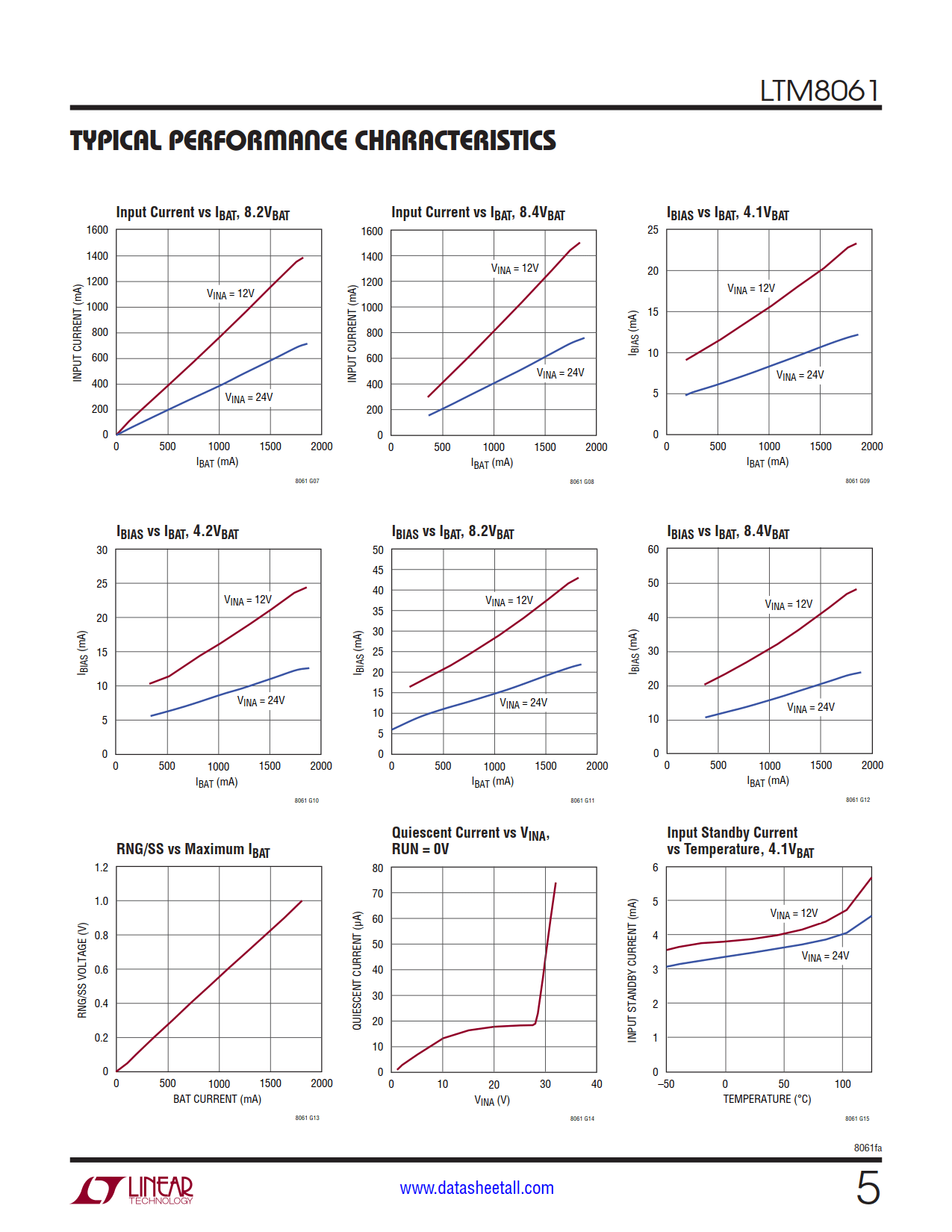

The LTM8061 is a high efficiency 32V, 2A μModule® (power module) standalone Li-Ion battery charger. It is optimized for one and two-cell packs, with fixed float voltage options: 4.1V, 4.2V, 8.2V and 8.4V. The LTM8061 provides a constant-current/constant-voltage charge characteristic, with maximum charge current up to 2A. A precondition feature trickle charges a depleted battery, and bad battery detection provides a signal and suspends charging if a battery does not respond to preconditioning.
The LTM8061 can be configured to terminate charging when charge current falls to one-tenth the programmed maximum current or to use an internal timer if a timebased termination scheme is desired. Once charging is terminated, the LTM8061 enters a low current standby mode. An auto-restart feature starts a new charge cycle if the battery voltage drops 2.5% from the float voltage, or if a new battery is inserted into a charging system.
The LTM8061 is packaged in a thermally enhanced, compact (9mm × 15mm × 4.32mm) over-molded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8061 is RoHS compliant.
