LTM8060 Datasheet

LTM8060 Datasheet

Quad 40VIN, Silent Switcher μModule Regulator with Configurable 3A Output Array
Part No.: LTM8060
Page: 30 Pages
Size: 4259 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 16:16:32
DataSheet: Download

LTM8060 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8060EY#PBF Tray 112 LTM8060Y 4 165 -40°C ~ 125°C 165-Lead (16mm × 11.9mm × 3.32mm)
LTM8060IY#PBF Tray 112 LTM8060Y 4 165 -40°C ~ 125°C 165-Lead (16mm × 11.9mm × 3.32mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8060 Datasheet(PDF)

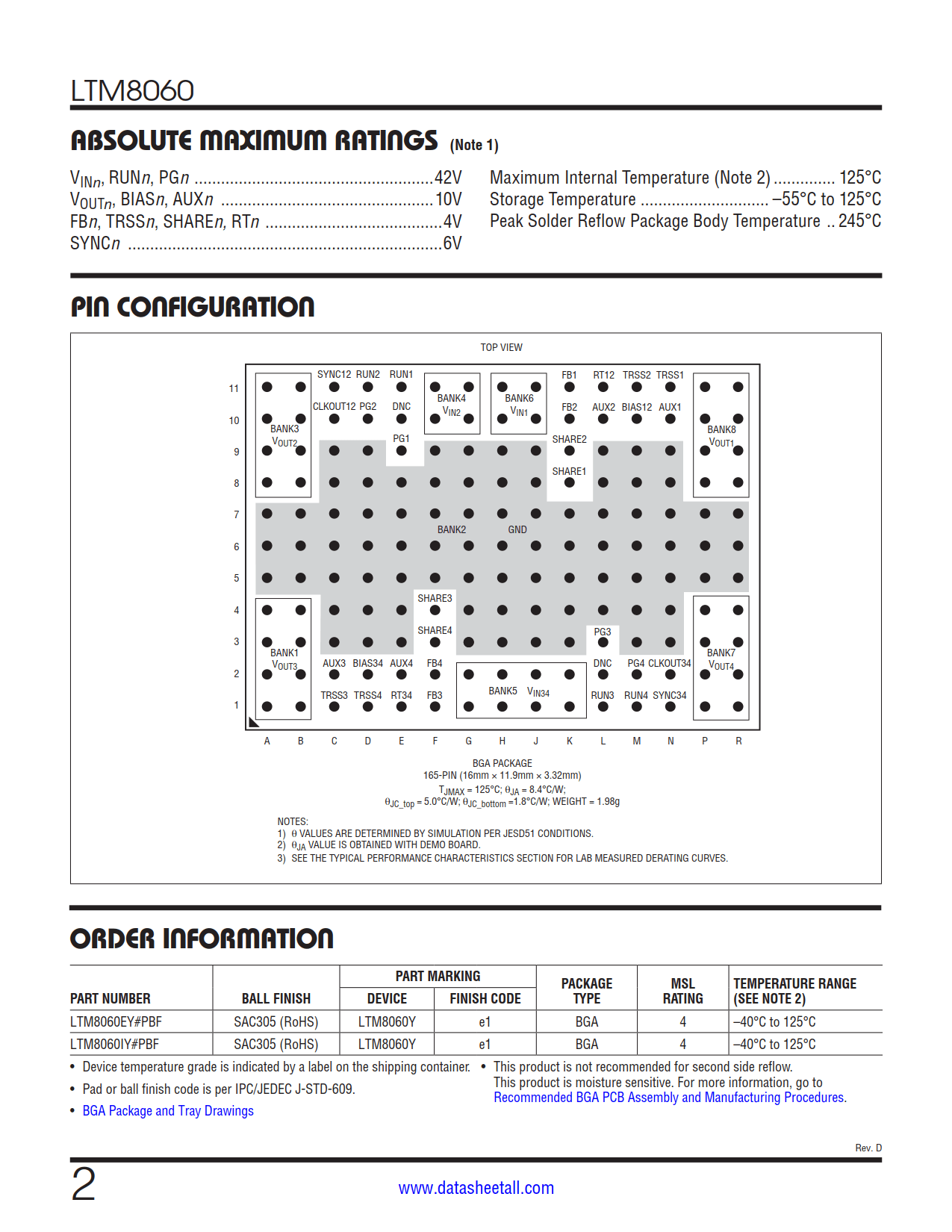

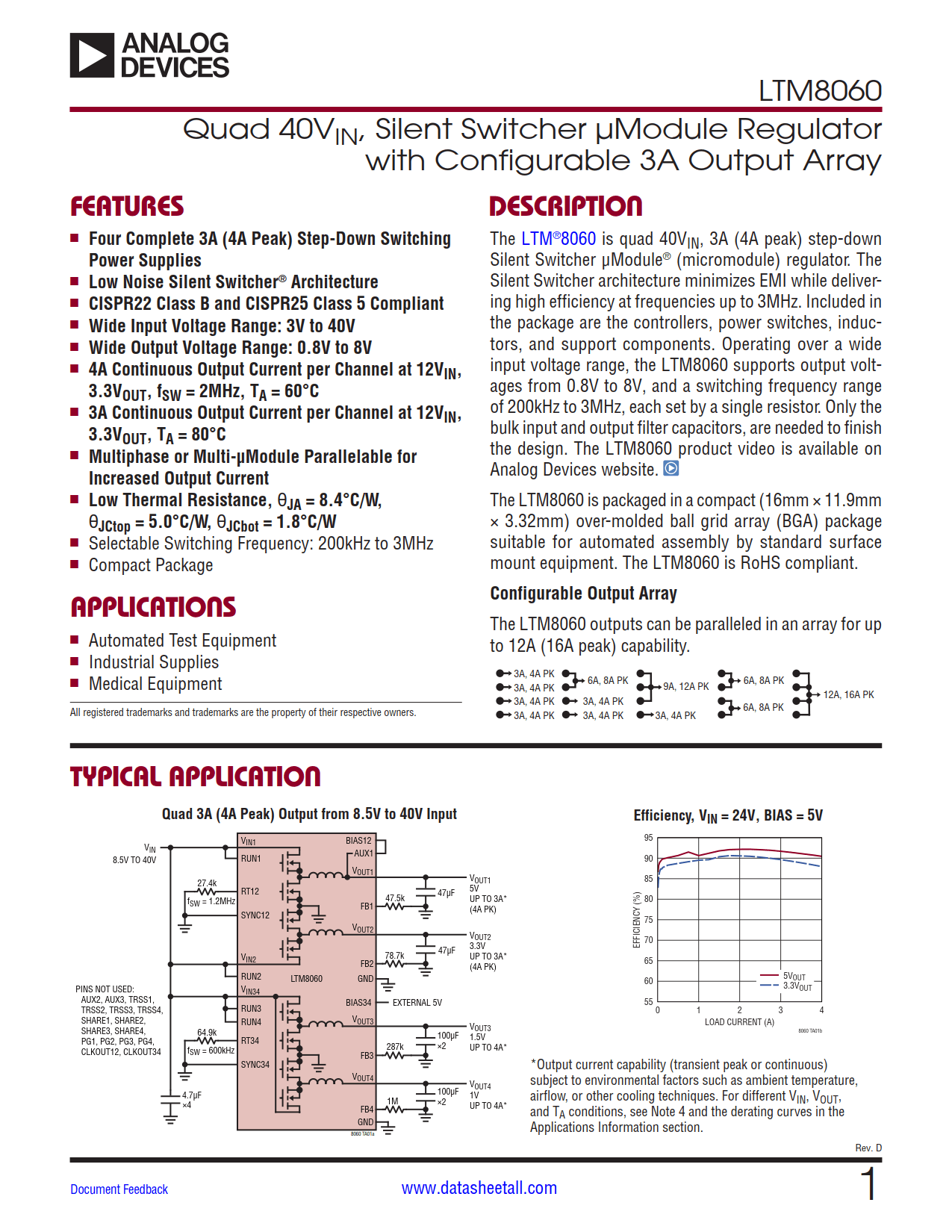

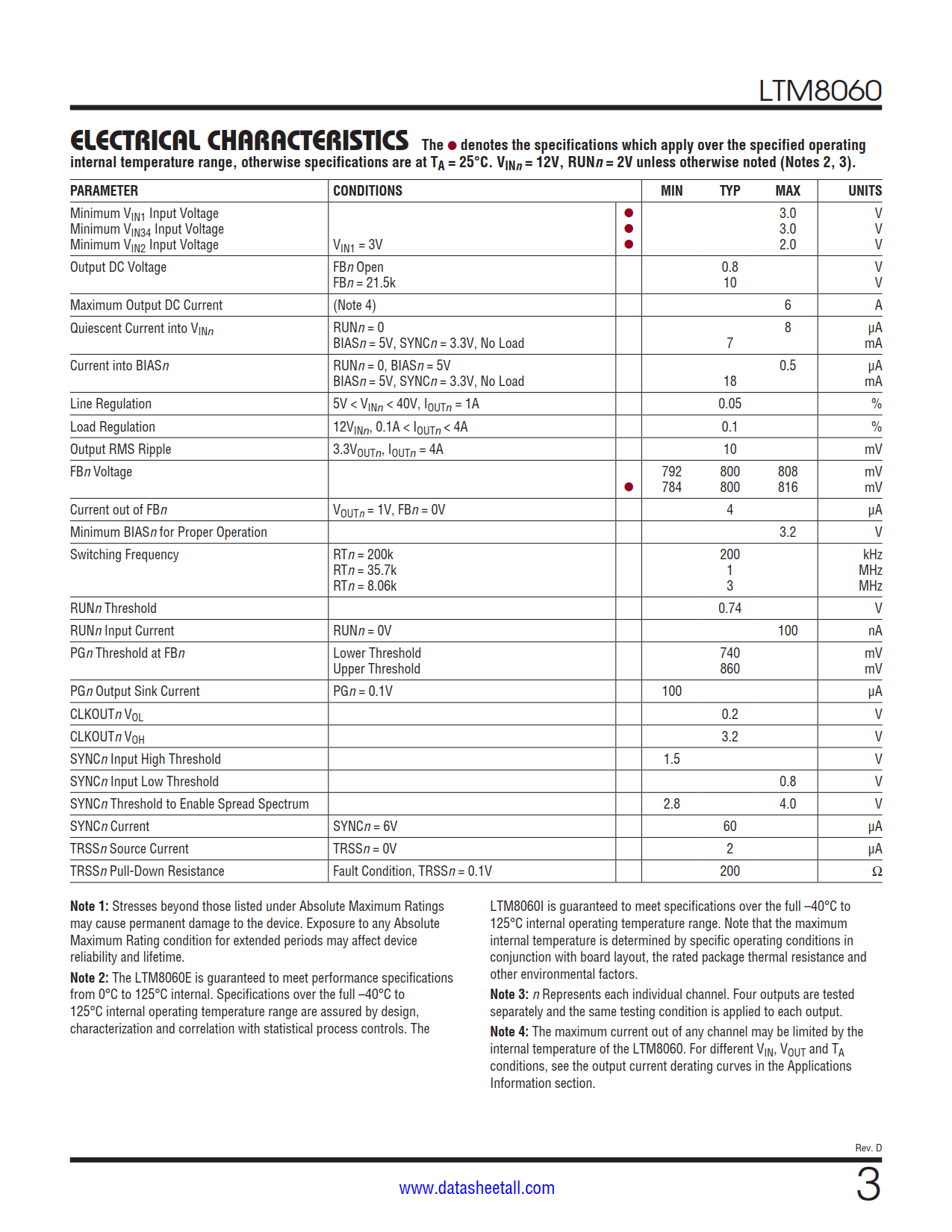

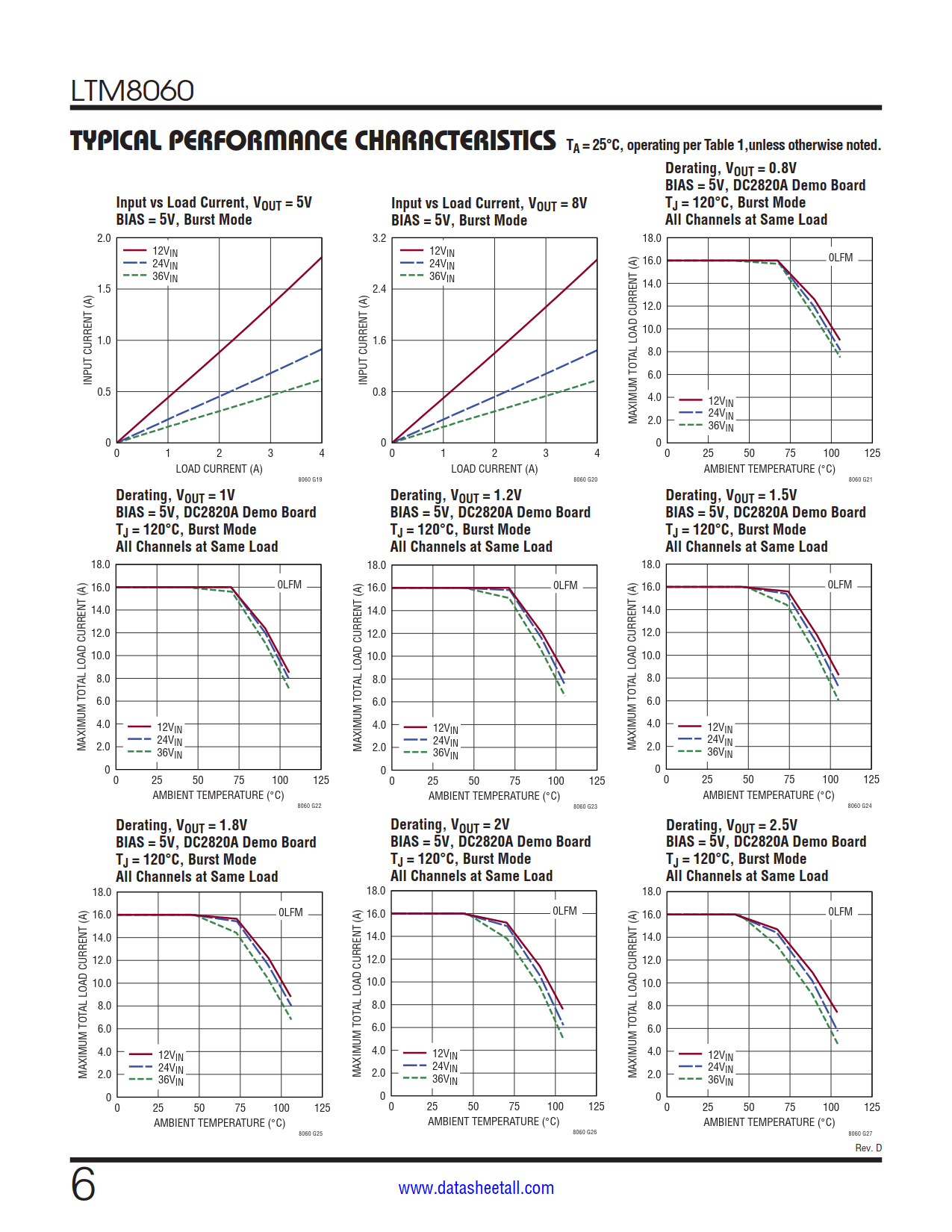

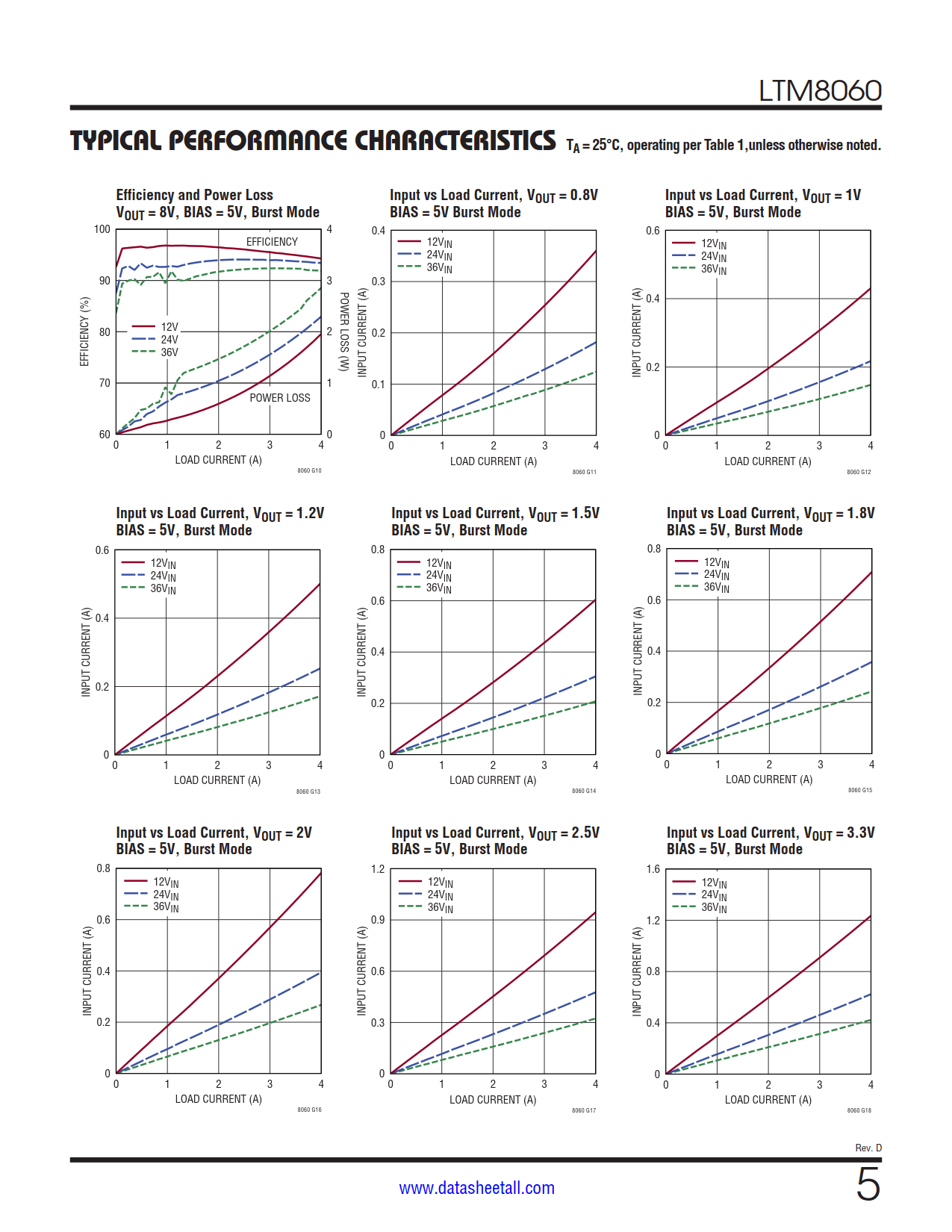

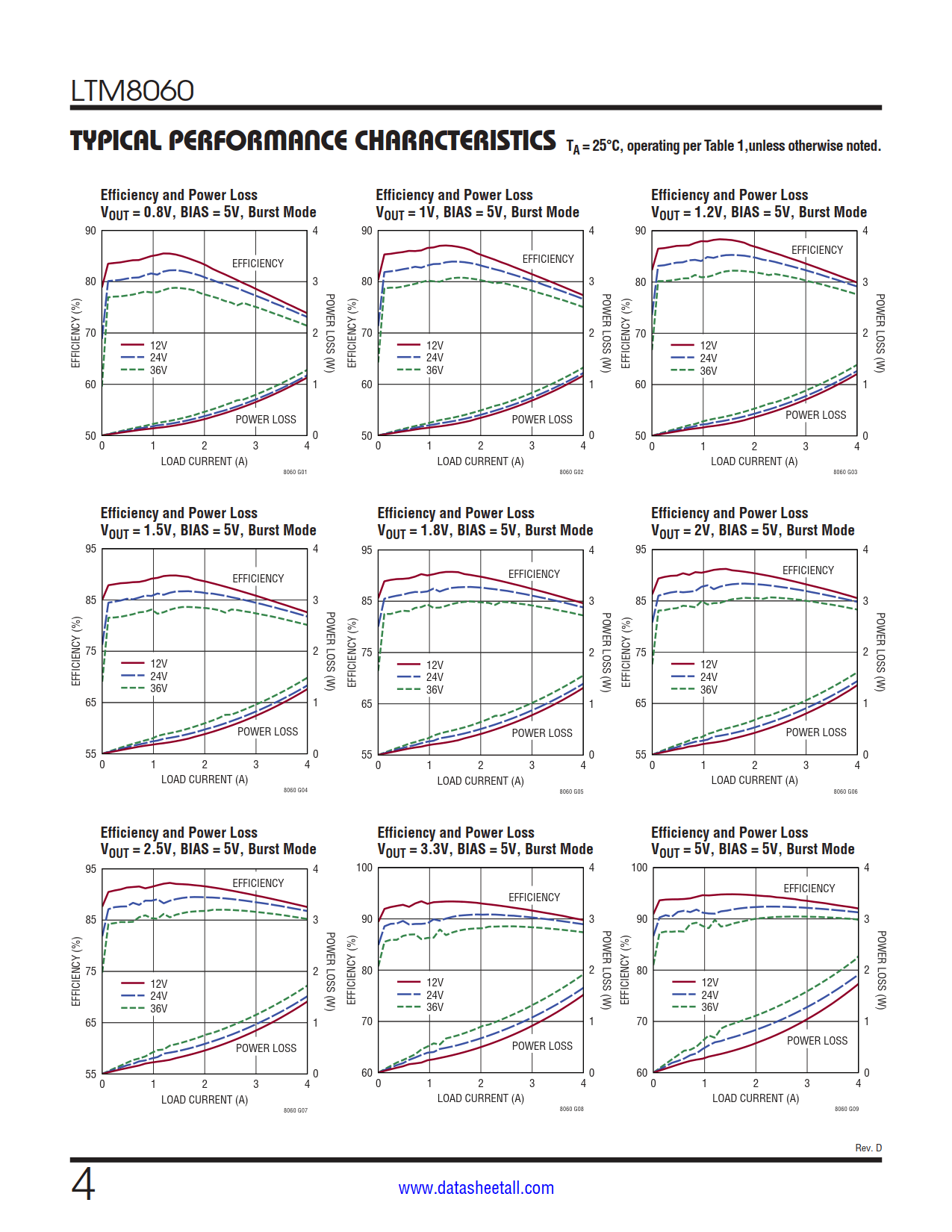

LTM8060 Datasheet(Picture)

LTM8060 Features

  • Four Complete Step-Down Switching Power Supplies
  • Low Noise Silent Switcher® Architecture
  • CISPR22 Class B and CISPR25 Class 5 Compliant
  • Wide Input Voltage Range: 3V to 40V
  • Wide Output Voltage Range: 0.8V to 8V
  • 3A Continuous Output Current per Channel at 12VIN, 3.3VOUT, TA = 80°C
  • 4A Continuous Output Current per Channel at 12VIN, 3.3VOUT, fSW = 2MHz, TA = 60°C
  • Multiphase or Multi-μModule Parallelable for Increased Output Current
  • Low Thermal Resistance, θJA = 8.4°C/W, θJCtop = 5.0°C/W, θJCbot = 1.8°C/W
  • Selectable Switching Frequency: 200kHz to 3MHz
  • Compact Package

LTM8060 Applications

  • Automated Test Equipment
  • Industrial Supplies
  • Medical Equipment

LTM8060 Description

The LTM8060 is quad 40VIN, 3A step-down Silent Switcher μModule® regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8060 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors, are needed to finish the design. The LTM8060 product video is available on website.

The LTM8060 is packaged in a compact (11.9mm × 16mm × 3.32mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8060 is RoHS compliant.

Configurable Output Array

The LTM8060 outputs can be paralleled in an array for up to 12A capability.
