LTM8056 Datasheet

LTM8056 Datasheet

58VIN, 48VOUT Buck-Boost μModule (Power Module) Regulator
Part No.: LTM8056
Page: 28 Pages
Size: 1619 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-22 11:27:54
DataSheet: Download

LTM8056 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8056EY#PBF Tray 119 LTM8056Y 3 121 -40°C ~125°C 121-Lead BGA (15mm x 15mm x 4.92mm)
LTM8056IY#PBF Tray 119 LTM8056Y 3 121 -40°C ~125°C 121-Lead BGA (15mm x 15mm x 4.92mm)
LTM8056IY Tray 119 LTM8056Y 3 121 -40°C ~125°C 121-Lead BGA (15mm x 15mm x 4.92mm)
LTM8056MPY#PBF Tray 119 LTM8056Y 3 121 -55°C ~125°C 121-Lead BGA (15mm x 15mm x 4.92mm)
LTM8056MPY Tray 119 LTM8056Y 3 121 -55°C ~125°C 121-Lead BGA (15mm x 15mm x 4.92mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8056 Datasheet(PDF)

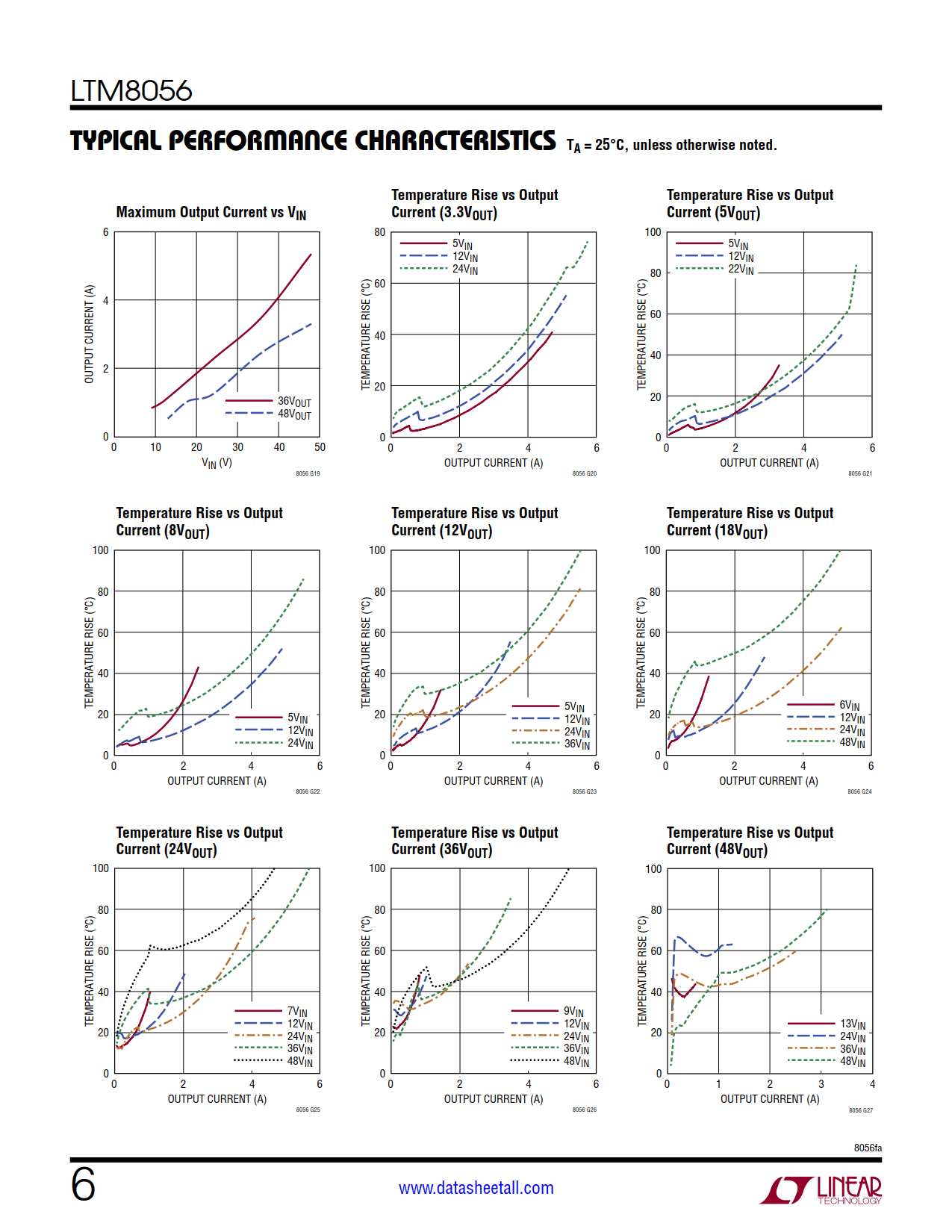

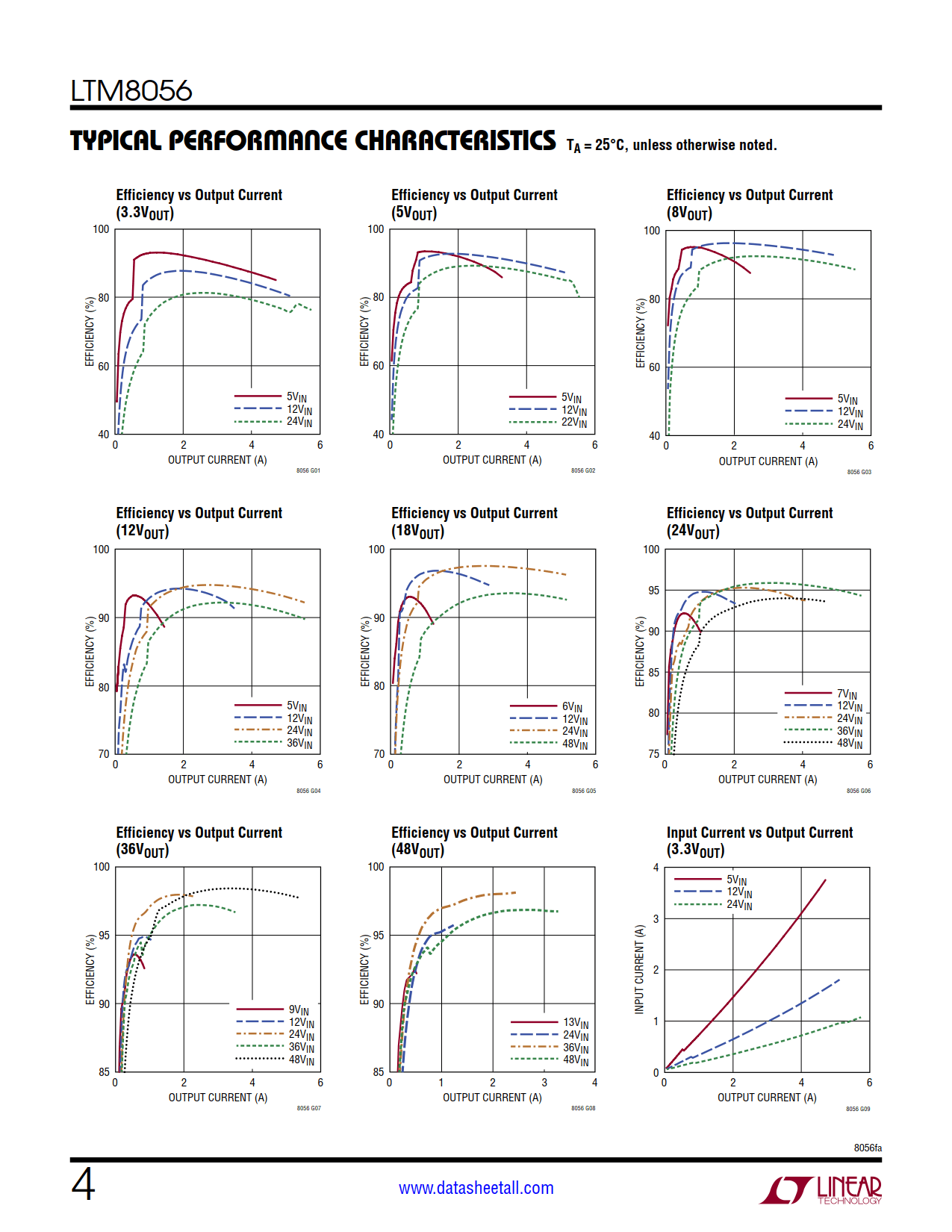

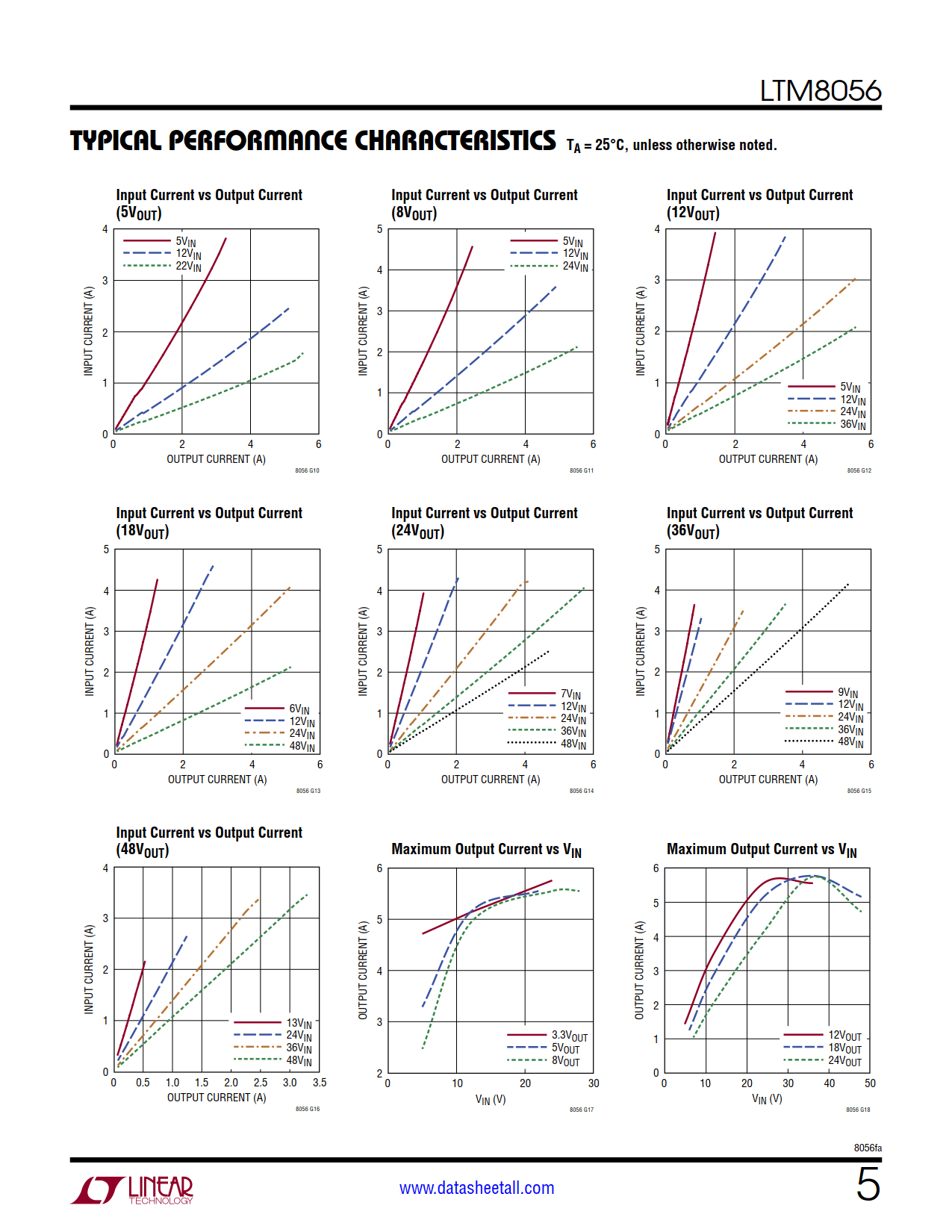

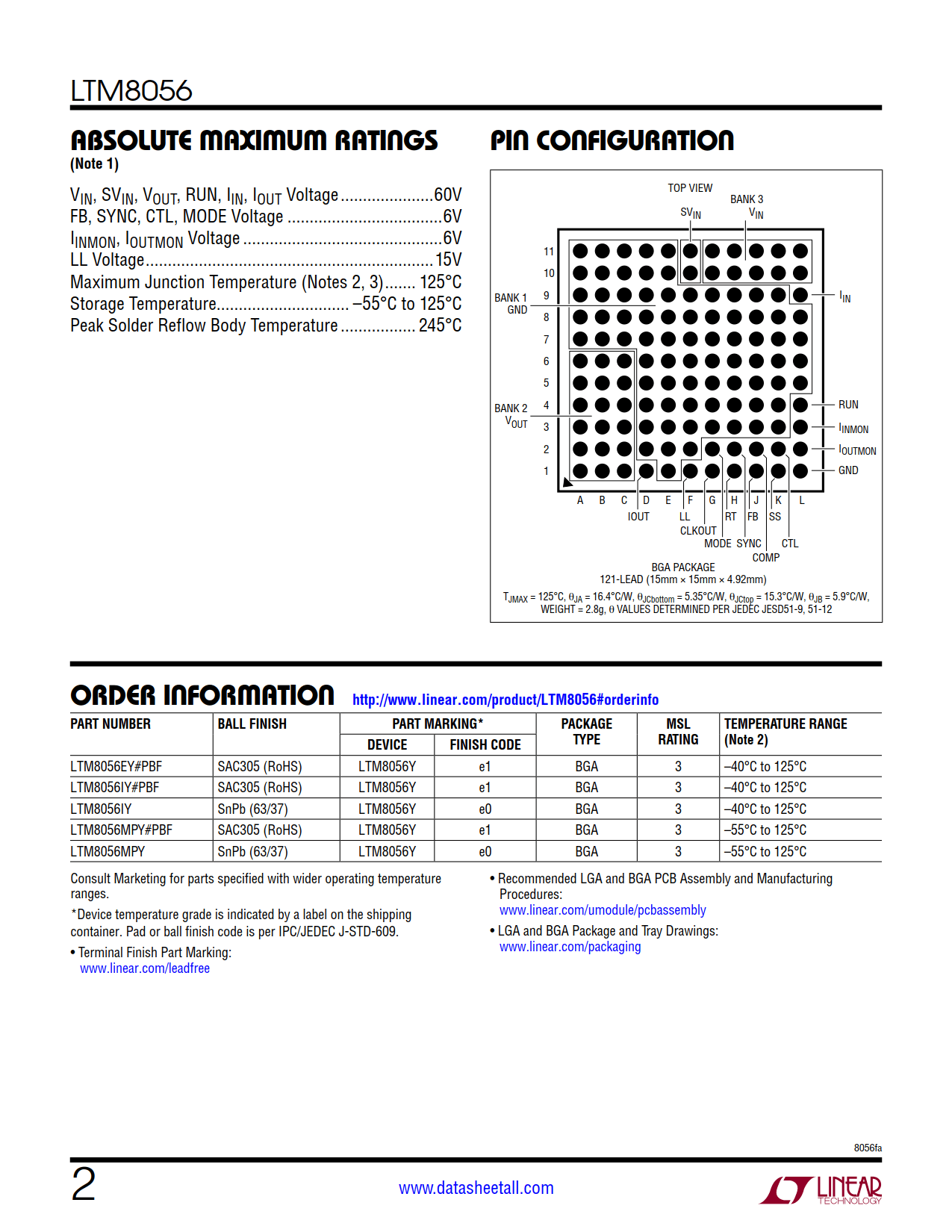

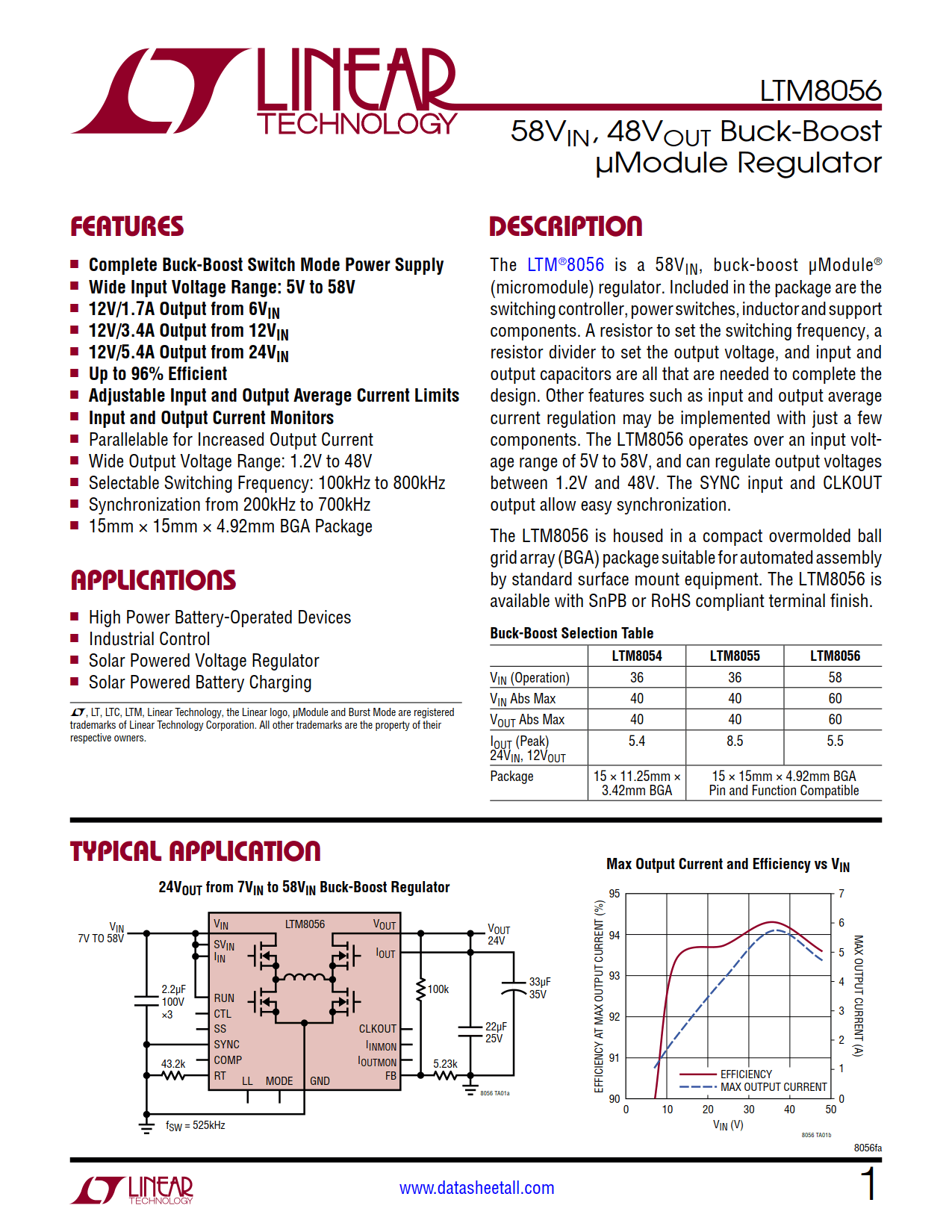

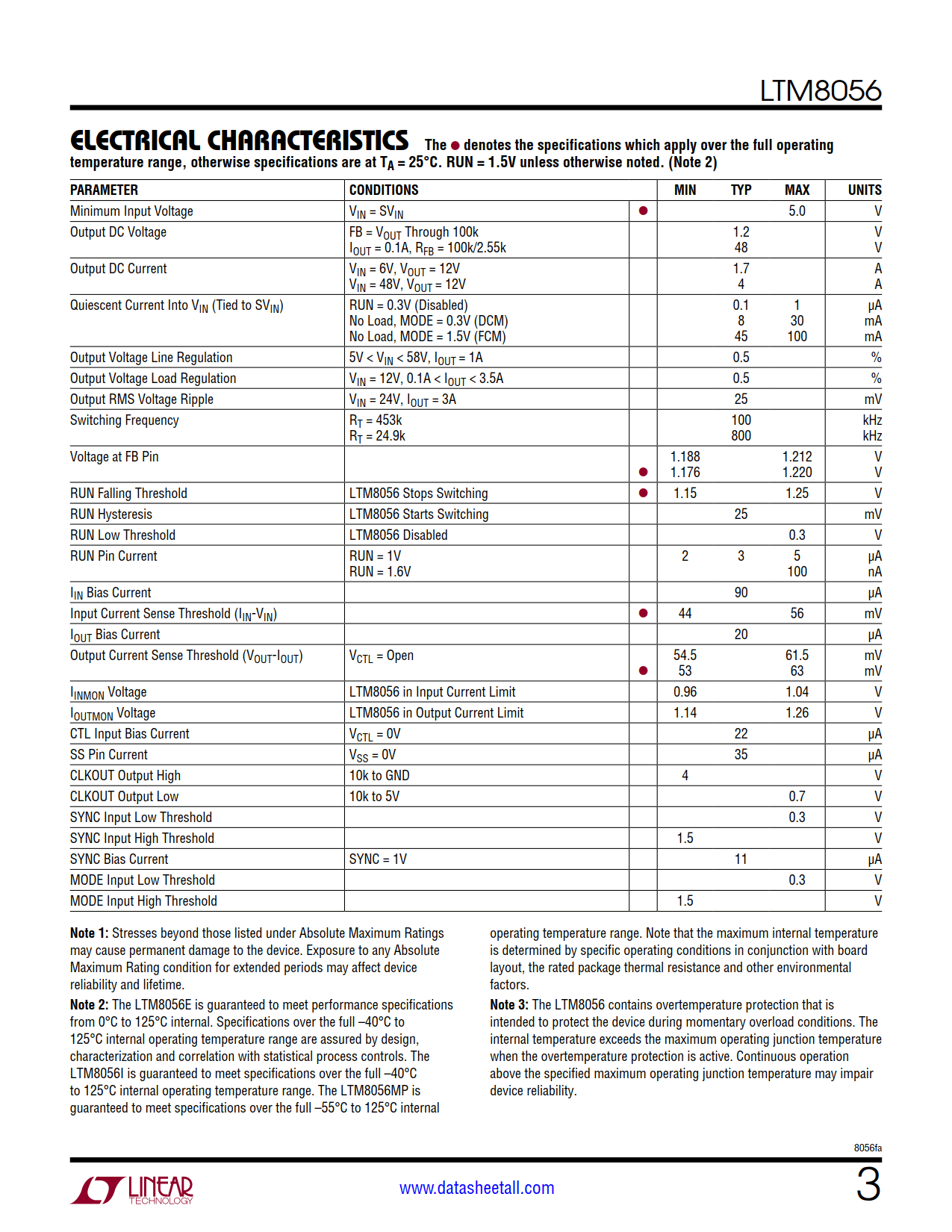

LTM8056 Datasheet(Picture)

LTM8056 Features

  • Complete Buck-Boost Switch Mode Power Supply
  • Wide Input Voltage Range: 5V to 58V
  • 12V/1.7A Output from 6VIN
  • 12V/3.4A Output from 12VIN
  • 12V/5.4A Output from 24VIN
  • Up to 96% Efficient
  • Adjustable Input and Output Average Current Limits
  • Input and Output Current Monitors
  • Parallelable for Increased Output Current
  • Wide Output Voltage Range: 1.2V to 48V
  • Selectable Switching Frequency: 100kHz to 800kHz
  • Synchronization from 200kHz to 700kHz
  • 15mm × 15mm × 4.92mm BGA Package

LTM8056 Applications

  • High Power Battery-Operated Devices
  • Industrial Control
  • Solar Powered Voltage Regulator
  • Solar Powered Battery Charging

LTM8056 Description

The LTM8056 is a 58VIN, buck-boost Power Module® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8056 operates over an input voltage range of 5V to 58V, and can regulate output voltages between 1.2V and 48V. The SYNC input and CLKOUT output allow easy synchronization.

The LTM8056 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8056 is available with SnPB or RoHS compliant terminal finish.
