LTM8052 Datasheet

LTM8052 Datasheet

36VIN, 5A, 2-Quadrant CVCC Step-Down μModule Regulator
Part No.: LTM8052
Page: 32 Pages
Size: 645 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-25 14:00:00
DataSheet: Download

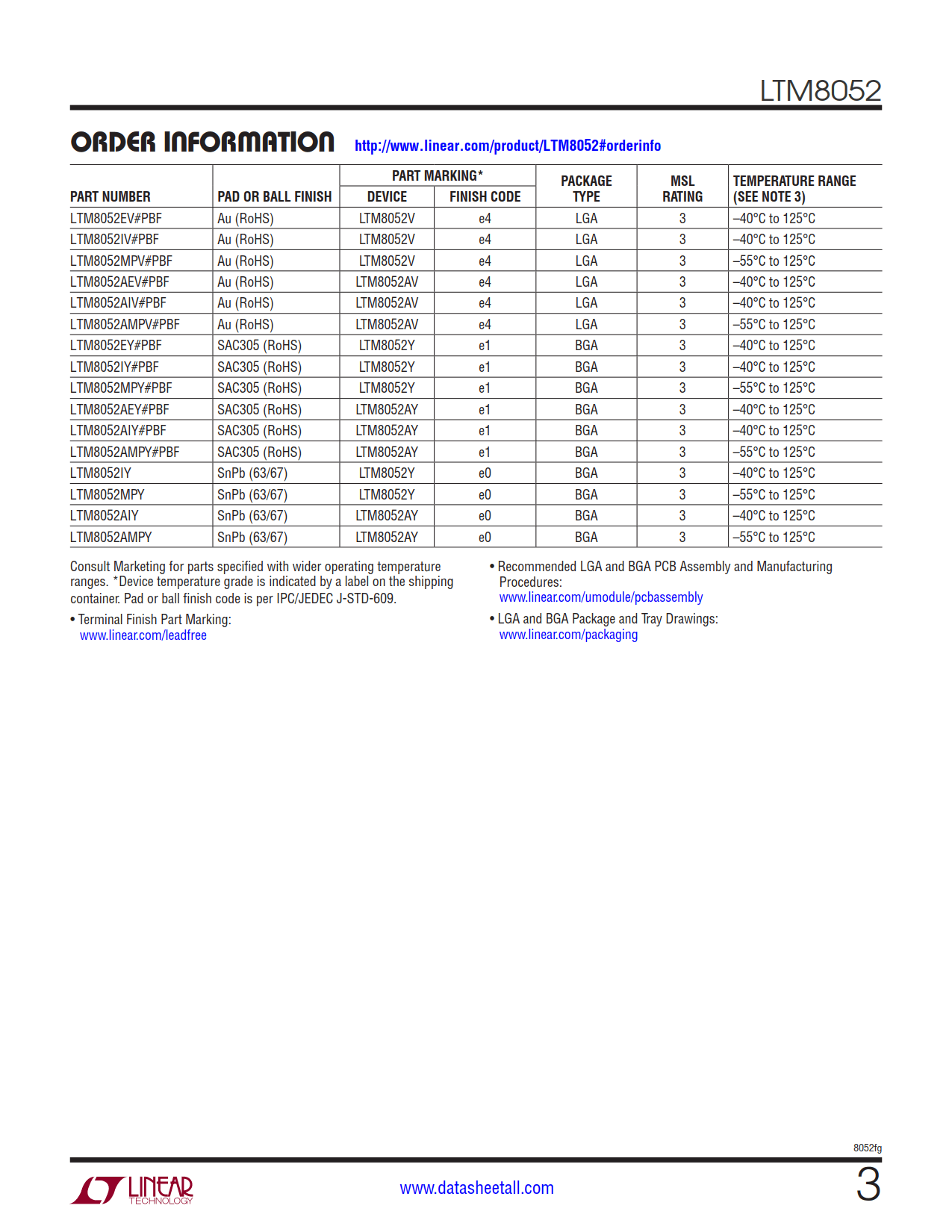

LTM8052 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8052EV#PBF Tray 119 LTM8052V 3 81 -40°C ~125°C 81-Lead LGA (15mm x 11.25mm x 2.82mm)
LTM8052IV#PBF Tray 119 LTM8052V 3 81 -40°C ~125°C 81-Lead LGA (15mm x 11.25mm x 2.82mm)
LTM8052MPV#PBF Tray 119 LTM8052V 3 81 -55°C ~125°C 81-Lead LGA (15mm x 11.25mm x 2.82mm)
LTM8052EY#PBF Tray 119 LTM8052Y 3 81 -40°C ~125°C 81-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM8052IY#PBF Tray 119 LTM8052Y 3 81 -40°C ~125°C 81-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM8052IY Tray 119 LTM8052Y 3 81 -40°C ~125°C 81-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM8052MPY#PBF Tray 119 LTM8052Y 3 81 -55°C ~125°C 81-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM8052MPY Tray 119 LTM8052Y 3 81 -55°C ~125°C 81-Lead BGA (15mm x 11.25mm x 3.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8052 Datasheet(PDF)

LTM8052 Datasheet(Picture)

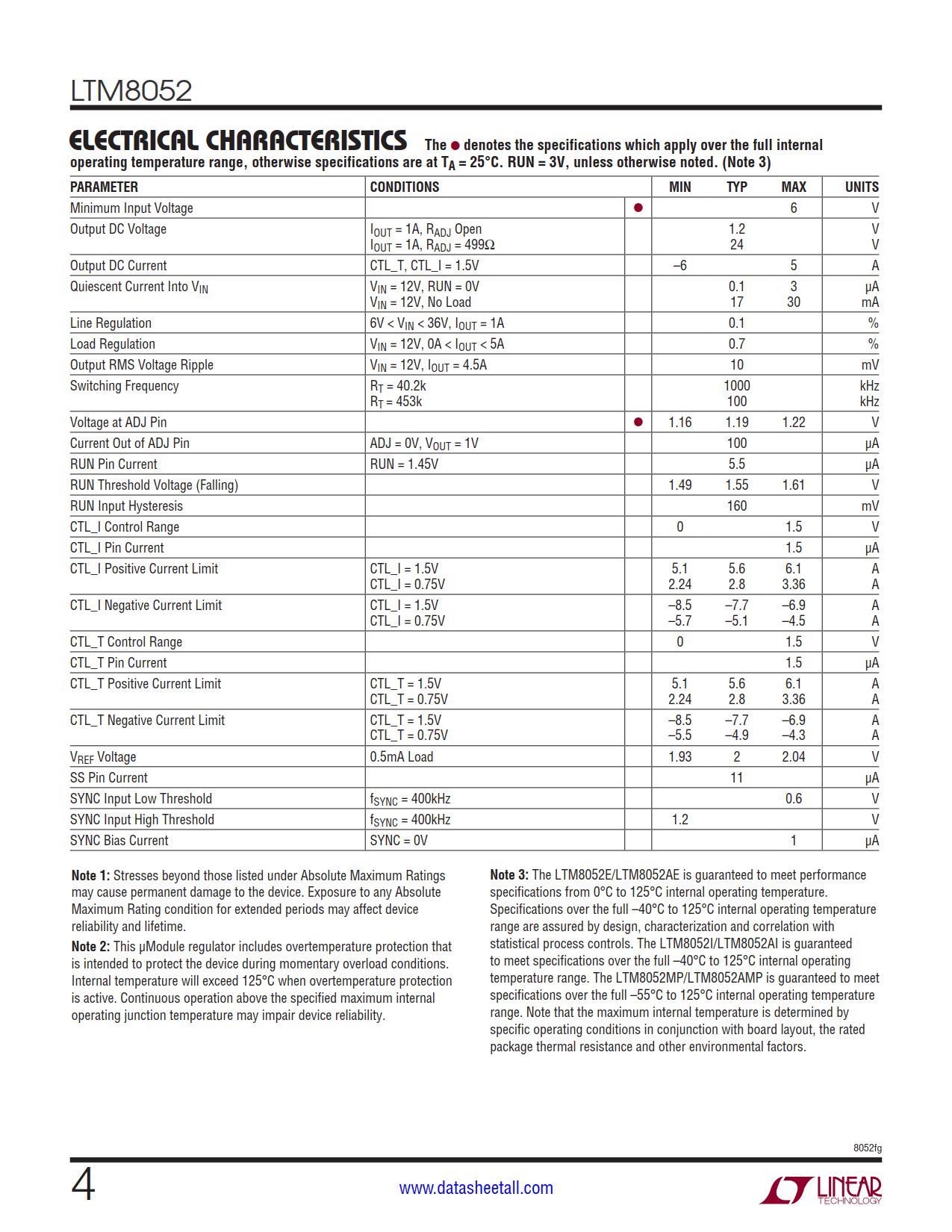

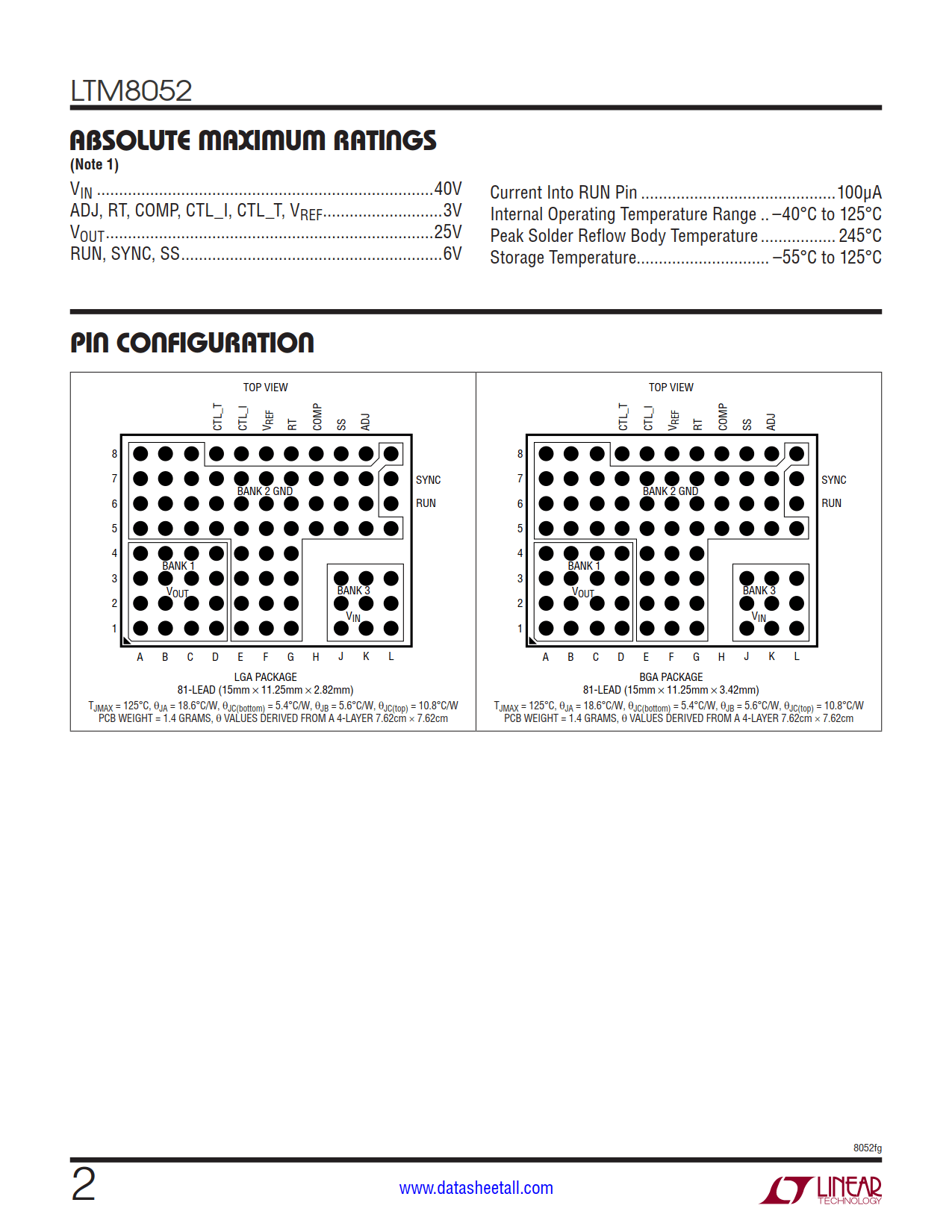

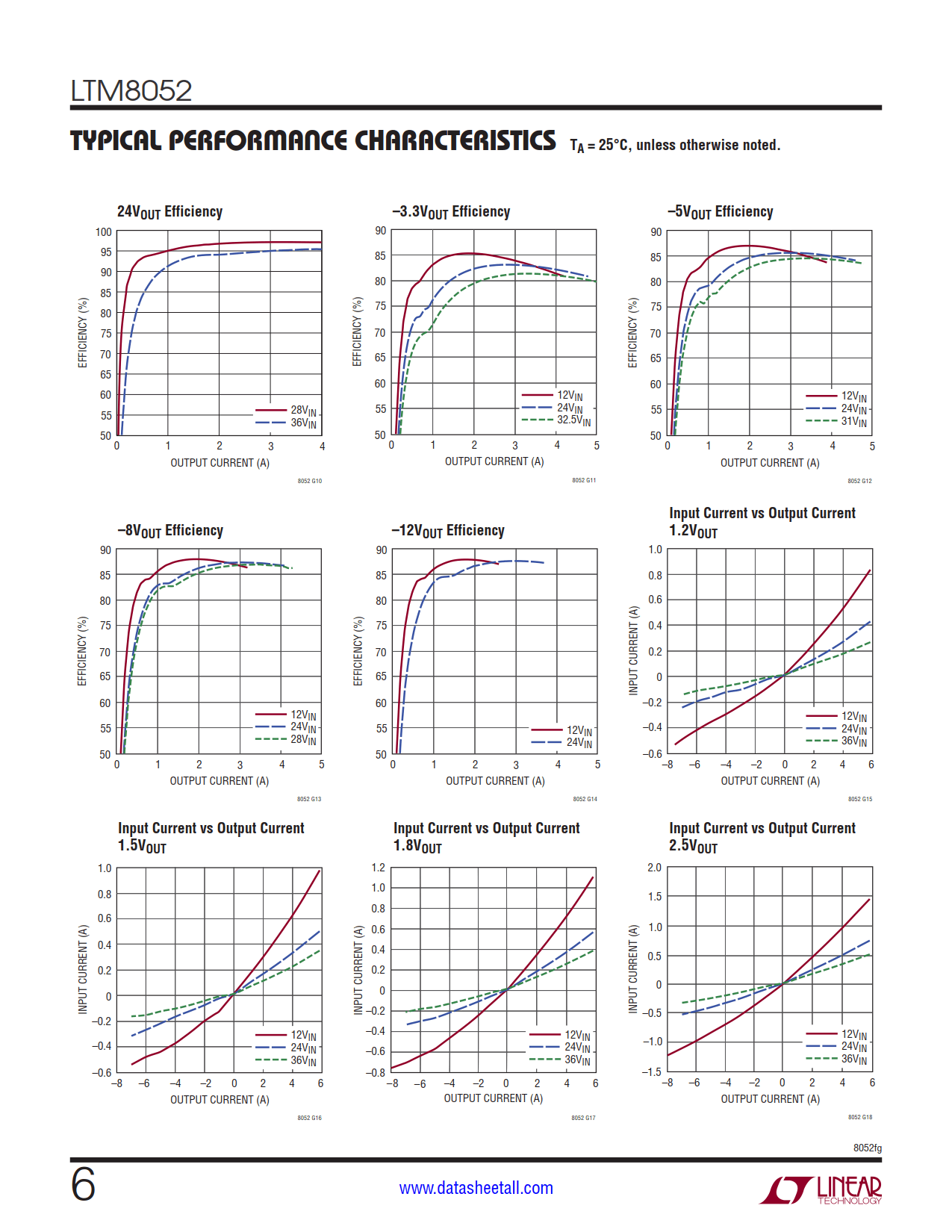

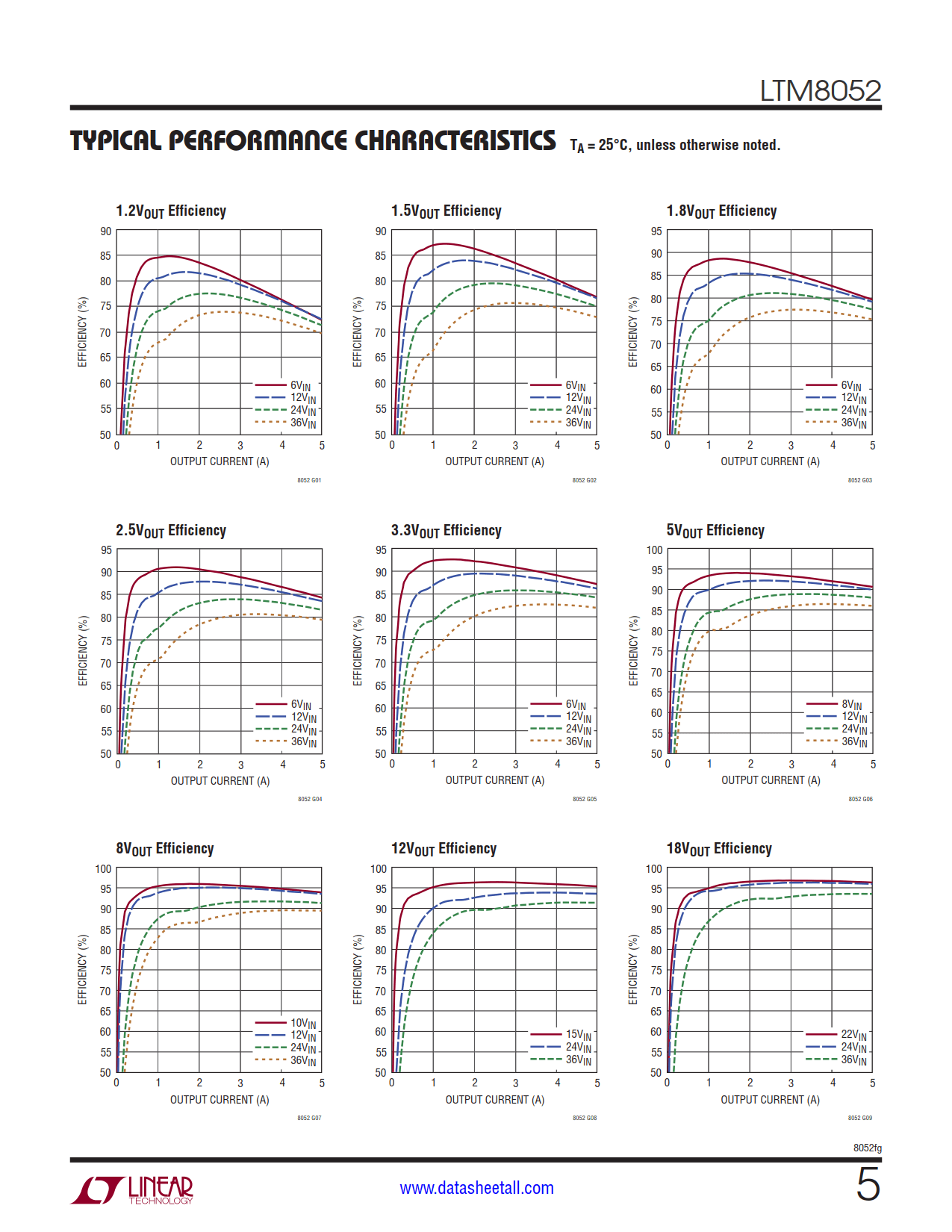

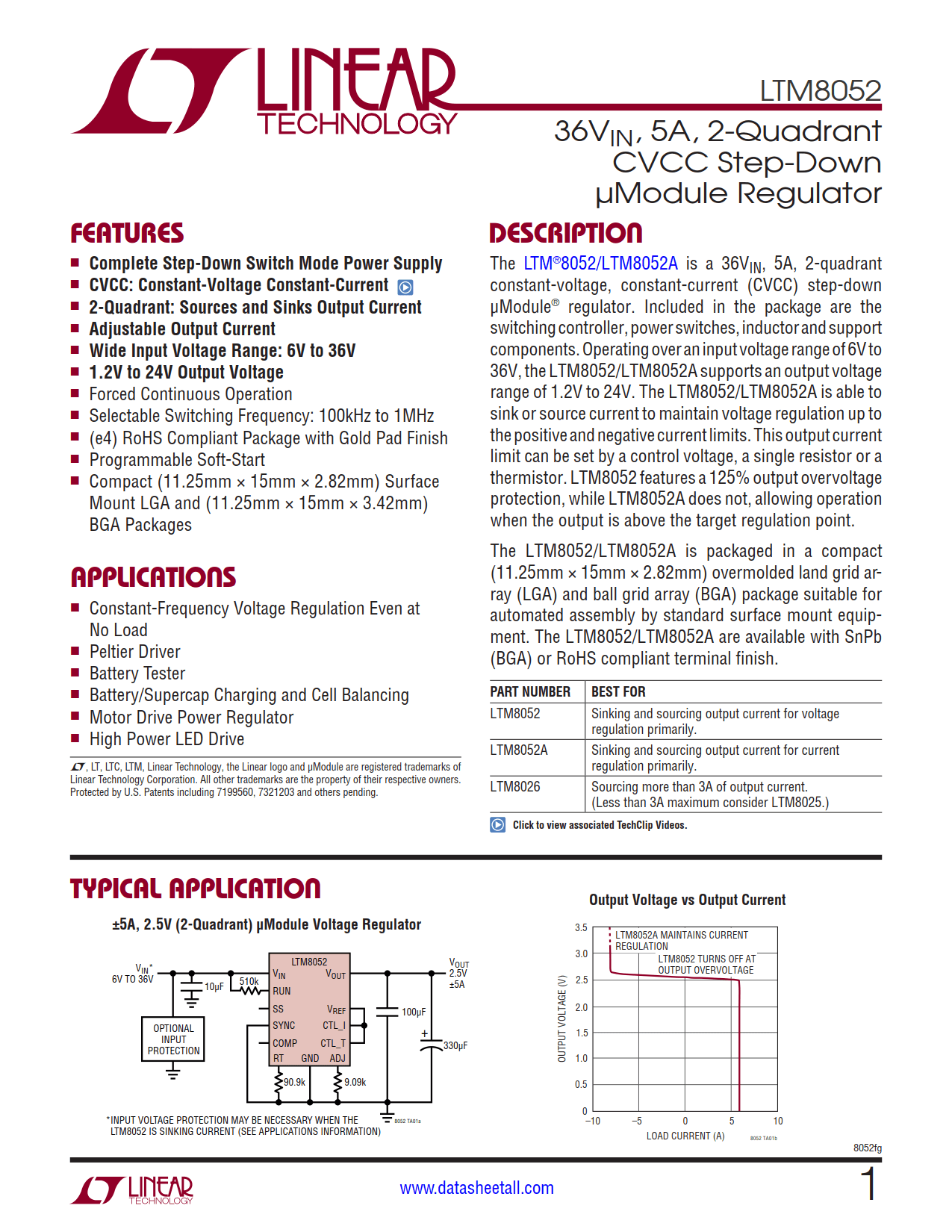

LTM8052 Features

  • Complete Step-Down Switch Mode Power Supply
  • CVCC: Constant-Voltage Constant-Current
  • 2-Quadrant: Sources and Sinks Output Current
  • Adjustable Output Current
  • Wide Input Voltage Range: 6V to 36V
  • 1.2V to 24V Output Voltage
  • Forced Continuous Operation
  • Selectable Switching Frequency: 100kHz to 1MHz
  • (e4) RoHS Compliant Package with Gold Pad Finish
  • Programmable Soft-Start
  • Compact (11.25mm × 15mm × 2.82mm) Surface Mount LGA and (11.25mm × 15mm × 3.42mm) BGA Packages

LTM8052 Applications

  • Constant-Frequency Voltage Regulation Even at No Load
  • Peltier Driver
  • Battery Tester
  • Battery/Supercap Charging and Cell Balancing
  • Motor Drive Power Regulator
  • High Power LED Drive

LTM8052 Description

The LTM8052 is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052 supports an output voltage range of 1.2V to 24V. The LTM8052 is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor. LTM8052 features a 125% output overvoltage protection, allowing operation when the output is above the target regulation point.

The LTM8052 is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052 are available with SnPb (BGA) or RoHS compliant terminal finish.
