LTM8047 Datasheet

LTM8047 Datasheet

3.1VIN to 32VIN Isolated μModule (Power Module) DC/DC Converter
Part No.: LTM8047
Page: 18 Pages
Size: 251 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-25 13:45:49
DataSheet: Download

LTM8047 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8047EY#PBF Tray 168 LTM8047Y 3 45 -40°C ~125°C 45-Lead BGA (11.25mm x 9mm x 4.92mm)
LTM8047IY#PBF Tray 168 LTM8047Y 3 45 -40°C ~125°C 45-Lead BGA (11.25mm x 9mm x 4.92mm)
LTM8047MPY#PBF Tray 168 LTM8047Y 3 45 -55°C ~125°C 45-Lead BGA (11.25mm x 9mm x 4.92mm)
LTM8047MPY Tray 168 LTM8047Y 3 45 -55°C ~125°C 45-Lead BGA (11.25mm x 9mm x 4.92mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8047 Datasheet(PDF)

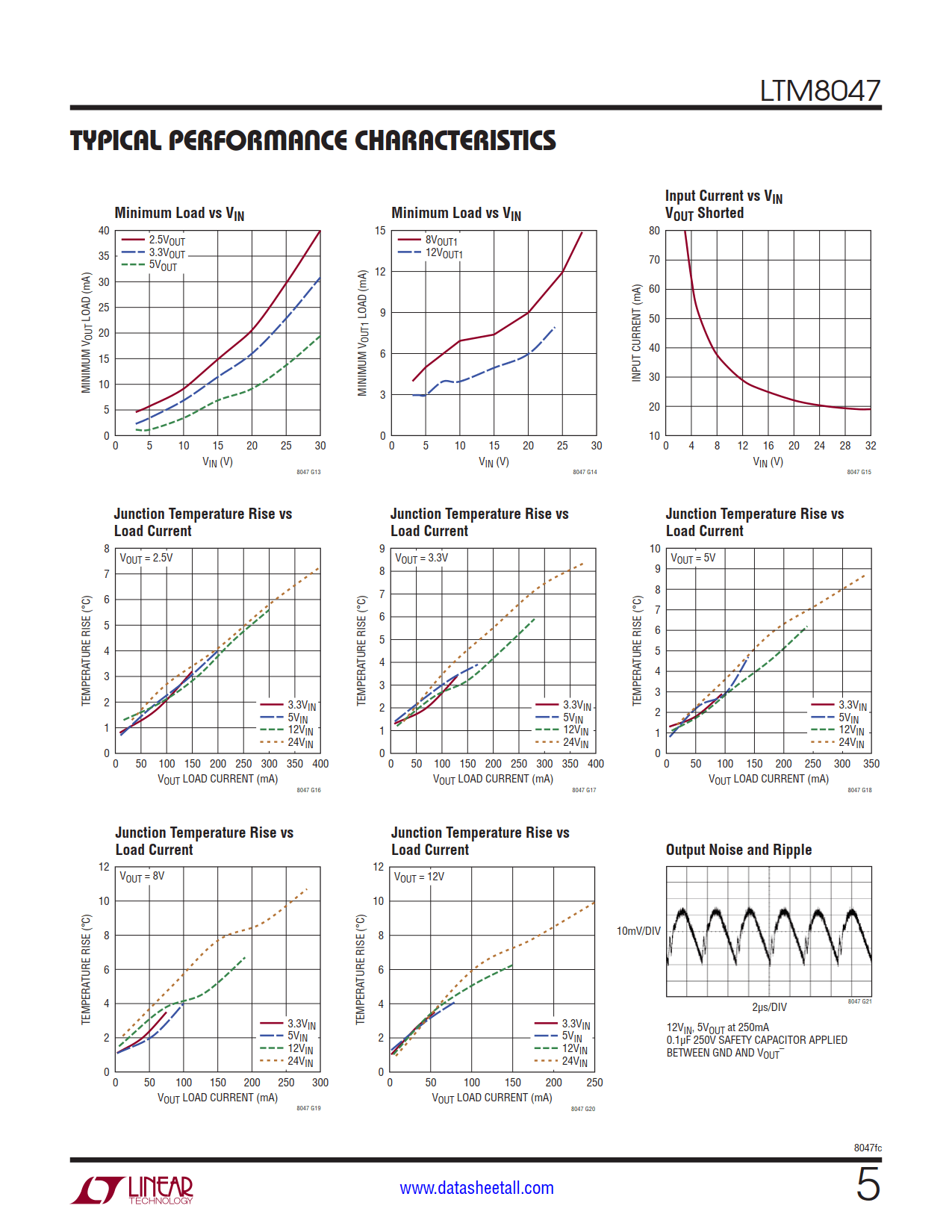

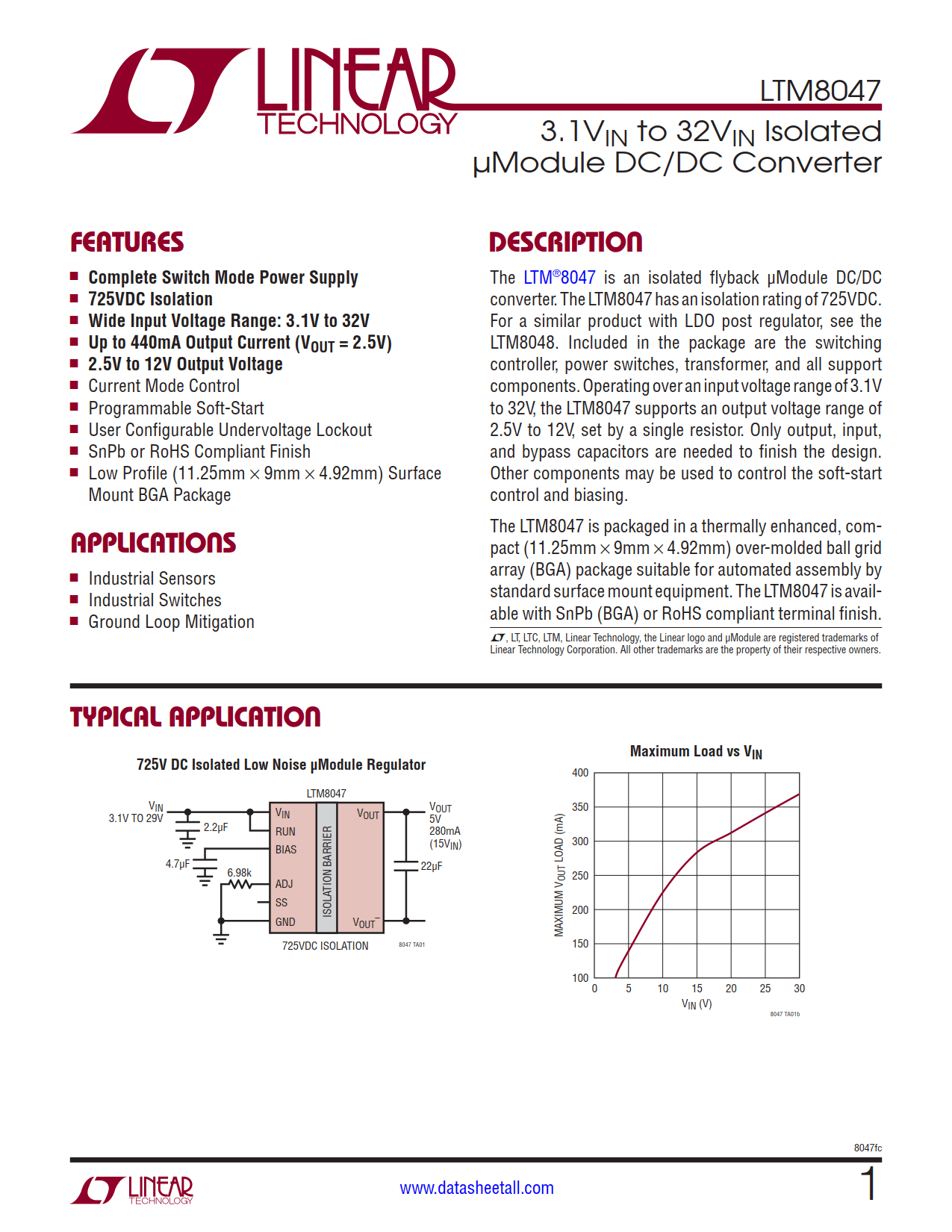

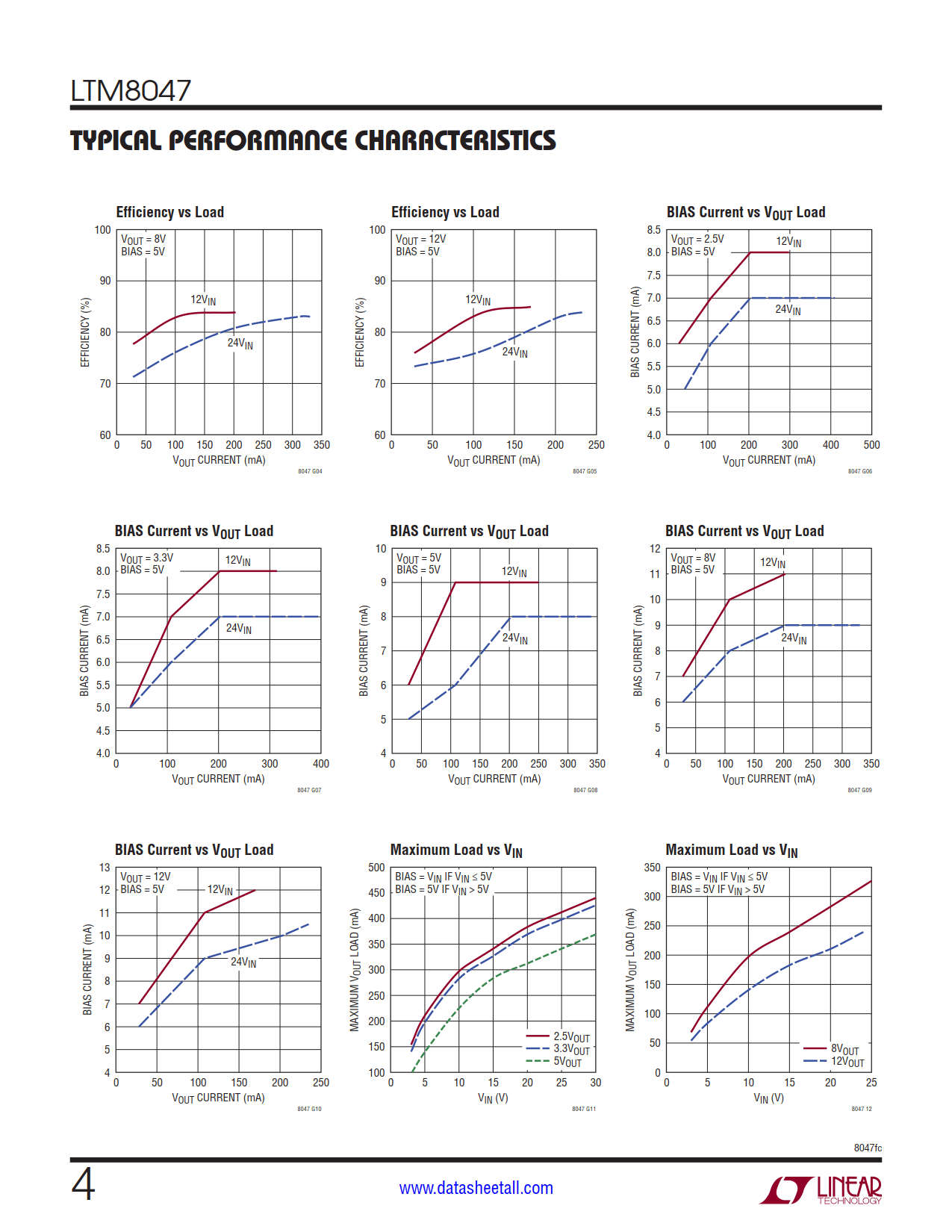

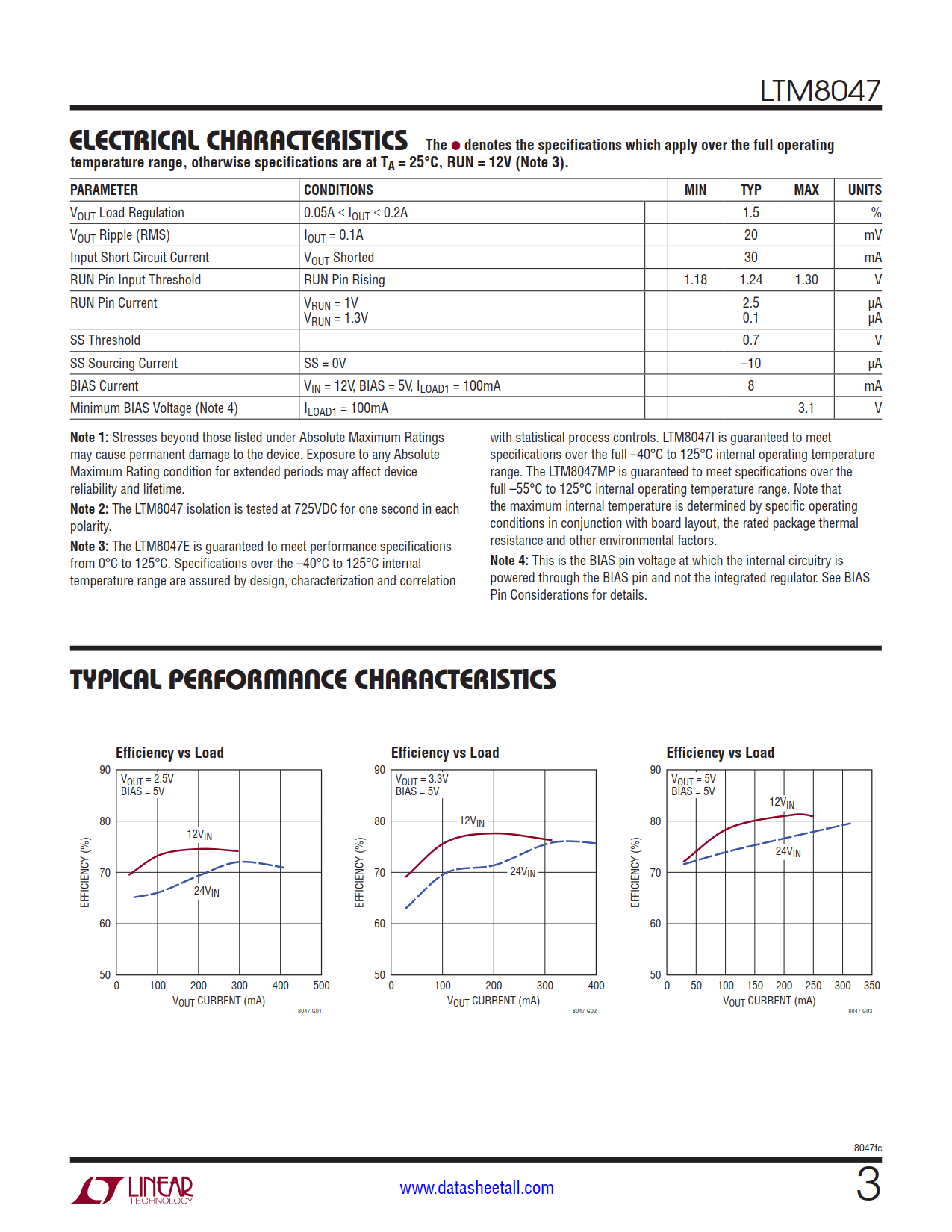

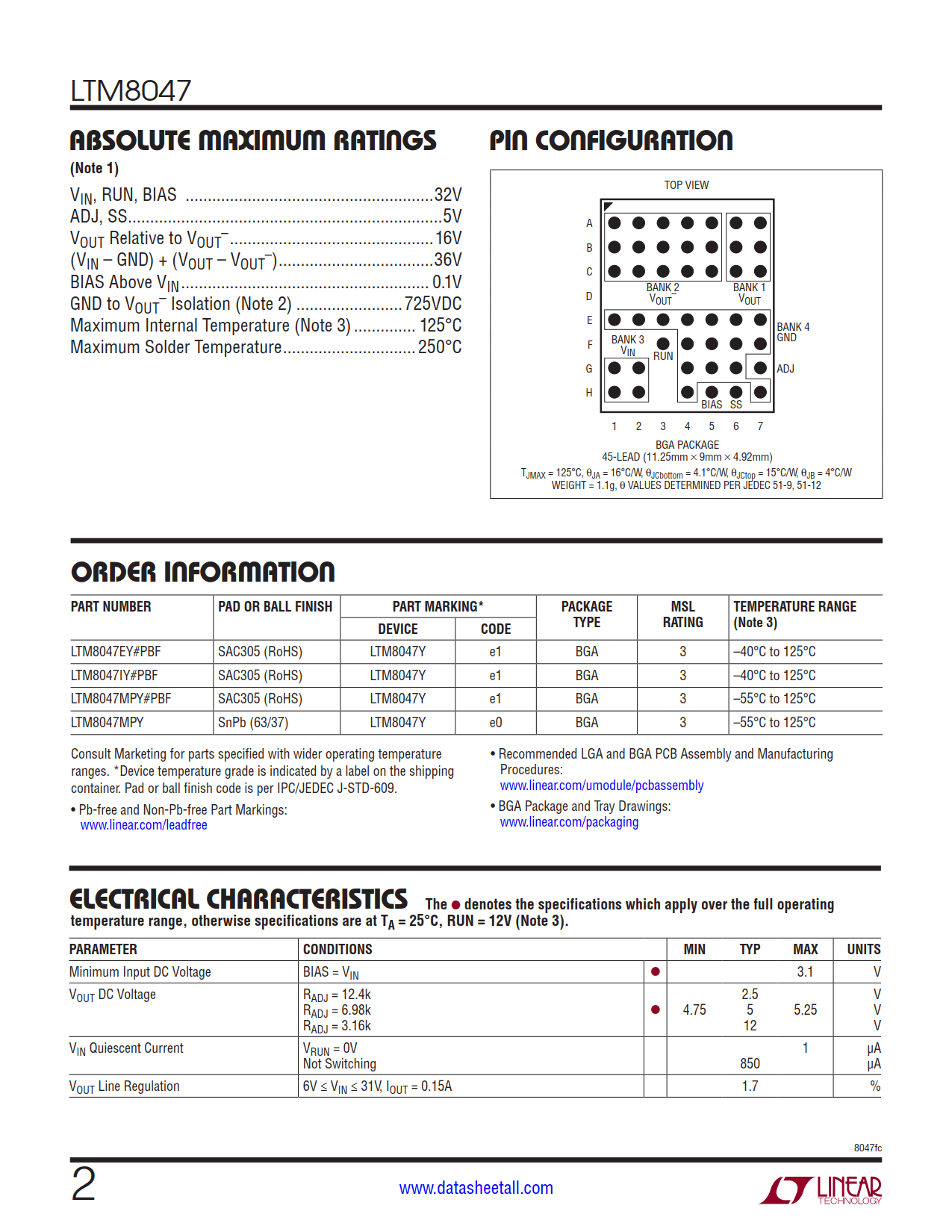

LTM8047 Datasheet(Picture)

LTM8047 Features

  • Complete Switch Mode Power Supply
  • 725VDC Isolation
  • Wide Input Voltage Range: 3.1V to 32V
  • Up to 440mA Output Current (VOUT = 2.5V)
  • 2.5V to 12V Output Voltage
  • Current Mode Control
  • Programmable Soft-Start
  • User Configurable Undervoltage Lockout
  • SnPb or RoHS Compliant Finish
  • Low Profile (11.25mm × 9mm × 4.92mm) Surface Mount BGA Package

LTM8047 Applications

  • Industrial Sensors
  • Industrial Switches
  • Ground Loop Mitigation

LTM8047 Description

The LTM8047 is an isolated flyback μModule DC/DC converter. The LTM8047 has an isolation rating of 725VDC. For a similar product with LDO post regulator, see the LTM8048. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 32V, the LTM8047 supports an output voltage range of 2.5V to 12V, set by a single resistor. Only output, input, and bypass capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.

The LTM8047 is packaged in a thermally enhanced, compact (11.25mm × 9mm × 4.92mm) over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8047 is available with SnPb (BGA) or RoHS compliant terminal finish.
