LTM8046 Datasheet

LTM8046 Datasheet

3.1VIN to 31VIN, 2kVAC Isolated DC/DC μModule (Power Module) Converter
Part No.: LTM8046
Page: 20 Pages
Size: 321 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-25 11:13:43
DataSheet: Download

LTM8046 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8046EY#PBF Tray 170 LTM8046Y 3 51 -40°C ~125°C 51-Lead BGA (15mm x 9mm x 4.92mm)
LTM8046IY#PBF Tray 170 LTM8046Y 3 51 -40°C ~125°C 51-Lead BGA (15mm x 9mm x 4.92mm)
LTM8046IY Tray 170 LTM8046Y 3 51 -40°C ~125°C 51-Lead BGA (15mm x 9mm x 4.92mm)
LTM8046MPY#PBF Tray 170 LTM8046Y 3 51 -55°C ~125°C 51-Lead BGA (15mm x 9mm x 4.92mm)
LTM8046MPY Tray 170 LTM8046Y 3 51 -55°C ~125°C 51-Lead BGA (15mm x 9mm x 4.92mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8046 Datasheet(PDF)

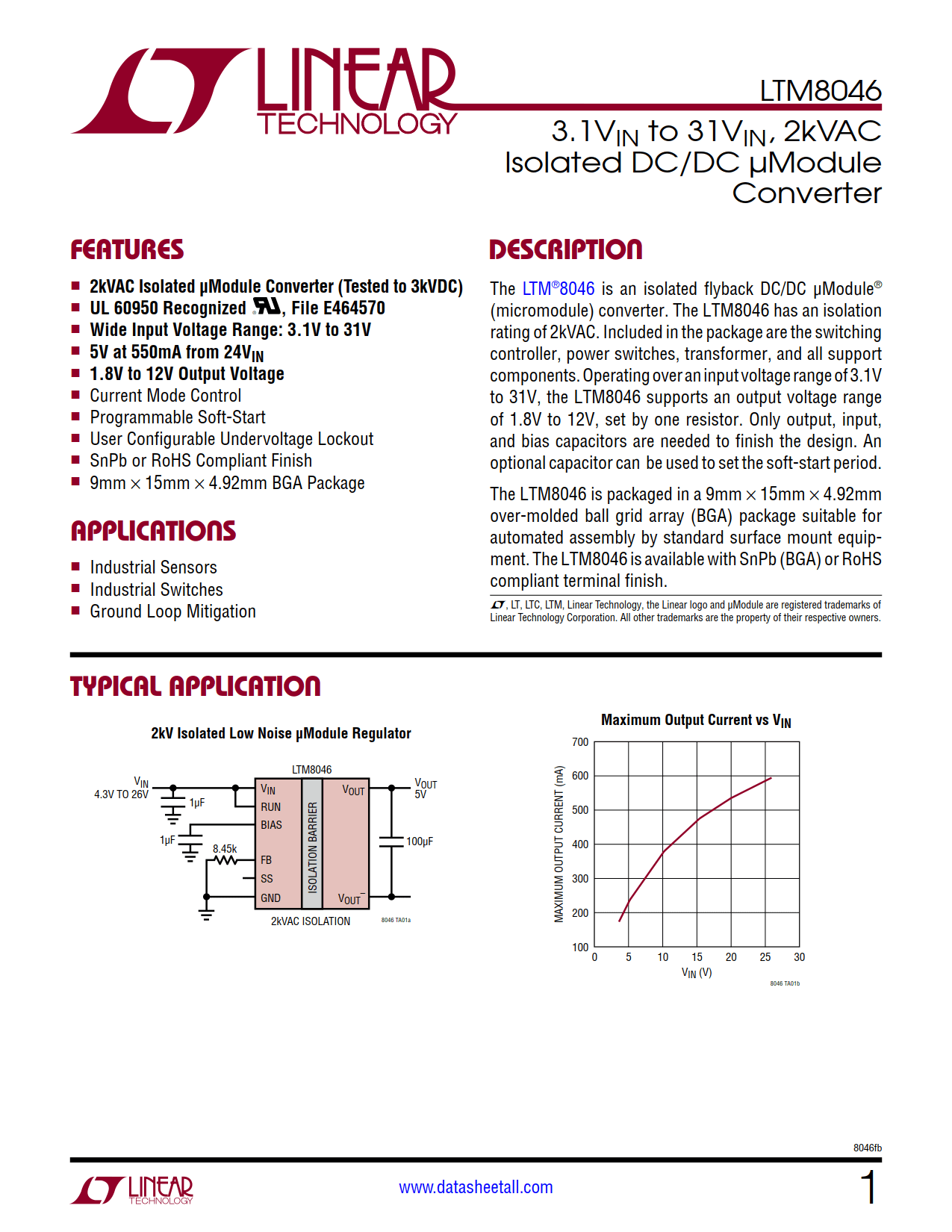

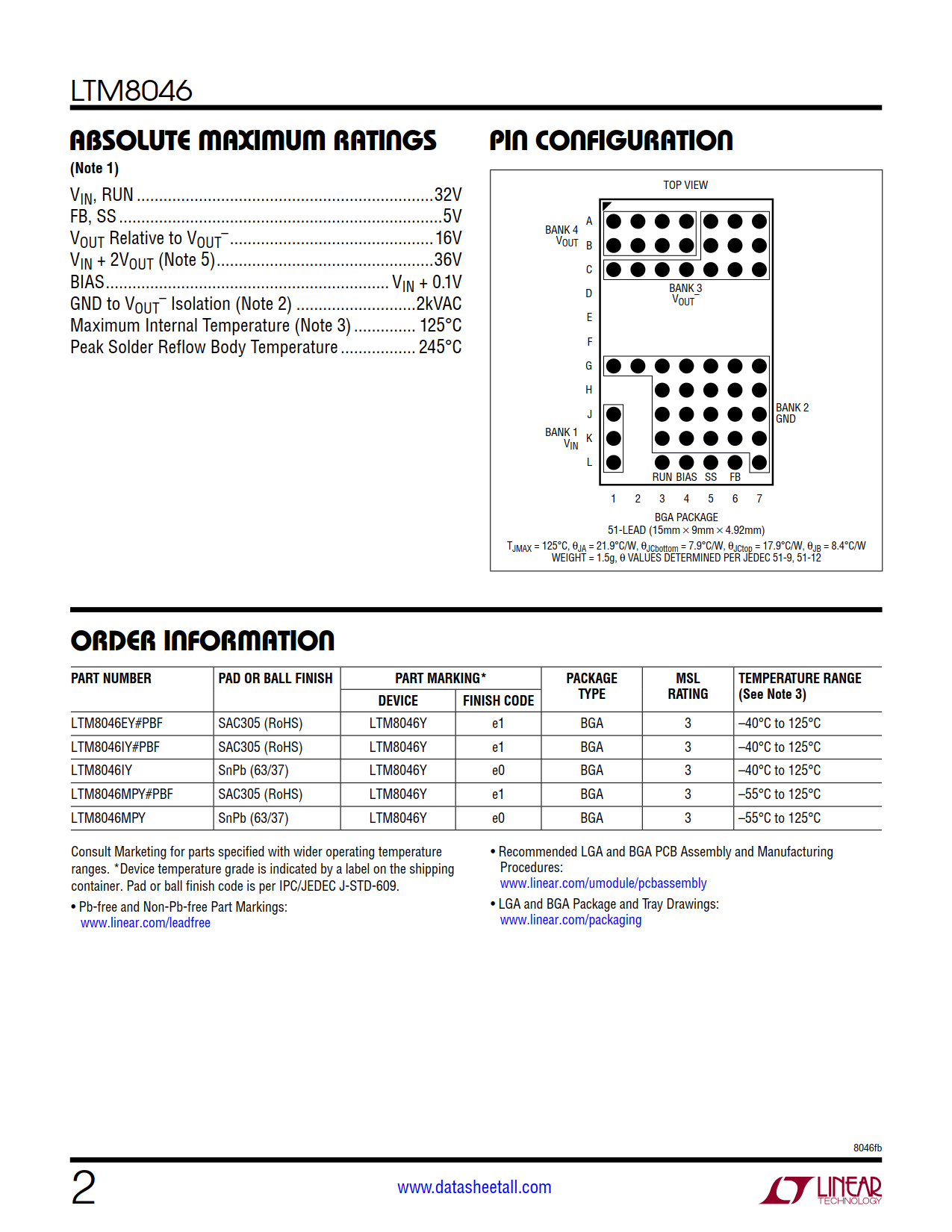

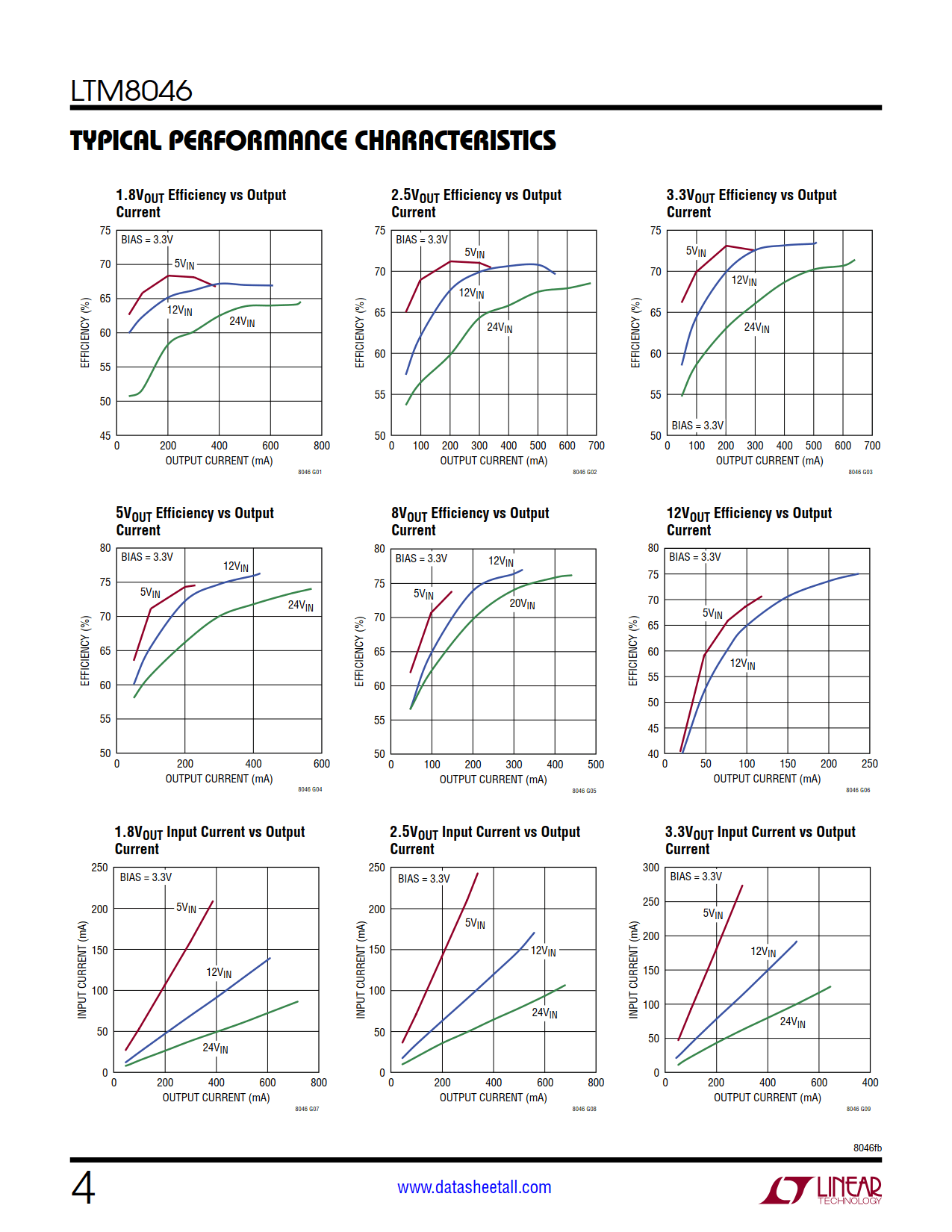

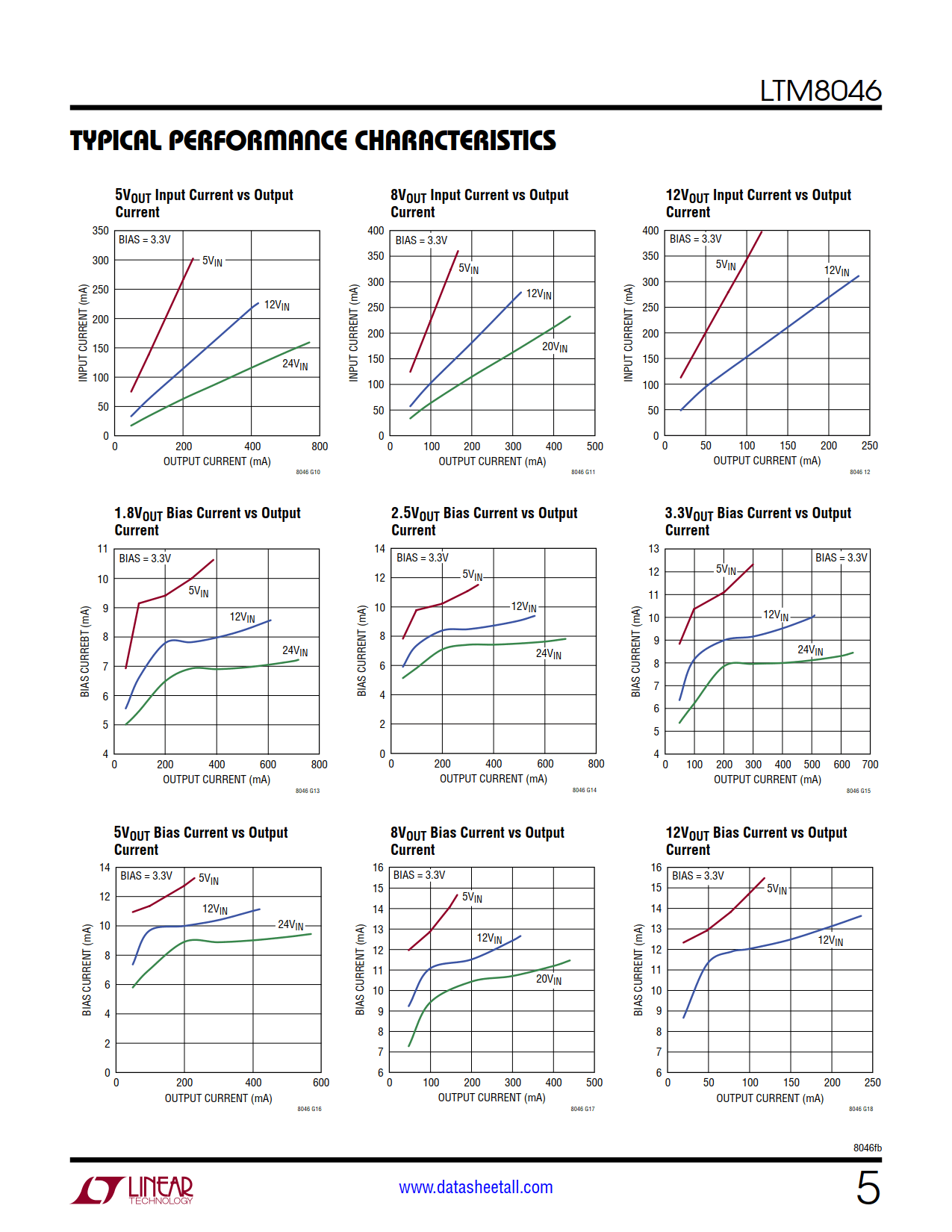

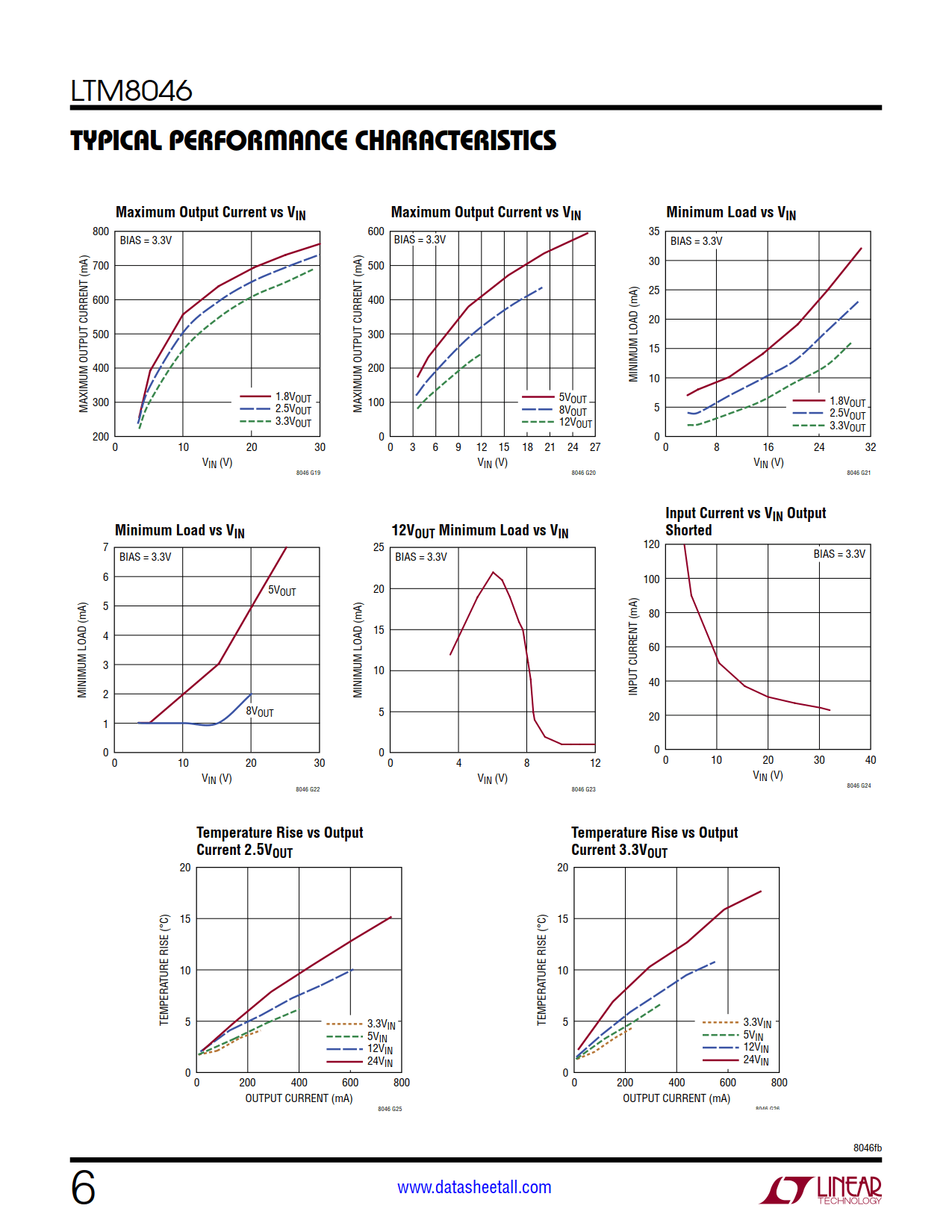

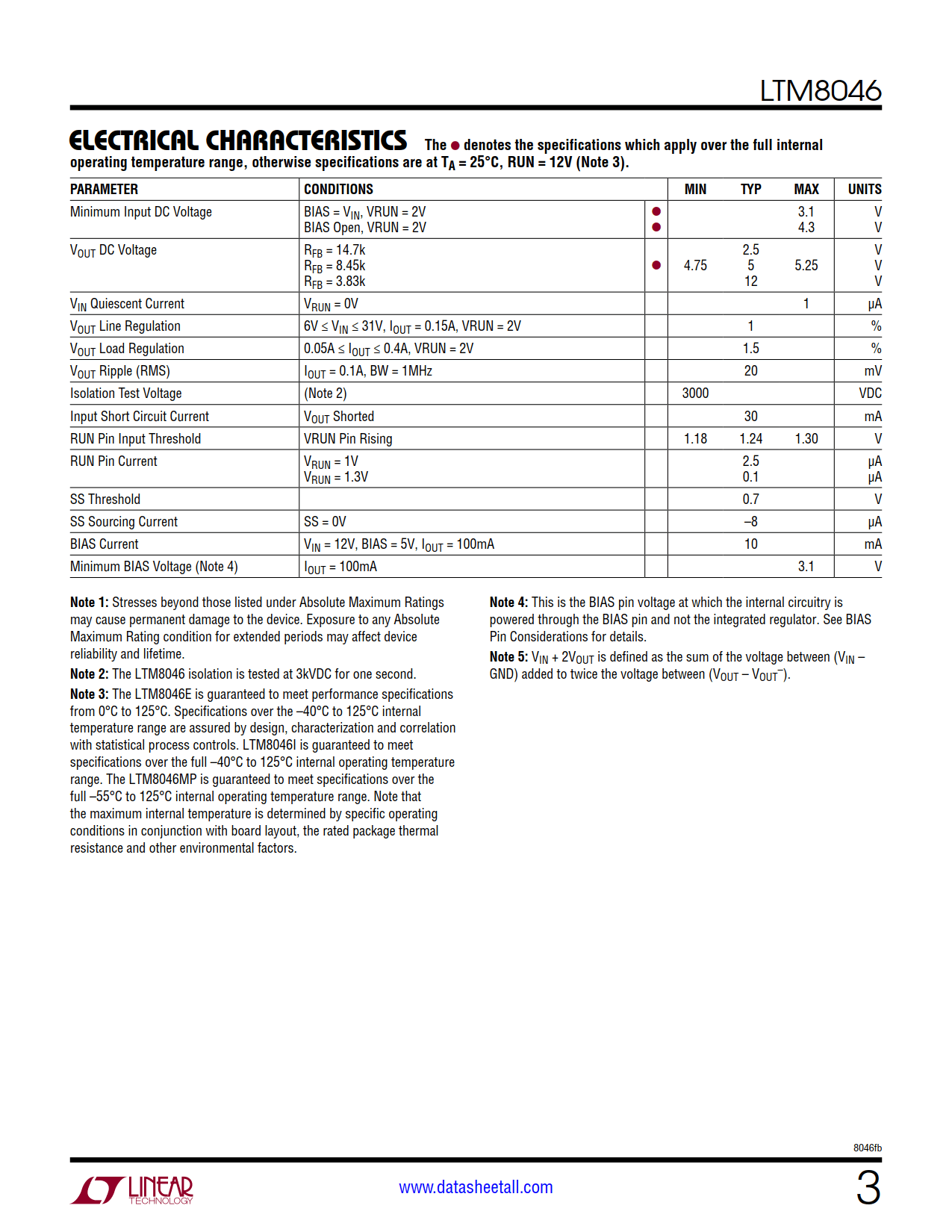

LTM8046 Datasheet(Picture)

LTM8046 Features

  • 2kVAC Isolated μModule Converter (Tested to 3kVDC)
  • UL 60950 Recognized File E464570
  • Wide Input Voltage Range: 3.1V to 31V
  • 5V at 550mA from 24VIN
  • 1.8V to 12V Output Voltage
  • Current Mode Control
  • Programmable Soft-Start
  • User Configurable Undervoltage Lockout
  • SnPb or RoHS Compliant Finish
  • 9mm × 15mm × 4.92mm BGA Package

LTM8046 Applications

  • Industrial Sensors
  • Industrial Switches
  • Ground Loop Mitigation

LTM8046 Description

The LTM8046 is an isolated flyback DC/DC μModule® (power module) converter. The LTM8046 has an isolation rating of 2kVAC. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8046 supports an output voltage range of 1.8V to 12V, set by one resistor. Only output, input, and bias capacitors are needed to finish the design. An optional capacitor can be used to set the soft-start period.

The LTM8046 is packaged in a 9mm × 15mm × 4.92mm over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8046 is available with SnPb (BGA) or RoHS compliant terminal finish.
