LTM8045 Datasheet

LTM8045 Datasheet

Inverting or SEPIC μModule (Power Module) DC/DC Converter with Up to 700mA Output Current
Part No.: LTM8045
Page: 22 Pages
Size: 283 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-25 11:11:04
DataSheet: Download

LTM8045 Datasheet Applicable Part

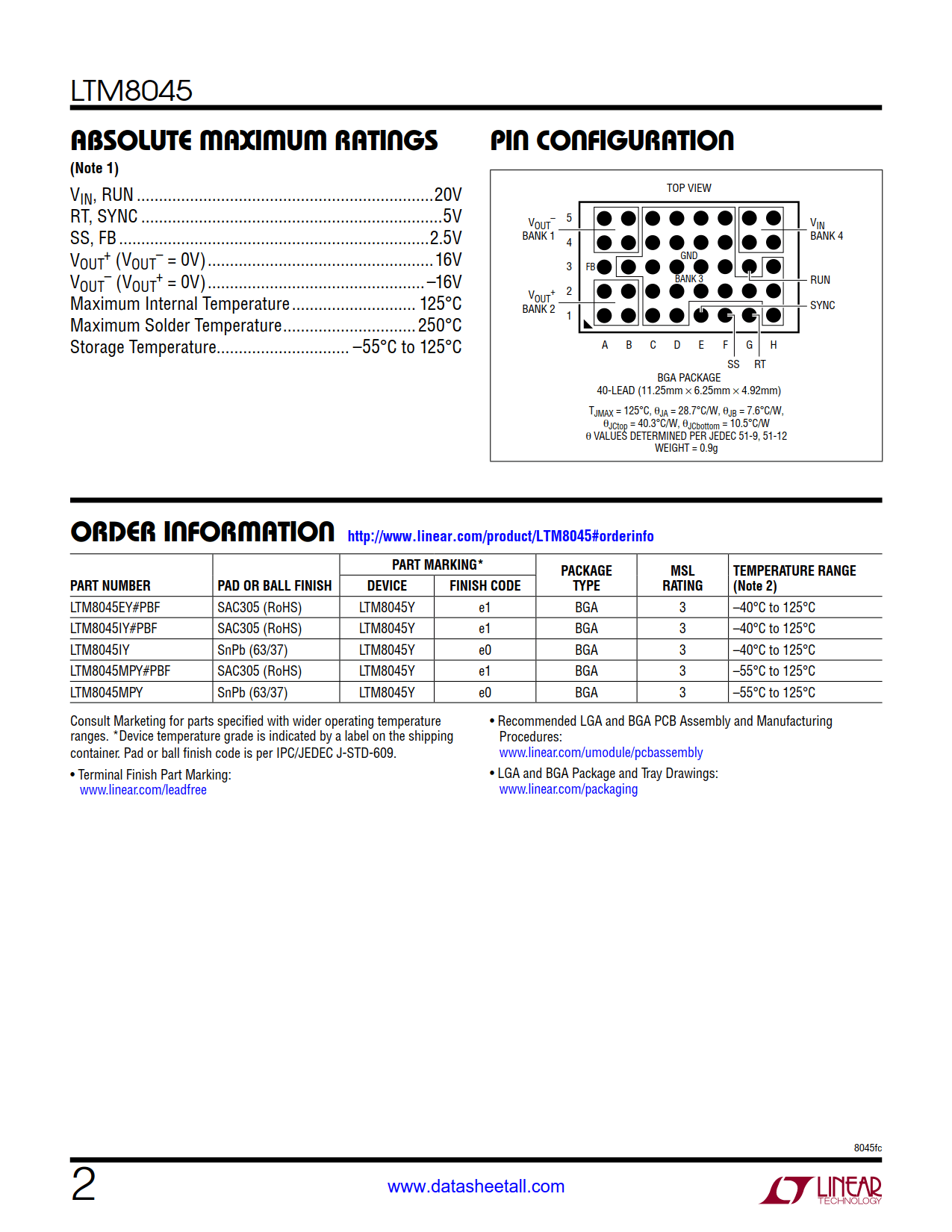

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8045EY#PBF Tray 273 LTM8045Y 3 40 -40°C ~125°C 40-Lead BGA (11.25mm x 6.25mm x 4.92mm)
LTM8045IY#PBF Tray 273 LTM8045Y 3 40 -40°C ~125°C 40-Lead BGA (11.25mm x 6.25mm x 4.92mm)
LTM8045IY Tray 273 LTM8045Y 3 40 -40°C ~125°C 40-Lead BGA (11.25mm x 6.25mm x 4.92mm)
LTM8045MPY#PBF Tray 273 LTM8045Y 3 40 -55°C ~125°C 40-Lead BGA (11.25mm x 6.25mm x 4.92mm)
LTM8045MPY Tray 273 LTM8045Y 3 40 -55°C ~125°C 40-Lead BGA (11.25mm x 6.25mm x 4.92mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8045 Datasheet(PDF)

LTM8045 Datasheet(Picture)

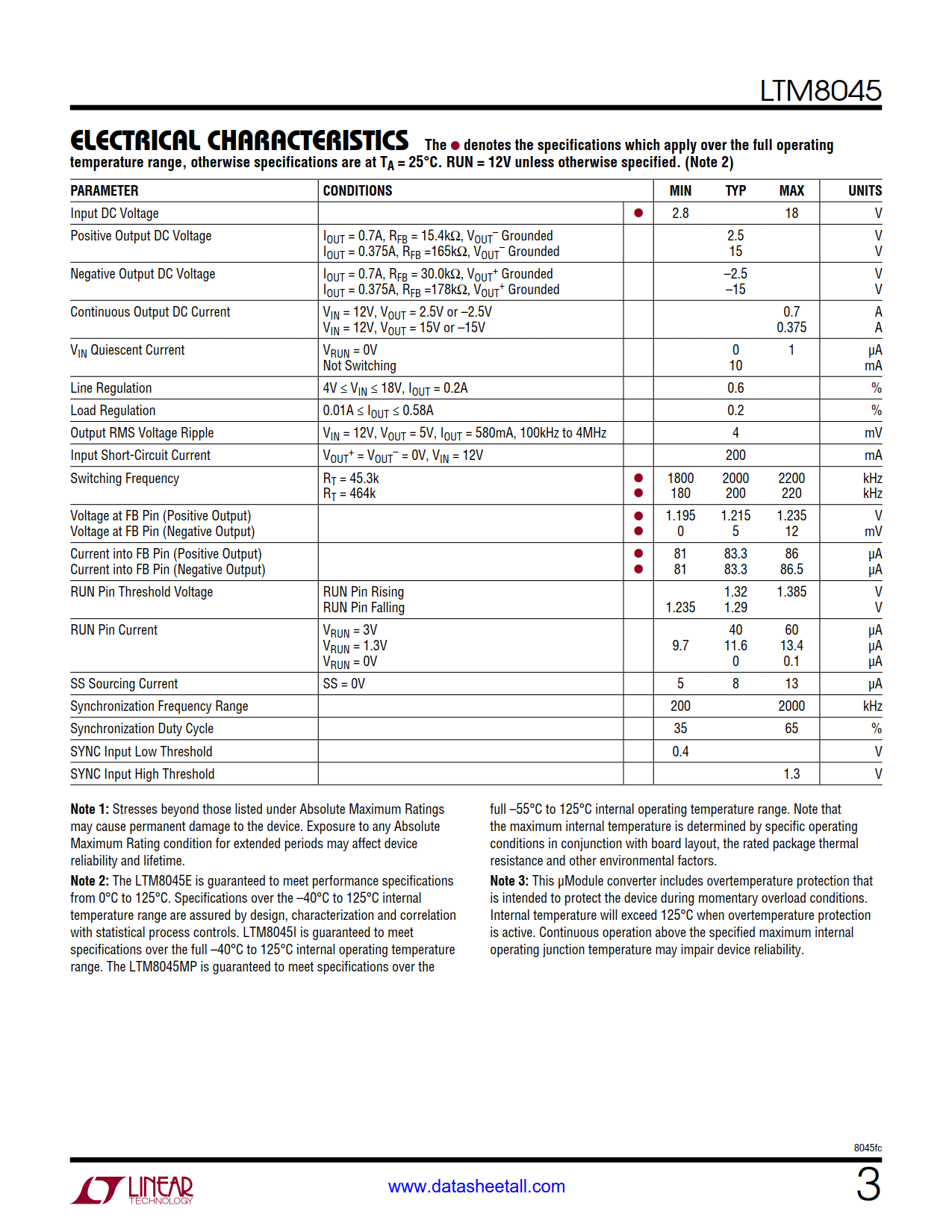

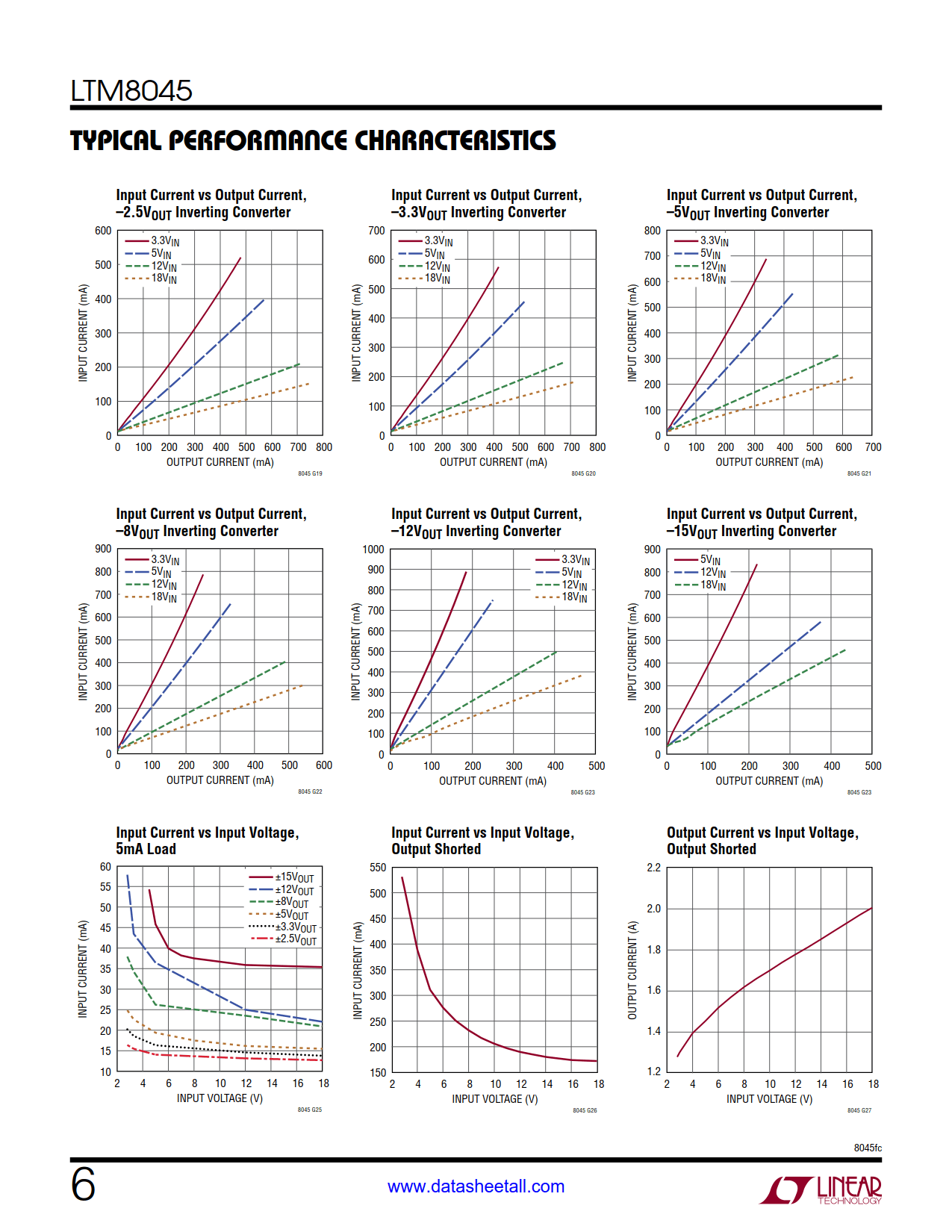

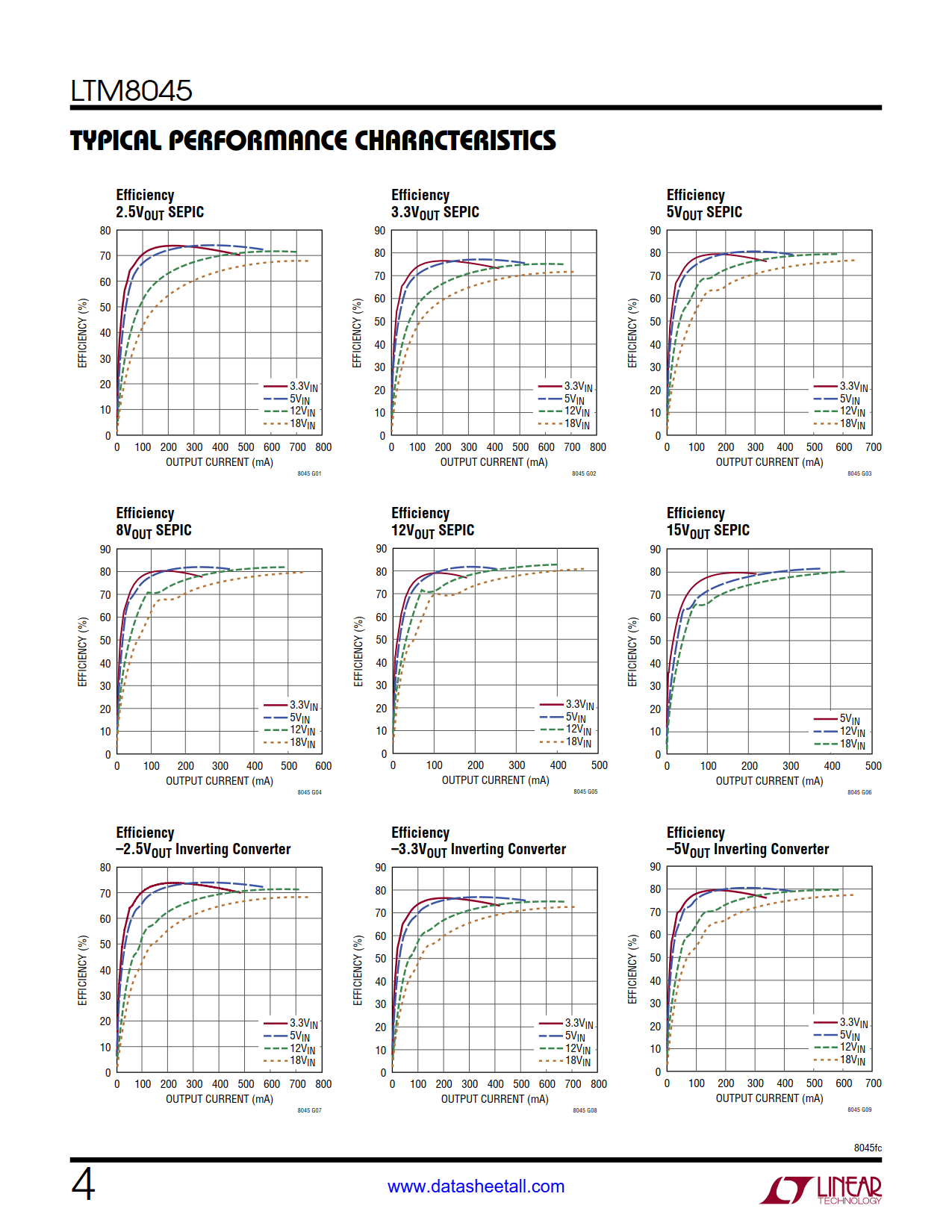

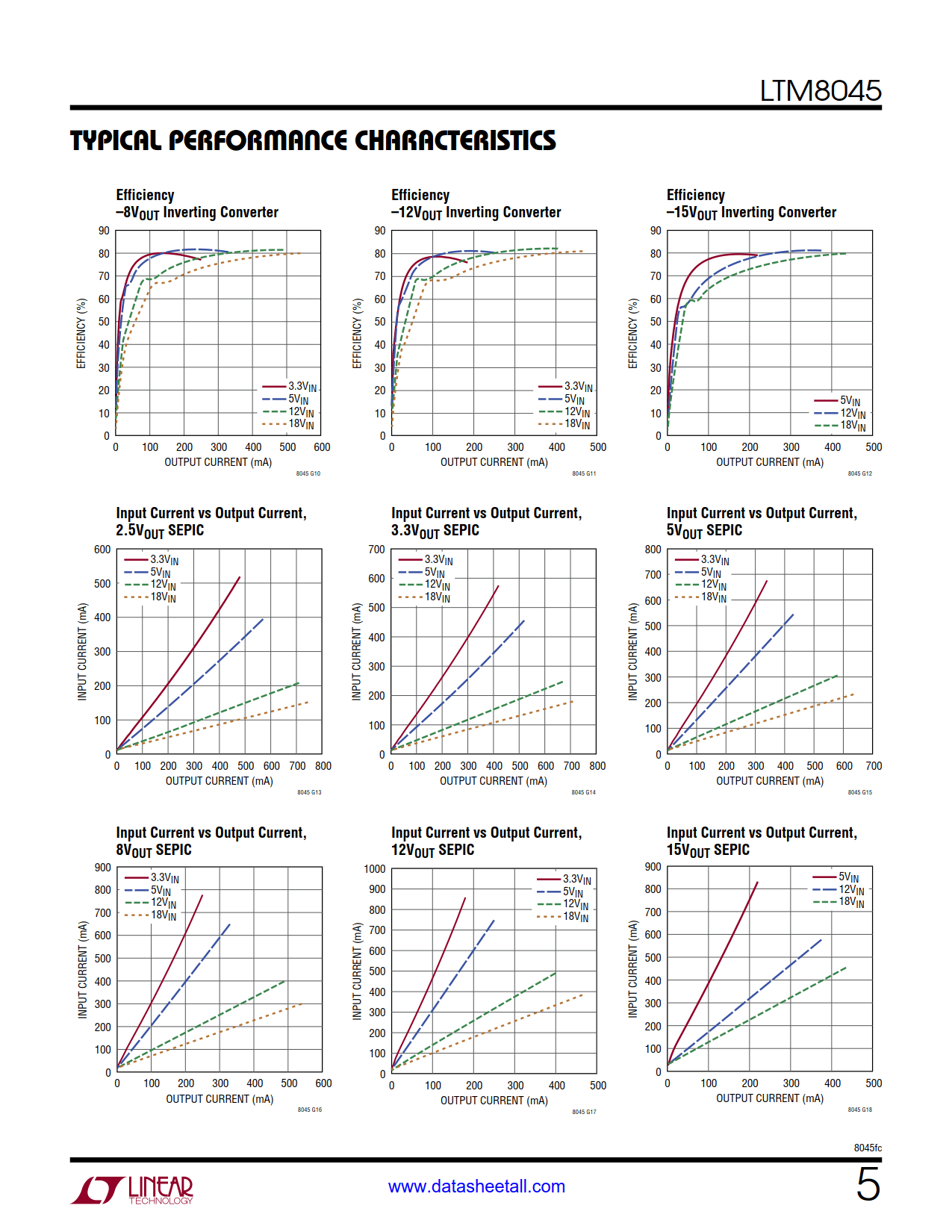

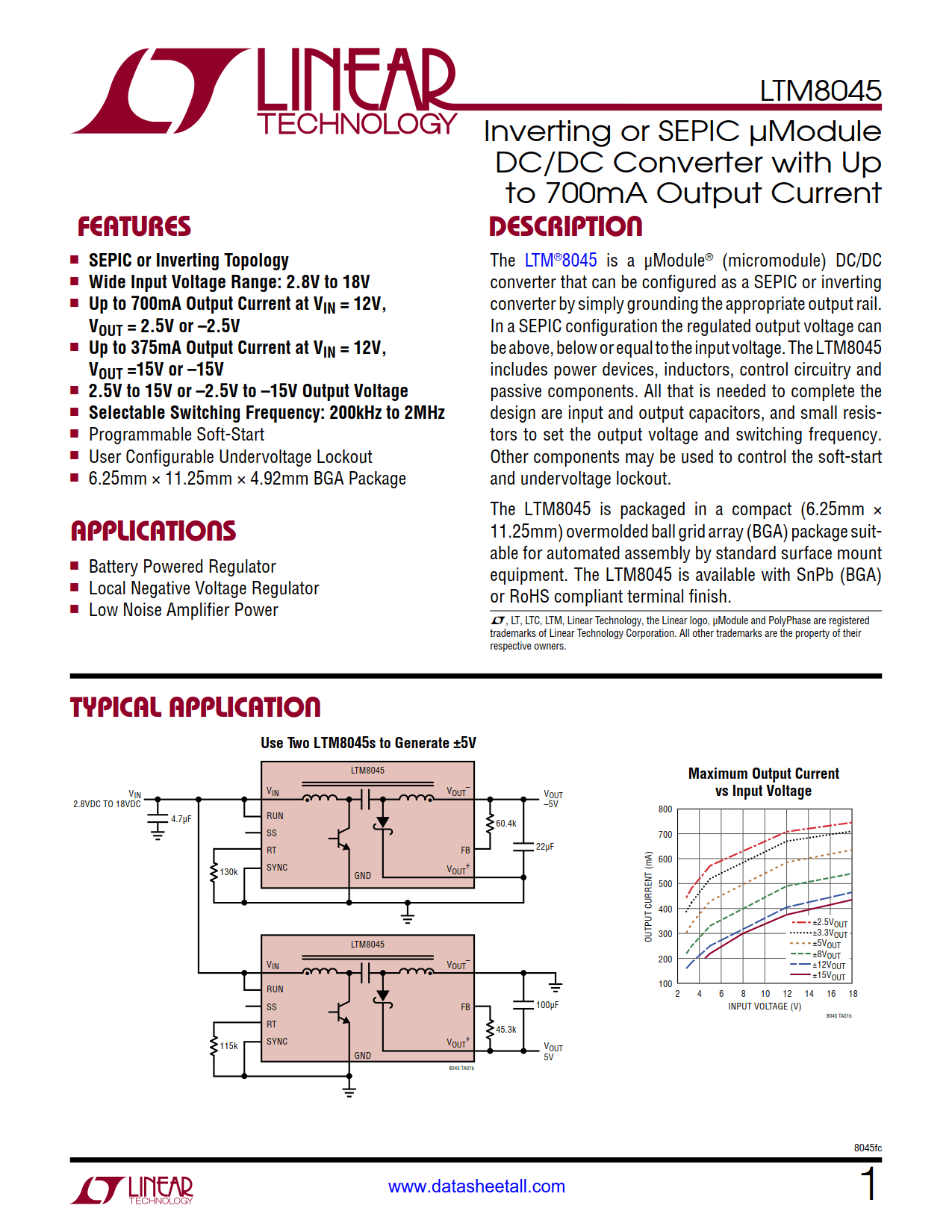

LTM8045 Features

  • SEPIC or Inverting Topology
  • Wide Input Voltage Range: 2.8V to 18V
  • Up to 700mA Output Current at VIN = 12V, VOUT = 2.5V or –2.5V
  • Up to 375mA Output Current at VIN = 12V, VOUT =15V or –15V
  • 2.5V to 15V or –2.5V to –15V Output Voltage
  • Selectable Switching Frequency: 200kHz to 2MHz
  • Programmable Soft-Start
  • User Configurable Undervoltage Lockout
  • 6.25mm × 11.25mm × 4.92mm BGA Package

LTM8045 Applications

  • Battery Powered Regulator
  • Local Negative Voltage Regulator
  • Low Noise Amplifier Power

LTM8045 Description

The LTM8045 is a μModule® (power module) DC/DC converter that can be configured as a SEPIC or inverting converter by simply grounding the appropriate output rail. In a SEPIC configuration the regulated output voltage can be above, below or equal to the input voltage. The LTM8045 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output capacitors, and small resistors to set the output voltage and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.

The LTM8045 is packaged in a compact (6.25mm × 11.25mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8045 is available with SnPb (BGA) or RoHS compliant terminal finish.
