LTM8040 Datasheet

LTM8040 Datasheet

36V, 1A μModule (Power Module) LED Driver and Current Source
Part No.: LTM8040
Page: 20 Pages
Size: 196 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-06 16:42:49
DataSheet: Download

LTM8040 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8040EV#PBF Tray 170 LTM8040V 3 66 0°C ~ 125°C 66-Lead 15mm × 9mm × 4.32mm LGA Package
LTM8040IV#PBF Tray 170 LTM8040V 3 66 -40°C ~ 125°C 66-Lead 15mm × 9mm × 4.32mm LGA Package
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8040 Datasheet(PDF)

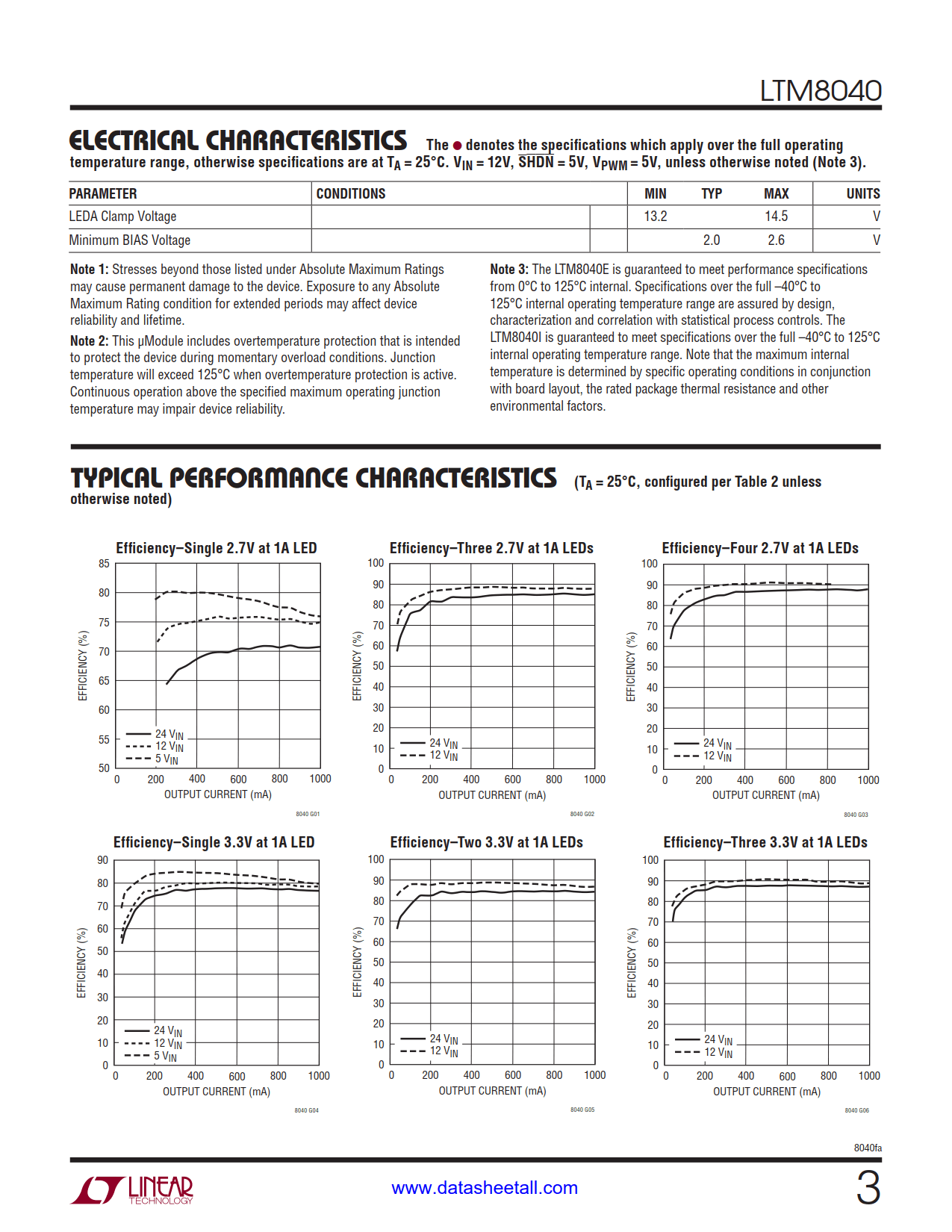

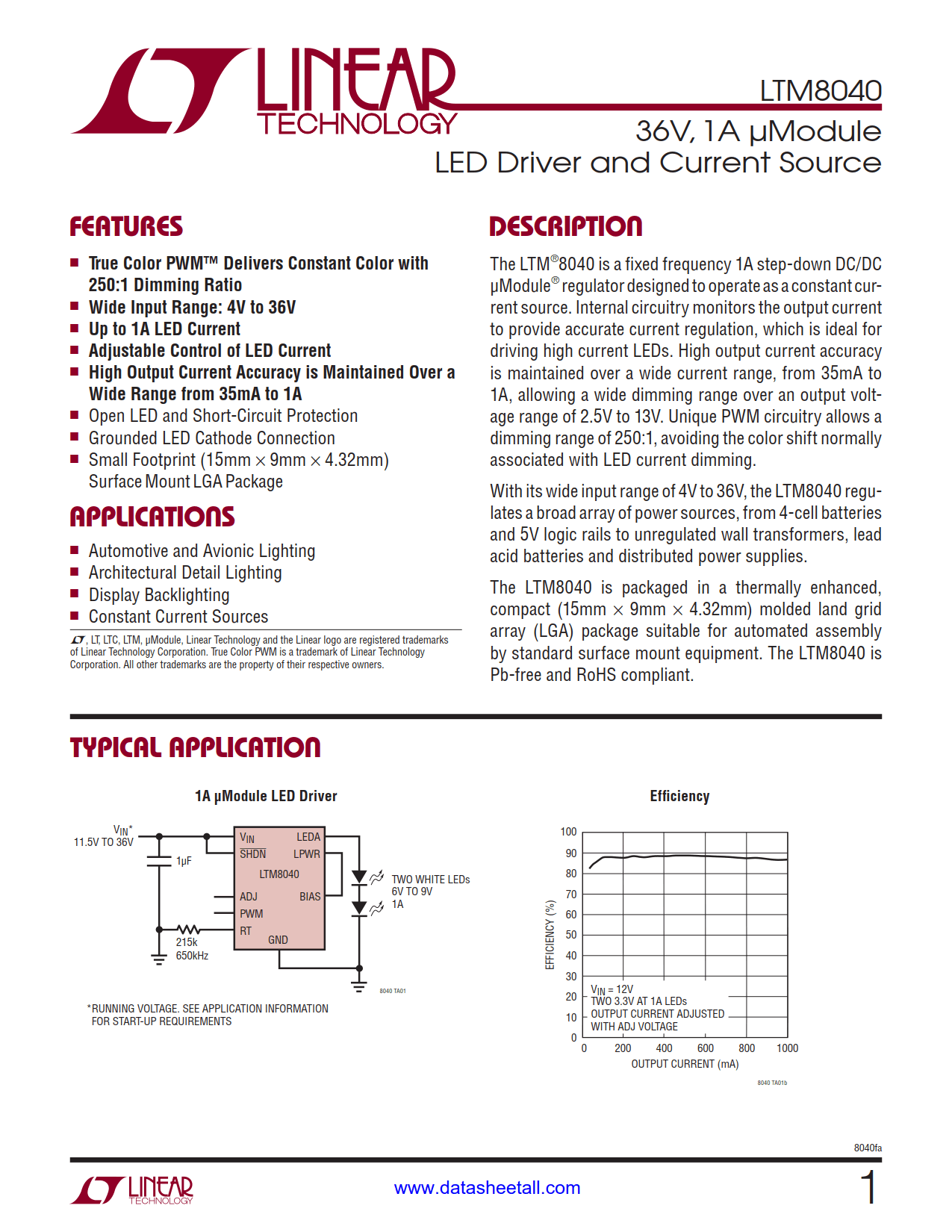

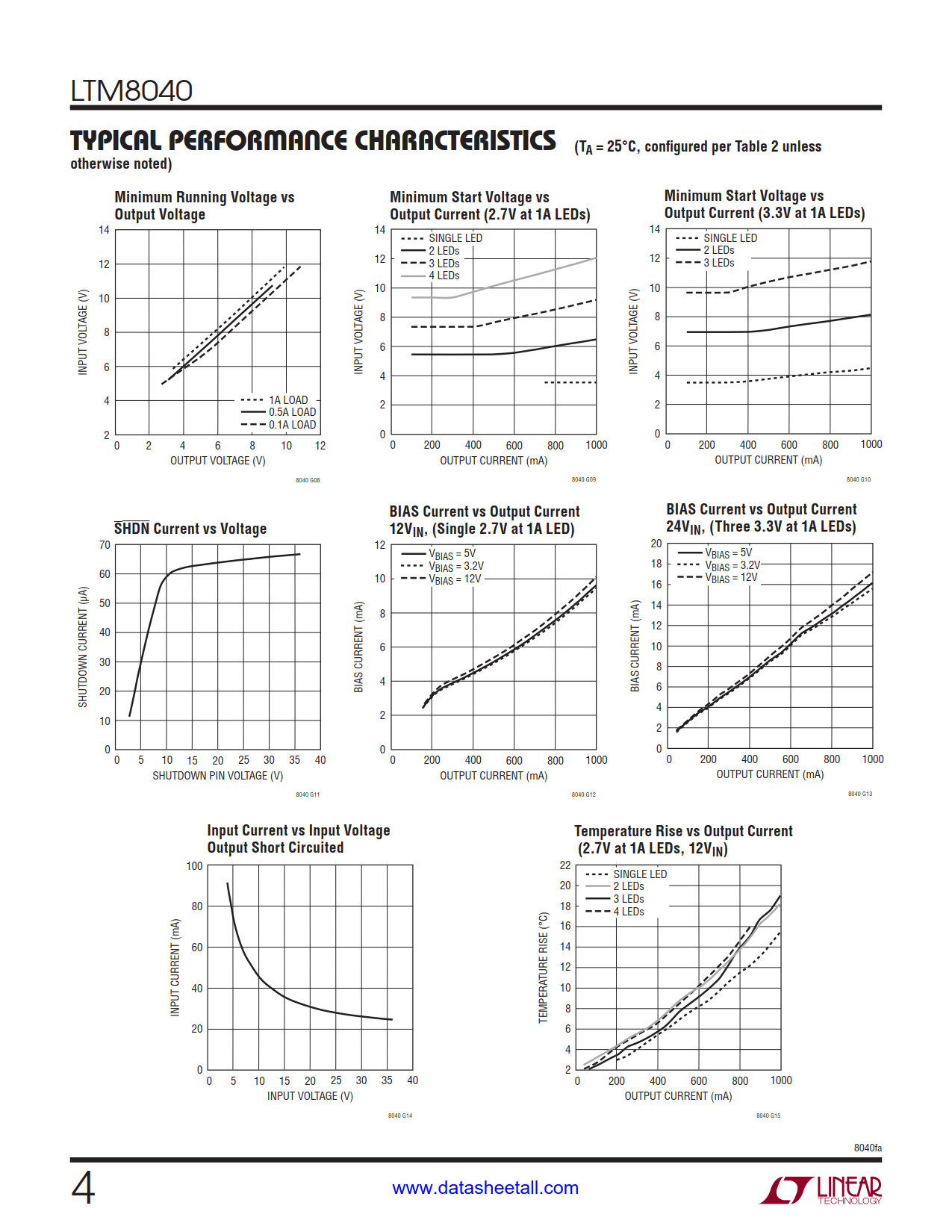

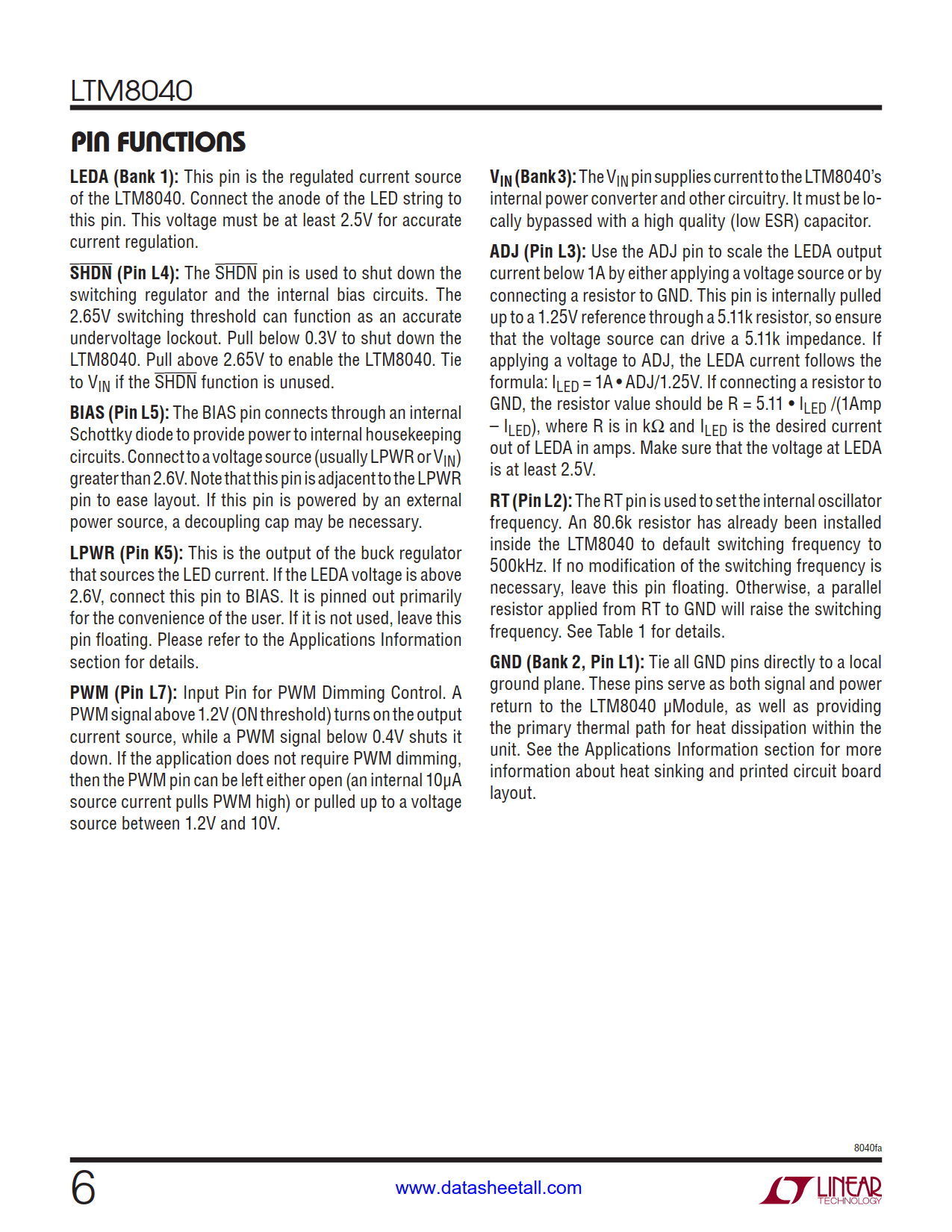

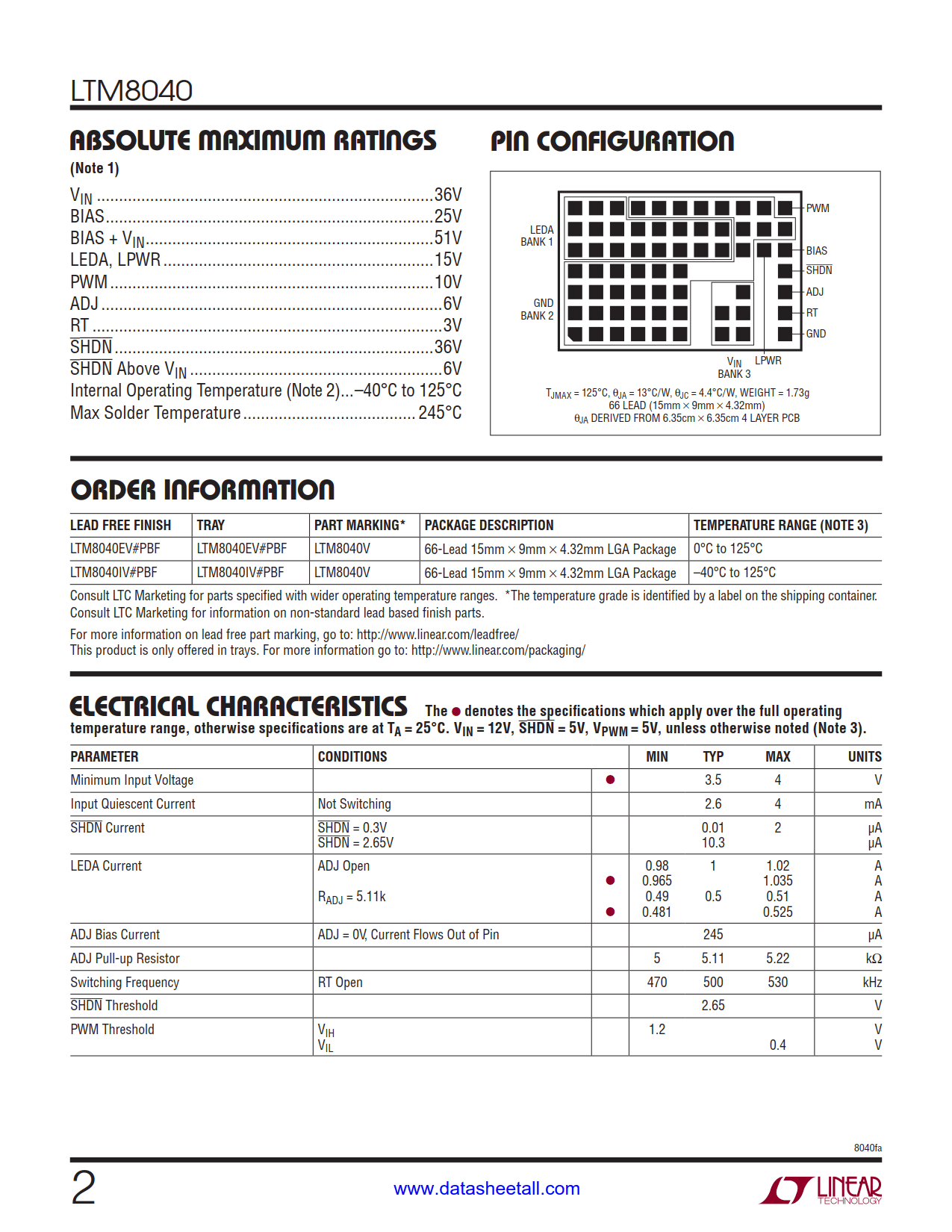

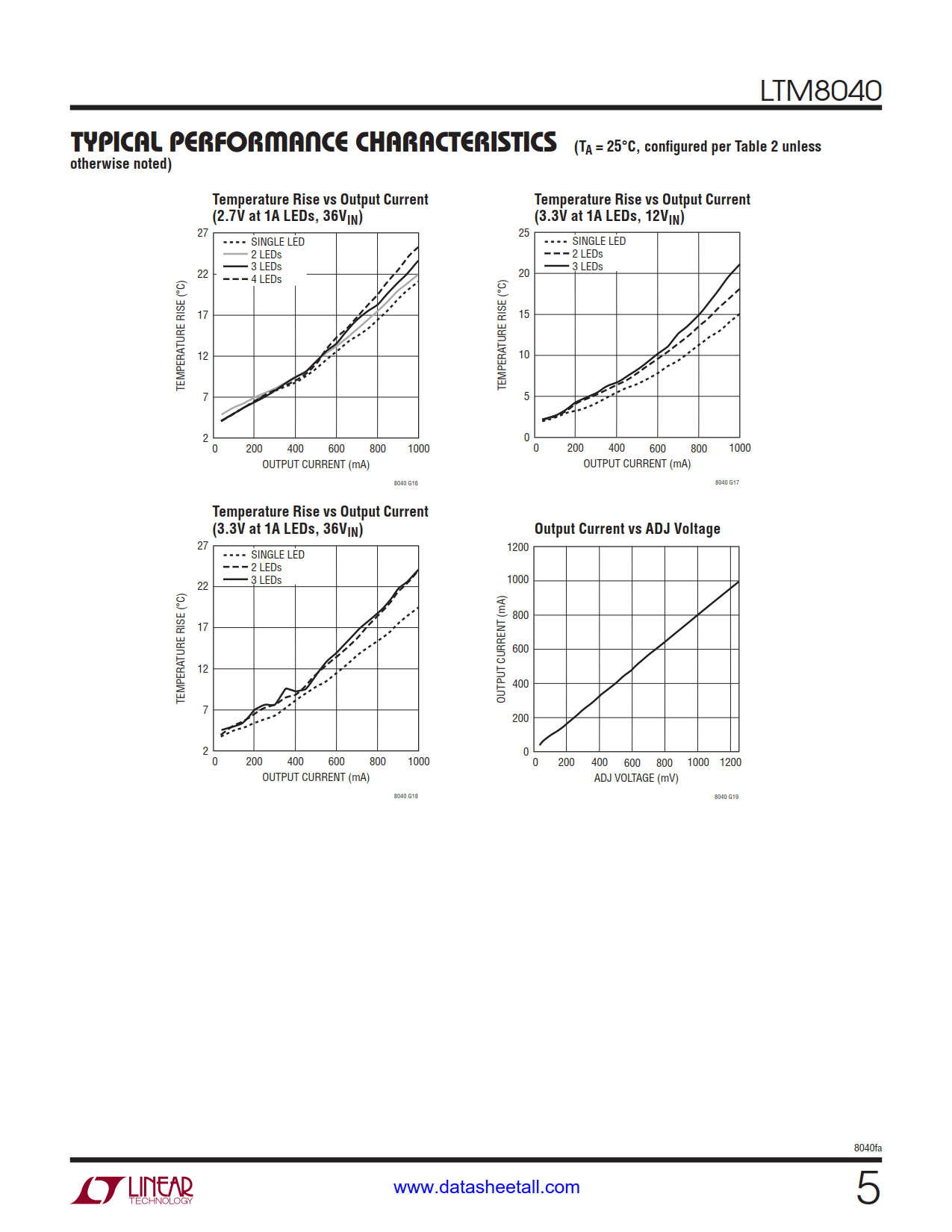

LTM8040 Datasheet(Picture)

LTM8040 Features

  • True Color PWM Delivers Constant Color with 250:1 Dimming Ratio
  • Wide Input Range: 4V to 36V
  • Up to 1A LED Current
  • Adjustable Control of LED Current
  • High Output Current Accuracy is Maintained Over a Wide Range from 35mA to 1A
  • Open LED and Short-Circuit Protection
  • Grounded LED Cathode Connection
  • Small Footprint (15mm × 9mm × 4.32mm) Surface Mount LGA Package

LTM8040 Applications

  • Automotive and Avionic Lighting
  • Architectural Detail Lighting
  • Display Backlighting
  • Constant Current Sources

LTM8040 Description

The LTM8040 is a fixed frequency 1A step-down DC/DC μModule® (power module) regulator designed to operate as a constant current source. Internal circuitry monitors the output current to provide accurate current regulation, which is ideal for driving high current LEDs. High output current accuracy is maintained over a wide current range, from 35mA to 1A, allowing a wide dimming range over an output voltage range of 2.5V to 13V. Unique PWM circuitry allows a dimming range of 250:1, avoiding the color shift normally associated with LED current dimming.

With its wide input range of 4V to 36V, the LTM8040 regulates a broad array of power sources, from 4-cell batteries and 5V logic rails to unregulated wall transformers, lead acid batteries and distributed power supplies.

The LTM8040 is packaged in a thermally enhanced, compact (15mm × 9mm × 4.32mm) molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8040 is Pb-free and RoHS compliant.
