LTM8024 Datasheet

LTM8024 Datasheet

40VIN, Dual 3.5A or Single 7A Silent Switcher μModule Regulator
Part No.: LTM8024
Page: 24 Pages
Size: 1727 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 14:45:52
DataSheet: Download

LTM8024 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8024EY#PBF Tray 168 LTM8024Y 3 88 -40°C ~ 125°C 88-Lead BGA (11.25mm x 9mm x 3.32mm)
LTM8024IY#PBF Tray 168 LTM8024Y 3 88 -40°C ~ 125°C 88-Lead BGA (11.25mm x 9mm x 3.32mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8024 Datasheet(PDF)

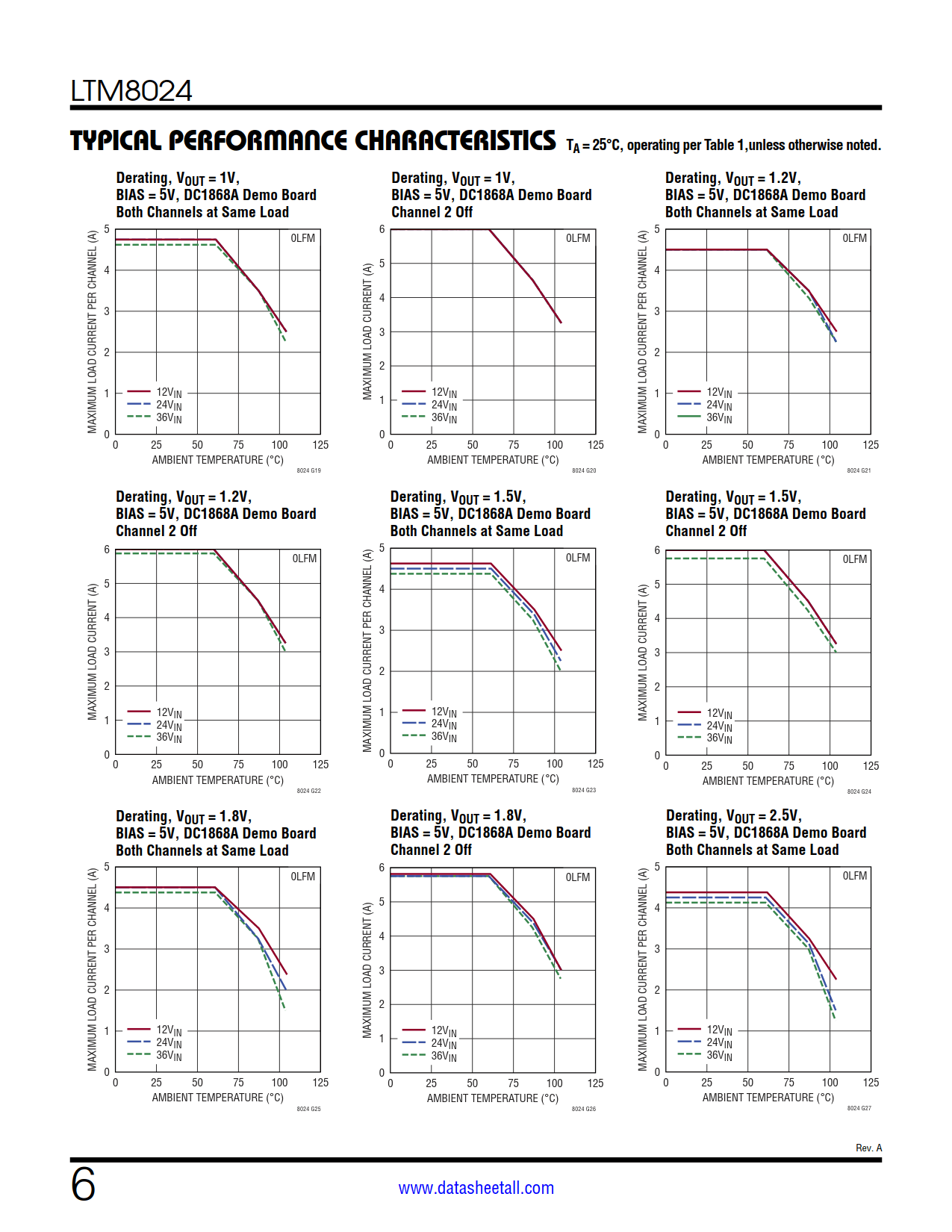

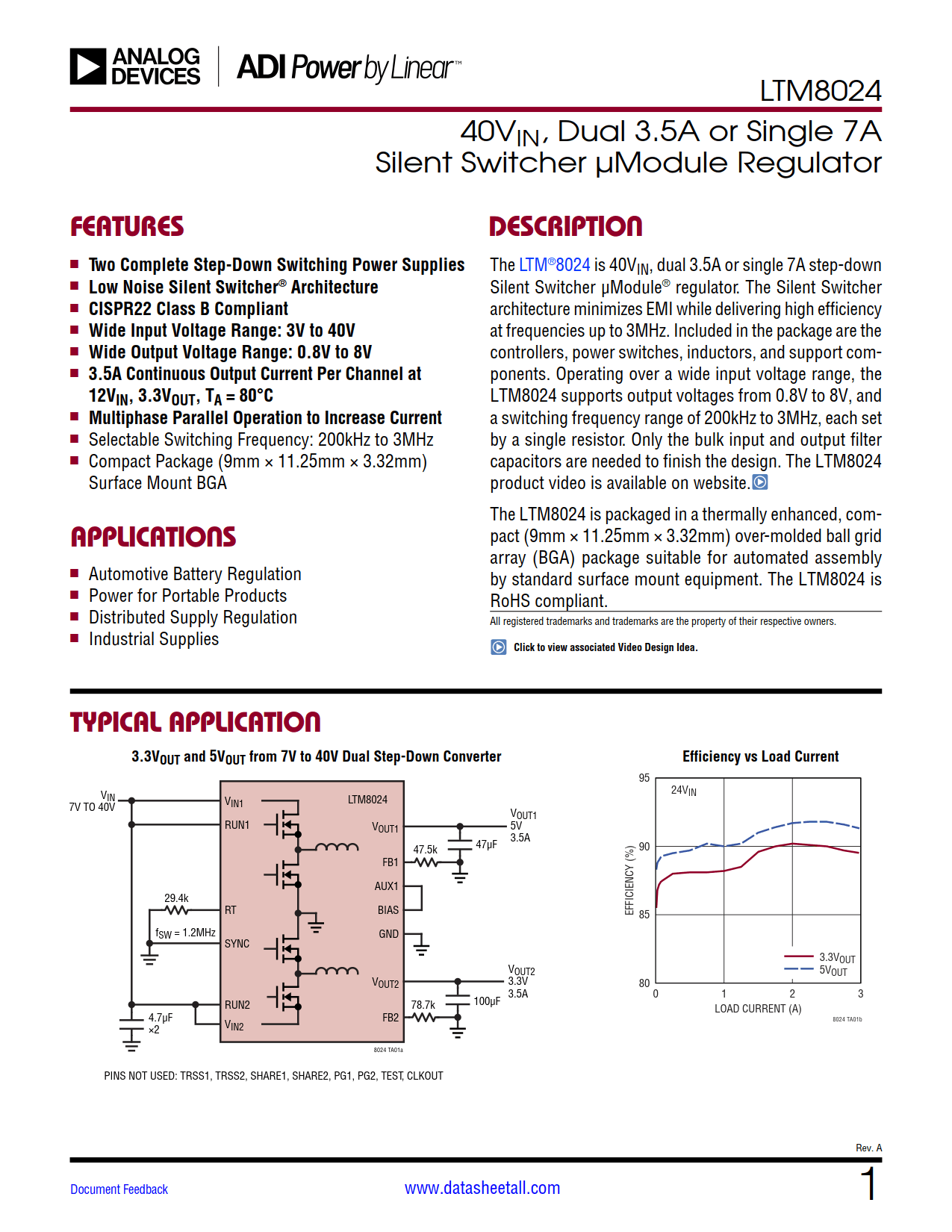

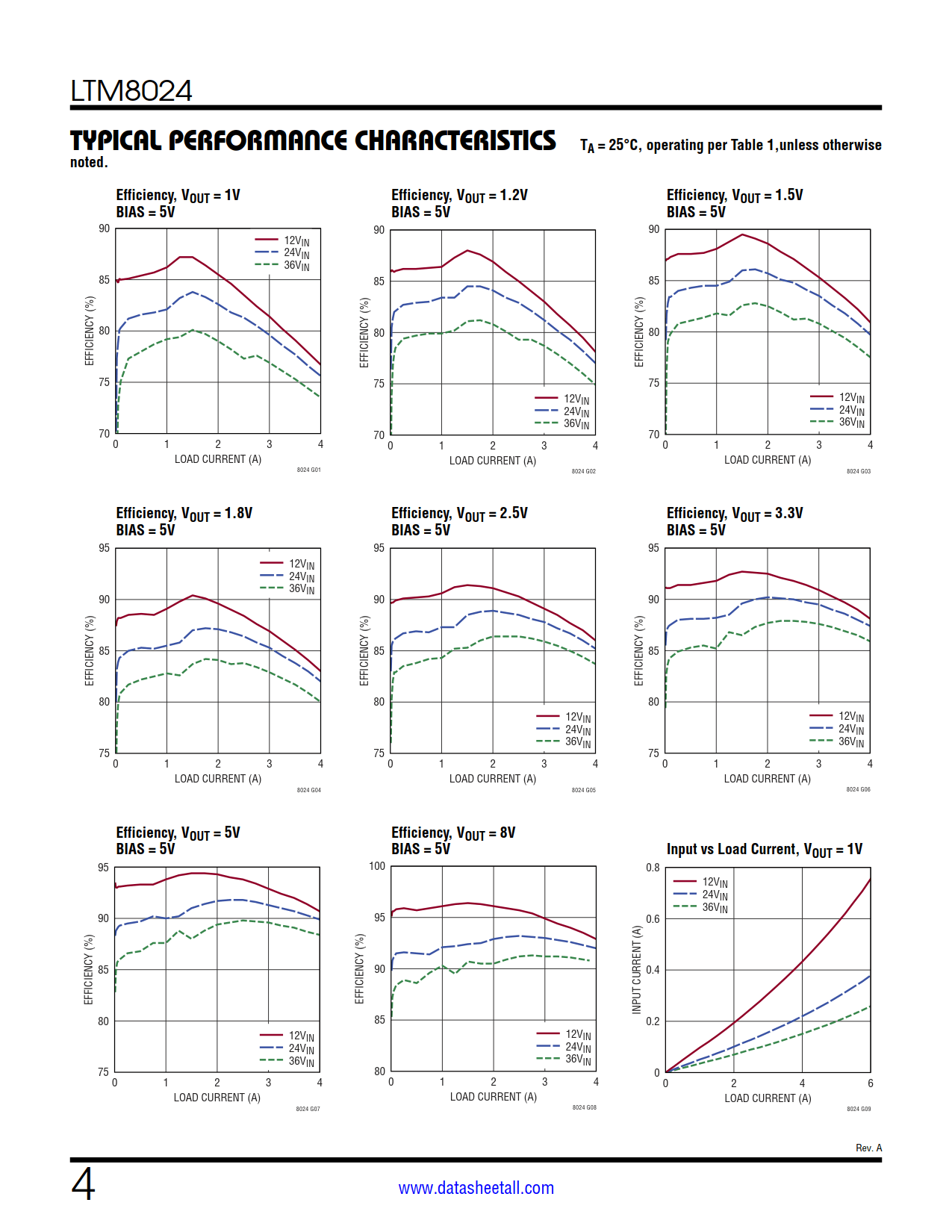

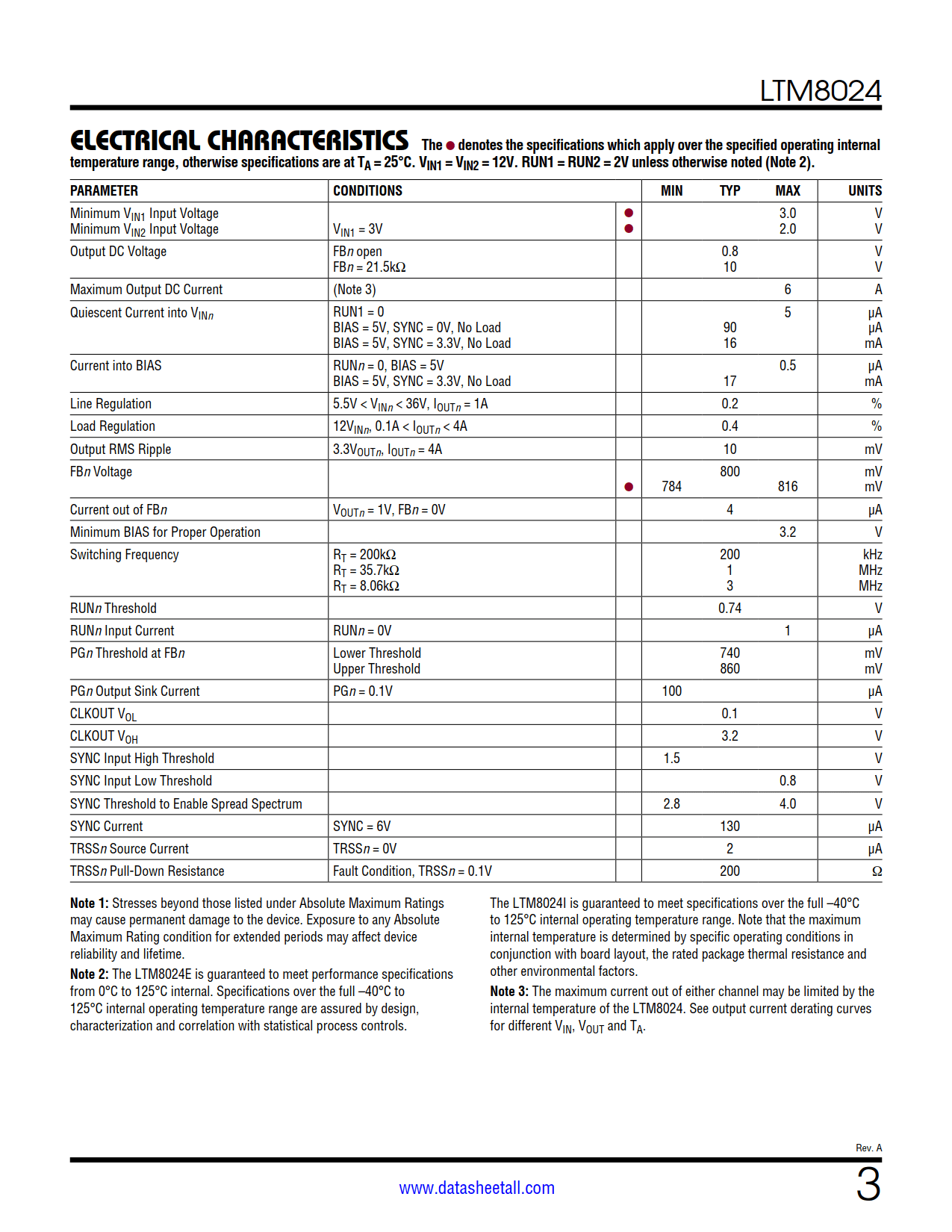

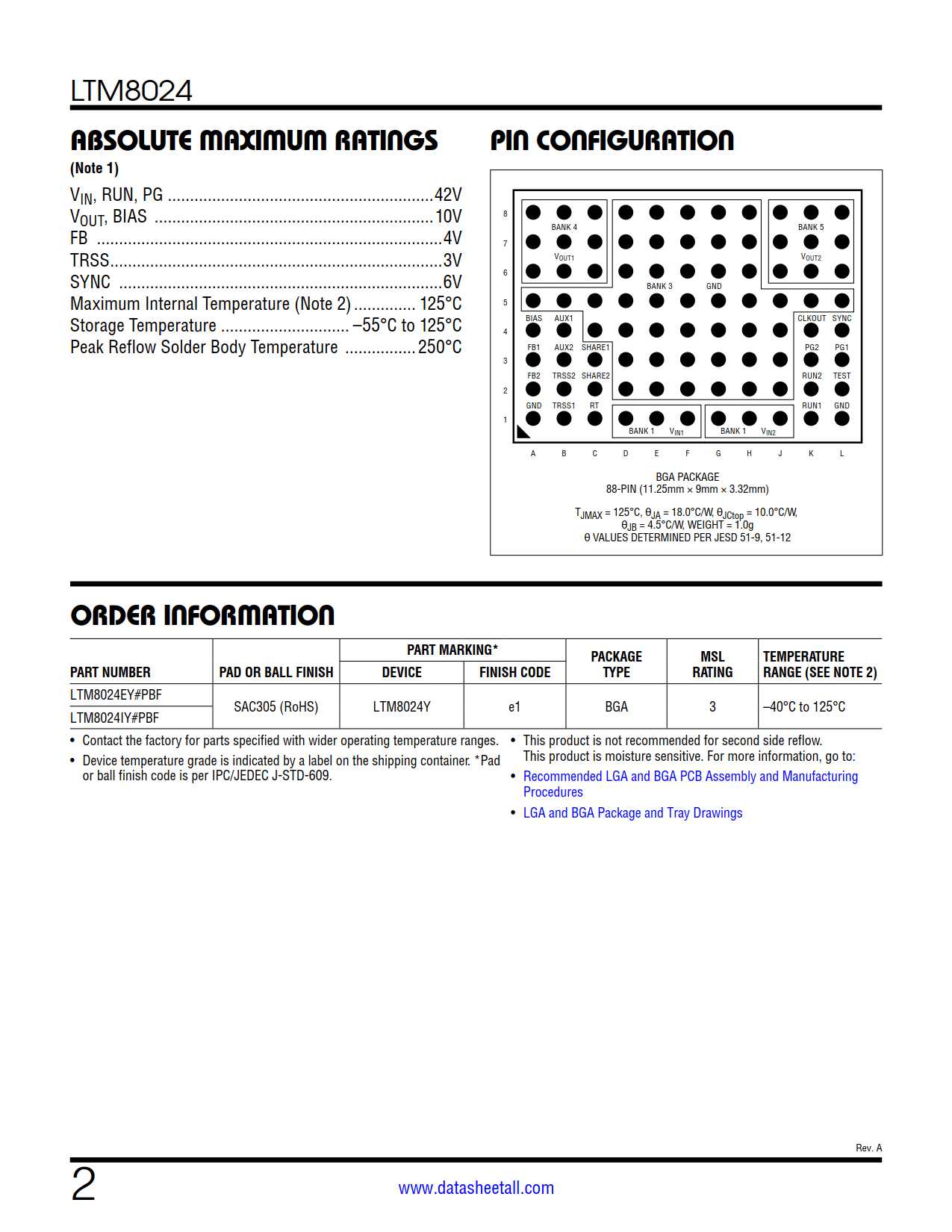

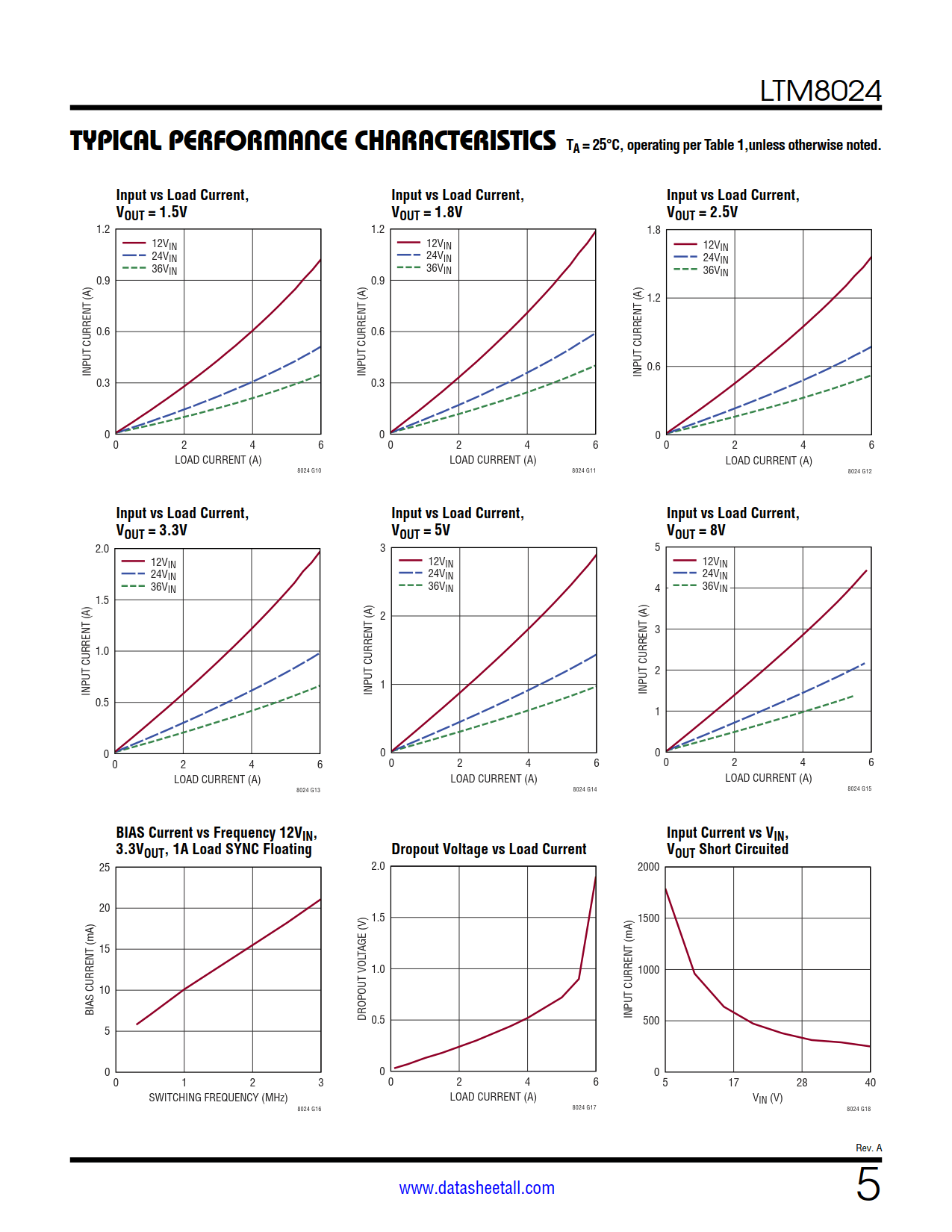

LTM8024 Datasheet(Picture)

LTM8024 Features

  • Two Complete Step-Down Switching Power Supplies
  • Low Noise Silent Switcher® Architecture
  • CISPR22 Class B Compliant
  • Wide Input Voltage Range: 3V to 40V
  • Wide Output Voltage Range: 0.8V to 8V
  • 3.5A Continuous Output Current Per Channel at 12VIN, 3.3VOUT, TA = 80°C
  • Multiphase Parallel Operation to Increase Current
  • Selectable Switching Frequency: 200kHz to 3MHz
  • Compact Package (9mm × 11.25mm × 3.32mm) Surface Mount BGA

LTM8024 Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies

LTM8024 Description

The LTM8024 is 40VIN, dual 3.5A or single 7A step-down Silent Switcher µModule® regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8024 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. The LTM8024 product video is available on website.

The LTM8024 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 3.32mm) over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8024 is RoHS compliant.
