LTM8022 Datasheet

LTM8022 Datasheet

1A, 36V DC/DC μModule (Power Module)

Part No.: LTM8022
Page: 20 Pages
Size: 254 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-09 10:13:48
DataSheet: Download

LTM8022 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8022EV#PBF Tray 210 LTM8022V 3 50 -40°C ~ 85°C 50-Pin (11.25mm × 9mm × 2.82mm) LGA
LTM8022IV#PBF Tray 210 LTM8022V 3 50 -40°C ~ 85°C 50-Pin (11.25mm × 9mm × 2.82mm) LGA
LTM8022MPV#PBF Tray 210 LTM8022MPV 3 50 -55°C ~ 125°C 50-Pin (11.25mm × 9mm × 2.82mm) LGA
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8022 Datasheet(PDF)

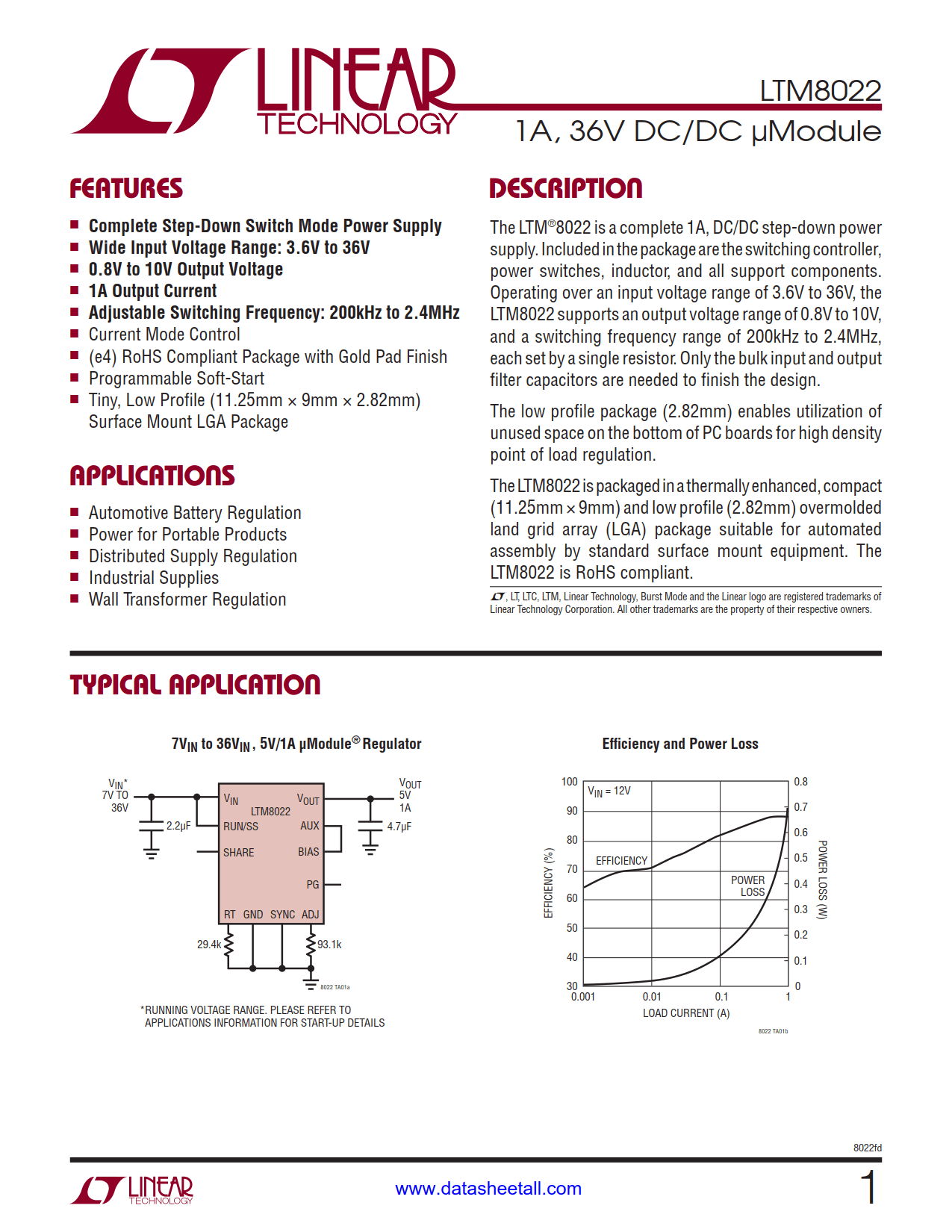

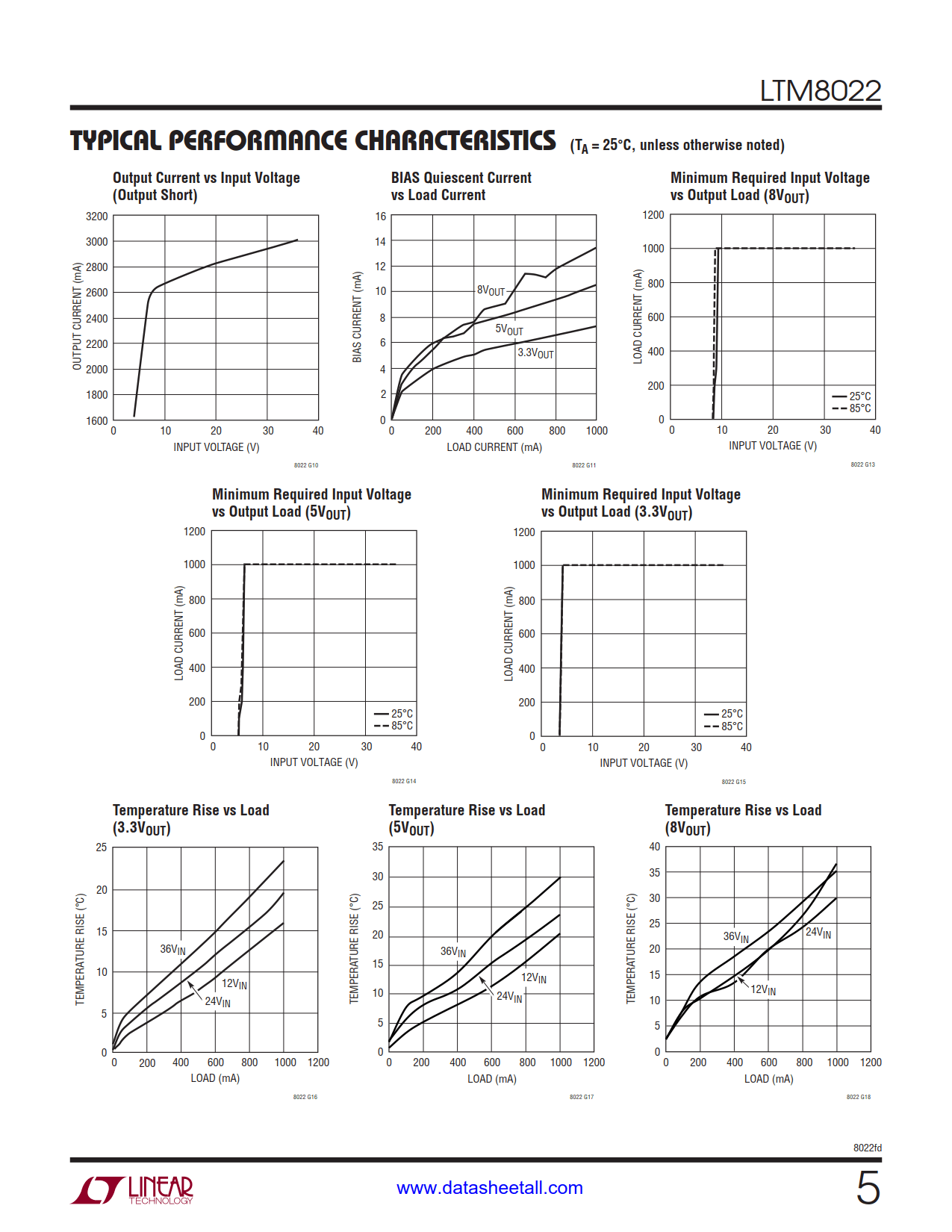

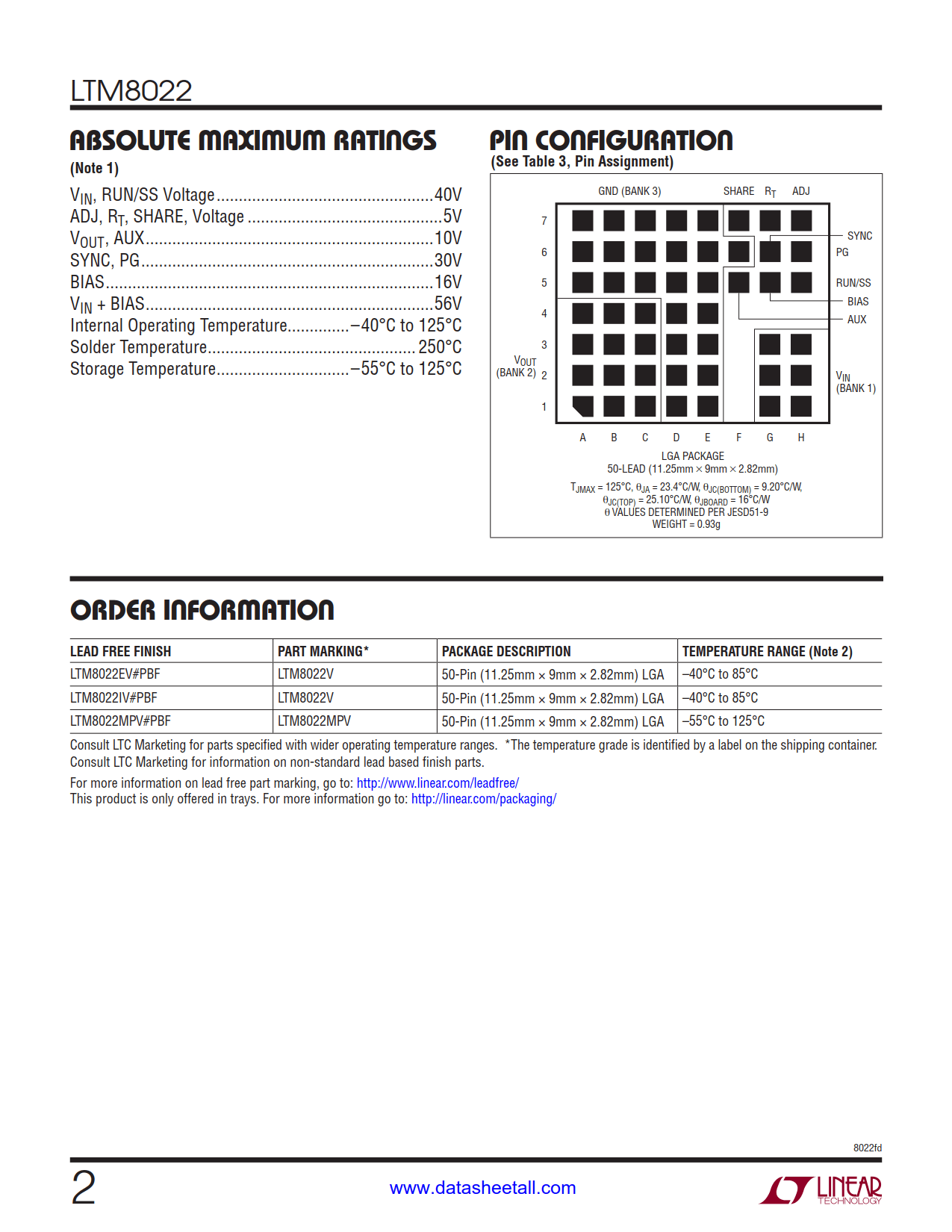

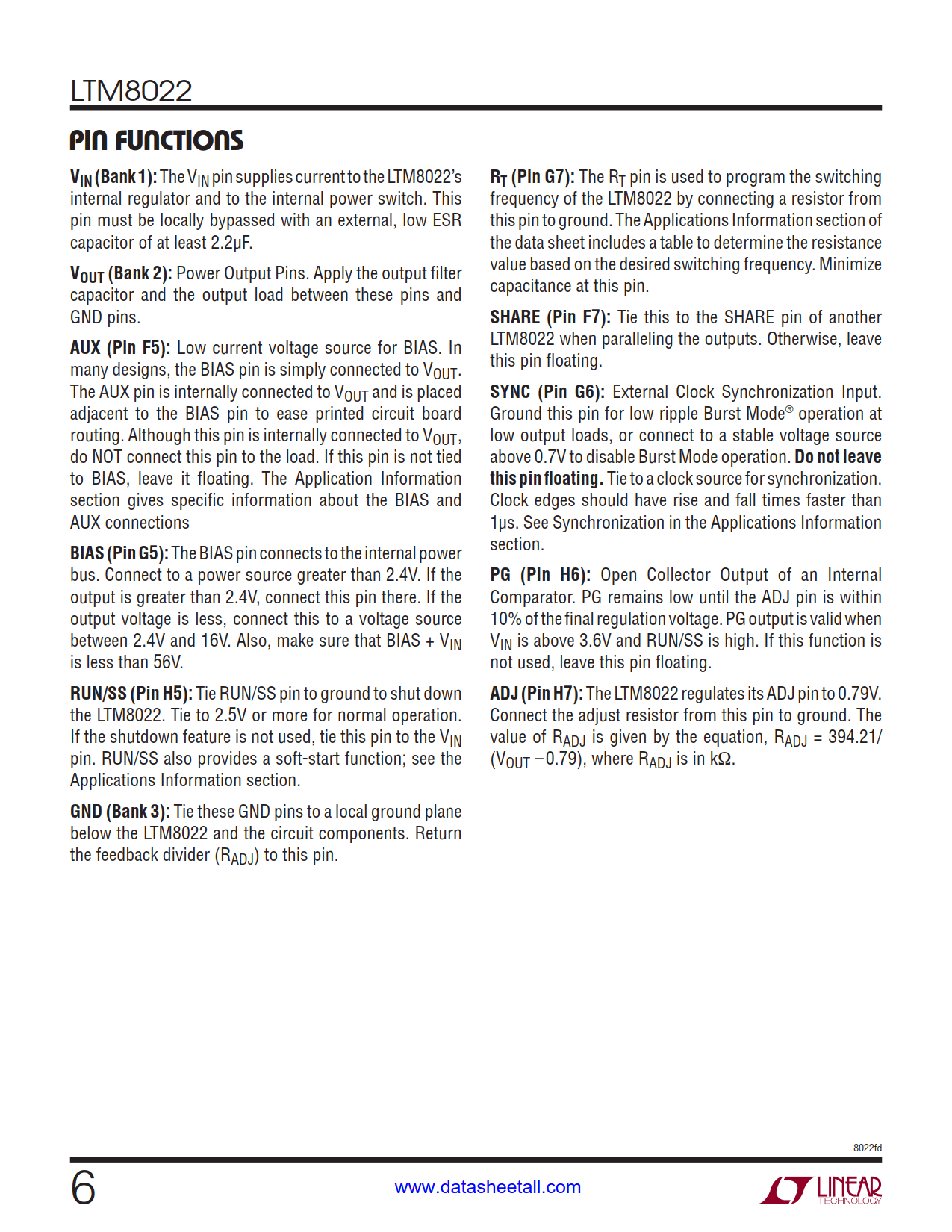

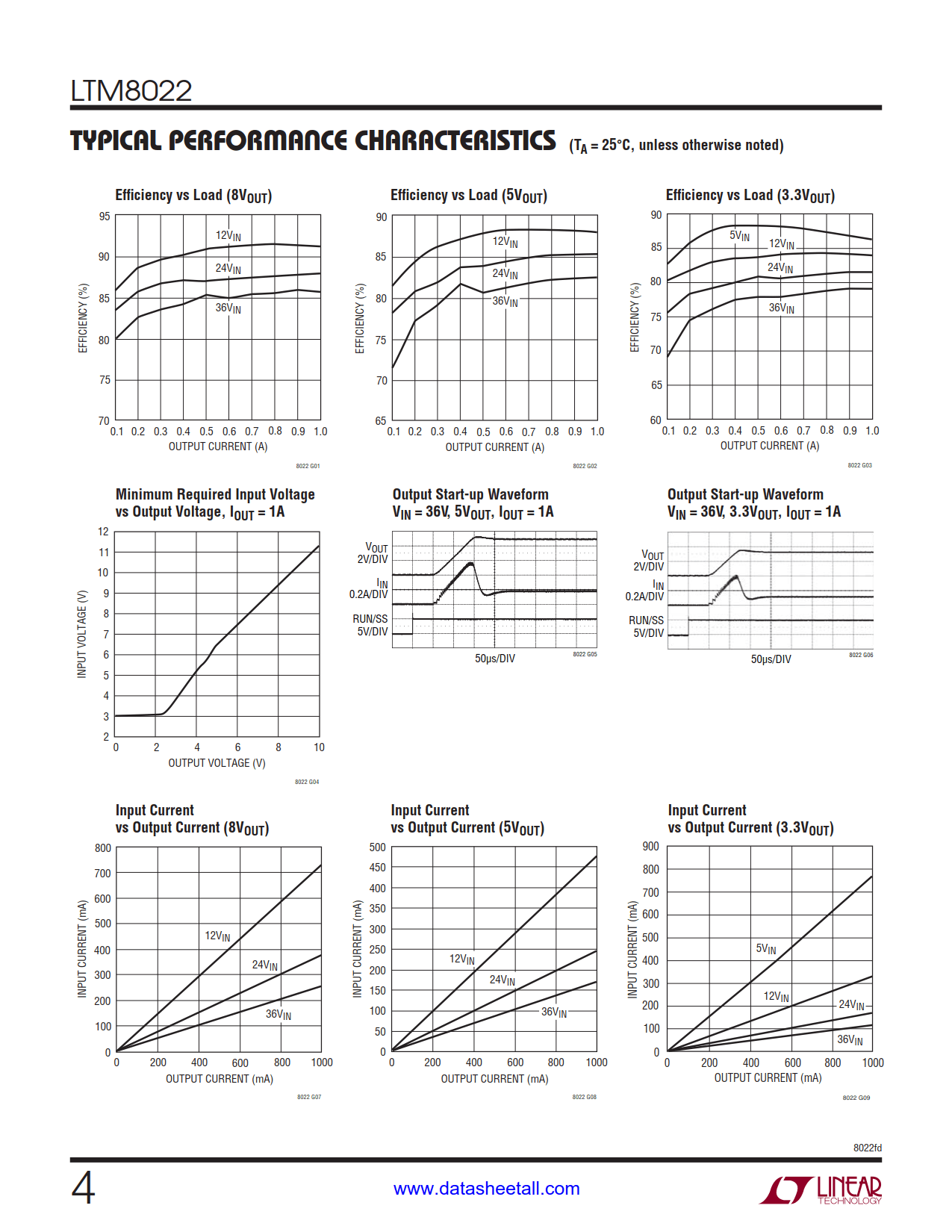

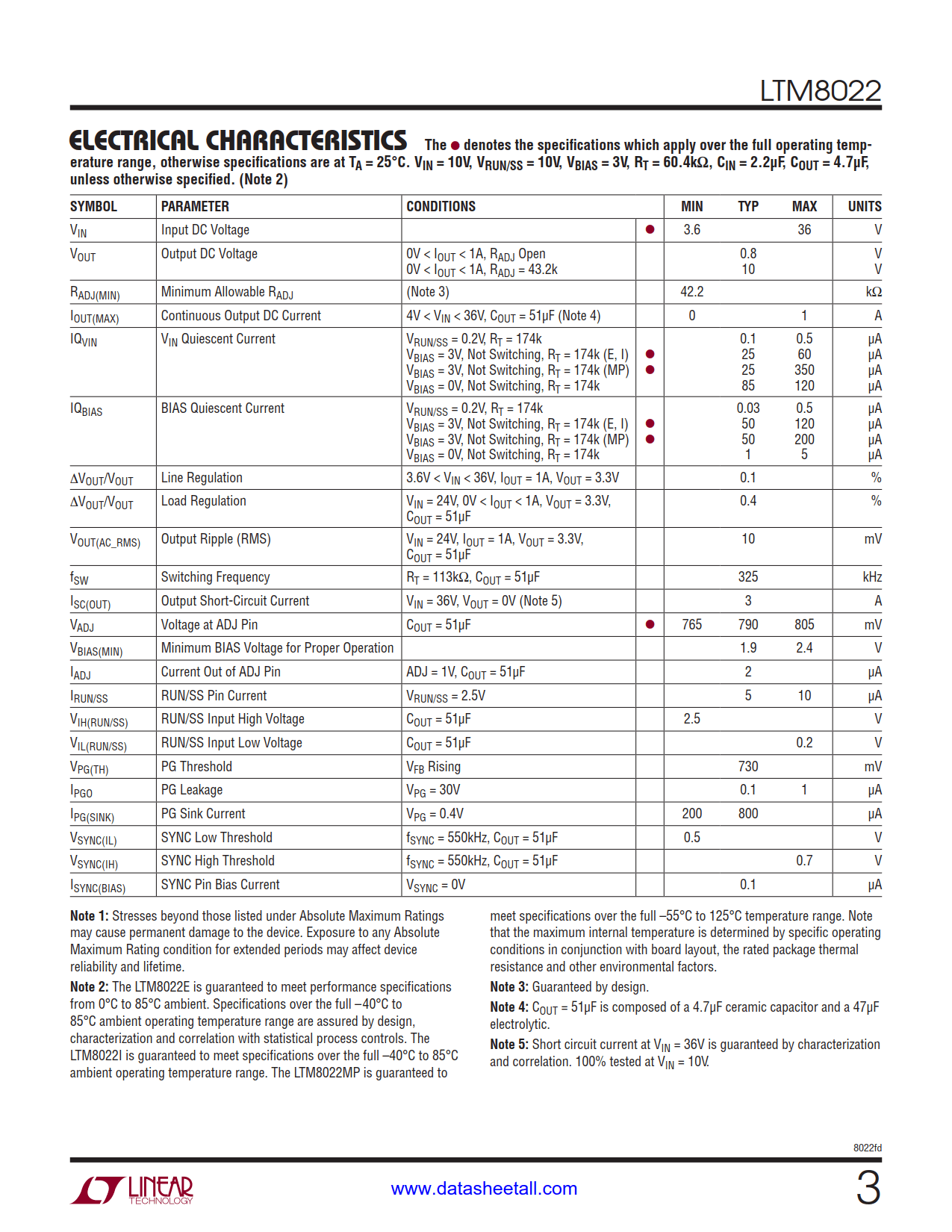

LTM8022 Datasheet(Picture)

LTM8022 Features

  • Complete Step-Down Switch Mode Power Supply
  • Wide Input Voltage Range: 3.6V to 36V
  • 0.8V to 10V Output Voltage
  • 1A Output Current
  • Adjustable Switching Frequency: 200kHz to 2.4MHz
  • Current Mode Control
  • (e4) RoHS Compliant Package with Gold Pad Finish
  • Programmable Soft-Start
  • Tiny, Low Profile (11.25mm × 9mm × 2.82mm) Surface Mount LGA Package

LTM8022 Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation

LTM8022 Description

The LTM8022 is a complete 1A, DC/DC μModule (power module) step-down regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8022 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation.

The LTM8022 is packaged in a thermally enhanced, compact (11.25mm × 9mm) and low profile (2.82mm) overmolded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8022 is RoHS compliant.

LTM8022 Datasheet Related Parts
