LTM8003 Datasheet

LTM8003 Datasheet

40VIN, 3.5A Step-Down Silent Switcher μModule Regulator

Part No.: LTM8003
Page: 30 Pages
Size: 2528 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 15:14:03
DataSheet: Download

LTM8003 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM8003IY#PBF Tray 260 LTM8003 3 48 -40°C ~ 125°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
LTM8003HY#PBF Tray 260 LTM8003 3 48 -40°C ~ 150°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
LTM8003IY Tray 260 LTM8003 3 48 -40°C ~ 125°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
LTM8003HY Tray 260 LTM8003 3 48 -40°C ~ 150°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
LTM8003IY-3.3#PBF Tray 260 LTM8003-3.3 3 48 -40°C ~ 125°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
LTM8003HY-3.3#PBF Tray 260 LTM8003-3.3 3 48 -40°C ~ 150°C 48-Lead BGA (9mm x 6.25mm x 3.32mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM8003 Datasheet(PDF)

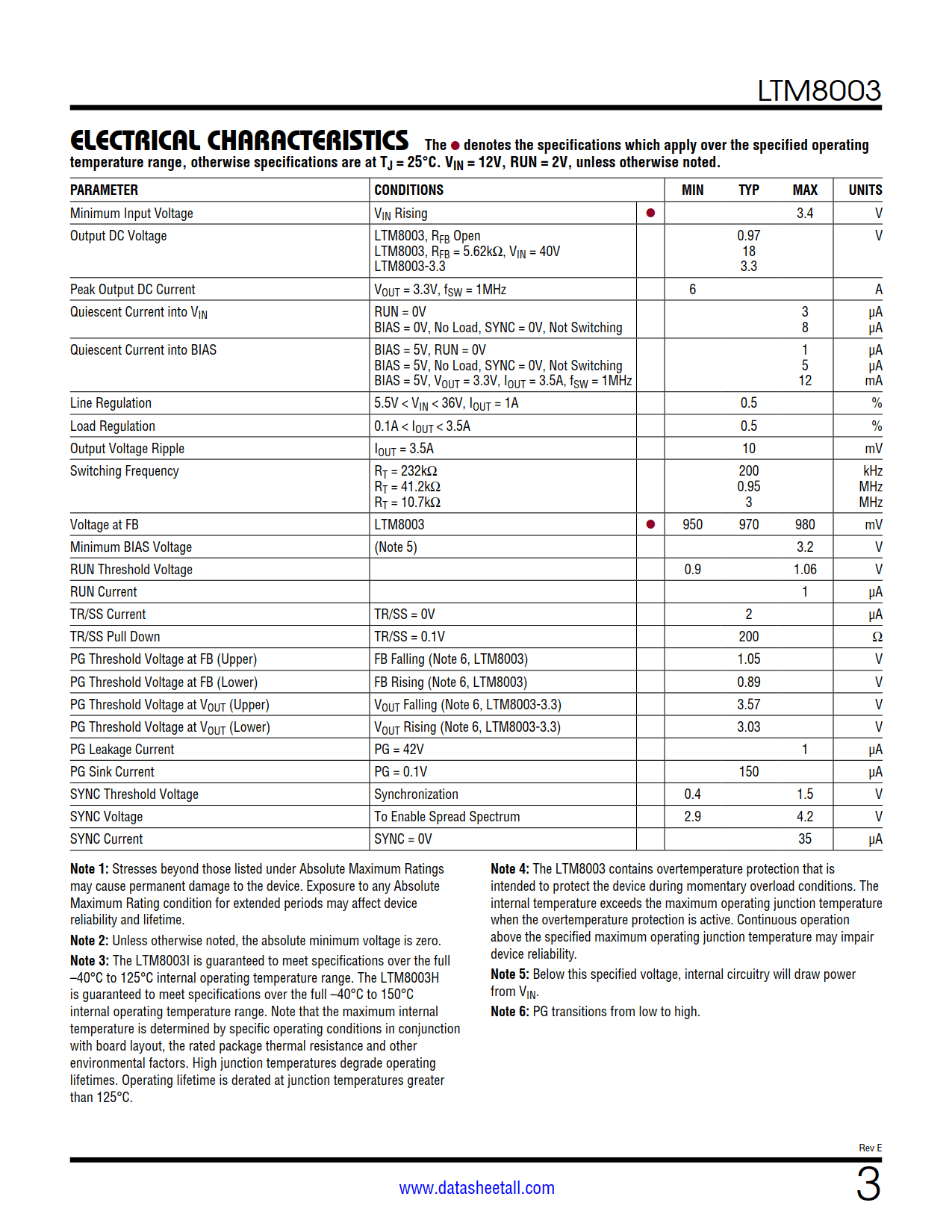

LTM8003 Datasheet(Picture)

LTM8003 Features

  • Complete Step-Down Switch Mode Power Supply
  • Low Noise Silent Switcher® Architecture
  • Wide Input Voltage Range: 3.4V to 40V
  • Wide Output Voltage Range: 0.97V to 18V
  • Wide Temperature Range: –40°C to 150°C (H-Grade)
  • 3.5A Continuous Output Current, 6A peak
  • See datasheet for additional features

LTM8003 Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Distributed Supply Regulation
  • Industrial Supplies
  • Wall Transformer Regulation

LTM8003 Description

The LTM8003 is a 40VIN, 6A peak, 3.5A continuous stepdown Silent Switcher μModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.4V to 40V, the LTM8003 supports an output voltage range of 0.97V to 18V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8003 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8003 is RoHS compliant.
