LTM4700 Datasheet

LTM4700 Datasheet

Dual 50A or Single 100A µModule Regulator with Digital Power System Management
Part No.: LTM4700
Page: 126 Pages
Size: 3805 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-12-06 21:32:41
DataSheet: Download

LTM4700 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4700EY#PBF Tray 66 LTM4700Y 4 330 -40°C ~ 125°C 330-Lead BGA (22mm x 15mm x 7.87mm)
LTM4700IY#PBF Tray 66 LTM4700Y 4 330 -40°C ~ 125°C 330-Lead BGA (22mm x 15mm x 7.87mm)
LTM4700IY Tray 66 LTM4700Y 4 330 -40°C ~ 125°C 330-Lead BGA (22mm x 15mm x 7.87mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4700 Datasheet(PDF)

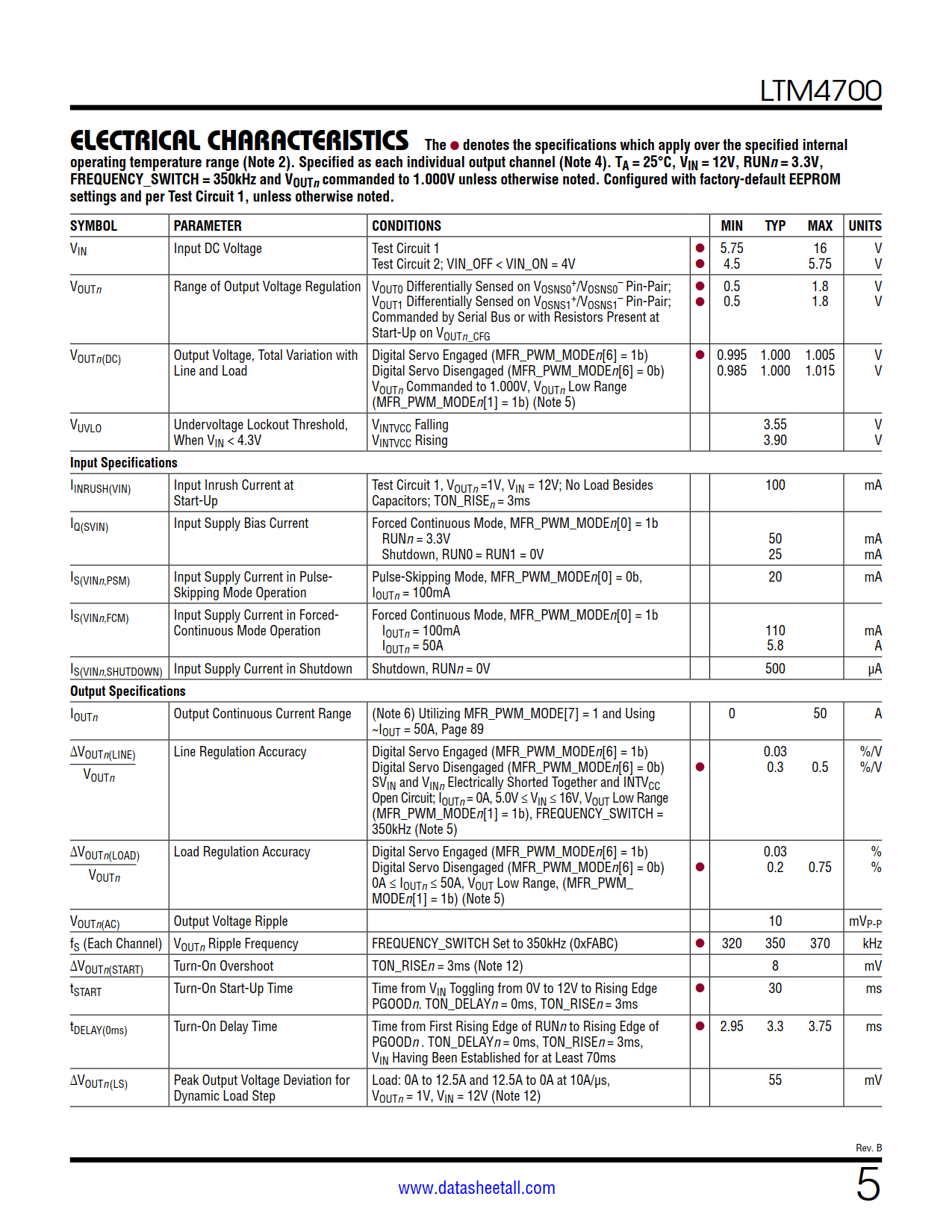

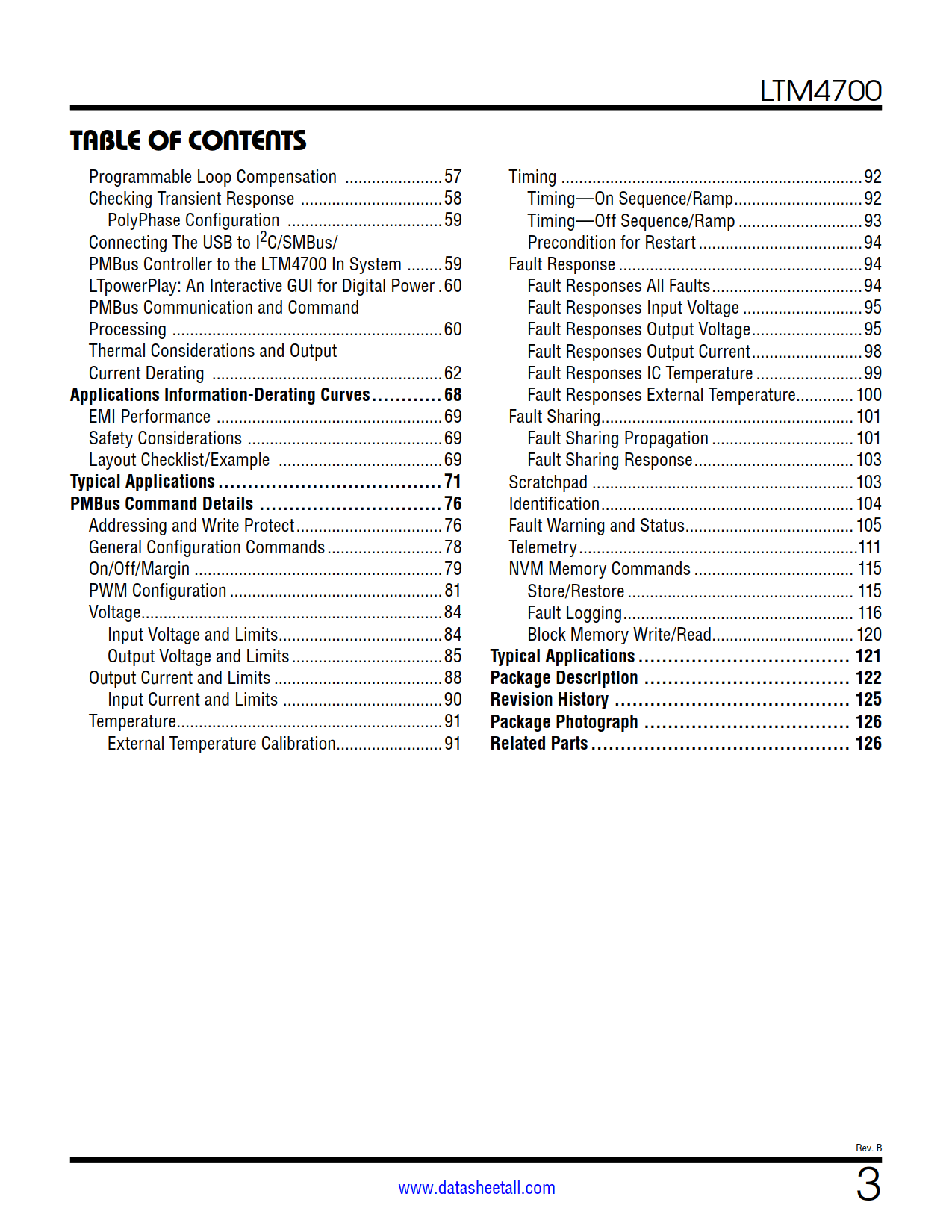

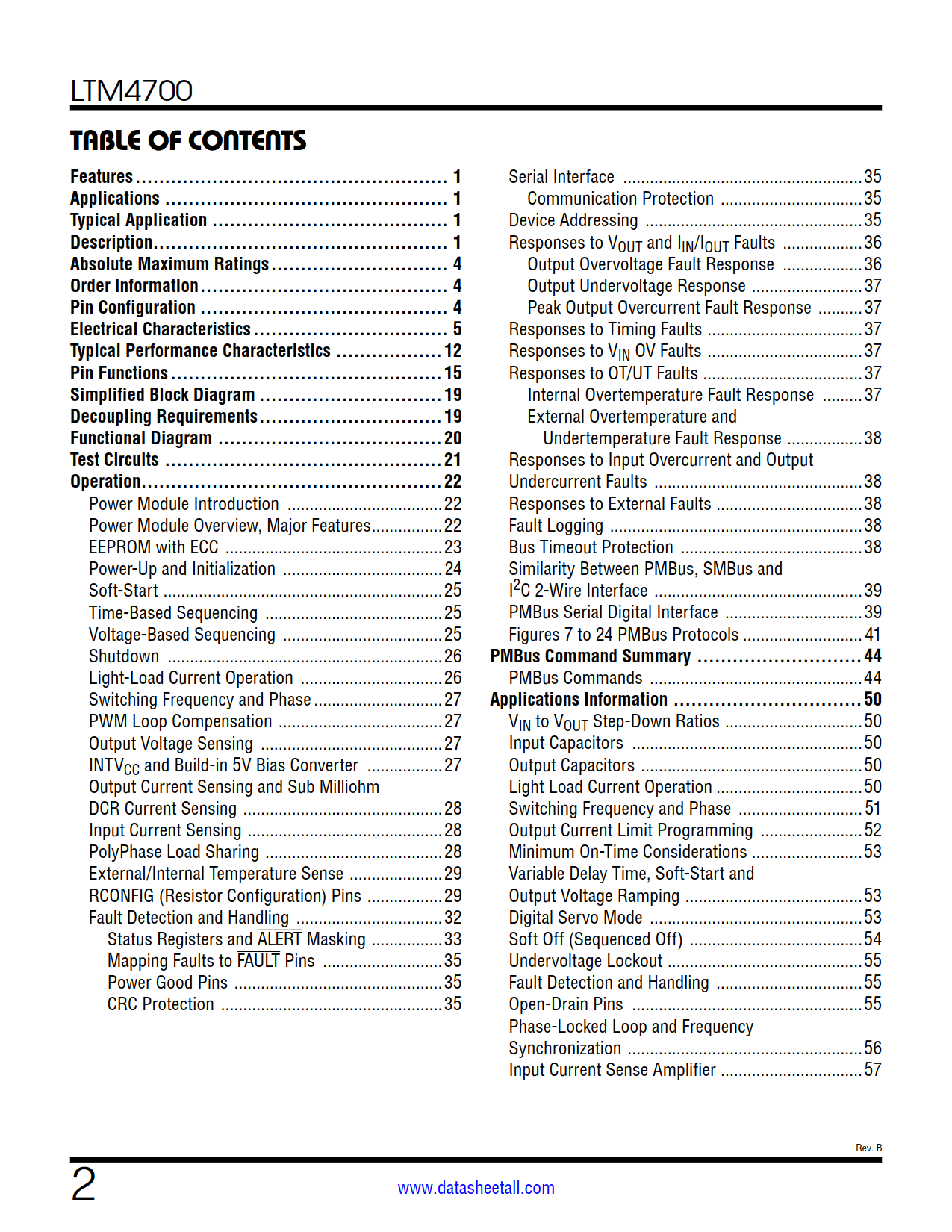

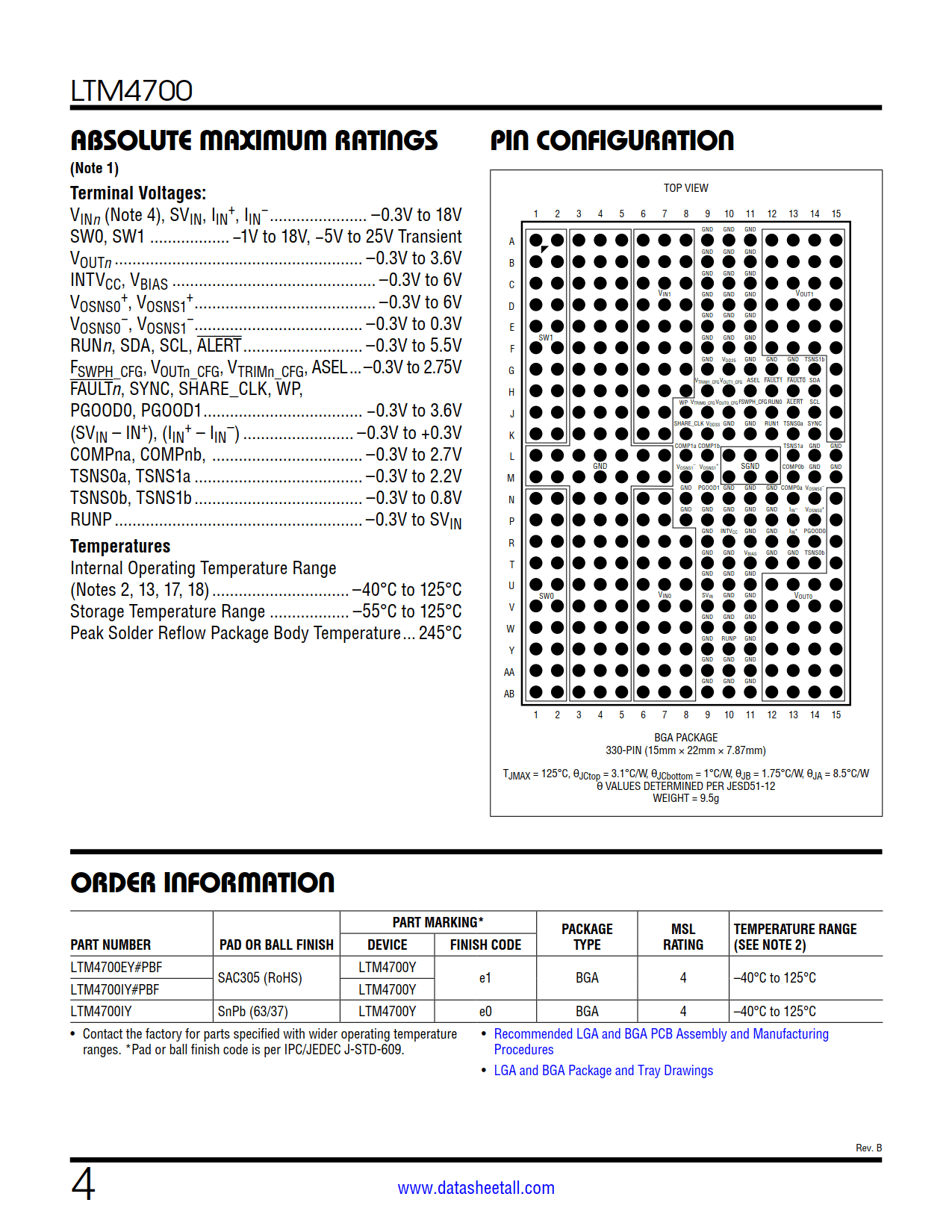

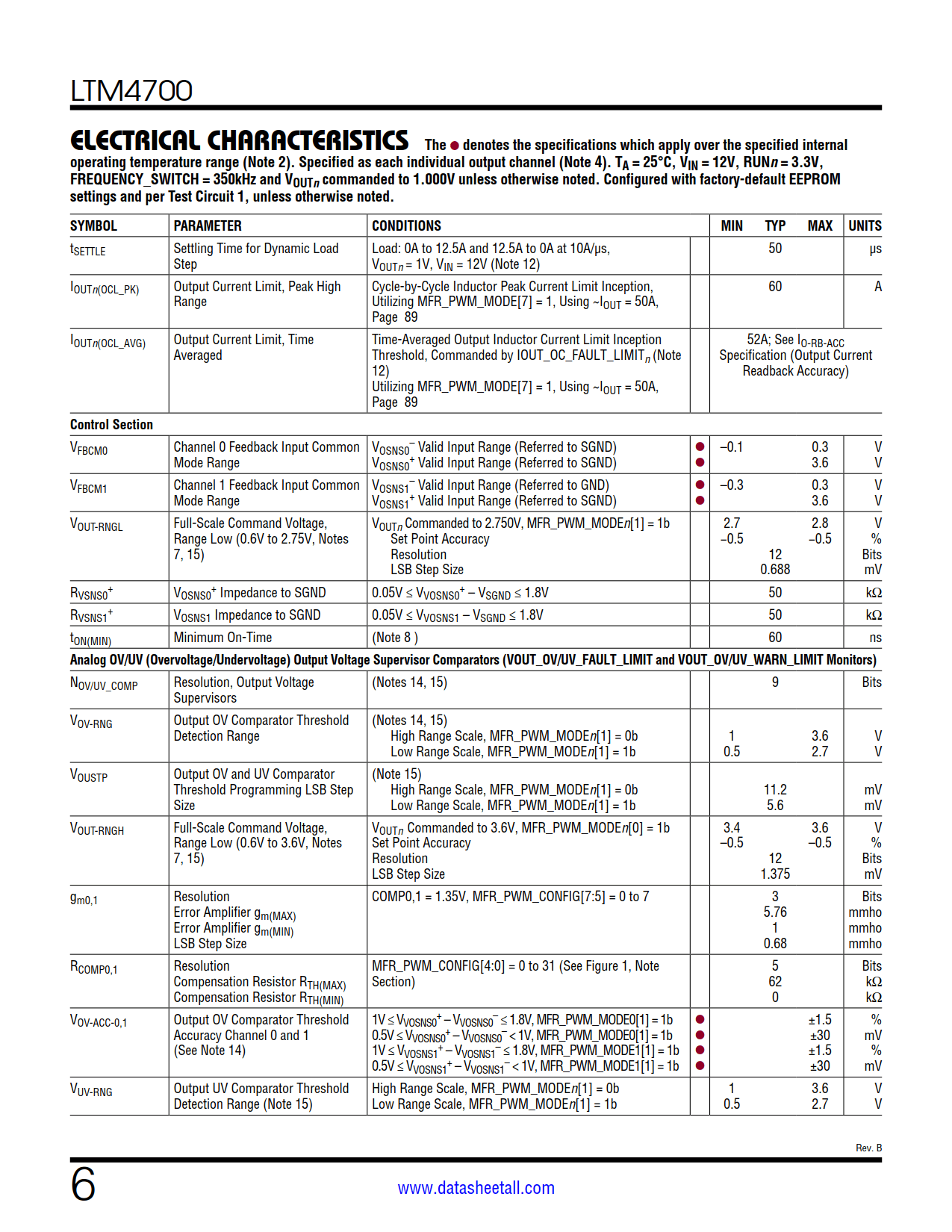

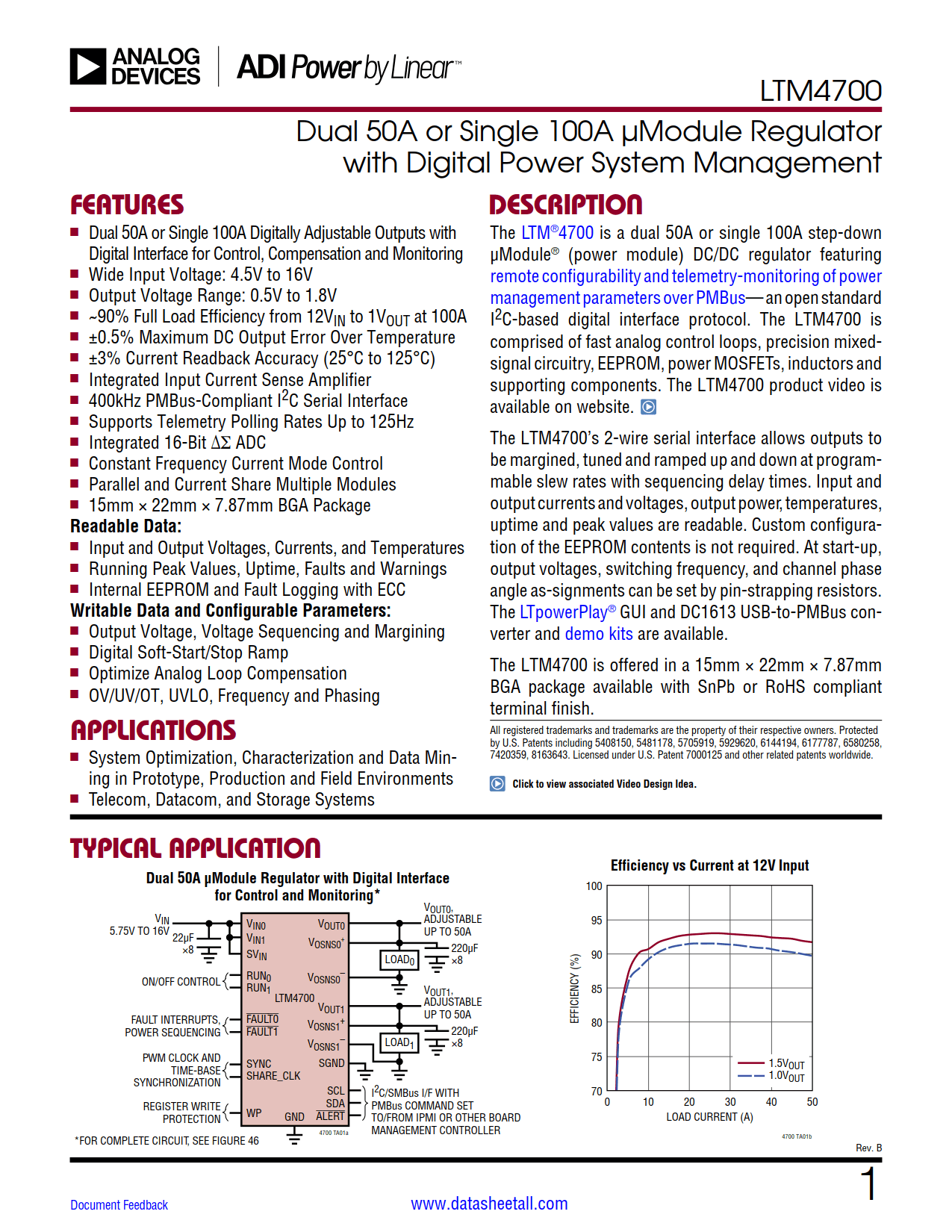

LTM4700 Datasheet(Picture)

LTM4700 Features

  • Dual 50A or Single 100A Digitally Adjustable Outputs with Digital Interface for Control, Compensation and Monitoring
  • Wide Input Voltage: 4.5V to 16V
  • Output Voltage Range: 0.5V to 1.8V
  • ~90% Full Load Efficiency from 12VIN to 1VOUT at 100A
  • ±0.5% Maximum DC Output Error Over Temperature
  • ±3% Current Readback Accuracy (25°C to 125°C)
  • Integrated Input Current Sense Amplifier
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Supports Telemetry Polling Rates Up to 125Hz
  • Integrated 16-Bit ∆Σ ADC
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Multiple Modules
  • 15mm × 22mm × 7.87mm BGA Package
  • Readable Data:
    • Input and Output Voltages, Currents, and Temperatures
    • Running Peak Values, Uptime, Faults and Warnings
    • Internal EEPROM and Fault Logging with ECC
  • Writable Data and Configurable Parameters:
    • Output Voltage, Voltage Sequencing and Margining
    • Digital Soft-Start/Stop Ramp
    • Optimize Analog Loop Compensation
    • OV/UV/OT, UVLO, Frequency and Phasing

LTM4700 Applications

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
  • Telecom, Datacom, and Storage Systems

LTM4700 Description

The LTM4700 is a dual 50A or single 100A step-down µModule® (power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus— an open standard I2C-based digital interface protocol. The LTM4700 is comprised of fast analog control loops, precision mixed signal circuitry, EEPROM, power MOSFETs, inductors and supporting components. The LTM4700 product video is available on website.

The LTM4700's 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.

The LTM4700 is offered in a 15mm × 22mm × 7.87mm BGA package available with SnPb or RoHS compliant terminal finish.

LTM4700 Datasheet Related Parts

Part Number Description
LTM4675 Datasheet Dual 9A or Single 18A Step-Down μModule Regulator with Digital Power System Management
LTM4686 Datasheet Ultrathin Dual 10A or Single 20A μModule Regulator with Digital Power System Management
LTM4676A Datasheet Dual 13A or Single 26A Step-Down μModule Regulator with Digital Power System Management
LTM4677 Datasheet Dual 18A or Single 36A Step-Down μModule Regulator with Digital Power System Management
LTM4678 Datasheet Dual 25A or Single 50A μModule Regulator with Digital Power System Management
